EK 3134 - Egg cooker SEVERIN - Free user manual and instructions

Brand	Severin
Model	EK 3134
Product type	Egg cooker
Capacity	Up to 12 eggs
Power supply	220-240 V ~ 50/60 Hz
Power	400 W (estimated)
Dimensions (approx.)	20 x 20 x 20 cm
Weight (approx.)	1 kg
Cooking functions	Soft-boiled, medium, hard
Audible signal	Yes, when cooking is complete
Automatic shut-off	Yes, after cycle
Included accessories	Measuring cup with egg piercer, basket
Water tank material	Heat-resistant plastic
Safety	Automatic shut-off, hot steam (caution), hot surface
Maintenance	Clean with damp cloth, descale with vinegar
Spare parts	Basket, lid, measuring cup, egg piercer
Repairability	Authorized after-sales service (addresses in manual)
Warranty	2 years, material and manufacturing defects
Certifications	CE

Frequently Asked Questions - EK 3134 SEVERIN

How to use the Severin EK 3134 egg cooker?

Fill the measuring cup with cold water and pour it into the heating tank. Pierce the rounded end of the eggs with the egg piercer, place them in the basket, close the lid. Select the desired doneness (soft-boiled, medium, hard) and press the on/off switch. An audible signal indicates the end of cooking. Turn off and unplug before opening the lid.

How much water to use for the Severin EK 3134?

Use the provided measuring cup. Fill it completely with cold water for the desired number of eggs. The exact amount depends on the desired doneness: the marks on the selector correspond to medium-sized eggs.

How to clean the Severin EK 3134 egg cooker?

Unplug and let it cool down. Do not immerse the appliance. Wipe the heating tank with a damp cloth. For descaling, use a mixture of water and vinegar, then run a cycle with clear water. Clean the basket and lid with a slightly damp cloth.

Eggs crack during cooking, what to do?

Use the provided egg piercer to pierce the rounded end of each egg before cooking. This reduces the risk of cracking. Also ensure the eggs are at room temperature and the water is cold at the start.

How to descale the Severin EK 3134?

Mix equal amounts of water and white vinegar. Pour into the heating tank and run the appliance on a complete cycle. Then rinse by running a cycle with clear cold water. Do not use abrasive products.

What are the available doneness levels?

The selector has three positions: 'O' for soft-boiled, 'medium' and 'hard'. The times are preprogrammed for medium-sized eggs. You can adjust according to the number and size of the eggs.

What to do if the appliance does not turn on?

Check that the plug is properly inserted and the outlet works. Ensure the on/off switch is pressed. If the problem persists, contact Severin customer service.

How many eggs can be cooked at once?

The basket can hold up to 12 medium-sized eggs. Do not exceed this capacity to ensure even cooking.

Can the appliance be used unattended?

No, it is not recommended to leave the appliance unattended during operation. Always unplug after use and keep out of reach of children.

Where to find spare parts for the Severin EK 3134?

Contact Severin customer service or an authorized dealer. The addresses are provided in the manual. Spare parts include the basket, lid, measuring cup, and egg piercer.

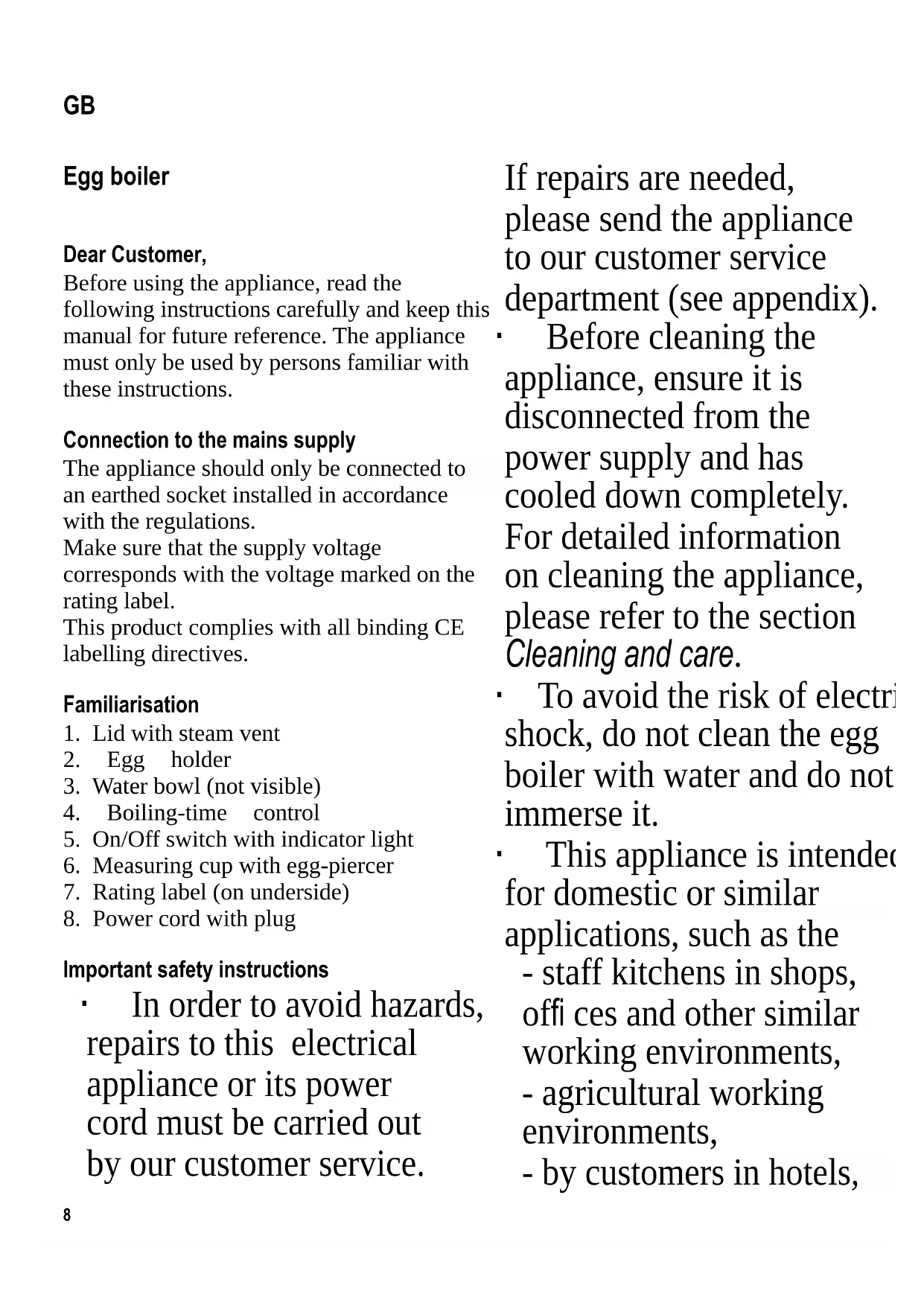

USER MANUAL EK 3134 SEVERIN

GB Instructions for use Egg boiler 8

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label.

This product complies with all binding CE labelling directives.

Familiarisation

1. Lid with steam vent
2. Egg holder
3. Water bowl (not visible)
4. Boiling-time control
5. On/Off switch with indicator light
6. Measuring cup with egg-piercer
7. Rating label (on underside)
8. Power cord with plug

Important safety instructions

In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service.

If repairs are needed, please send the appliance to our customer service department (see appendix).

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. For detailed information on cleaning the appliance, please refer to the section Cleaning and care.

• To avoid the risk of electric shock, do not clean the egg boiler with water and do not immerse it.
  This appliance is intended for domestic or similar applications, such as the - staff kitchens in shops, offies and other similar working environments, - agricultural working environments, - by customers in hotels,

motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• Be careful when using the egg-piercer, as there may be a risk of injury.

• The exterior surfaces and the water bowl become hot during use and will remain so for some time afterwards. Grip the hot appliance only by its handle.
• Caution: Hot steam may be emitted from the lid.
• Caution: Any misuse can cause severe personal injury.
  This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given

supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

Children must not be permitted to play with the appliance.
Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord must be kept well away from children under 8 at all times.

Caution: Keep any packaging materials well away from children - such materials are a potential source of danger, e.g. of suffocation.

• Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used:

even invisible damage may have adverse effects on the operational safety of the appliance. In this case, please contact our customer service.

• Do not leave the appliance unattended while in use.
• Keep the power cord away from any hot part of the appliance. Do not wind the cord around the appliance until it has completely cooled down.
  Always remove the plug from the wall socket

-in case of any malfunction,
- after use, and also
- before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
  During operation, the appliance must be placed on a level surface, resistant to heat and water.
• Do not position the appliance on or near hot surfaces or open fl ames such as hotplates or gas fl ames. Do not operate the appliance underneath sensitive objects or furniture such as wall-cupboards, as hot steam is emitted from the lid during use.
  No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Before using for the first time

Clean the water bowl, the egg holder and lid with a damp cloth.

How to use your egg boiler

• Fill the measuring cup completely with cold water and pour the measured quantity into the water bowl.
• Pierce the blunt end of each egg with the piercer; this will reduce the risk of the eggs cracking during boiling.
• Place the eggs into the holder, fit the holder onto the water bowl and put the lid on.
  Use the boiling-time control to select the desired degree of hardness:

-soft
- medium
- hard

• The markings refer to medium-size eggs. However, it is possible to adjust the degree of hardness infinitely, depending on the number and size of eggs to be boiled.
• Insert the plug into a suitable wall socket and use the On/Off switch to turn the egg boiler on. The indicator light comes on.
  A beep is heard once the pre-set cooking time for the desired hardness of the eggs has elapsed.
• Switch off the appliance. The indicator light goes out. Remove the plug from the wall socket.
• Open the lid. Caution: When the lid is opened, hot steam will escape.
• Remove the egg holder with the eggs from the bowl and place it immediately under cold running water. Note: if the eggs are not removed from the boiler without delay, they will continue to harden.

Cleaning and care

Always remove the plug from the wall socket, allow the appliance to cool down and pour out any remaining water before cleaning.
- To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
In order to prevent the polished surfaces from being damaged or scratched, do not use abrasives or harsh cleaning solutions.
- Wipe the water bowl with a damp cloth only.
- Any build-up of deposits on the water bowl can be removed using a solution of water and vinegar. Then let the appliance run through one boiling cycle using fresh cold water to clean it of any vinegar residue.
Thoroughly rinse the egg holder and wipe dry afterwards.
The lid may be wiped clean with a damp cloth.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

FR

Cuiseur àœufs

Chere Cliente, Cher client,

• in bed and breakfast

gasthuizen.

He MoITe RaIeBapKu H He IorpykaIte ee B Body.

• 3TOT электpondopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopnpopNP01006HbIX yCIOBnX, KaK, HApPIMep:

• B KuyhnyДЯперсона,
  pacnoJoxeHHbIX
  B Oocax IIN B
  dpynx KOMMepueckx
  PomeuHnX;
  -Впраздпразнгх, paCNoJoxKeHHbIX BCeJIbCKOJ MeCTHOCTN;

• NOCTOЯльцamn B OTeJx, MOTeJnx n B dpyrnx IOdo6hblx Mectax PpOxNBAHn;
  -В ГOTeBbIXДOMax CпpeДОCTaBЛeHnEmHouJIeRaИЗaВТpaKa.

CobIouaIte octopoxHocTb npn nCNoJIb3OBAHmN IrIbI dIy npOKaJIbIBaHnY ra, TaK KaK MoXHo NOpUHTb

TpaBMy.

He octabnIte BkIIOueHHbI np6op 6e3 npncMOTpa.
Cleinte 3a Tem, TTo6bI uHyp nHTaHnHe Kacalc HarpeBaUxxCy qAcTei np6opa I He HamaTbIBaIte ero Ha np6op, Noka OH He OCTbIeT.
Bcerda BbIHMaIte wTeNceIbHyIO BnIKy n3 po3eTKn:

• npn IIO6oH enoJaKe;
• NocJe IcNoJb3OBaHn;

• nepeed qncTkO npnbopa.

• Пи ИЗВЛЕЧЕНИ BUILКИ ИЗ CTEHHOI po3ETKII HIKORДа He TЯнITE 3a INPOBOД, a TOJbKO 3a BUILKY.
  Bo Bpempa6oTbI npnbopdoJxKeH CToRbHa pOBHO,TeNIOCTOIKOu N BOIOCTOIKOu NOBepXHOCTn.
  He yctaHaBJIbAaiTe npnbop Ha

ropyne NOBepxHocTn IIN B6IIN3N
ropynx NOBepxHOCTe INI IN OTKpbIToro
OrH, TaKnx, HApPIMep, KaK KOHOpKn
3JIeKTPnueCKo KyxOHHO INITbI INI
IIaMra3OBOINITbI. He nCNoJb3yIte
np6op IOd TAKIMN YCBCTBNTbHBIMN
nPedMetAMn INI PpeDMeTam Me6eIN,
KaK, HApPIMep, HAcTeHHbIE KyxOHHbIE
WkaΦbl, TaK KaN npN 3KcNpyatauIN
np60pa N3-NOd KpbIShKN BbIPbIBaETcR
ropyn nap.
I3ROBtJIb He HecET HnKaKoI OTBETCTBeHHOCTn 3a NOBpeXdEHne, BbI3BaHHOE HEnpaBnJbHOI 3KcPlyatauNei NIn HapUWeHnEm HaCTOaNX yka3aHn.

Ipeed nepBbIM npimHeHnem npnbopa

PpOtpnTe BnaXHO TkaHbIO EMKocTb DJI BODbl, NOCTaBky dIy IuN KpbIwKy.

IcnoIb3OBaHne IyueBapKn

HaonHnTe MehBcIcKaHcN BODoN 3aJIeHTe BEMKocTb HxKHOe KOJInueCTBO BODbI.
- Поколпгулгий тунов koheц яиca; зто пОЗВОЛТ снИЗNTь риСК раСтpeCKиВаняяи лрп Варke.
- ПоложиTeяиаHaпдстыку, установиTe пдстыку Ha EMKOCt b C BODОИн HabКоTiTe EMKOCt b KpbIшКоI.
3aatae npn nomou TaMepa HxHyIO CTeneHb BapKn Iu:
