DR15 - Radio HAMA - Free user manual and instructions

Product type	Digital radio DAB+/FM
Brand	Hama
Model	DR15
Power supply	Mains via AC adapter (included)
Antenna	Telescopic antenna
Display	Yes, information display
Main functions	DAB+, FM, presets, menu, clock, alarm (assumed)
Number of presets	10 (PRESET 1, PRESET 2, PRESET)
Control	Buttons and multi-function rotary knob
Headphone jack	Yes
Update port	Yes (Update Port)
Menu languages	English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Swedish, Slovak, Czech
Cleaning	Slightly damp, lint-free cloth, without harsh detergent
Safety	Do not open, keep out of reach of children, use in a dry place
Package contents	DR15 radio, AC adapter, user manual
Usage	Domestic, non-commercial
Operating temperature	Moderate climate (indoor)
Disposal	Do not dispose of with household waste, recycle in accordance with the WEEE directive

Frequently Asked Questions - DR15 HAMA

How to turn the Hama DR15 radio on and off?

Press the [POWER] button to turn the device on or off. Make sure the AC adapter is plugged in.

How to change the menu language on the DR15?

Press [MENU], select 'System' then 'Language'. Choose your language from the available options (English, German, etc.) and confirm with [ENTER].

How to search for DAB+ and FM stations?

On first start-up, the automatic search starts. For manual search, use the rotary knob to navigate the menu and select 'Search' or 'Scan' in DAB+ or FM mode.

How to save a station as a preset?

Select the desired station, then press and hold a [PRESET 1], [PRESET 2] or [PRESET] button until a beep sounds. The station is saved.

What to do if the radio does not turn on?

Check that the AC adapter is properly connected to the wall outlet and the radio's power port. Try another outlet. If the problem persists, contact Hama customer service.

How to clean the Hama DR15 radio?

Use a soft, lint-free cloth slightly dampened with water. Do not use harsh detergents or chemicals. Unplug the device before cleaning.

Can I use batteries in the radio?

No, the DR15 radio only works on mains power via the supplied adapter. No battery compartment is provided.

How to adjust the volume on the DR15?

Turn the rotary knob marked [VOLUME] to increase or decrease the volume. On the playback screen, press the button several times to display information such as date or channel.

Where to find the downloadable version of the user manual?

You can download the PDF manual for free from www.hama.com by searching for item number 00054866.

How to reset the radio to factory settings?

Press [MENU], go to 'System' then 'Reset' or 'Factory Reset'. Confirm with [ENTER]. Note: this erases all presets.

USER MANUAL DR15 HAMA

Portable Digital Radio

info OK P1 P2 menu preset mode volume tuning

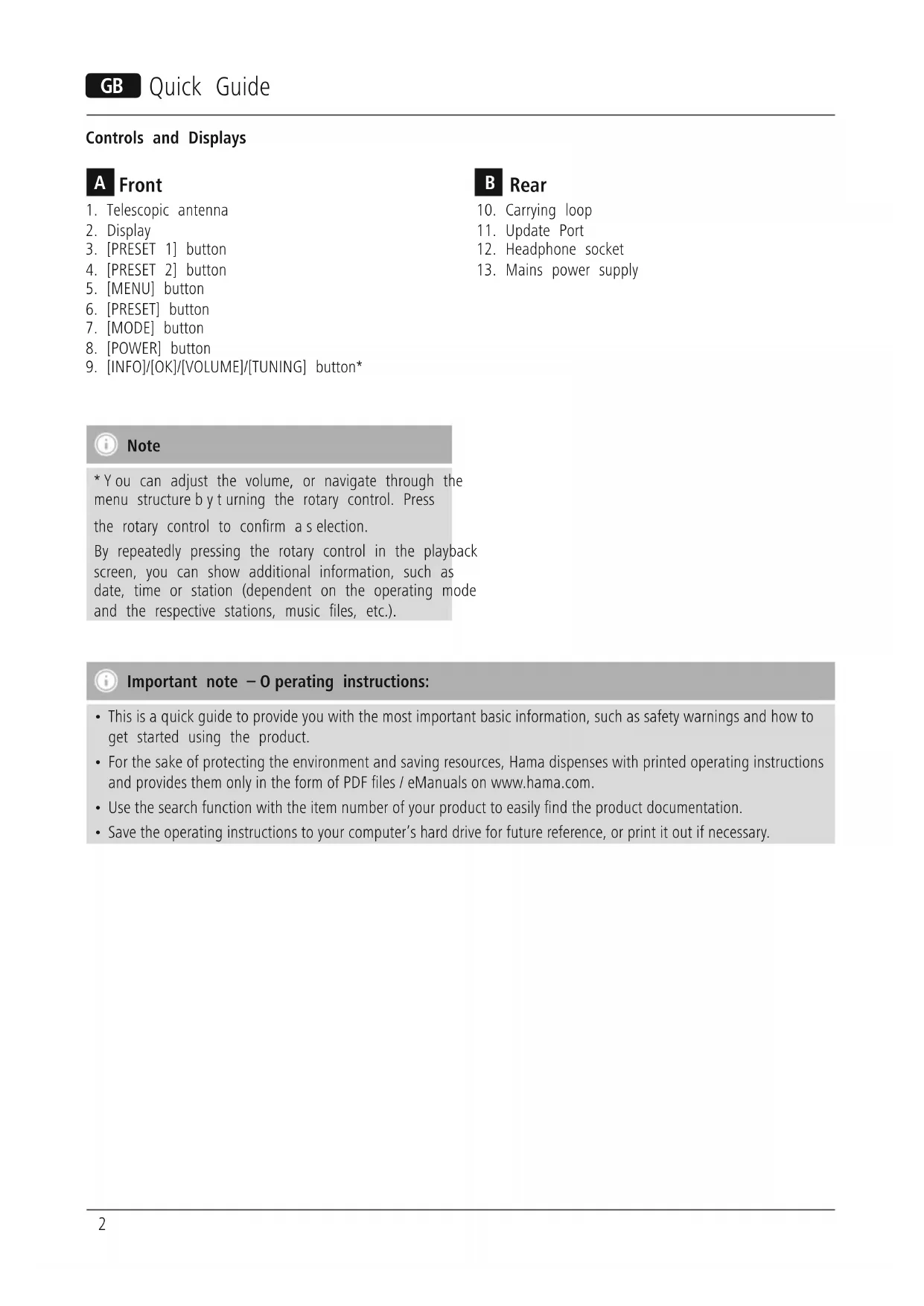

Quick Guide

Kurzanleitung

Controls and Displays

A Front

1. Telescopic antenna
2. Display
3. [PRESET 1] button
4. [PRESET 2] button
5. [MENU] button
6. [PRESET] button
7. [MODE] button
8. [POWER] button
9. [INFO]/[OK]/[VOLUME]/[TUNING] button*

Note

* You can adjust the volume, or navigate through the menu structure by turning the rotary control. Press the rotary control to confirm a s election. By repeatedly pressing the rotary control in the playback screen, you can show additional information, such as date, time or station (dependent on the operating mode and the respective stations, music files, etc.).

B Rear

1. Carrying loop
2. Update Port
3. Headphone socket
4. Mains power supply

Important note - 0 perating instructions:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
• For the sake of protecting the environment and saving resources, Hama dispenses with printed operating instructions and provides them only in the form of PDF files / eManuals on www.hama.com.
• Use the search function with the item number of your product to easily find the product documentation.
• Save the operating instructions to your computer's hard drive for future reference, or print it out if necessary.

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information important notes.

Risk of electric shock

This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.

2. Package Contents

• Digital radio DR15
• Quick guide
• AC/DC Adapter

3. Safety Notes

• The product is intended for private, non-commercial only.
• Protect the product from dirt, moisture and overheating and use it in dry rooms only.
• As with all electrical devices, this device should be kept out of the reach of children. 4.

- Do not drop the product and do not expose it to a major shocks.

- Do not operate the product outside the power limits in the specifications.

- Keep the packaging material out of the reach of children due to the risk of suffocation.

- Dispose of packaging material immediately according to locally applicable regulations.

- Do not modify the device in any way. Doing so voids the warranty.

- Use the item only in moderate climatic conditions.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Do not attempt to service or repair the device yourself. Leave any service work to qualified experts.

Warning – B atteries:

• When inserting batteries, note the correct polarity (+ and - markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding.
• Do not allow children to change batteries without supervision.
• Do not mix old and new batteries or batteries of a different type or make.
• Remove the batteries from products that are not being used for an extended period
• Do not short-circuit batteries.
  se. Do not charge batteries.
• Do not throw batteries in a fire.
• Keep batteries out of the reach of children.

4. Getting started

4.1 Switching the device on

- Connect the power cable to a properly installed power given socket.

Warning

• Only connect the product to a socket that has been approved for the device. The electrical socket must always be easily accessible.

• Disconnect the product from the power supply using the on/off switch — if this is not available, unplug the power cord from the socket.

• Press the [POWER] button to switch the radio on.

• Wait until the radio initialisation procedure has finished.
• When you switch on for the first time, the station search starts automatically.

4.2 Language and setup wizard

The first time the system starts the radio uses English. To change this, proceed as follows:

Press [MENU] > System > Language > Select language

Confirm your selection by pressing the [ENTER] button.

Note

- You can choose from the following languages: English, Danish, Dutch, Finnish, French, German, Italian, Norwegian, Polish, Swedish, Slovak, Czech

5. Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the device and disconnect it from the power supply. Store a clean, dry place out of direct sunlight.

6. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

7. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

8. Recycling Information

Note on environmental protection:

After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be used of with household waste. Consumers are obliged to return electrical and electronic devices as well as at the end of their service lives to the public charging points set up for this purpose or point of sale.

Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries,

/you are making an important contribution to protecting our environment.

9. Declaration of Conformity

CE Hereby, Hama GmbH & Co KG declares that the radio equipment type [00054866] is in compliance with Directive 2014/53/EU. The full text of the EU

declaration of conformity is available at the following internet address:

www.hama.com >00054866->Downloads.

Hotline: [phone] (Ger/Ang)

86652 Monheim/Germany

www.hama.com

The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
