USER MANUAL 58760 UNOLD

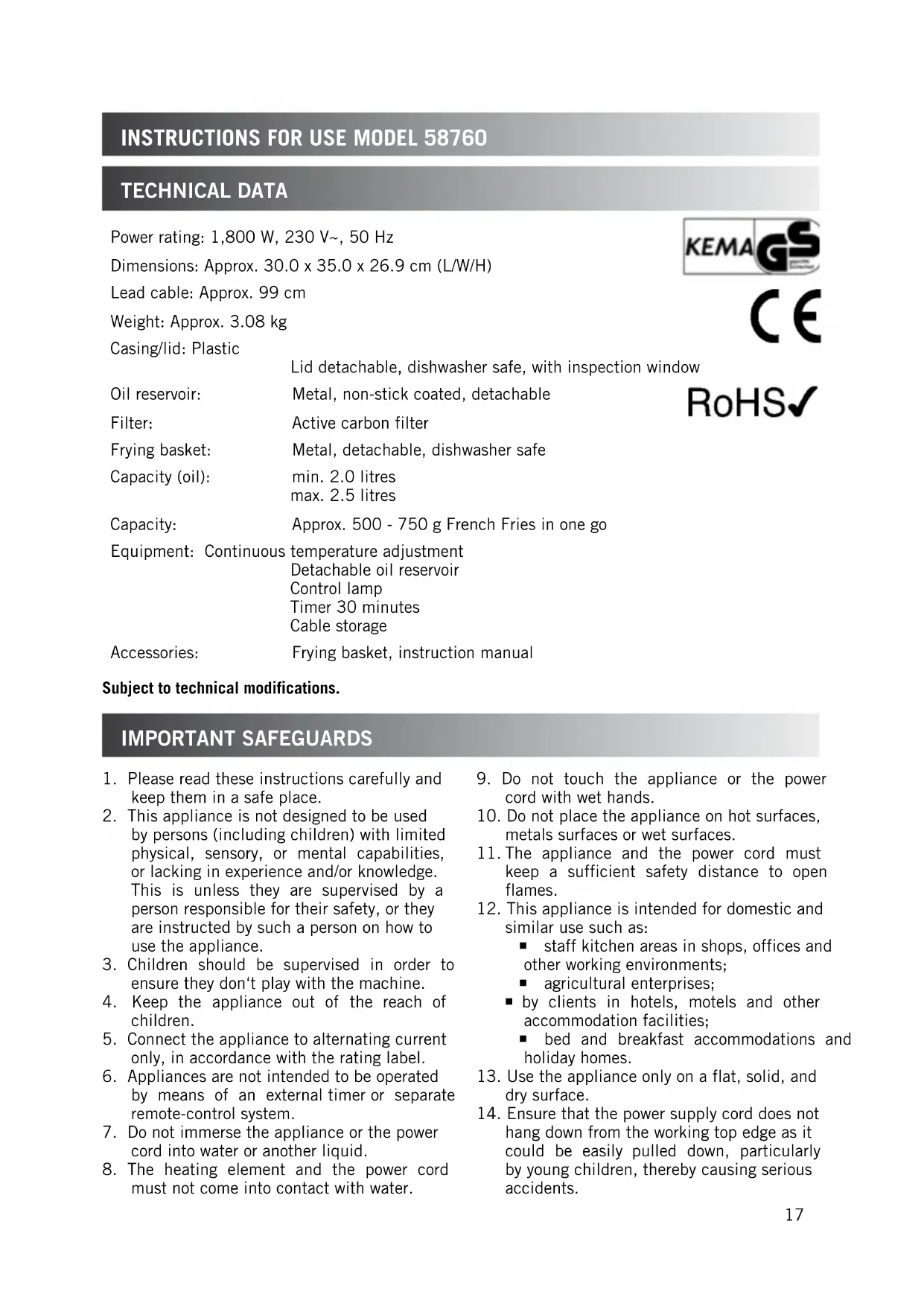

Instructions for use Model 58760

Technical Data 17
Important Safeguards. 17
Special safeguards for the use of deep fryers 18
Your new deep Fat fryer 19
General frying rules. 19
Before first use 20
Operation 20
Cleaning and maintenance 21
Frying schedule 22
Recipes 23
Remedy of problems 25
Guarantee Conditions 72
Waste Disposal / Environmental Protection 76

Normedie garanzia 73

Power rating: 1,800 W, 230 V~, 50 Hz

Dimensions: Approx. 30.0 × 35.0 × 26.9 cm (L/W/H)

Lead cable: Approx. 99 cm

Weight: Approx. 3.08 kg

Casing/lid: Plastic

Lid detachable, dishwasher safe, with inspection window

Oil reservoir: Metal, non-stick coated, detachable

Filter: Active carbon filter

Frying basket: Metal, detachable, dishwasher safe

Capacity (oil): min. 2.0 litres

max. 2.5 litres

Capacity: Approx. 500 - 750 g French Fries in one go

Equipment: Continuous temperature adjustment

Detachable oil reservoir

Control lamp

Timer 30 minutes

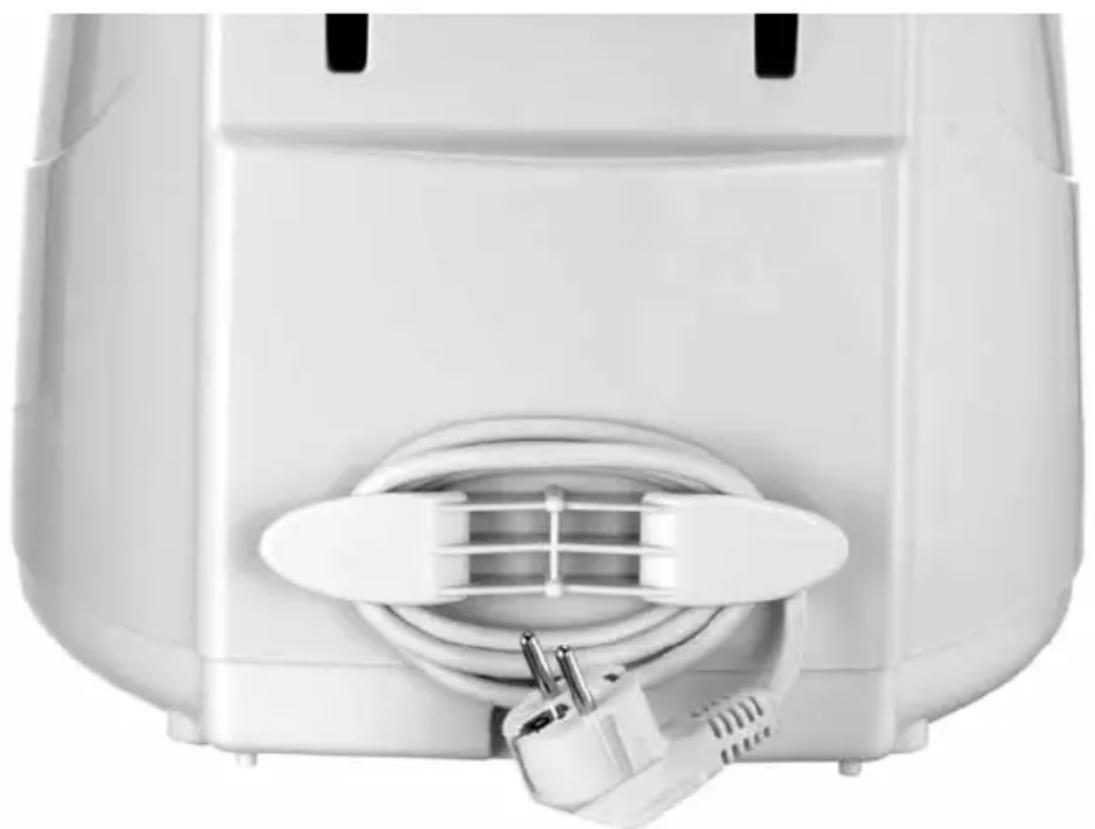

Cable storage

Accessories: Frying basket, instruction manual

Subject to technical modifications.

IMPORTANT SAFEGUARDS

1. Please read these instructions carefully and keep them in a safe place.
2. This appliance is not designed to be used by persons (including children) with limited physical, sensory, or mental capabilities, or lacking in experience and/or knowledge. This is unless they are supervised by a person responsible for their safety, or they are instructed by such a person on how to use the appliance.
3. Children should be supervised in order to ensure they don't play with the machine.
4. Keep the appliance out of the reach of children.
5. Connect the appliance to alternating current only, in accordance with the rating label.
6. Appliances are not intended to be operated by means of an external timer or separate remote-control system.
7. Do not immerse the appliance or the power cord into water or another liquid.

8. The heating element and the power cord must not come into contact with water.

9. Do not touch the appliance or the power cord with wet hands.

10. Do not place the appliance on hot surfaces, metals surfaces or wet surfaces.
11. The appliance and the power cord must keep a sufficient safety distance to open flames.

12. This appliance is intended for domestic and similar use such as:

13. staff kitchen areas in shops, offices and other working environments;
    agricultural enterprises;

14. by clients in hotels, motels and other accommodation facilities;

15. bed and breakfast accommodations and holiday homes.

16. Use the appliance only on a flat, solid, and dry surface.

17. Ensure that the power supply cord does not hang down from the working top edge as it could be easily pulled down, particularly by young children, thereby causing serious accidents.

18. Do not wind the power cord around the appliance to avoid damages.

19. Make sure that any contact between the power cord and hot parts of the appliance is avoided.
20. Do not use the appliance outdoors.
21. The surfaces of the appliance become hot during use. Only use the heat-insulated handles and control elements.
22. Keep sufficient distance to inflammable objects such as curtains etc.
23. Do not move the appliance during use oder when it still contains hot oil.

24. Do not use the appliance with other than the accompanying accessory parts, e.g. of other brands. The use of other accessories may cause risks.

25. Unplug the appliance after use, when the appliance is not used or before cleaning it and let it cool down. Do not leave the appliance unattended as long as the plug is connected to a power socket.

26. Clean the appliance each time after use. All parts, in particular the removable oil recipient, must be dry before being reassembled.
27. Check the appliances, the plug and the power cord regularly for wear and damage. In case of damages or faults, please send the appliance for inspection/repair to our after sales service Unadequate repair may constitute a risk for the user and result in the loss of guarantee.

Water in particular frozen water causes splashes of hot oil, when coming into contact. Lower wet or frozen food very slowly and carefully into the oil to avoid splashes of hot oil or foaming of hot oil.

If the oil foams strongly, take the food out of the oil wait for a few seconds and then put it again into the hot frying oil.

SPECIAL SAFEGUARDS FOR THE USE OF DEEP FRYERS

1. The deep fryer becomes very hot during use. Oil or frying fat may catch fire when overheated. Therefore special care is required for any long-time use. Switch the appliance off by means of the ON/OFF switch and unplug the appliance when you have finished frying and the deep fryer is no longer used.
2. Only use the appliance for frying of foodstuff according to these instructions. Only fry adequate foodstuff.
3. Make sure that the foodstuff is dry to avoid hot oil splashes.
4. Never add any water to the frying oil.
5. Never switch the appliance on if there is no oil in the oil recipient.
6. Make sure, that the oil level is between MIN and MAX. Do not fill in more oil, as it may splash out. Risk of injuries!
7. Hot steam may occur during frying. Always keep sufficient distance from your face and

hands and open the appliance only with care.

1. Provide good ventilation during use.
2. Do not cover the appliance during use to avoid overheating.
3. The control and heating elements must not come into contact with water or any other liquid or be immersed. Only the heating resistance, which comes into contact with the frying oil, can be wiped with a damp cloth.
4. Water or frozen water will cause dangerous splashes if getting into contact with hot oil. Lower wet or frozen foodstuff very slowly into the oil to avoid splashes and foaming of the oil.
5. In case of strong foam formation lift the foodstuff and wait for moment before you put it into the oil again.

The manufacturer does not assume any warranty in case of incorrect assembly or of improper or incorrect use or after repair by unauthorized third parties.

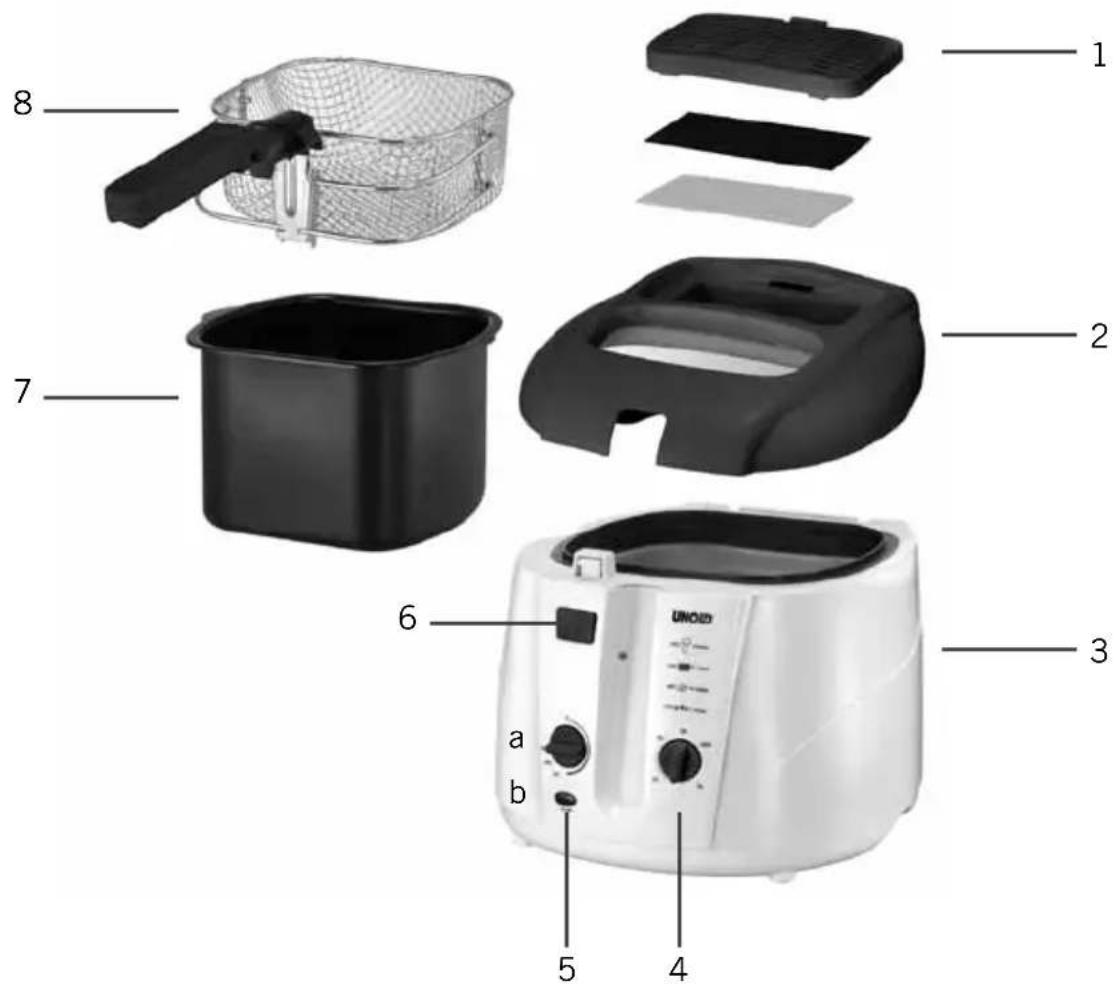

YOUR NEW DEEP FAT FRYER

1 Oil filter, active carbon filter and cover lid
2 Lid with inspection window
3 Casing
4 Timer 0 - 30 minutes
5 a) Temperature selector switch Indicator light for temperature setting

6 Button "Deckel öffnen" ["Open lid"]
7 Oil reservoir
8 Frying basket

GENERAL FRYING RULES

1. We recommend to use heat-resisting liquid oil. If the oil or fat becomes brownish after frying, it is not sufficiently heat-resisting. Please take another oil. Never mix different types of oil or fat since the boiling point of different oil types is varying.
2. Do not mix used oil with fresh oil.

3. Always observe the MIN/MAX marking when filling the recipient with oil.

4. If you use solid frying fat, set the appliance to approx. 140^ . Cut the fat into small cubes of about 2 cm. Fill in a sufficient amount of fat cubes to cover the heating element. Switch the appliance on. As soon as these cubes are melted add more fat cubes until the required level between MIN and MAX is reached. This type of fat will become solid after cooling down.

5. Do not overheat the oil, as this will crust the surface of the food and it will not be well done inside.

6. The foodstuff must swim in the oil. Therefore do not fry too much food in one cycle. If the quantity is too big, the oil cools down and the food will absorb too much oil.

7. Do not pour used oil into the sink, but fill it into closed recipient and dispose if according to your local regulations.

8. If you want to use the oil several times, let it cool down and pass it through a sieve with a filter paper inside. The oil can be stored in a closed recipient in a cool place. Unfiltered oil will spoil quickly.

BEFORE FIRST USE

1. Unpack the lid, the oil reservoir, the frying basket and all other accessories and remove all packaging material.
2. To open the lid, press the button „Deckel öffnen“ [„Open lid“] once. To detach the lid, pull the lid upwards and separate it from the appliance.
3. Clean the lid, the oil reservoir and the frying basket with warm soapy water and dry them thoroughly.

4. Reinsert the lid keeping it slightly inclined and inserting it into the retainer device on the appliance. Make sure that the thin metal spring bar is placed in front of the plastic part on the back of the lid retainer device of the appliance.

5. Place the appliance on an even, firm and heat resistant surface.

6. Insert the oil reservoir until it is firmly placed on the casing rim.
7. Insert the frying basket by placing the handle with the slot in the plastic part into the corresponding recess in the rim of the casing. To lock the frying basket, push the button on the handle. Thus the handle can be folded downwards and the frying basket is lowered. To lift the frying basket, push the button again.
8. Shut the lid.

OPERATION

1. Make sure that the appliance is disconnect-
2. Fill the oil reservoir with oil up to the necessary quantity (between the MIN and MAX marks).
3. Adjust the temperature selector switch to the desired temperature. The heat-up process starts, the indicator light is switched on and lights up in red.
4. When using deep-frying fat we recommend cutting it into cubes of approx. 2cm . Melt the fat at low temperature (approx. 150^ ). After this, you can heat the fat up to the necessary temperature.
5. During the heat-up process, the indicator light lights up. As soon as the desired temperature is reached, the indicator light turns off. The appliance has a thermostat to control the temperature. The heating is switched on and off in intervals. The indicator light lights up correspondingly when heating up and turns off when the selected temperature is reached. For perfect frying results, the food should only be lowered into

the oil after the ideal temperature has been reached and the indicator light has turned off.

1. Put the food in the frying basket and slowly lower it into the oil.
2. Adjust the integrated timer to the desired frying time (see also table Frying times). When the time has expired, an alarm reminds you of taking the food off the appliance.
3. When the temperature falls below the desired temperature and the indicator light lights up, lift the frying basket and wait until the necessary temperature is reached again. Then lower the frying basket and finish frying the food.

CAUTION: Oil can splash out

1. Frozen food contains more water and causes splashes when being lowered into hot frying oil.
2. Do not leave the fried food in the draining position for too long,

CLEANING AND MAINTENANCE

1. After use and before cleaning adjust the temperature selector switch to 0 and unplug the appliance from the wall socket.
2. Let the appliance cool off completely.
3. The appliance may never be immersed in or get in contact with water.
4. Detach the lid of the appliance and remove the frying basket.
5. Let the oil cool off a bit. Then remove the oil reservoir and pour the oil through a sieve covered with kitchen paper. You can store the oil/fat in the fridge and reuse it.

6. Clean the appliance on its inside and outside with a damp cloth and some washing-up liquid, wiping it with a damp cloth with clear water afterwards. Do not use any abrasive or scrubbing agents. Make sure that no water penetrates the appliance. Dry the appliance thoroughly.

7. Frying basket, oil reservoir and lid may be cleaned in warm water with a mild washing-up liquid.

8. When the filtration effect of the filter diminishes, it should be replaced by a new one. Our after-sales service offers the corresponding parts and products. Clean the white oil filter with warm water and some washing-up liquid, but do not clean the active carbon filter, as this makes it lose its efficiency.
9. Dry all parts thoroughly.
10. Reinsert lid, oil reservoir and frying basket in the appliance.
11. Regular cleaning considerably extends the lifecycle of the appliance.
12. Store the appliance in a clean, dry area.

FRYING SCHEDULE

The following times are only approximate values, which may differ subject to the type, the quantity and the volume of the foodstuff to be fried.

In case of frozen food, set the temperature by 10^ higher than in the schedule. Follow also the instructions of the manufacturer of the frozen food.

For health reasons we recommend to let frozen foodstuff unfreeze partially and then to fry it with max. 175^ . In order to reduce the production of acrylamide, the oil should not be heated over 175^ .

Meat, poultry

Foodstuff Temp. Min. ca.
Fried sausage 175°C 3
Meatballs 175°C 3-4
Cutlet with bone,breaded 170°C 5-6
Cutlet, unbreaded 175°C 2-3
Cutlet,breaded 170°C 5
Cordon bleu 160°C 8-10
Liver,floured 170°C 2-3
Chicken liver,breaded 170°C 3
Chicken legs 170°C 15
Chicken cutlet,breaded 170°C 2-3
Quails 175°C 4
Baked chicken in 4 parts 170°C 17
Sausage,thick slices 175°C 2-3

Foodstuff Temp. Min. ca.
Fish fillet in batter	170 °C	7
Fish sticks	160 °C	5-8
Plaice, floured	175 °C	8-10
Carp, small, floured, in 4 pieces	175 °C	8-10
Trout, floured	170 °C	5
Trout, breaded	170 °C	6
Herring fillet	170 °C	3
Squid rings, floured	175 °C	3

Fish

Foodstuff Temp. Min. ca.
Crabs	175 °C	1-2
King prawns	175 °C	5
Fish fillet, floured	175 °C	4
Fish fillet, breaded	170 °C	6

Vegetables

Foodstuff Temp. Min. ca.
Carrots, in small pieces	170 °C 4-6
Leek, rings	170 °C 2-3
Onion rings, floured	170 °C 3
Beans, 10 min. cooked	170 °C 2
Mushrooms, breaded	170 °C 3
Cauliflower pieces, breaded	160 °C 4
Kohlrabi, small pieces	170 °C 2-3
Zucchini, breaded, 1 cm thick slices	170 °C 3
Broccoli pieces 5 min. precooked	170 °C 2
French fries, frozen, max. 800 g	175 °C 4
French fries, fresh max. 1 kg: Dip in shortly, then take off and wait, until the oil is reheated, then fry until ready	175 °C 4

Foodstuff Temp. Min. ca.
Croquettes from potato dough	175 °C 2-3
Croquettes,frozen	175 °C 6-8
Herbs in batter	175 °C 1-2

Pastry / Snacks

Foodstuff Temp. Min. ca.
Doughnuts, per side	175 °C 3
Cream cheese dough-nuts, per side	175 °C 1,5
Camembert,breaded	175 °C 2

RECIPIES

All recipes are provided for 4 persons

Potato balls

700 g cooked potatoes, 70 g flour, 1 small egg, 2 tbsp chopped parsley, 1 tbsp chives, 100 g grated cheese, 1 tbsp of pumpkin or sunflower seed, salt and pepper

Press the potatoes through a potato squeezeer. Knead with flour, egg, parsley, chives, cheese, pumpkin or sunflower seeds, pepper and salt and form small balls.

Heat the oil to 170^ and fry the balls for about 4-5 min. until they are crispy.

Crabmeat balls

500 g crabmeat, 6 water chestnuts (tin, or sweet chestnuts), 100 g bacon, pepper, 1 pinch of sugar, 2 tsp starch, 1 eggwhite, 1 clove of garlic, 1 slice of toast bread, 150 g bread crumbs

Chop crabmeat, chestnuts, bacon, garlic, and bread with a knife or with a handblender. Add pepper, salt, 1 tsp of oil and eggwhite, leave for about 30 min. in the refrigerator. Then form small balls, turn them in bread crumbs.

Heat the oil to 160^ . Fry the balls by turning them from time to time.

Carrot crispies

400 g chopped carrots, 3 small eggs, 3-4 tbsp flour, 1 bunch of chervil, chopped, salt, pepper, 1 pinch of nutmeg, 1 pinch of sugar

Prepare a solid dough of the ingredients and season it. Take off small balls by means of a spoon, and bake them in hot oil.

Bacon leek

2 stalks of leek, 100g bacon in slices

Cut the leek in 5 cm pieces.

Roll one slice of bacon around each piece of leek, fix it with a toothpick, and bake it in hot oil.

Cutlet „Milano“

4 pork cutlets, salt, pepper, paprika powder, 6 tblsp Parmesan cheese 2 eggs, 2 tblsp flour, some milk, nutmeg

Season the cutlets with salt, pepper and paprika. Prepare a batter from egg, flour, cheese, milk, salt, pepper, and nutmeg.

Heat the oil to 170^ . Turn the cutlets in the batter and bake for about 6 min. in the oil.

Lemon pike-perch

4 pike-perch fillets of 200g each, juice of 1 lemon, salt and pepper, 100g flour, 1 beaten egg, 100g bread crumbs, 2 tbsp grated lemon peel, 2 tbsp chopped lemon balm, 2 lemons

Wash the fish fillets under cold water and dry them. Sprinkle with lemon juice.

• Season the fish with salt and pepper, turn in flour and egg.

Mix the bread crumbs with the lemon peels and the balm and bread the fillets in this mixtures. Bake the fish fillets for about 10 min. in the oil, garnish with lemon slices.

Filled doughnuts

500 g flour, 7 g dry yeast, 100 g sugar, 125 ml milk, 100 g soft butter, 2 eggs, 1 pinch of salt, 2 bags vanilla sugar, 1 tbsp rum, 200 g rosebud jam

Prepare a dough from flour, yeast, sugar, warm milk, butter, eggs, salt, vanilla sugar and let the dough rise.

Roll the dough 1 cm thick, and mark circles with a glass. Put 1 tsp of jam on each circle, cover it with the second dough plate and cut out the circles. Put the balls on a wood surface, cover it with a towel and let it rise for another 30 min. Heat oil to 170^ . Fry the doughnuts 3 min. from each side, take it out of the oil and sprinkle it with powder sugar.

Fruits in batter

400 g fresh fruits (e. g. pineapple, apricots, bananas, pears or apples), 150 g wheat flour, 50 g coconut flakes, 1 pinch of salt, 2 tbsp sugar, 150 ml milk, 1 egg

Prepare a smooth batter of flour, coconut flakes, salt, sugar, milk and egg. Leave the dough for about 30 min.

Peel the fruits and cut it into pieces.

Heat the oil to 170^ . Immerse the fruit pieces into the batter and fry them until they become golden. Sprinkle with icing sugar and serve pure or with vanilla sauce or ice cream.

Doughnuts

14 milk, 100 ~g butter, 2 tbsp sugar, 2 bags of vanilla sugar, 1 pinch of salt, 150 ~g flour, 4 eggs

Cook milk with grease, sugar, vanilla sugar and salt on the stove. Add the flour and stir until the dough loosens from the bottom. Let the dough cool down. Then add one egg after the other. Fill the dough into a piping bag, and spray circles on a baking paper.

Heat oil to 170^ . Let the doughnuts slide into the grease and bake it 2 min. from each side.

Cream cheese doughnuts

100 g soft butter, 150 g sugar, 2 bags vanilla sugar, 4 eggs, 1 pinch of cinnamon, 500 g cream cheese, 250 g flour

Prepare a dough from butter, sugar, vanilla sugar, eggs, cream cheese and flour.

Heat the oil to 170^ . Make small balls by means of a spoon and give them into the hot oil.

Attention: Do not fry too many balls at the same time, as the grease will become foamy.

Bake the balls about 1.5 min. on each side and take them out of grease. Turn in sugar mixed with cinnamon.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

REMEDY OF PROBLEMS

If you should have problems with your deep fryer, check first, if the appliances is correctly connected to the receptacle or if the overheat protection has switched off the appliance.

Then check if one of the following cases applies.

Problem Cause Remedy
Strong odour Oil or fat are used	Replace oil or fat.
	Filter is polluted. Clean filter.
	Frying oil or fat is not heat-resistant.	Do not use any fat- or oil mixtures, only use high-quality, heat-resistant oil.
Vapour is escaping under the lid.Remark: a certain amount of vapour has to escape for safety reasons to avoid overpressure	The lid is not closed correctly.The filter is polluted. Clean the filter.	Close lid correctly.filter.
Oil/fat is overflowing. The „MAX“ level has been exceeded.	Check the oil quantity!
Foodstuff was not dry enough.	Dry foodstuff before frying with a towel.
Frying basket has been dipped in too rapidly.	Lower frying basket slowly and carefully.
Food quantity has been exceeded.	Reduce the quantity of food to be fried.
Foodstuff does not become crispy.	Temperature too low. Adjust the temp. setting.
	Frying basket overloaded Reduce the quantity of the foodstuff to be fried.
	Oil/fat not hot enough. Temperature control defective, contact our service.
	Oil/fat is used and contains too much water	Replace oil/fat.
Fat is not heated enough. Not enough fat in the oil pan. Read chapter „Operation“, pt. 1-3, filling with fat/oil, and “overheat protection”.
Oily pan and heating and control panel are not correctly inserted.	Insert the respective parts care fully according to these instruc tions.

SPÉCIFICATIONSTECHNIQUES

Puisance: 1800W,230V\~，50Hz

Dimension : Env. 30,0 x 35,0 x 26,9 cm L/E/H

Cordon: Env. 99 cm

Poids: Env. 3,08 kg

We guarantee our appliances for 24 months, or in case of commercial use for 12 months, from the date of purchase in case of defects that occur during normal use and are demonstrably due to a factory fault. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties.

Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

CONDITIONS DE GARANTIE

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

TRAITEMENT DES DÉCHETS / PROTECTION DE L'ENVIRONNEMENT
