USER MANUAL 586551 UNOLD

Instructions for use Model 58655/58665

Foreword 24
Technical data. 24
Explanation of symbols. 25
For your safety 25
Special safety information for
deep fryers 28
Before first use. 28
Operation 29
Cleaning and care. 31
Troubleshooting 31
Cooking times 33
Recipes for hot-air deep fryer 36
Guarantee Conditions 37
Waste Disposal/Environmental Protection ...37
Service 23

Thank you for having chosen a quality product from the Unold range. Please read the instruction manual carefully. This will allow you to familiarise yourself quickly with all functions of your new hot-air deep fryer (hereinafter also "appliance").

Please make sure that all persons who use, clean or maintain the appliance have read the instructions and adhere to them. When handing over the appliance to a new owner, always include the instruction manual.

If you have any queries that are not answered in this document, or if you encounter technical problems, please contact our customer service department or your dealer.

Important: Figures and drawings are provided for reference purposes and can differ from the actual product.

TECHNICAL DATA

Model 58655 5 litres 7 litres
Power: 1,400	220att, ~240 V 50/60 Hz	1,800 Watt, 220-240 V~, 50/60 Hz
Capacity: approx.	approx. 1 kg chips Basket approx. 4 litres, container approx. 5 litres	approx. 1.2 kg chips Basket approx. 6 litres, container approx. 7 litres
Dimensions (L/W/H): app	rox. 375 x 33.5 cm approx. 3	1 x 39 x 37 cm
Weight:	prox. approx. 6 kg
Cable length: a	85cm approx. 85 cm
Housing: p	lastainless steel
Features:	Timer for 0-60 minutes, temperature setting 80-200 °C, heat-resistant handle, non-stick coating, fry basket dishwasher safe, overheating protection, cable storage
Accessories:	Instruction manual with recipes
Features, technology, colours and design subject to change without notice; errors excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

Please read this instruction manual carefully and keep it for future reference.

General safety instructions

1. This appliance can be used by children aged 8 years or more and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.
2. Children must not play with the appliance.
3. Children aged 8 or above may be permitted to clean or maintain the appliance, provided they are supervised.
4. Keep the appliance and its power cord out of the reach of children under the age of 8.
5. CAUTION - Certain parts of the appliance might become very hot when it is in use. There is thus a risk of injury from burns! Special caution is required, if the appliance is operated in the presence of children or other vulnerable persons.
6. Only use the appliance for the purposes described in this instruction manual.
7. Regularly check the appliance, the cable and the plug for wear and damage. If the power cord or other parts of the appliance are damaged, return it for inspection and repair to our customer service department. Improper repair can result in serious hazards to the user and shall void all warranty.

Installation and operation

1. Connect the appliance to an alternating current source as specified on the type plate.

2. To prevent short circuits or other hazards, make sure that the plug is correctly inserted in the power socket and is not loose.

3. Do not connect the appliance to an external timer or remotely controlled power system.

4. Never immerse the appliance or the cable in water or another liquid.
5. Do not clean the heating element or the power cord in a dishwasher.
6. Never touch the appliance or the cable with wet hands.

7. The appliance is designed for domestic use and for use in similar facilities, e.g.

8. tea kitchens in offices, shops, or other workplaces,
   farms,
   ■ kitchenettes for guests in hotels, motels, hostels,

9. holiday homes, etc.

10. Never place the appliance on a hot or wet surface or on a metal tray.

11. Do not place the appliance or the cable close to naked flames.
12. Always use the deep fryer on an uncluttered, level and heat-resistant surface.
13. Make sure there is sufficient distance (at least 30~cm ) to walls or other objects.
14. Do not place any objects on the appliance.
15. Never operate the appliance near flammable materials such as curtains, etc.
16. Make sure that the ventilation slots are unobstructed when the appliance is in use.
17. To avoid damage to the appliance, never use the deep fryer without the fry basket and insert.
18. Do not allow the power cord to hang from the worktop, as this could result in accidents, for example if pulled on by small children.
19. To prevent damage to the power cord, never wrap the power cord around the appliance. Use the cable storage to store the power cord.
20. Make sure that the power cord is not in contact with hot parts of the appliance.

21. Use the deep fryer only indoors.

22. Place foods in the fry basket with insert, and never directly in the deep fryer - danger of fire!

23. When the appliance is in use, the inside surfaces of the appliance become very hot. Therefore, only touch the appliance at the insulated handle and the control panel.
24. Watch out for escaping hot air when removing the fry basket - danger of burns!
25. Notice: While the appliance is on, hot steam might escape from the ventilation slots – risk of injury from scalding! Maintain a safe distance from the ventilation slots.
26. Never operate the deep fryer in the vicinity of flammable liquids, nor on or near heat sources.
27. This deep fryer operates with hot air. Therefore, never put solid or liquid fat in the deep fryer - danger of fire!
28. Should the appliance catch fire, immediately pull the plug from the power socket. Never use water to extinguish flames; instead, use damp cloths or towels.
29. Do not displace the appliance as long as it is hot, as this poses a risk of injury.
30. Do not operate the appliance with accessories from another manufacturer or brand, as this might cause damage to the appliance.
31. Unplug the appliance from the power socket after use and before cleaning. Never leave the appliance unattended while it is connected to the power socket.
32. Clean the appliance after every use.
33. All parts, especially the removable fry basket, must be completely dry before reassembling the appliance.
34. Connect the appliance to an alternating current source as specified on the type plate.

Never open the appliance housing. Risk of injury from electric shock!

Never place oil or fat in the appliance, as this might cause damage to the appliance.

Caution! During and after use, the appliance and its component parts are very hot! Do not reach into the appliance after use - danger of burns! Keep children away from the appliance!

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

SPECIAL SAFETY INFORMATION FOR DEEP FRYERS

1. During use, the deep fryer becomes very hot. As soon as the food is ready and the appliance is no longer needed, switch it off and unplug the plug from the power socket.

2. Use the appliance only to cook food as described in this instruction manual. Use only foods that are suitable for deep frying.

3. Dry food before deep frying.
4. Never add water to the food in the appliance.
5. Hot steam can develop during deep frying. Keep your face and hands at a safe distance and be especially careful when opening the deep fryer.
6. Provide for adequate ventilation during deep frying.
7. Never cover the deep fryer when it is in use, as it might overheat.
8. Notice: During the first use, there might be some harmless smoke.
9. Note: The silicone stopper located in the front of the frying basket does not need to be removed. It serves to protect the coating of the deep-frying insert and complies with all legal requirements for objects that come into contact with food.

BEFORE FIRST USE

1. Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our customer service department.
3. Clean the fry basket and insert with warm soapy water and dry thoroughly.
4. Clean the inside of the appliance with a damp cloth.
5. Place the appliance on a level, sturdy and heat-resistance surface.
6. Connect the plug to a power socket as specified on the type plate.

OPERATION

Notice: For health reasons, we recommend frying food to a golden-brown colour, avoiding dark crusts. This keeps the formation of potentially harmful acrylamide low.

Notice: This deep fryer operates with hot air. Therefore, never put solid or liquid fat in the deep fryer – danger of fire!

Preparation

1. Before using the appliance, prepare it as described in chapter "Before first use".

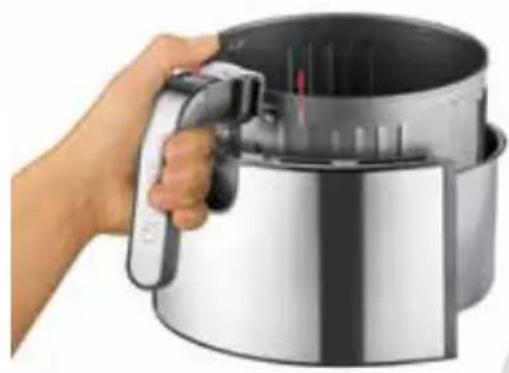

2. Place the fry basket carefully in the insert until the basket locks into position.
3. Now put the food in the fry basket. Do not fill the basket past the MAX mark. This will ensure optimal frying results.

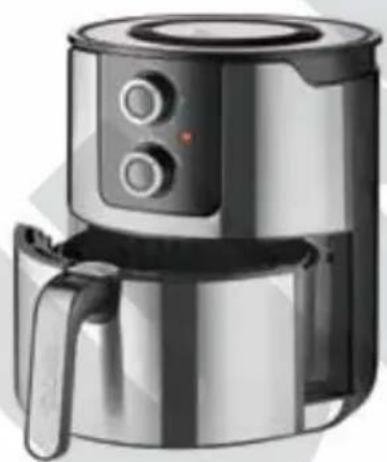

4. Push the insert with the fry basket into the opening in the appliance.

Deep frying

1. Select the desired temperature with the temperature control. If you wish to prepare more than one food at a time, first check the required temperature and cooking time for the different foods.
2. Now set the desired cooking time - max. 60 minutes - with the timer.

3. If the appliance is cold, you must add about 5 minutes to the cooking time to allow the appliance to heat up. Tip: You can also heat the appliance for 5 minutes without food and then add the ingredients to the fry basket. Continue as described here.

4. The function indicator lamp alternates between on and off during the cooking time. This means that the required temperature is maintained.

5. To achieve better results, it may be necessary to shake the ingredients in the fry basket halfway through the cooking time, depending on the food. In

Copyright UNOLD AG | www.unold.de

this case, use the handle to pull the insert out of the appliance and shake the ingredients carefully. Depending on the quantity of ingredients in the basket, this may need to be repeated several times. Take care not to push the release button on the handle.

1. Then put the insert with the fry basket back in the appliance. Notice: The appliance shuts off when the fry basket is removed. As soon as the fry basket is returned to the appliance, frying continues.
2. When the timer setting expires, an acoustic signal sounds and the appliance switches off.

Removal of food

1. Remove the insert and check whether the food has been fried to the desired degree. If not, you can continue frying by returning the food to the appliance and setting the timer for a few more minutes.
2. Notice: Never turn the fry basket completely upside down. Excess fat from the food collects beneath the insert in the fry basket.
3. Therefore, use tongs to remove the food from the fry basket.
4. Food such as chips can be removed by allowing it to glide carefully from the fry basket into a bowl. Again, watch out for excess fat.
5. If you wish to deep fry other foods, you can start frying again right away.

Removal of the fry basket

1. Press the release button. Pull the fry basket upward out of the insert.

Switching off the appliance

When you are finished frying food, switch the timer to "0" and unplug the appliance from the power socket.

Notice: During and after use, the deep fryer and the basket are very hot - danger of burns! Touch only the handle of the fry basket.

CLEANING AND CARE

After use and before cleaning, set the timer to "0" and unplug the appliance.

Allow the appliance to cool. Removing the fry basket will speed up cooling (faster if the frying basket and the frying insert are removed). Pour out any grease that collected in the fry basket.

1. Wipe the inside and the outside of the appliance with a damp cloth and a little washing-up liquid. If necessary, use a grease cleaner and then wipe the surfaces clean, using a damp cloth and clean water. Do not use caustic or abrasive cleaners. Ensure that there is no water ingress. After cleaning, carefully dry the appliance.
2. If necessary, pour any fat out of the deep- frying basket.
3. The fry basket and insert can be cleaned in warm water with mild washing-up liquid added. To remove stubborn residue, put some warm washing-up liquid in the fry insert and allow to soak about 10 minutes. Rinse with water and then clean as described above.
4. The fry basket can also be cleaned in the dishwasher (top basket).
5. Always dry the accessories thoroughly before putting them away. Then return the fry basket and insert to the appliance.
6. Regular and proper cleaning prolongs the service life of your appliance.
7. When not in use, store the appliance in a dry place and protected against dust.

TROUBLESHOOTING

Problem use Remedy
The appliance does not operate	Power plug not plugged in	Check whether the power plug is properly plugged in.
	Timer not switched on	Select the required cooking time with the timer
Problem Cause Remedy
Food is not done at the end of the cooking time	Quantity of ingredients too highTemperature is too lowCooking time too short	Check the quantity of ingredients and put a smaller quantity in the fry basketSelect a higher temperatureSelect a longer cooking time
Food browns un-evenly	Food was not shaken half-way through the cooking time	Food such as chips must be shaken once halfway through frying to achieve even browning. Home-made chips must be rinsed and dried thoroughly before frying to remove excess starch.
Food not crispy enough	Some foods are intended for frying in conventional deep fryers	Coat the food with a little oil
The fry container cannot be inserted in the appliance	Greasy ingredientsGrease residues in the frying container	With extremely greasy foods, grease drips into the frying container so that white smoke occurs. This is normal.Thoroughly clean the frying container.
White smoke is escaping from the appliance	The fry basket is overfullThe fry basket is not inserted correctly	Observe the MAX mark on the fry basketCheck whether the fry basket is correctly locked into position.

COOKING TIMES

The times depend on the size, thickness and quality of the foods and possibly also on the material of the baking tin.

Starchy foods that have not been pre-baked, such as chips, should be brushed or sprayed with a thin coat of oil. This likewise applies to vegetables. Bread or cake tins should not fill the entire basket, to allow air to circulate.

Before turning out cake or bread, check it with the "skewer test": Simply insert a wooden skewer into the cake or bread and pull it back out. If nothing sticks to the skewer, the bread or cake is done. Half-baked rolls or frozen rolls should be sprayed with water before baking. This will give them a shiny crust as if fresh from the baker. When cooking sausages, make sure they are not in contact with each other in the fry basket. Brush the sausages with cream to make them brown especially well. All of our cooking times are approximate and can be adjusted to suit your personal taste. The same applies to the cooking temperatures.

Food	Quantity 58655	Quantity 58665	Approx. time min.	Temp. °C
Potato dishes
Baked potatoes	0-260 180	4	4
Potato crisps or straws, shake sever- al times	250 g 5	00 g	15-20 58655 20-30 58665	180
Frozen croquettes	8	14	16-20	200
Frozen sweet potato chips, shake several times	500 g 1.000	g 15-20 200
Frozen spring rolls, small, turn	6 12-15 16	-20 180
Frozen chips, thick, shake several times	500 g 1.000	g 35-40 180
Frozen chips, thin, shake several times	500 g 1.000	g 30-35 180
Fresh chips, thin, mix with 1-2 tbsp oil	500 g 1.000	g 40-45 180
Frozen fried potatoes	4 20-22 180
Fish
Frozen squid, breaded	500 g 1.000	g	15-20 58655 20-25 58665	180
Frozen fish fingers, turn	8 15 15-17	200
Frozen fish fillet, breaded	2 4 13-15	200
Fish, whole, 300- 400 g	1-2 3-4 2	0	0-25	20
Scallops 4 8 6			-10	200
Vegetables
Aubergine, halved, brushed with oil	1 2-3	5 200	12-1
Mixed oven-roasted veggies, in chunks and tossed with oil	400 g 800 g	2-2 190	1 0
Corn on the cob, brushed with oil	2 2-18	190	1
Fruit
Apples 2 4 12-15 180
Bananas in the peel	2	4	8-10	170
Eggs
Eggs, in shell, medium-hard	1-8 7 180
Cake/bread
Frozen apple strudel 1 (cut in half) 12-15 180
Frozen puff pastries 2 4			8-10 58655 10-13 58665	180
Frozen bread, turn 1 x	500 g 1.000	g	10-15 58655 15-20 58665	160
Fresh bread 500 g 750 g			40-45 58655 55-60 58665	160
Fresh rolls	2-3 4-6 18-	20 180
Frozen rolls 2 4 7-9 180
Bruschetta 2 servings	4 servings 5-7 200
Croutons, shake several times	200 g 400 g		5-8 58655 8-10 58665	180
Cake, in 22 cm ring mould	500 g 30-35 180
Meat
Fresh sausages, thin, turn	4 8		16-18	200
Fresh chicken wings, turn	500 g 750 g	25-3	0	180
Frozen chicken wings	500 g 750 g	33 180	30-
Frozen cordon bleu 2	1 190-4		7-20
Frozen meatballs with cheese	6 12 2-15	200	1
Rissoles 4 -15 190			12
Drumsticks 40-50	180	4
Chicken 1,000 g 1/2		1 whole, cut in half	40-45 58655 55-60 58665	180
Meat loaf	500 g	750 g	20-30 58655 45-60 58665	180
Frozen chicken sticks, breaded	4-6 8-12	12-18	180
Crusted roast	500 g 1.000 g		40-45 60-80	160
Lamb chops	2		20-22 200
Rolled roast turkey, wrapped in bacon strips	500 g 1.000 g		40-50 58655 60-80 58665	160
Sliced belly of pork	2 4 10-12 200
Pork tenderloin, wrapped in bacon	1, approx. 500 g		15-18 180
Saddle of pork	2 3-4 12-18 200

RECIPES FOR HOT-AIR DEEP FRYER

Deep-fried chicken

1 chicken (800 g model 58655, 1-1.2 kg model 58665), 3-4 tbsp oil, salt, pepper, paprika

Wash chicken, pat dry and cut in half, if necessary. Make a marinade from the oil, salt, pepper and paprika, and brush marinade on all sides of the chicken.

Put the chicken in the fry basket and fry at 180 degrees for 40-60 minutes, depending on the size of the chicken.

Oven-roasted veggies

The quantities apply to model 58655. For model 58665, double the quantity.

400 g mixed vegetables, e.g. bell pepper, zucchini, aubergines, mushrooms, snow peas, onions etc. For the marinade: 2 tbsp oil, 1 clove garlic chopped fine, salt, pepper

Cut vegetables into chunks, wash and pat dry. Make marinade from oil, garlic, pepper and salt, and mix with the vegetables. Put the vegetables in the fry basket and cook at 190 degrees for 15-20 minutes. Tip: You can add 1 tbsp curry powder or 1 tbsp soy sauce and 1 tbsp sesame oil to the marinade (then omit the salt)

Homemade French fries

350 g mealy potatoes, 1 TBSP oil Peel potatoes, cut into appropriate lengths 1 cm thick, place in cold wa

ter briefly. Let drain, dry with paper towels.

Place the fries in the frying container, pour a little oil on them, mix briefly and bake at 200^ for approx. 20 minutes, turn several times in this process.

Hot, roasted chestnuts (sweet chestnuts)

250 g sweet chestnuts

Let chestnuts soften in cold water approx. 2 hours. Cut the shell crosswise on one side. Place in the frying container, pour a little oil on them, mix briefly and bake at 180^ for approx. 30 minutes, turn several times in this process.

Cranberry apples

3 apples, 1 egg, 1 TBSP powdered sugar, 1 TBSP bread crumbs, 3 fried and peeled, finely chopped sweet chestnuts, 1 TBSP ground almonds, 2 TBSP cranberry jam, 1 pinch cinnamon, 50g marzipan

Wash apples, at the top cut off an approx. 1 cm lid, remove the core with an apple corer and slightly enlarge the hole left by the removing the core. Seal the bottom hole on the apple with the marzipan.

Whisk egg and powdered sugar until foamy, mix in bread crumbs, chestnuts, almonds cranberry jam and cinnamon. Fill the apples with the mixture. Put the „lids“ on, place apples

in the frying container and bake at 180^ for approx. 25 minutes.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website https://unold.de/pages/rucksendungen. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a highquality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible, we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. There is a legal requirement to dispose of waste electrical and electronic equipment (WEEE) as well as batteries and accumulators separately from household waste. You can recognise this waste equipment by the crossed-out wheeled bin symbol (WEEE symbol). Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODELE 58655/58665

AVANT-PROPOS

CONDITIONS DE GARANTIE
