USER MANUAL Design 58625 UNOLD

Deep-frying basket with fold-in handle 3 Grease container 4 Operating element 5 Lid unlock button

Power: 2,000 W, 220-240 V~, 50/60 Hz Dimensions: Approx. 37.0 x 27.0 x 22.4 (L/W/H) Power cord: Approx. 100 cm Weight: Approx. 3,5 kg Housing: Plastic Grease container: Suitable for food products Deep-frying basket: removable Volume: Max. 2.5 litres fat fill quantity Capacity: Approx. 750 g frozen chips, 500-600 g fresh chips Features: Variable temperature control up to 190 °C, removable lid, timer function up to 30 minutes, operating light and function indicator light Accessories: Deep-frying basket, operating instructions with recipes Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

INSTRUCTIONS FOR USE MODEL 58625

IMPORTANT SAFEGUARDS TECHNICAL SPECIFICATIONS Please read the following instructions and keep them on hand for later reference.

1. Children between 0 and 8 must not be permitted to operate this

2. Older children of 8 or more, however, may operate the appliance

if they are under constant supervision.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance. This symbol indicates a potential burning hazard. Please be especially careful at all times here. Copyright UNOLD AG | www.unold.deStand 15.11.2022 27 von 108

3. Persons with reduced physical, sensory or mental capabilities, or

lacking experience and knowledge may only use the appliance, if they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

4. Children must not be permitted to play with the appliance.

5. Children must not be permitted to carry out any cleaning or

maintenance work on the appliance.

6. The appliance and its power cord must be kept well away from

children under 8 at all times.

7. Keep the appliance out of the reach of children.

8. CAUTION – parts of this product can become very hot and

cause burn injuries! Particular caution is required if children or persons at risk are present.

9. The appliance is intended for household use only, or for similar

areas of use, such as: kitchenettes in businesses, offices or other workplaces, agricultural enterprises, for use by guests in hotels, motels or other lodgings, in private guesthouses or holiday homes.

10. Connect the appliance to alternating current only, in accordance

with the rating label.

11. Appliances are not intended to be operated by means of an

external timer or separate remote-control system.

12. Do not immerse the appliance or the power cord into water or

13. The housing and the power cord must not come into contact with

14. Do not touch the appliance or the power cord with wet hands.

15. Do not place the appliance on hot surfaces, metals surfaces or

16. The appliance and the power cord must keep a sufficient safety

distance to open flames.

17. Use the appliance only on a flat, solid, and dry surface.

18. Ensure that the power supply cord does not hang down from the

working top edge as it could be easily pulled down, particularly by young children, thereby causing serious accidents. Copyright UNOLD AG | www.unold.de28 von 108 Stand 15.11.2022

19. Do not wind the power cord around the appliance to avoid

20. Make sure that any contact between the power cord and hot

parts of the appliance is avoided.

21. Do not use the appliance outdoors.

22. The surfaces of the appliance become hot during use. Only use

the heat-insulated handles and control elements.

23. Keep sufficient distance to inflammable objects such as curtains

24. Do not move the appliance during use oder when it still contains

25. Do not use the appliance with other than the accompanying

accessory parts, e.g. of other brands. The use of other accessories may cause risks.

26. Unplug the appliance after use, when the appliance is not

used or before cleaning it and let it cool down. Do not leave the appliance unattended as long as the plug is connected to a power socket.

27. Clean the appliance each time after use. All parts, in particular the

removable oil recipient, must be dry before being reassembled.

28. Check the appliances, the plug and the power cord regularly for

wear and damage. In case of damages or faults, please send the appliance for inspection/repair to our after sales service Unadequate repair may constitute a risk for the user and result in the loss of guarantee. CAUTION: The appliance becomes very hot during operation! Water in particular frozen water causes splashes of hot oil, when coming into contact. Lower wet or frozen food very slowly and carefully into the oil to avoid splashes of hot oil or foaming of hot oil. If the oil foams strongly, take the food out of the oil wait for a few seconds and then put it again into the hot frying oil. Never open the housing of the appliance. This can result in electric shock. Copyright UNOLD AG | www.unold.deStand 15.11.2022 29 von 108

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. SPECIAL SAFEGUARDS FOR THE USE OF DEEP FRYERS

1. The deep fryer becomes very hot during use. Oil or frying fat may catch fire

when overheated. Therefore special care is required for any long-time use. Switch the appliance off by means of the ON/OFF switch and unplug the appliance when you have finished frying and the deep fryer is no longer used.

2. Only use the appliance for frying of foodstuff according to these instructions.

Only fry adequate foodstuff.

3. Make sure that the foodstuff is dry to avoid hot oil splashes.

4. Never add any water to the frying oil.

5. Never switch the appliance on if there is no oil in the oil recipient.

6. Make sure, that the oil level is between MIN and MAX. Do not fill in more

oil, as it may splash out. Risk of injuries!

7. Hot steam may occur during frying. Always keep sufficient distance from

your face and hands and open the appliance only with care.

8. Provide good ventilation during use.

9. Do not cover the appliance during use to avoid overheating.

10. Water or frozen water will cause dangerous splashes if getting into contact

with hot oil. Lower wet or frozen foodstuff very slowly into the oil to avoid splashes and foaming of the oil.

11. In case of strong foam formation lift the foodstuff and wait for moment

before you put it into the oil again.

12. The appliance is equipped with an overheat protection. If the appliance

is switched on inadvertently or without oil in the oil pan and the heating element is not sufficiently covered with fat, the appliance is switched off automatically to avoid overheating. In this case first switch off and unplug the appliance. Let the deep fryer cool off. Push the small RESET button at the bottom of the appliance. Copyright UNOLD AG | www.unold.de30 von 108 Stand 15.11.2022

1. We recommend the use of heat-resistant, liquid oil for deep-fat frying. Comply

with the instructions on the packaging, and pay attention to the best-before date. If the oil or grease turns brown after deep-fat frying, it is not heat- resistant. In this case use a different type. Never mix different oils and greases, because the boiling point of the greases varies significantly.

2. Never mix new and old grease.

3. When using oil, pour it in up to the required height (between the MIN and

4. When using solid deep-fat frying grease, cut it into cubes and carefully

melt it in a pot on the stove. Then carefully pour the melted grease into the grease container of the deep-fat fryer and ensure the proper fill level (between the MIN and MAX marks). After the appliance has cooled, this grease will solidify and must first be melted in a pot as previously described before reuse.

5. Do not overheat the grease, otherwise the surface of the deep-fried food will

become crusted and the inside will not be cooked.

6. The food to be deep-fried must be immersed in the grease, consequently do

not add too much food at the same time. If the quantity of food is excessive, the grease cools excessively and the food to be deep-fried becomes saturated with oil.

7. Replace deep-fat frying grease on a regular basis. Deep-fat frying grease that

is past its prime impairs the good flavour of the deep-fried food. Dispose of oil or grease that is past its prime in an environmentally-responsible manner in accordance with the local disposal regulations.

8. If you reuse the deep-fat frying grease, first let it cool down slightly and

then before it solidifies, pour it into another container through a sieve lined with a paper towel or filter paper. Then you can store the grease in a closed container in the refrigerator. Unfiltered grease spoils quickly. Copyright UNOLD AG | www.unold.deStand 15.11.2022 31 von 108

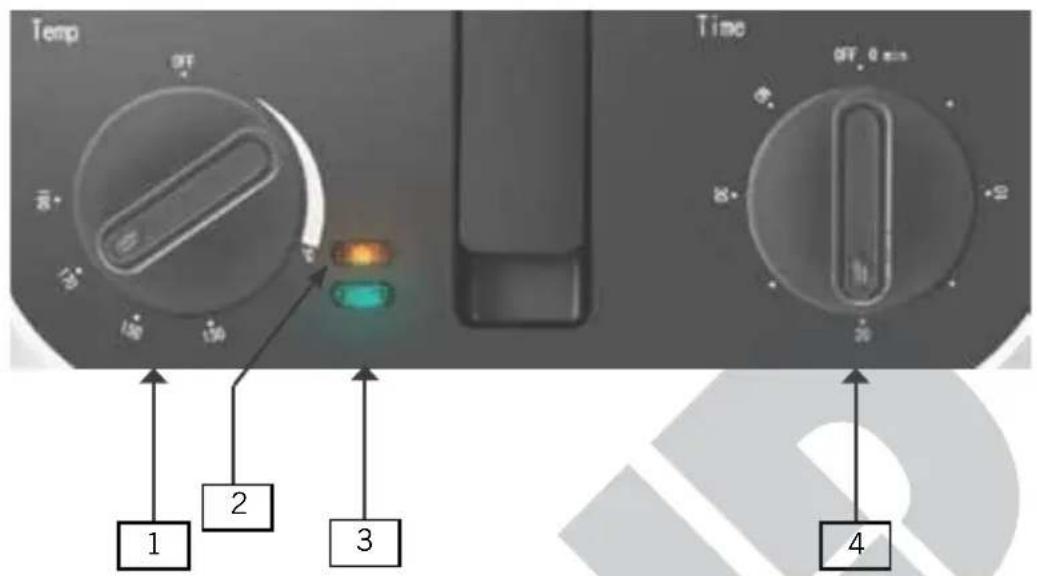

TEMP = temperature controller For setting the desired deep-fat frying temperature

ON/OFF indicator light Indicates whether the appliance is switched on

Function indicator light Indicates when the grease has reached the respective temperature

TIMER For setting the desired frying time (appliance does not switch off!)

BEFORE USING THE APPLIANCE

1. Take out lid, basket, handle and other accessories and remove all packaging

materials. Keep packaging materials away from children - danger of suffocation!

2. Clean lid, grease container, basket, handle and housing with warm, soapy

water and then dry these items thoroughly.

3. Place the housing on a level, stable and heat-resistant surface.

4. Insert the grease container until it rests on the edge of the housing.

5. Insert the operating element. Firmly slide the operating element into the

aperture on the front of the exterior housing. The operating element must firmly lock in place.

6. Insert the deep-frying basket.

7. Close the lid and lower the deep-frying basket, by sliding the slide switch on

the handle downward and slowly folding the handle downward.

8. The lid can be opened by pressing the unlock button on the housing.

9. NOTE: The appliance can only be switched on if the operating element is

correctly inserted. OPERATION

1. Ensure that the appliance is switched off.

2. To open the lid, press the unlock button for the lid.

3. Take out the deep-frying basket by folding the handle

upwards until it locks in place.

4. Pour in oil up to the required height (between the

MIN and MAX marks). At least 1.6 litres of oil must be poured in, the maximum capacity is 2.5 litres of grease.

6. Set the temperature controller to the desired temperature. The heat-up

7. If need be, you can now set the desired frying time to a maximum of

30 minutes on the timer. At the end of the set deep-fat frying time a signal sounds, however the appliance is not switched off!

8. When the desired temperature is reached, the green indicator light turns

off. For the first deep-fat frying process the average heat-up time is 7 to 8 minutes.

9. For optimum deep-fat frying results, only immerse the food to be deep-

fried, when the ideal temperature is reached and the green indicator light is illuminated.

10. Place the food to be deep-fried in the basket. Press the unlock button for

the lid and open the lid.

11. Carefully place the deep-frying basket into the appliance.

12. Close the lid and lower the deep-frying basket, by sliding the slide switch on

CAUTION: Pay attention to oil splashes!

13. Check whether your deep-fried food is ready through the view window.

Attention: Hot steam can escape from the lid opening – danger of burning!

14. Note: Frozen food contains more water, water in hot deep-frying grease is

rapidly evaporated, the rapidly evaporating water causes the popping, and splattering when frozen food is immersed in the hot deep-frying grease.

15. To open the lid, press the unlock button for the lid.

16. Take out the deep-frying basket by folding the handle upwards until it

locks in place. Check whether the deep-fried food has the desired degree of doneness. If not lower the deep-frying basket again and continue as described from point 12.

17. Allow finished deep-fried food to drip off for a few seconds, and then remove

the deep-frying basket. Do not leave finished deep-fried food too long in the drip-off position. The rising steam softens the deep-fried food.

18. After use, always place the temperature regulator on the „OFF“ setting and

unplug the plug from the electrical outlet. Attention: When using the timer function, the appliance does switch off automatically. Never leave the appliance unattended when it is in operation, even if you are using the timer function! CAUTION: The appliance becomes extremely hot during operation! Protect yourself against grease splashes and use suitable utensils for the deep-fried food. Before cleaning, unplug the mains plug. Allow the appliance to cool completely. Do not touch the parts because it is still hot, even after a longer period of time.

1. Take out the grease container with both hands. If you want to reuse the

deep-frying grease, pour the grease through a sieve that is lined with a paper towel. Keep the grease in the refrigerator, e. g. in the covered grease container. Solidified deep-fat frying grease can be briefly warmed up in a pot on the stove before reuse, until it is just liquid enough to be poured into

the grease container. Deep-fat frying grease must be replaced on a regular basis. Dispose of oil or grease that is past its prime in an environmentally- responsible manner in accordance with the local disposal regulations.

2. Do not use any aggressive or scouring cleaning agents; such cleaning agents

can damage the coating.

3. The lid can be taken off the appliance for easier cleaning. Carefully pull the

lid upwards and off of the appliance. To re-insert the lid, the pins on the lid must be inserted in the hinges on the rear of the appliance.

4. With the exception of the housing all parts can be washed in warm water

with a mild dish-washing detergent. If there is encrustation, allow the encrustation to soften by placing the parts in warm water.

5. Dry all parts thoroughly.

6. Place the lid, the grease container and the deep-frying basket back into the

7. Regular cleaning significantly extends the service life of the appliance.

8. Store the appliance in a dry location, where it is protected against dust.

FRYING SCHEDULE The following times are only approximate values, which may differ subject to the type, the quantity and the volume of the foodstuff to be fried. In case of frozen food, set the temperature by 10 °C higher than in the schedule. Follow also the instructions of the manufacturer of the frozen food. For health reasons we recommend to let frozen foodstuff unfreeze partially and then to fry it with max. 175 °C. In order to reduce the production of acrylamide, the oil should not be heated over 175 °C. Foodstuff Temp. Min. ca. Fried sausage 175°C 3 Meatballs 175°C 3-4 Cutlet with bone, breaded 170°C 5-6 Cutlet, unbreaded 175°C 2-3 Cutlet, breaded 170°C 5 Cordon bleu 160°C 8-10 Liver, floured 170°C 2-3 Meat, poultry Chicken liver, breaded 170°C 3 Chicken legs 170°C 15 Chicken cutlet, breaded 170°C 2-3 Quails 175°C 4 Baked chicken in 4 parts 170°C 17 Sausage, thick slices 175°C 2-3 Copyright UNOLD AG | www.unold.deStand 15.11.2022 35 von 108

Foodstuff Temp. Min. ca. Fish Foodstuff Temp. Min. ca. Crabs 175 °C 1-2 King prawns 175 °C 5 Fish fillet, floured 175 °C 4 Fish fillet, breaded 170 °C 6 Fish fillet in batter 170 °C 7 Fish sticks 160 °C 5-8 Plaice, floured 175 °C 8-10 Carp, small, floured, in 4 pieces 175 °C 8-10 Trout, floured 170 °C 5 Trout, breaded 170 °C 6 Herring fillet 170 °C 3 Squid rings, floured 175 °C 3 Foodstuff Temp. Min. ca. Carrots, in small pieces 170 °C 4-6 Leek, rings 170 °C 2-3 Onion rings, floured 170 °C 3 Beans, 10 min. cooked 170 °C 2 Mushrooms, breaded 170 °C 3 Cauliflower pieces, breaded 160 °C 4 Kohlrabi, small pieces 170 °C 2-3 Zucchini, breaded, 1 cm thick slices 170 °C 3 Broccoli pieces 5 min. precooked 170 °C 2 French fries, frozen, max. 800 g 175 °C 4 Vegetables Foodstuff Temp. Min. ca. French fries, fresh max. 1 kg: Dip in shortly, then take off and wait, until the oil is reheated, then fry until ready 175 °C 4 Croquettes from potato dough 175 °C 2-3 Croquettes, frozen 175 °C 6-8 Herbs in batter 175 °C 1-2 Pastry / Snacks Foodstuff Temp. Min. ca. Doughnuts, per side 175 °C 3 Cream cheese dough- nuts, per side 175 °C 1,5 Camembert, breaded 175 °C 2 Copyright UNOLD AG | www.unold.de36 von 108 Stand 15.11.2022

RECIPES All recipes are provided for 4 persons Potato balls 700 g cooked potatoes, 70 g flour, 1 small egg, 2 tblsp chopped parsley, 1 tblsp chives, 100 g grated cheese, 1 tblsp of pumpkin or sunflower seed, salt and pepper Press the potatoes through a potato squeezer. Knead with flour, egg, parsley, chives, cheese, pumpkin or sunflower seeds, pepper and salt and form small balls. Heat the oil to 170 °C and fry the balls for about 4-5 min. until they are crispy. Crabmeat balls 500 g crabmeat, 6 water chestnuts (tin, or sweet chestnuts), 100 g bacon, pepper, 1 pinch of su- gar, 2 tsp starch, 1 eggwhite, 1 clove of garlic, 1 slice of toast bread, 150 g bread crumbs Chop crabmeat, chestnuts, bacon, garlic, and bread with a knife or with a handblender. Add pepper, salt, 1 tsp of oil and eggwhite, leave for about 30 min. in the refrigerator. Then form small balls, turn them in bread crumbs. Heat the oil to 160 °C. Fry the balls by turning them from time to time. Carrot crispies 400 g chopped carrots, 3 small eggs, 3–4 tblsp flour, 1 bunch of chervil, chopped, salt, pepper, 1 pinch of nutmeg, 1 pinch of sugar Prepare a solid dough of the ingredients and season it. Take off small balls by means of a spoon, and bake them in hot oil. Bacon leek 2 stalks of leek, 100 g bacon in slices Cut the leek in 5 cm pieces. Roll one slice of bacon around each piece of leek, fix it with a toothpick, and bake it in hot oil. Cutlet „Milano“ 4 pork cutlets, salt, pepper, paprika powder, 6 tblsp Parmesan cheese 2 eggs, 2 tblsp flour, some milk, nutmeg Season the cutlets with salt, pepper and pap- rika. Prepare a batter from egg, flour, cheese, milk, salt, pepper, and nutmeg. Heat the oil to 170 °C. Turn the cutlets in the batter and bake for about 6 min. in the oil. Lemon pike-perch 4 pike-perch fillets of 200 g each, juice of 1 le- mon, salt and pepper, 100 g flour, 1 beaten egg, 100 g bread crumbs, 2 tblsp grated lemon peel, 2 tblsp chopped lemon balm, 2 lemons Wash the fish fillets under cold water and dry them. Sprinkle with lemon juice. Season the fish with salt and pepper, turn in flour and egg. Mix the bread crumbs with the lemon peels and the balm and bread the fillets in this mixtures. Bake the fish fillets for about 10 min. in the oil, garnish with lemon slices. Filled doughnuts 500 g flour, 7 g dry yeast, 100 g sugar, 125 ml milk, 100 g soft butter, 2 eggs, 1 pinch of salt, 2 bags vanilla sugar, 1 tblsp rum, 200 g rosebud jam Prepare a dough from flour, yeast, sugar, warm milk, butter, eggs, salt, vanilla sugar and let the dough rise. Roll the dough 1 cm thick, and Copyright UNOLD AG | www.unold.deStand 15.11.2022 37 von 108

mark circles with a glass. Put 1 tsp of jam on each circle, cover it with the second dough plate and cut out the circles. Put the balls on a wood surface, cover it with a towel and let it rise for another 30 min. Heat oil to 170 °C. Fry the doughnuts 3 min. from each side, take it out of the oil and sprinkle it with powder sugar. Fruits in batter 400 g fresh fruits (e. g. pineapple, apricots, ba- nanas, pears or apples), 150 g wheat flour, 50 g coconut flakes, 1 pinch of salt, 2 tblsp sugar, 150 ml milk, 1 egg Prepare a smooth batter of flour, coconut flakes, salt, sugar, milk and egg. Leave the dough for about 30 min. Peel the fruits and cut it into pieces. Heat the oil to 170 °C. Immerse the fruit pieces into the batter and fry them until they become golden. Sprinkle with icing sugar and serve pure or with vanilla sauce or ice cream. Doughnuts ¼ l milk, 100 g butter, 2 tblsp sugar, 2 bags of vanilla sugar, 1 pinch of salt, 150 g flour, 4 eggs Cook milk with grease, sugar, vanilla sugar and salt on the stove. Add the flour and stir until the dough loosens from the bottom. Let the dough cool down. Then add one egg after the other. Fill the dough into a piping bag, and spray circles on a baking paper. Heat oil to 170 °C. Let the doughnuts slide into the grease and bake it 2 min. from each side. Cream cheese doughnuts 100 g soft butter, 150 g sugar, 2 bags vanil- la sugar, 4 eggs, 1 pinch of cinnamon, 500 g cream cheese, 250 g flour Prepare a dough from butter, sugar, vanilla su- gar, eggs, cream cheese and flour. Heat the oil to 170 °C. Make small balls by means of a spoon and give them into the hot oil. Attention: Do not fry too many balls at the same time, as the grease will become foamy. Bake the balls about 1.5 min. on each side and take them out of grease. Turn in sugar mixed with cinnamon.

If you should have problems with your deep fryer, check first, if the appliances is correctly connected to the receptacle or if the overheat protection has switched off the appliance. Then check if one of the following cases applies. Problem Cause Remedy Strong odour Oil or fat are used Replace oil or fat. Frying oil or fat is not heat- resisting. Do not use any fat- or oil mixtures, only use high-quality, heat-resistant oil. Vapour is escaping under the lid. Remark: a certain amount of vapour has to escape for safety reasons to avoid overpressure The lid is not closed correctly. Close lid correctly. The filter is polluted. Clean the filter. Copyright UNOLD AG | www.unold.de38 von 108 Stand 15.11.2022

Problem Cause Remedy Oil/fat is overflowing. The „MAX“ level has been exceeded. Check the oil quantity! Foodstuff was not dry enough. Dry foodstuff before frying with a towel. Frying basket has been dipped in too rapidly. Lower frying basket slowly and carefully. Food quantity has been exceeded. Reduce the quantity of food to be fried. Foodstuff does not become crispy. Temperature too low. Adjust the temp. setting. Frying basket overloaded Reduce the quantity of the foodstuff to be fried. Oil/fat not hot enough. Temperature control defec tive, contact our service. Oil/fat is used and contains too much water Replace oil/fat. Fat is not heated enough. Not enough fat in the oil pan. Read chapter „Operation“, pt. 1-3, filling with fat/oil, and “overheat protection”. Oil pan and heating and control panel are not correctly inserted. Insert the respective parts care fully according to these instruc tions. Copyright UNOLD AG | www.unold.deStand 15.11.2022 39 von 108

GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workman- ship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic prod- ucts. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. The instruction booklet is also available for download: www.unold.de The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss. Copyright UNOLD AG | www.unold.deloading-circle-1Stand 15.11.2022 41 von 108
