USER MANUAL NSG uClean LD1420 Starmix
Operating instructions

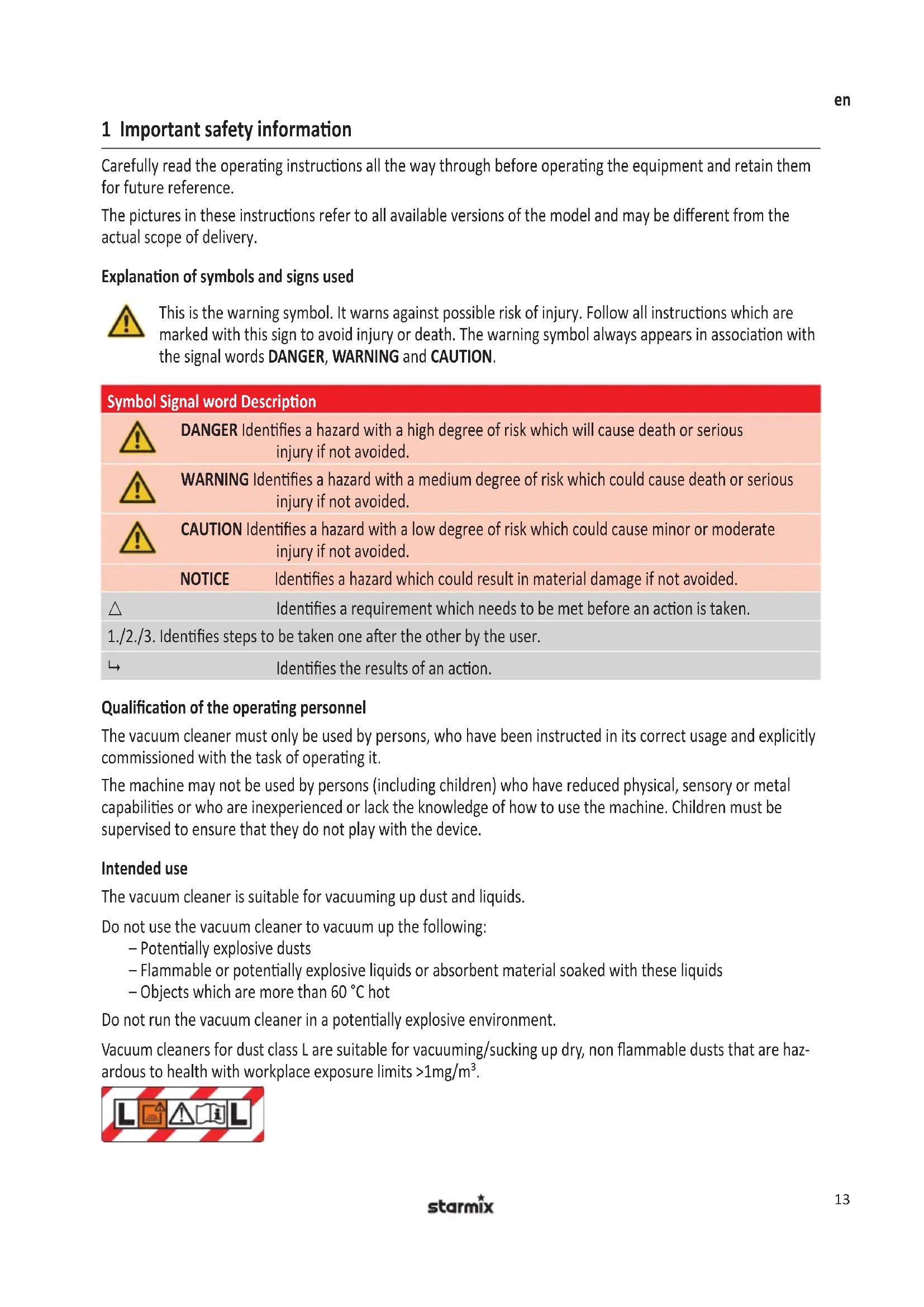

1 Important safety information
Carefully read the operating instructions all the way through before operating the equipment and retain them for future reference.
The pictures in these instructions refer to all available versions of the model and may be different from the actual scope of delivery.
Explanation of symbols and signs used
This is the warning symbol. It warns against possible risk of injury. Follow all instructions which are marked with this sign to avoid injury or death. The warning symbol always appears in association with the signal words DANGER, WARNING and CAUTION.
Symbol Signal word Description
DANGER Identifies a hazard with a high degree of risk which will cause death or serious injury if not avoided.
WARNING Identifies a hazard with a medium degree of risk which could cause death or serious injury if not avoided.
CAUTION Identifies a hazard with a low degree of risk which could cause minor or moderate injury if not avoided.
NOTICE Identifies a hazard which could result in material damage if not avoided.
△
Identifies a requirement which needs to be met before an action is taken.
1./2./3. Identifies steps to be taken one after the other by the user.
L
Identifies the results of an action.
Qualification of the operating personnel
The vacuum cleaner must only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it.
The machine may not be used by persons (including children) who have reduced physical, sensory or metal capabilities or who are inexperienced or lack the knowledge of how to use the machine. Children must be supervised to ensure that they do not play with the device.
Intended use
The vacuum cleaner is suitable for vacuuming up dust and liquids.
Do not use the vacuum cleaner to vacuum up the following:
-Potentially explosive dusts
- Flammable or potentially explosive liquids or absorbent material soaked with these liquids
- Objects which are more than 60^ hot
Do not run the vacuum cleaner in a potentially explosive environment.
Vacuum cleaners for dust class L are suitable for vacuuming/sucking up dry, non flammable dusts that are hazardous to health with workplace exposure limits >1mg / m^3
en
Vacuum cleaners which are not identified as being suitable for dust class L are only suitable for vacuuming/ sucking up non-hazardous to health dusts.
Only operate the vacuum cleaner under supervision. Do not climb onto or sit on the vacuum cleaner.
This machine is intended for commercial use, for example, in hotels, schools, hospitals, factories, shops, offices and in the rental business.
The manufacturer does not accept liability for damages caused by misappropriation, inappropriate usage or incorrect repairs.
Avoid danger from electric shocks
The voltage on the rating plate must match the mains voltage. Only connect the vacuum cleaner to a sufficiently protected electric socket.
Do not pull the mains connection cable over sharp edges, do not bend it or clamp it. Only replace a damaged mains connection cable with one meeting the specifications in the Technical Data chapter.
Do not use the vacuum cleaner including accessories in the following cases:
- Mains connection cable or extension cable is defective or showing cracks.
- There is visible damage to the vacuum cleaner, e.g.cracks in the housing.
- If you suspect an invisible defect, e.g. after a fall.
In the following cases, switch the vacuum cleaner off and unplug it from the mains:
- If any foam or liquid is discharged
- In the event of a longer work interruption and after every use
- Before carrying out any maintenance or retooling
When unplugging, only pull on the mains plug and not on the mains connection cable. Never touch the mains plug with wet hands.
Do not open the vacuum cleaner outdoors in the rain or during a thunderstorm. Always keep the inside of the lid dry.
Only use the brushes supplied with the vacuum cleaner or those specified in the operating instructions. Using other brushes can compromise safety. Never allow electrical brushes to come into contact with the mains connection cable.
Avoid any danger during operation
Only for vacuum cleaners in dust class L: Make sure that the air exchange rate is high enough if the exhaust air is being fed back into the room (pay attention to applicable national regulations).
Inform operating personnel about the following points before work starts:
- Handling the vacuum cleaner
Dangers originating from the material to be sucked up - Safe disposal of the material sucked up
Do not use the blowing function in closed rooms. Only work with a clean suction hose. Do not stir up any dusts which are hazardous to health. Do not inhale dusts.
When being used in food processing businesses: Immediately clean the vacuum cleaner after use and disinfect it to avoid microbial contamination.
Avoid any danger during maintenance and repair
Only have repairs carried out by experts. Only use original accessories and spare parts.
2 Before the first start-up
Assembly
See Fig. B.
- When unpacking, make sure everything is complete.
- Immediately report any transport damage to the retailer.
3 Operation
Before every use, please note
Make sure that the following conditions are met:
Vacuum cleaner, mains cable, suction hose and accessories are not damaged.
All filters have been inserted and are not damaged.
Operating modes
| Operating mode (depending on equipment) Description Switch position | ||
| Off Wall socket under voltage 0 | ||
| On Wall socket under voltage, manual operation | I | |
| Minimum suction power Vacuum cleaner operates at low power ECO | ||
| Maximum suction power Vacuum cleaner operates at maximum power | MAX | |
| Standby mode for automatic switch-on, infinitely adjustable speed control ECO-MAX | Vacuum cleaner is switched on and off by the electrical tool | A |
| Standby mode for automatic switch-on, infinitely adjustable speed control ECO-MAX, automatic filter cleaning | If the suction power drops, the filter is cleaned in breaks between work (= switched off electrical tool) | A |
Automatic filter cleaning (depending on the equipment variant)
The vacuum cleaner is fitted with an electromagnetic filter cleaning system with which any attached dust is automatically shaken from the filter cartridge.
Suck up dry materials
| Tools required | Notes |
| Main filter (filter cartridge) | Vacuum cleaner, filter and accessories need to be dry. If frequently changing between wet and dry vacuuming, use a separate main filter. |
| Filter bag for dust-free disposal of fine-grained material to be sucked up | When vacuuming soot, cement, plaster, flour or similar dusts: Insert a filter bag in the dirt container so that the dust does not stick and or cake. |
| Accessories depending on the area of application |
en
- Set required operating mode on the switch.
Vacuum cleaner is ready for vacuuming.
-
To adjust the suction power, select from the following options (depending on equipment):
-
Move switch to ECO position
- Set speed on the switch
- Set auxiliary air slide on the handle tube
Suck up liquids
Volume of liquid Tools required
Small volume of liquid Main filter (filter cartridge)
Water nozzle
Large volume of liquid Main filter (foam)
Water nozzle
- Remove filter bag from the dirt container before sucking up liquids.
- Slightly open auxiliary air slide on the handle.
- Move switch to position I.
Before switching off the vacuum cleaner:
- Remove suction nozzle from the liquid.
Residual water in the suction hose is sucked into the container and cannot leak out.
If there is a sudden loss of suction power and increased motor speed (changed motor noises), the float valve has interrupted the suction process: The container is full.
- Switch vacuum cleaner off.
- Empty dirt container and filter cartridge.
Connect an electrical tool
See Fig. C.
Use socket on vacuum cleaners with automatic switch on/off (switch position A) to connect electrical tools. The vacuum cleaner is switched on and off by the electrical tool. In switch position 0, the socket can be used as an extension cable, e.g. for a light.
Connection value: Vacuum cleaner + electrical tool = max. 16 A (value depends on the country version, pay attention to technical data).
WARNING!
The socket on the vacuum cleaner is always live.
Risk of injury due to electrical tool automatically starting up.
- Before plugging in: Switch off electrical tool.
Smart Stop
See Fig. D.
- Apply the brake with your foot.
The vacuum cleaner is prevented from rolling away.
Smart Stop offers further functions:
- Handle to empty the dirt container
Ramp function to drive over obstacles
Blowing function
See Fig. E.
Only use the blowing function for cleaning, removing dust from and drying machines and appliances.
Flow volume display
See fig. F.
If the container is full or if there is a blockage in the suction hose, the flow volume display lights up.
After work
See Fig. G.
- Roll up mains connection cable and suction hose.
- Store the accessories in the accessories holder.
Transport and storage
- Before transport, close the locks on the upper part of the vacuum cleaner.
- Pay attention to the weight of the vacuum cleaner, particularly if the dirt container is full.
- Do not tilt the vacuum cleaner if there is liquid in the dirt container.
- Store the vacuum cleaner dry and indoors, protected from frost.
4 Troubleshooting and repair
| Fault Cause Remedy | ||
| Suction power drops Lid not properly closed Close lid | ||
| Filter dirty Clean | ||
| Filter bag full Change | ||
| Container full Empty | ||
| Motor protection filter blocked Clean | ||
| Nozzle, tube or hose blocked Clean | ||
| Vacuum cleaner does not start Mains plug not in socket Plug in | ||
| No mains voltage | Check fuse | |
| Mains connection cable defective | Have it replaced | |
| Water sensor/floater has switched off | Empty container | |
| Switch in position A | Move switch to I | |
| Vacuum cleaner does not start when the electrical tool is switched on | Electrical tool not plugged into socket on the vacuum cleaner | Plug mains plug into socket on the vacuum cleaner |
| Switch not in position A | Move switch to A | |
Do not try anything else, contact customer services.
5 Maintenance
See Fig. H-I-J-K.
When maintaining and cleaning the vacuum cleaner, handle it in such a way that there is no danger for maintenance personnel and other people.
Only for vacuum cleaners in dust class L
For maintenance by the user, the vacuum cleaner must be
-dismantled,
cleaned and
maintained,
as far as possible without creating any danger to the maintenance personnel or other.
Suitable precautionary measures include
- Cleaning before dismantling,
- Provide local filtered positive ventilation where the vacuum cleaner is to be dismantled,
- Clean the maintenance area and
- suitable personal protection equipment.
Have a technical inspection carried out at least once a year by specialist personnel, e.g. checking for damage to the filter, air tightness of the vacuum cleaner and that the control equipment is working properly.
Contaminated items
When carrying out maintenance or repair work, all contaminated items which have not been adequately cleaned must be disposed of. Such items must be disposed of in impermeable bags in accordance with the applicable regulations concerning the disposal of such waste.
Emptying the container
Only permitted for dust with workplace exposure limits >1mg / m^3
- Switch the vacuum cleaner off, pull the mains plug out.
- Open the latches.
- Remove the cover and suction hose from the container.
- Empty the container by pouring out.
Replacing filter cartridge
See Fig. J.
- Switch the vacuum cleaner off, pull the mains plug out.
- Open the latches.
- Remove the cover from the container.
- Loosen the locking screw.
- Removing the filter cartridge.
- Push new filter cartridge in a straight manner over the case, right up to the stop point.
- Tighten the locking screw.
Dispose of filter cartridges, filter bags or disposal bags
Dispose of the filter cartridge, filter bag or disposal bag in accordance with national regulations.
Cleaning
Do not clean the vacuum cleaner with a high pressure cleaner. Only use a wet cloth and mild cleaning agents to clean it. Acids, acetone and solvents can etch parts of the vacuum cleaner.
Clean the filter cartridge regularly, do not damage the fins while doing so. Only re-insert filter cartridges which you have cleaned using water when they are completely dry. Do not clean or dry filter cartridges using compressed air.
6 Disposal
Old equipment contains valuable materials which are designed for re-processing. The vacuum cleaners must not be thrown away in the normal household waste, but should be disposed of at a suitable proper collection system, e. g. via your communal disposal location.
7 Genuine accessories
| Description Order No. | NSG uClean 14.. / LD 14.. / ADL 14.. | Order No. NSG uClean ARDL 14.. |
| Filter cartridge FP 3600 411729 | ||
| Filter cartridge FPP 3600 415109 (540986) | ||
| Filter cartridge FPPR 3600 413464 (529776) | ||
| Filter cartridge FPPR 7200 413372 |
8 Technical Data
| NSG uClean 14.. | NSG uClean LD 14.. | NSG uClean ADL / ARDL 14.. | |||
| Voltage V 220-240 110 220-240 220-240 | |||||
| Frequency Hz 50/60 50/60 50/60 | 50/60 | ||||
| Power consumption (max.) W | 1400 | 1400 | 1400 | 1400 | |
| Protection class | II□ | II□ | I⊕ | ||
| Air flow rate: at the fan m³/h | 248,4 | 174 | 248,4 | 248,4 | |
| Air flow rate: at the hose m³/h | 147 | 128 | 147 | 147 | |
| Negative pressure: at the fan kPa | 26 | 21 | 26 | 26 | |
| Negative pressure: at the hose kPa | 20 | 20 | 20 | 20 | |
| Filter surface area cm² | 2950 | 2950 | 2950 | 2950 / 3400 | |
| Noise level dB(A) | 85 | 85 | 84 | 85 | |
| Power cord: type | H05VV-F 2x1,0 | H05VV-F 3G1,5 | H05VV-F 2x1,0 | H05VV-F 3G1,5 | |
| Power cord: length m | 8 | 8 | 12 | 8 | |
en
| Tank volume l | Dimensions cm (l x w x h) | Weight kg | |
| NSG 1420 20 41,7 x 39 x 55 8,9 | |||
| NSG 1432 32 41,7 x 39 x 64 9,3 | |||
| NSG 1445 45 48,3 x 48,3 x 79 12,4 | |||
| NSG LD-1422 22 46,1 x 43 x 57 10,3 | |||
| NSG LD-1420 20 42,5 x 39 x 55 9,2 | |||
| NSG LD-1432 32 42,5 x 39 x 64 9,5 | |||
| NSG LD-1435 35 46,1 x 43 x 70,3 11,0 | |||
| NSG LD-1445 45 48,3 x 48, x 79 12,8 | |||
| NSG ADL-1420 20 42,5 x 39 x 55 8,9 | |||
| NSG ADL-1432 32 42,5 x 39 x 64 9,3 | |||
| NSG ADL-1445 45 48,3 x 48,3 x 79 12,6 | |||
| NSG ARDL-1420 20 42,5 x 39 x 55 9,8 | |||
| NSG ARDL-1432 32 42,5 x 39 x 64 10,2 | |||
| NSG ARDL-1435 35 46,1 x 43 x 70,3 11,8 | |||
| NSG ARDL-1445 45 48,3 x 48,3 x 79 13,3 | |||
| NSG ARDL-1455 KFG 55 53 x 51 x 99 20,0 |
IP24 (€
9 Declaration of conformity
| Declaration of conformity | |
| We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EC Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. | |
| Product: Vacuum cleaner for wet and dry operation | |
| Type: NSG | |
| The design of the appliance corresponds to the following pertinent regulations: | EC Machinery Directive 2006/42/EUEMC Directive 2014/30/EurRoHS 2011/65/EU |
| DIN EN 60335-1(VDE 0700-1):2012-10; EN 60335-1:2012DIN EN 60335-1 Ber.1 (VDE 0700-1 Ber.1):2014-04;EN 60335-1:2012/AC:2014; EN 60335-1:2012/A11:2014DIN EN 60335-1/A13 (VDE 0700-1/A13):2018-07EN 60335-1:2012/A13:2017DIN EN 60335-2-69 (VDE 0700-69):2015-07; EN 60335-2-69:2012DIN EN 62233 (VDE 0700-336)2008-11; EN 62233:2008DIN EN 62233 Ber.1 (VDE 0700-366 Ber.1):2009-04; EN 62233 Ber.1:2008 | |
| DIN EN 55014-1 (VDE 0875-14-1):2018-08; EN 55014-1:2017DIN EN 55014-2 (VDE 0875-14-2):2016-01; EN 55014-2:2015Anforderungen der Kategorie I & II / Requirements of category I & IIDIN EN 61000-3-2 (VDE 0838-2):2015-03; EN 61000-3-2:2014DIN EN 61000-3-3 (VDE 0838-3):2014-03; EN 61000-3-3:2013 | |
| Authorized documentation representative: | ELECTROSTAR GmbH, Hans-Zinser-Straße 1-3, 73061 Ebersbach/Fils, Germany |
| 20.08.2019 | Caroke freuCarsten GresserHead of Quality Assurance |
Symbole Mention Description
Unngå farer under driften
Pase for haver idriftsetting
| Feil Årsak Utbedring | ||
| Avtakende sugeeffekt Dekselet er/DD er/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD-DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DDR DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD D DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD HH DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD dd DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD DD AA | ||
| Filter tilsmusset Rengjørne | ||
| Filterpose full Skifte | ||
| Beholder full Tømme | ||
| Motorbeskyttelsesfilter tilstoppet Rengjørne | ||
| Dyse, rør eller slange tilstoppet Rengjørne | ||
| Sugeren starter/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD/DD-AA | ||
Mny npaymuatoonoeiE aAec eepaocic, aa anevuovtheta tto epic.
5 Uvtnpnon
Béπε εικ. H-I-J-K.
H3cMykBaHe Ha cyxN BeueCTBa
N3CMyKBAHe Ha TeuHOCTN
KoHTaKTbT Ha cMyKaaykata OCTaBA BnHaR NIOd HAnpeXeHne.
OnachocOT HapaHbAne npaAn ABTomauHo pa6oTee JekTponHcTpymeHT.
- Ппдьвклioчвае на ссела: Иклioчete eleknроинстума.
HHTeJIrRETHO cnpaHe
BuxΦnD.
- 3aDénCTBaIte cπnpaKaTc KpaK.
PpaxocmykaKaTa NOBeHe He MoKe Da Ce DnKn.
Cmapt cTOn npednara donbHnTeHn yHKuN:
-Дрьхka 3a ИзпраЗване На КОТиЕнэра 3a 60Клук
-Функця paMna 3a npemnHaBaHe npe3 npenTCTBn
ФУнкцИЯ n3dYXBaHe
BuxΦnE.
I3noJ3BaIte fynKcIyTa n3dyXbaHe cMo 3a noUcTbaHe, oTcpaHraBaHe Ha npax IIOcCyuBaHe Ha Maunn HcBopjxehn.
HdNkATOp 3a Bb3dywnnnotOK
BuxΦur.F.
Pn n bIeH KOHTeHep nn 3aDpBCTBaHHa Ha MapKya 3a BCMyKBaHe CBeTN HdNKaTObT 3a Bb3dyuHnra NOTOK.
Cnepa6ota
BnKΦnG.
- HabnTe 3axpaHbaunKa6eJ n cMykaTeHHmaKpyu.
- Pnp6epe npHaJdxJxHocHTne B OTdJeHHeTo 3a npHaJdxJxHocTn.
TpaHcnpTnpaHe ncbxpanenHe
- Ппду Трансортуране Затборет Клочашиte Н горна заct на смУкчКаТа.
- 06bpeBnMaHHe Ha terIoto Ha cmykaKata, oO6eNo np nIbeH pe3epBoap 3a 3ambpcaBaHHa.
- He naklaHnTe cmykaKATA, KOrato mTa TeuHOCT B pe3epBoapa 3a 3ambpcBaHHa.
4.ИЗсушete CMykaKaTаиЯ CBxpaHTe BbB bTpewHO NOMeUeHne 3aUnTeHo OT 3ampb3BaHe.
4 OtrtpaHbAHe Ha Hen3npaBHOCTn npemOH
NIIIOCTpaunB daHNO IHCTpyKuIN OTHOCaTc KOBCEM IpeIraeMbIM BapnaHTam MoJeIN MOryT OTNIuYATbcr OT aKTNUeCKO RAMnJIeKTA NOCTaBKn.
06bAChHeHne IcNoIb3YeMbIX CmMBOJIOB 3HaKOB
3To npdeynpeintelbHbI cMbOJ. ON npdeynpejdaet o notenuaJIbHOJ onaCHOCTn TpaBMnpOBaHn. C6JIIOaIte BCE INCHtpKznn, 06o3NaueHHbIe daHbIM cMbBOJOM, YTO6bl N36EkaTb TpaBM nIIcMeptelbHoro nCxOJa. PpeynpeintelbHbI cMbBOI Bcerda IcNoIb3yETcB COUeTaHN C CnHaJIbHbIMCLOBaMn ONACHOCTb, PpeynpeJXDEHNE N OCTOPOXHO.
CnBcN HbHoe cNoBo OncaHne
ONACHOCTb 06o3haaet BbICOKn ypoBeHb ONACHOCTN, KOTOPa npNBeTeK CmepTeJIbHOMy IcXoMy Nn TjKeJIbIM TpaBMam, ecn He npNHrTb Mepbl No ee npDoTbpaueHIO.
ПЕДУПЕЖДEHNE 603начаET cpeHn ypoBeHb onaCHOCTN, KOTOPa MOKeT npNBecTN K CmepTeIbHOMy nCXOy uIN TЯжелIM TpaBMam, ecIn He npNHrTb Мрbl no ee ppeDToBpauSeHIO.
OCTOPOXH0 6o3Haayet Hn3Kn ypoBeHb onaCHOCTn, KOtOpA MoKeT npBecTu K TpaBMam IeKoN nn CpeDHe TAgKeCTn, eCIn He npHrTa Mepbl no ee npedotBpauenceHIO.
BHIMAHNE 06o3haaet onachoctb, KOtopa moKeT npBecTu K MaTePnaIbHOMy yuepe6y, eCn He npHraTb Mepbl No ee npedotBpaueHIO.
Obo3Hauaet ycIOBne, obraTeIbHoe Ira co6IoJeHna nepeTtem, KaK 6ydt BblOnHeHO COOTBeTCTByIOUeE DeICTBne.
1./2./3. 06o3Haayet deiCTBna, KOtOpbI dOJIxHbI 6bITb NoopeepnHO BblOnHehblNoIb3OBaTeIeM.
06o3Haayetpe3yIbTaT DeiCTBna.
Kbannnkaa n o6cnyknaioe npcohana
YCTPOIcTBO DOLJXHO NcPONb3OBaTbCra TOnbKO LnCaMn, OByeHHbIMN B erO NcPONb3OBaHmN I npAIMO OTHeceHbI K 3Toi 3aJaue.
NcnoB3OBaHne daHHoro yctpoiCTBa 3anpeeHNO Iuam (B TOM uNCle N deTAM) CO CHNXeHHbIMn fN3NuEcKNM, ceHCOPbIMn IIN yMCTBeHHbIMn cNo6HOCTMaI INI Iuam, He IMeIoUIM Onbita erO nCNoB3OBaHna. 3a DeTbMn Tpe6yETcra HabIOHeHne, UTo6bl Y6eDntbcra, UTO OHN He INrpaOT C yCTPOiCTBOM.
PpimHeHne no Ha3HaueHnIO
PbIeoc npEHa3HaueH DnBcAcbBaHnN PbIIN JxNdkocte.
He nCnoB3yIte nbIeoc dIJI BCaCbIBaHnCneDyUOxN BeIeCTB:
-B3pbIBOONaCHa NbIb;
-TopoUcHne HINB3pbIBOONaChbIe XnIDKocTN NIM MaTepeNaJIbI, npOnNTaHHbIe DaHHbIMN XnIDKOCTaM;
- MaTePnAJIbI, TempePaTypa KOToPbIX npeBbIaet 60^
He 3KcnpnyatnpyIte nbIeCOC BO B3pbBOONaCHOM OKpyKeHN.
IbilecoBcI Klacca L npedHa3HaueHb Iy BcabBaHna cyxO, Heropoue, onacho Iy 3doobpa nbln C npedeNbHO dOnycTmO KoUeHTpaueH na pa6oem MeTe >1 m/r/m³.
NbIeocbI,Ha KOTopbIX He yKa3aH Knacc nbIIN L, npedHa3HaueHbI TOJIbKO Iy BCaCbIBaHnR HeonacHO nnI.
3KcnpaTupyTe nbIeoc TObko NOHd3Opom. He cTaHOBnTEcb Hne caNTecb Ha nbIeoc.
DaHnoe yctpoictBO npedHa3NaueHo IJI KOMMepueckoro nCNoIb3OBAHHa, HApnMpE, B OTeJax, WkoJax, 6oJIb-Hnucx, MaRa3NnHax, OΦncax, Ha npou3BODCTBe, a TaKHe dJIra Cdaun B apeHdy.
Ipon3BODntelb He Hecet OTBeTCTBeHHocTn 3a yuep6, YBIAIOUncra CIECDTBnEM NcnoB3OBAHnHe nO Ha3Ha-yeHIO, HeNaJIeJkaUero OBClyKINBaHnry IIN HeKOMNeTeHTHO peMOHTa.
PpeDToBpaueHne onaChOCTn nopaxeHHN 3JIeKtpuYeCKNM TOKOM
HanpajkeHne, yka3aHHoe ha φnnpMeHHo Ta6nUKe, doJxHO coBnaDaTb c HaprajKeHem cetn. PndKlouaTe nbIeCoc Toblko K po3Etke, 3aunuEHHo npn nOmoos noDxoJaero npedoxpaHntela.
He TAHNTe Ka6eIb CeTeBOrO NITaHnNo OCTpbIM KpOMKaM, He 3aIaMbBaIte N He 3aXImaIte ero. IOBpeJDenHbI Ka6eIb CeTeBOrO NITaHn 3aMeHnTe TOJIbKO Ka6eIeM, yka3aHHbIM B rIabe «TexHnueckne xapakTepnCTNKN».
He BbOdnte B 3KcIpyatauIO nbIleCOC, BKJIouaer npHaIeJXHocTn, B CJeDyUoIx CNyuaax:
- Ka6eIb ceTeBOrO nITaHnI yDInHnTeIbHbI K a6eIb IMeet DeΦeKtbl IIN TpeuHbI.
-Пылесoc IMeet RAHbIe NOBpeKdEHHa, HApnMpE, TpeunHb B KOpnyce. - Ppi noo03peHH Ha haJIyue HeBnDmBix deEeKTOB, HapnpMep, nocne naeHna.
BbIKIOaIte nbIeocn nN3BNEkaIte 7TeNCeIbHyIO BnIKy B CNe dyIOx CNyAax:
B Cnyae BbIXOda neHbI nnJxNkOCTn;
B Cnyuae DnnteBbix nepepbboB B pa6Ote nocle KaKdoRIO NcNoB3OBaHnra;
- nepei KaKdbim TexHnueckm o6cnykHBaHne m nn peepo6opyoBaHneM.
I3Bleka Ka6eIb ceTeBO rntaHnra, TaHnTe TOnbKO 3a WTeNcEJIbHyIO BnIKy, HO Hn B Koem clyuae He 3a cam Ka6eIb. Hn B Koem clyuae He npKacaiTecb K WTeNcEJIbHO BnIke BnaXhblm pykAmn.
He otKpbIbAaTe nbIeoc Bo BpeMdoJxra nn rpo3bln oTkpblim He6om. BHyTpehnnaactb KpbIuKn doJHKha 6bITb Bcerda cyXoJ.
IcnoIb3yIte TOLbKO UeTKN, NOCTaBHeHbIE BMeCTe C NblncocOM HnYka3aHHbE B HnCtpyKUIN PNO 3Kcnnyatau. IprimeHne Dpyrnx UeTOK MoKeT HeAtuBHO OTPa3ntbcra Ha 6e3onacHoctn. He DonyckaTe cOnpukochoBeHHra 3JeKtpoOeTOK C Ka6elem CeTeBO rPiTaHn.
PpeodTbpaueHne onachOteB Bo Bpem3Kcnnyataun
ToIbKO IyIbIeCocOB KnaCa L: ecn Otpa6oTaHbI BO3dyx OTBODNTc B NOMEueHne, cJeIte 3a DoCTaTOUHOI KpaTHOCTbIO BO3dyXOO6MeHa (co6IIOdaIte DeIcTBYIOUne HaUNOHaIbHbIe NOLOKeHna).
IpepeHauanom pa6oToI npOnHΦOpMnpyTe o6cLyKbAouuI nepcoHaI o cLeyUoIeM:
-06paueHnC nIeocom;
- ONaCHOCTN, INCXOJIeNE 0T BCaCbIBaEMOro MaTePnHaJa;
-6e30nacHoe n3BLeueHHe BCaCbIbAemOro MaTePnAna.
He nCnoJIb3yIte yHKnIIO npOdyBkn B 3akpbItbIX NOMEueHnX. Pa6oTaIe TOnbKO C YnCTbIM BCacbIBaIOUIM ShaHrom. He noDnHaMaTe onaChyIO dIra 3OpOBBy IbIb. He BdIxaTe nbIb.
Pn nCnoB3OBAHn Ha npednpnTnx nIeBOy npomblIeHHocTH: nocJe nCnoB3OBaHn cpa3y ouNuaTe n De3nHΦuPyTe nbIeococ, yTO6bI npedOTbPaTb ero 3arpa3HeHne MnkpoopraHn3MaMn.
PpeDToBpaueHne onaChOteB BO BpeM TeXnUeCKOro 6cLyKuBaHnI ne pemOnTa
Pemont doljhen BblnoHnTbcra Tolsko KbaHnphiuropBaHHbIMn CneuaHnCTamN. IcnoJIb3yIte Tolsko opnHnHaJIbHbIe npHaJdIeXHoCTn n 3aIpaCTn.
2пегдпьвIM BBODOMВЗкплуataциIO
C6opka
Cm. pnc. B.
- Посце сягеля уразковский поеверste komплектоctь.
- He3aMeIeJIbHo coo6uAte dIInepy O nobpeKdEHNx, Bo3HKnXx BO Bpem TpaHcnpOpTnOBKn.
3 3Kcnpnyatazaia
Ipea KaKdbIM BBODOMB 3KcnpyaTaunIO
Y6eHntecb, YTO BInONHeHbI CneDyUOuNe ycIOBnA:
_b_c eoc, ka6eIb nTahn, BCacbIBaHou m IlaHr npHaJdEckHOHe IMeHT NOBpeKdeHn.
BceΦnIbTpblYcTaHOBJIeHbI Ne HMeHT NOBpeJdeHn.
Peknmbi pa6oTbi
L Boda, ocTabwaacB wlaHre, BCacbBaetcB KOHTeHep H He MOKeT BblTeYb.
PnBHe3aHOM CHNKeHN BCaCbBaIOSeM OoHocT N yBeJIuYeHN YacOTbI O6OpOTOB DBrTaTeJ (n3MeHne 3Byka pa6Otbl DBrAteJ) nonlaBKOBI KJIanaH npepBaII npOceC BcAcBHaHra: EMKOb7 3aONHeHa.
- BbIKIOHTe nbIeococ.
- Onopoknhte KOHTeHep dIa Mycopa nΦNbtpyOuyn naTPOH.
IopKIOUOHe 3eKToHcTpymeHa
Cm.pnc.C.
Pozekny Ha nbilecocax c abTomatikon BkIoueHn/ BbIKIOueHn (noJooKHe BbIKIOUaTeA A) nCnoJIb3yIte Dn noKIOUeHn 3JeKtpoHnCTpyMeHToB. Pblncoc BkIOUaETcN B bIKIOUaETcN 3JeKtpoHnCTpyMeHToM. Ecln BbIKIOuAtelb HaxOHTcB NIOLOKeHn O, poZekny MoXHo NcNoIb3ObaTb B KaueCTBe ydInHITeJIa, HappIMep, Dn lambl.
ru
Cymmaphoe notpe6leHne Toka: nbilecoc + 3eKtpoHnCTpymEnT = mAc. 16 A (3haueHne B 3aBncMoCTn OT BapnaHTa, obpaaIte BnMaHne Ha TexHnueckne XapaKTepnCTnKn).
IPEyIpyKJDEHNE!
Po3eTka nbilecoca Bcerda HaxoHITcnoi HanpXeHHeM.
Onachoctb TpaBMnpoBaHnB Cnyae ABToMaTneCKOro 3aNycka 3NeKtponHctpyMeHa.
- Пара end nodkluoyehnem nbilecoca K əJIeKtpocTe: BbIKluOHTe əJIeKtpoHCTpyMeHT.
Cmapt-cton
Cm.pnc.D.
- HaxMMTe HOXHOI TOPMO3.
Πbileco6oJIbIe He cMOXKeT OTKaTIbCa.
3IeMeHT Smart Stop nIpynE yHKuN:
-pyka dIgOnopoxHeHnE mKoCT nIg Mycopa
-Функця рamnbIдЯ nepee3da uepe3 npenTCTBn
Функua npodybkn
Cm.pnc.E.
Функию npOdyBKN INCNoIb3yIe TOnbKO IЯ OUHCTKIN, ydaJIeHn NblN cUwKn MaunH uCTpoiCTB.
HdkaTop notoka
Cm.pnc.F.
Pn3aNoJIHeHHoemKocTNII3acopax BO BCaCbBaHOSeM WlaHRe INdNKATOP NOTOKCBEITTCa.
Pocne pa6oTbi
Cm.pnc.G.
- CmotaTe Ka6eJIb cTeBOrO nHTaHnI uJHaHR.
- IomeCTIte npHaJnEeXHocTN B COOTBeTcTBYIOuN OTCek.
TpaHcnpOpBka n XpaHeHne
- Пецд трансортуков Зakpoite зашелки Верхон частп nbilecoca.
- YuHTbIaIeTe BeC nbIeLcoCA, B OcO6eHHoCTn B TOM cIyuae, ecIn KOHTeHep dIy MyCopa 3aIOpJIHeN.
- He onpoknDbIbAte nbilecoc, ecnB KOHTeHepd Mycopa HaxoNTcR JNKIOCTb.
- XpaHnte nbIeoc BHyTpni nomeueHn B cyXOM n 3aunuehHom OT MOpO3a MeCTe.

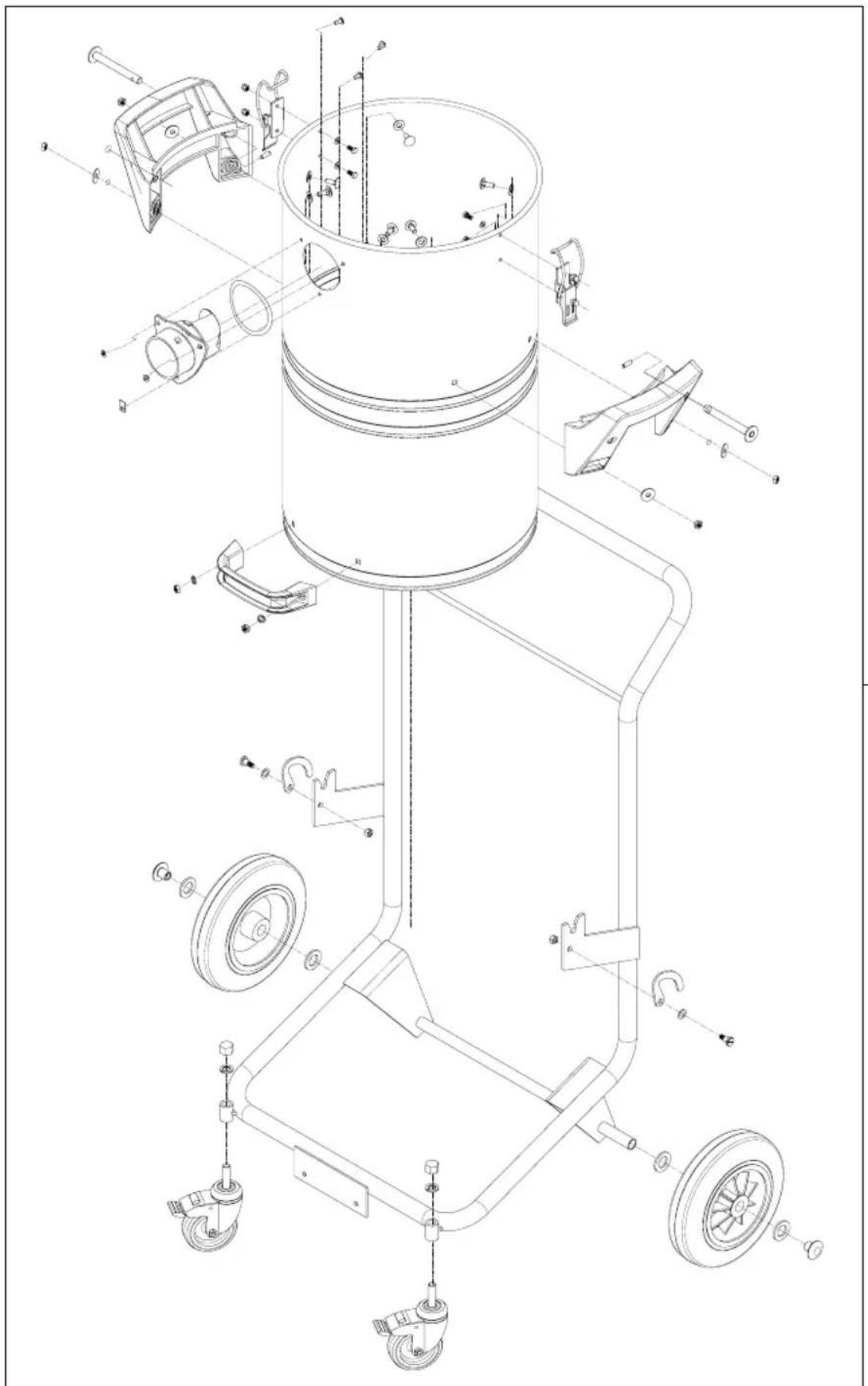

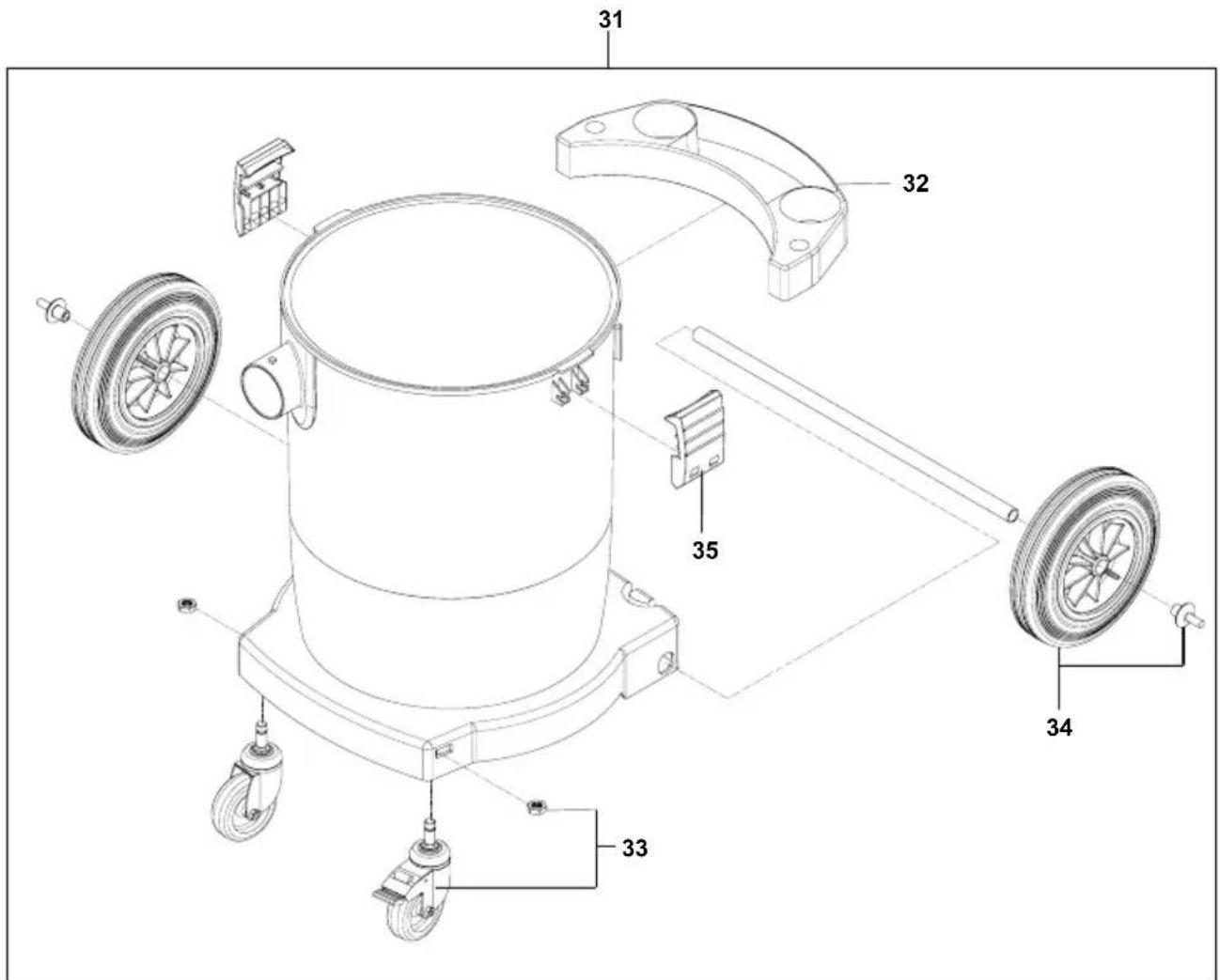

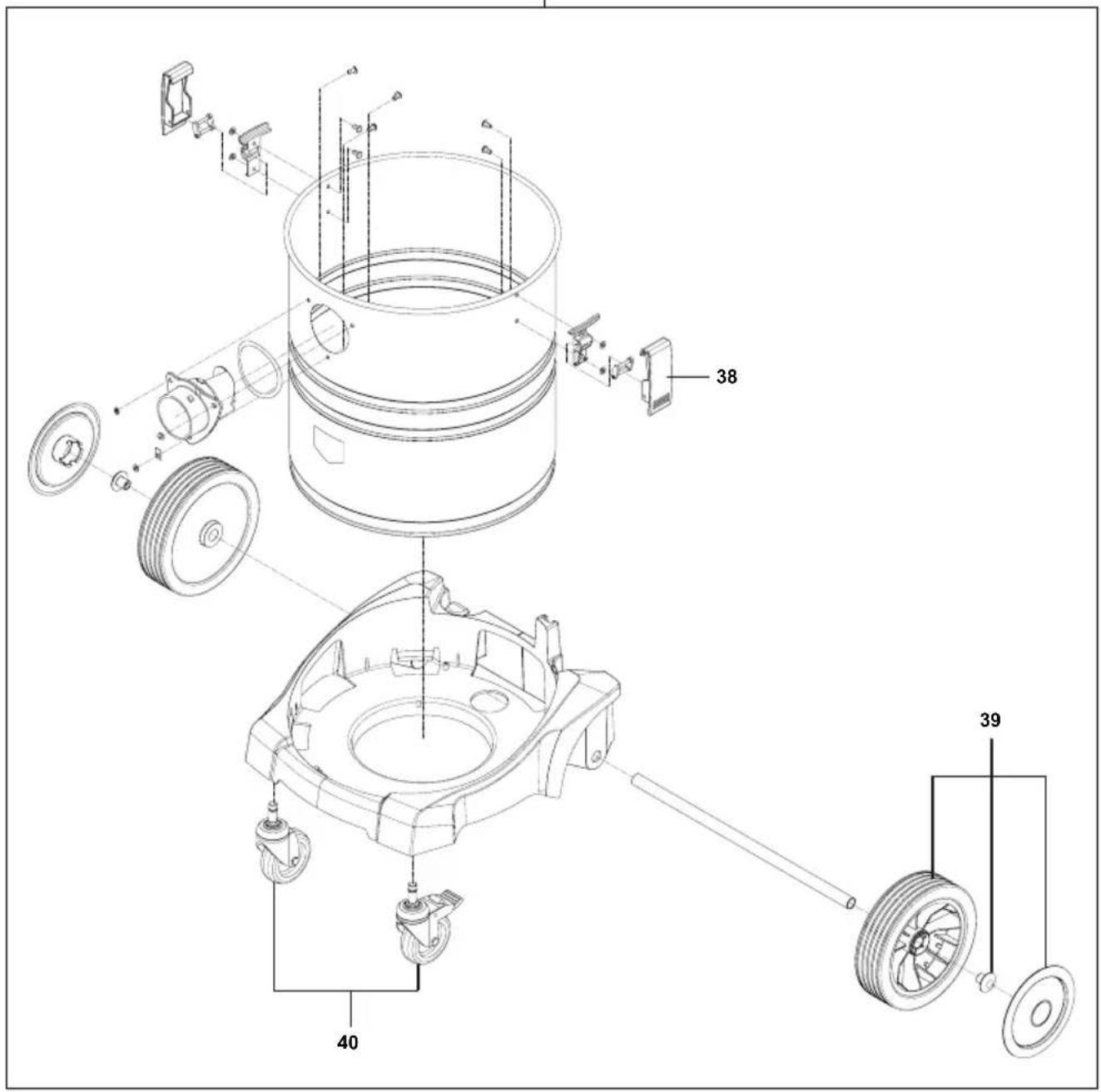

4 POnck HEnCnpaBHOCTeN peMOHT
30-35L
37-22L
42-30L
