Motor block Flow regulator/suction unit Filter housing Stepped hose adapter

Risk of injury to persons due to dangerous electrical voltage This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate mea- sures are not taken.

Risk of injury to persons due to a general source of danger This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate mea- sures are not taken.

Important information for trouble-free operation.

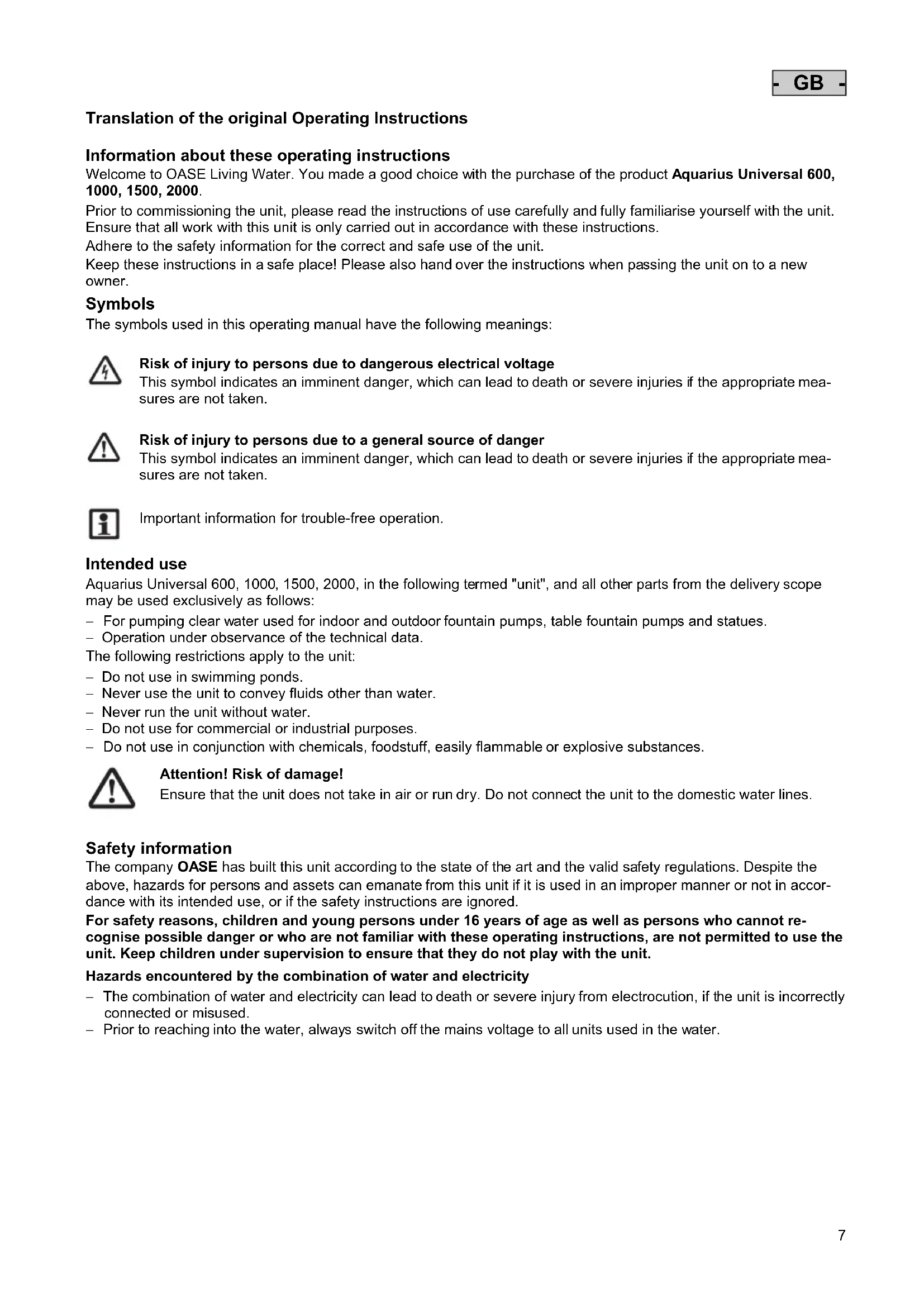

Intended use Aquarius Universal 600, 1000, 1500, 2000, in the following termed "unit", and all other parts from the delivery scope may be used exclusively as follows: − For pumping clear water used for indoor and outdoor fountain pumps, table fountain pumps and statues. − Operation under observance of the technical data. The following restrictions apply to the unit: − Do not use in swimming ponds. − Never use the unit to convey fluids other than water. − Never run the unit without water. − Do not use for commercial or industrial purposes. − Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

Attention! Risk of damage! Ensure that the unit does not take in air or run dry. Do not connect the unit to the domestic water lines. Safety information The company OASE has built this unit according to the state of the art and the valid safety regulations. Despite the above, hazards for persons and assets can emanate from this unit if it is used in an improper manner or not in accor- dance with its intended use, or if the safety instructions are ignored. For safety reasons, children and young persons under 16 years of age as well as persons who cannot re- cognise possible danger or who are not familiar with these operating instructions, are not permitted to use the unit. Keep children under supervision to ensure that they do not play with the unit. Hazards encountered by the combination of water and electricity − The combination of water and electricity can lead to death or severe injury from electrocution, if the unit is incorrectly connected or misused. − Prior to reaching into the water, always switch off the mains voltage to all units used in the water. - GB -8 - GB - Correct electrical installation − Electrical installations must meet the national regulations and may only be carried out by a qualified electrician. − A person is regarded as a qualified electrician, if, due to his/her vocational education, knowledge and experience, he or she is capable of and authorised to judge and carry out the work commissioned to him/her. Working as a qualified person also includes the recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regulations. − For your own safety, please consult a qualified electrician. − The unit may only be connected when the electrical data of the unit and the power supply coincide. The unit data is to be found on the unit type plate or on the packaging, or in this manual. − Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device. − Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use. − Ensure that the power connection cable cross section is not smaller than that of the rubber sheath with the identification H05RN-F. Extension cables must meet DIN VDE 0620. − Protect the plug connections from moisture. − Only plug the unit into a correctly fitted socket. Safe operation − Never operate the unit if either the electrical cables or the housing are defective! − Do not carry or pull the unit by its electrical cable. − Route all cables such that damage is excluded and nobody can trip over them. − Never open the unit housing or its attendant components, unless this is explicitly required in the operating instructions. − Only use original spare parts and accessories for the unit. − Never carry out technical modifications to the unit. − Only have repairs carried out by customer service points authorised by OASE. − The power connection cables cannot be replaced. When the cable is damaged, the unit or the component needs to be disposed of. − Only operate the unit if no persons are in the water! − Keep the socket and power plug dry. Important! The unit is equipped with a permanent magnet. The magnetic field may affect the function of pace- makers. Submerged installation (A, B) Attention! Risk of damage! Ensure that the unit does not take in air or runs dry. Align the intake of the suction unit (A). Lateral intake: Allows maximum flow, deposits from the bottom are not taken in. Bottom intake: During operation, intake is possible up to a water level of 5 mm. Only operate the unit with the filter housing. Cut the stepped hose adapter to suit the hose diameter and screw onto the return (B1). Place the unit hori- zontally with its feet downward (B2). Dry installation (A, C) Attention! Risk of damage! Ensure that the unit does not take in air or runs dry. Do not connect the unit to a water line. Align the intake of the suction unit upward (A). Operate the unit without filter housing. Cut both stepped hose adapters to suit the hose diameters, then screw each adapter on the intake and return (C1) Place the unit horizontally with its feet downward (C2). To prevent air from being taken in, ensure that unit and supply hose are always below the water level (C2).9 - GB - Start-up

Attention! The pump must never run dry. Possible consequence: The pump will be destroyed. Protective measure: Check the water level at regular intervals. Always place the unit below water level. Set the flow at the controller (D). This is how to connect the power supply: Switching on: Connect power plug to the socket. The unit switches on immediately when the power connection is established. Switching off: Disconnect the power plug.

Attention! The installed temperature monitor automatically turns the pump off, if it is overloaded. The pump automatically switches on again once the motor has cooled down. Risk of accident! Install the unit so that it is not exposed to direct sun radiation (max. 40 ºC). Maintenance and cleaning

Attention! Dangerous electrical voltage. Possible consequences: Death or severe injury. Protective measures: − Prior to reaching into the water, disconnect the power supply to all units used in the water. − Disconnect the power plug prior to carrying out work on the unit. Cleaning the unit Dismantle and clean the unit (E). If necessary, clean the unit with clear water using a soft brush. − In the event of stubborn furring (calcium deposits), a common household cleaner free from vinegar and chlorine can be used. Subsequently, clean the pump thoroughly using clear water. − Never use aggressive cleaning agents or chemical solutions. These could attack the housing surface or impair the function. Malfunction Malfunction Cause Remedy No mains voltage Check mains voltage The unit does not start Rotor blocked Clean Regulator closed too far Set regulator Filter housing or rotor soiled, hose blocked Clean Hose defective Replace Hose kinked Straighten hose Insufficient fountain height Rotor worn Replace rotor Filter clogged Clean Unit switches off after a short running period Water temperature too high Maximum water temperature: +35 °C Disposal

Do not dispose of this unit with domestic waste! For disposal purposes, please use the return system provided. Disable the unit beforehand by cutting off the cables. Storage/Over-wintering Remove the unit at temperatures below zero degrees centigrade. Thoroughly clean and check the unit for damage.

Type Rated voltage Power consumption Max. flow rate Max. head height Immersion depth Cable length Weight Water temperature

Dust tight. Submersible to 1 m depth. Remove the unit at temperatures below zero (centigrade). Possible hazard for persons wearing pace makers! Protect from direct sun radiation. Do not dispose of together with household waste! Attention! Read the operating instructions
