Brand	Hendi
Model	154717
Product type	Gas barbecue
Usage	Professional and outdoor
Fuel	Propane or butane gas (bottle >10 kg recommended)
Pressure regulator included	Yes, approved EN16129:2013
Ignition type	Piezoelectric (ignition button)
Safety	Safety thermocouple
Material of grate and plate	Steel (not specified in the manual, deduced)
Legs	Removable legs (accessories references)
Wheels	Optional (for Quattro model)
Spare parts available	Yes: burner, injector, grate, plate, fat holder, etc.
Repairability	Possible by a qualified professional; original parts recommended
Cleaning	Exterior: damp cloth; grate: soaking and brush; do not immerse
Annual maintenance	Check gas and electrical installations, burner cleaning by a specialist
Warranty	12 months from date of purchase (parts and labor)
Number of pages in the manual	80

Frequently Asked Questions - 154717 Hendi

How to light the Hendi 154717 barbecue?

Press the button and turn it to the left to maximum position. Hold it down and press the ignition button several times. Hold for another 10 seconds after ignition. Let it preheat for 15 minutes before cooking.

What type of gas to use?

The appliance is suitable for propane gas and butane. Use a bottle with a capacity greater than 10 kg with the supplied pressure regulator.

How to clean the cooking grate?

Let the appliance cool down. Soak the grate in a cleaning product, then scrub with a metal brush or abrasive sponge. Rinse and dry.

What to do if the burner does not ignite?

Check: defective igniter, dirty spark plug, empty gas bottle or improperly opened valve. If the problem persists, contact a professional.

How to detect a gas leak?

Immediately close the bottle valve. Use soapy water on the connections: bubbles indicate a leak. Never check with a flame.

Can the barbecue be used under a shelter?

No, the appliance must be used outdoors only and kept away from flammable materials. Never use in an enclosed space.

What is the warranty of the appliance?

The warranty is 12 months from the date of purchase, covering manufacturing defects. Keep the invoice or receipt as proof.

How to replace the gas hose?

Use an approved hose (standard EN16436-1) not exceeding 1.5 m. Replace it every 3-4 years or as soon as cracks appear. Have the tightness checked after replacement.

Can I use non-original parts?

No, use only original parts supplied by the manufacturer. Any modification can be dangerous and void the warranty.

How to safely extinguish the barbecue?

Turn the knob completely to the right. Wait 10 minutes before relighting. Always close the gas bottle valve after extinguishing.

USER MANUAL 154717 Hendi

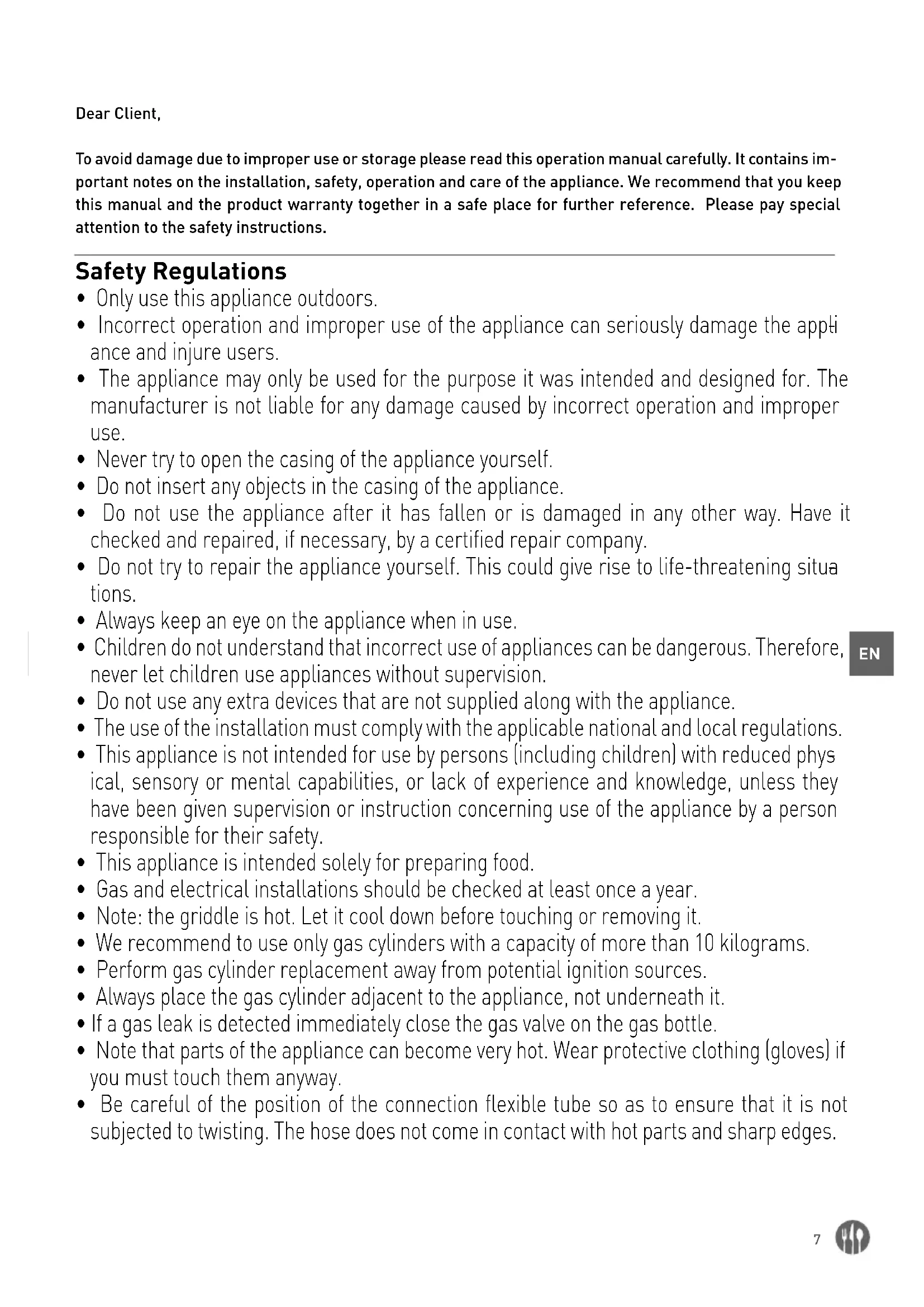

You should read this user manual carefully before using the appliance.

• Read the instructions before using the appliance.

WARNING: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas cylinder after use.

To avoid damage due to improper use or storage please read this operation manual carefully. It contains important notes on the installation, safety, operation and care of the appliance. We recommend that you keep this manual and the product warranty together in a safe place for further reference. Please pay special attention to the safety instructions.

Safety Regulations

• Only use this appliance outdoors.
• Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
• The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
  Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.
• Do not use any extra devices that are not supplied along with the appliance.
• The use of the installation must comply with the applicable national and local regulations.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended solely for preparing food.
  Gas and electrical installations should be checked at least once a year.
• Note: the griddle is hot. Let it cool down before touching or removing it.
• We recommend to use only gas cylinders with a capacity of more than 10 kilograms.
• Perform gas cylinder replacement away from potential ignition sources.
• Always place the gas cylinder adjacent to the appliance, not underneath it.
• If a gas leak is detected immediately close the gas valve on the gas bottle.
• Note that parts of the appliance can become very hot. Wear protective clothing (gloves) if you must touch them anyway.
• Be careful of the position of the connection flexible tube so as to ensure that it is not subjected to twisting. The hose does not come in contact with hot parts and sharp edges.

Special safety instructions

• Necessary changes may only be done by a qualified technician.
• Use only the supplied pressure regulator.
• This appliance is suited for propane and butane gas.
• Check that there are no kinks in the gas hose.
• This appliance must be kept away from flammable materials during use.
• Certain accessible parts of the appliance can become extremely hot during operation. In view of this, keep the appliance out of reach of children.
• The appliance may only be installed against or on fire-resistant surfaces.
• The appliance must be installed in accordance with the applicable national regulations.
• Do not move the appliance during use.
• Always close the gas valve on the gas bottle if the appliance is no longer being used.
• Changing or modifying this equipment is dangerous and therefore not allowed.
• Parts which are fastened or sealed by the manufacturer, are not to be loosened or adjusted by the user.
• Install the appliance as level as possible with regard to the grease drain.
• Do not cover the ventilation openings in the appliance.
• To prevent blockage of the venturis, keep the venturis and the surrounding area clean of dust, cobwebs, etc.

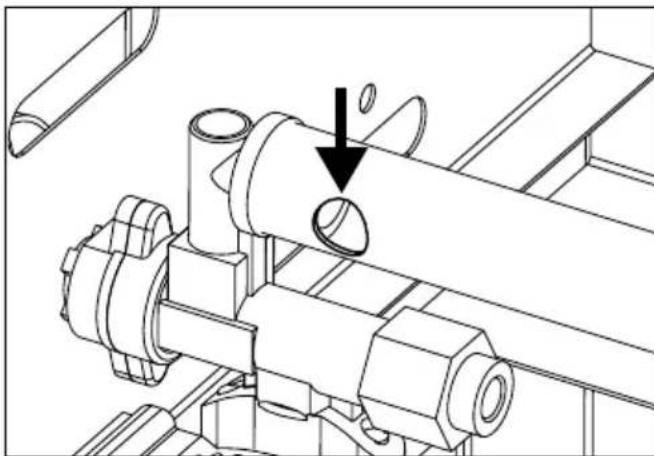

• Before each use, the user must always check whether the holes (pictured below) of the burner are clear of obstructions and not blocked.

• WARNING: some parts of the appliance can become hot. Keep children away from the appliance.
• WARNING: assembly of the tubing must be conducted by some qualified tuber of destination countries.
• Approved gas regulator(EN16129: 2013) is used according to appliances categories and countries listed in data plate. Approved flexible hose would be changed when the national conditions require it & consult the local regulations, these may differ.
• The tubing or the flexible hose must be changed within the prescribed intervals or with-in one year. The flexible hose should not extend than 1.5m according to standard EN16436-1:2014+A3:2020.

The maximum cylinder dimensions(regulator included) should not exceed (D)50x(H)75cm if no cylinder compartment included.

Intended use

The device is intended for professional use and can be operated only by qualified personnel.
- This appliance is designed only for grilling appropriate food products. Any other use may lead to damage to the appliance or personal injury.

• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Connecting the gas bottle

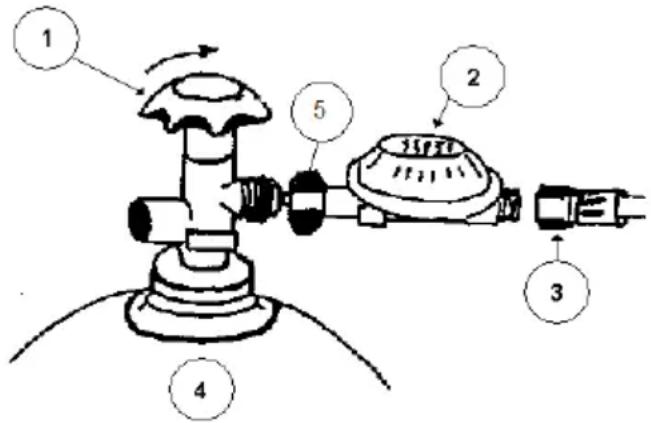

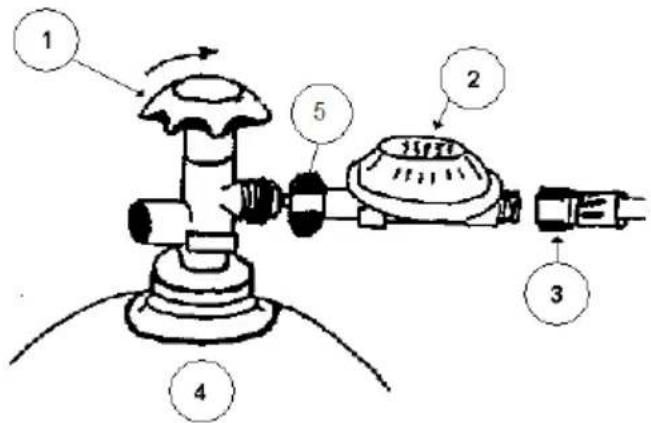

1 = Main tap
2 = Pressure regulator
3 = Gas hose
4 = Gas Bottle
5 = Rubber washer

Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber-sealing washer is present in the nut. [NB. This rubber washer is not required for UK-type pressure regulators]. Tighten the nut well. Note that the nut has a left-hand thread.

Check the connections for leaks using a soap and water solution.

Every time a newly filled gas bottle is connected, a new rubber washer must be fitted. In most cases, your gas supplier will include it with the bottle.

Igniting the gas appliance

• Press the knob and turn left to the maximum position. Keep the knob pressed and press the ignition button a few times. Keep the knob pressed in for approximately 10 more seconds. The burner will continue to burn.

• Let the appliance burn for approximately 15 minutes before putting meat on the grid, as the burners must first heat the chamber before it can pass its heat to the upper grid.

Turning off the gas appliance

• Turn the knob fully to the right. Note! After turning off the burners, wait approximately 10 minutes before reigning the burners.

• When disconnecting the gas bottle or after turning off the burners, always turn off the regulator on the gas bottle!

Cleaning and maintenance

• Let the appliance cool down before cleaning
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• The grid and/or baking tray of the grill should be cleaned regularly. Let it soak in cleaning agent first, then use an abrasive material like a scourer or wire brush. If you use special cleaner, follow the instructions on the packaging.

• Clean the ventilation slots [if applicable] with a vacuum cleaner.

• Keep inside after use.

• Let specialised personnel clean at least once a year the burner.
• Never use a high pressure cleaner.
• Maintenance after every use: Clean the griddle. Clean the grease holder.
• If the injector must be replaced, replace it only with an original spare part acquired from the manufacturer. The diameter of the injector is noted on the injector: 1.10 ~mm .

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are unable to solve the problem, please contact the supplier / service provider.

Fault Possible cause Fault Possible cause
Burner will not ignite: Defective igniter Burner does not burn fully: Gas cylinder is (almost) empty
Defective thermocouple
Dirty sparking plug Kink in gas hose
Defective pressure regulator		The main gas tap on the gas cylinder is not fully open
Empty gas cylinder
Kink in gas hose Defective gas tap
Clogged jet Main jet clogged

Note

• It is to be recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time. Also check the hose for leaks on a yearly basis at least. Even if the expiration date has not been expired yet, you must check the condition of the hose always. In case of damage/cracks you have to replace the hose immediately. Please make sure that you comply with all local health and safety regulations (e.g. fire code).

• Pressure regulators have a default maximum life span as indicated by the date printed on the regulator, but please note that local health and safety regulations may overrule this.

• Only replace the pressure regulator with one provided by the manufacturer.
• Consult the local regulations, these may differ.
• Always store gas bottles upright, in use as well as when empty.
• Use only original parts when replacing or changing parts.

Accessories

Description Article no.
Baking tray Grill/Bake master Mini 154687
Baking tray Grill/Bake master Maxi/ Quattro 154656
Upper grid Grill master Mini 154663
Upper grid Grill master Maxi/ Quattro 154632
Lower grid Grill master Mini 154670
Lower grid Grill master Maxi/Quattro 154649
Grease holder Grill master Mini 154748
Grease holder Grill master Maxi/ Quattro 154755
Leg Grill master Mini 154823
Leg Grill master Maxi 154694
Leg Grill master Quattro 928226
Wheel Quattro 928233
Ignition button Grill/Bake master Mini/Maxi/Quattro 153178
button Quattro 928240
Gas tap Grill/Bake master Mini / Maxi/Quattro	154724
Burner Grill/Bake master Mini / Maxi / Quattro	154731

Important!

When you are using the baking tray for the Grillmaster Mini / Maxi / Quattro, you must remove the upper & lower griddle and the grease holder. When you don't do this, there will be such an amount of heat inside the appliance that this heat will cause damage.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and

when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural re

sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.
