Product type	Gas barbecue
Brand	Hendi
Model	Green Fire 149614
Power source	Propane gas (gas cylinder, min. capacity 10 kg)
Nozzle	LPG (propane)
Number of burners	Not specified (probably 1 or 2)
Ignition	Piezo with ignition button
Main material	Stainless steel (drip tray, grid, plate)
Functions	Direct grilling on grid and griddle plate
Supplied accessories	Grid, griddle plate, grease drip tray, side and back walls, elevated grid (shelf)
Safety	Safety thermocouple (gas cut-off), gas tap, pressure regulator
Maintenance	Regular cleaning with mild detergent, use a special barbecue cleaner for grids, clean the drip tray, check the hose and regulator at least once a year
Spare parts available	Burner, thermocouple, spark plug, complete ignition, gas hose, gas tap, drip tray, etc.
Hose lifespan	3 to 4 years (replace with original hose)
Warranty	1 year (operational defects)
Usage	Outdoor only, do not use under flammable shelter

Frequently Asked Questions - Green Fire 149614 Hendi

How to connect the gas cylinder to the barbecue?

Attach the pressure regulator to the cylinder with the large brass nut (left-hand thread). Check for the rubber sealing gasket. Connect the gas hose to the regulator and to the appliance. Check for leaks with soapy water.

Why does the burner not ignite?

Possible causes: defective igniter, dirty spark plug, empty or nearly empty gas cylinder, tap not fully open, faulty thermocouple. Check each point and clean the spark plug if necessary.

How to clean the barbecue after use?

Let it cool completely. Clean the exterior with a damp cloth and mild detergent. Use a special barbecue cleaner for the grids and plate. Clean the stainless steel grease drip tray. Never immerse the appliance in water.

What to do in case of gas leak?

Immediately shut off the gas supply (cylinder valve and appliance tap). Remove any ignition sources. Check connections with soapy water. Do not reuse the appliance until repaired by a professional.

When should the gas hose be replaced?

The hose must be replaced every 3 to 4 years, or sooner if cracks or damage appear. Check the date printed on the hose. Use only an original hose.

Can the barbecue be used indoors?

No, this barbecue is designed for outdoor use only. Using it indoors presents a risk of carbon monoxide poisoning and fire.

How to safely turn off the barbecue?

Turn the control knob fully to the right to shut off the gas at the appliance. Wait about 10 minutes before relighting. Also close the gas cylinder valve after each use.

Where to place the gas cylinder?

Place the gas cylinder next to the appliance, never below. It must be upright, away from heat sources. Replace the empty cylinder away from any flame.

How to assemble the barbecue walls?

First insert the side walls into the slots, ensuring the front attachment is properly clipped. Then slide the back wall between the two side walls. Finally, place the elevated grid (shelf) between the walls.

What is the warranty for this appliance?

Hendi offers a one-year warranty from the date of purchase for any operational defect, provided the appliance has been used and maintained according to instructions. Keep your proof of purchase.

USER MANUAL Green Fire 149614 Hendi

Exterior view of a stainless steel portable grill with control knobs and a coiled cable (no visible text or symbols)

Item: 149508

149621

149591

149607

149614

You should read these user instructions carefully before using the appliance

i READ MANUAL

Keep these instructions with the appliance.

FOOD CONTACT

Symbol of a trash bin crossed with no text or numbers, enclosed in a rounded square (no text or numbers present)

RoHS

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykut / ArticleArticolo / Articol / пункт	149492 barbecue Green fire 1 burner
Country / Land / Land / Kraj / PayesPaese / ṣarā / страна	NL/DE/AT/PL BE/FR/LU/GB/IE	AT
Power / Belasting / Leistung / Moc nominainaPuissance / Potenza / Putere / Мощность	[HS] 5,8 kW [HS]	5,0kW	[HS] 6,8 kW
Category / Categorie / Kategorie / KategoríaCategorie / Categoría / Categoría / категория	| 3P (propane)	| 3P (propane)	| 3B/P ( butane/ propane )
Consumption / Verbrauch / Verbruik / ZuzycieConsommation / Consumo / Consum / потребление	286 g/h 245 g/h		286 g/h
Set up / Auflegung / Inrichting / Przeznaczony naConçu pour / Configurare / Configurarea / Настройка	G31 - 50 mbar G31	- 37 mbar	G30 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de sérieN° seriale / Numār serial / Серийный номер

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykul / ArticleArticolo / Articol / пункт	149508 barbecue Green fire 2 burners
Country / Land / Land / Kraj / PayesPaese / ṣarā / страна	NL/DE/AT/PL BE/FR/LU/GB/IE		AT
Power / Belasting / Leistung / Moc nominainaPuissance / Potenza / Putere / Мощность	[HS] 11,6 kW [H$] 10,0 kW		[HS] 13,5 kW
Category / Categorie / Kategorie / KategoríaCatégorie / Categoría / Categoría / категория	I 3P (propane)	I 3P (propane)	I 3B/P ( butane/ )propane
Consumption / Verbrauch / Verbruik / ZuzycieConsommation / Consumo / Consum / потребление	571g/h 490 g/h		571 g/h
Set up / Auflegung / Inrichting / Przeznaczony naConçu pour / Configurare / Configurarea / Настройка	G31 - 50 mbar G31	- 37 mbar	G30 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de sérieN° seriala / Număr serial / Серийный номер

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykut / ArticleArticolo / Articol / пункт	149591 barbecue Green fire 3 burners
Country / Land / Land / Kraj / PayesPaese / ṣară / страна	NL/DE/AT/PL BE/FR/LU/GB/IE		AT
Power / Belasting / Leistung / Moc nominainaPuissance / Potenza / Putere / Мощность	[HS] 17,0 kW [H$] 14,8 kW		[HS] 20,2 kW
Category / Categorie / Kategorie / KategoríaCatégorie / Categoría / Categoría / категория	| 3P (propane)	| 3P (propane)	| 3B/P ( butane/ propane )
Consumption / Verbrauch / Verbruik / ZuzycieConsommation / Consumo / Consum / потребление	1180 g/h 1030 g/h		1420 g/h
Set up / Auflegung / Inrichting / Przeznaczory naConçu pour / Configurare / Configurarea / Настройка	G31 - 50 mbar G31 - 37 mbar		G30 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de sérieN° seriale / Număr serial / Серийный номер

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykut / ArticleArticolo / Articol / пункт	149607 barbecue Green fire 4 burners
Country / Land / Land / Kraj / PayesPaese / ṣarā / страна	NL/DE/AT/PL BE/FR/LU/GB/IE		AT
Power / Belasting / Leistung / Moc nominainaPuissance / Potenza / Putere / Мощность	[HS] 22,0 kW [H$] 20,0 kW		[HS] 24,0 kW
Category / Categorie / Kategorie / KategoríaCatégorie / Categoría / Categoría / категория	| 3P (propane)	| 3P (propane)	| 3B/P ( butane/ propane )
Consumption / Verbrauch / Verbruik / ZuzycieConsommation / Consumo / Consum / потребление	1028 g/h 880 g/h		1028 g/h
Set up / Auflegung / Inrichting / Przeznaczory naConçu pour / Configurare / Configurarea / Настройка	G31 - 50 mbar G31	- 37 mbar	G30 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de sérieN° seriale / Numär serial / Серийный номер

Geachte klant,

Diagram of a mechanical device with numbered components, likely a valve or pump assembly

Technical line drawings of two mechanical components: a ramp and a conveyor belt system (no text or symbols)

Technical line drawings of three different mechanical or structural components with no visible text or symbols

Line drawing of a mechanical device with a grid and mounting base (no text or symbols)

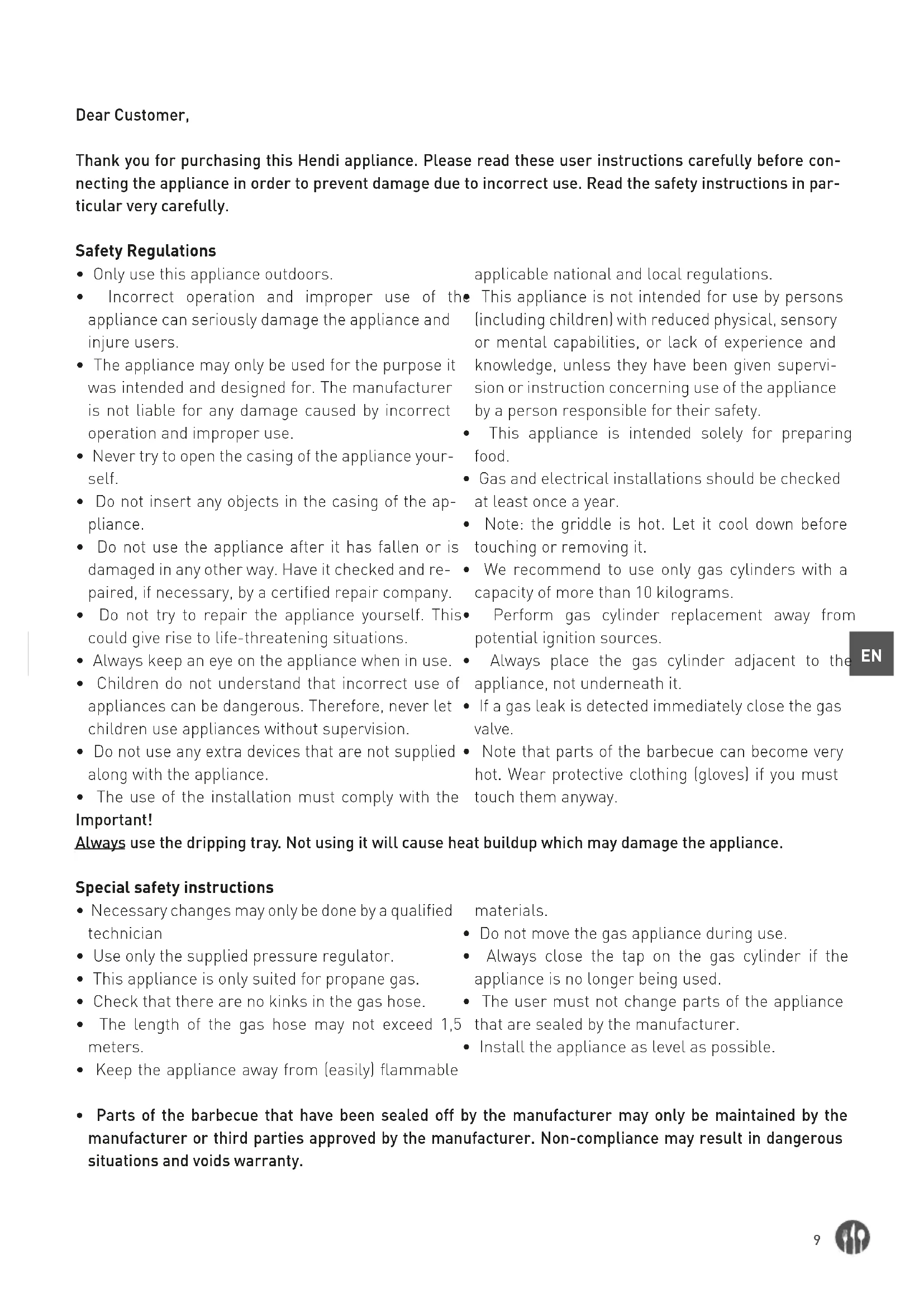

Thank you for purchasing this Hendi appliance. Please read these user instructions carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety instructions in particular very carefully.

Safety Regulations

• Only use this appliance outdoors.
• Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
• The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
  • Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.
• Do not use any extra devices that are not supplied along with the appliance.

- The use of the installation must comply with the Important!

applicable national and local regulations.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended solely for preparing food.
• Gas and electrical installations should be checked at least once a year.
• Note: the griddle is hot. Let it cool down before touching or removing it.
• We recommend to use only gas cylinders with a capacity of more than 10 kilograms.
• Perform gas cylinder replacement away from potential ignition sources.
• Always place the gas cylinder adjacent to the appliance, not underneath it.
• If a gas leak is detected immediately close the gas valve.
• Note that parts of the barbecue can become very hot. Wear protective clothing (gloves) if you must touch them anyway.

Always use the dripping tray. Not using it will cause heat buildup which may damage the appliance.

Special safety instructions

• Necessary changes may only be done by a qualified technician
• Use only the supplied pressure regulator.
• This appliance is only suited for propane gas.
• Check that there are no kinks in the gas hose.
• The length of the gas hose may not exceed 1.5 meters.
• Keep the appliance away from (easily) flammable

materials.

• Do not move the gas appliance during use.
• Always close the tap on the gas cylinder if the appliance is no longer being used.
• The user must not change parts of the appliance that are sealed by the manufacturer.
  • Install the appliance as level as possible.

- Parts of the barbecue that have been sealed off by the manufacturer may only be maintained by the manufacturer or third parties approved by the manufacturer. Non-compliance may result in dangerous situations and voids warranty.

WARNING: Some parts of the appliance can become hot. Keep children away from the appliance.

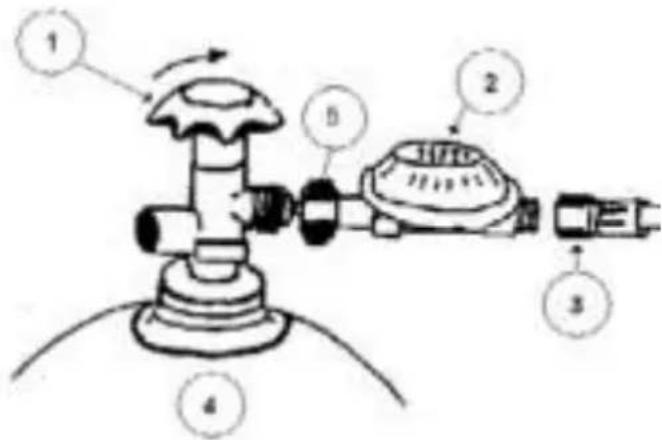

1 = main tap
2 = pressure regulator
3 = gas hose
4 = gas bottle
5 = rubber washer

Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber sealing washer is present in the nut. (NB. This rubber washer is not required for UK-type pressure regulators). Tighten the nut well. Note that the nut has a left-hand thread.

Check the connections for leaks using a soap and water solution.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Igniting the gas barbecue

• First place the side panels of the windscreen into the applicable grooves, then attach the rear panel of the windscreen and finally place the elevated grid in the brackets on the side panels of the windscreen.
• Put the grid and griddle on the barbecue.

Extinguishing the gas barbecue

- Turn the knob completely to the right.

- Turn the knob to the "big flame" position. Keep the knob pressed and press the ignition button a few times until the burner is burning completely. Keep the knob pressed in for approximately a further 10 seconds. The burner will continue to burn.

Note! After turning off the burners, wait approximately 10 minutes before reigniting the burners. After turning off the burners, always turn off the main tap on the gas cylinder and the tap on the appliance!

Installation of windscreen and elevated grid

Technical line drawings of two mechanical components: a ramp and a conveyor system (no text or symbols)

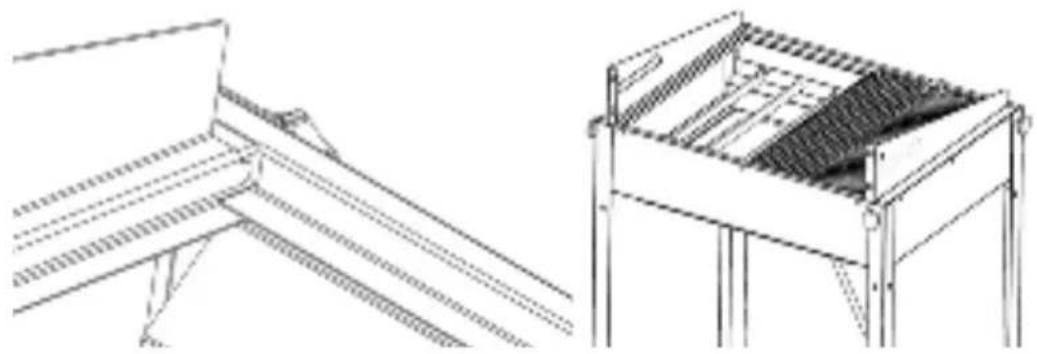

1. First attach the side panels and make sure they are securely fastened in the groove at the front.

Technical line drawings of three mechanical or electrical components with no visible text or symbols

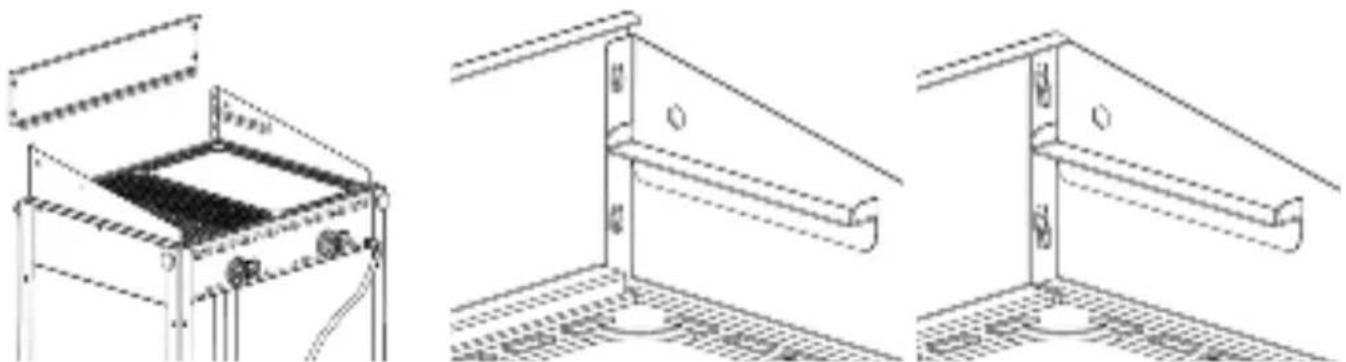

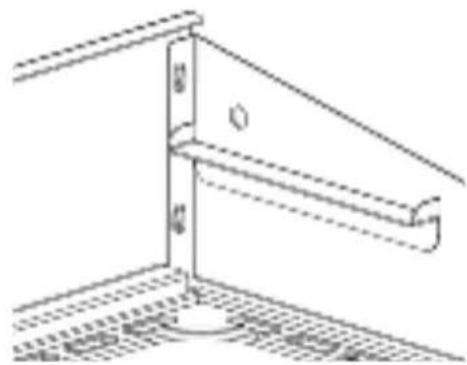

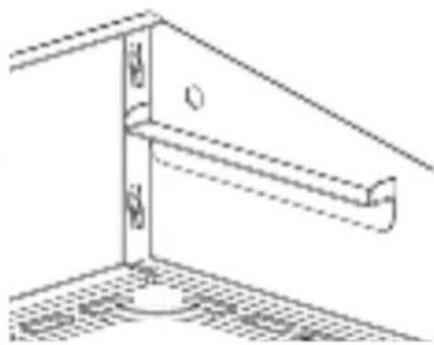

1. Slide the rear panel in position between the side panels.

Technical line drawing of a mechanical device with a grid and mounting base (no text or symbols)

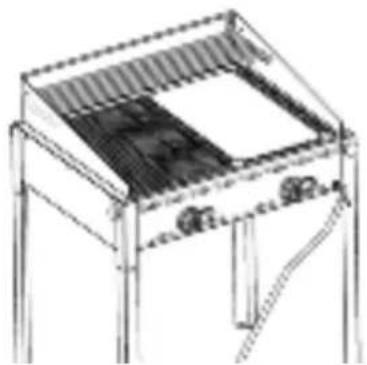

1. Place the elevated grid.

Cleaning and maintenance

• Let the appliance cool down before cleaning
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• The grid and/or baking tray should be cleaned regularly. Use a special barbecue cleaner and follow the instructions on its packaging.
• Clean the ventilation slots (if applicable) with a vacuum cleaner.
• Keep inside after use.

• Let specialised personnel clean the burner at least once a year.

• Never use a high pressure cleaner.

• Maintenance after every use: clean the griddle and elevated grid, clean the dripping tray, grease the grid.

Faults

Fault Possible cause	Fault Possible cause
burner fails to ignite at all:	defective ignition	in gas hose burner does not ignite completely: jet	gas cylinder (almost) empty
	defective thermocouple kink
	dirty spark plug		gas cylinder valve not entirely open
	defective pressure regulator
	empty gas cylinder clogged jet
	kink in gas hose		defective valve
	clogged jet

If in doubt, please contact your supplier.

Note

- It is recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time. Also check the hose for leaks on a yearly basis at least. Even if the expiration date has not been expired yet, you must check the condition of the hose always. In case of damage/cracks you have to replace the hose immediately. Please make sure that you comply with all local health and safety regulations (e.g. fire code).

• Pressure regulators have a default maximum life span as indicated by the date printed on the regulator, but please note that local health and safety regulations may overrule this.
• Only replace the pressure regulator with one provided by the manufacturer.
• Consult the local regulations, these may differ.
• Always store gas bottles upright, in use as well as when empty.

Accessories

article number description
328804 Griddle
328811 Grid
502662 Leg
502679 Left panel of windscreen
502686 Right panel of windscreen
502693 Rear panel of windscreen
330589 Elevated grid

Spare parts

article number description
330265 Burner
152195-302408 Thermocouple 220mm
330227 Spark plug with wire 190mm
153178-306970 Igniter complete with nut
302750 Gas hose 80cm
330203 Gas valve
806005 Dripping tray

Warranty

Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was bought and include proof of purchase (f.e. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

At the end of the life of the appliance, please dispose of the appliance according to the regulations and guidelines applicable at the time.

Throw packing materials like plastic and boxes in the appropriate containers.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of two mechanical components: a ramp and a conveyor system (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

80 80 80

Technical line drawing of a structural bracket with mounting holes and base plate (no text or symbols)

Line drawing of a portable electrical enclosure with cooling fans and a central panel (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Allumer le barbecue

Technical line drawing of two mechanical components: a ramp and a conveyor system (no text or symbols)

Line drawing of a portable electrical enclosure with cooling fans and a central panel (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of two mechanical components: a ramp and a conveyor belt system (no text or symbols)

Line drawing of a portable electrical enclosure with cooling fans and a central panel (no text or symbols)

1. Zamontować ruszt

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawings of two mechanical components: a ramp and a conveyor system (no text or symbols)

Line drawing of a portable electrical enclosure with cooling fans and a central panel (no text or symbols)

1. Aşezati grilajul suspendat.

62-023 Gądki, Poland

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Hendi Food Service Equipment GmbH

Hendi Food Service Equipment Romania S.R.L.

Str. Zizinului nr. 106A, Complex Duplex 3 Hala G4

Brasov 500407 RO, Romania

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Hendi HK Ltd.

1603-5, Tower II, Enterprise Square

9 Sheung Yuet Road, Kowloon Bay, Hong Kong

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Find Hendi on internet:

www.hendi.eu

www.facebook.com/HendiFoodServiceEquipment

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

- Changes, printing and typesetting errors reserved.
