Xenon Pro - Barbecue Hendi - Free user manual and instructions

Brand	Hendi
Model	Xenon Pro
Product type	Gas barbecue
Usage	Outdoor only
Power supply	Propane gas (minimum 10 kg bottle)
Ignition	Piezo (ignition button)
Burners	1 burner
Thermocouple	Yes (flame safety)
Cooking surface	Cooking grid and griddle plate
Material	Stainless steel
Temperature control	By button (normal position)
Cleaning	Self-cleaning by full power combustion; exterior with damp cloth
Maintenance	Clean grids with special barbecue product; check gas hose regularly
Warranty	1 year (parts and labor)
Contents	Barbecue, chassis with wheels, instruction manual
Safety	Thermocouple, gas cut-off, stable use on flat surface
Repairability	Call a qualified installer; do not disassemble yourself
Gas type	Propane
Certification	Compliant with national and local regulations

Frequently Asked Questions - Xenon Pro Hendi

How to assemble the Xenon Pro barbecue chassis?

To assemble the chassis, use M6x40 bolts and M6 nuts to mount the chassis with U-shaped wheels at the front. Then, fix the cross chassis with M6x65 bolts and M6 rings. Lock the rear chassis with the M6 star bolt. Place the barbecue on the chassis horizontally.

What type of gas to use and how to connect the cylinder?

Use propane gas with a minimum 10 kg cylinder. Connect the pressure regulator to the cylinder with the large brass nut, ensuring the rubber sealing ring is in place. Tighten well (left-hand thread). Check the connections with soapy water.

How to ignite the barbecue?

Turn the knob to the 'normal' position. Keep it pressed and press the ignition button several times until the burner produces a flame. Continue to hold the knob down for 10 seconds, then release. The burner stays lit.

How to turn off the barbecue?

Turn the knob fully to the right. Wait about 10 minutes before relighting. Always close the gas valve on the cylinder and the appliance after use.

What to do in case of a gas leak?

Immediately shut off the gas supply. Do not use the appliance. Check the connections with soapy water. If the leak persists, contact a qualified installer.

How to clean the barbecue after use?

Let the barbecue burn at full power for 10 minutes to burn off residues. Clean the exterior with a damp cloth and mild detergent. The grids and plate are cleaned with a special barbecue product. Never immerse the appliance in water.

Why does the burner not ignite?

Possible causes: faulty igniter, empty gas cylinder, faulty thermocouple, dirty spark plug, gas valve not fully open, faulty regulator. Check each item or contact your supplier.

How often to replace the gas hose?

The gas hose should be replaced every 3 to 4 years, as it becomes porous. Check the date on the hose.

Can I use the barbecue indoors?

No, this barbecue is designed for outdoor use only. Any indoor use presents a risk of fire or carbon monoxide poisoning.

What to do if the flame is irregular or goes out?

Check that the diffuser is not obstructed, the hose is not damaged, and the gas cylinder is not empty. If the problem persists, the regulator or valve may be defective. Contact a qualified installer.

USER MANUAL Xenon Pro Hendi

Exterior view of a modern outdoor table tennis kit (no signage or text visible on body)

Item: 148105

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep these instructions with the appliance.

Simple line drawing of a house with an arrow pointing right, labeled 'OUTDOOR' below (no other text or symbols)

For indoor use only.

FOOD CONTACT

Symbol of a trash bin crossed with no text or numbers, enclosed in a square frame (no readable text)

RoHS

HENDIFOOD SERVICE EQUIPMENTSteenoven 21, NL-3911 TX Rhenen www.hendi.eu				0063/18CE
Item / Artikel / Item / Artykul / Article /Articola / Articol / nyocr / Etoxelo	148105 Xenon Pro		PIN : 0063AU3702
Country / Land / Lana / Kraj / Payes /Poese / jará / cipana / Xápo	NL/DE/AT/PL/LU	BE/GB/IE	GB/IE/BE/FR/GR
Power / Belasting / Leistung /Moc nominaina / Puissance / Potenza /Puliere / Mosquacn / Ixiaç	[HS] 7,5 kW	[HS] 7,5 kW	[HS] 6,6 kW
Category / Categorie / Kategorie /Kategoria / Categorie / Categoría /Categoría / kartenopsis / Kenynopsis	I 3P (propane)	I 3P (propane)	I 3B/P [ butano /propane ]
Consumption / Verbrauch / Verbruik /Zuzyce / Consommation / Consumo /Consum / norgaznoane / Konzakuzem	583 g/h	583 g/h	436 g/h
Set up / Auflegung / Inrichting /Preznaczony na / Conçu pour / Configurare /Configurarea / Hactpoka / Pulpon	G31 - 50 mbar	G31 - 50 mbar	G31 - 37mbar
S/N:

Use outdoors only.Read the instructions before using the appliance.WARNING: accessible parts may be very hot.Keep young children away.	Pub essere utilizzato solo all'aperto.Prima dell'uso leggere attentamente le istruzioni d'uso.AWVERTENZE! I componenti del dispositivo possono essere molto caldi.Assicurarsi che non ci siano bambini nella vicinanze del dispositivo.
Nur im Freien verwenden.Lesen Sie die Bedienungsanleitung vor Inbetriebnahme des Gerätes. ACHTUNG: Zugängliche Teile können sehr heiß sein. Kinder fernhalten.	A se folosi doar spalji dischise.Citi'i cu atenje instructiunlie înainte de utilizarea aparatului.AVERTIMENT: piesele accesibile pot fi foarte fierbinji.A nu se lásá la îndemâna copilor.
Alieen buiten gebruiken.Lees de instructies voor ingebruikname.WAARSCHUWING: Aanraakbare delon kunnen erg hoet zijn.Houët jonge kinderen op afstand.	Использовать на открытом воздухе.Перед использованием устройства прочитайте, покалуйста, руководство по обслуживанию.ВНИАНИЕ: Детали устройства могут быть горячими. Убедитесь в том, что рядом с устройством нет детей.
Stosować tylko на wolnej przestrzeni.Przeczytaj instrukcję przed uzyciem urządzenia.OSTRZEZENIE: dostępne części urządzenia mogą być bardzo gorące.Trzymaj dzieci z dala od urządzenia.	По хран муво не сфигерикі хіро.Дмійбагє на одыкіє; при хранцапополнюєге та оценкин.ПРОЕДОПОНІН: та проєдвалюре аукцію упароїв на веруачіюи интерволіке.Дистрікіє та оценкин рокря апіє паїдіа.
A n'utiliser qu'à l'extérieur des locaux.Consulter la notice avant l'utilisation.ATTENTION : des parties accessibles peuvent être très chaudes. Eloigner les jeunes enfants.

Thank you for purchasing this Hendi appliance. Please read these user instructions carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety instructions in particular very carefully.

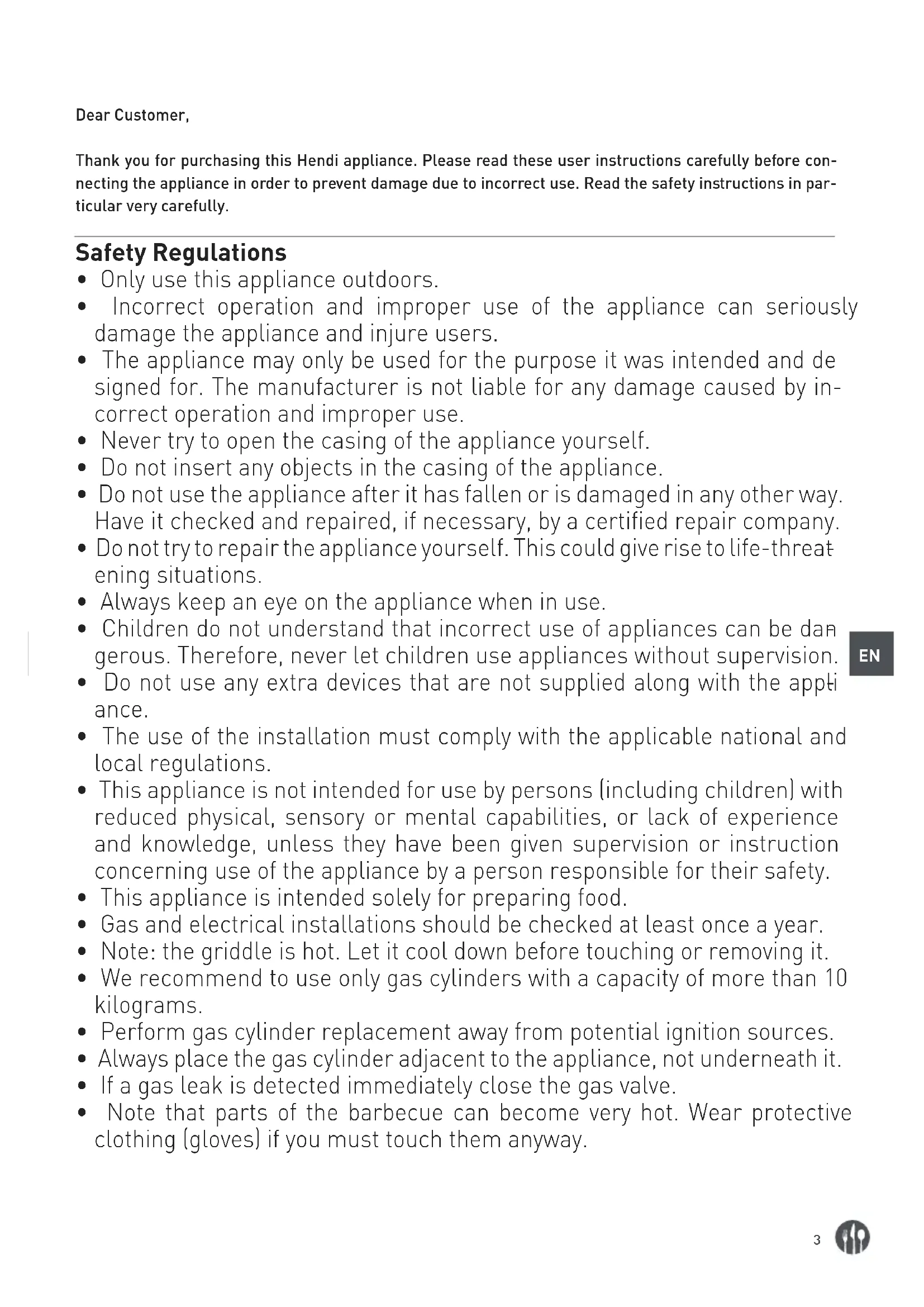

Safety Regulations

• Only use this appliance outdoors.
• Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
• The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
  • Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.
• Do not use any extra devices that are not supplied along with the appliance.
• The use of the installation must comply with the applicable national and local regulations.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended solely for preparing food.
• Gas and electrical installations should be checked at least once a year.
• Note: the griddle is hot. Let it cool down before touching or removing it.
• We recommend to use only gas cylinders with a capacity of more than 10 kilograms.
• Perform gas cylinder replacement away from potential ignition sources.
  • Always place the gas cylinder adjacent to the appliance, not underneath it.
• If a gas leak is detected immediately close the gas valve.
• Note that parts of the barbecue can become very hot. Wear protective clothing (gloves) if you must touch them anyway.

Special safety instructions

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:
  • Health and Safety at Work Legislation
• Fire Precautions
  • Building Regulations
• DO NOT immerse the appliance in water.
• DO NOT leave the appliance unattended during operation.
• Some surfaces become hot with use - exercise caution when using the appliance.
• Keep this appliance away from children when in use.
• DO NOT move the appliance during cooking.
• DO NOT use if the hose is damaged in any way.
• DO NOT operate the appliance without the cooking grids in place.
• ALWAYS switch off the gas supply to the appliance when not in use.
• ALWAYS store gas bottle upright, even when empty.
• DO NOT use or store gas bottles in direct sunlight.
• DO NOT use if the ambient temperature exceeds 40°C.
• Regularly inspect the hose for any flaws/defects.
• Not suitable for indoor use.
• This appliance must only be used in accordance with these instructions and by persons competent to do so.
• This appliance is not suitable for use by children.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.

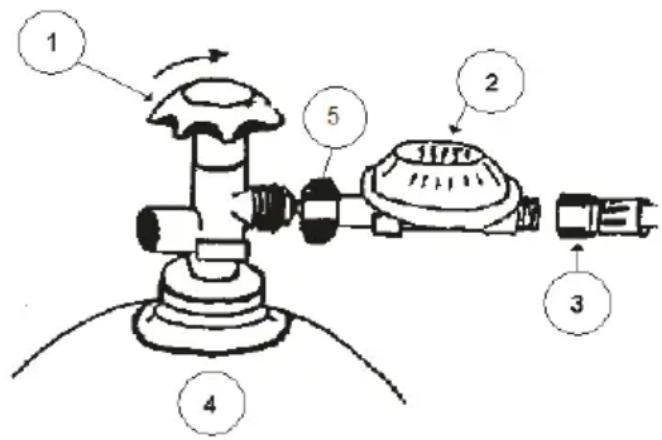

Connecting the gas bottle

1 = main tap
2 = pressure regulator
3 = gas hose
4 = gas bottle
5 = rubber washer

Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber sealing washer is present in the nut. (NB. This rubber washer is not required for UK-type pressure regulators). Tighten the nut well. Note that the nut has a left-hand thread.

Check the connections for leaks using a soap and water solution.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Igniting the gas barbecue

• Always place the grids on the Powergrill.
- Turn the knob to “normal” position, keep pressed-in. Press the red ignition knob in a few times till at the burners ignite fully. Keep the knob

pressed-in for approximately 10 seconds, the it flames will now stay burning.

- Check through the looking hole if the burner burns completely.

Extinguishing the gas barbecue

- Turn the knob completely to the right. Note! After turning off the burner, wait approximately 10 minutes before reigniting the burner. mAfter turning off the burner, always turn off the main tap on the gas cylinder and the tap on the appliance!

Cleaning and maintenance

• The Powergrill has a self cleaning working. Therefore you have to let the burner burn at it's full power for approximately 10 minutes. Fat and remains will then be vaporised or burned.
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• The grid and/or baking tray should be cleaned regu-

larly. Use a special barbecue cleaner and follow the instructions on its packaging.
- Clean the ventilation slots (if applicable) with a vacuum cleaner.
- Keep inside after use.
- Let specialised personnel clean the burner at least once a year.
- Never use a high pressure cleaner.

Faults

Fault Possible cause	Fault Possible cause
burner fails to ignite at all:	defective ignition	in gas hoseburner does not ignite completely:	gas cylinder (almost) empty
	defective thermocouple kink
	dirty spark plug		gas cylinder valve not entirely open
	defective pressure regulator
	empty gas cylinder		clogged jet
	kink in gas hose		defective valve
	clogged jet

If in doubt, please contact your supplier.

Note

- It is to be recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time.

- Consult the local regulations, these may differ.

• Always store gas bottles upright, even when empty.
- The Powergrill is supplied for use with propane gas. It is not allowed to modify this appliance, if this is desired please contact the manufacturer.

Assembling the undercarriage

The following parts have been supplied for the as- - 2 bolts M6x65.
sembling of the under-carriage:
- 1 wheel frame
- 1 body frame
- 2 bolts M6x40.
- 4 Cap nuts M6.
- 2 rings M6.
- 1 star bolt M6

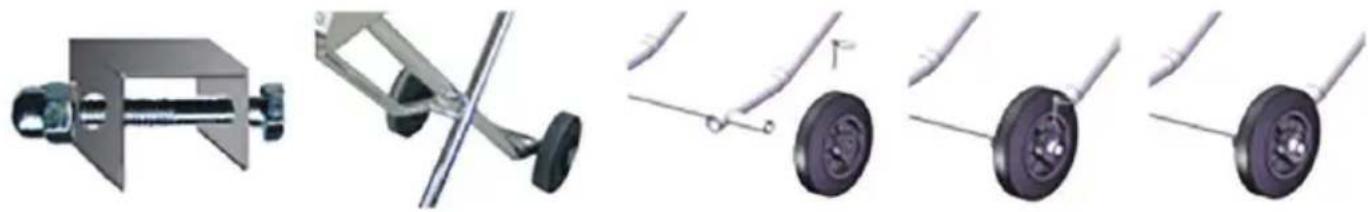

Assembly

• Remove all protective plastic foil
• Fasten the frame with the already assembled wheels to the under part of the Power grill. Use the parts delivered; M6x40 bolts and the M6 cap nuts. Take note of the frame stand, the bend in this frame has to be slightly bent upwards at the ends.

Mechanical assembly diagrams showing various components including a clamp, lever, wheel, and pulley (no text or labels)

- Assemble the body frame the wheel frame. Take note, the supplied rings has to be positioned in the inner side of the frame and also where the two frames join together. Use the long M6 x 65 bolts and the M6 cap nuts.

Pure electrical circuit lines without any symbols

- Fasten the U-shaped part to the under part of the body frame. Use the star bolt supplied. Check if it's really tightened.

Close-up of a mechanical component with a black knob and metallic parts, no visible text or symbols

- Put the barbecue in up right position. The barbecue has to be positioned horizontally. If not the wheel frame has to be turned the other way round.

Warranty

Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was bought and include proof of purchase (f.e. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

At the end of the life of the appliance, please dispose of the appliance according to the regulations and guidelines applicable at the time. Throw packing materials like plastic and boxes in the appropriate containers.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Mechanical assembly diagrams showing various components including a clamp, suspension rod, wheel rim, and guide rails (no text or labels)

Pure electrical circuit lines without any symbols

Close-up of a mechanical component with a black knob and metallic parts, no visible text or symbols

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Illustration of mechanical components including a clamp, lever, and wheel assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Close-up of a mechanical assembly with a black knob and metallic components (no visible text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Mechanical assembly diagrams showing different components and assemblies (no text or labels)

Pure electrical circuit lines without any symbols

Close-up of a mechanical assembly with a black component and metallic components (no visible text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Allumer le barbecue

Mechanical assembly diagrams showing various components including a clamp, suspension rod, wheel rim, and wheels (no text or labels)

Pure electrical circuit lines without any symbols

Close-up of a mechanical component with a black knob and metallic parts (no visible text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

IT

Mechanical assembly diagrams showing different components and assemblies (no text or labels)

Pure electrical circuit lines without any symbols

Close-up of a mechanical assembly with a black knob and metallic components (no visible text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Pure electrical circuit lines without any symbols

Close-up of a mechanical component with a black knob and metallic parts, no visible text or symbols

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Mechanical assembly diagrams showing various components including a clamp, suspension rod, and wheel assembly (no text or labels)

Pure electrical circuit lines without any symbols

Close-up of a mechanical assembly with a black knob and metallic components (no visible text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Mechanical assembly diagrams showing various components including a clamp, suspension mechanism, and wheel assemblies (no text or labels)

Pure mechanical assembly diagram without any text, numbers, or symbols

Close-up of a mechanical component with a black knob and metallic frame (no visible text or symbols)

62-023 Gądki, Poland

Tel: [phone]

Email: [e-mail]

Hendi Food Service Equipment GmbH

Central Barn, Hornby Road

Lancaster, LA2 9JX, United Kingdom

Tel: [phone]

Email: [e-mail]

Hendi Food Service Equipment Romania Srl

PKS Hendi South East Europe SA

5 Metsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

Find Hendi on internet:

www.hendi.eu

www.facebook.com/HendiFoodServiceEquipment

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

• Changes, printing and typesetting errors reserved.
• Änderungen und Druckfehler vorbehalten.
• Wijzigingen en drukfouten voorbehouden.
• Producent zastrzega sobie prawo do zmian oraz błędów drukarskich w instrukcji.

• Variations et fautes d'impression réservés.

• Errori di cambiamenti, di stampa e di impaginazione riservati.

• Drepturi rezervate cu privire la modificări și greșeli de imprimare.
• Изменения, печати и верстки ошибки защищены.
• Με επιφύλαξη αλλαγών, λαθών εκτύπωσης και στοιχειοθεσίας.
