USER MANUAL 154540 Hendi

Two stainless steel laboratory gas washing machines with control knobs and red hoses, displayed against a plain background (no text or symbols visible)

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep these instructions with the appliance. Diese Gebrauchsanweisung bitte beim Gerät aufbewahren. Bewaar deze handleiding bij het apparaat. Zachowaj instrukcję urządzenia. Conservate le istruzioni insieme all'apparecchio. Pästrați maualut de utilizare alături de aparat. Tento návod si odložte so spotrebičom. Хранить руководство вместе с устройством. Филážte autės tics oðnyíeç mazi me tn osukeuń. Uchovávejte tuto příručku se spotřebičem. Tento návod si odložte so spotrebičom. Ezeket az utasításokat tartsa a készülék mellett. Čuvajte ove upute s uređajem.

OUTDOOR

FOOD CONTACT

To avoid damage due to improper use or storage please read this operation manual carefully. It contains important notes on the installation, safety, operation and care of the appliance. We recommend that you keep this manual and the product warranty together in a safe place for further reference. Please pay special attention to the safety instructions.

Safety Regulations

• Only use this appliance outdoors.
• Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
• The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
  • Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.
• Do not use any extra devices that are not supplied along with the appliance.
• The use of the installation must comply with the applicable national and local regulations.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended solely for preparing food.
• Gas and electrical installations should be checked at least once a year.
• Note: the griddle is hot. Let it cool down before touching or removing it.
  • We recommend to use only gas cylinders with a capacity of more than 10 kilograms.
• Perform gas cylinder replacement away from potential ignition sources.
  • Always place the gas cylinder adjacent to the appliance, not underneath it.
• If a gas leak is detected immediately close the gas valve on the gas bottle.
• Note that parts of the appliance can become very hot. Wear protective clothing (gloves) if you must touch them anyway.
• Be careful of the position of the connection flexible tube so as to ensure that it is not subjected to twisting. The hose does not come in contact with hot parts and sharp edges.

Special safety instructions

- Necessary changes may only be done by a qualified technician.

- Use only the supplied pressure regulator.

• This appliance is suited for propane and butane gas.

- Check that there are no kinks in the gas hose.

- This appliance must be kept away from flammable materials during use.

- Certain accessible parts of the appliance can become extremely hot during operation. In view of this, keep the appliance out of reach of children.

- The appliance may only be installed against or on fire-resistant surfaces.

- The appliance must be installed in accordance with the applicable national regulations.

- Do not move the appliance during use.

• Always close the gas valve on the gas bottle if the appliance is no longer being used.

- Changing or modifying this equipment is dangerous and therefore not allowed.

- Parts which are fastened or sealed by the manufacturer, are not to be loosened or adjusted by the user.

• Install the appliance as level as possible with regard to the grease drain.

- Do not cover the ventilation openings in the appliance.

- To prevent blockage of the venturis, keep the venturis and the surrounding area clean of dust, cobwebs, etc.

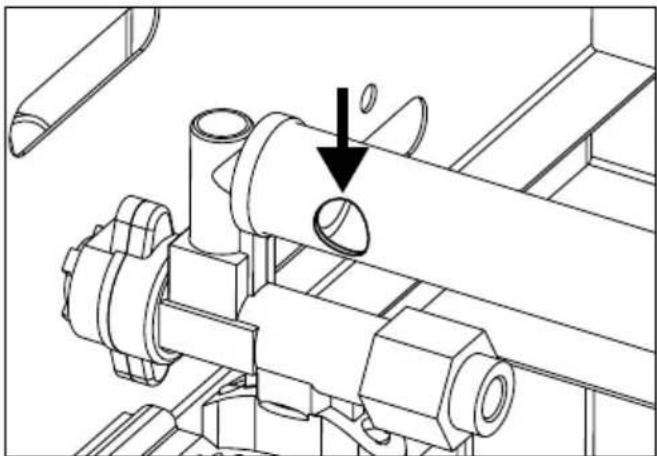

- Before each use, the user must always check whether the holes (pictured below) of the burner are clear of obstructions and not blocked.

Technical line drawing of a mechanical assembly with pipes and a circular component, no visible text or symbols

- WARNING: some parts of the appliance can become hot. Keep children away from the appliance.

- WARNING: assembly of the tubing must be conducted by some qualified tuber of destination countries.

- Approved gas regulator(EN16129: 2013) is used according to appliances categories and countries listed in data plate. Approved flexible hose would be changed when the national conditions require it & consult the local regulations, these may differ.

- The tubing or the flexible hose must be changed within the prescribed intervals or with-in one year. The flexible hose should not extend than 1.5m according to standard EN16436-1:2014+A3:2020.

H D

The maximum cylinder dimensions(regulator included) should not exceed (D)50x(H)75cm if no cylinder compartment included.

Intended use

• The device is intended for professional use and can be operated only by qualified personnel.
• This appliance is designed only for grilling appropriate food products. Any other use may lead to damage to the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Connecting the gas bottle

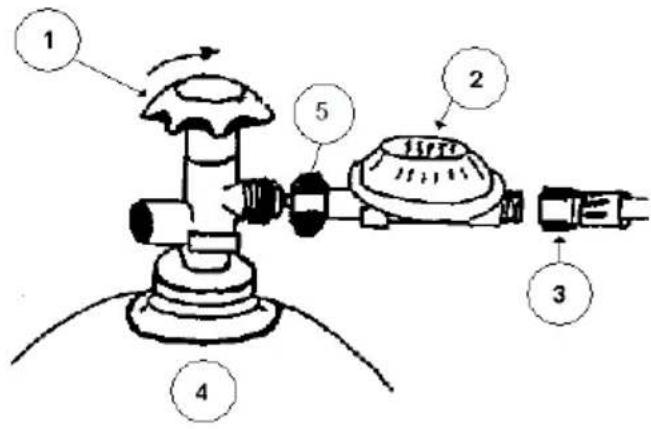

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

1 = Main tap
2 = Pressure regulator
3 = Gas hose
4 = Gas Bottle
5 = Rubber washer

Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber-sealing washer is present in the nut. (NB. This rubber washer is not required for UK-type pressure regulators). Tighten the nut well. Note that the nut has a left-hand thread.

Check the connections for leaks using a soap and water solution.

Every time a newly filled gas bottle is connected, a new rubber washer must be fitted. In most cases, your gas supplier will include it with the bottle.

Igniting the gas appliance

- Press the knob and turn left to the maximum position. Keep the knob pressed and press the ignition button a few times. Keep the knob pressed in for approximately 10 more seconds. The burner will continue to burn.

- Let the appliance burn for approximately 15 minutes before putting meat on the grid, as the burners must first heat the chamber before it can pass its heat to the upper grid.

Turning off the gas appliance

- Turn the knob fully to the right. Note! After turning off the burners, wait approximately 10 minutes before reigniting the burners.

- When disconnecting the gas bottle or after turning off the burners, always turn off the regulator on the gas bottle!

Cleaning and maintenance

• Let the appliance cool down before cleaning
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• The grid and/or baking tray of the grill should be cleaned regularly. Let it soak in cleaning agent first, then use an abrasive material like a scourer or wire brush. If you use special cleaner, follow the instructions on the packaging.

• Clean the ventilation slots (if applicable) with a vacuum cleaner.

• Keep inside after use.

• Let specialised personnel clean at least once a year the burner.
• Never use a high pressure cleaner.
• Maintenance after every use: Clean the griddle. Clean the grease holder.
• If the injector must be replaced, replace it only with an original spare part acquired from the manufacturer. The diameter of the injector is noted on the injector: 1.10 mm.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution.

If you are unable to solve the problem, please contact the supplier / service provider.

Fault Possible cause Fault Possible cause
Burner will not ignite: Defective igniter Burner does not burn fully: Gas cylinder is (almost)

Note

- It is to be recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time. Also check the hose for leaks on a yearly basis at least. Even if the expiration date has not been expired yet, you must check the condition of the hose always. In case of damage/cracks you have to replace the hose immediately. Please make sure that you comply with all local health and safety regulations (e.g. fire code).

• Pressure regulators have a default maximum life span as indicated by the date printed on the regulator, but please note that local health and safety regulations may overrule this.
• Only replace the pressure regulator with one provided by the manufacturer.
• Consult the local regulations, these may differ.
• Always store gas bottles upright, in use as well as when empty.
• Use only original parts when replacing or changing parts.

Accessories

Description Article no.
Baking tray Grill/Bake master Mini 154687
Baking tray Grill/Bake master Maxi/ Quattro 154656
Upper grid Grill master Mini 154663
Upper grid Grill master Maxi/ Quattro 154632
Lower grid Grill master Mini 154670
Lower grid Grill master Maxi/Quattro 154649
Grease holder Grill master Mini 154748
Grease holder Grill master Maxi/ Quattro 154755
Leg Grill master Mini 154823
Leg Grill master Maxi 154694
Leg Grill master Quattro 928226
Wheel Quattro 928233
Ignition button Grill/Bake master Mini/Maxi 153178
button Quattro 928240
Gas tap Grill/Bake master Mini / Maxi/ Quattro	154724
Burner Grill/Bake master Mini / Maxi / Quattro	154731

GB

Important!

When you are using the baking tray for the Grillmaster Mini / Maxi / Quattro, you must remove the upper & lower griddle and the grease holder. When you don't do this, there will be such an amount of heat inside the appliance that this heat will cause damage.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

Mechanical assembly diagram showing pipe fittings and a circular component with an arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

1 = Haupthahn
2 = Druckregler
3 = Gasschlauch
4 = Gasflasche
5 = Gummischeibe

Mechanical assembly diagram showing a pipe fitting with a bolt and arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

1 = Hoofdkraan
2 = Drukregelaar
3 = Gasslang
4 = Gasfles
5 = Rubberen afdichtring

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

1 = Robinet principal
2 = Regulator de presiune
3 = Furtun de gaz
4 = Recipient de gaz
5 = Šaibă din cauciuc

Technical line drawing of a mechanical assembly with pipes and gears, showing a bolted joint (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly with pipes and a circular component, no visible text or symbols

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Mechanical assembly diagram showing a pipe fitting with a circular component and an arrow indicating direction (no text or symbols present)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly with pipes and a knob, no text or symbols present

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

1 = Glavna slavina
2 = Regulator tlaka
3 = Crijevo za plin
4 = Plinska boca
5 = Gumena podloška
