USER MANUAL Touch Control HC5960 REMINGTON

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFETY INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE OR INJURY TO PERSONS:

1 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.
2 An appliance should never be left unattended when plugged into a power outlet, except when charging.
3 Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped in water.
4 Do not immerse the appliance in liquid; do not use it near water in a bath-tub, basin or other vessel; and don't use it outdoors.
5 Make sure the power plug and cord do not get wet.
6 Do not plug or unplug the appliance with wet hands.
7 Do not use the product with a damaged cord. A replacement can be obtained via our International Service Centres.
8 Do not use attachments other than those we supply.
9 This appliance should be charged by approved safety isolating adaptors PA-0510E (for EU version) or PA-0510U (for UK version) with the output capacity of 5.0V dc; 1A;
10 This appliance is not intended for commercial or salon use.

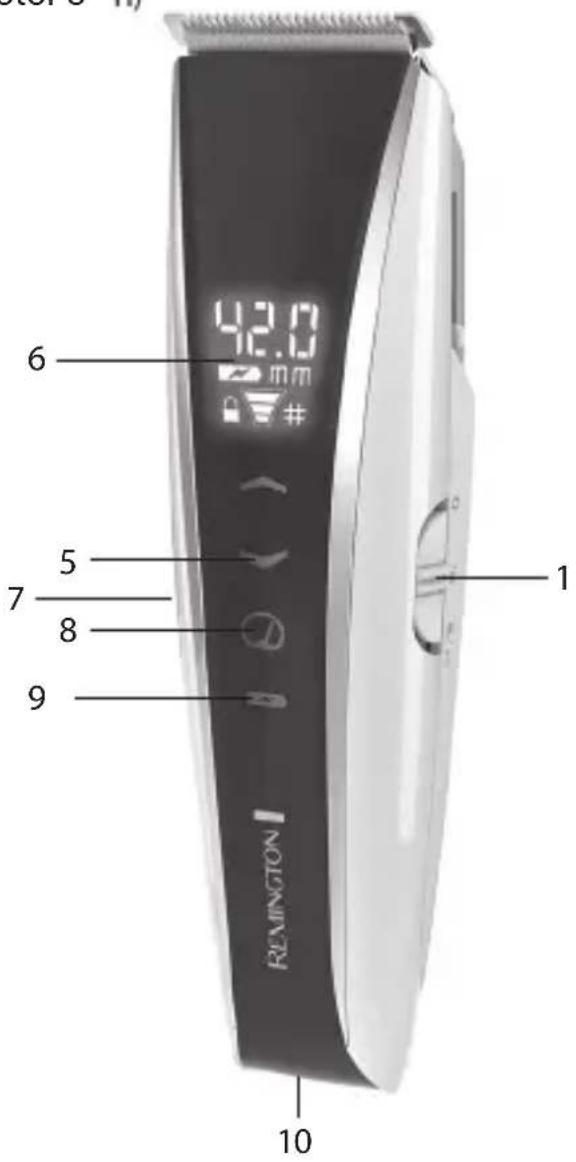

KEY FEATURES

1 3 position slide switch (Off / On / Lock motor o
2 Stubble comb
3 Motorised short length comb
4 Motorised long length comb
5 Cutting length control
6 Digital display for:

a. Battery level
b. Length setting
c. Length unit of measure mm
d. Lock / unlock
e. Speed level

7 Mode button
8 Tri Boost System
9 Battery icon
10 Micro USB port

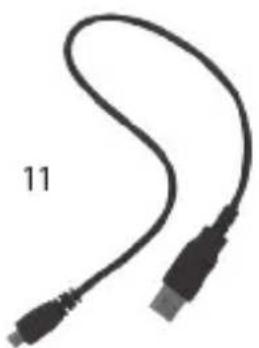

11 Micro USB cable
12 Adaptor

n)

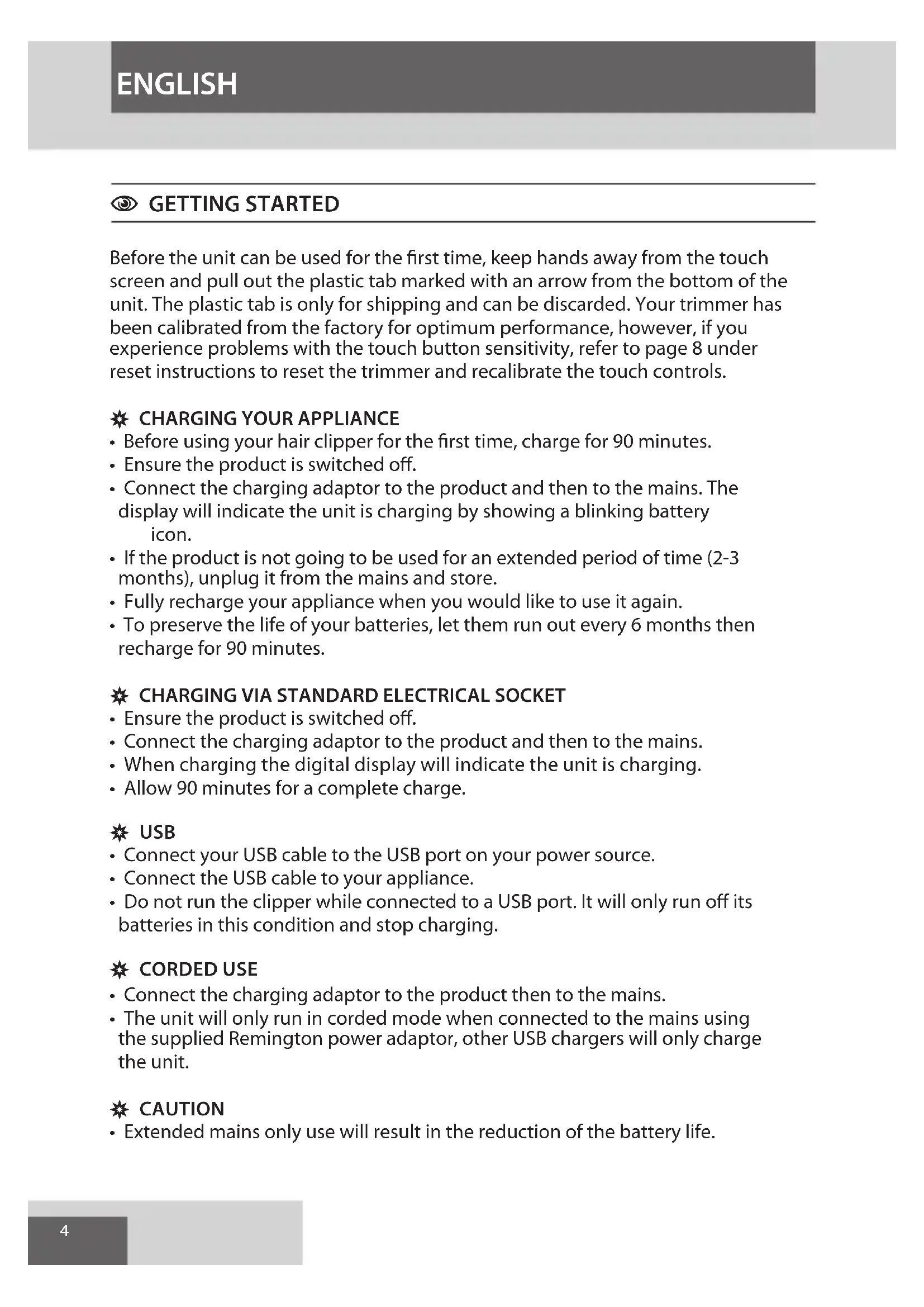

GETTING STARTED

Before the unit can be used for the first time, keep hands away from the touch screen and pull out the plastic tab marked with an arrow from the bottom of the unit. The plastic tab is only for shipping and can be discarded. Your trimmer has been calibrated from the factory for optimum performance, however, if you experience problems with the touch button sensitivity, refer to page 8 under reset instructions to reset the trimmer and recalibrate the touch controls.

CHARGING YOUR APPLIANCE

Before using your hair clipper for the first time, charge for 90 minutes.
- Ensure the product is switched off.
- Connect the charging adaptor to the product and then to the mains. The display will indicate the unit is charging by showing a blinking battery icon.
- If the product is not going to be used for an extended period of time (2-3 months), unplug it from the mains and store.
- Fully recharge your appliance when you would like to use it again.
- To preserve the life of your batteries, let them run out every 6 months then recharge for 90 minutes.

CHARGING VIA STANDARD ELECTRICAL SOCKET

• Ensure the product is switched off.
• Connect the charging adaptor to the product and then to the mains.
• When charging the digital display will indicate the unit is charging.
• Allow 90 minutes for a complete charge.

USB

• Connect your USB cable to the USB port on your power source.
• Connect the USB cable to your appliance.
• Do not run the clipper while connected to a USB port. It will only run off its batteries in this condition and stop charging.

CORDEDUSE

• Connect the charging adaptor to the product then to the mains.
• The unit will only run in corded mode when connected to the mains using the supplied Remington power adaptor, other USB chargers will only charge the unit.

CAUTION

• Extended mains only use will result in the reduction of the battery life.

WARNING

• The appliance can not be operated in corded mode while connected to a PC via the USB port.

CORDLESSUSE

• When the unit is switched on and fully charged, the product can be used in cordless mode for 50 minutes.

INSTRUCTIONS FOR USE

• Turn the product on by sliding the 3 position slide switch down to the middle position. This will turn the LCD display on and enable height adjustments and boost adjustments to be made.
• Use the hair clipper without a comb attached for trimming hair close to the skin. This will trim hair to 1mm . Holding the blades perpendicular to the skin will trim hair to 0.5mm .

ADJUSTING THE TRIM INCREMENT LENGTH

• First select which hair comb; stubble comb, short length comb or long length comb for the length range desired.
• Stubble comb (1.5mm, #0.0) short length comb (3.0 - 23.0mm, #1.0 - 7.5), long length comb (22.0 - 42.0mm, #6.5 - 13.0). To switch between mm mode to barbershop grade mode (#0.0) hold the mode button until the # symbol located on the right side of the screen underneath the length adjustment value changes to mm or from mm to #.

Note: If using the stubble comb, once the comb is attached, please press the mode button until it cycles to Range D. Once this is reached 1.5mm should be displayed on the LCD display in mm mode or in barbershop grade mode (#0.0). Please note that the stubble comb is a fixed comb and will not move up and down when pressing the increment button.

• For the long length comb the adjustments can only be made in increments of 0.5. To set this press the mode button until Range C is displayed on the LCD screen.
• For the short length comb there are 2 increment settings. Your clipper can be adjusted in either 0.1 or 0.5 increments. To switch between these, press the mode button until Range A is displayed for 0.1 increments or until Range B is displayed for 0.5 increments.
  Note: If a red warning light is visible through the comb when installed, this is indication that you are on the wrong range selection for that comb.

• The motorised, short or long length comb can be adjusted to give you many different trim lengths, simply by pressing the arrows on the touch screen.

• Press and hold the arrow up to increase the cutting length and down to decrease it. The setting number will appear on the digital display.

• Select the desired boost level by pressing the boost button with the 3 position slide switch in the middle position. The display will indicate the level.
• Once the desired length and boost level have been selected slide the 3 position slide switch to the last position (the furthest down) to lock the cutting length and turn the motor on.
  Note: Adjustments to length and boost can be done anytime the 3 position slide switch is set to the middle position. Adjust the cutting length and/or boost level by pressing the arrows or boost button on the touch screen.
  Note: the motor will only run when the 3 position slide switch is set to lock, the last position (furthest down). This is to ensure the cutting length does not adjust whilst you are cutting your hair.
• Press and hold the battery icon at any time when the product is on to display the remaining battery time in minutes on the digital display.

CAUTION

NOTE: The comb must be attached to the appliance in order to use the hair length selector.

BEFORE STARTING THE CUT

• Inspect the clipper making sure that it is free from hair and dirt.
• Seat the person so that their head is approximately at your eye level.
  Before cutting, always comb the hair so it is tangle free and dry.

TO ATTACH A COMB

• Hold the comb with its teeth upward.
• Guide the comb rails into the slots on the side of the clipper head. Then push the comb down until it seats on the adjustment arm.

TO REMOVE THE COMB

• Holding the clipper with the blades facing away from you, firmly push the comb upward and away from the blades.

CAUTION

• If the incorrect comb is attached to the product for the desired cutting length, a red warning light will illuminate to indicate this.
• Please ensure that the desired comb is attached or that the correct setting is selected on the comb switch.

INSTRUCTIONS FOR CUTTING HAIR

• For even cutting, allow the comb attachment/blade to cut its way through the hair. Do not force it through quickly. If you are cutting for the first time, start with the maximum comb attachment.

STEP 1 - Nape of the neck

• Set the comb to 3mm or 6mm .
• Hold the clipper with the blade teeth pointing upwards. Begin starting at the centre of the head at the base of the neck.
• Slowly lift the clipper, working upwards and outwards through the hair, trimming just a little at a time.

STEP2-Backofthehead

• With the comb set at 12 mm or 18 mm ,cut the hair at the back of the head.

STEP3-Side of the head

• With the comb set at 3mm or 6mm , trim sideburns. Then change to the longer 9mm guide comb and continue to cut the top of the head.

STEP4-Topofthehead

• Use the longer length comb attachment and set it to 24mm or 27mm then cut hair on top of the head against the direction in which the hair normally grows.
• For longer hair on top, use the longer length comb attachment (24 - 42mm) to achieve the desired style.
  Always work from the back of the head.

STEP5- The finishing touches

• Use the clipper without an attachment comb for close trimming around the base and sides of the neck.
  To produce a clean straight line at the sideburns, reverse the hair clipper.
• Place the reversed clipper at right angles to the head, tips of the blades lightly touching the skin and then work downwards.

SHORT TAPERED STYLES - "FLAT TOPS" & SHORT CUTS

• Starting with the longest guide comb attached (24-42mm), cut from the back of the neck to the crown. Hold the guide comb flat against the head and slowly move the clipper through the hair.
• Use the same procedure from the lower side to the upper side of the head.
• Then cut the hair against the direction in which it grows and level with the sides.
• To give a "flat top" look, the hair on top of the head must be cut over the top of a flat comb.
• Use a closer guide comb to taper the hair down to the neckline as desired.

CARE FOR YOUR HAIRCLIPPER

• Your clipper is fitted with high quality blades.

• To ensure long lasting performance of your clipper, clean the blades and unit regularly.

• Always keep the attachment guide comb on the trimmer blade.

AFTER EACH USE

• Ensure the appliance is switched off and unplugged from the mains before cleaning.
• Remove the attachment guide comb.
• Gently brush the remaining hairs away from the comb and trimmer blade.
• Do not rinse the cutter assembly under water.
• We recommend oiling the blades after cleaning with a little sewing machine oil.

RESET INSTRUCTIONS

• You will never have to force a system reset under normal conditions. If the clipper experiences abnormal behaviour, such as low or high touch sensitivity or subjected to electrostatic discharge disturbance, or subjected to electrical fast transient/burst from the LV network, the system can be reset.
• Hold the mode button for 8 seconds with the product switched on and the 3 position slide switch set to the middle position, the system will enter reset mode.
• System will show 88.8mm, full battery, full lock and full boost level.
• Ensure no objects, hands or fingers are near the touch buttons.
• Push the mode button once.
• The comb will travel down to its lowest setting and the display will show the current battery level, lock status and 1st boost level.
• Let the product sit until the screen dims.
• Product is now ready, turn it on and confirm proper function.

CLEANING CAUTIONS

• Only the attachment guide combs and trimmer blade may be removed from the product for cleaning.
• Cleaning should be done with a soft brush.
• The appliance is not washable.
• Do not rinse under water.
• Do not use harsh or corrosive cleaners on the units or their cutters.

Note: these clippers are not intended for professional use.

BATTERY REMOVAL

• The battery must be removed from the appliance before it is scrapped.
• The appliance must be disconnected from the supply mains when removing the battery.
• Turn the trimmer on and discharge all remaining power.
• Remove the comb attachment.
• Detach the blade head.
• Remove the 2 housing screws from back of product.
• Using a screwdriver carefully pry apart the top and bottom housing.
• Unscrew the (2) screw on the circuit board.
• Remove the upper circuit board.
• Unscrew the (2) screw the battery cover.
• Disconnect the battery from the low circuit board.
  The battery is to be disposed of safely.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol must not be disposed of with unsorted municipal waste, but recovered, reused or recycled.
