USER MANUAL C4 Batavus

OWNER'S MANUAL P. 2-11

MANUALE D'USO P. 42-51

MANUAL DEL USUARIO P. 52-61

BRUKSANVISNING S. 62-71

KÄYTTÖOHJE S. 72-80

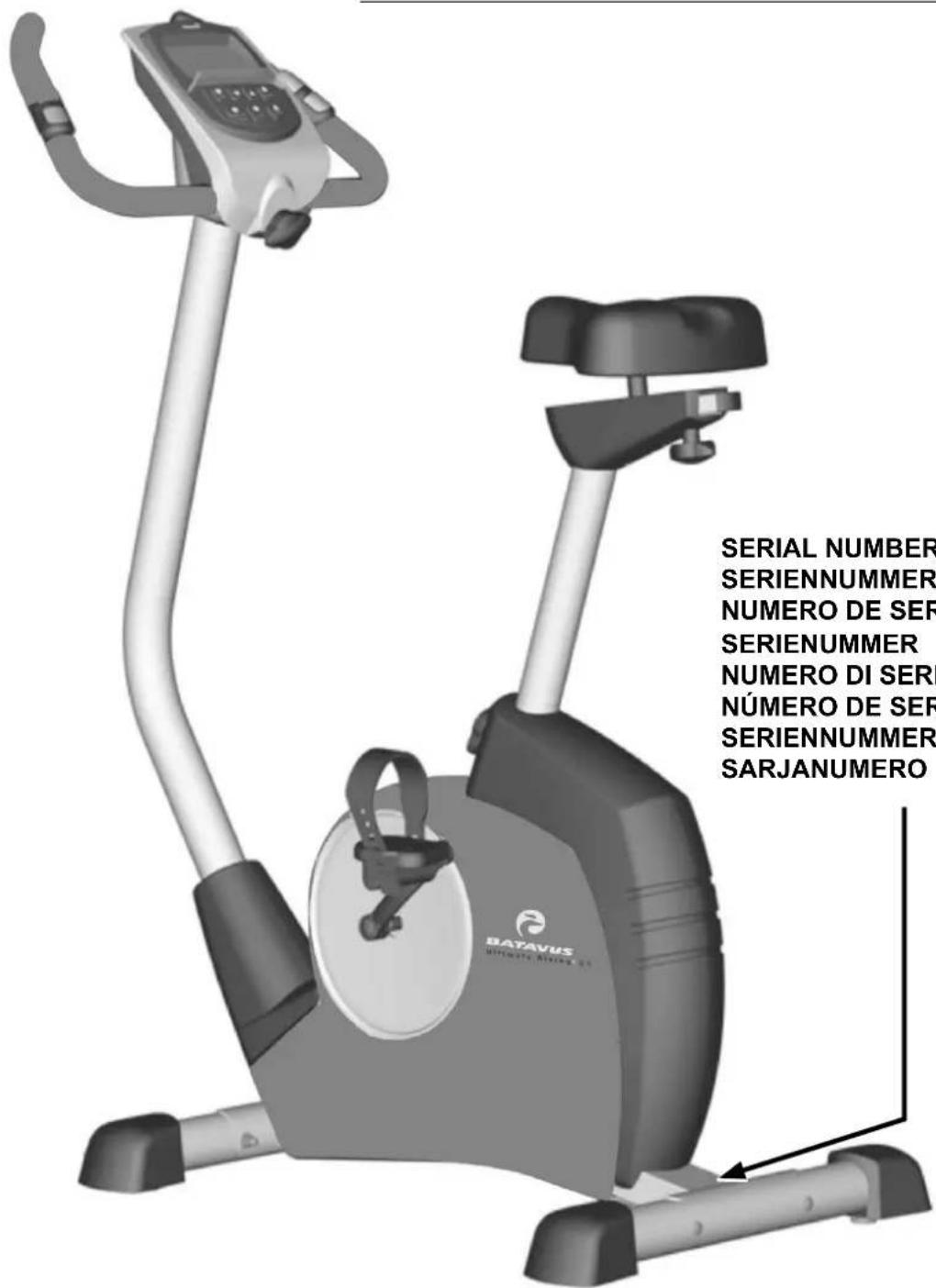

SERIAL NUMBER SERIENNUMMER NUMERO DE SER SERIENUMMER NUMERO DI SERI NUMERO DE SER SERIENNUMMER SARJANUMERO

BATAVUS

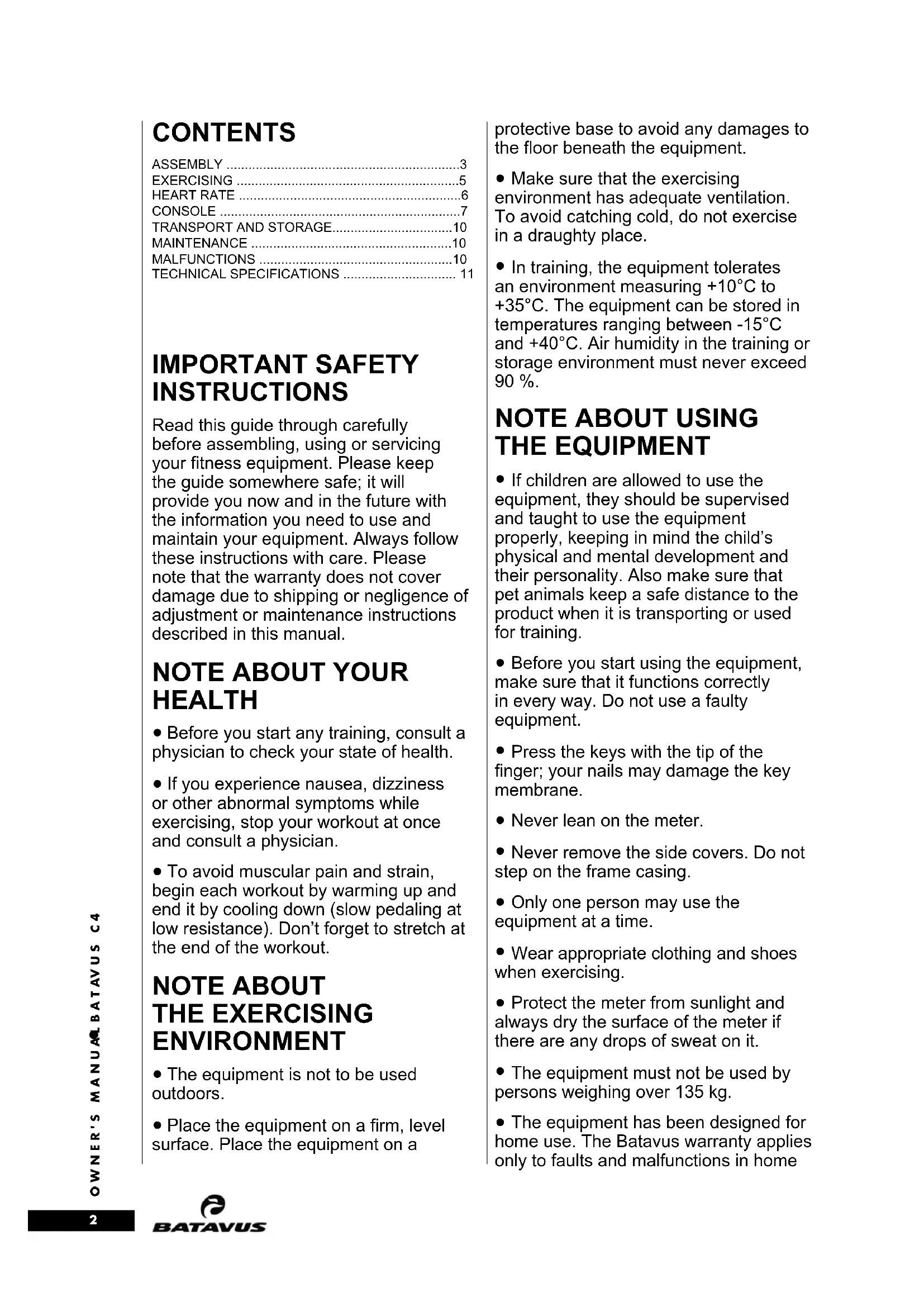

CONTENTS

ASSEMBLY 3
EXERCISING 5
HEART RATE 6
CONSOLE 7
TRANSPORT AND STORAGE....10
MAINTENANCE ....10
MALFUNCTIONS ....10
TECHNICAL SPECIFICATIONS 11

IMPORTANT SAFETY INSTRUCTIONS

Read this guide through carefully before assembling, using or servicing your fitness equipment. Please keep the guide somewhere safe; it will provide you now and in the future with the information you need to use and maintain your equipment. Always follow these instructions with care. Please note that the warranty does not cover damage due to shipping or negligence of adjustment or maintenance instructions described in this manual.

NOTE ABOUT YOUR HEALTH

• Before you start any training, consult a physician to check your state of health.
• If you experience nausea, dizziness or other abnormal symptoms while exercising, stop your workout at once and consult a physician.
• To avoid muscular pain and strain, begin each workout by warming up and end it by cooling down (slow pedaling at low resistance). Don't forget to stretch at the end of the workout.

NOTE ABOUT THE EXERCISING ENVIRONMENT

• The equipment is not to be used outdoors.
• Place the equipment on a firm, level surface. Place the equipment on a

protective base to avoid any damages to the floor beneath the equipment.

• Make sure that the exercising environment has adequate ventilation. To avoid catching cold, do not exercise in a draughty place.
• In training, the equipment tolerates an environment measuring +10°C to +35°C. The equipment can be stored in temperatures ranging between -15°C and +40°C. Air humidity in the training or storage environment must never exceed 90%.

NOTE ABOUT USING THE EQUIPMENT

• If children are allowed to use the equipment, they should be supervised and taught to use the equipment properly, keeping in mind the child's physical and mental development and their personality. Also make sure that pet animals keep a safe distance to the product when it is transporting or used for training.
• Before you start using the equipment, make sure that it functions correctly in every way. Do not use a faulty equipment.
• Press the keys with the tip of the finger; your nails may damage the key membrane.
• Never lean on the meter.
• Never remove the side covers. Do not step on the frame casing.
• Only one person may use the equipment at a time.
• Wear appropriate clothing and shoes when exercising.
• Protect the meter from sunlight and always dry the surface of the meter if there are any drops of sweat on it.
• The equipment must not be used by persons weighing over 135 kg.
• The equipment has been designed for home use. The Batavus warranty applies only to faults and malfunctions in home

use (24 months). Further information on warranty terms can be obtained from your national Batavus distributor. Please note that the warranty terms may vary from one country to another.

- Do not attempt any servicing or adjustments other than those described in this guide. Everything else must be left to someone familiar with the maintenance of electromechanical equipments and authorised under the laws of the country in question to carry out maintenance and repair work.

SAVE THIS INSTRUCTION MANUAL

ASSEMBLY

Start by unpacking the equipment. Two people are needed for the assembly.

Assembly kit (contents marked with * in the spare part list): keep the assembly tools, as you may need them e.g. for adjusting the equipment

If necessary, please contact your dealer with the model, equipment serial no. and spare part no. of the missing part. You'll find a spare part list at the back of this guide. The packaging includes a silicate bag for absorbing moisture during storage and transportation. Please dispose of the bag once you have unpacked the equipment. The directions left, right, front and back are defined as seen from the exercising position. Allow at least 100 cm of clearance around the equipment. We also recommend opening the package and assembling the product on a protective base.

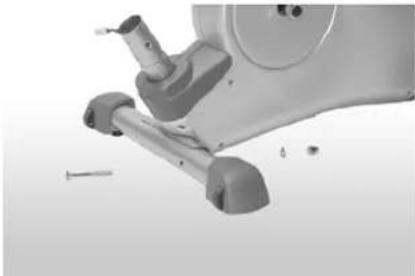

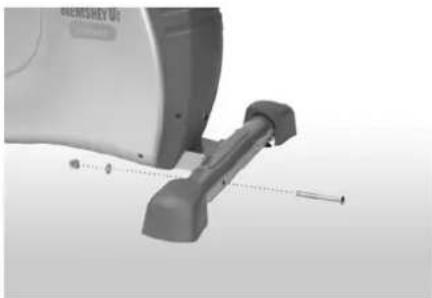

REAR AND FRONT SUPPORT

Close-up of a medical or laboratory device with a rod and mechanical lever (no visible text or symbols)

Mount the rear foot tube to the base frame using the screws, the washers and the cap nuts.

Close-up of a mechanical exercise machine with visible legs, feet, and a screw (no text or symbols)

Mount the front foot tube to the base frame in the same way. Make sure that the rollers for the foot caps face forward and down during assembly

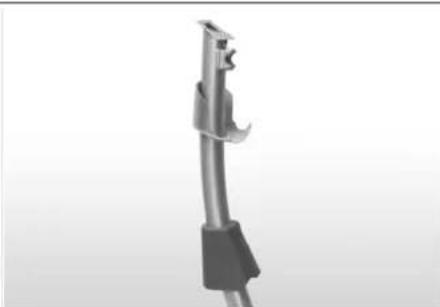

FRONT TUBE

3D rendered image of a mechanical tool or connector with a black handle and metallic end (no text or symbols visible)

Push the console cap, which will later be mounted beneath the console, and the tube cover for the handlebar shaft onto the handlebar shaft. Then, push the foam ring for the tube cover onto the handlebar shaft and push upward.

Close-up of a robotic arm with a mechanical tool inserted, showing no visible text or symbols.

Connect the top cable to the bottom cable protruding from the frame tube of the base frame.

Mechanical assembly diagram showing a pipe fitting with a curved handle and shaft (no text or symbols)

Place the handlebar shaft onto the frame tube on the base frame and fasten it using the screws and the washers. CAUTION: Do not pinch the cable!

Push the tube cover together with the housing foam ring downward onto the housing.

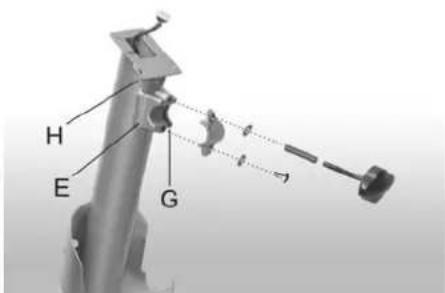

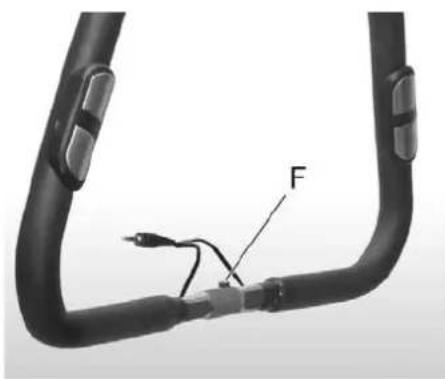

HANDLEBAR

Close-up of a black flexible hose with attached cable and connector, labeled 'F' (no text or symbols beyond label)

H E G

Assemble the handlebar tube together with the handlebar clamp, the screw, the washer, the spacer sleeve and the hand wheel for adjusting the handlebars. To do this, place the handlebar tube into the mount (E) on the handlebar shaft. CAUTION: The pin (F) for the handlebar tube must be inserted into the groove (G). Then push the handlebar clamp over the handlebar tube and first loosely insert the lower screw with the washer. The handlebar clamp should uniformly wrap around the handlebar tube. CAUTION: Do not pinch the cable! Insert the spacer sleeve into the upper hole and tighten. Next, push the cable for the hand pulse sensors through the opening (H) beneath the mounting plate and thread it upward out of the handlebar shaft.

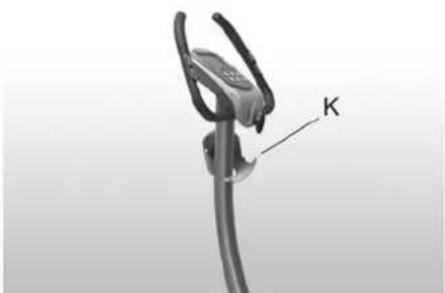

CONSOLE

J i

Close-up of a mechanical clamp or bracket with a labeled component 'K' (no other text or symbols visible)

To assemble the console, you must first connect the top cable and the cable for the hand pulse sensors to the console cables. Then push the console downward onto the mounting plate (i) on the handlebar shaft. CAUTION: Do not pinch the cable! Then, fasten the console using the screws. Do not tighten the screws too much. If you wish, you may insert the book holder into the slot (J) on the console. Push the console cap upward beneath the console until it latches into place. Make sure that the latching pins (K) seat properly.

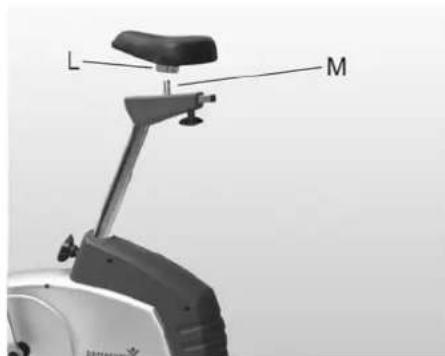

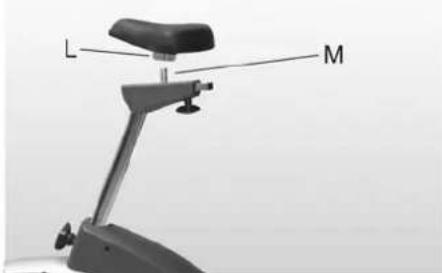

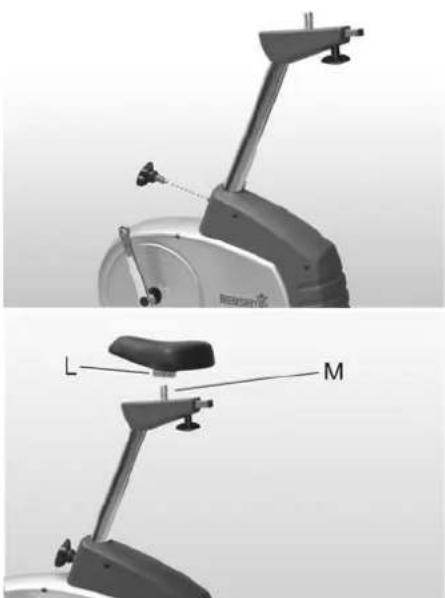

SEAT

Two technical diagrams of a stationary exercise machine, showing front and side views with labeled parts (L and M), no readable text or symbols beyond labels.

Insert the seat support. Insert the hand wheel for adjusting the seat and latch the pin of the hand wheel into a hole in the seat support. Then tighten the hand wheel. To attach the seat to the seat support, push the previously assembled clamp (L, beneath the seat) onto the mounting tube (M) on the seat holder. Align the seat and screw it tight in the desired position using the clamping screw. You can now set the horizontal distance between the handlebars and the seat using the hand wheel for setting the seat depth.

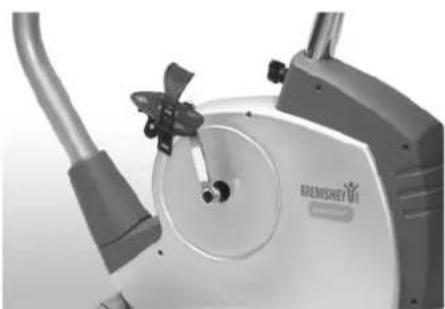

PEDALS

Close-up of a white exercise machine with attached lever and control knob (no visible text or symbols)

Screw the pedals into the crank arms. Screw the left pedal (marked L for left-hand thread) into the left crank arm. Use the wrench and rotate it counterclockwise. Then screw the right pedal (marked R for right-hand thread) tightly clockwise into the right crank arm. Now attach the pedal straps to the pedals and adjust as desired.

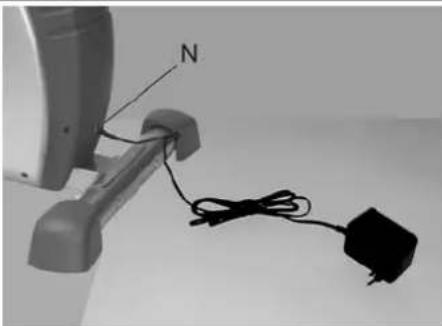

TRANSFORMER

Close-up of a cable with a black plug and labeled 'N' pointing to a connector (no text or symbols beyond the label)

Insert the small connector into the receptacle (N) on the unit housing. Then connect the transformer to a 230 volt power outlet. The unit is now ready to use.

Before connecting the equipment to a power source, make sure that local voltage matches that indicated on the type plate: the equipment operates at either 230 V or 115 V (North American version). NOTE! The equipment must be connected to a grounded wall socket. Do not use extension wires when connecting the equipment to the power source. Make sure the power cord does not run underneath the equipment.

DANGER: Always switch off the power and unplug this appliance from the electrical outlet immediately after using.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons:

1) An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before carrying out any maintenance or repair procedures.

2) Do not operate under blanket or other combustive material. Excessive heating can occur and cause fire, electric shock, or injury to persons.

SAFETY NOTICE FOR UNITS WITH ELECTRIC POWER

• Do not use your home exercise unit if there is any sort of damage to the power cord or to the unit.
• Keep the power cord away from hot objects.
• Do not use your exercise unit out of doors or in damp locations.
• Do not route the power cord beneath a carpet and do not place any objects on the cord.
• Disconnect the plug from the power outlet before you move the unit, perform any needed maintenance or open the housing.
• Do not alter (for example, lengthen) the cord between the transformer and the unit.

EXERCISING

If the product is not stable, adjust the stabilizing screws under the rear support appropriately.

SETTING THE SEAT DEPTH:

The seat depth (distance between the handlebars and the seat) can be changed using the hand wheel for setting the seat depth. Make sure you re-tighten the hand wheel after you have finished your adjustments.

EXERCISE LEVEL

Working out using an exercise cycle is excellent aerobic exercise, the principle being that the exercise should be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. The ability of the body to burn fat as a fuel is directly dependent on its oxygen uptake capacity. Aerobic exercise should above all be pleasant. You should perspire, but you should not get out of breath during the workout. You must, for example, be able to speak and not just pant while pedaling. You should exercise at least three times a week, 30 minutes at a time, to reach a basic fitness level. Maintaining this level requires a few exercise sessions each week. Once the basic condition has been reached, it is easily improved, simply by increasing the number of exercise sessions. Exercise is always rewarding for weight loss, because it is the only way of increasing the energy spent by the body. This is why it is always worthwhile to combine regular exercise with a healthy diet. A dieter should exercise daily - at first 30 minutes or less at a time, gradually

increasing the daily workout time to one hour.

You should start slowly at a low pedaling speed and low resistance, because strenuous exercise may subject the heart and circulatory system to excessive strain. As fitness improves, resistance and pedaling speed can be increased gradually. Exercise efficiency can be measured by monitoring the pulse. The pulse meter helps you monitor your pulse easily

during exercise, and thus to ensure that the exercise is sufficiently effective but not overstrenuous.

HEART RATE

No matter what your goal, you'll get the best results by training at the right level of effort, and the best measure is your own heart rate.

First find your maximum heart rate i.e. where the rate doesn't increase with added effort. C4's meter calculates your approximate maximum pulse level using the following formula:

220 - AGE

The maximum varies from person to person. The maximum heart-rate diminishes on average by one point per year. If you belong to a risk group, ask a doctor to measure your maximum heart rate for you.

We have defined three different heart-rate zones to help you with targeted training.

BEGINNER ● 50-60 % of maximum heart-rate.

Also suitable for weight-watchers, convalescents and those who haven't exercised for a long time. Three sessions a week of at least a half-hour each is recommended. Regular exercise considerably improves beginners' respiratory and circulatory performance and you will quickly feel your improvement.

TRAINER ● 60-70 % of maximum heart-rate.

Perfect for improving and maintaining fitness. Even reasonable effort develops the heart and lungs effectively, training for a minimum of 30 minutes at least three times a week. To improve your condition still further, increase either frequency or effort, but not both at the same time!

ACTIVE TRAINER ● 70-80 % of maximum heart-rate.

Exercise at this level suits only the fittest and presupposes long-endurance workouts.

● The heart rate is measured in three ways:

A) Using the handgrip heart rate sensors
B) Using an ear clip with cable (available as an optional extra)
c) Using a chest strap (wireless, telemetric), optional

The chest strap and receiver/adapter are available as optional extras.

Do not use more than one measuring system at the same time.

MEASURING PULSE WITH HAND SENSORS

C4 measures pulse with sensors which are located in the hand supports and which measure the pulse each time the user touches both sensors simultaneously.

For reliable pulse measurement, the skin must be in continuous contact with the sensors and the skin in contact with the sensors should be slightly moist. Too dry or too moist skin will impair hand pulse measurement. Please note also that active use of the upper body muscles during exercise may interfere with hand pulse measurement: active muscles transmit similar electronic signals as the heart muscle. Therefore, we recommend that arms be kept relaxed during pulse measurement.

EAR PULSE MEASUREMENT

1. Fit the ear sensor wire plug into the connecting point of the meter.
2. Attach the ear sensor to the earlobe.

If the sensor does not immediately start measuring your pulse or if the earlobe is cold, rub the earlobe with the fingers to speed up circulation. Physiological differences between different people may also cause disturbances in pulse measurement. In these cases, try measuring on the inside surface of the car or on the tip of your finger. If measuring disturbances appear while training, test the functioning of the sensor while stationary. Strong, unintentional swaying while training may also disturb measurement. If pulse values rise above 150 beats/min., earlobe measurement may be affected by the speeding up of circulation. Sometimes a strong light source, e.g. a fluorescent tube, in the immediate vicinity of the user may cause disturbances in pulse measurement. In this case, test the functioning of the sensor by turning the ear sensor the other way round on the earlobe. Pulse reading can also be affected, if the battery power of the meter is too low. Clean the ear sensor after use with a damp cloth.

TELEMETRIC HEART RATE MEASUREMENT

This equipment has a built in pulse receiver, which is Proatible with a telemetric Batavus C4 Check pulse transmitter.

NOTE! If you are fitted with a pacemaker, please consult a physician before using a wireless heart rate monitor.

If you want to measure your heart rate this way during your workout, moisten the grooved electrodes on the transmitter belt with water. Fasten the transmitter just below the chest with the elastic belt, firmly enough so that the electrodes remain in contact with the skin while training, but not so tight that normal breathing is prevented. If you wear the transmitter and belt over a light shirt, moisten the shirt slightly at the points where the electrodes touch the shirt. The transmitter automatically transmits the heart-rate reading to the meter up to a distance of about 1 meter. The heart-rate value is displayed in the meter. Follow your heart rate during the training.

REMARKS ON TELEMETRIC MEASUREMENT

If the electrode surfaces are not moist, the heart rate reading will not appear on the display. If the electrodes are dry, they must be moistened again. Allow the electrodes to warm up properly to ensure accurate heart-rate measurement. If there are several telemetric heart rate measurement equipments next to each other, the distance between them should be at least 1,5 m. Similarly, if there is only one receiver and several transmitters in use, only one person with a transmitter should be within transmission range. The transmitter is switched to an active state only when it is being used for measurement. Sweat and other moisture can, however, keep the transmitter in an active state and waste battery energy. Therefore it is important to dry the electrodes carefully after use. When selecting training attire, please note that some fibers used in clothes (e.g. polyester, polyamide) create static electricity, which may prevent reliable heart rate measurement.

Please note that a mobile phone, television and other electrical appliances form an electro-magnetic field around them, which will cause problems in heart rate measurement.

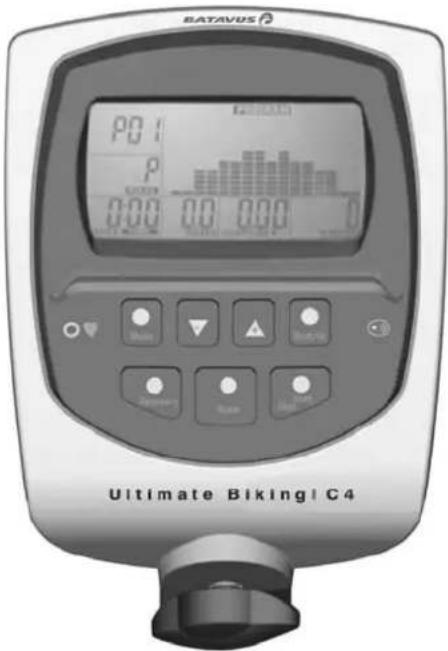

CONSOLE

BATAVUS P0 P 0.00 0.0 0.00 0 Maximum Maximum Maximum Ultimate Biking! C4

BUTTONS

1. ENTER

Selects and confirms console functions

2. +/- BUTTONS

Adjusts resistance (Level) and selects the profile

3. BODYFAT

Begins measuring the body mass index and bodyfat-%

4. RECOVERY

Calculates the fitness index

5. RESET

Resets set values

6. START/STOP

Starts, pauses, and stops training. During training, pressing this button once activates the Pause mode. Pressing the button again starts the program again.

FUNCTIONS

1. BODY MASS MEASUREMENT

The measurement is performed for users U1 -- U4 (not U0) based on the entered personal data. The measurement requires you to use the hand pulse sensors. Select your user position and enter your personal data if you have not already done so.

a) Now press the Bodyfat button to start the measurement and grip the hand pulse sensors on

the handlebars. The measurement takes 8 seconds. If the display shows E-1, the measurement was unsuccessful. Check the position of your hands and start the measurement again.

b) If the measurement succeeds, your body mass index (BMI) and the corresponding % value are displayed.
c) Press the Bodyfat button again when you want to return to the training program.

BMI

RANGE	Low Low	low/med Medium	medium Medium	/high
VALUE	<20 20	-- 24 24.1	- 26.5 > 26.5

NOTE:

The values are only averages and are not suitable for therapeutic purposes.

In this program, your fitness condition is determined based on your personal data (U1 -- U4) and documented using the values F1 - F5. Pulse measurement is necessary for this. (Do not confuse this with the Index numbers F1 - F6 of the Recovery function.) The program runs for 12 minutes at a constant level 5. The 12 minutes are distributed over the 16 bars of the diagram, resulting in 45 seconds per bar. Pedal at a speed that is comfortable for you. You will find the specifications for the training sequence in the following chapters.

3. PERSONAL USER DATA (USER 1 -- 4)

Age 0 -- 99 years

Sex Male/female

Height (H.t.) 100 -- 200 cm

Weight (W.t.) 20 -- 135 kg

NOTES ON ADJUSTING THE RESISTANCE (LEVEL)

1. MANUAL PROGRAM TRAINING

During training, use the +/-buttons to change the resistance (Level), which is not program-controlled during training.

2. FITNESS PROGRAM TRAINING / FITNESS TEST

No adjustments are made because constant preset values are used for training in this case.

3. WATT TRAINING

If the Watt program is running, the console automatically regulates the resistance. The resistance (Level 1 -- 16) is adjusted in accordance with the crank rotational speed.

Example: If the rotational speed of the crank is too low, the resistance is increased. A signal will sound if your performance is excessively high for a lengthy period so that the resistance does not become excessively high and your pedaling speed (rotational speed) is adjusted. If your performance is excessively low, a signal will sound. In either case, slowly adjust your pedaling speed. If your performance is too weak for a lengthy period, a signal will sound, and the console will switch off.

TRAINING MODES

PROGRAM PROFILE TRAINING

The resistance (Level) of the program bars is automatically regulated. You may increase the basis of the profiles during training using the +/- buttons.

The maximum possible adjustment of the basis has been reached once the highest profile bar has achieved the top level of 16.

HRC PROGRAM

Target Heart Rate Control training (% range and pulse preset (upper limit))

The resistance is automatically adjusted in accordance with your preset value.

USER PROGRAM, PROFILE TRAINING

The user programs consist of program profiles (bars) that you design yourself.

DESIGNING YOUR OWN PROGRAMS (USER)

Press the Enter button for 3 seconds.

Stop will blink. U1-U4 appears on the display.

• Press the +/- buttons to select the user number.
• Press the Enter button.
  U1-4 will appear on the display, and SEX will blink.
• Press the +/- buttons to select the user's sex (male or female).
• Press the Enter button.
• Now enter the Age, Height and Weight as before.
• Press the Enter button.
• The programs will appear at the top edge of the display.

• Press the + button and select the User program.

• Press the Enter button. The profile created last for the selected user is displayed.

• Now press the Start button to confirm the displayed profile or
• Press the Enter button to create a new profile. The profile bar that can be set will blink.
• Select the resistance (Level) 1 -- 16 using the +/- buttons.
• Press the Enter button to move to the next bar.
• Continue setting using the +/- buttons.
• At the last bar, the display switches back to the first bar.
• Now press the Start button (not Enter) for confirmation. The program starts with the preset values (for example, from the User program) for time, distance and calories. If there are no preset values, the program starts at zero.
• Press the Stop button again if you want to adjust the profile further.

STARTING TRAINING

A. Plug in the transformer, U = User will appear on the display and blink.
Press the Enter button.
B. Select the desired user 1 -- 4 using the +/- buttons.
C. Press the Enter button.

Manual/Program/User/Target Heart Rate/Fitness/Watt appears at the top of the display. Beneath this, the user appears in capital letters, for example, U4, and to the left, SEX will blink for selecting Male/Female.

D. Press the +/- buttons to select.
E. Press the Enter button.

AGE will blink.

F. Press the +/- buttons to set your age.
G. Press the Enter button.
H. H.t. (height) blinks.

I. Use the +/- buttons to set your height.

J. Press the Enter button.

W.t. (weight) blinks.

K. Use the +/- buttons to set your weight.
L. Press the Enter button.

Manual appears in the headline of the display.

M. Use the +/- buttons to select the program.

O. Press the Enter button and continue in accordance with the selected program.

O1. Manual

- Set the resistance (Level 1 -- 16) using the +/- buttons.

• Press the Enter button.
• The time will blink.
• Set the time using the +/- buttons.
• Press the Enter button.
• Set the distance, calories, watts and upper pulse limit in the same manner.
• Press the Start button to begin training.

O2. Fitness

- Immediately press the Start button. The 12-minute program will run automatically; at the end, the unit will show you your actual fitness number, F1 to F5.

O3. Watt

• Use the +/- buttons to set the watt value.
• Press the Enter button. The time will blink.
• Set the time using the +/- buttons.
• Set the other values in the same manner.
• Press the Start button to begin training.

O4. Program

P01 (program 1) will blink.

• Use the +/- buttons to select from programs P01 -- P12.
• Press the Enter button.
• Use the +/-buttons to adjust the basis (Level).
• Press the Enter button.
• The time will blink.
• Enter the other values as before if desired.
• Press the Start button to begin training.

Start as before and continue as described in item O.

The Age entry blinks.

• Set your age using the +/- buttons.
• Press the Enter button. Enter all values as before.
• Press the Enter button. The % ranges / TAG will blink.
• Set the desired % range or the desired heart value (TAG) using the +/- buttons
• The pulse rate that was calculated for your personal data is also displayed in accordance with the % range.
• Press the Enter button. The time will blink. Now enter the values again.
• Press the Enter button. Continue as before.
• Press the Start button if you wish to begin training or

- If the time is blinking, press the Start button immediately, without presetting any values, to begin training.

O6. User

Start as before and continue as described in item O.

The profile last used by the previously set user appears.

• Press the Start button to begin training with the preset values or
• Press the Enter button again if you wish to adjust the profile bars. You must have set the time etc. beforehand in the Manual program. These values are copied when the User program is accessed.

ADDITIONAL NOTES

1. Values can only be entered in the Stop mode (not during training). The Stop symbol is then visible on the display. You must have already selected a program beforehand.
2. It is possible to adjust the intensity (Level) 1 -- 16 even while training (except for watt control/pulse control/fitness).
3. Before the console can display the pulse rate, it needs several seconds for calculation purposes. Your pulse must be measured using the hand pulse sensors, the ear clip or the chest strap.
4. If you are not training and you have not pressed a button, the console switches off automatically after about four minutes.
5. You can reset all individual values to zero using the Reset button if you have first pressed the Stop button and the Stop symbol is visible. If you press and hold the Reset button for three seconds, the console switches to the initial screen. U (User) appears. All values are erased. Only the user data is saved.
6. Automatic adjustment of the resistance (Level) in the Pulse programs occurs upward every 30 seconds and downward every 15 seconds. This produces a gradual adjustment of the values.
7. Training with a preset time and program profiles: The preset time is distributed across the 16 profile bars. Example: 32 minutes for 16 profile bars corresponds to 2 minutes before changing to the next bar.
8. E-2 is shown on the display if the console is not receiving any data (for example, crank revolutions).

RECOVERY PULSE MEASUREMENT

Measure your recovery pulse after training. The measurement can only be started if the pulse measurement is activated and the pulse value is shown on the display.

1. Start the recovery pulse measurement by pressing RECOVERY.
2. The measurement takes 60 seconds.

3. After the measurement is finished, the display shows the result F1-F6 (F1 = best result). Please note that your results are in a relation to the pulse level in the beginning of the measurement, and that your results are personal and cannot directly be compared with any other person's results. In order to improve the reliability of recovery pulse measurement, always try to standardize the measurement situation as accurately as possible; start measuring at the same heart rate level as precisely as possible.

4. To switch back to the main display by pressing RECOVERY.

TRANSPORT AND STORAGE

Please follow these instructions when carrying and moving the equipment about, because lifting it incorrectly may strain your back or risk other accidents:

The device is easy to move by pushing along on the integrated transport wheels. Tilt the device from the front and push along the floor on the wheels at the front support. We recommend that you use a protective base when transporting the equipment.

To prevent the equipment malfunctioning, store in a dry place with as little temperature variation as possible and protected from dust.

MAINTENANCE

The equipment requires very little maintenance. Check, however, from time-to-time that all screws and nuts are tight.

- After exercising, clean the equipment with a soft, absorbent cloth. Do not use solvents. Sweat may cause corrosion: we recommend therefore that you protect all metal surfaces outside the plastic covers with teflon.

- Never remove the equipment's protective casing.

MALFUNCTIONS

NOTE! Despite continuous quality control, defects and malfunctions caused by individual Proonents may occur in the equipment. In most cases it's unnecessary to take the whole device in for repair,

as it's usually sufficient to replace the defective part. Always give the model, serial number of your equipment and in case of malfunctions also conditions of use, nature of malfunction and any error code.

When you encounter unusual behavior from the device, contact your local Batavus dealer for service.

If you require spare parts, always give the model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list.

TECHNICAL SPECIFICATIONS

Length....102 cm Width....55 cm Height....146 cm Weight....37 kg

The C4 meets the requirements of the EU's EMC Directives on electromagnetic Proatability (89/336/EEC). This product therefore carries the CE label.

The C4 meets EN precision and safety standards (EN-957).

Due to our continuous policy of product development, Batavus reserves the right to change specifications without notice.

NOTE! The instructions must be followed carefully in the assembly, use and maintenance of your equipment. The warranty does not cover damage due to negligence of the assembly, adjustment and maintenance instructions described herein. Changes or modifications not expressly approved by Batavus will void the user's authority to operate the equipment!

We wish you many enjoyable trainings!

INHALT

MONTAGE 13

BENUTZUNG 15

TRAINIEREN MIT Batavus 15

HERZFREQUENZ 16

COCKPIT 17

Close-up of a medical or rehabilitation device with a metallic tool and attached arm (no visible text or symbols)

Close-up of a mechanical exercise machine with visible legs, feet, and a screw (no text or symbols)

3D rendered image of a mechanical tool or connector with a curved handle and black base (no text or symbols visible)

Close-up of a robotic arm with a mechanical component inserted, showing no visible text or symbols.

Close-up of a mechanical device with a curved pipe and attached lever (no visible text or symbols)

Close-up of a black flexible hose with attached cable and connector, labeled 'F' (no text or symbols beyond label)

H E G

Side view of a stationary exercise machine (no visible text or symbols)

Side view of a stationary exercise bike with labeled parts L and M (no text or symbols beyond labels)

Close-up of a white BEKSHEY electric vehicle charging station with attached cable (no visible text or symbols)

Close-up of a cable being inserted into a device with a black plug, labeled 'N' (no text or symbols on the device itself)

1. MANUAL-PROGRAMM TRAINING

Close-up of a medical device with a metallic rod and attached lever (no visible text or symbols)

Close-up of a mechanical exercise machine with visible legs, feet, and screw base (no text or symbols)

3D rendered image of a mechanical device with a curved handle and black base (no text or symbols visible)

Close-up of a mechanical tool or device with a metallic lever and cylindrical component (no visible text or symbols)

Close-up of a mechanical device with a curved pipe and attached lever, showing a small mechanical component (no text or symbols visible)

Close-up of a black flexible hose with attached cable and connector, labeled 'F' (no text or symbols beyond label)

H E G

Two views of a stationary exercise machine with labeled parts L and M (no text or symbols beyond labels)

Close-up of a Breimschet exercise machine (no visible text or symbols on the device body)

Close-up of a cable being inserted into a device with a black plug and labeled 'N' (no text or symbols beyond the label)

3. DONNÉES PERSONNELLES (USER 1-4)

Close-up of a medical device with a metallic rod and attached lever (no visible text or symbols)

Close-up of a mechanical exercise machine with visible legs, feet, and adjustment knobs (no text or symbols)

Close-up of a metallic mechanical component with a black handle and lever mechanism (no text or symbols visible)

Close-up of a mechanical assembly with a tool inserted, showing no visible text or symbols.

Close-up of a mechanical device with a curved handle and attached lever, showing alignment lines (no text or symbols)

Close-up of a black flexible hose with attached cable and connector (no text or symbols visible)

H E G

Close-up of a mechanical clamp or bracket with a labeled arrow pointing to the letter 'K' (no other text or symbols visible)

Two views of a stationary exercise machine with labeled parts L and M (no text or symbols beyond labels)

Close-up of a BEMCHETYU exercise machine with attached lever and circular dial (no visible text or symbols)

Close-up of a cable being inserted into a device labeled 'N', with a separate black plug attached (no text or symbols visible)

1. TRAINING MANUEEL PROGRAMMA

Close-up of a medical or rehabilitation device with adjustable arm and screw, no visible text or symbols

Close-up of a mechanical exercise machine with visible joints and a screw, no text or symbols present

3D rendered image of a mechanical device with a cylindrical shaft and black base (no text or symbols visible)

Close-up of a mechanical assembly with a tool interacting with a component (no visible text or symbols)

Close-up of a robotic arm with a curved handle and attached mechanical components (no visible text or symbols)

Close-up of a black flexible hose with attached cable and connector, labeled 'F' (no text or symbols beyond label)

H E G

Close-up of a mechanical clamp or bracket with a labeled component 'K' (no other text or symbols visible)

Close-up of a stationary exercise machine with adjustable arm and sensor (no visible text or symbols)

Side view of a stationary exercise bike with labeled parts L and M (no text or symbols beyond labels)

Close-up of a BEEMCHEYOL exercise machine with attached lever and cable (no visible text or symbols)

Close-up of a cable being inserted into a device labeled 'N', with a secondary AC power plug attached (no text or symbols on the device itself)

SENSORI NEL MANUBRIO

Close-up of a medical or rehabilitation device with adjustable arm and shaft (no visible text or symbols)

Close-up of a mechanical device with visible joints and a small scale bar (no text or symbols)

3D rendered image of a mechanical device with a cylindrical shaft and black clamped base (no text or symbols visible)

Close-up of a robotic arm with a metallic tool inserted, showing mechanical components and motion (no text or symbols visible)

Close-up of a mechanical device with a curved pipe and attached lever (no visible text or symbols)

Close-up of a black flexible hose with attached cable and connector (no text or symbols visible)

H E G

Two technical diagrams of a stationary exercise machine, showing front and side views with labeled parts (no text or symbols present)

Close-up of a white exercise machine with attached lever and cable (no visible text or symbols)

Close-up of a cable being inserted into a device labeled 'N', with a separate plug attached (no text or symbols on the device itself)

Close-up of a medical or laboratory device with a rod and lever attachment (no visible text or symbols)

Close-up of a mechanical exercise machine with visible legs and feet, no text or symbols present

3D rendered image of a mechanical device with a curved handle and black base (no text or symbols visible)

Close-up of a robotic arm with a tool interacting with a mechanical component (no visible text or symbols)

Close-up of a mechanical component with a curved pipe and attached bracket (no visible text or symbols)

Close-up of a black flexible hose with attached cable and connector, labeled 'F' (no text or symbols beyond label)

H E G

Two views of a stationary exercise machine with labeled parts L and M (no text or symbols on the device itself)

Close-up of a BEKSHEV EVO machine with attached lever and cable (no visible text or symbols)

Close-up of a cable being inserted into a device with a labeled point 'N' (no text or symbols beyond the label)

Close-up of a medical or laboratory device with a metallic rod and attached lever (no visible text or symbols)

Close-up of a mechanical exercise machine with visible legs and joints (no text or symbols)

Close-up of a metallic mechanical component with a curved handle and black base (no text or symbols visible)

Close-up of a mechanical assembly with a tool interacting with a circular component (no visible text or symbols)

Close-up of a mechanical device with a curved pipe and attached lever (no visible text or symbols)

Close-up of a black cable with a labeled component 'F' and a small connector (no text or symbols beyond the label)

H E G

Close-up of a mechanical clamp or bracket with a labeled component 'K' (no other text or symbols visible)

Mechanical exercise machine with adjustable arm and circular base (no visible text or symbols)

L M

Close-up of a Siemens BEMSHEY electric exercise machine (no visible text or symbols)

Close-up of a cable being inserted into a device with a black plug, labeled 'N' pointing to the cable (no text or symbols beyond label)

Technical diagram of a mechanical assembly with numbered components and labeled parts

BATAVUS

Austria

DoWi GmbH

Ziehrerstrasse 80

8041 Graz

Tel. [phone]

Fax [phone]

www.dowi.at

Benelux

Batavus B.V.

Postbus 60001

1320 AA Almere

Nederland

Tel. [phone]

Fax [phone]

www.Batavus.nl

Finland

Batavus Oy Ltd

PL 750

20361 Turku

Tel. [phone]

Fax [phone]

Germany

Batavus GmbH

Heidenfelder Str. 5

97525 Schwebheim

Tel. [phone]

Fax [phone]

www.Batavus.de

Great Brital

Bolton Stirland International Ltd.

Boland House

Nottingham South

Industrial Lane

Wilford

Tel. [phone]

Fax [phone]

www.bsfitness.co.uk

USA / Canada

Accell Fitness North America Inc.

130 Hayward Ave, Suite 2

N2C 2E4

Kitchener, ON Canada

Tel. [phone]

Fax: [phone]

www.accellfitness.com
