Product type	Cordless hedge trimmer
Brand	Bosch Professional
Model	GFR 42
Intended use	Cutting hedges, bushes and undergrowth
Cutting tool type	Line head (42 cm diameter)
Cutting circle diameter	42 cm
Total length (without cutting tool)	197 cm
Weight (without battery)	6.5 kg
Battery voltage	3 V
Battery type	Lithium-Ion (ref. 2607 336 065)
Compatible charger	AL 36100 CV Professional
Handle type	Two-handed handles
Sound pressure level	81 dB(A)
Guaranteed sound power level	91 dB(A)
Vibration emission value	< 2.5 m/s²
Auto-Release function	Yes (automatic reversal in case of blockage)
Overload protection	Yes
Recommended cleaning	Every 10 hours of service: clean the line head and ring
Storage	In a dry place, sheltered from the sun, battery removed
Included accessories	Metal blade (optional), protective cover, shoulder strap, assembly tool

Frequently Asked Questions - GFR 42 BOSCH

How to change the blade of the Bosch GFR 42?

Wear protective gloves. Remove the battery. Use the locking rod to block the shaft, then unscrew the blade nut. Replace the blade observing the cutting direction (8-tooth or saw blades). Tighten the nut to 20 Nm.

What to do if the battery does not light up or the tool does not work?

First check the battery charge status. If it is discharged, recharge it. If the battery is too hot or too cold, let it return to room temperature. If the problem persists, contact Bosch after-sales service.

How to replace the cutting line?

Remove the battery. Open the line head, remove the old line and insert a new line (2.4 mm, 2.7 mm or 3.0 mm). Reassemble the line head. To advance the line, tap the head against the ground during operation.

The tool vibrates abnormally, what to do?

Stop the tool immediately and remove the battery. Check if the blade is damaged or unbalanced. Replace the blade if necessary. Ensure the blade nut is tightened to 20 Nm. If vibrations persist, contact customer service.

Can other batteries than recommended be used?

No, use only Bosch Lithium-Ion batteries (ref. 2607 336 065) and the AL 36100 CV Professional charger. Using other batteries may damage the tool and pose a safety risk.

How to maintain the hedge trimmer after use?

Clean the line head and ring with a soft brush after each use. After 10 hours of service, remove the ring and carefully clean the lower part. Store the tool in a dry place, sheltered from the sun, with the battery removed.

What to do if the protective cover does not fit?

Make sure you have removed the blade before mounting the cover. The cover must be attached first. If the blade is already in place, remove it, mount the cover, then remount the blade.

Why does the motor stop during use?

This may be due to overload (grass too tall or too thick). Release the trigger, then restart after a few seconds. If the problem persists, let the tool cool down for 5 minutes. Also check the battery charge status.

How to transport the tool safely?

Always mount the protective cover on the blade. Remove the battery. Use the shoulder strap for transport. Never transport the tool with the battery in place.

Where to find spare parts and after-sales service?

Order online at www.bosch-pt.fr (France) or www.bosch-pt.com/ch/fr (Switzerland). For France, call 0811 36 01 22 (customer service) or contact [e-mail]. Keep the 10-digit article number.

USER MANUAL GFR 42 BOSCH

OHJ DOKU-38710.002fm Page 1 Monday, August 3, 2015 8:32 AM

Robert Bosch GmbH

Power Tools Division

70764 Lenifelden Echterdingen, GERMANY

www.bosch-professional.com

F016L81055(2015.08)0/129WEU

GFR Professional

25|42

BOSCH

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

Montage und Betrieb

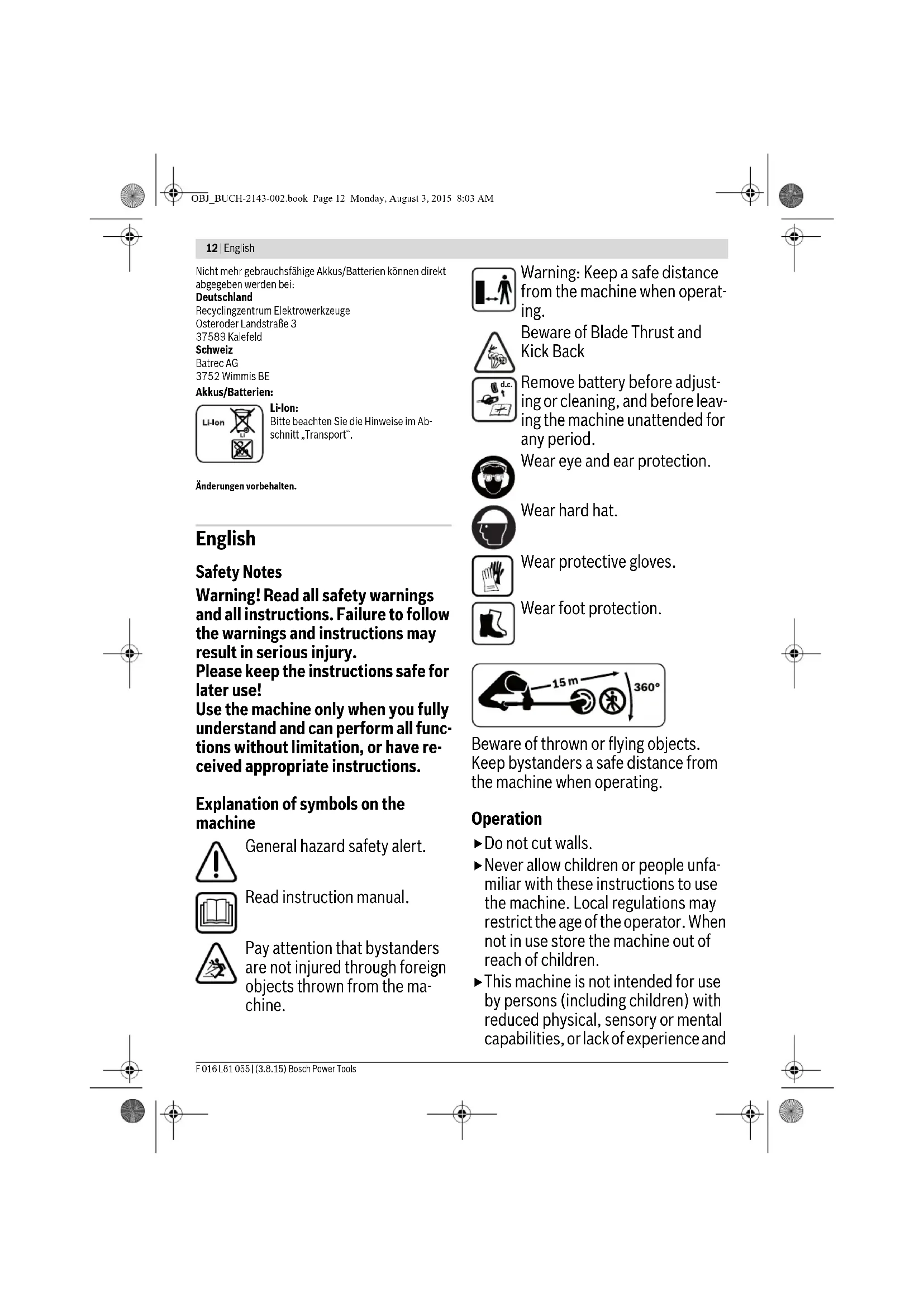

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury.

Please keep the instructions safe for later use!

Use the machine only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.

Explanation of symbols on the machine

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Keep a safe distance from the machine when operating.

Beware of Blade Thrust and Kick Back

Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.

Wear eye and ear protection.

Wear hard hat.

Wear protective gloves.

Wear foot protection.

Beware of thrown or flying objects.

Keep bystanders a safe distance from the machine when operating.

Operation

Do not cut walls.
- Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children.
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and

English | 13

knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.

• Never work while people, especially children, or pets are nearby.
  The operator or user is responsible for accidents or hazards occurring to other people or their property.
  Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
  Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects.
  Do not operate in areas where live cables may be present.
  Before using, always visually inspect to see that the blade, blade nut and cutter assembly are not worn or damaged.

Replace worn or damaged blade and nut in sets to preserve balance.

Work only in daylight or in good artificial light.
- Avoid operating the machine in bad weather conditions especially when there is a risk of lightning.
For your safety, please take care whilst operating the machine in wet grass.
- Walk, never run and stay in a stable position.

• Keep firm footing and balance. Do not overreach.
  Always wear ear and eye protection when operating the machine.
• Never operate the machine with missing or broken guards or shields or without guards or shields in position.
  Always check for signs of wear or damage before and after use.
• Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.

Working on banks can be dangerous.

• Do not work on excessively steep slopes.
• Always be sure of your footing on slopes or wet grass.

• Work across the face of slopes - never up and down.
  Exercise extreme caution when changing direction on slopes.

• Keep hands and feet away from the cutting means at all times, especially when switching on the motor.
  Wait until the cutting head has completely stopped before touching it. The head continues to rotate after the machine is switched off, the cutting system can cause injury/damage.
  Take care against injury from any device fitted for trimming the filament line length. After extending new cutter line always return the machine to its normal operating position before switching on.

14|English

• Switch off when transporting the machine to and from the area to be worked on.
  Switch off and remove the battery from the battery cartridge:
  whenever you leave the machine unattended for any period,
  before clearing a blockage,
  before replacing the cutting head,
  before checking, cleaning or working on the machine,
• after striking a foreign object. Inspect the machine for damage and make repairs as necessary,
• if the machine starts to vibrate abnormally (check immediately).
  Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
  Only use Bosch Professional Garden Tool recommended and approved accessories.
  Beware that the tool may kick back when a blade suddenly strikes a hard object when cutting brush or scrub vegetation. Take care to minimise the effects of kick back.
  This tool is designed to be used with the shoulder harness provided. Take care to adjust the harness to balance the tool correctly and reduce the potential for operator fatigue in use.
  For Transport and Storage, Blade should be protected using an appropriate cover.

Maintenance

For Your Safety

Warning: Switch off and remove battery from machine before adjusting or cleaning.

Use correct battery and charger.
Always wear protective gloves when handling or working near the sharp blades.
- Please use the correct guards with the correct cutting heads. See figure 4 of illustrations.
To ensure long and reliable service, carry out the following maintenance regularly:
- Keep all nuts, bolts and screws tight using tool kit provided to be sure that the machine is in safe working conditions.
Examine the machine and replace worn or damaged parts for safety.
Ensure Bosch approved correct replacement parts are used.
Have the machine repaired only by an authorized customer service agent.

Cleaning

Before transport or storage ensure machine is clean and free from debris, if necessary clean with a soft, dry brush.
The following cleaning schedule should be carried out after every 10 hours of work:

• Remove slip plate and thoroughly clean area below.
• Open bump head spool and remove any debris.

English | 15

Recommendations for Optimal Handling of the Battery and Charger

Warning! Do not attempt to charge non rechargeable batteries with the charger.
- Inserting the battery pack into the machine with the switch on is dangerous.
Ensure battery is the right way up.
- Insert the battery until the locking mechanism clicks. To remove the battery, operate locking lever. Take care not to drop the battery through the hole.
For care use and maintenance please use charger and battery manuals which are supplied with the products or available at www.bosch-professional.com.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

Symbol Meaning

Movement direction

Reaction direction

Switching On

Switching Off

Audible noise

Balance Point

Accessories/Spare Parts

Intended Use

The garden product is intended for Professional use.

Technical Data

Brushcutter GFR 25
	Professional		GFR 42 Professional
Article number	3600 J13 000	3600 J13 001
Cutting head type	Metal blade Bump feed head & line
Cutting width	cm 25 42
Type of handle	Bike handle		Bike handle
Voltage	V	3	6
Overall length (without cutting attachment)	cm 197 197
Weight (without batteries) according to EPTA-Procedure 01/2003	kg 6.5 6.5
Serial number	see type plate on the garden product

Only Li-ion batteries GBA 36V 6.0Ah Hw-D (Art. No. 2 607 336 065) and battery charger AL 36100 CV Professional (Art. No. 1600 A00 1...) can be used with this machine.

Please do not use non-rechargeable batteries with this appliance, only those specified by the manufacturer.

16|English

Noise/Vibration Information

Sound emission values determined according to EN 50636-2-91.		3 600 J13 000	3 600 J13 001
Typically the A-weighted noise levels of the product are:
Sound pressure level	dB(A)	68	81
Sound power level	dB(A)	78	91
Uncertainty K	dB	=3	=2
Wear hearing protection!
Vibration total values ah (triax vector sum) and uncertainty K deter- mined according to EN 50636-2-91:
Vibration emission value ah	m/s2	<2.5	<2.5
Uncertainty K	m/s2	=1.5	=1.5

Declaration of Conformity C

	3 600 J13 000	3 600 J13 001
We declare under our sole responsibility that the product described under "Technical data" is in conformity with all relevant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC, 2000/14/EC including their amendments and complies with the following standards:EN 60335, ISO 11806.
2000/14/EC: Guaranteed sound power level:	dB(A) 79
Conformity assessment procedure according to Annex V.		●
Conformity assessment procedure according to Annex VI.		-

Equipment category: 33

Notified body:

DEKRA Certification B.V.

Meander 1051

6825MJ Arnhem

Netherlands

Nr.0344

Technical file (2006/42/EC, 2000/14/EC) at:

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70/64 Leinfelden-Echterdingen, GERMANY

03.08.2015

Mounting and Operation

The numbering of the figures refer to the illustrations of the machine on the graphics page.

Action Figure Page
Delivery Scope	1 120
Handle Assembly	2 121

Action Figure Page

Mounting the blade guard Mounting the Friction Plate	3 121

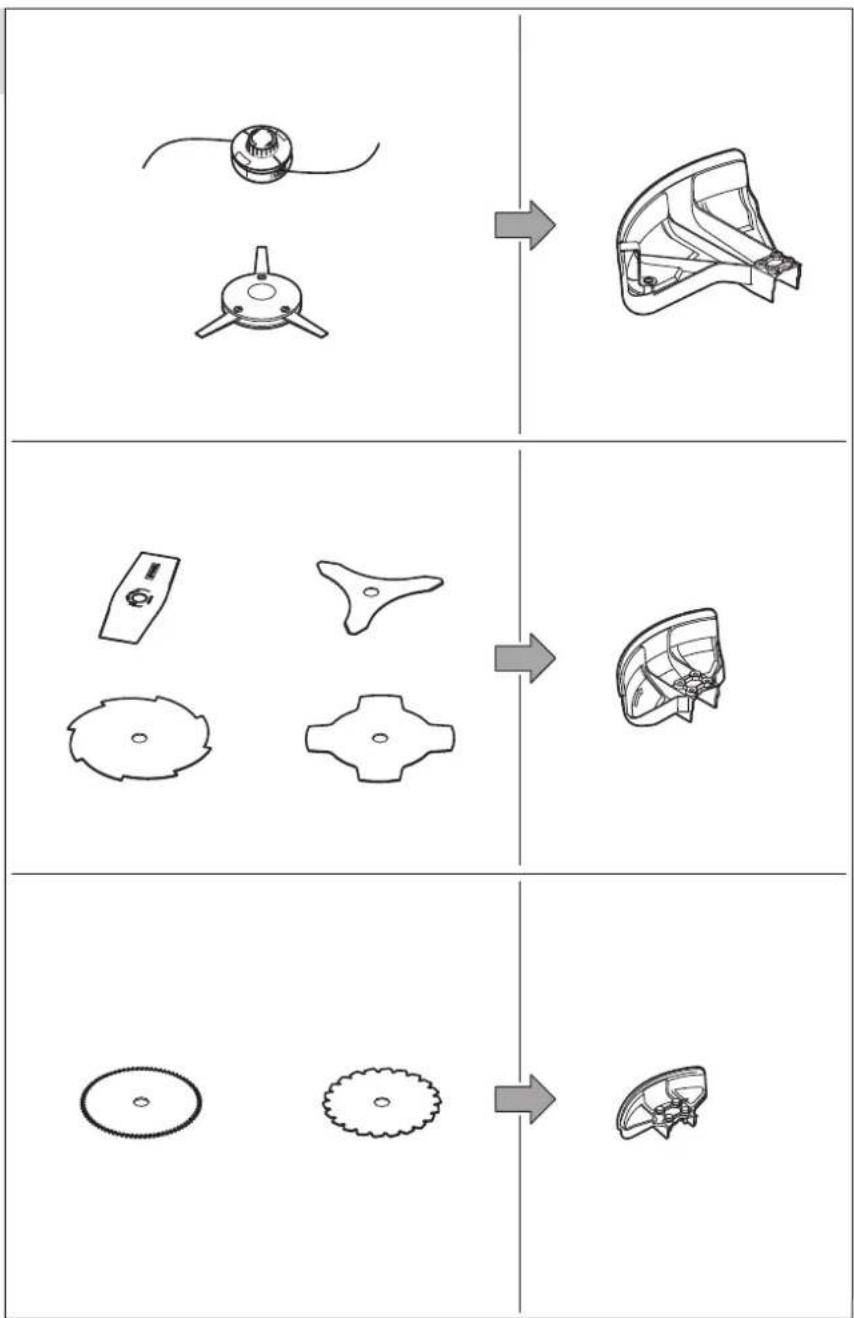

Combination of Cutting Tools and Guards	4 122

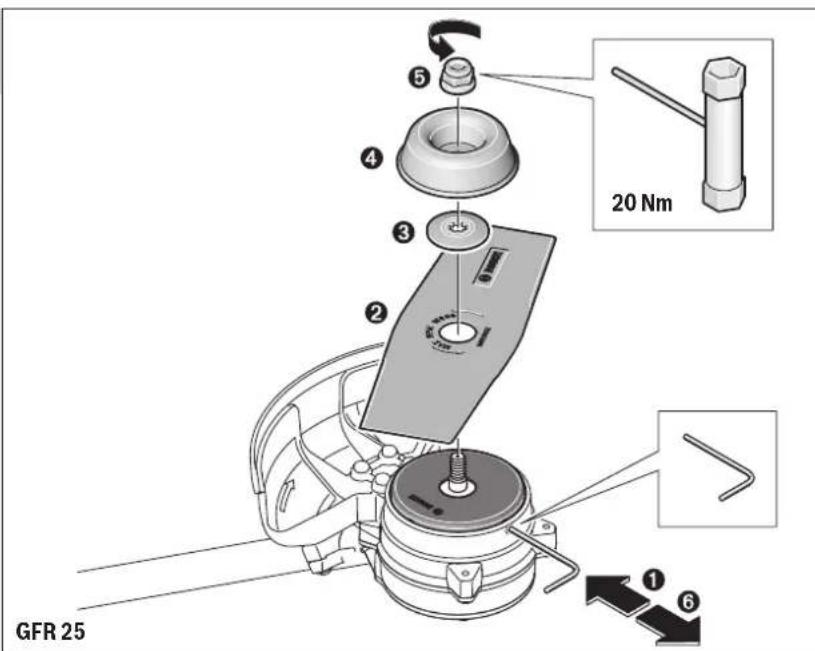

Replace the Blade	5 123

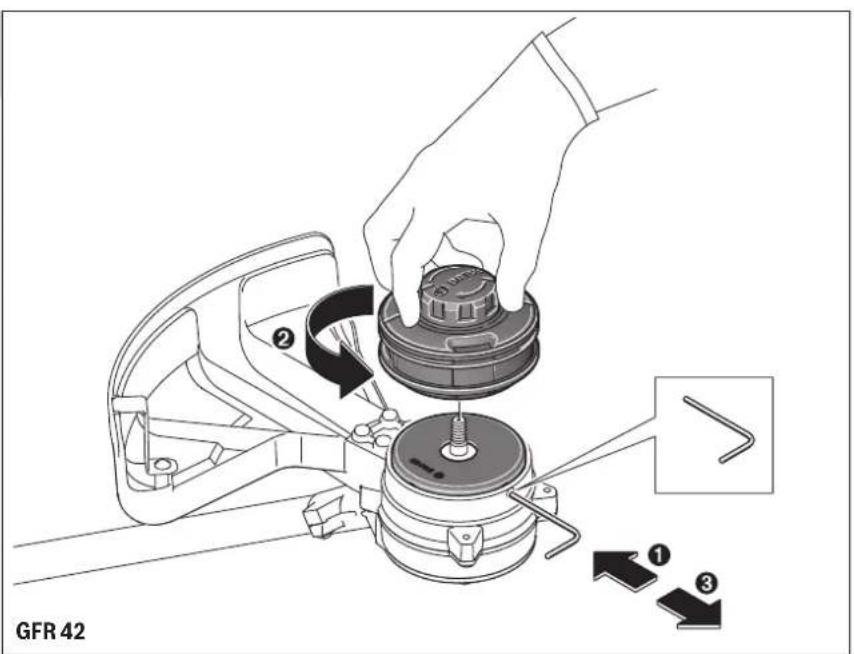

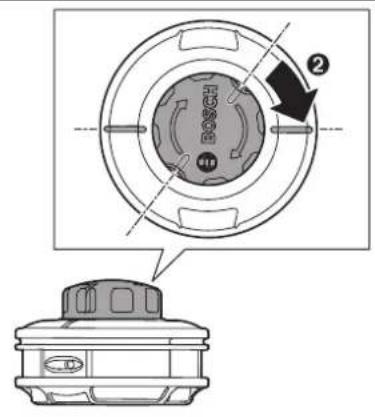

Replace the Spool	6 123

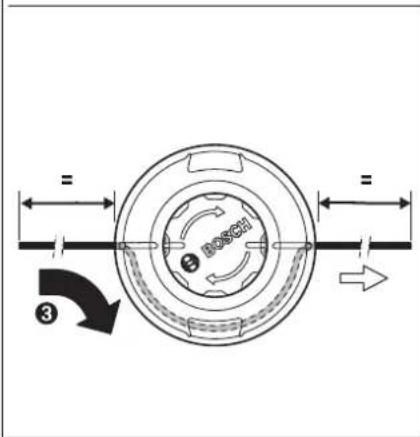

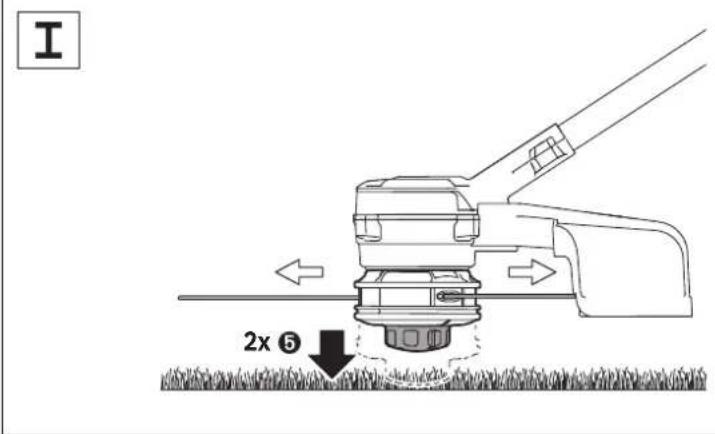

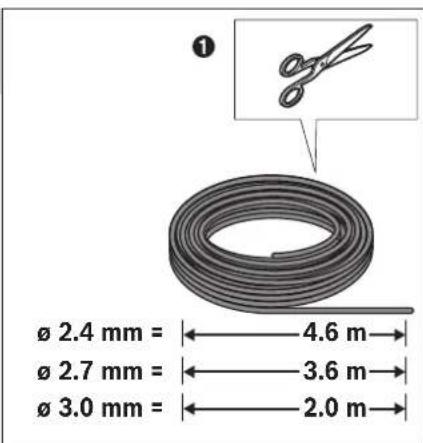

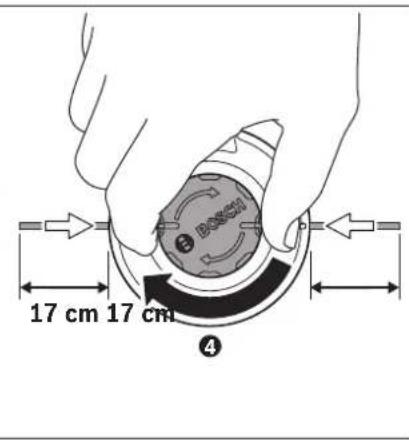

Replace the Line	7 124

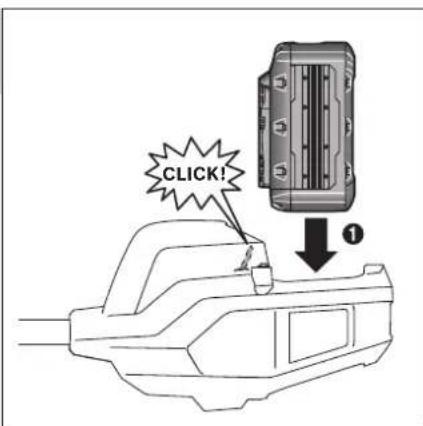

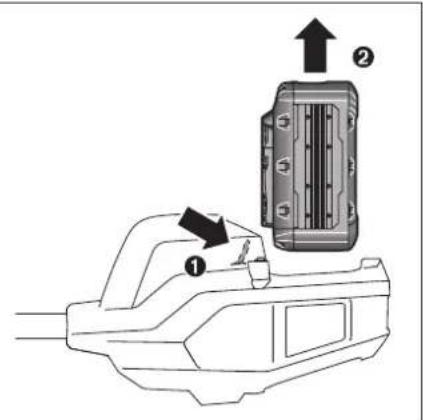

Inserting/Removing the Battery	8 125

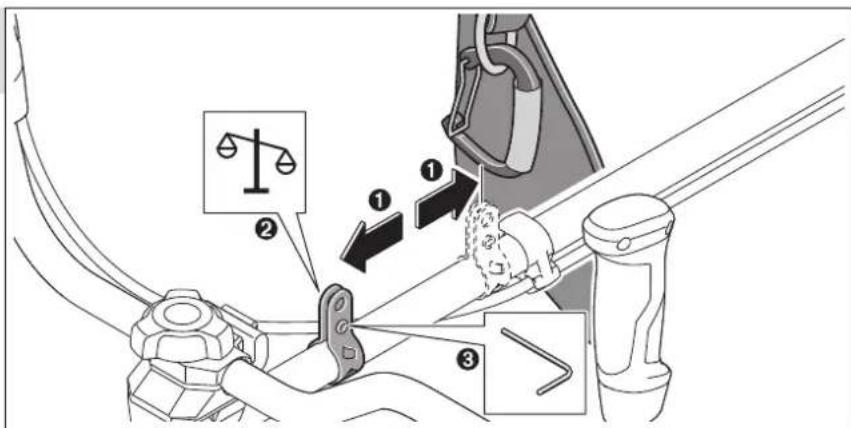

Mounting the Comfort Harness	9 125

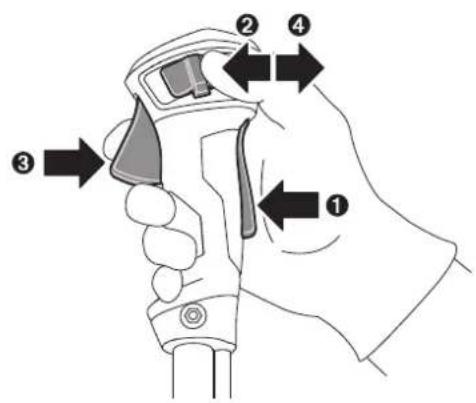

Switching On and Off	10 125
Working Advice	11 126
Selecting Accessories	12 127-128

Product Transportation

Always transport machine with safety guard fitted.
Always transport machine without battery fitted.
Eyelet can be used to tether machine for secure transportation.

English | 17

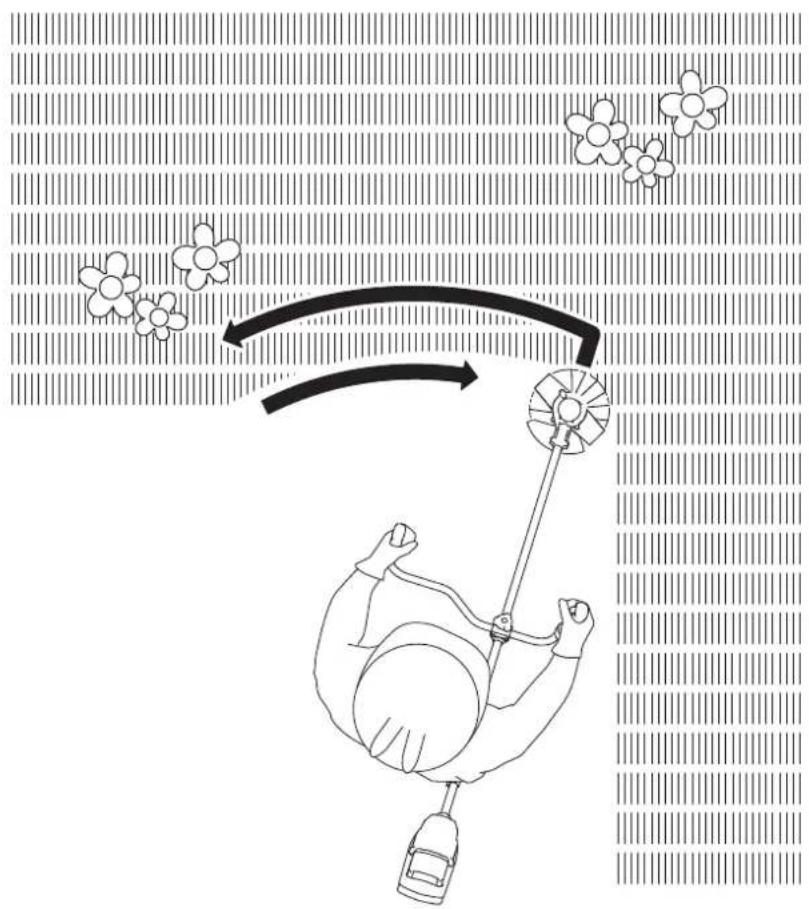

Working Advice

Should the cutting blade jamb in long or dense grass, simply release then re-engage the switches.

This will activate the auto-release function that releases the jamb by quickly reversing the motor for a short time.

For optimum performance and finish always use correct cutting accessory as shown below.

Cutting system Usage application area

Grass Light vegetation Heavy vegetation Bushes, thin trees
2.4 mm line
2.7 mm line
3.0 mm line

Troubleshooting

Problem Possible Cause Corrective Action

Blade guard can not be mounted over cutting blade

Incorrect assembly Remove cutting blade and mount blade guard first

Machine fails to operate Battery discharged Recharge battery

Battery too hot/cold Allow to cool/warm

18|English

Problem	Possible Cause	Corrective Action
Machine runs intermittently	Motor protector has activated	Allow motor/electronics to cool for 5 minutes and cut in stages
	Internal wiring of machine damaged Contact Service Agent
	On/Off switch defective Contact Service Agent
	External cabling damaged Contact Service Agent
Machine does not cut Cutting blade damaged Replace the blade (always wear protective gloves). Ensure blade is not upside-down (8T and saw blades).
Increased vibration Cutting blade damaged Replace the blade (always wear protective gloves)
			Cutting line broken Replace line (see figure 7 of illustrations)
			Debris build up on cutting head Clean slip plate groove
			Blade nut loose Tighten nut bolt to 20 Nm ensuring the blade, nut shield and dome washer are all present and central (always wear protective gloves) (see figure 5 of illustrations)
Machine leaves ragged fin-ish and/or labours	Grass too high/dense Grass too high: Cut in stages	Grass too dense: Reduce rate of cutting every time
	Cutting blade blunt Flip/replace blade
	Cutting blade obstructed Check underneath the machine and clear out as necessary (always wear protective gloves)
	Blade fitted in incorrect direction of rotation Re-fit blade correctly (only 8T and saw blades)
	Debris build up on cutting head Clean slip plate groove
Motor starts then stops immediately	Low battery capacity	Ensure battery is fully charged before use
	Battery not fully charged	Check battery display - charge battery if nec-essary
	Battery too hot/cold	Allow battery to cool down/warm up - check battery display
	Grass too high/dense Grass too high: Cut in stages	Grass too dense: Reduce rate of cutting every time
Nut cannot be removed to release cutting blade	Damaged thread on nut/shaft	Lubricate shaft to aid removal
	Locking pin not located correctly	Reinsert locking pin and apply light pressure whilst rotating shaft (see figure 5 of illustra-tions)

English | 19

Problem	Possible Cause	Corrective Action
Cutting blade fails to ro-tate	Cutting blade obstructed Check underneath the machine and clear out as necessary (always wear protective gloves)
	Blade nut loose Tighten nut bolt to 20 Nm ensuring the blade, nut shield and dome washer are all present and central (always wear protective gloves) (see figure 5 of illustrations)
	Low battery charge Check the charge remaining in the battery - shown on the battery display
	Grass too high/dense Grass too high: Cut in stages
		Grass too dense: Reduce rate of cutting every time
	Battery too hot/cold Allow battery to cool down/warm up - check battery display
	Motor protector has activated	Allow motor/electronics to cool for 5 minutes and cut in stages
Poor cutting performance	Cutting guard encrusted with debris Clean inside of cutting guard
	Cutting blade blunt Flip/replace blade
	Cutting line short Bump head to expose more line
	No cutting line Replenish line (see figure 7 of illustrations)
	Poor motor performance	Remove cutting system and slip plate and clean slip plate groove

If you are unable to resolve the problem using the Troubleshooting guide then please contact your dealer in the first instance.

After use/Storage

Correct storage is essential for maintaining the life of the product. If possible, avoid storage areas with high humidity which could cause rust or corrosion.

End of season storage: Remove battery and store both machine and battery in a dry safe place away from direct sunlight.

Do not place objects on top of the machine.

When storing for extended periods, thoroughly clean the product beforehand.

After-sales Service and Application Service

www.bosch-professional.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

20|English

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone:[phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Disposal

Do not dispose of garden products, battery chargers and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European law 2012/19/EU, electrical and electronic equipments that are no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be separated from the tool and collect

ed separately. If battery is broken or leaking please dispose of in an environmentally correct manner according to local regulations.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: [phone]

E-Mail: [e-mail]

Battery packs/batteries:

Li-Ion:

Please observe the instructions in section

"Transport".

Subject to change without notice.

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements. When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Français|21

Français

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

Robert Bosch (France) S.A.S.

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

Montaje y operación

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

Montaggio ed uso

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2.

Stowmarket, Suffolk IP14 1EY, England

Henk Becker Helmut Heinzelmann

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

Montage en gebruik

Teknisk dossier (2006/42/EF, 2000/14/EF) ved:

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

Montering og drift

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Páwww.bosch-pt.dk kander online bestillesreservedeleller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Transport

De lithiumbonbatteri som ingar ar underkastade kraven for farlig gods. Anvandaren kan utanytigiraleforpliktelser transportera batterierierna pa allm'an vag.

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

P

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

Asennus ja käytto

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2,

Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

03.08.2015

106|EAMnviKa

EuuppoAoynon kal Leitoupyia

Oi anapipnncic avapcpovta otic cikovec otic oaldec pe ta ypaikia.

Teknik belgelerin bulundugu merkez (2006/42/EC, 2000/14/EC):

Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President Engineering

Helmut Heinzel

Head of Product Certification PT/ETM9

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 03.08.2015

Montaj ve isletim

OBJ BUCH-2143-002.book Page 122 Monday, August 3, 2015 8:03 AM

122

4

5

6

7

125

8

9

10

11

127

12

0.2.4 mm x 30 m:

F016800390

0.2.4 mm x 90 m:

F 016 800 391

0 2.4 mm x 260 m:

F016800392

02.7mm×24m:

F016800393

02.7 mm x 70 m:

F016800394

02.7 mm x 206 m:

F016800395

03.0 mm x 166 m:

F016800398

F016800387

F016800401

F016800402

F016800403

F016800404

F016800405

F 016 800 409

F016800412

128

12

F016800406

F016800178

F016800407

F016800410

F016800408

F016800411
