USER MANUAL VCH 9630 GRUNDIG

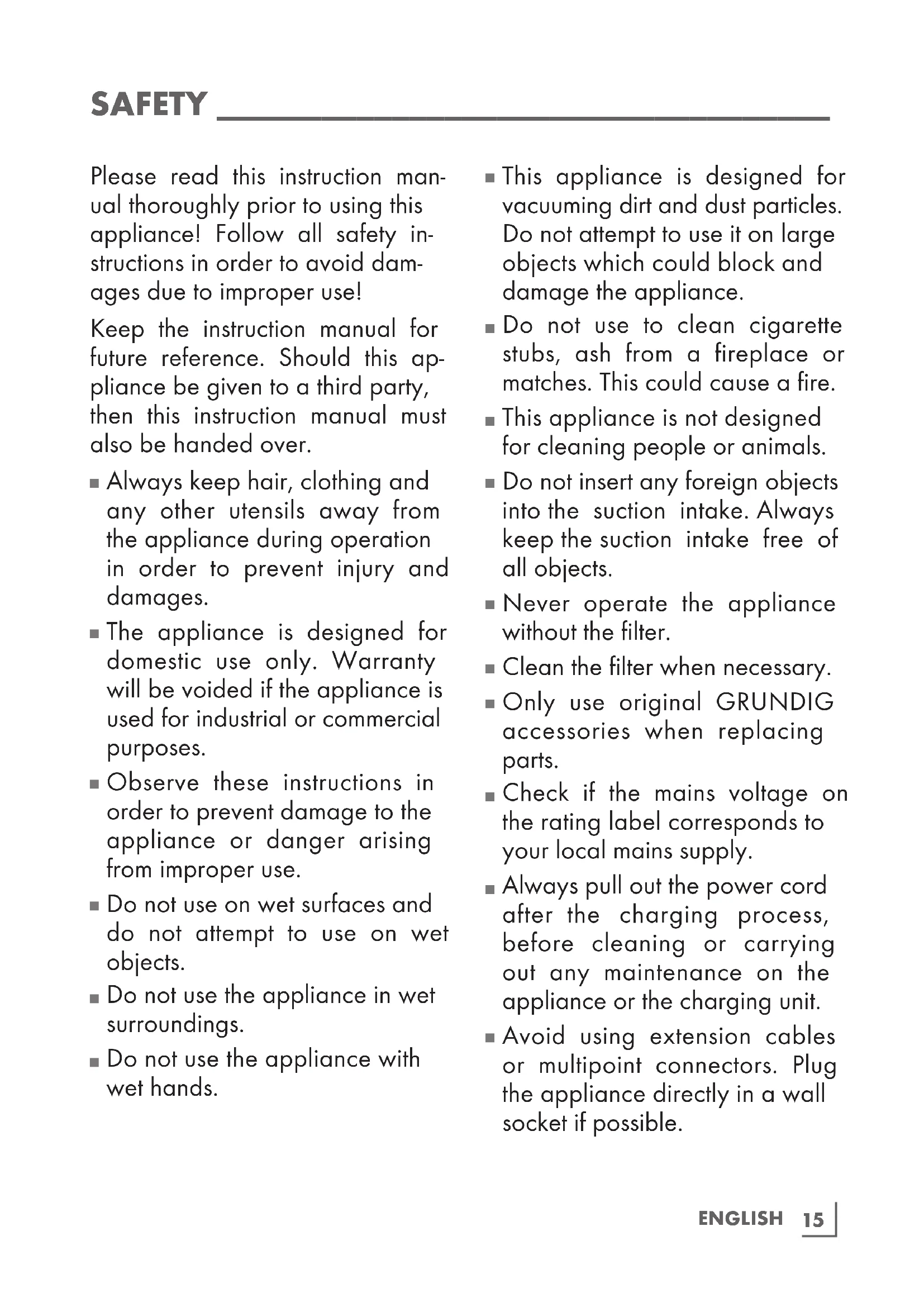

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.
The appliance is designed for domestic use only. Warranty will be voided if the appliance is used for industrial or commercial purposes.
- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.
- Do not use on wet surfaces and do not attempt to use on wet objects.
- Do not use the appliance in wet surroundings.
- Do not use the appliance with wet hands.

This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.
Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.
This appliance is not designed for cleaning people or animals.
- Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.
- Never operate the appliance without the filter.
Clean the filter when necessary.
- Only use original GRUNDIG accessories when replacing parts.
- Check if the mains voltage on the rating label corresponds to your local mains supply.
Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.
- Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.

For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30mA . Consult your electrician for advice.

• Do not disconnect the plug by pulling on the cable.

• Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

• Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

• Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.

Only use the power cord provided.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG 2 in 1 rechargeable vertical vacuum cleaner VCH 9630-VCH 9631-VCH 9632.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual

waste reduction of several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living. For a good reason. Grundig.

HEPA filter

HEPA stands for High Efficiency Particulate Air. HEPA filters are particulate air filters, which filter more than 99.9% of all dust particles larger than 0.1 to 0.3 micrometres out of the air. Viruses, respirable dusts, mite eggs and mite excrement, pollen, smoke particles, asbestos, bacteria, diverse toxic dusts and aerosols are removed from the air.

Extra accessories:

■ Washable HEPA H10 filter
Dust brush suitable for the cleaning of curtains, and sensitive and fragile objects
Upholstery tool for floors, stairs, cars, sofas and armchairs
Charging station with accessory compartment

Controls parts

See image on page 3.

A Stick vacuum cleaner handle
B Stick vacuum cleaner on/off button
Speed adjustment button
D Handle collapsing button
E Cordless vacuum cleaner removal button
F Cordless vacuum cleaner handle
Cordless vacuum cleaner on/off button
H LED light and charging indicator
Dust container
J Turbo brush removal button
K Turbo brush
L Charging unit
M Power indicator
N Accessory storage compartment
Dust container removal button

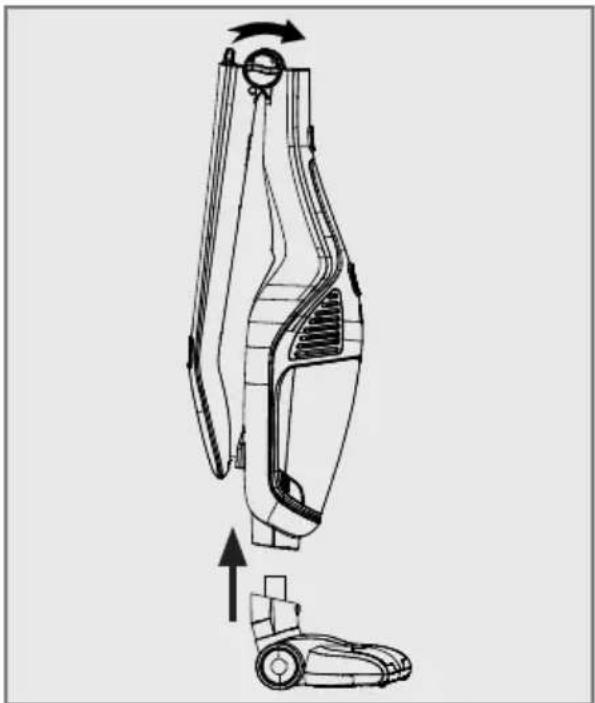

Installation of body and turbo brush

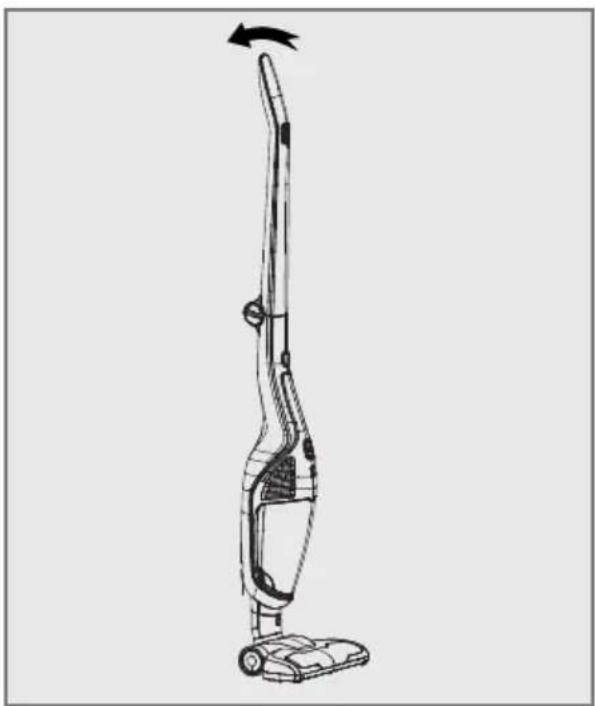

1 InstallK Turbo brush on the body.
2 Lift the handle A towards the arrow direction.

3 In order to fold the handle A turn folding button D clockwise (in position) and fold the handle in the direction of the arrow.

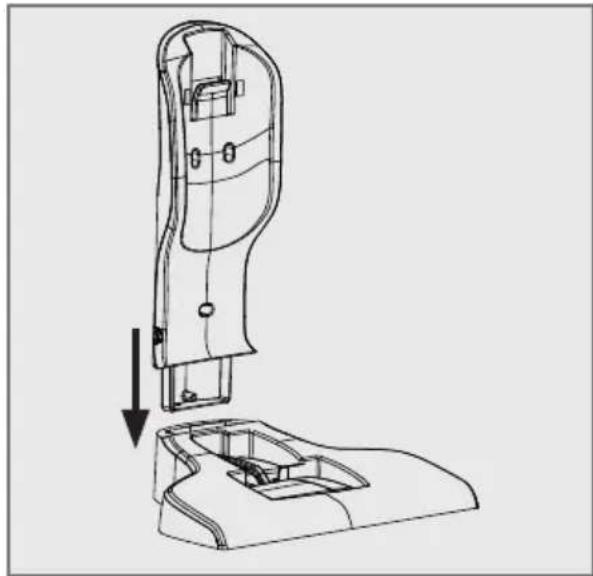

Mounting the charging unit

1 Place the charger on charging stand.

2 Use screws to fix the unit on the wall or place on a horizontal surface.

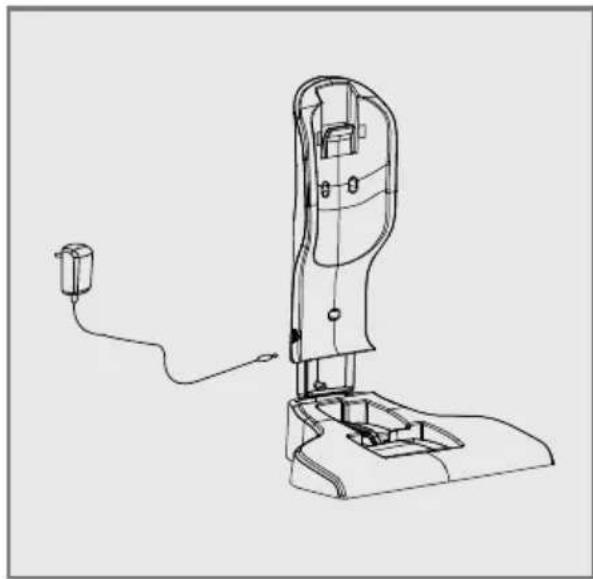

Charging the appliance

Insert the thin end of the adapter to the charger and plug the adapter in.

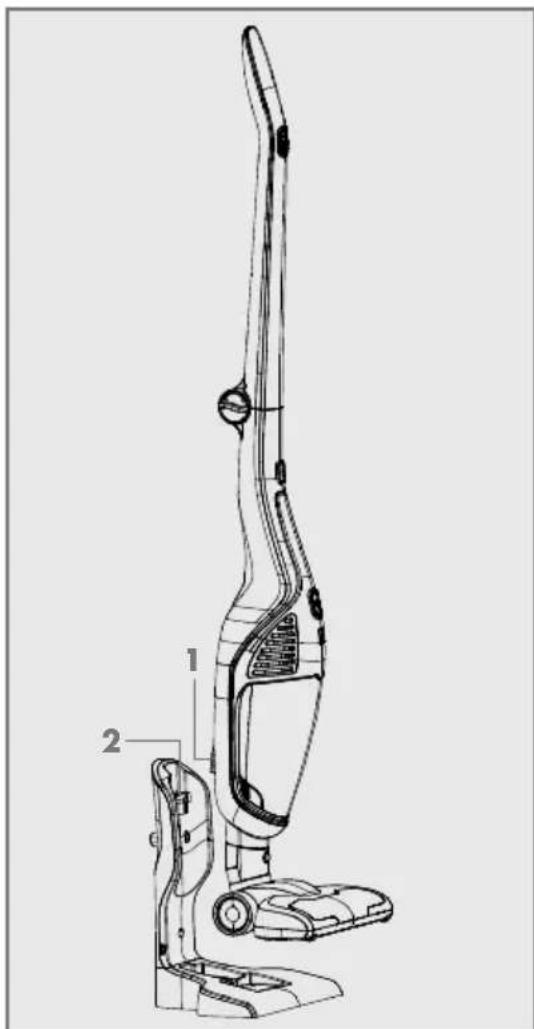

2 Place the appliance on the charger, socket on the body (1) must be fitted to the socket on the stand (2).

3 In the meantime, charging indicator LED H is lit and product starts charging; all charging indicators are lit when charging is over.

4 When you plug your appliance to charging unit L charging LED H on the product that is connected indicates successful connection.

• Blue charging indicator LED H means the appliance is charging.

• When all charging indicator LEDs light blue, this means that charging is over.

Note

It takes up to 5 hours for the appliance to be fully charged.

Warning

• Appliance cannot be run during the charging process.

Using your appliance

Press on/off button B to switch on your appliance.
2 When you press on/off button B, appliance will start at maximum speed. Press speed adjustment button C to use in low speed. When you press speed adjustment button again, the appliance will run at maximum speed again.
3 After using the appliance, switch it off by pressing the On/off button.

Note

Check power indicator LEDs during operation. As charging level decreases, these indicators will gradually go off and the appliance will stop working when all indicators are off.
- Appliance will automatically stop if it is placed on charger while still in use.

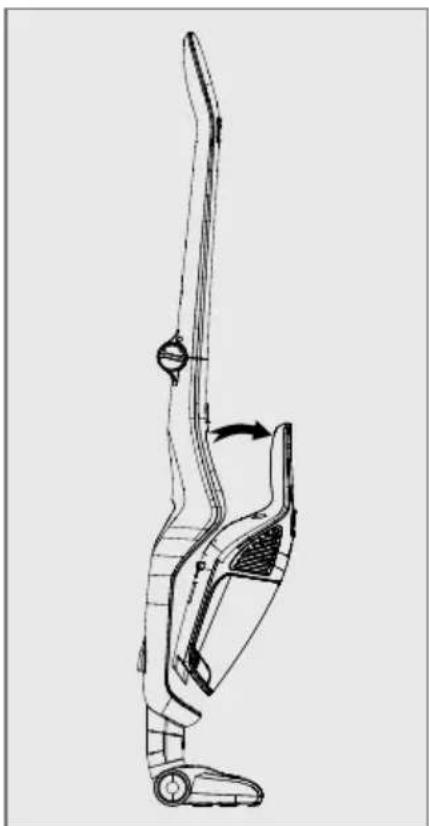

Starting cordless vacuum cleaner

1 Press removal button to remove the vacuum cleaner from the body.

2 Press on/off button G of the cordless vacuum cleaner to switch on your appliance.
3 After using the appliance, switch it off by pressing the On/off button G of the cordless vacuum cleaner.

Accessories

Accessories of your appliance are in the storage compartment of the charging unit.

You can use your accessories by inserting them to the end of your vacuum cleaner.

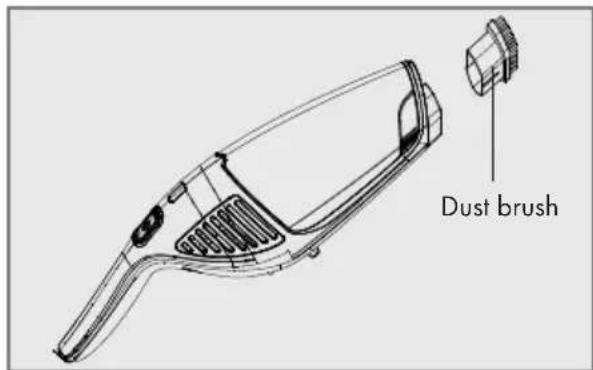

Dust brush

Suitable for cleaning the curtains, and sensitive and fragile objects.

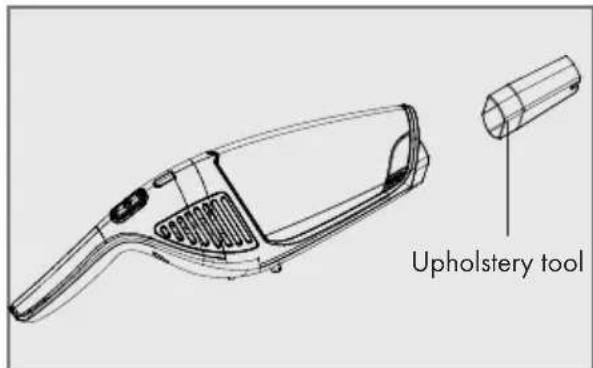

Upholstery tool

Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

Cleaning the dust container

Notes

It is recommended to clean the dust container after every use.

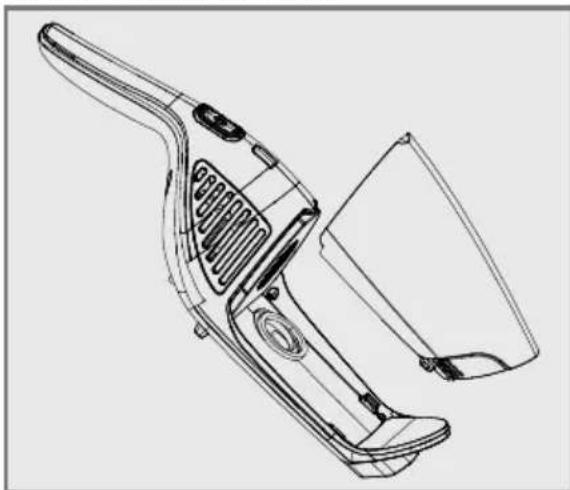

Press the dust container removal button to remove the dust container.

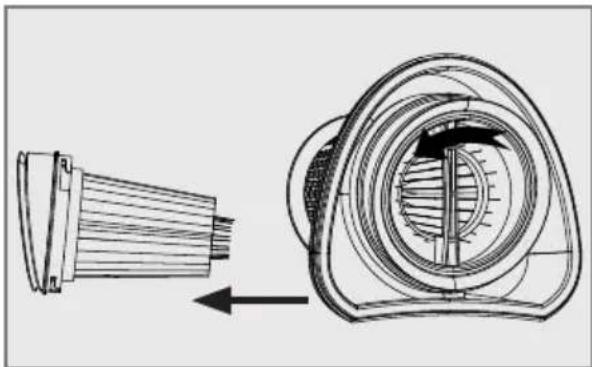

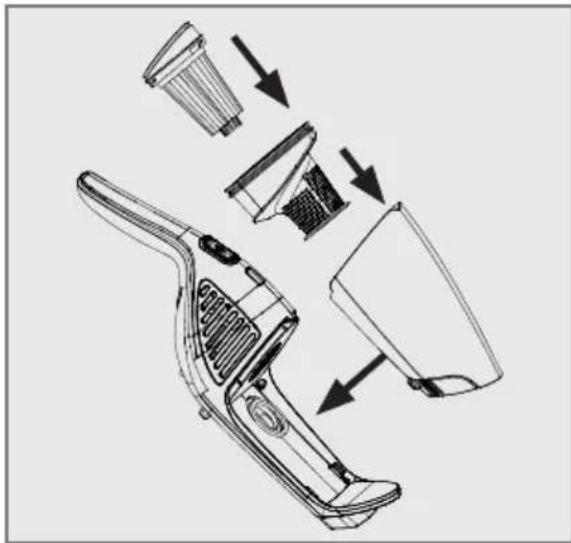

2 Pull the filter from its holder by holding the handle and remove it from dust container.

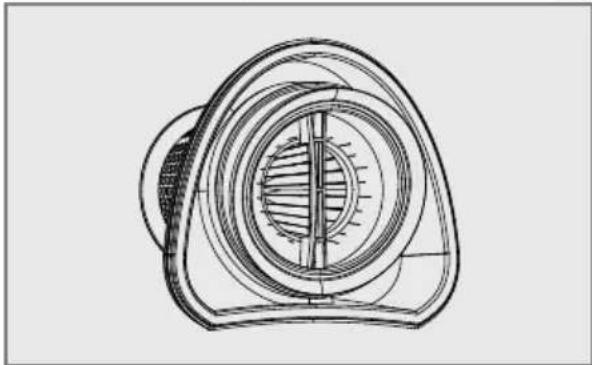

3 Remove the HEPA filter by grasping the handle of the filter holder and turning counterclockwise.

4 Wash out the dust container, filter holder and HEPA filter under the running water.

5 Clean the body of the cordless vacuum cleaner with a soft damp cloth.

6 Replace the HEPA filter in its holder after all parts are dried and place filter holder in the dust container.

7 Replace the dust container in the body of cordless vacuum cleaner.

Cleaning the turbo brush

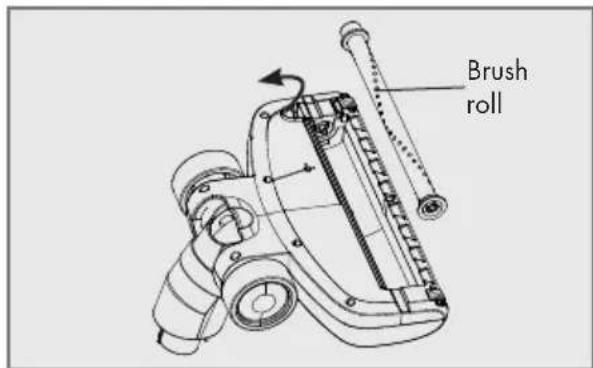

1 Release the lock using the roll brush release tab to clean the turbo brush K as shown below and remove the roll brush.

2 After cleaning and drying the brush roll, reattach it and lock the tab.

Storage

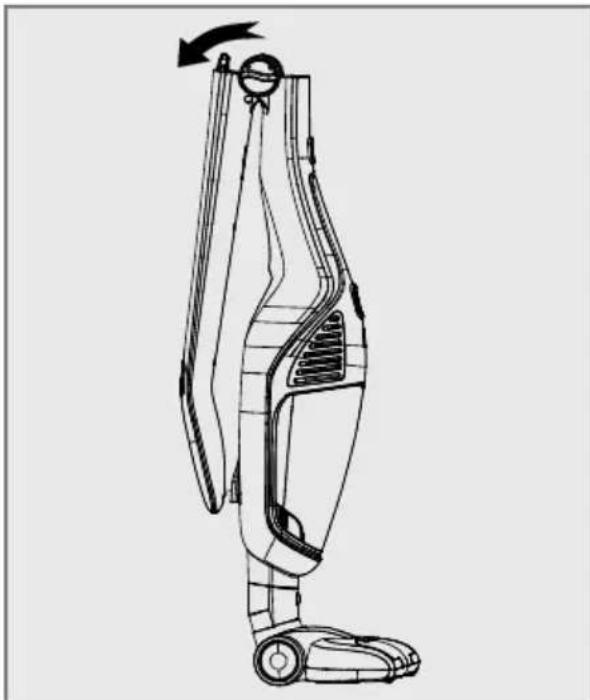

Store the appliance in a vertical position or with its handle folded.

In order to fold the handle turn folding button D clockwise (in position) and fold the handle in the direction of the arrow.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manu

factured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS

Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Technical data

Model VCH 9632 VCH 9631 VCH 9630
Operating voltage DC 21.6V	DC 18V	DC 14.4V
Nominal motor power	115W	105W	95W
Adaptor input	100-240V 50/60Hz
Adapter output	27V 500mA	22V 500mA	18V 500mA
Protection class	II
Turbo brush nominal power	5W
Batteries	Li-ion
Dust capacity	0.5 L

Technical and design modifications reserved!
