USER MANUAL VCH 9931 GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

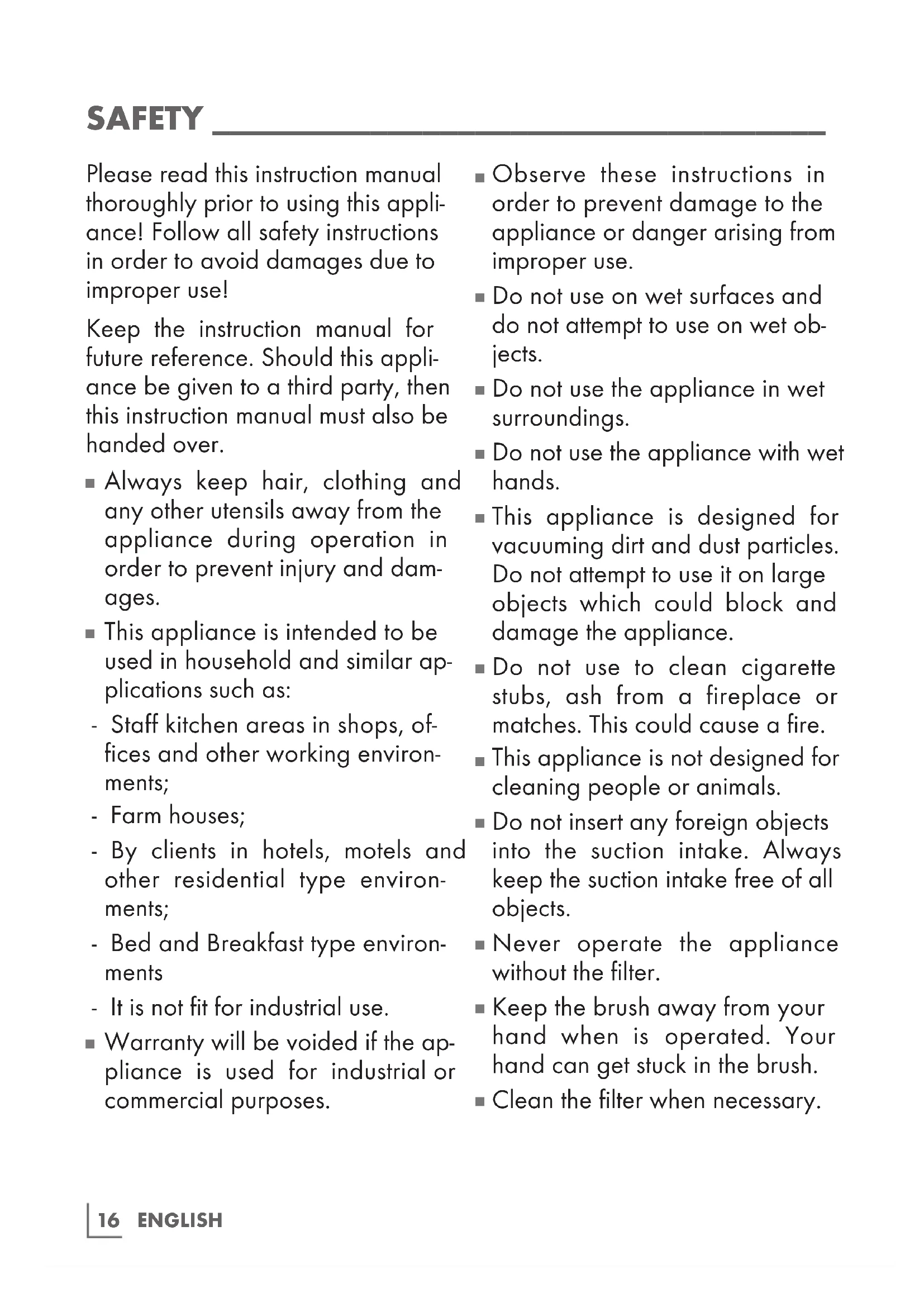

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;

• Farm houses;

• By clients in hotels, motels and other residential type environments;

• Bed and Breakfast type environments

• It is not fit for industrial use.

Warranty will be voided if the appliance is used for industrial or commercial purposes.

• Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.

• Do not use on wet surfaces and do not attempt to use on wet objects.

• Do not use the appliance in wet surroundings.

• Do not use the appliance with wet hands.

This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.

• Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.

This appliance is not designed for cleaning people or animals.

• Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.

• Never operate the appliance without the filter.

• Keep the brush away from your hand when is operated. Your hand can get stuck in the brush.

Clean the filter when necessary.

SAFETY

Only use original GRUNDIG accessories when replacing parts.

• Check if the mains voltage on the rating label corresponds to your local mains supply.

Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.

Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.

• Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.

• Do not attempt to dismantle the appliance.

• Protect the appliance from rain, humidity and heat sources.

For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30mA . Consult your electrician for advice.

• Do not disconnect the plug by pulling on the cable.

WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

• Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

• Keep the appliance away from children.

This appliance contains batteries that are only replaceable by skilled persons.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SAFETY

• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.
• Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.
• Only use the power cord provided.
  The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG 2 in 1 Cordless Stick Vacuum Cleaner VCH 9930, VCH 9931, VCH 9932.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of

several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

Extra accessories:

2in1, Crevice and Dust Brush

• Dust brush suitable for the cleaning of fabrics, furniture, skirting boards or picture frames.
• Crevice tool for cleaning crevices and corners difficult to reach.

Wall hang accessory:

1 Punch a hole on the wall with the help of electric drill.
2 Hammer the rubber stopper into the hole.
3 Assemble the wall hang accessory correctly in terms of the following instruction photos

1-4).

Controls parts

See image on page 3.

A Stick vacuum cleaner handle
B Stick vacuum cleaner on/off button
Speed adjustment button
D Handle collapsing button
E Cordless vacuum cleaner removal button
F Cordless vacuum cleaner handle
Cordless vacuum cleaner on/off button
H Body
Dust container removal button
J Dust container
Brush removal button
Brush
M LED light
N Handheld vacuum cleaner
Charging and power indicator
Dust brush
Crevice
Power supply plug

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

• Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully.
Unplug the appliance.
- Keep the appliance out of the reach of children.

Handling and transportation

During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
- Dropping the appliance may render it non-operational or cause permanent damage.

Information on waste batteries

This symbol on rechargeable batteries/ batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may

be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005% mercury or more than 0,004% lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electri

cal and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the

domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Model VCH 9930 VCH 9931 VCH 9932
Supply voltage	100-240V~ 50-60Hz
Power	14.4V, 90W 18V, 100W 21.6V, 120W
Product spec	DC 14.4V 2200mAh Li-on DC	DC 18V 2200mAh Li-on DC	21.6V 2200mAh Li-on
Adaptor Input	100-240V~ 50-60 Hz 0.3 A	100-240V~ 50-60 Hz 0.3 A	100-240V~ 50-60 Hz 0.5 A
Adaptor Output	18V, 500mA 22V, 500mA 27V, 500mA
Brush spec	14.4V, 10W 14.4V, 10W 21.6V, 15W
Charging time	4~6H

Technical and design modification rights are reserved.

Protection class for electric shock.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5-6 of this operating manual.
