USER MANUAL KM3200 AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy Accessories and Consumables for www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

www.aeg.com

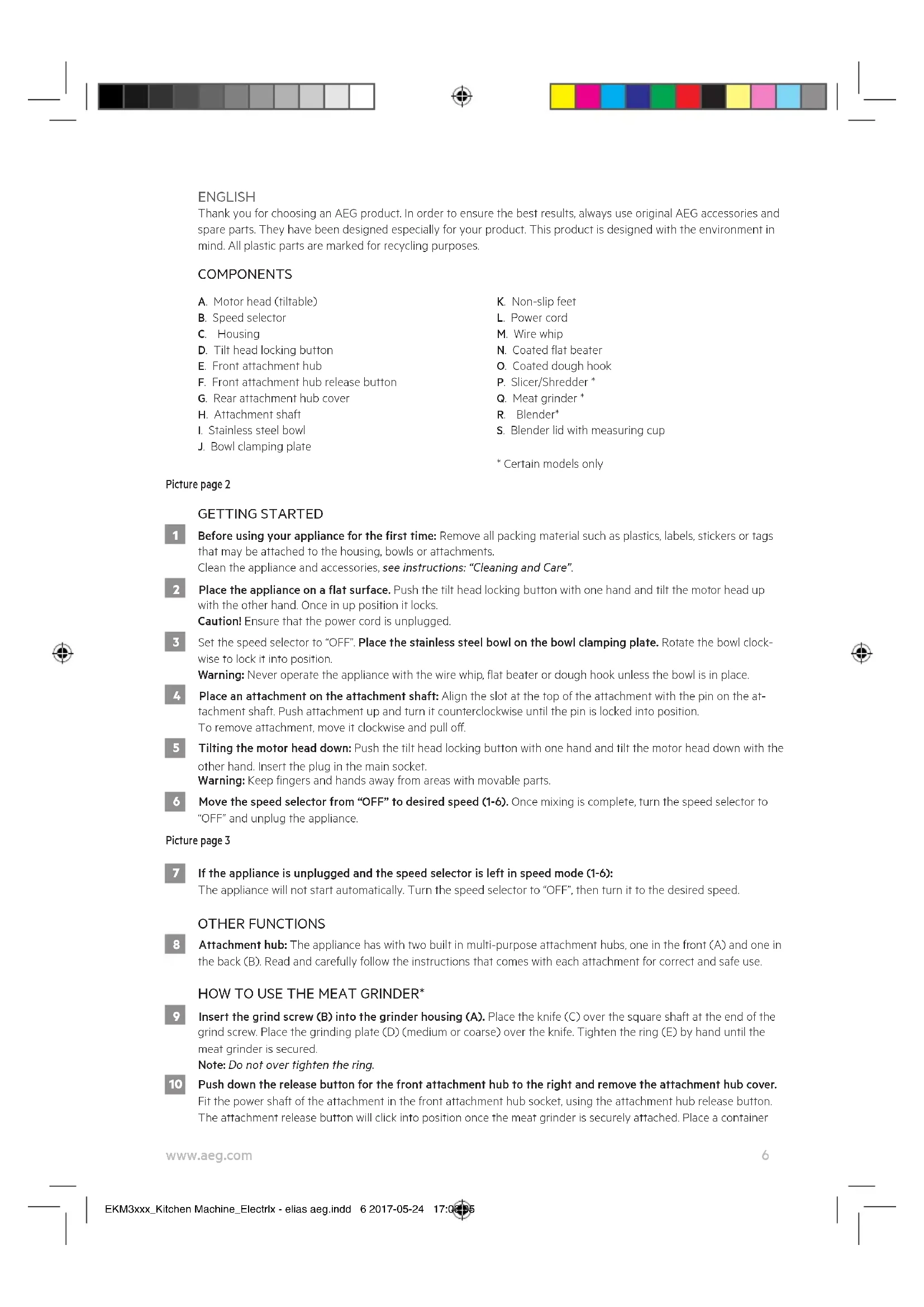

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Motor head (tiltable)
B. Speed selector
C. Housing
D. Tilt head locking button
E. Front attachment hub
F. Front attachment hub release button
G. Rear attachment hub cover
H. Attachment shaft
I. Stainless steel bowl
J. Bowl clamping plate

K. Non-slip feet
L. Power cord
M. Wire whip
N. Coated flat bealer
O. Coated dough hook
P. Slicer/Shredder*
Q. Meat grinder
R.Blender
S. Blender lid with measuring cup

• Certain models only

Picture page 2

GETTING STARTED

Before using your appliance for the first time: Remove all packing material such as plastics, labels, stickers or tags that may be attached to the housing, bowls or attachments.

Clean the appliance and accessories, see instructions: "Cleaning and Care".

2 Place the appliance on a flat surface. Push the tilt head locking button with one hand and tilt the motor head up with the other hand. Once in up position it locks.

Caution! Ensure that the power cord is unplugged.

3 Set the speed selector to "OFF". Place the stainless steel bowl on the bowl clamping plate. Rotate the bowl clockwise to lock it into position.

Warning: Never operate the appliance with the wire whip, flat beater or dough hook unless the bowl is in place.

4 Place an attachment on the attachment shaft: Align the slot at the top of the attachment with the pin on the attachment shaft. Push attachment up and turn it counterclockwise until the pin is locked into position.

To remove attachment, move it clockwise and pull off.

5 Tilting the motor head down: Push the tilt head locking button with one hand and tilt the motor head down with the other hand. Insert the plug in the main socket.

Warning: Keep fingers and hands away from areas with movable parts.

6 Move the speed selector from "OFF" to desired speed (1-6). Once mixing is complete, turn the speed selector to

"OFF" and unplug the appliance.

Picture page 3

If the appliance is unplugged and the speed selector is left in speed mode (1-6):

The appliance will not start automatically. Turn the speed selector to "OFF", then turn it to the desired speed.

OTHER FUNCTIONS

8 Attachment hub: The appliance has with two built in multi-purpose attachment hubs, one in the front (A) and one in the back (B). Read and carefully follow the instructions that comes with each attachment for correct and safe use.

HOW TO USE THE MEAT GRINDER*

9 Insert the grind screw (B) into the grinder housing (A). Place the knife (C) over the square shaft at the end of the grind screw. Place the grinding plate (D) (medium or coarse) over the knife. Tighten the ring (E) by hand until the meat grinder is secured.

Note: Do not over tighten the ring.

10 Push down the release button for the front attachment hub to the right and remove the attachment hub cover.

Fit the power shaft of the attachment in the front attachment hub socket, using the attachment hub release button. The attachment release button will click into position once the meat grinder is securely attached. Place a container

under the attachment

Caution: Before attaching accessories turn off the appliance and unplug it.

11 Place the food tray over the grinder housing. Cut raw meat into small pieces and place it on the food tray. Plug in the appliance and turn the speed selector to desired speed (recommended speed: 3-4). Feed the meat into the feed chute by using the pusher.

Caution: Do not put your fingers or other utensils in the feed chute.

Note: Meat should not contain bones, muscles or skin.

HOW TO USE THE SLICER/SHREDDER*

12 Choose a cylindrical slicer (medium or course) or a shredder knife. Insert the attachment by turning it clockwise into the slicer/shredder housing. Make sure the attachment is fully inserted. Caution: The blades and inserts are very sharp!
13 Push down the release button for the front attachment hub to the right and remove the attachment hub cover. Fit the power shaft of the attachment in the front attachment hub socket, using the attachment hub release button. Assemble the slicer/shredder in the attachment hub. The attachment release button will click into position once the slicer/shredder is securely attached. Place a container under the attachment. Cut the food into small pieces. Plug in the appliance and turn the speed selector to desired speed (recommended speed: 5).
Feed the food into the feed chute by using the pusher. When finished using your attachment, turn off the appliance and unplug it. Place the front attachment hub cover using the attachment hub release button.

HOW TO USE THE BLENDER*

15 Remove the rear attachment hub cover by pulling it straight backwards. Place the bottom of the blender on the three rubber rings. Align the arrows on the blender to the arrows on the main body. Caution: Turn off and unplug the appliance before attaching any accessories.
16 Rotate the blender clockwise to lock it in position. The blender handle should point towards the back of the machine when properly fixed. Place the blender lid and measuring cup. Insert the plug in the main socket. Adjust the speed selector to the desired speed (recommended speed: 6), mix until the right consistency of the blend is reached. Caution: Never operate blender without ingredients.

CLEANING AND CARE

17 Unplug the appliance. The wire whip, meat grinder and slicer/shredder should only be washed by hand in warm soapy water.

The bowl, flat beater and dough hook are dishwasher-proof. Only place parts on the top rack if using a dishrer.

Caution! The blades and inserts are very sharp and can cause injury.

Warning! Never immerse the housing, plug, or cord in water or any other fluid.

Dry each part thoroughly before use.

18 Cleaning the blender*:

Rotate the blender counter-clockwise and remove. Take off the lid. Pour out the mixture from the blender. Add a drop of dishwashing soap and one litre of warm water. Fix the blender on the appliance. Run the machine on speed 6 for half a minute, then pour out the water. Rinse the blender and let it dry.

Caution! The blades and inserts are very sharp and can cause injury.

19 The housing should only be cleaned with a soft damp cloth, then dried with a cloth. Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance.

Enjoy your new AEG product!

www.aeg.com

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Care shall be taken when handling the tools, emptying the bowl and during cleaning
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  Always place the appliance on a flat, level surface.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Do not immerse the appliance, cord or plug in water or any other liquid.
• Do not let cord hang over edge of table or counter, do not let cord contact hot surface, including the stove.
• Never use accessories or parts made by other manufactures not recommended or sold; may cause a risk of injury to persons.
• Make sure the motor has completely stopped before disassembling and cleaning.
• Avoid contact with blades or moving parts. Contact could result in injury! Do not use other tools or utensils during the appliance usage.
• Do not leave this product out of your sight when it is running.
• Ensure all loose matters and your clothes/accessories are kept away while using this product.
• Never process boiling liquids (max 90^ ).
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Never operate appliance with the attachments wire whip, flat beater or dough hook unless the bowl is in place.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• UNPLUG FROM OUTLET WHEN NOT IN USE, BEFORE INSERTING OR REMOVING PARTS AND BEFORE CLEANING.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The motor slows down during operation.	Amount of dough may exceed maximum capacity.	Remove half and process in two batches.
	Dough may be too wet, it sticks onto the side of the bowl.	Add more flour, 1 tablespoon at a time until the motor speeds up. Process until dough cleans the side of the bowl.
The appliance does not start. The appliance is not connected to the mains.	Make sure to plug in the appliance before operation.
The speed selector was not in “OFF” position when the machine was unplugged.	Turn to speed selector to “OFF” position, and then to the desired speed.
The appliance vibrates/moves during operation.	Make sure the suction feet are clean. Place the machine on a smooth and shiny surface.
It is normal for heavy loads (e.g heavy dough, cheese).	Remove half and process in two batches.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.

RECIPES

WHISKING FUNCTION QUANITITIES AND PROCESSING TIMES

Ingredients Quantity Unit Time Speed
Cream 21-61dL 60-80s 5-6
Egg-white 1.2~2.4 dL			At least 100s	5-6

BEATING FUNCTION QUANTITIES AND PROCESSING TIMES (MIXING LIGHT DOUGH (E.G: CAKE DOUGH))

Recipe Ingredients	Quantity Unit Time/Speed Method
Cake sponge	Flour 6,0 dL			200~230sMedium setting(3-4 setting)
	Margarine	1,5	dL
	Sugar	1,7	dL
	Baking powder	1,0	tsp
Chocolate cake	Flour 6,0 dL			300~360sMedium setting(2-4 setting)	The butter should be soft not hard. Stir the soft butter with sugar until creamy. Add the eggs one after another. While stirring, add the sour cream and vanilla sugar. Finally stir in the flour together with baking soda.
	Egg	3	pcs
	Butter	1,5	dL
	Sugar	1,3	dL
	Vanilla Sugar	1,5	tsp
	Sour cream 0,75 dL
	Nougat raw mixture 75	g
	Baking soda 2,3 tsp
Butter Cake	Flour 3,0 dL			200~230sMedium setting(2-4 setting)	Place all ingredients in the bowl, and mix them,till it is ready.
	Margarine	1,5	dL
	Sugar	1,7	dL
	Fresh egg	3	pcs
	Baking powder	1,0	tsp

HOOKS FUNCTION QUANTITIES AND PROCESSING TIMES

Recipe Ingredients	Quantity Unit Time/Speed	Method
Yeast dough* (bread)min. Quantities	Flour 6,0 dL			350~380s Low setting (1~2 setting)	Place all the ingredients into the bowl and knead until satisfactory.
	Water	2,0 dL
	Sugar	2,4 dL
	Margarline	1,0	tbs
	Salt	1,0	tsp
	Dry yeast	2,0 tsp
Yeast dough* (Pizza dough) max quantities	Wheat flour	8,0 dL		At least 480s Low setting (1~2 setting)
	Water	2,0 dL
	Oil	0,5 dL
	Fresh egg	1	pcs
	Salt	1,5	tsp
	Sugar	1,0	tsp
	Dry yeast	0,5 tbs

Method

1. In a container mix the half of yeast with the salt and the sugar and set aside;
2. In the bowl of stand mixer put the remaining yeast, the water and the oil;
3. This dough should be mixed with common beaters, at minimum speed until obtain a smooth mixture;
4. After, add the egg and the yeast mixed with salt and sugar;
5. The speed should be increased to medium and the flour should be added gradually;
6. After realizing that the mass tends to rise by the beaters, they must be changed by the beaters for heavy mass;
7. Put all the flour and mix until obtain a homogenous mixture;
8. At this point you will need to monitor the input power of stand mixer, so that it not exceed the maximum value determined by the manufacturer;
9. The mass reaches the point when no more paste in the hand.

*Do not exceed Speed 2 when preparing yeast dough. This may damage the mixer.

www.aeg.com
