USER MANUAL STM9500 AEG

GB Instruction book.....17-21

Before using the appliance for the first time, please read the safety advice on page 18.

D

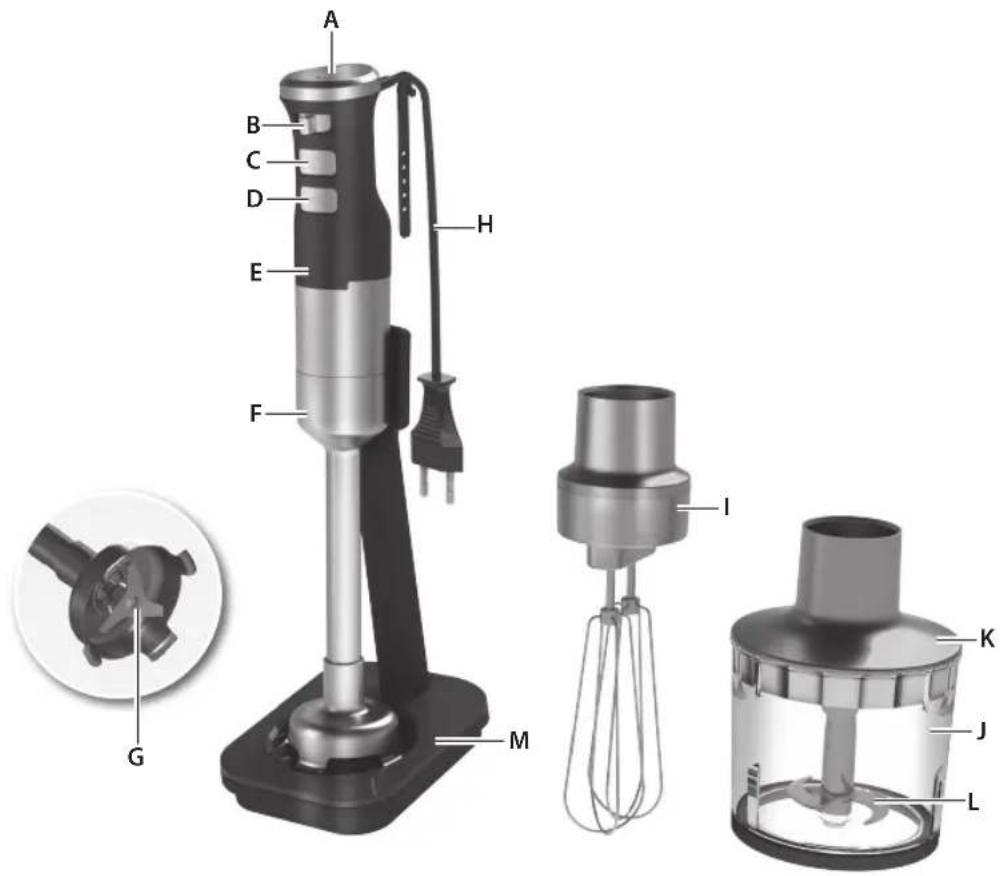

Teile

A. Speed indicator lightbar
B. Speed selector
C. ON/OFF button
D. TURBO button
E. Handheld part
F. Metal mixing foot
G. Professional blade assembly
H. Power cord with a cord wrap
I. Professional Double whisk
J. Chopper bowl
K. Chopper bowl lid
L. Chopper bowl knife
M. Stand for the mixer

GB

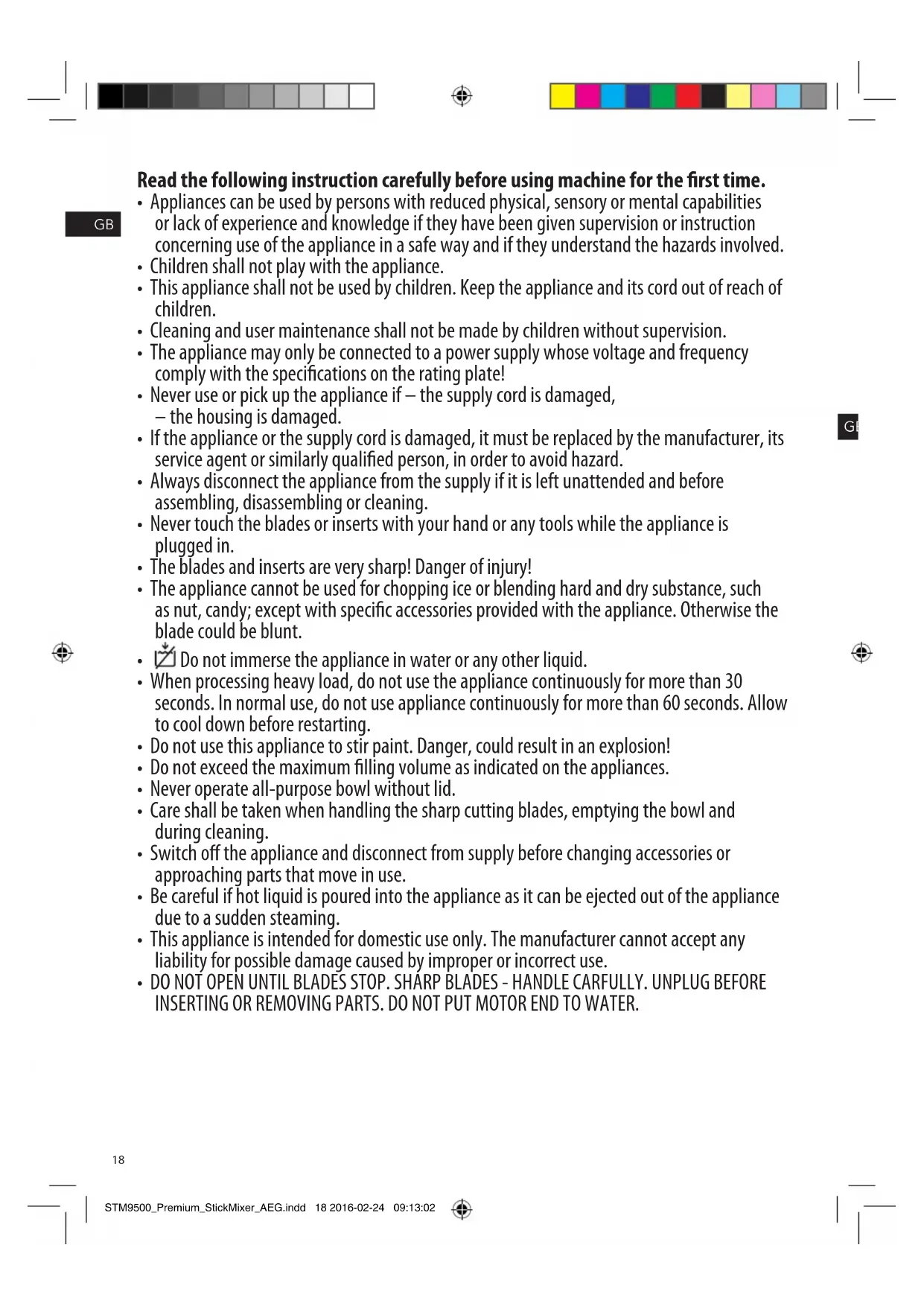

Read the following instruction carefully before using machine for the first time.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Children shall not play with the appliance.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Cleaning and user maintenance shall not be made by children without supervision.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if - the supply cord is damaged, - the housing is damaged.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.
• The blades and inserts are very sharp! Danger of injury!
• The appliance cannot be used for chopping ice or blending hard and dry substance, such as nut, candy; except with specific accessories provided with the appliance. Otherwise the blade could be blunt.
  Do not immerse the appliance in water or any other liquid.
• When processing heavy load, do not use the appliance continuously for more than 30 seconds. In normal use, do not use appliance continuously for more than 60 seconds. Allow to cool down before restarting.
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Do not exceed the maximum filling volume as indicated on the appliances.
• Never operate all-purpose bowl without lid.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• DO NOT OPEN UNTIL BLADES STOP. SHARP BLADES - HANDLE CARFULLY. UNPLUG BEFORE INSERTING OR REMOVING PARTS. DO NOT PUT MOTOR END TO WATER.

Getting started

1. Before first use, clean the mixing foot under running water. Before inserting or removing mixing foot, remove plug from power outlet.

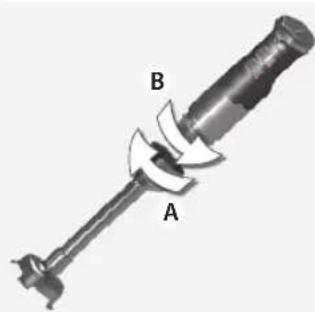

1. Insert the mixing foot to the handheld part, turn clockwise (A) and lock into position. To remove, turn mixing foot counter clockwise (B). Press and hold the ON/OFF or TURBO speed button to start mixing. Adjust the normal speed, by moving the speed selector left (lower) or right (higher). Release the ON/OFF or TURBO speed button stop mixing.

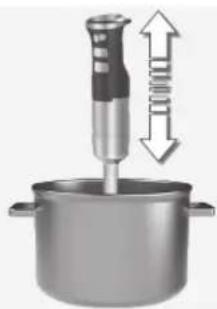

1. Insert the stick mixer deep into a bowl or a pan, begin mixing by starting at normal speed. Do not immerse the mixing foot more than 2/3 of its length. Move stick mixer lightly up and down to ensure best processing of content. Release switch to stop.

1. Using the mini chopper. Place chopper bowl on a clean, level surface. Put stainless steel blade into place.

1. Place food into the chopper bowl. Amount of food to be chopped cannot exceed 300 g. Close the lid.

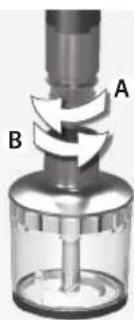

1. Insert handheld part into the chopper lid, turn clockwise (A) and lock into position. Plug into power outlet and press switch to start. Release to stop. Remove handheld part by turning clockwise (B).

Working with the Professional double whisk

GB

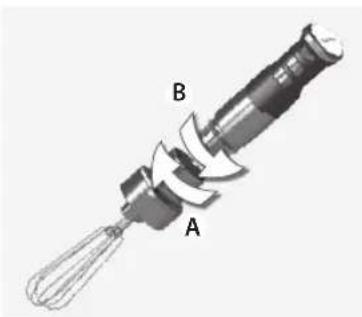

1. Working with the Professional double whisk. To assemble whisk with handheld part, turn handheld part clockwise until tightened. To disassemble, turn counter clockwise.

Cleaning and care

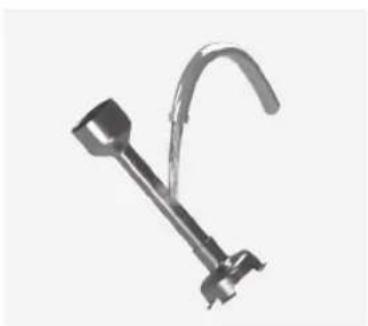

1. Before cleaning, always unplug the appliance. Do not immerse mixing foot in water, just wash under running water (no abrasive cleaner or detergents). Place upright to let dry.

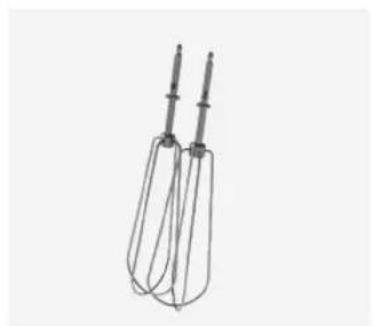

1. The Professional double whisks can be detached from the plastic holder by pulling them gently.

The metal whisks can be washed in the dishwasher. The plastic holder of double whisk and mini chopper lid cannot be washed in the dishwasher.

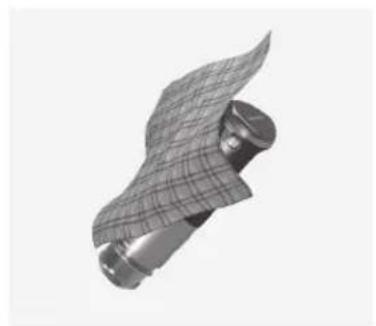

1. Disassemble the handheld part. Wipe with a damp cloth and dry thoroughly. Never immerse in water due to risk of electric shock. When finished cleaning, store the Stick Mixer in its stand.

Blending quantities and Processing Times

Accessory Metal mixing foot
Recipe Ingredients Quantity	Time Speed
Pineapple-apricots Smoothie	Pineapple in slices 250 g		60 sec TurboDried Apricots 40 g
	Yoghurt 300 g
Raspberries Smoothie	Frozen raspberries 250 g		60 sec Turbo
	Banana 1/2 pcs
	Water 100 g
	Caster sugar 1 Tbs
	Yoghurt 300 g

Chopping quantities and Processing Times

Accessory Mini Chopper
Ingredients	Quantity	Quality	Time	Quality	Time	Quality	Time	Speed
Carrots	100-200 g	Coarse	--	Medium	5-10 sec	Fine	10-20 sec	Turbo
Onions	100-200 g		3-5 sec				10-20 sec	Turbo
Almonds	100-200 g		3-5 sec		7-10 sec		10-20 sec	Turbo
Meat	100-200 g		--				5 sec	Turbo
Ice	100-200 g		--		5 Pulses ON for 3 sec,OFF for 2sec		10 Pulses ON for 3 sec, OFF for 2 sec	Turbo

Whisking/Whipping quantities and Processing Times

Accessory Professional double wisk
Ingredients	Quantity	Time	Speed
Cream	500 g	100-120 sec	Turbo
Egg whites	4 units	60 sec	Turbo
Note: For whisking eggs and cream, please use a 1,5 Litre bowl.

Disposal

Recycle the materials with the symbol

Put the packaging in applicable tainers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with

the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
