Product Type	Binoculars
Brand	Swarovski
Model	EL 10x50
Magnification	10x
Objective Diameter	50 mm
Focusing	Central focusing wheel with diopter correction
Diopter Correction	Yes, adjustment on right eyepiece (graduation from -5 to +5)
Eyecup	Rotating, 4 positions (with/without glasses)
Interpupillary Distance	Adjustable by swiveling the two barrels
Carrying Strap	Included, mounting with protective cover
Protective Covers	Eyepieces and objectives included
Cleaning Cloth	Microfiber included
Warranty	10-year international (parts and labor for the first 5 years)
Maintenance	Clean with brush then microfiber cloth; body with damp cloth
Safety	Never look directly at the sun; do not use while walking
Repairs	Only by SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK North America
Optional Accessories	Available at www.swarovskioptik.com
Use	Terrestrial and astronomical observation
Power Supply	None (optical binoculars)
Documents Provided	User manual, warranty card

Frequently Asked Questions - EL 10x50 Swarovski

How to adjust the diopter correction on the EL 10x50 binoculars?

Pull out the focusing wheel, then turn it to set the diopter graduation to '0' if your eyesight is identical. Otherwise, focus with your left eye, pull out the wheel, then adjust with your right eye until sharp. Push the wheel back in.

How to clean the lenses of Swarovski binoculars?

First remove large particles with a brush. For deep cleaning, lightly moisten the surface with your breath and use the provided microfiber cloth. For the body, use a soft damp cloth.

What is the warranty of the EL 10x50 binoculars?

The international warranty is 10 years from the date of purchase. The first 5 years cover parts and labor. Repairs must be performed by SWAROVSKI OPTIK.

Can the binoculars be used with glasses?

Yes, turn the rotating eyecups clockwise to the stop (position B). You can also use an intermediate position (C or D) depending on your comfort.

How to attach the carrying strap?

Attach the strap by hooking it on one side of the eyepiece protective cover (recommended) or on both sides. Follow the diagrams in the manual.

What are the risks of looking at the sun with the binoculars?

Never point the binoculars directly at the sun, as this can cause serious and irreversible eye damage.

How to store the binoculars?

Store them in their case in a dry, well-ventilated place. If wet, dry them first. In tropical areas, use a waterproof case with a moisture absorber (silica gel).

Is the focusing the same for both eyes?

The central wheel adjusts sharpness for both eyes simultaneously. If your eyes have different visual acuities, use the diopter correction on the right eyepiece to compensate.

Are the binoculars waterproof?

The manual does not specify waterproofing, but high-end Swarovski binoculars are generally nitrogen-filled and waterproof. For more details, check the official website.

Where can I find additional accessories for the binoculars?

Accessories are available on the website www.swarovskioptik.com. You will find eyecups, straps, cases, etc.

USER MANUAL EL 10x50 Swarovski

We thank you for choosing this product from SWAROVSKI OPTIK. If you have any questions, please consult your specialist dealer or contact us directly at www.SWAROVSKIOPTIK.COM.

1 Carrying strap
5 Dioptric scale
2 Eyepiece cover
6 Dioptric zero point
3 Twist-in eyecup
7 Objective lens cover
4 Focusing wheel

Please find our current product accessories at www.SWAROVSKIOPTIK.COM.

11

EN

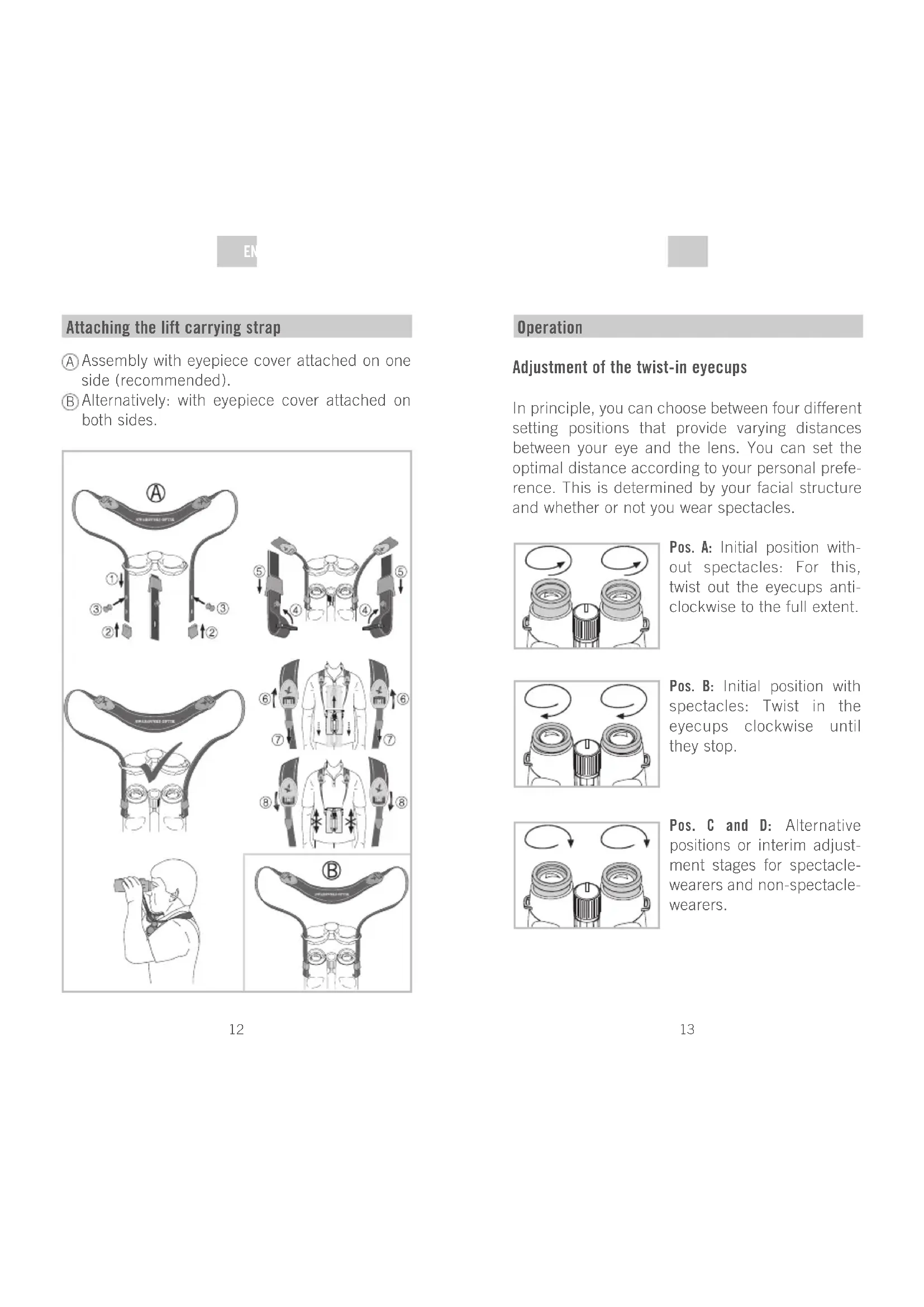

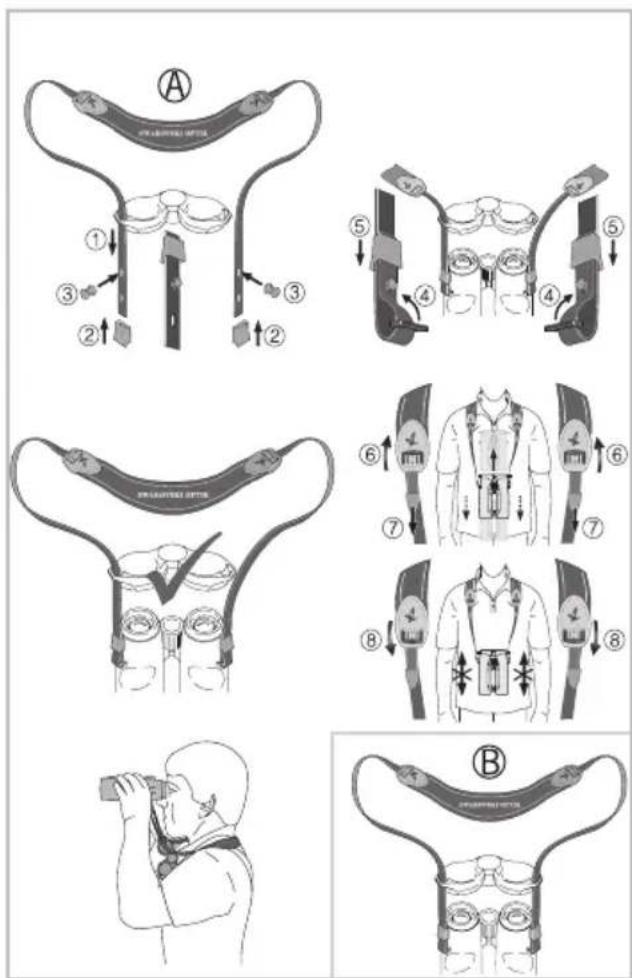

Attaching the lift carrying strap

Assembly with eyepiece cover attached on one side (recommended).
⑥ Alternatively: with eyepiece cover attached on both sides.

Operation

Adjustment of the twist-in eyecups

In principle, you can choose between four different setting positions that provide varying distances between your eye and the lens. You can set the optimal distance according to your personal preference. This is determined by your facial structure and whether or not you wear spectacles.

Pos. A: Initial position without spectacles: For this, twist out the eyecups anticlockwise to the full extent.

Pos. B: Initial position with spectacles: Twist in the eyecups clockwise until they stop.

Pos. C and D: Alternative positions or interim adjustment stages for spectacle-wearers and non-spectacle-wearers.

EN E

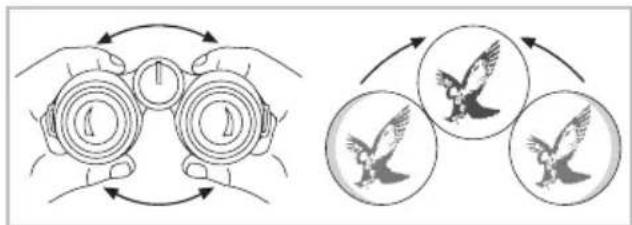

Interpupillary distance adjustment

To see a single round image, rotate the two halves of the binoculars until no irritating shadows can be seen.

Focusing adjustment

To adjust your object focus from the shortest focusing distance (see Technical Data Sheet) to infinity, simply turn the focusing wheel. In the infinity position, the

little nose of the focusing wheel is situated at the top.

Dioptric compensation

To achieve optimal image quality, it is necessary to correct any varying visual acuity between the left and right eye.

Use with equal acuity of both eyes:

1. Pull the focusing wheel outwards.
2. By turning the focusing wheel, set the dioptic scale to "0".
3. Push the focusing wheel back in.

Use with varying acuity of both eyes:

1. Look through the left ocular with your left eye and turn the focusing wheel to focus sharply on a selected object.
2. Pull the focusing wheel outwards.
3. Now look at the same object through the right ocular with your right eye and again adjust the focusing wheel to attain optimal clarity.

EN E

1. Press the focusing wheel back in again.

Please note your personal dioptic value on the dioptic scale.

Assembly instructions for objective lens cover

Maintenance and care

Lens-cleaning cloth

You can clean high sensitive lens surfaces with the enclosed special microfibre cloth. It is suitable for objective lens, ocular lens and spectacles.

Please keep the cloth clean, as dirt can damage the lens surface. If the cloth becomes soiled it can be washed in lukewarm soapy water and left to dry. Please only use for cleaning lens surfaces!

Cleaning

We have designed all elements and surfaces to require little care. To ensure the long-lasting optical brilliance of your binoculars, you should keep the glass surfaces free of dirt, oil and grease. When cleaning the lenses, first remove larger particles with an optical lens brush. For the subsequent thorough cleaning we recommend breathing onto the lens surface to form a coat of condensation and then cleaning it with a soft, moist cloth. The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).

In the event of hard-to-remove dirt (e.g. sand) the eye cups can be unscrewed and cleaned very easily.

EN E

Storage

You should keep your binoculars in their bag in a dry, well ventilated, place.

If the instrument is wet, it must be dried prior to storage.

In tropical regions or regions with a high degree of humidity the best place to

store the instrument in is an air-tight receptacle along with a moisture-absorbing agent (e.g. silica gel).

SWAROVSKI OPTIK patents USA:

Binocular telescope: US 6,266,185 B1
Eyepiece cover: US 6,179,427 B1
Snap Shot Adapter: US 2009/0128934 A1, patent pending
- Protective cap: US 2010/0065452 A1, patent pending

For your safety!

WARNING!

Never look directly at the sun with the binoculars! This will damage your eyes!

Never look through the binoculars when walking, you could encounter obstacles!

General information

Please protect your binoculars from jolts and jars.

Repair and service work shall only be carried out by either SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK North America and any work by

non-authorised parties shall render the warranty void.

All data are typical values.

We reserve the right to make changes regarding design and delivery. We accept no liability for printing errors. BA-701-01, 03/2014

FRF

In procuring this optical product from SWAROVSKI OPTIK you now own a top-quality instrument for which we grant a worldwide warranty of 10 years from the date of purchase in accordance with the following conditions:

If defects in material and/or workmanship appear, we will take over material costs for the entire warranty period. We reserve the right in such instances to repair or replace the instrument or the defective part at our discretion. During the first five years we will take over the costs for materials and work.

This guarantee in no way limits the statutory warranty obligations.

In the event that the range of products is changed, we reserve the right to repair defective instruments or to replace them with those of equal value.

We undertake no liability for repairs carried out by a repair shop which has not been authorized by us, nor for damages caused by improper use, nor for direct or indirect damages brought about by defects on the instrument. In addition, all parts are excluded from the warranty which are subject to natural wear, such as eye cups, carry straps, cases, armouring, etc.

This warranty is valid only when this warranty/service document has been duly dated, stamped and signed by the Authorized dealer on the day of purchase.

In a warranty case and as well for service and/or repair work please present the instrument to your authorized SWAROVSKI OPTIK dealer together with this warranty/service document or send it, delivery-free, directly to our address. Instruments sent without the warranty/service document enclosed will be repaired and the costs charged to the customer. The return shipment of the instrument, insured (means of transport at our discretion), is free of charge in the case of repairs covered under warranty, otherwise charged to the customer. For shipments to foreign countries any foreign customs duties or fiscal charges are charged to the recipient.

This warranty is given by SWAROVSKI OPTIK KG, Absam, Austria. The place of jurisdiction is Innsbruck; Austrian law applies.

Insofar as other guarantees/warranties (whether legally or voluntary) are pledged in individual countries, these must be fulfilled by the respective importer or authorized dealer. Swarovski Optik KG, Absam, Austria, can therefore accept liability only when a legal obligation exists to do so.

Remarks for the United States of America:

For warranty services all products purchased in the United States, our only warranty authorized service is through SWAROVSKI OPTIK North America. For further information please call 1-800-426-3089.
