USER MANUAL WX675.1 WORX

  • Works with other oscillating tool brands' accessories. The following compatible brands are trademarks owned by third parties which may be registered by their respective owners: Bosch®, Black & Decker®, Makita® and Fein®.

TECHNICAL DATA

Type wX675 wX675.1 (6 - designation of machinery, representative of high frequency oscillation tool)

Voltage 220-240V~50/60Hz
Power input 250W
Oscillation speed 11000-20000/min
Oscillation angle 3.2°
Protection class ☑/II
Machine weight 1.5kg

NOISE INFORMATION

A weighted sound pressure LpA: 86dB(A)
A weighted sound power LwA: 97dB(A)
6KpA & KwA3.0dB(A)
Wear ear protection when sound pressure is over80dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 60745:
Typical weighted vibrationVibration emission value ah = 5.76m/s2
Uncertainty K = 1.5m/s2

WORX WX675.1 - VIBRATION INFORMATION - 1

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on

the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained

The use the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WORX WX675.1 - This tool may cause hand-arm vibration syndrome if its use is not adequately managed. - 1

WARNING: To be accurate, an estimation of exposure level in the actual conditions of

use should also take account of all parts of the operating cycle such as the times when

the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration accessories.

Avoid using tools in temperatures of 10^ or less.

Plan your work schedule to spread any high vibration tool use across a number of days.

SYMBOLS

WORX WX675.1 - SYMBOLS - 1

To reduce the risk of injury, user must read instruction manual

WORX WX675.1 - SYMBOLS - 2

Warning

WORX WX675.1 - SYMBOLS - 3

Double insulation

WORX WX675.1 - SYMBOLS - 4

Wear eye protection

WORX WX675.1 - SYMBOLS - 5

Wear ear protection

WORX WX675.1 - SYMBOLS - 6

Wear dust mask

WORX WX675.1 - SYMBOLS - 7

WORX WX675.1 - SYMBOLS - 8

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

OPERATION INSTRUCTIONS

WORX WX675.1 - OPERATION INSTRUCTIONS - 1

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The power tool is intended for sawing and remodelling wooden materials, plastic, plaster, non-ferrous metals and fasteners (e.g. nails and clamps) as well as for working on soft wall tiles and for dry grinding of small surfaces. It is especially suitable for working close to edges and for flush cutting.

1. MOUNTING ACCESSORIES

WORX WX675.1 - MOUNTING ACCESSORIES - 1

CAUTION: For all work or when

changing accessories, always wear

protective gloves. Avoid danger of injury from the sharp edges of the accessories.

Accessories can become very hot while working, presenting danger of burns! Make sure the tool is unplugged prior to changing accessories.

WORX WX675.1 - MOUNTING ACCESSORIES - 2

WARNING: To reduce the risk of injury, do not let the sharp side of the

accessory face back toward the user's hand.

The tool free system makes you change the accessories without using an Allen key.

1) For the WORK universal accessories
- Flip the Hyperlock™ Accessory Clamping Lever forward to the open position (See Fig. A).
- Rotate the Lever counterclockwise to loosen the Flange (See Fig. B).
- Insert the accessory onto the Universal Fit™ Accessory Interface, then press down the Flange with finger to keep blade temporarily secure (See Fig. B).
- Rotate the Lever clockwise until accessory is tightened Securely (See Fig. C).
- Flip lever back down (See Fig. C).
- Return lever to seated position (See Fig. C).
2) For all other branded oscillation tool accessories (Including original WORKSonicrafter) the flange must be completely removed to use these accessories (See Fig. D).

2. MOUNTING/CHANGING THE SANDING SHEET (See Fig. E)

Align the sanding sheet and press it onto the sanding pad by hand.

Firmly press the power tool with the sanding sheet against a flat surface and briefly switch the power tool on. This provides for good adhesion and prevents premature wear.

If one point has become worn, pull off the sanding sheet, turn it 120^ and place it on again.

NOTE: For other various brands' sanding pad, use small flange provided.

3.MOUNTING THE SUCTION DEVICE (See Fig. F-J)

When vacuuming, mount the suction device as shown in F-J.

NOTE: Using the sanding pad perforated. You can only do the vacuuming after fitting the dust collector.

To start the machine, push the On/Off switch forward so that the "1" is indicated on the switch.

To switch off the machine, push the On/Off switch toward the rear so that the "0" is indicated on the switch.

5 USING THE VARIABLE SPEED DIAL

Select oscillation frequency (speed) while the motor is running.

The Variable Speed Dial can be used to set the optimum oscillating frequency according to the accessories used and the respective application.

High oscillation frequency:

Sawing, rasping and polishing stone and metal.

Low oscillation frequency:

Sanding, scraping, polishing varnishes.

6. SECURING THE WORKPIECE

WORX WX675.1 - SECURING THE WORKPIECE - 1

CAUTION: Before working with your tool make sure that no power cords will be damaged.

APPLICATION

WORX WX675.1 - APPLICATION - 1

WARNING: The sawing teeth are very sharp. Do not touch during mounting and application. The workpiece must be clamped tightly before it is cut.

Pic NameApplication
SawingUniversal Metal/Wood End Cut Blade.Wood, plastic, fiberglass, nails, non-ferrous metals, thin sheet metal, hardened fillers.
Standard Wood End Cut Blade.Wood, plastic, drywall.
Precision Wood Cut Blade. Woodsoft plastics.
HSS Semicircle Saw Blade.Thin wood, plastic, fiberglass, non-ferrous metals, thin sheet metal, hardened fillers, window glazing.
SandingSanding Pad (Perforated).Wood, plastic, hardened fillers.
Sanding Finger Pad.Wood, plastic, hardened fillers.
RaspingTriangular Carbide Grit Rasp,Wood, hardened adhesives, , thin set, masonry.
Carbide Rasp (Finger Shaped).Wood, hardened adhesives, thin set, masonry.
Removing groutCarbide Grit Semicircle Saw Blade.Grout, porous concrete, masonry.
Diamond-Coated Semicircle Saw Blade.Ceramic and stone tile, backerboard.
ScrapingRigid Scaper Blade.Old paint, hardened adhesives, caulk, carpet.
Flexible Scaper Blade.Elastic sealants, paint, adhesive residues, carpet.

NOTE: When plunging and sawing use a slight pendulum motion, to allow sufficient chip removal. The saw blade lasts longer if the wear is distributed evenly. To ensure an even distribution, loosen the saw blade, rotate it and retighten firmly. Cut/Sand with a constant movement and light pressure. Heavy pressure does not increase the cut/removal rate – the accessory merely wears faster. Excessive use and heat build up drastically reduces the life of Sonicrafter (& other branded) saw blades.

WORKING HINTS FOR YOUR TOOL

If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp.

Always ensure the workpiece is firmly held or clamped to prevent movement.

Any movement of the material may affect the quality of the cutting or sanding finish.

Start your tool before working and turn it off only after you stop working.

Do not start sanding without having the sandpaper fitted.

Do not allow the sandpaper to wear away, it will damage the sanding pad. The guarantee does not cover sanding pad wear and tear.

Use coarse grit paper to sand rough surfaces, medium grit for smooth surfaces and fine grit for finishing surfaces. If necessary, first make a test run on scrap material.

Excessive force will reduce the working efficiency and cause motor overload.

Replacing the accessory regularly will maintain optimum working efficiency.

MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ENVIRONMENTAL PROTECTION

WORX WX675.1 - ENVIRONMENTAL PROTECTION - 1

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

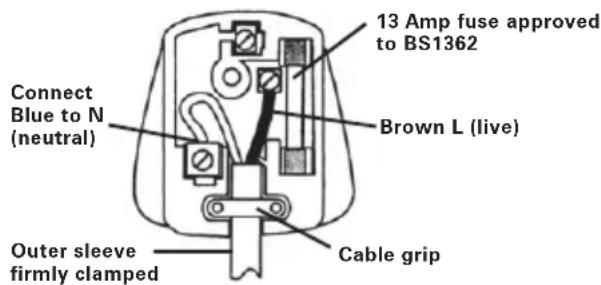

PLUG REPLACEMENT (UK & IRELAND ONLY)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

Blue - Neutral

Brown - Live

As the colors of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.

WORX WX675.1 - Brown - Live - 1

WARNING: Never connect live or

neutral wires to the earth terminal of the. 10N Only fit an approved BS1363/A plug and is correct rated fuse.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

WORX WX675.1 - Brown - Live - 2

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Sonicrafter

Type WX675 WX675.1 (6 - designation of machinery, representative of high frequency oscillation tool)

Function Sanding, sawing, rasping, scraping, polishing

Complies with the following directives, Machinery directive 2006/42/EC

Electromagnetic compatibility directive

2004/108/EC

RoHS directive 2011/65/EU

Standards conform to

EN 55014-1

EN 55014-2

EN 61000-3-2

EN 61000-3-3

EN 60745-1

EN 60745-2-4

The person authorized to compile the technical file,

Name Russell Nicholson

Address Positec Power Tools (Europe)

Ltd, PO Box 152, Leeds, LS10 9DS, UK

WORX WX675.1 - DECLARATION OF CONFORMITY - 1

WORX WX675.1 - DECLARATION OF CONFORMITY - 2

2012/11/19

Leo Yue

POSITEC Quality Manager
