USER MANUAL WX696.9 WORX

B2 ② ↓① ↓③

B3 ② ↓① ↓③

C WORK

D WORX 20

E IWORK IWORKX

F ONOFF Sonicafter

G POWER SHARE 6

H1 ① ②

H2 MORX

Diagram of a device with warning symbols and a light indicator, showing a camera lens and battery pack.

TABLE OF CONTENTS

1. PRODUCT SAFTY
2. COMPONENT LIST
3. TECHNICAL DATA
4. OPERATING INSTRUCTIONS
5. WORKING HINTS FOR YOUR TOOL
6. MAINTAIN TOOLS WITH CARE
7. ENVIRONMENTAL PROTECTION
8. DECLARATION OF CONFORMITY

1. PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does

not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified

batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTION FOR CUTTING

Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.

SYMBOL

	To reduce the risk of injury, user must read instruction manual
	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask

	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
	Li-lon battery This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Avoid danger of injury from the sharp edges of the accessories.
	Accessories can become very hot while working, presenting danger of burns!
	Make sure the battery is removed prior to changing accessories.
	Wear protective gloves.
	High oscillation frequency:
	Low oscillation frequency:
	Lock
	Unlock
	LED light is a battery capacity indicator and will flash when power gets low.

2. COMPONENT LIST

1. ON/OFF SWITCH

2. BATTERY PACK\*

3. VARIABLE SPEED DIAL

4. UNIVERSAL-FIT ACCESSORY INTERFACE\*\*

5. LED LIGHT

6. FLANGE

7. ONBOARD HEX WRENCH

*Not all the accessories illustrated or described are included in standard delivery.

**Works with other oscillating tool brands' accessories.

The following brands are trademarks owned by third parties which may be registered by their respective owners:

Black & Decker ^® , Bosch ^ , Chicago Electric ^ , Craftsman ^ , Dremel ^ , DeWalt ^ , Fein ^ , Genesis ^ , Imperial Blades, Makita ^ , Mastercraft ^ , Milwaukee ^ , Performax ^ , Porter Cable ^ , Ridgid ^ , Ryobi ^® , Skil ^ , Rockwell ^® and Tool Shop ^* .

3. TECHNICAL DATA

Type Designation WX696 WX696.X (6-designation of machinery, representative of Oscillating Tool)

	WX696 WX696.X****
Voltage 20 V	Max^***
Oscillations speed 5000 - 18	000 /min
Oscillating angle 3.6°
Machine weight (Bare tool)	0.9 kg

***Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
****X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models

Category Type Capacity
20V Battery WA3	550 1.5Ah
	WA3550.1 1.5Ah
	WA3551 2.0Ah
	WA3551.1 2.0Ah
	WA3553 4.0Ah
20V Charger	WA3760	0.4A
	WA3869	2.0A
	WA3880 2.0A

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOISE INFORMATION

A weighted sound pressure	L_pA : 73.0dB(A)
A weighted sound power	L_wA : 84.0dB(A)
K_pA & K_wA	3 dB(A)

Wear ear protection.

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Vibration emission value:

$$ a _ {h} = 2. 8 0 5 \mathrm{m} / \mathrm{s} ^ {2} \text { Uncertainty } K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

WARNING: The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained. The use of the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti-vibration and noise accessories are used. And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration and noise exposure risk.

Always use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration and noise accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

Operating the On/Off Switch See Fig. F

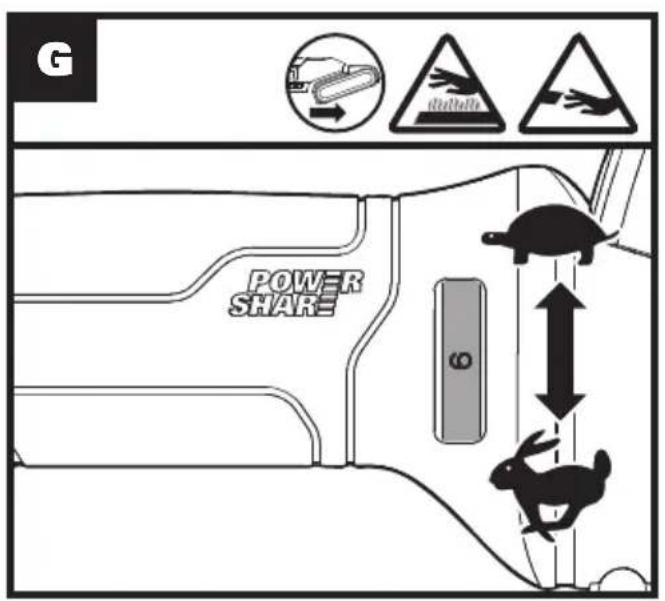

Using the Variable Speed Dial See Fig. G

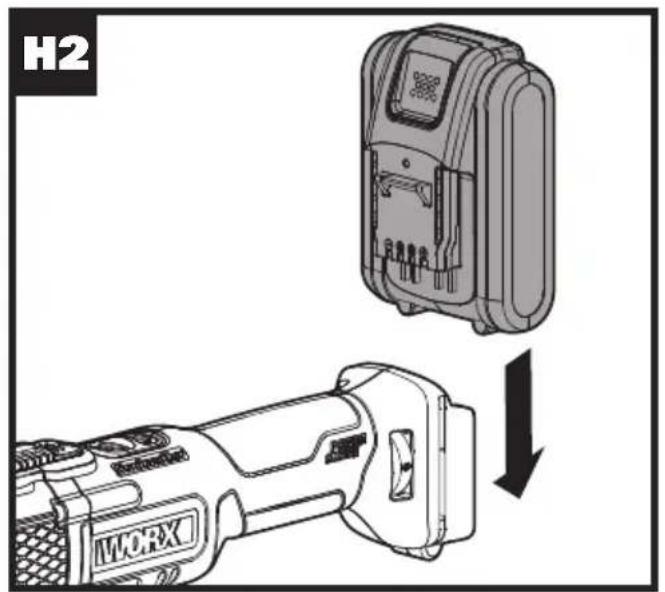

Remove or Install Battery Pack	See Fig.H1,H2

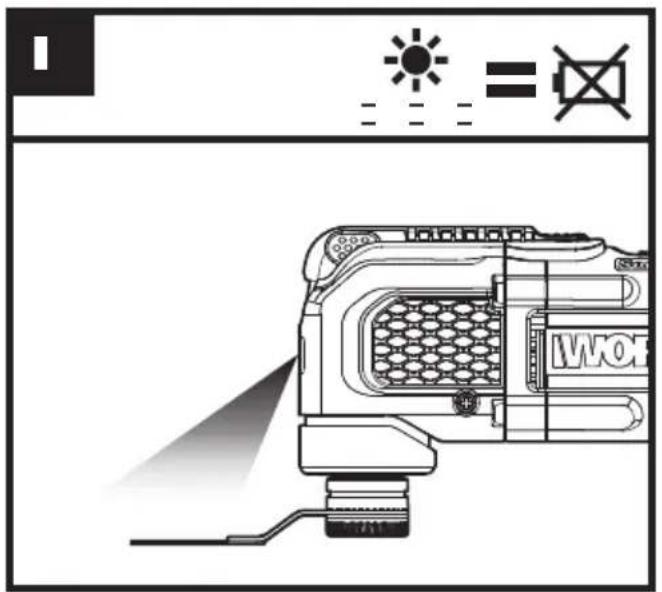

LED Light See Fig.I

The Variable Speed Dial can be used to set the optimum oscillating frequency according to the accessories used and the respective application.

Oscillation frequency	Application
High oscillation frequency:	Sanding, sawing, rasping and polishing stone and metal.
Low oscillation frequency:	Scraping, polishing varnishes.

4. OPERATION

INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

INTENDED USE

The power tool is intended for sawing and remodeling wooden materials, plastic, plaster, non-ferrous metals and fasteners (e.g. nails) as well as for working on soft wall tiles and for dry grinding of small surfaces. It is especially suitable for working close to edges and for flush cutting.

ASSEMBLY AND OPERATION

ACTION FIGURE
Mounting Accessories
--Remove the Onboard hex wrench	See Fig. A

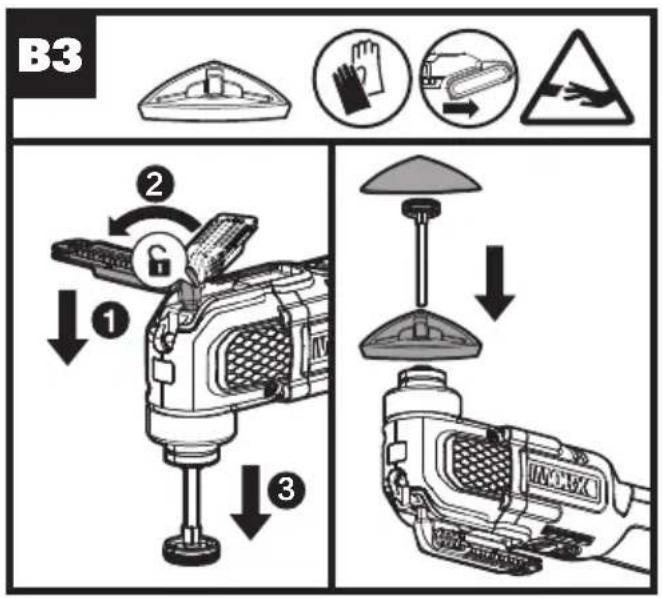

--Loosen the flange and insert accessories	See Fig. B1, B2, B3

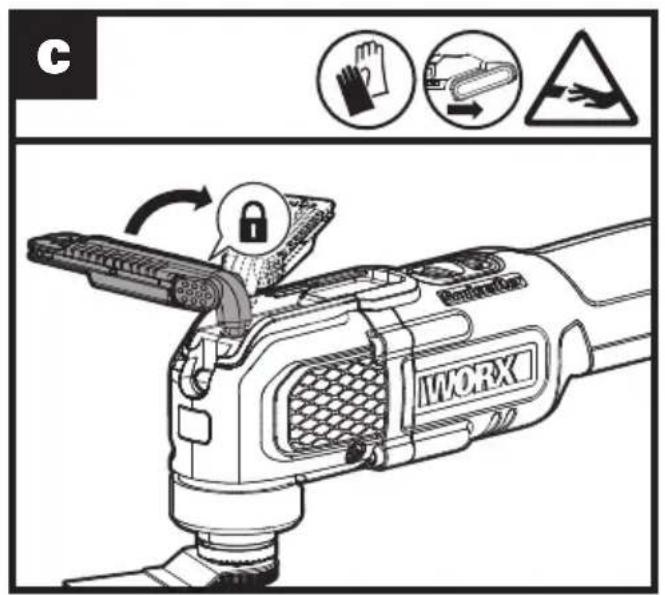

--Tighten the flange See Fig. C

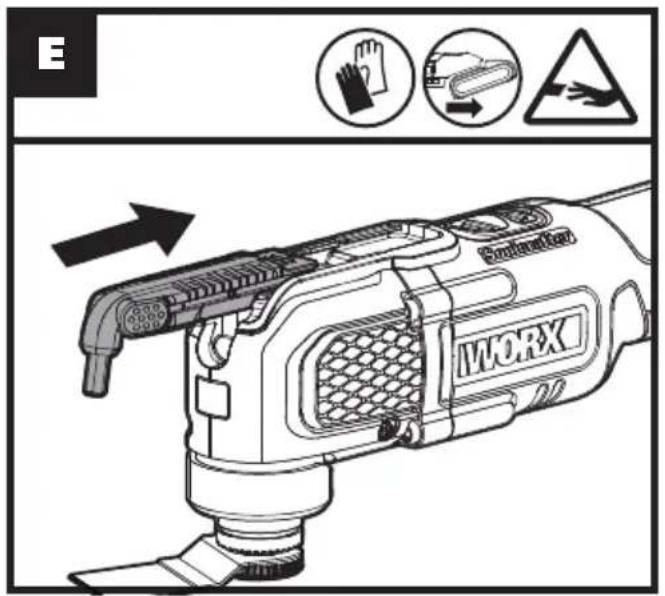

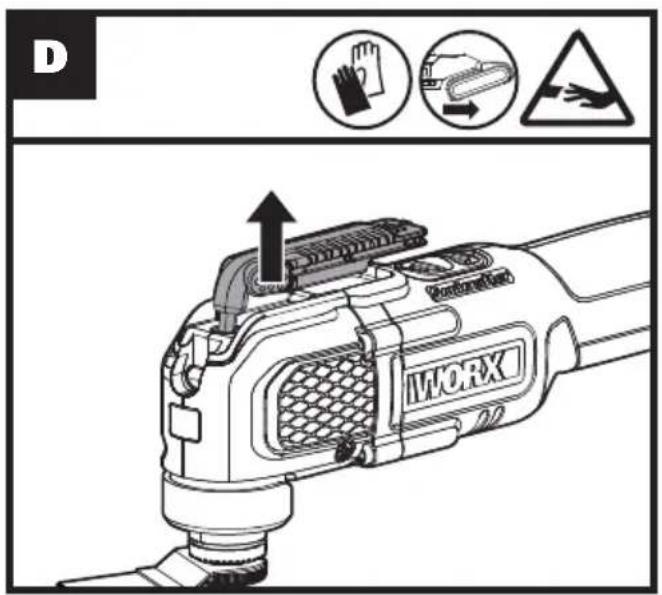

--Store the Onboard hex wrench See Fig. D, E

20V Cordless Oscillating Tool EN

APPLICATION

WARNING: the sawing teeth are very sharp. Do not touch during mounting and application. The workpiece must be clamped tightly before it is cut.

	Pic Description Application
Sawing		Universal Bimetal Metal/Wood End Cut Blade	Wood, plastic, fiberglass, nails, non-ferrous metals, thin sheet metal, hardened fillers
		Standard HCS Wood End Cut Blade	Wood, plastic, drywall
		Precision Japanese-style tooth Wood Cut Blade	Wood, soft plastics
		HSS Semicircle Saw Blade	Thin wood, plastic, fiberglass, non-ferrous metals, thin sheet metal, hardened fillers, window glazing
Sanding		Sanding Pad (Perforated) Wood, plastic, hardened fillers
		Sanding Finger Pad Wood, plastic, hardened fillers
Rasping		Triangular Carbide Grit Rasp	Wood, hardened adhesives, thin set, masonry
		Carbide Rasp (Finger Shaped)	Wood, hardened adhesives, thin set, masonry
Removing grout		Carbide Grit Semicircle Saw Blade	Grout, porous concrete, masonry
		Diamond-Coated Semicircle Saw Blade	Ceramic and stone tile, backer board

20V Cordless Oscillating Tool EN

Scraping		Rigid Scraper Blade	Old paint, hardened adhesives, caulk, carpet
		Flexible Scraper Blade	Elastic sealants, paint, adhesive residues, carpet.

We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOTE: When plunging and sawing use a slight pendulum motion, to allow sufficient chip removal.

The saw blade lasts longer if the wear is distributed evenly. To ensure an even distribution, loosen the saw blade, rotate it and retighten firmly.

Cut/Sand with a constant movement and light pressure.

Heavy pressure does not increase the cut/removal rate – the accessory merely wears faster.

5. WORKING HINTS FOR YOUR TOOL

If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run it with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Always keep the blade sharp.

Always ensure the workpiece is firmly held or clamped to prevent movement.

Any movement of the material may affect the quality of the cutting or sanding finish.

Start your tool before working and turn it off only after you stop working.

Do not start sanding without having the sandpaper fitted.

Do not allow the sandpaper to wear away, it will damage the sanding pad. The guarantee does not cover sanding pad wear and tear.

Use coarse grit paper to sand rough surfaces, medium grit for smooth surfaces and fine grit for finishing surfaces. If necessary, first make a test run on scrap material.

Excessive force will reduce the working efficiency and cause motor overload. Replacing the accessory regularly will maintain optimum working efficiency.

6. MAINTAIN TOOLS WITH CARE

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.

Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool.

7. ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your

Local Authority or retailer for recycling advice.

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0^ C- 45^ C.

The recommended ambient temperature range for the charging system during charging is 0^ C– 40^ C.

8. DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

Declare that the product,

Description Worx Sonicrafter

Type WX696 WX696.X (6-designation of machinery, representative of Oscillating Tool)

Function Sanding, sawing, rasping, scraping, polishing

Complies with the following Directives,

2006/42/EC

2014/30/EU

2011/65/EU&(EU)2015/863

Standards conform to

EN 62841-1

EN 62841-2-4

EN 55014-1

EN 55014-2

The person authorized to compile the technical file,

Name Marcel Filz Address Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany

A# C E

2020/01/03

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

SOMMAIRE

1. SÉCURITÉ DU PRODUIT
2. LISTE DES COMPOSANTS
3. CARACTÉRISTIQUES TECHNIQUES
4. FONCTIONNEMENT
5. ASTUCES CONCERNANT VOTRE OUTIL
6. ENTRETIEN
7. PROTECTION DE L'ENVIRONNEMENT
8. DÉCLARATION DE CONFORMITÉ

1. SÉCURITÉ DU PRODUIT AVERTISSEMENTS DE SÉCURITÉ GÉNÉRAUX POUR L'OUTIL

MISES EN GARDE POUR LA COUPE

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

8. DÉCLARATION DE CONFORMITÉ

Nous,

Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

SOMMARIO

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P.R. China

ÍNDICE

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

ÍNDICE

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

INHOUDSOPGAVE

1. PRODUCTVEILIGHEID
2. ONDERDELENLIJST
3. TECHNISCHE GEGEVENS
4. BEDIENINGSINSTRUCTIES
5. TIPS VOOR HET WERKEN MET UW APPARAAT
6. ONDERHOUD
7. BESCHERMING VAN HET MILIEU
8. CONFORMITEITVERKLARING

1. PRODUCTVEILIGHEID ALGEMENE

VEILIGHEIDSWAARSCHUWI- NGEN VOOR

VERMOGENSMACHINE

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

INDHOLDSFORTEGNELSE

1. PRODUKTSIKKERHED

2. AGGREGATELEMENTER

3. TEKNISKE DATA

4. BETJENINGSVEJLEDNING

5. ARBEJDSTIPS TIL STIKSAVEN

6. VEDLIGEHOLDELSE

7. MILJ∅BESKYTTELSE

8. KONFORMITETSERKLÆRING

1. PRODUKTSIKKERHED GENERELLE

SIKKERHEDSINSTRUKSER FOR EL-VAERKT∅J

ADVARSEL: Læs alle sikkerhedsadvarsler, instruktioner, illustrationer og

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNHOLDFORTEGNELSE

1. PRODUKTSIKKERHET
2. APPARATELEMENTER
3. TEKNISET TIEDOT
4. BRUKSVEILEDNING
5. TIPS FOR ARBEID MED DETTE REDSKAPET
6. VEDLIKEHOLD
7. MILJ∅VERNTILTAK
8. SAMSVARSERKLÆRING

1. PRODUKTSIKKERHET GENERELLE ADVARSLER FOR ELEKTROVERKT∅Y

Black & Decker, Bosch, Chicago Electric, Craftsman, Dremel, DeWalt, Fein, Genesis, Imperial Blades, Makita, Mastercraft, Milwaukee, Performax, Porter Cable, Ridgid, Ryobi, Skil, Rockwell and Tool Shop.

3. TEKNISET TIEDOT

Tyyppi WX696 WX696.X (6-betegnelse på maskiner, representant for oscilleringsverktøyet)

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNEHÅLLSFÖRTECKNING

1. PRODUKTSÄKERHET
2. KOMPONENTER
3. TEKNISK INFORMATION
4. BRUKSANVISNING
5. ARBETSTIPPS FÖR DIT VERKTYG
6. UNDERHÅLL
7. ML JÖSK Y D D
8. DEKLARATION OM ÖVERENSSTÄMMELSE

1. PRODUKTSÄKERHET GENERELLA SÄKERHETSVARNINGAR FÖR ELVERKTYG

5. ARBETSTIPPS FÖR DIT VERKTYG

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

SPIS TREŚCI

1. BEZPIECZEŃSTWO PRODUKTU
2. LISTA KOMPONENTÓW
3. DANE TECHNICZNE
4. INSTRUKCJE OBSŁUGI
5. PORADY DOTYCZĄCE PRACY Z NARZĘDZIEM
6. KONSERWACJA
7. OCHRONA ŚRODOWISKA
8. DEKLARACJA ZGODNOŚCI

1. BEZPIECZEŃSTWO PRODUKTU OGÓLNE OSTRZEŻENIA DOTYCZĄCE BEZPIECZEŃSTWA PODCZAS PRACY Z ELEKTRONARZĘDZIAMI

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

TARTALOMJEGYZÉK

1. TERMÉKBIZTONSÁG
2. AZ ALKATRÉSZEK LISTÁJA
3. MÜSZAKI ADATOK
4. HASZNÁLATI UTASÍTÁSOK
5. TANÁCSOK A SZERSZÁMMAL VÉGZETT MUNKÁHOZ
6. KARBANTARTÁS
7. KÖRNYEZETVÉDELEM
8. MEGFELELŐSÉGI NYILATKOZAT

1. TERMÉKBIZTONSÁG ELEKTROMOS

KÉZISZERSZÁMOK

BIZTONSÁGOS

HASZNÁLATÁVAL

KAPCSOLATOS ÁLTALÁNOS

FIGYELMEZTETÉSEK

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P.R. China

CUPRINS

1. SECURITATEA PRODUSULUI
2. LISTĂ DE COMPONENTE
3. DATE TEHNICE
4. INSTRUCTIUNI DE UTILIZARE
5. SFATURI PRIVIND UTILIZAREA INSTRUMENTULUI
6. ÎNTRETINERE
7. PROTECTIA MEDIULU
8. DECLARATIE DE CONFORMITATE

1. SECURITATEA PRODUSULUI AVERTISMENTE GENERALE DE SIGURANTĂ PENTRU UNELTE ELECTRICE

INSTRUCTIUNI DE SIGURANTĂ PENTRU TĂIERE

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

OBSAH

1. BEZPEČNOST VÝROBKU
2. SEZNAM SOUČÁSTÍ
3. TECHNICKÉ ÚDAJE
4. NÁVOD K POUŽIT
5. TIPY PRO PRÁCI S NÁSTROJEM
6. PROVÁDĚJTE PEČLIVOU ÚDRŽBU NÁSTROJŮ
7. OCHRANA ŽIVOTNÍHO PROSTŘEDÍ
8. PROHLÁŠENÍ O SHODĚ

1. BEZPEČNOST VÝROBKU OBECNÁ BEZPEČNOSTNÍ UPOZORNĚNÍ PRO ELEKTRICKÉ NÁSTROJE

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

OBSAH

1. BEZPEČNOST VÝROBKU
2. ZOZNAM SÚČASTÍ
3. TECHNICKÉ ÚDAJE
4. NÁVOD NA POUŽITIE
5. TIPY NA PRÁCU S NÁSTROJOM
6. ÚDRŽBA
7. OCHRANA ŽIVOTNÉHO PROSTREDIA
8. VYHLÁSENIE O ZHODE

1. BEZPEČNOST VÝROBKU VŠEOBECNÉ BEZPEČNOSTNÉ UPOZORNENIA

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

KAZALO VSEBINE

1. VARNOST IZDELKA
2. SESTAVNI DELI
3. TEHNIČNI PODATKI
4. NAVODILA ZA UPORABO
5. NAPOTKI ZA UPORABO ORODJA
6. VZDRŽEVANJE
7. VAROVANJE OKOLJA
8. IZJAVA O SKLADNOSTI

1. VARNOST IZDELKA SPLOŠNA VARNOSTNA OPOZORILA

18, Dongwang Road, Suzhou Industrial Park,

Jiangsu 215123, P.R. China

Completely black image with no visible content, text, or symbols.

WORX

you've got the power

www.worx.com

Copyright © 2021, Positec. All Rights Reserved.
