USER MANUAL DW311 DEWALT

RECIPROCATING SAW DW310/DW311K

Congratulations!

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical data

DV310 DW311K
Voltage V 230 230
(U.K. & Ireland only) V 230/115 230/115
Power input W 1,200 1,200
No-load speed 0 - 2,600 0 - 2,600
Stroke length mm 28 28
Cutting capacity in wood/ mm 300/130/ 300/130/
metal profiles/plastic tubes	160 160
Weight	kg 4.2 4.2

Fuses:
Europe	230 V tools 10 Amperes, mains
U.K. & Ireland	230 V tools 13 Amperes, in plugs
U.K. & Ireland	115 V tools 16 Amperes, mains

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observation of the instructions in this manual.

Denotes risk of electric shock.

EC-Declaration of conformity

DW310/DW311K

DEWALT declares that these power tools have been designed in compliance with: 98/37/EC, 89/336/EEC, 73/23/EEC, 86/188/EEC, EN 60745, EN 55014-2, EN 55014-1, EN 61000-3-2 & EN 61000-3-3.

For more information, please contact DEWALT at the address below, or refer to the back of the manual.

Level of sound pressure:

		DW310QS	DW311K-QS	DW311-LX
LpA (sound pressure)	dB(A) 89 90		89
LWA (acoustic power)	dB(A) 100		101	100
KpA (sound pressure uncertainty)	dB(A) 3		3	3
KW (acoustic power uncertainty)	dB(A) 3		3	3

Weighted root mean square acceleration value:

	DW310-QS	DW311K-QS	DW311-LX
Measured according to EN 50144	m/s2	11.7	18.5
Measured according to EN 60745	m/s2	21,51)	24,62)

1) measurement uncertainty: 9.0m / s^2
2) measurement uncertainty: 10.9m / s^2
3) measurement uncertainty: 9.8m / s^2

Director Engineering and Product Development Horst Großmann

X. fgsmaen

General safety rules

Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term „power tool“ in all of the warnings listed below refers to your mains operated (cored) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS.

1 Work area

a Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 Electrical safety

a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3 Personal safety

a Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.

d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

4 Power tool use and care

a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5 Service

a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional safety rules for cutsaws

Switching on and off

• After switching off, never attempt to stop the saw blade with your fingers.
• Never put the saw down on a table or work bench unless switched off. The saw blade will keep running briefly after the tool has been switched off.

When sawing

• When using saw blades specially designed for cutting wood remove all nails and metal objects from the workpiece before starting work.
• Wherever possible, use clamps and vices to fasten the workpiece securely.
• Do not attempt to saw extremely small workpieces.
• Do not bend too far forward. Make sure that you always stand firmly, particularly on scaffolding and ladders.

• Always hold the saw with both hands.

• For cutting curves and pockets, use an adapted saw blade.

Checking and changing the saw blade

• Only use saw blades conforming to the specifications contained in these operating instructions.
• Only sharp saw blades in perfect working condition should be used; cracked or bent saw blades should be discarded and replaced at once.
• Ensure that the saw blade is securely fixed.

Package contents

The package contains:

1 Reciprocating saw
1 General purpose saw blade set
1 Kitbox (K-models only)
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your DW310/DW311K reciprocating saw has been designed for professional sawing of wood, metal and tubes. The compact design permits cutting extremely close to the edge of difficult areas.

1 Variable speed switch
2 Speed control dial (DW311K)
3 Pendulum stroke selector (DW311K)
4 Blade holder
5 Saw shoe
6 Shoe release lever
7 Blade clamp collar

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DeWALT tool is double insulated in accordance with EN 60745; therefore no earth wire is required.

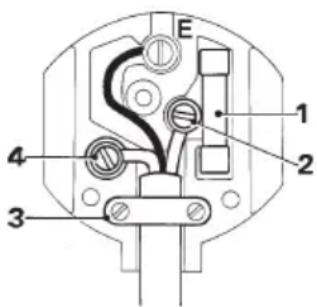

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

Never use a light socket.
Never connect the live (L) or neutral (N) wires to the earth pin marked E or 1三

For 115V units with a power rating exceeding 1500W , we recommend to fit a plug to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this machine (see technical data). The minimum conductor size is 1.5mm^2 . The cable has to have a rubber jacket and a grounding conductor.

When using a cable reel, always unwind the cable completely.

Also refer to the table below.

Conductor size (mm2) Cable rating (Amperes)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
Cable length (m)
7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
1 1	5	0	-	2	.	0	6	6
	2.1 -	3.4	6 6	6 6	15 15
	3.5 -	5.0	6 6	10 15	20 20
	5.1 -	7.0	10 10	15 20	20 25
	7.1 -	12.0	15 15	20 25	25	-
	12.1 -	20.0	20	20	25	-	-	-
230	0 -	2.0	6	6	6	6	6	6
	2.1 -	3.4	6	6	6	6	6	6
	3.5 -	5.0	6 6	6 6	10 15
	5.1 -	7.0	10 10	10 10	15 15
	7.1 -	12.0	15 15	15 15	20 20
	12.1 -	20.0	20 20	20 20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

Mounting the saw blade (fig. B)

• Open the blade clamp collar (7) to release the blade clamping mechanism.
• Insert the saw blade (8) into the holder (4) until it engages. The blade can be installed with the teeth pointing down or up.
• Close the blade clamp collar (7) to lock the blade clamping mechanism.
• To remove the saw blade, proceed in reverse order.

Saw blades

material	recommended saw blade
ferrous metal	fine-toothed
non ferrous metal	coarse-toothed
wood	coarse-toothed
plastic	fine-toothed
masonry carbide-tipped

A wide variety of dedicated saw blades is available as an option.

Always select your saw blade with great care.

Setting the adjustable saw shoe (fig. C)

The saw shoe can be adjusted to limit the depth of cut and prolong the life of your saw blade.

• Push the release lever (6) down.
• Slide the saw shoe (5) into the desired position.
• Push the lever up to secure the shoe in place.

DW311K - Setting the pendulum stroke (fig. D)

The adjustable pendulum stroke guarantees a perfect cutting stroke for different materials. The tool can be used in the following operating modes:

Straight reciprocating motion: for cutting metal and tubes and for finishing wood.

Orbital motion: for fast cutting of wood.

• Turn the selector (3) into the required position aligning the mark (9) with the arrow (10).

Instructions for use

• Always observe the safety instructions and applicable regulations.
• Ensure the material to be sawn is secured in place.
• Apply only a gentle pressure to the tool and do not exert side pressure on the saw blade. If possible, work with the saw shoe pressed against the workpiece. This prevents damage to the blade and stops the tool from jerking and vibrating.
• When sawing in walls or floors be aware of the location of pipework and wiring. Always hold the tool by its handle.
• Avoid overloading.
• Let the blade run freely for a few seconds before starting the cut. Never switch on the tool when the saw blade is jammed in the workpiece or in contact with the material.

Prior to operation:

• Mount the appropriate type of saw blade.

Use narrow saw blades for cutting curves.

Use flexible bimetal saw blades for hard-to-reach positions (e.g. close to walls, etc.).

Switching on and off (fig. A)

• To run the tool, press the variable speed switch (1). The pressure exerted on the variable speed switch determines the tool speed.
• To stop the tool, release the switch. Always switch off the tool when work is finished and before unplugging.

DW311K - Setting the electronic sawing speed (fig. A)

The speed control dial (2) can be used for advance setting of the required range of speed.

• Turn the electronic speed control dial to the required level. The required setting depends on the thickness and kind of material.
• Use high speeds for sawing soft materials such as wood. Use low speeds for sawing metal.

After using the tool for an extended period on low speed settings, run it for approx. 3 minutes on maximum no-load speed.

Cutting wood

• Clamp the workpiece securely and remove all nails and metal objects.
• Holding the tool with both hands, work with the saw shoe pressed against the workpiece.

Plunge cutting in wood (fig. E)

• Rest the saw shoe on the workpiece in such a position that the blade forms an appropriate angle for the plunge cut.
• Switch the tool on and slowly feed in the blade.
  Make sure that the saw shoe remains in contact with the workpiece at all times.

Pocket cuts

• Measure and mark the required pocket cut.

• Using a narrow saw blade rest the bottom of the saw shoe on the workpiece and make sure that the blade is positioned on the cutting line. If necessary, e.g. in confined spaces, use the outer edge of the saw shoe as your guideline.

• Switch on the tool and feed the blade into the material at full speed, holding the tool firmly against the workpiece.

Dust extraction

• When the tool is used indoor for extended periods of time, use a suitable dust extractor designed in compliance with the applicable Directives regarding dust emission.

Cutting metal

• When cutting thin metal always stabilize the workpiece with wood on both sides. This guarantees clean cuts and prevents damaging of the material.
• For long, straight cuts draw a line on the workpiece.
• Apply a thin film of lubricant along the cutting line, switch on the tool and follow the cutting line.

Cutting plastics

• Always work at reduced speed. Carry out a test cut to check whether the material is sensitive to heat.

Cutting masonry

When sawing asbestos cement hazardous dust may be produced. Follow the statutory guidelines and observe the recommendations issued by the asbestos cement manufacturers.

Sawing up to a projecting edge (fig. F)

• Using a conventional blade installed upside down, cut up to the projected edge.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DeWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

• If the tool will not be used for a long period of time, coat the saw blade with a little oil (e.g. machine oil).

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DeWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DeWALT provides a facility for the collection and recycling of DeWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

GUARANTEE

30 DAY NO RISK SATISFACTION GUARANTEE

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

ONE YEAR FREE SERVICE CONTRACT

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

- ONE YEAR FULL WARRANTY

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

The product has not been misused.
- Repairs have not been attempted by unauthorized persons.
Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.

SIERRALTERNATIVE DW310/DW311K

Enhorabuena!

Director Engineering and Product Development Horst GroBmann

X. fgsmaa

L'emballage contient:

RECIPRO-ZAAGMACHINE DW310/DW311K

Gefeliciteerd!

Director Engineering and Product Development Horst GroBmann

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Duitsland

Director Engineering and Product Development Horst Großmann

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Tyskland

- 1 ARS FRI VEDLIKEHOLDSERVICE

Director Engineering and Product Development Horst Großmann

Director Engineering and Product Development Horst Großmann

Director Engineering and Product Development Horst GroBmann

DeWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Tyskland

ΦYΛΑΕTE AYTE Σ TΙΣ OΔHΓIΕΣ.

1Xwpoεpyaia

a DiatnpesitE to xwpo nou epyaZeOe Kaapo kai kaia . H ataia oTo xwpo nou epyaZeOe kai ta onueia xwpiKaIo mopci va odnynoov o aTuXnmaT.
6 Mn xpnoiopoieiTa nEeKtpika epyaia 0e npiaov onou unapxikivduoc eknpns, n.x. napouoia eupkTsw uypw, aepiw n okvns. Ta nEeKtpka epyaia mopvi va oinyosov otivnpoo o oioic npoei va avapExi tn okovn ti cavauuaiaeis.
y Otav xpnoiopoioiTe To nAekptiko epyaiaio, Kpatate Ta naiia kai ta unoloina atoua paKpi aTo xwpo nou epyaZeOe.
