Product type	Circular saw
Brand	DeWalt
Model	DWS774
Dimensions (L x W x H)	300 x 250 x 300 mm
Weight	5.0 kg
Power supply	Corded, 230 V ~ 50 Hz, 1600 W
No-load speed	5500 rpm
Blade diameter	184 mm
Max cutting depth	64 mm at 90°, 44 mm at 45°
Miter capacity	0° to 50° tiltable
Main functions	Cross cut, miter cut, bevel cut, adjustable depth
Safety devices	Anti-kickback protection, two-position trigger, adjustable protective guard
Maintenance and cleaning	Clean the blade and ventilation slots after each use, check carbon brushes every 50 hours
Spare parts and repairability	Replacement blades 184 mm, carbon brushes, parallel guide, blade wrench
Warranty	1 year manufacturer
General information	Made in China, sound level 98 dB(A), vibration 2.5 m/s²

Frequently Asked Questions - DWS774 DEWALT

What is the blade diameter of the DeWalt DWS774 circular saw?

The blade diameter is 184 mm. Use only blades compatible with this diameter.

How to adjust the cutting depth on the DWS774?

Loosen the depth adjustment lever, place the shoe at the desired depth using the scale, then tighten the lever.

Does the DWS774 saw have a blade brake?

Yes, the DWS774 is equipped with an electric blade brake that stops the blade within seconds after releasing the trigger.

How much power does the DeWalt DWS774 consume?

The rated power is 1600 W at 230 V. Make sure your electrical installation supports this load.

How to replace the carbon brushes of the DWS774?

The carbon brushes are accessible through the side caps. Unscrew them, remove the old brushes and insert the new ones. Respect the mounting direction.

Can the DWS774 be used to cut metal?

No, this saw is designed for wood and derived materials. Using it on metal would damage the blade and the machine.

What is the noise level of the DeWalt DWS774 circular saw?

The sound pressure level is about 98 dB(A). Wear hearing protection when using it.

How to clean the cutting blade?

Unplug the tool, remove the blade and clean it with a cloth moistened with mild solvent. Avoid abrasive products.

Can the DWS774 be used with a vacuum cleaner?

Yes, it has a 35 mm dust extraction port to connect a suitable vacuum cleaner.

What are the warranty conditions of the DeWalt DWS774?

DeWalt offers a 1 year warranty against manufacturing defects. Keep the proof of purchase and register your product online.

USER MANUAL DWS774 DEWALT

Technical line drawing of a Denali-Mc power tool (no text or symbols present)

DWS773

DWS774

www.DeWALT.com

3

4

5

6

7

8

1

13

English (original instructions) 37

Icon of a person reading a book inside a circle with an arrow, symbolizing work or information (no text present)

Simple line drawing of a human figure with glasses and mustache (no text or symbols)

Pure electrical circuit lines without any symbols

250 - 300 Lux

DEWALT

Line drawing of a person using a mechanical device on a platform (no text or symbols)

Technical illustration of a mechanical device with hand gestures and close-up insets showing internal components (no text or symbols)

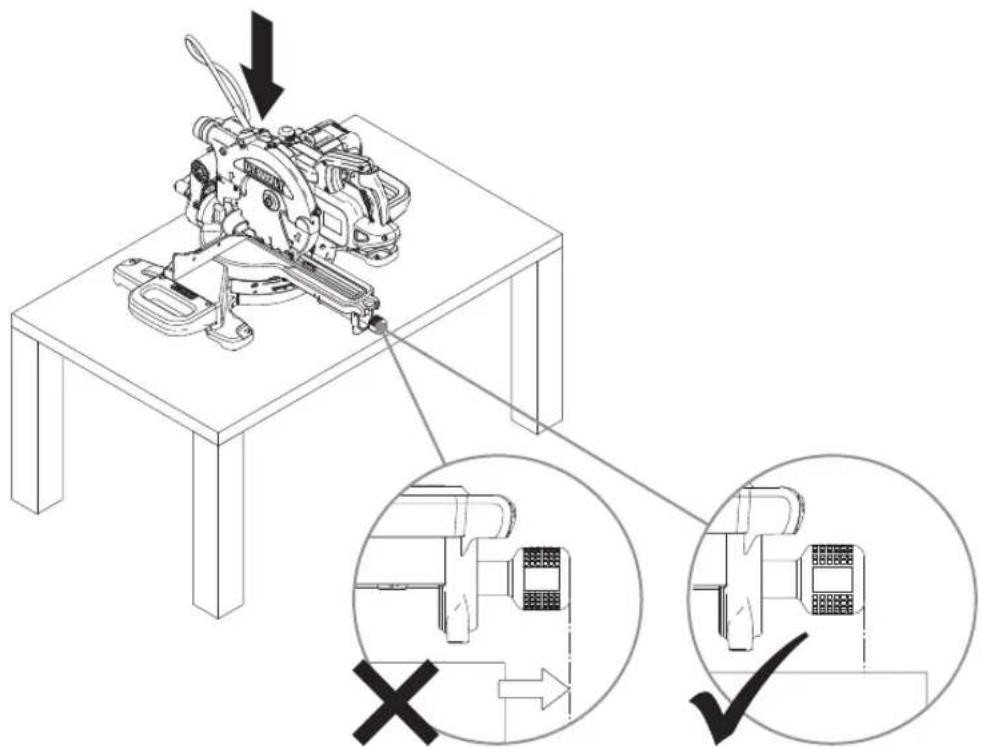

Simple line drawing of a table with a checkmark symbol (no text or labels)

1

Line drawing of a mechanical device on a table, no text or symbols present

i

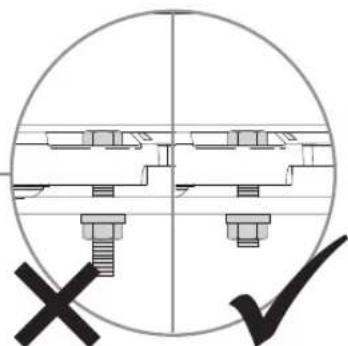

Mechanical assembly diagram showing a bolt and nut inserted into a housing component, with no visible text or symbols.

Cross-sectional diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a cutting machine with a saw blade and blade assembly (no text or symbols)

1

2

3

4

Technical line drawing of a mechanical assembly with no visible text or symbols

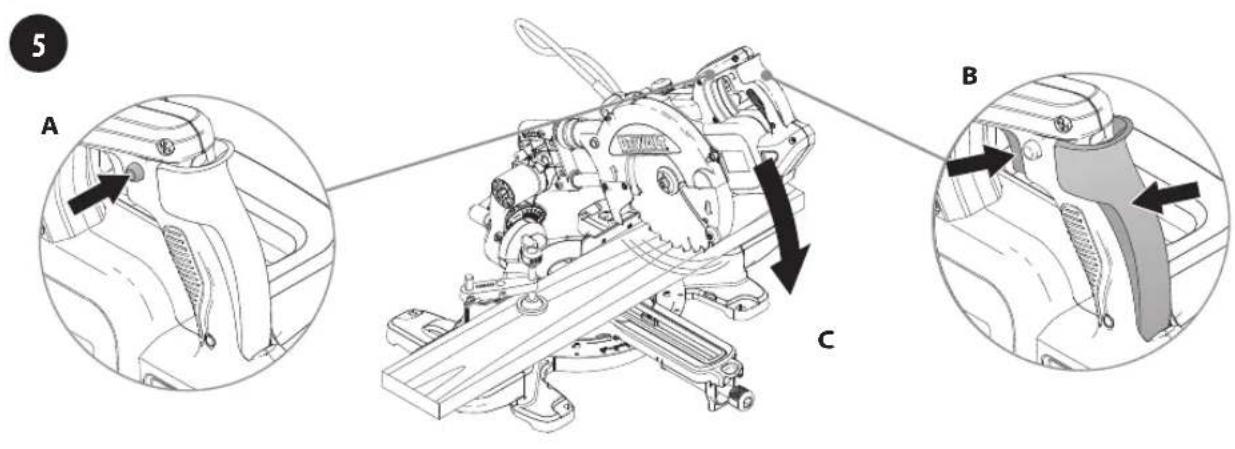

5

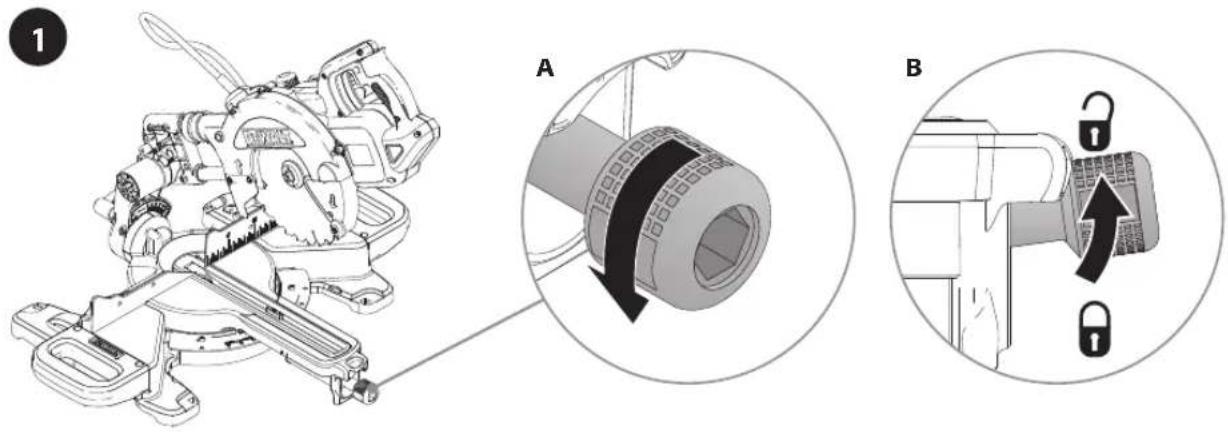

1

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and motion arrows (no text or symbols beyond labels)

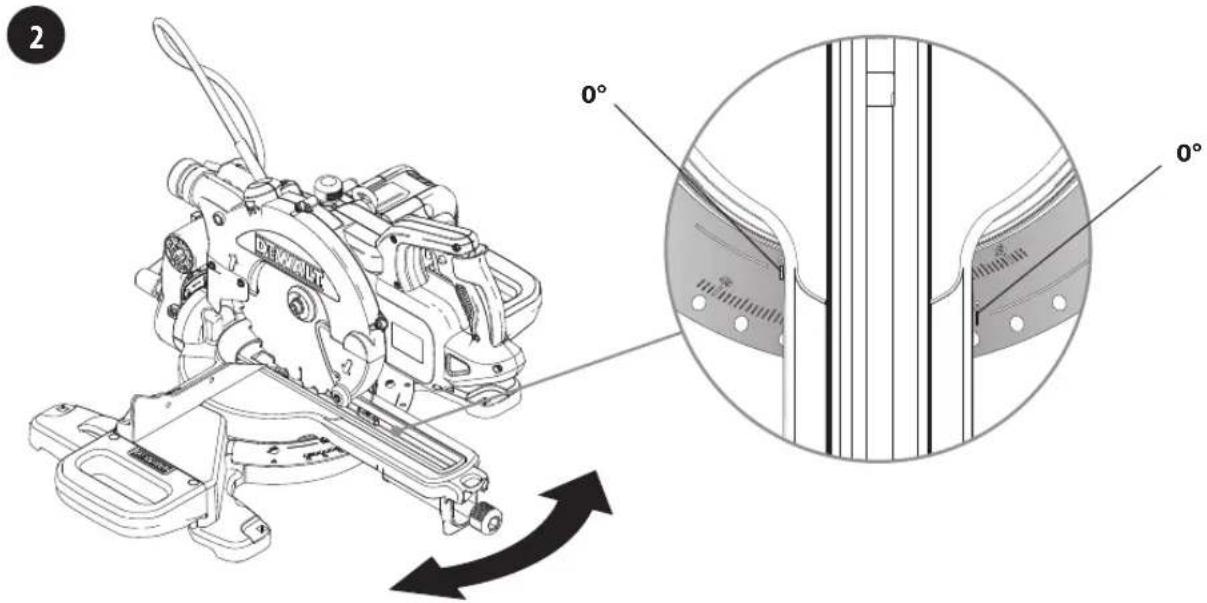

2

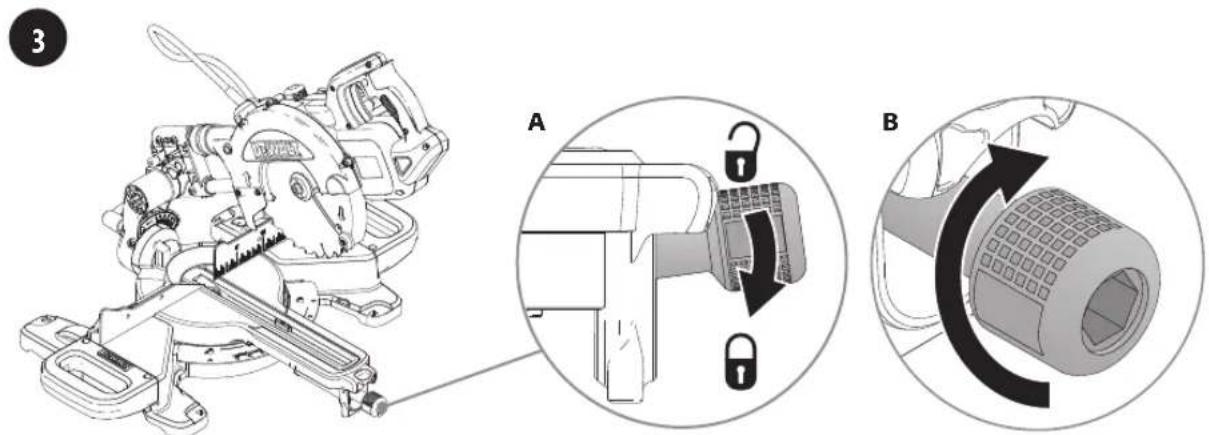

3

Technical illustration of a mechanical assembly with two views (A and B) showing internal components and alignment arrows, no text or symbols present.

Three black-and-white warning symbols: warning triangle, hand with lightning bolt, and electrical plug (no text or labels)

i

β

GERINGSSAV TIL TVÆRSNIT DWS773, DWS774

TEKNISKE DATA

		DWS773 DWS774
Spænding:
Europa V 230 230
U.K. & Irland V 230/115 230/115
Sikringer:
Europa230 V	A	10(elnet)	10(elnet)
U.K. & Irland230 V	A	13(i propper)	13(i propper)
U.K. & Irland115 V	A	16(elnet)	16(elnet)
Type 1 1
Effektindgang W 1300 1400
Klingediameter mm 216 216
Klingens borehul	mm	30	30
Klingehastighed, maks.	min^-1	4600/4500	4600/4500
Geringspositioner, maks.	venstre højre	48^ 48^	48^ 48^
Smigposition, maks.	venstre	48^	48^
Kombineret gering	smiggering	45^ 45^	45^ 45^
Kapaciteter:
tværsnit 90° (maks. højde)	mm	70 x 20	70 x 20
tværsnit 90°	mm	60 x 250 60 x 250
gering 45°	mm	60 x 170 60 x 170
gering 48°	mm	60 x 160 60 x 160
smig 45°	mm	48 x 250 48 x 250
smig 48°	mm	45 x 250 45 x 250
Totale dimensioner(med bordforlængelser)	mm	625 x 425 x 355	625 x 425 x 355
Dimensioner (uden bordforlængere)	mm	445 x 425 x 355	445 x 425 x 355
XPS NejJa
Vægt	kg 11,5	11,5

H05RN-F, 2 x 1,0 mm²

DWS773, DWS774: 115V

H05RN-F, 2 x 1,5 mm²

The vibration and/or noise emission level given in this information sheet has been measured in accordance with a standardised test given in EN62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration and/or noise emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration and/or noise emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration and/or noise should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration and/or noise such as: maintain the tool

and the accessories, keep the hands warm (relevant for vibration), organisation of work patterns.

Electrical Power Source

This device is intended for the connection to a power supply system with maximum permissible system impedance Zmax of 0,39 Ohm at the interface point (power service box) of user's supply.

The user has to ensure that this device is connected only to a power system which fulfils the requirement above. If necessary, the user can ask the public power supply company for the system impedance at the interface point.

EC-Declaration of Conformity

In accordance with

Machinery Directive 2006/42/EC

Product:

Cross Cut Mitre Saw

Types:

DWS773, DWS774

DeWALT declares that these products described under Technical Data are in compliance with the harmonized standards: EN62841-1:2015 and EN IEC 62841-3-9:2020 +A11:2020. These products also comply with Directive 2014/30/EU and 2011/65/EC.

For more information, please contact DeWALT at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

Markus Rompel

Vice President of Engineering, PTE-Europe

65510, Idstein, Germany

18.06.2021

GENERAL SAFETY NOTES

Read the safety manual carefully before use in order to ensure a safe and proper operation of the device. Retain the instruction manual until the product is disposed of.

Intended Use

The cross cut Mitre Saw has to be used in accordance with the specifications of this safety manual and the operational manual. Mitre Saws are not "toys" and require prudent, responsible and careful handling.

The Mitre Saw has been designed for professional cutting wood, wood products and plastics. It performs the sawing operations of cross cutting, bevelling and mitring easily, accurately and safety.

The Mitre Saw is designed for use with a nominal blade diameter 216 mm carbide tip blade.

Responsibilities of the employer, for example:

- Complying with the deadlines for periodic inspections as well as ordering repair measures to be performed by by an authorized DrWALT repair agent.

• Safe storage of the Mitre Saw out of reach of children.

- Provisioning and ensuring the usage of protective equipment, see chapter 1.3 "Personal Protective Equipment".

The Mitre Saw may only be used by persons over 18 years of age or apprentices/trainees over 16 years of age (while in the presence of

a responsible supervisor) who are not under the influence of fatigue, alcohol, medication or drugs.

Misapplications, misuse or "fooling around" may cause lethal injuries and serious property damage.

For example:

• Overriding of safety mechanisms
• Cutting tree limbs or logs
• Cutting steel or other hard material
• Cutting light alloy, especially magnesium

Modifications to the device, additions to the device or conversions as well as maintenance operations and repairs performed by yourself can impair the safety, reliability and proper functioning of the device to a significant extent and void any warranty claims.

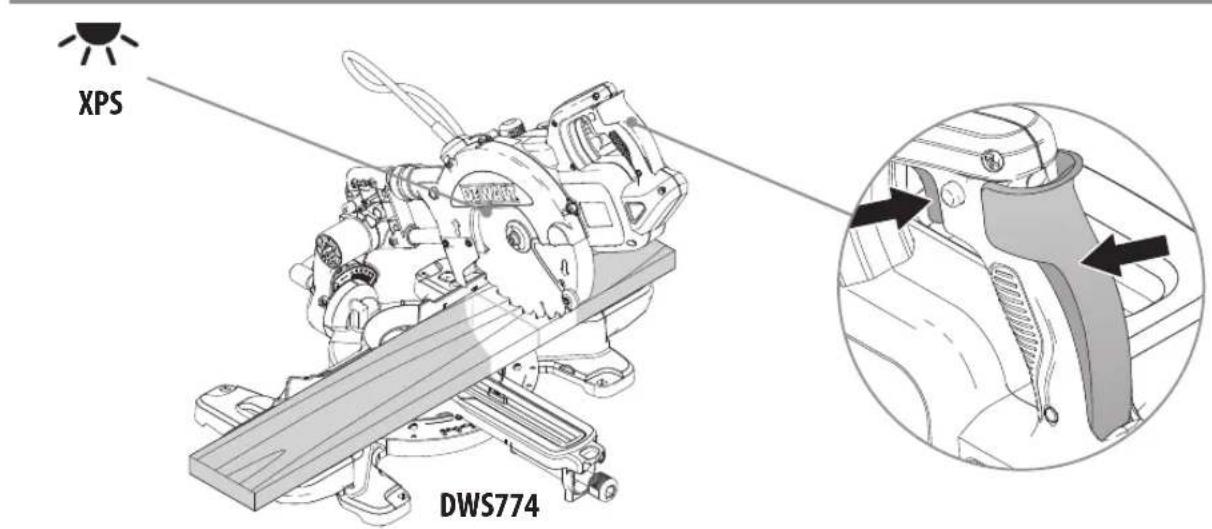

DWS774: A failure of XPS, has no effect on the intended operation.

Product code

The product code, which also includes the year of manufacture, is printed into the housing. (See page 4.)

Example:

2021 XX XX

Year of Manufacture

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

General Power Tool Safety Warnings

WARNING: Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed

(grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Rules for Mitre Saws

a) Mitre saws are intended to cut wood or wood-like products, they cannot be used with abrasive cut-off wheels for cutting ferrous material such as bars, rods, studs, etc. Abrasive dust causes moving parts such as the lower guard to jam. Sparks from abrasive cutting will burn the lower guard, the kerf insert and other plastic parts.
b) Use clamps to support the workpiece whenever possible. If supporting theworkpiece by hand, you must always keep your hand at least 100 mm from eitherside of the saw blade. Do not use this saw to cut pieces that are too small to besecurely clamped or held by hand. If your hand is placed too close to the saw blade, there is an increased risk of injury from blade contact.
c) The workpiece must be stationary and clamped or held against both the fence and the table. Do not feed the workpiece into the blade or cut "freehand" in any way. Unrestrained or moving workpieces could be thrown at high speeds, causing injury.
d) Push the saw through the workpiece. Do not pull the saw through the workpiece. To make a cut, raise the saw head and pull it out over the workpiece without cutting, start the motor, press the saw head down and push the saw through the workpiece. Cutting on the pull stroke is likely to cause the saw blade to climb on top of the workpiece and violently throw the blade assembly towards the operator.
e) Never cross your hand over the intended line of cutting either in front or behind the saw blade. Supporting the workpiece "cross handed" i.e. holding the workpiece to the right of the saw blade with your left hand or vice versa is very dangerous.

f) Do not reach behind the fence with either hand closer than 100 mm from either side of the saw blade, to remove wood scraps, or for any other reason while the blade is spinning. The proximity of the spinning saw blade to your hand may not be obvious and you may be seriously injured.
g) Inspect your workpiece before cutting. If the workpiece is bowed or warped, clamp it with the outside bowed face toward the fence. Always make certain that there is no gap between the workpiece, fence and table along the line of the cut. Bent or warped workpieces can twist or shift and may cause binding on the spinning saw blade while cutting. There should be no nails or foreign objects in the workpiece.
h) Do not use the saw until the table is clear of all tools, wood scraps, etc., except for the workpiece. Small debris or loose pieces of wood or other objects that contact the revolving blade can be thrown with high speed.
i) Cut only one workpiece at a time. Stacked multiple workpieces cannot be adequately clamped or braced and may bind on the blade or shift during cutting.
j) Ensure the mitre saw is mounted or placed on a level, firm work surface before use. A level and firm work surface reduces the risk of the mitre saw becoming unstable.
k) Plan your work. Every time you change the bevel or mitre angle setting, make sure the adjustable fence is set correctly to support the workpiece and will not interfere with the blade or the guarding system. Without turning the tool "ON" and with no workpiece on the table, move the saw blade through a complete simulated cut to assure there will be no interference or danger of cutting the fence.
1) Provide adequate support such as table extensions, saw horses, etc. for a workpiece that is wider or longer than the table top. Workpieces longer or wider than the mitre saw table can tip if not securely supported. If the cut-off piece or workpiece tips, it can lift the lower guard or be thrown by the spinning blade.
m) Do not use another person as a substitute for a table extension or as additional support. Unstable support for the workpiece can cause the blade to bind or the workpiece to shift during the cutting operation pulling you and the helper into the spinning blade.
n) The cut-off piece must not be jammed or pressed by any means against the spinning saw blade. If confined, i.e. using length stops, the cut-off piece could get wedged against the blade and thrown violently.
o) Always use a clamp or a fixture designed to properly support round material such as rods or tubing. Rods have a tendency to roll while being cut, causing the blade to "bite" and pull the work with your hand into the blade.
p) Let the blade reach full speed before contacting the workpiece. This will reduce the risk of the workpiece being thrown.
q) If the workpiece or blade becomes jammed, turn the mitre saw off. Wait for all moving parts to stop and disconnect the plug from the power source and/or remove the battery pack. Then work to free the jammed material. Continued sawing with a jammed workpiece could cause loss of control or damage to the mitre saw.
r) After finishing the cut, release the switch, hold the saw head down and wait for the blade to stop before removing the cut-off piece. Reaching with your hand near the coasting blade is dangerous.

s) Hold the handle firmly when making an incomplete cut or when releasing the switch before the saw head is completely in the down position. The braking action of the saw may cause the saw head to be suddenly pulled downward, causing a risk of injury.

Additional Safety Rules for Mitre Saws

• Do not use the saw to cut other materials than those recommended by the manufacturer.
• Do not operate the machine without guards in position, or if guards do not function or are not maintained properly.
• Select the correct blade for the material to be cut.
  • Use correctly sharpened saw blades.
  • Make sure that the blade rotates in the correct direction.
• USE ONLY CROSS CUT SAW BLADES recommended for mitre saws. Do not use carbide tipped blades with hook angles in excess of 7 degrees. Do not use blades with deep gullets. These can deflect and contact the guard, and can cause damage to the machine and/or serious injury.
• Never attempt to stop a machine in motion rapidly by jamming a tool or other means against the blade; serious accidents can occur.
• Before using any accessory consult the instruction manual. The improper use of an accessory can cause damage.
• Ensure that the saw blade is mounted correctly before use.
• Do not use blades of larger or smaller diameter than recommended. For the proper blade rating refer to the technical data. Use only the blades specified in this manual, complying with EN 847-1.
  • Do not use HIGH SPEED STEEL blades.
• Do not use cracked or damaged saw blades.
• Do not use any abrasive or diamond discs.
• Use only saw blades where the marked speed is at least equal to the speed marked on the saw.
• Do not wedge anything against the fan to hold the motor shaft.
• Never raise the blade guard manually unless the saw is switched off. The guard can be raised by hand when installing or removing saw blades or for inspection of the saw.
• Check periodically that the motor air slots are clean and free of chips.
• Please be aware of the following factors influencing exposure to noise:
• use saw blades designed to reduce the emitted noise;
• use only well sharpened saw blades;
  • Machine maintenance shall be conducted periodically;
• In case of an accident or machine failure, immediately turn the machine off and disconnect machine from the power source.
  • Report the failure and mark the machine in suitable form to prevent other people from using the defective machine.
• When sawing plastic melting of the material is to be avoided.

Personal Protective Equipment

Loose clothes, jewellery, noise and similar hazards may present a danger to persons. Persons that will be using the device and have to reside in the vicinity of the device, must wear suitable personal protective equipment.

Protective clothing protects the skin against mechanical effects, e.g. cuts

Safety boots protect the feet against falling objects and the entry of protruding nails

Safety gloves protect the hands against mechanical effects, e.g. cuts

Marked on tool: Safety goggles: protects the eyes against flying objects, such as splinters and dust

Marked on tool: Ear protection: protects the ears against excessive noise

Marked on tool: Wear a dust respirator.

Young children and the infirm. This machine is not intended for use by young children or infirm persons without supervision.

Warning Signs and Labels

The device may only be used if all safety labels on the Mitre Saw are both complete and legible.

The safety alert symbol is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Read the manual before using the device.

Risk of electrical hazard

Examples of cable damages

Do not connect the power cable with the power supply.

Danger of cuts

Keep your hand at least 100 mm from either side of the saw blade

This product must not be disposed of with normal household waste

Keep away from children

Do not use the tool in damp or wet conditions

Do not use solvents or other harsh chemicals for cleaning

The Mitre Saw requires no additional lubrication

Well lightning of work area (250 - 300 Lux)

250 - 300 Lux

While using the worklight do not stare at the light. Serious eye injury could result

Marked on Tool: Carrying points

Repair by DrWALT or by an authorized DeWALT repair agent

OPERATIONAL SAFETY NOTES

WARNING: Mitre Saws can cause serious injuries if improperly handled.

Electrical Safety

The Mitre Saw is double insulated in accordance with EN62841; therefore no earth wire is required.

• The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.
• Do not expose the tool to rain. Do not use the tool in damp or wet conditions.
• Avoid body contact with earthed surfaces (e.g., pipes, radiators, cookers and refrigerators).
• Outdoor use: Electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

WARNING: Do not abuse the power cable.

• Never yank the power cable to disconnect it from the socket.
• Keep the power cable away from heat, oil and sharp edges.

Extension cables

• If an extension cable is required, use an approved 3-core extension cable suitable for the power input of this tool (see Technical Data). The minimum conductor size is 1.5 ~mm^2 ; the maximum length is 30 ~m .
• When using a cable reel, always unwind the cable completely.
• Before use: check the extension cable and replace if damaged.
• When the tool is used outdoors, use only extension cables intended for outdoor use and marked accordingly.

Mains Plug and Cord Replacement

In case of cord or plug replacement the tool must only be repaired by an authorized service agent or by qualified electrician.

The following cords are mandatory:

Mains plug replacement (UK & Ireland only)

If a new mains plug needs to be fitted:

• No connection is to be made to the earth terminal.
• Connect the brown lead to the live terminal in the plug.
• Connect the blue lead to the neutral terminal.
  • Safely dispose of the old plug.
• Fitting a mains plug to 115 V Units: The plug fitted should be comply with BS EN60309 (BS4343), 16 Amps, earthing contact position 4h.

TASKS RELATED WARNINGS

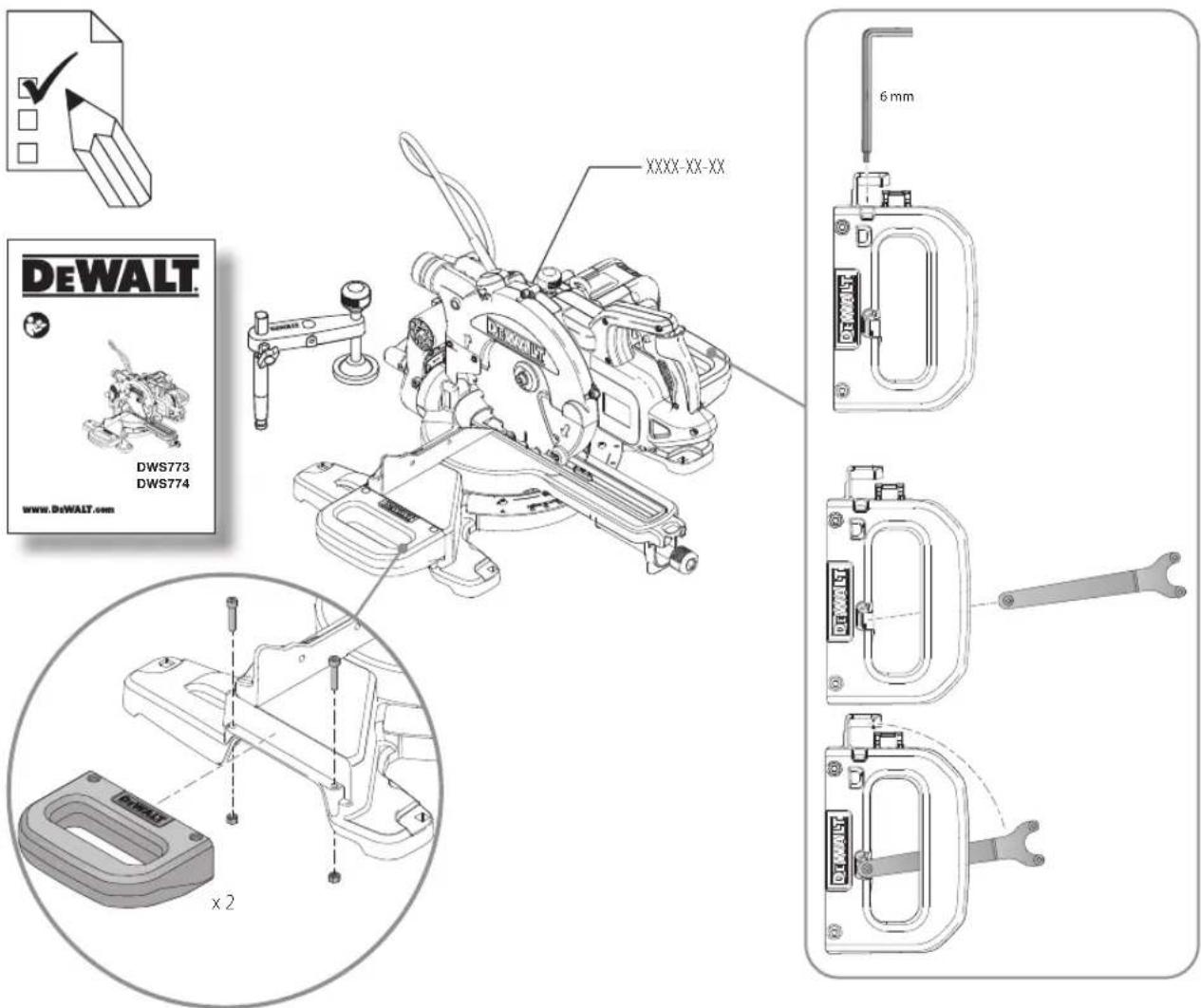

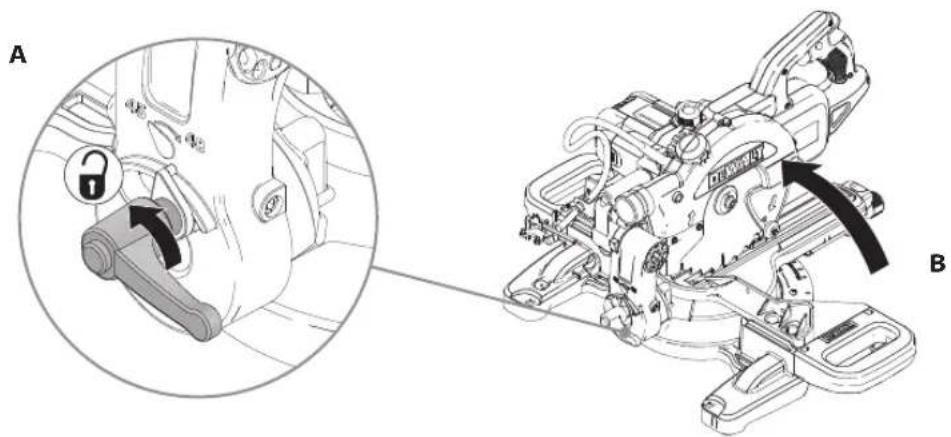

Unpacking, Transport, Storage

Unpacking

NOTICE:

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Check the content for completeness.
• Before use, the supplied workpiece support extensions must be mounted.

Transport

CAUTION: Improper transport can cause bruises.

• Do not carry the tool with a finger on the switch. Be sure that the tool is in the "off" position.
• Do not use guards to lift or transport the mitre saw.
  • Always transport your product disconnected from power supply!

Storage

NOTICE: The mitre saw must be stored in a dry place and locked up securely, out of reach of children.

- Store the tool in a place that is as cool and dry.

Bench Mounting

Ergonomic requirements

Ensure the tool is placed to satisfy your ergonomic conditions in terms of table height and stability. The machine site shall be chosen so that the operator has a good overview and enough free surrounding space around the machine that allows handling of the workpiece without any restrictions.

Adjustments and Replacements

The Mitre Saw was accurately adjusted at the factory. Due to shipping and handling or any other reason a readjustment can be required.

WARNING: Electrical shock can cause serious injuries or death.

- Before work: Disconnect the power cable from the power supply.

NOTICE:

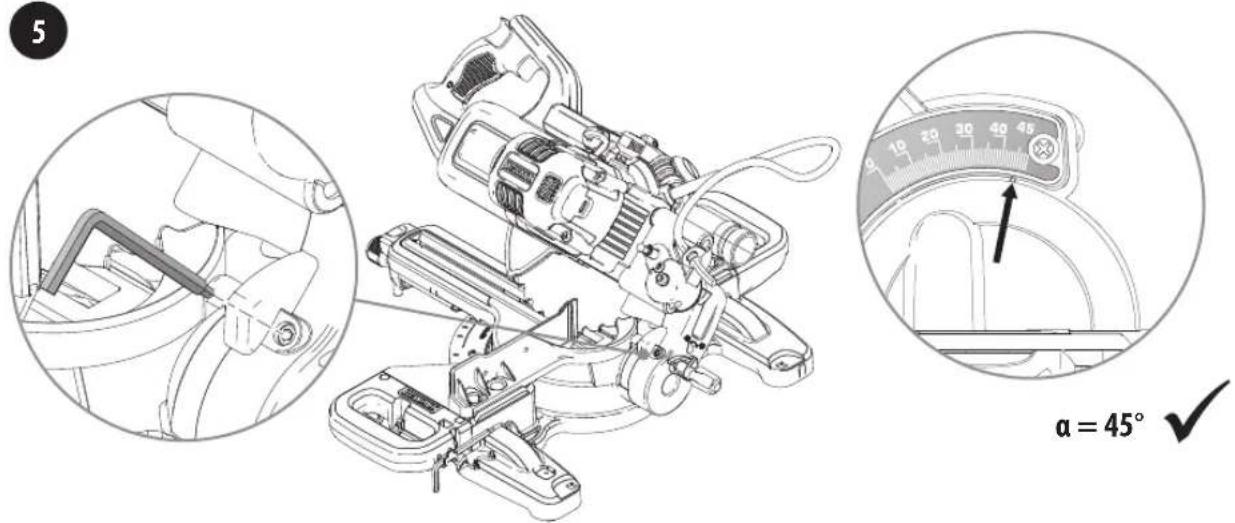

• Ensure that the arm is securely fixed when performing bevel cuts.
• Check that the blade does not touch the table at the rear of the slot or at the front of the rotating arm at 90^ vertical and 45^ bevel positions.
• If the saw blade is worn, replace it with a new sharp blade.
• Check the technical data of the new blade: Use 216 mm saw blades with 30 mm arbor holes to obtain the desired cutting capacities.
• Replace the kerf plate when worn. If the kerf plate becomes worn or damaged take saw to an authorised service centre.

Operating

General

• Use the optional roller tables for large and long pieces of wood.
• Use the optional dust extraction.
• Never use your saw without the kerf plate.
• Never use the saw without fixed table extensions.

Before use

• Check for damage to the tool and the power cable. Take care that the power supply cord is not placed in the cutting area

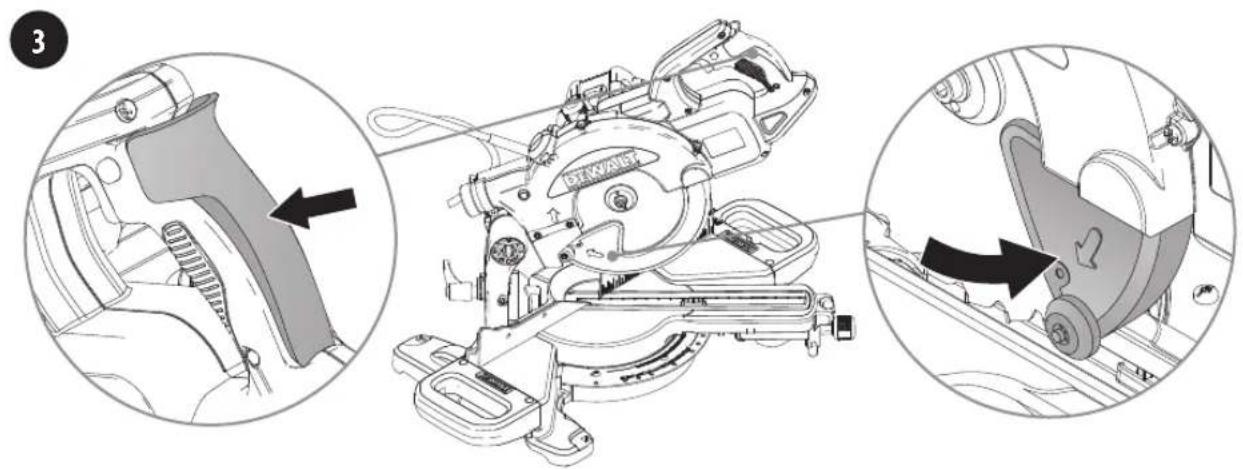

• Check the upper blade guard, movable lower blade guard as well as the dust extraction tube to determine that it will operate properly.
• Check the lower blade guard, it is designed to close quickly when the lever is released. If it does not close within 1 second, have the saw serviced by an authorized DeWALTrepair agent.
• Ensure that chips, dust or workpiece particle cannot lead to blockage of one of the functions.
• In case of workpiece fragments jammed between saw blade and guards disconnect the tool from the power supply. Remove the jammed parts and reassembling the saw blade.
• Allow the blade to cut freely. Do not force.
  • Always make dry runs (without power) before finish cuts so that you can check the path of the blade.
• Allow the motor to reach full speed before cutting.
  • Make sure all locking knobs and clamp handles are tight.

WARNING: Improper use can cause serious harm.

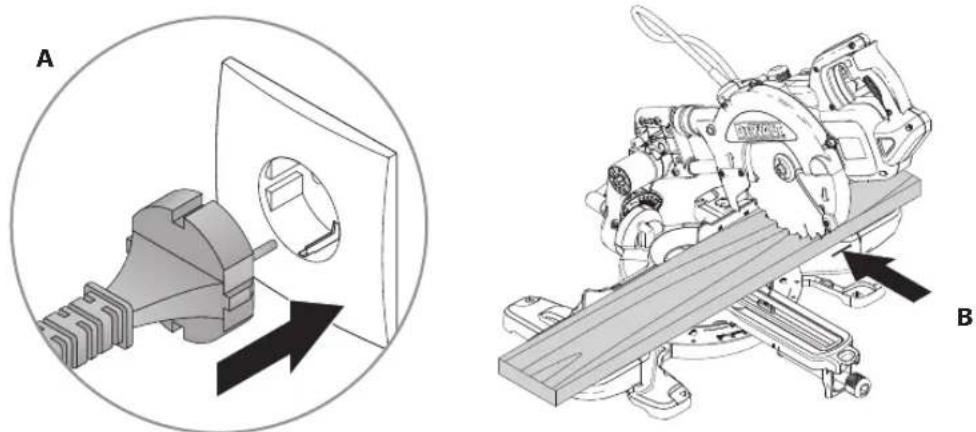

• Be sure that the tool is in the "off" position before plugging in.
• Do not let persons, especially children, not involved in the work, touch the tool or the extension cord and keep them away from the work area.

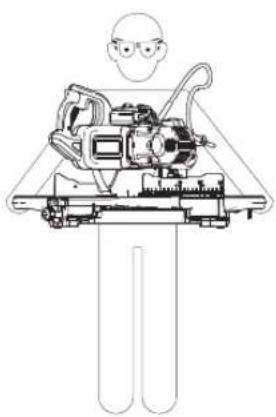

Body and hand position

• Never place your hands closer than 100 mm from the blade.
• Never cross your hands.

- As you move the saw arm left and right, follow it and stand slightly to the side of the saw blade.

Cutting

• Always let the blade come to a full stop before raising the arm. If small fibres of wood still split out at the rear of the workpiece, stick a piece of masking tape on the wood where the cut will be made. Saw through the tape and carefully remove tape when finished.

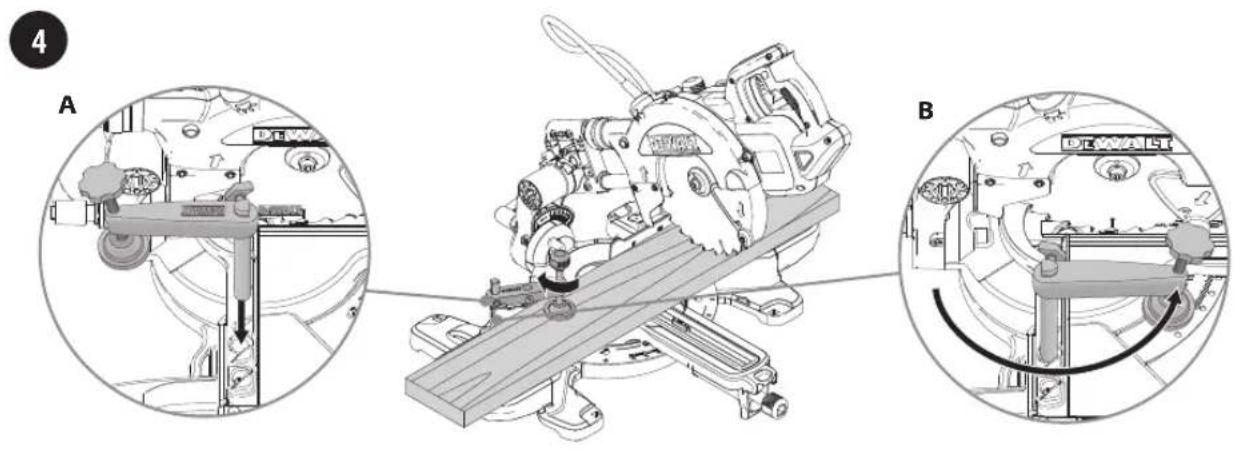

- Hold the workpiece tightly to the table and the fence when cutting. Keep your hands in position until the switch has been released and the blade has completely stopped.
- When mitring the end of a piece of wood with a small off-cut, position the wood to ensure that the off-cut is to the side of the blade with the greater angle to the fence, i.e:

• left mitre, off-cut to the right
• right mitre, off-cut to the left

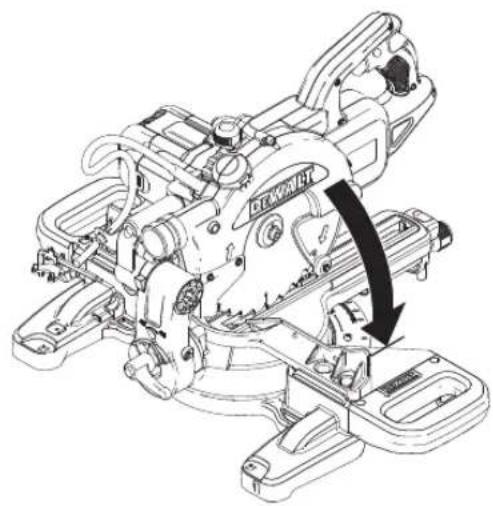

• Always guid the saw head from the lower position to the rest position, otherwise there is a risk of tip over.

After use

• Disconnect the power cable from the power supply.
• Store the Mitre Saw in a dry place and locked up securely, out of reach of children.

Dust Extraction

WARNING: Risk of dust inhalation. To reduce the risk of personal injury ALWAYS wear approved dust mask.

WARNING: ALWAYS use a vacuum extractor designed in compliance with the applicable directives regarding dust emission when sawing wood.

• Certain dusts, such as oak or beech dust, are considered as carcinogenic.
• Observe the relevant regulations in your country for the materials to be worked.

NOTICE:

- Connect the saw to a dust collection device when sawing wood. Always consider factors which influence exposure of dust such as:

• good ventilation of the working place;
• sharpness of the saw blade;
• correct adjustment of the saw blade,
• Push the saw through the workpiece. Do not pull the saw through the workpiece.

Cleaning and Maintenance

The mitre saw has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: Electrical shock can cause serious injuries or death.
- Before cleaning: Disconnect the power cable from the power supply.

NOTICE:

• Use a cloth dampened only with water and mild soap.

• Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

• The guide grooves can become clogged with sawdust. Use suitable dust extraction or some low pressure air to clear the guide grooves.

• Disconnect the machine from the mains before carrying out any maintenance work or when changing the blade.
• Never perform any cleaning or maintenance work when the machine is still running and the head is not in the rest position.

Disposal

Protecting the environment!

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.

SIERRA INGLETADORA DE CORTE TRANSVERSAL DWS773, DWS774

DATOS TÉCNICOS

H05RN-F, 2 x 1,0 mm²

DWS773, DWS774 115V

H05RR-F, 2 x 1,5 mm²

Vice-President Engineering, PTE-Europa

65510, Idstein, Germany

18.06.2021

ALGEMENE OPMERKINGEN OVER DE VEILIGHEID

H05RN-F, 2 x 1,0 mm²

H05RN-F, 2 x 1,0 mm²

DWS773, DWS774: 115V

H05RR-F, 2 x 1,5 mm²

H05RN-F, 2 x 1,0 mm²

DWS773, DWS774: 115V

H05RR-F, 2 x 1,5 mm ^2

65510, Idstein, Germany

18.06.2021
