USER MANUAL DH 38MS HITACHI

000BookDH38MS.indb1000BookDH38MS.indb1 2014/10/3013:46:532014/10/3013:46:532 English Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power toolʼs operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. PRECAUTION Keep children and infi rm persons away. When not in use, tools should be stored out of reach of children and infi rm persons.

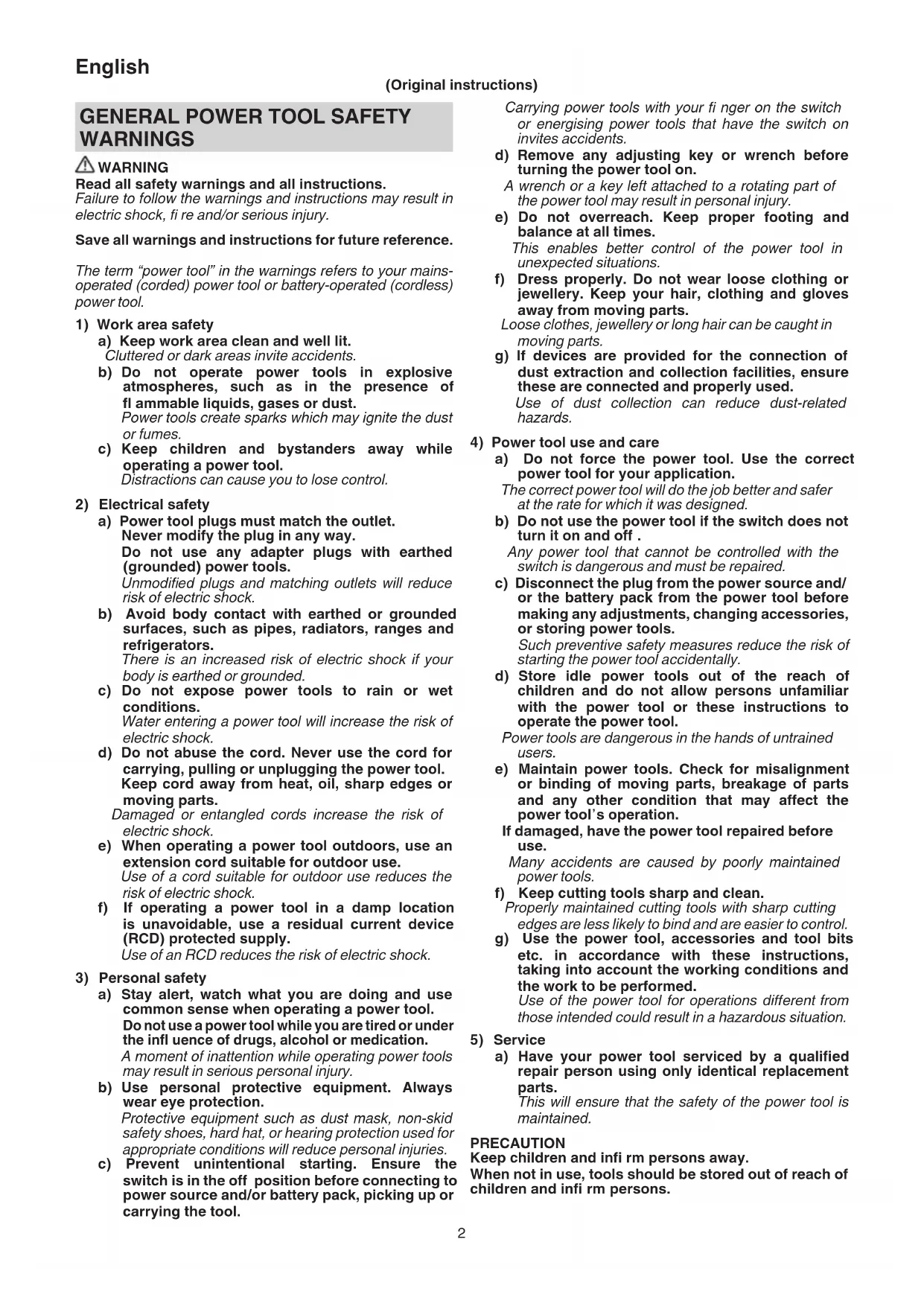

GENERAL POWER TOOL SAFETY

WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. (Original instructions) 000BookDH38MS.indb2000BookDH38MS.indb2 2014/10/3013:46:542014/10/3013:46:543 English

Exposure to noise can cause hearing loss.

2. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

3. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

ADDITIONAL SAFETY WARNINGS

1. Ensure that the power source to be utilized conforms

to the power requirements specifi ed on the product nameplate.

2. Ensure that the power switch is in the OFF position.

If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

3. When the work area is removed from the power source,

use an extension cord of suffi cient thickness and rated capacity. The extension cord should be kept as short as practicable.

4. Do not touch the bit during or immediately after

operation. The bit becomes very hot during operation and could cause serious burns.

5. Before starting to break, chip or drill into a wall, fl oor or

ceiling, thoroughly confi rm that such items as electric cables or conduits are not buried inside.

6. Always hold the body handle and side handle of the

power tool fi rmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.

7. Wear a dust mask.

Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders. 8 Ensure that the wing bolt in the side handle is properly tightened before using the tool. 9 Although this machine is equipped with a safety clutch, if the drill bit becomes bound in concrete or other material, the resultant stoppage of the drill bit could cause the machine body to turn in reaction. Ensure that the main handle and side handle are gripped fi rmly during operation. 10 If the selector lever is switched during motor rotation, the tool can start to rotate abruptly, resulting in unexpected accidents. Make sure to switch the selector lever when the motor is at a complete stop. 11 If the bull point or cold chisel is used at the position of ”rotation + hammering”, the tool can start to rotate, resulting in unexpected accidents. Make sure that they are used at the position of ”hammering”. SYMBOLS WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. DH38MS : Rotary Hammer Read all safety warnings and all instructions. Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/ EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Switching ON Switching OFF Hammering only function Adjustment of the tool position function Rotation and hammering function Disconnect mains plug from electrical outlet Class II tool STANDARD ACCESSORIES In addition to the main unit (1 unit), the package contains the accessories listed in the below. ○ Case .............................................................................1 ○ Side Handle ..................................................................1 Standard accessories are subject to change without notice. APPLICATIONS ○ Drilling holes in concrete ○ Drilling anchor holes ○ Demolishing concrete, chipping, digging, and squaring (by applying optional accessories) SPECIFICATIONS Voltage (by areas) (110 V, 120 V, 127 V, 220 V, 230 V, 240 V) Power Input 950 W Capacity Drill bit : 38 mm Core bit : 105 mm No-load speed 620 min

Weight (without cord, side handle)

NOTE Due to HITACHI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice. 000BookDH38MS.indb3000BookDH38MS.indb3 2014/10/3013:46:542014/10/3013:46:544 English

MOUNTING AND OPERATION

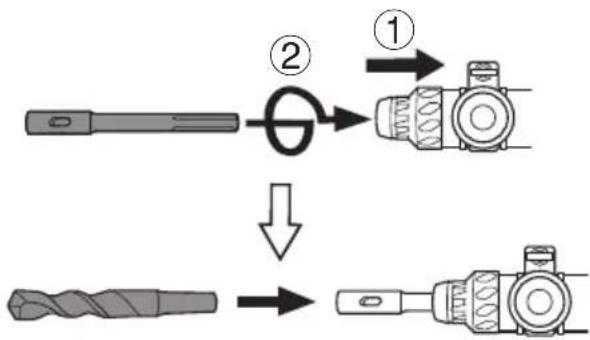

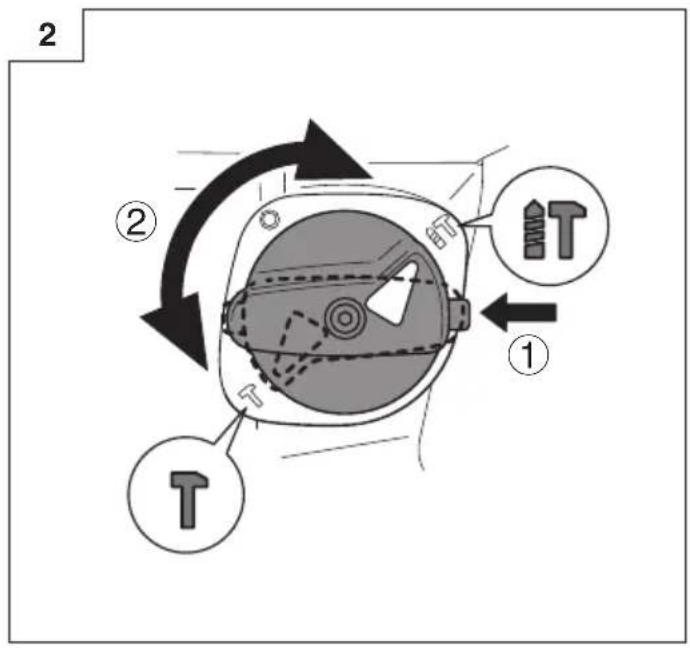

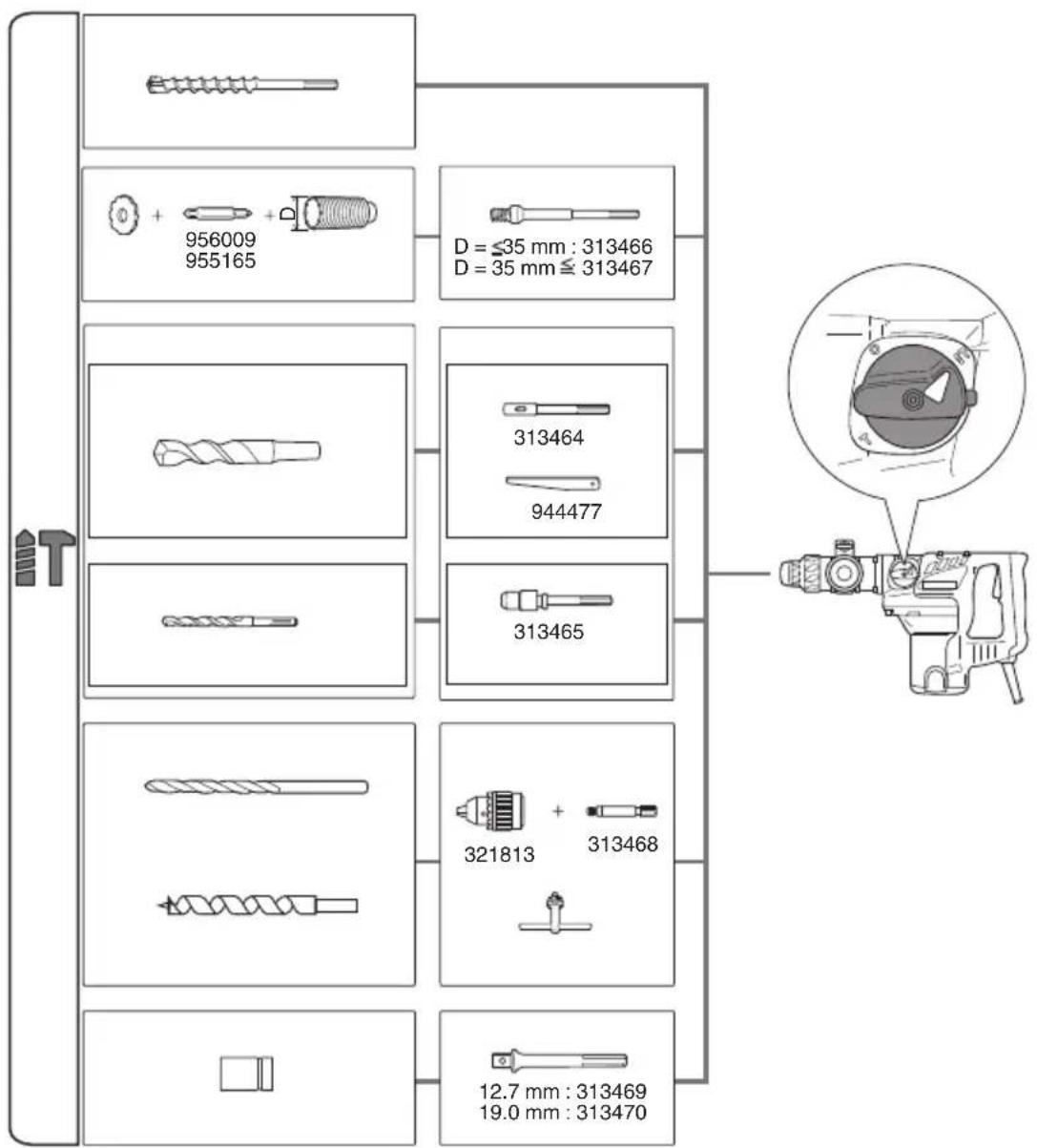

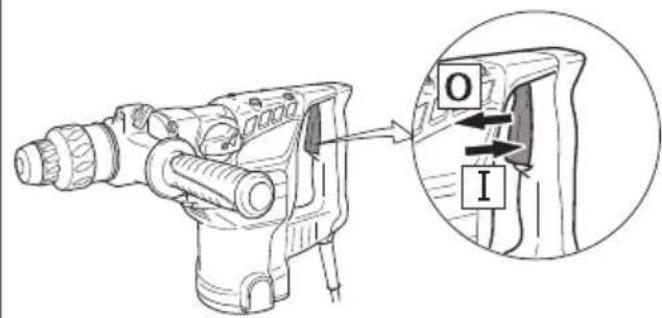

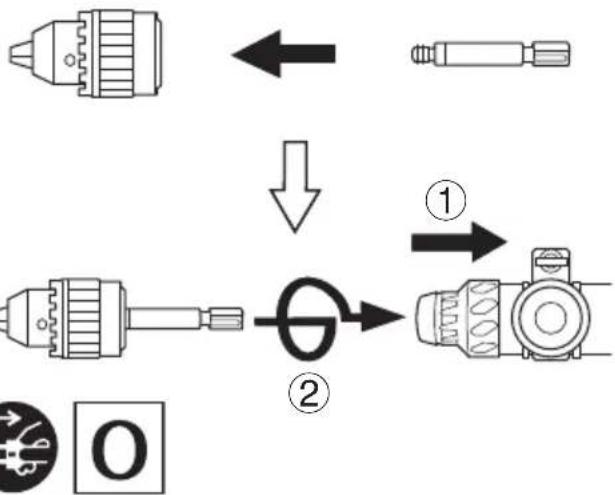

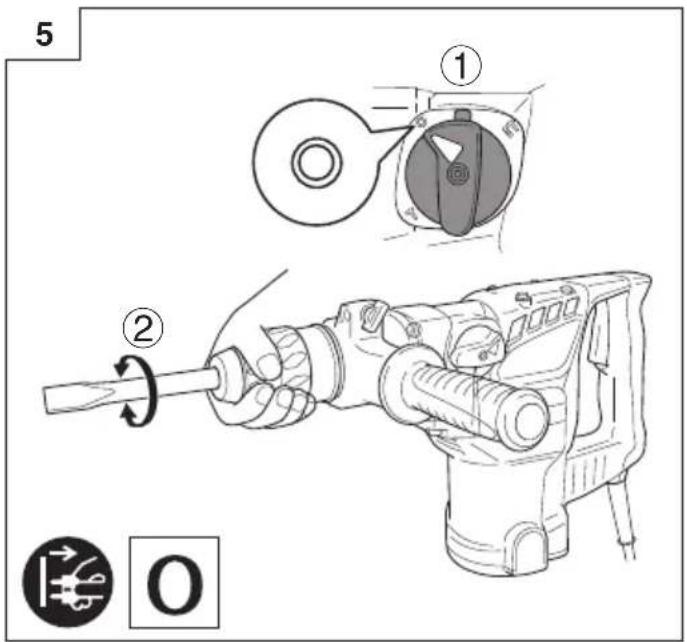

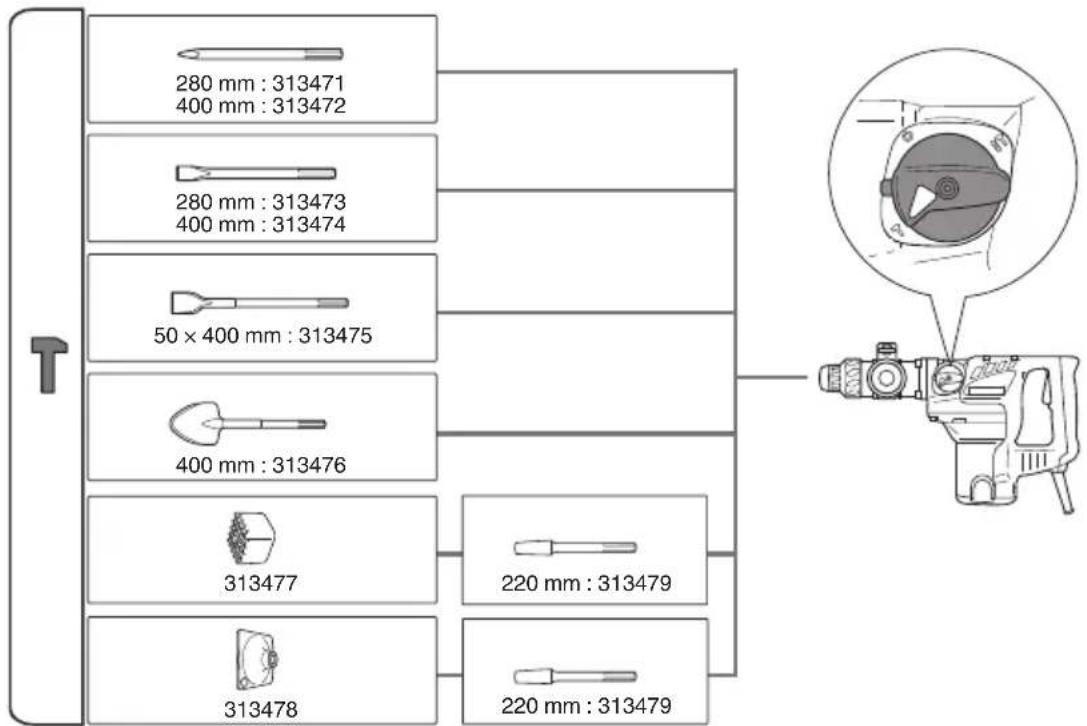

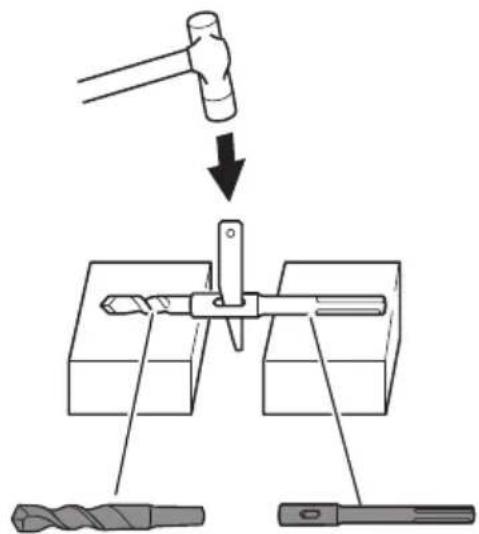

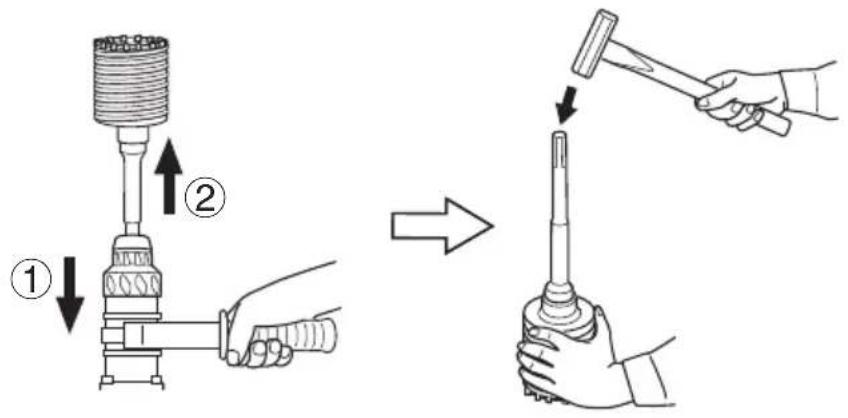

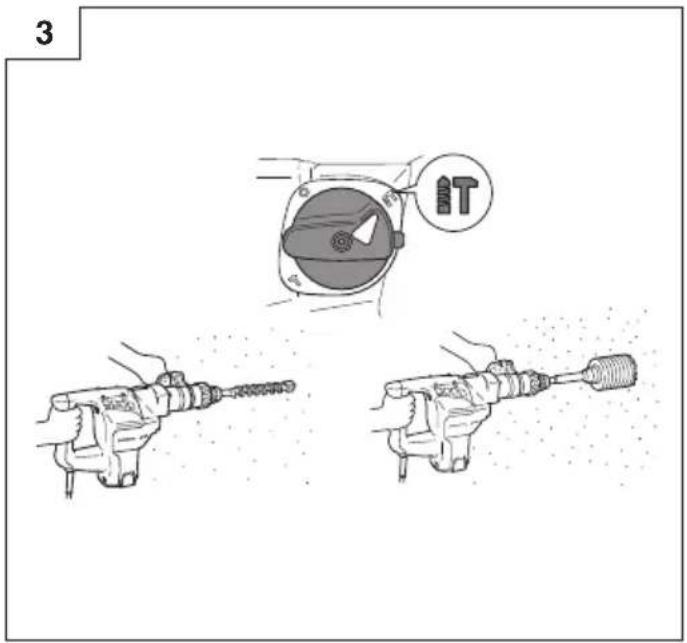

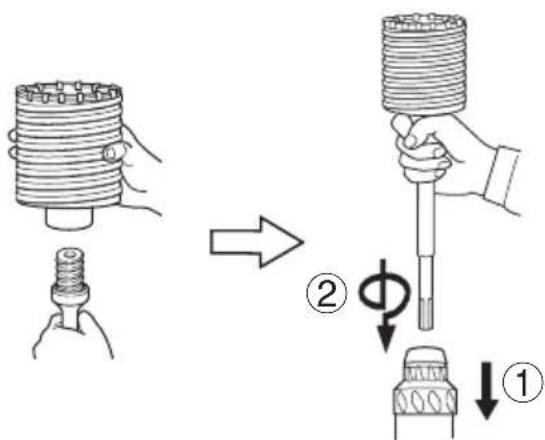

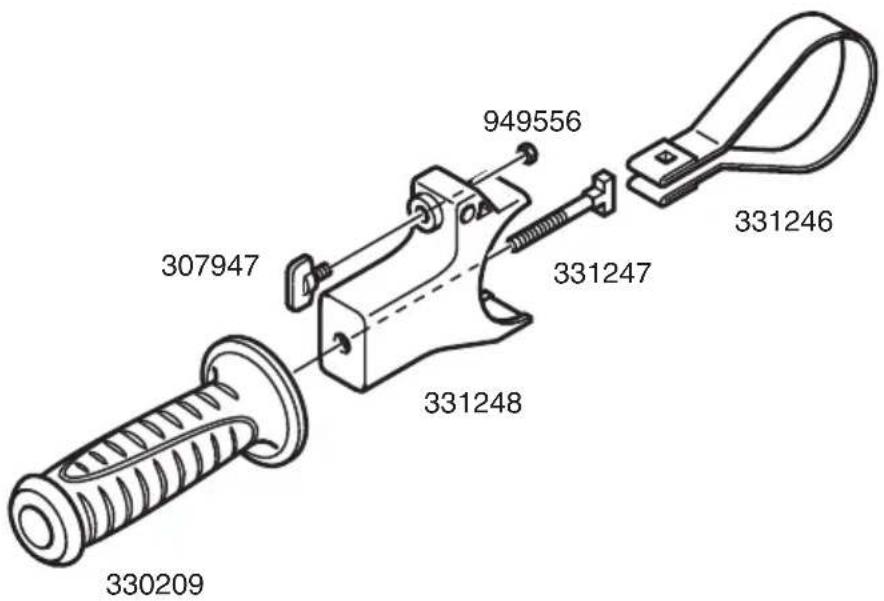

Action Figure Page Mounting a tool 1 99 Work Mode Setup 2 99 How to drill holes 3 99 How to chisel or demolish* 4 99 Adjustment of the tool position mode 5 99 Switch operation 6 100 Using tapershank adapter 7 100 Removing tapershank adapter 8 100 Using drill chuck and chuck adapter 9 100 Mounting core bit 10 100 Mounting guide plate and center pin 11 100 How to dismount the core bit 12 101 Replacing carbon brushes 13 101 Selecting accessories ― 102, 103

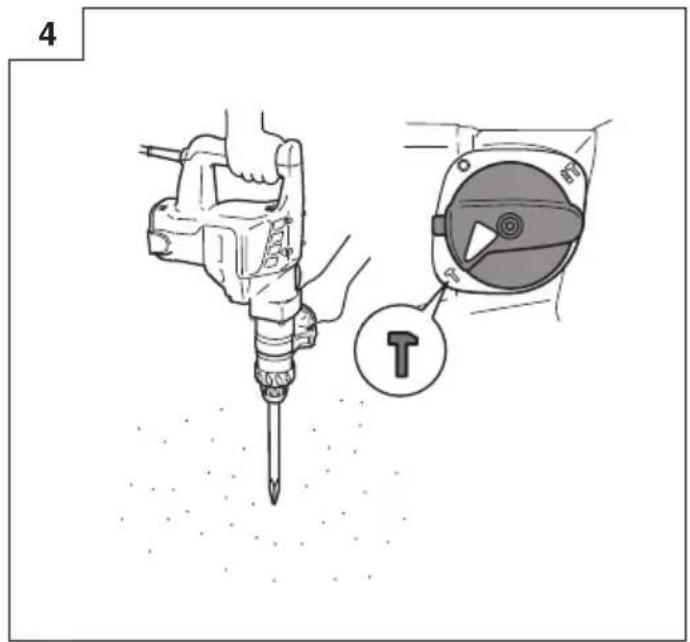

• Operate this Rotary Hammer by utilizing its empty weight. The performance will not be better even if it is pressed or thrust forcibly against the work surface. Hold this Rotary Hammer with a force just suffi cient to counteract the reaction. CAUTION After long time of use, the cylinder case becomes hot. Therefore, be careful not to burn your hands. Warming up (Fig. 4) The grease lubrication system in this unit may require warming up in cold regions. Position the end of the bit so makes contact with the concrete, turn on the switch and perform the warming up operation. Make sure that a hitting sound is produced and then use the unit. CAUTION When the warming up operation is performed, hold the side handle and the main body securely with both hands to maintain a secure grip and be careful not to twist your body by the jammed drill bit. GREASE REPLACEMENT This machine is of full air-tight construction to protect against dust and to prevent lubricant leakage. This machine can be used without grease supplement for an extended period of time. However, perform the grease replacement to maintain the service life. Replace the grease as described below.

1. Grease Replacement Period

After purchase, replace grease after every 6 months of usage. Ask for grease replacement at the nearest Hitachi Authorized Service Center. Proceed for replacement of grease.

2. How to replace grease

CAUTION Before replacing the grease, turn the power off and pull out the plug from the receptacle. (1) Remove the crank cover and wipe off the old grease inside. (2) Supply 60 g (the standard volume to cover the connecting rod) of Hitachi Electric Hammer Grease A to the crank case. (3) After replacing the grease, install the crank cover securely. NOTE The Hitachi Electric Hammer Grease A is of the low viscosity type. When the grease is consumed, purchase from an authorized Hitachi Service Center.

MAINTENANCE AND INSPECTION

CAUTION Be sure to switch OFF and disconnect the attachment plug from the receptacle to avoid a serious accident.

1. Inspecting accessories

Since use of a dull accessory, such as a bull point, a cutter, etc. will degrade effi ciency and cause possible motor malfunction, sharpen or replace with a new one as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

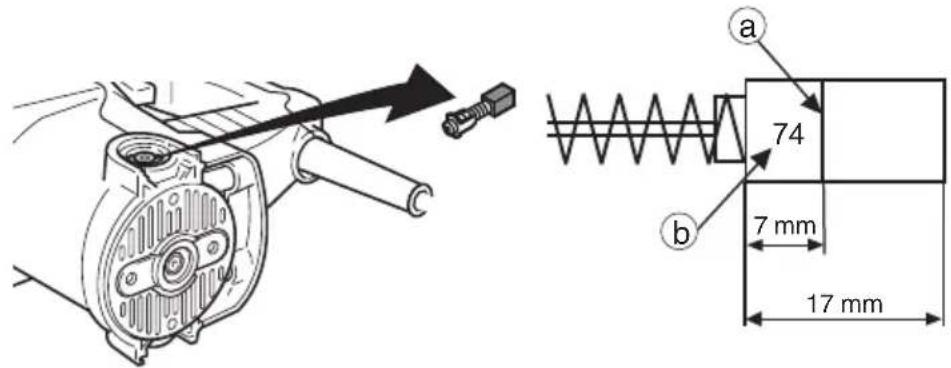

4. Inspecting the carbon brushes (Fig. 13)

The Motor employs carbon brushes which are consumable parts. When they become worn to or near the “wear limit” ⓐ, it results in motor trouble. When an auto-stop carbon brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Numbers ⓑ shown in the Fig. 13. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

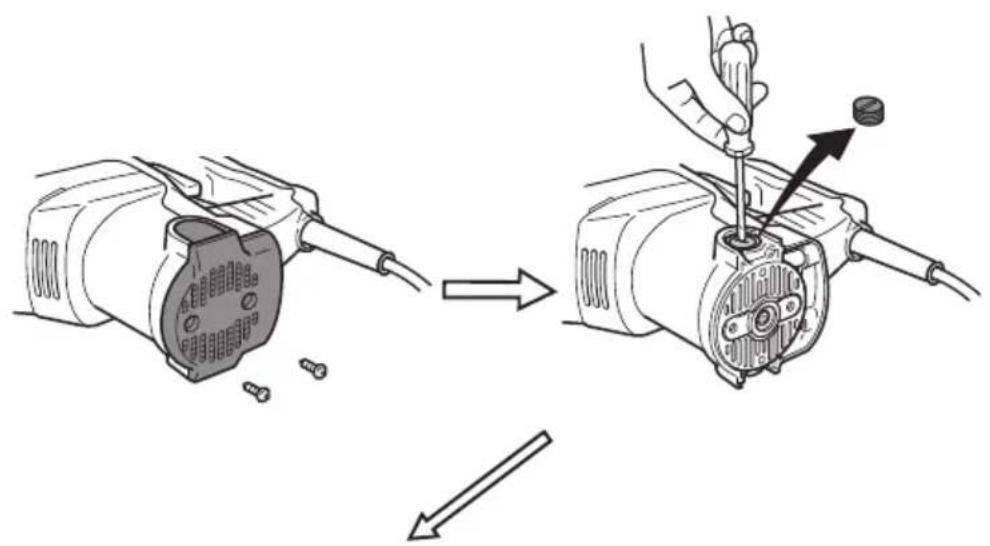

5. Replacing carbon brushes (Fig. 13)

Loosen the two set screws and remove the tail cover. Remove the brush caps and carbon brushes. After replacing the carbon brushes, do not forget to tighten the brush caps securely and to install the tail cover. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. GUARANTEE We guarantee Hitachi Power Tools in accordance with statutory/country specifi c regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a Hitachi Authorized Service Center. 000BookDH38MS.indb4000BookDH38MS.indb4 2014/10/3013:46:552014/10/3013:46:555 English IMPORTANT Correct connection of the plug The wires of the main lead are coloured in accordance with the following code: Blue: — Neutral Brown: — Live As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the each terminal. NOTE This requirement is provided according to BRITISH STANDARD 2769: 1984. Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom. Information concerning airborne noise and vibration The measured values were determined according to EN60745 and declared in accordance with ISO 4871. Measured A-weighted sound power level: 103 dB (A). Measured A-weighted sound pressure level: 92 dB (A). Uncertainty K: 3 dB (A). Wear hearing protection. Vibration total values (triax vector sum) determined according to EN60745. Hammer drilling into concrete: Vibration emission value a

Uncertainty K = 3.7 m/s

Uncertainty K = 2.3 m/s

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with standards or standardization documents EN60745-1, EN60745-2-6, EN55014-1, EN55014-2, EN61000-3-2 and EN61000- 3-3 in accordance with Directives 2004/108/EC and 2006/42/EC. This product also conforms to RoHS Directive 2011/65/EU. The European Standards Manager at Hitachi Koki Europe Ltd. is authorized to compile the technical fi le. This declaration is applicable to the product affi xed CE marking. Onderwerp van verklaring: Hitachi Boorhamer DH38MS
