USER MANUAL GT 850 Wolf Garten

Original operating instructions 12

1 Middle grip
2 Telescoping handle
3 Edge adjustment
4 Cord cutter
5 Plant hoop guard (GT 850)
6 On-/Off-switch
7 Upper grip with cable holder
8 Handle angle adjustment
9 Chassis (GT 845, GT 850)
10 Cord spool

F

Technical line drawing of a mechanical component with arrows indicating motion direction (no text or symbols)

Diagram of a coiled cable with a spool and two wires wrapped around it, no text or symbols present.

Q

Illustration of a coiled cable with a wire loop and mounting holes (no text or symbols)

Pure mechanical diagram showing a curved component with a hand operating it, no text or symbols present

Warning sign and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol and a person silhouette with bidirectional arrow

Abstract black-and-white graphic with three symbolic shapes: tree, hand crossed out, and eye (no text or symbols)

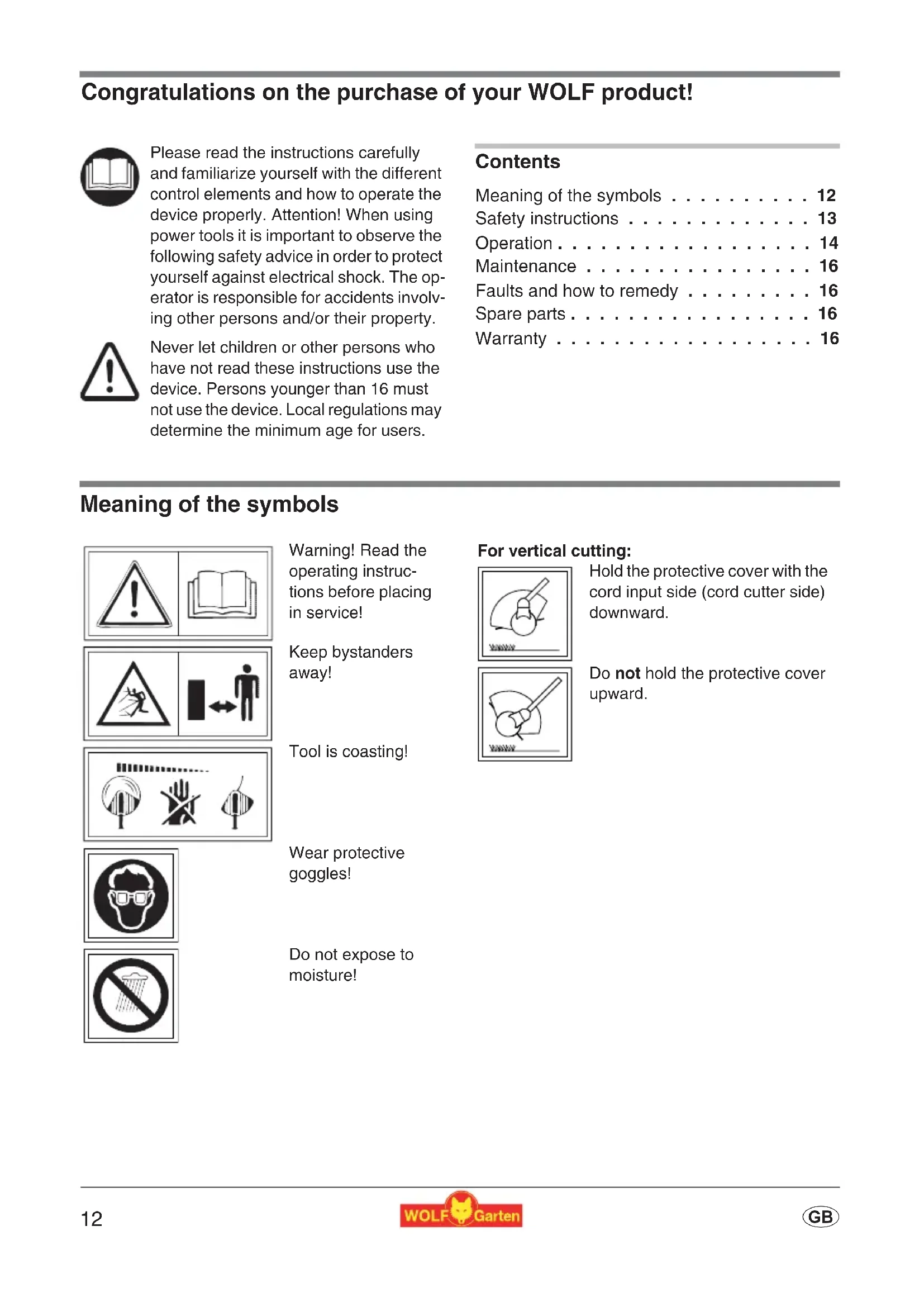

Congratulations on the purchase of your WOLF product!

Please read the instructions carefully and familiarize yourself with the different control elements and how to operate the device properly. Attention! When using power tools it is important to observe the following safety advice in order to protect yourself against electrical shock. The operator is responsible for accidents involving other persons and/or their property.

Never let children or other persons who have not read these instructions use the device. Persons younger than 16 must not use the device. Local regulations may determine the minimum age for users.

Contents

Meaning of the symbols ..... 12

Safety instructions ..... 13

Operation 14

Maintenance 16

Faults and how to remedy ..... 16

Spare parts....16

Warranty 16

Meaning of the symbols

Warning sign and open book icon side by side, indicating incorrect or invalid conditions

Warning! Read the operating instructions before placing in service!

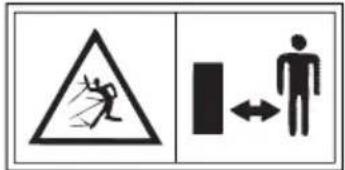

Safety warning sign showing a broken safety symbol and a person with bidirectional arrow indicating collision or interaction.

Keep bystanders away!

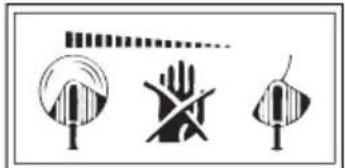

Three abstract black-and-white icons: tree, hand gesture, and eye (no text or symbols)

Tool is coasting!

Wear protective goggles!

Do not expose to moisture!

For vertical cutting:

Hold the protective cover with the cord input side (cord cutter side) downward.

Do not hold the protective cover upward.

Safety instructions

General

●This trimmer is ideal for trimming lawn edges and small lawn areas in private gardens. The trimmer should not be used in public gardens, parks, sports grounds, streets etc. and in farming and forestry.
●Because of possible accidents the trimmer must not be used for:

– trimming of bushes and hedges
– cutting of flowers
– cutting garden by-products for composting

●These tools are not intended to be used by persons with insufficient experience and/or lack of skills or persons with limited physical, sensory or mental abilities unless these persons are supervised or instructed on the use of the tools by a person responsible for the safety of these persons.

●Young adults below the age of 16 may not use the tools.
●Make sure that no persons (in particular children) or pets are in the vicinity of the working area. You are responsible for damages.
●Never operate the unit in the presence of individuals (particularly children) or animals.
●Only operate the unit in daylight hours or if adequate artificial lightning is available.
- Use trimmer when the weather is dry and do not leave it outside when it rains.
●Use a residual current device (RCD) rated for a residual current not greater than 30 mA.
●Never install metal cutting elements.

Before operating

●Before starting the trimmer, clear all string, wire etc. away from the area to be cut. Whilst cutting look out for foreign objects.
● All cable must be inspected regularly for signs of damage or ageing. Use only in perfect condition!
●Tool must not be used when the safety device or the covering is damaged.
- For safety reasons only original WOLF spare-parts or parts appointed by the manufacturer shall be used. Please note the installation instructions!

●Before adjusting or cleaning the tool and before checking for a caught or damaged connecting cable, switch off the tool and disconnect the mains plug.
●Before starting the unit, and after any impacts, examine the unit for signs of wear or damage. Have any detected damage repaired immediately.

Cable

- Use only extension cables with a minimum cross-section of 3 × 1.5 ~mm^2 and a length of max. 25 ~m :

• When using rubber-sheathed cables, they must be of typeHO7RN-F or heavier.
• When using PVC-sheathed cables, they must be of type HO5 VV-F or heavier (cables of this type are not suitable for continuous outdoor use - e.g. underground installation for the connection of an outdoor socket or pond pump, or outdoor storage).

●They must be waterproofmobile devices that are used outdoors must be connected via a residual current circuit breaker.
- Use a leakage-protective system (RCD) with a leakage current of no more than 30 mA.
- Attach connection cable to traction relief. Make sure that in does not rub against edges, pointed or sharp objects. Do not squeeze cable through door or window gaps.
- Switching devices must not be removed or bridged (e.g. tying of switching lever to guide spar).

Working

●Always keep hands and feet well clear of the cutting mechanism, particularly when starting the unit.
●Avoid injury from each of the components which serve to cut the line length. After pulling out a new length of line, always hold the unit in its normal operating position before starting it.
- When starting the trimmer hold its base parallel to the lawn area in order to avoid accidents.
- Keep your hands away from the moving cord.
●Wear eye protection!

●Always wear appropriate working clothes and sound footwear when using the trimmer.
●Before carrying the trimmer to the next lawn area to be cut, switch it off.
- Be careful when you go backwards. You may stumble!
- Keep the cable away from the cutting tool.
- Should the powercord be damaged during use, immediately disconnect it from the mains. Do not touch the cable until it has been disconnected from the mains.
●Never leave the trimmer without supervision. Store it in a safe place.
●The switches installed shall not be removed or bridged over, e. g. by binding the switch to the handle.
- Do not allow the cord spool to strike the ground or edges of working area. If the cord spool receives a hard knock, this will cause a strong vibration on the handle. If this occurs, the trimmer should be checked by a qualified service centre.

After operating

●After using the unit, disconnected the power cord from the wall outlet and inspect the unit for damage.
- When switching off the trimmer: Attention: the cutting tool does not stop immediately!
●Always wait for the cutting tool is stop.
●Before examining or cleaning the tool or before removing the safety device or the cord spool, switch off and disconnect the trimmer from the mains. Only use original WOLF cord spools and note the installation instructions!
●The cutting knife should not be cleaned under running water or under high-pressure.
● Faults shall only be repaired by appointed service centres or by the manufacturer.
●Make sure all air holes are free of dirt.
- Do not store the unit within reach of children.

Disposal

Do not dispose of electrical equipment in domestic waste. Recycle equipment, accessories and packaging in an environment-friendly manner.

Operation

Operating times

- Please check noise abatement regulations prevailing in your country.

Settings

The lawn trimmer is equipped with a four-position adjustable working angle. This enables you to easily trim hard-to-reach areas in your garden. To set the ideal working position, please follow the instructions below.

The cutting head should be inclined slightly forward while trimming.

Working angle and wheels

Free trimming - Working angle 1 A

Free trimming is especially suitable for trimming large areas with high weeds or grass. During free trimming, you should swing the trimmer in a semi-circular motion in front of your body.

1. Set working angle . E
2. Remove wheels . G

Even trimming - Working angle 2 B

Recommendation: In order to achieve an even and clean cut, you should use the wheels (see Accessories).

1. Set working angle . E
2. Fit wheels . H
3. Position wheels . J

Trimming under bushes / on slopes - Working angle 3 C

1. Set working angle . E
2. Remove wheels . G

Edge function (horizontal cut) - Working angle 4 D

The edge function enables precise and convenient trimming along the edge of the lawn.

1. Turn cutting head 90° . F
2. Set working angle . E
3. Fit wheels . H
4. Position wheels . J

Plant hoop guard (GT 850)

The plant hoop guard protects bushes, trees and plants (M). When edging, the plant hoop guard must remain in the position illustrated in (M).

Telescoping handle and grip

The trimmer is adjusted to your body height by means of the telescoping handle and the middle grip K L.

Insert power cable into cable holder

The power cable holder in the guide grip prevents accidental disconnection of the extension cable N (1).

Connect to the socket (230 Volt, 50 Hz)

- Connect the device only to sockets that are protected with a 10-16 Amp. fuse (or LS switch type B)

i Note: Residual current protection device

These safeguards provide protection against severe injuries resulting from touching damaged cables, insulation defects and in some cases cables that conduct electricity.

• We recommend that the equipment only be plugged into a power socket, which is protected by a residual current protection device (RCD) with a residual current of no more than 30 mA.
  ●Retrofit kits are available for old installations. Consult an electrician

On / off switch (2)

i Tips on trimming

●Cut high grass slowly, step by step.
- If the cutting cord becomes too short due to normal wear, simply switch off the trimmer. The cord will then automati-cally adjust to the correct length.
- Whenever the trimmer is switched off and then on again, the cord automatically lengthens 6-8 mm. If the trimmer is frequently switched on and off for no reason, this will increase wear of the cord.
- You can prolong the life of your trimmer by removing grass from the ventilation slots and the bottom of the trimmer before or after each use.

Maintenance

Replacing the cord spool

The trimmer continues to spin after being switched off! Always disconnect from the power supply before performing any work on the trimmer!

1. Press both locking tabs of spool cover simultaneously and remove O

2. Remove cord spool

3. Clean, if necessary

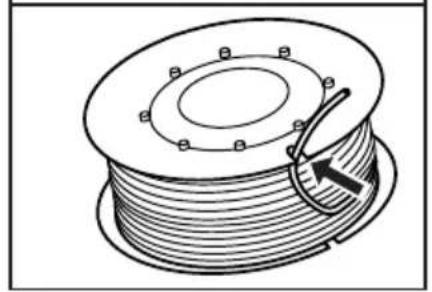

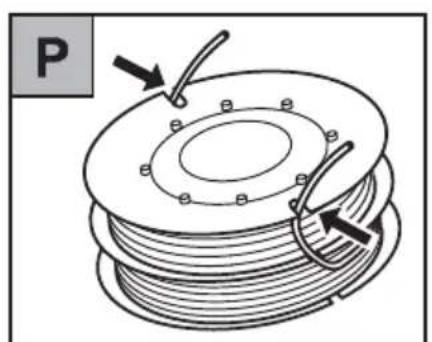

4. In order to prevent accidental unwinding, do not remove the cord ends of the new cord spool from the slits before inserting the spool

P

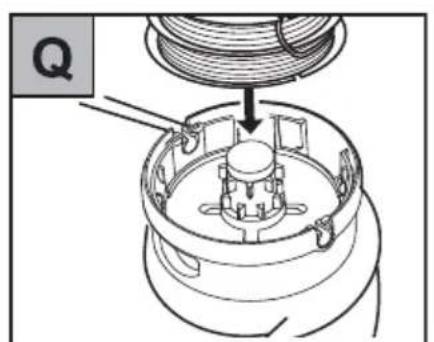

1. Insert cord spool into housing . Q

The bumps on the cord spool must face the cover!

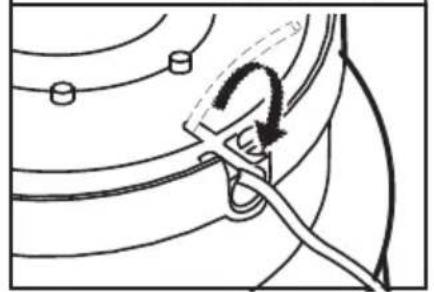

1. Place the spool cover on the cord spool holder so that the two locking tabs lock into place.

Before switching on: Hold trimmer parallel to the ground; otherwise, there is danger of injury.

Faults and how to remedy

Problem Ursache Abhilfe
Automatic line feed mecha-nism is not working.	• Spool is empty. • Fit new spool.
	• Dirt and debris in spool drive mechanism. • Line is torn and stuck inside spool.	Clean parts with a brush.
		• Remove spool, check tightness of winding and replace spool in the usual way.
	• Line is „welded“ to itself or to spool through heat build-up.	• Remove welded line section, check tight-ness of winding and replace spool in the usual way.

When in doubt, always consult a WOLF service workshop.

Spare parts

Ordering Number Designation of the item Description of the item
7130 085 GT-F7 Cord spool
7136 085 GT-F8 Cord spool
7136 086 GT-R Wheels

Supplied by your dealer

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is

caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a broken safety symbol and a person crossing a barrier

Abstract black-and-white graphic with three stylized icons: tree, hand, and eye (no text or symbols)

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol and a human figure with bidirectional arrow indicating collision or interaction.

Abstract black-and-white graphic with three stylized icons: tree, hand, and eye (no text or symbols)

Warning sign and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol and a human figure with bidirectional arrow indicating collision or displacement.

Three abstract black-and-white icons: tree with wave, hand crossed out, and eye (no text or symbols)

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a broken safety symbol and a human figure with bidirectional arrow indicating interaction or collision.

Three abstract black-and-white icons: tree, hand with cross, and lightbulb (no text or symbols)

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a broken safety symbol and a person silhouette with bidirectional arrow

Abstract black-and-white graphic with four symbolic icons: tree, hand, and eye (no text or symbols)

Työkalu ei käy!

Käytä suo-jalaseja!

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a person slipping inside a triangular hazard symbol and a human figure with bidirectional arrow indicating collision or interaction.

Abstract black-and-white graphic with four stylized icons: tree, hand, and eye (no text or symbols)

i Merk: Jordfeilbryter

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol and a person silhouette with bidirectional arrow

Abstract black-and-white graphic with three stylized icons: a tree with vertical stripes, a hand holding a cross, and a leaf-like shape (no text or symbols)

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a broken safety symbol and a person silhouette with bidirectional arrow

Abstract black-and-white graphic with four symbolic icons: tree, hand, and eye (no text or symbols)

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Warning sign showing a person slipping inside a triangle and a rightward arrow indicating displacement or collision.

Three abstract black-and-white icons: tree, hand, and eye (no text or symbols)

Warning sign and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol and a human figure with bidirectional arrow indicating collision or displacement.

Abstract black-and-white graphic with three symbolic icons: tree, hand, and eye (no text or symbols)

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a broken safety symbol and a human figure with bidirectional arrow indicating collision or displacement.

Three abstract black-and-white icons: tree, hand with cross, and eye (no text or symbols)

Upozorenje! Prije puštanja u pogon pročitati upute za upotrebu!

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol and a person with bidirectional arrow indicating interaction or collision.

Three abstract black-and-white icons: tree, hand gesture, and eye (no text or symbols)

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a person slipping inside a triangular hazard symbol and a human figure with bidirectional arrow indicating collision or interaction.

Three abstract black-and-white icons: tree with circular base, hand gesture with cross, and stylized tree with flame (no text or symbols)

Opozorilo! Pred zagonom naprave obvezno preberite navodilo za uporabo!

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a broken safety symbol and a human figure with bidirectional arrow indicating interaction.

Abstract black-and-white graphic with three stylized tree-like shapes and a horizontal bar, no text or symbols present.

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol inside a triangle and a human figure with bidirectional arrow indicating collision or interaction.

Three abstract black-and-white icons: tree, hand gesture, and eye (no text or symbols)

Warning sign and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol and a human figure with bidirectional arrow indicating collision or displacement.

Four abstract symbols: tree, hand, cross, and eye (no text or labels)

Warning symbol and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a person slipping on a triangular hazard symbol and a human figure with bidirectional arrow indicating collision or interaction.

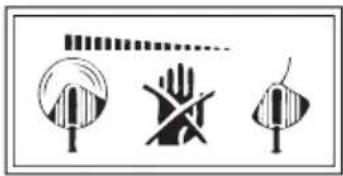

Three abstract black-and-white icons: tree with vertical stripes, hand crossed out, and eye-like shape (no text or symbols)

Warning sign and open book icon side by side, indicating incorrect or invalid conditions

Safety warning sign showing a hazard symbol and a person silhouette with bidirectional arrow

Abstract black-and-white graphic with three stylized shapes: a tree, a hand gesture, and a leaf-like shape (no text or symbols)

Προσοχή!

MTD Products AG, Industriestraße 23, D-66129 Saarbrücken, T. Bukovec (Manager Products Standards Compliance)

	BG-тример; CZ-Strunový vyžínač; DK-Graestrimmer; D-Rasentrimmer; GR-tríμερ γκαζόν; GB-Trimmer; FIN-Trimmeri; F-Débrousailleuses; HR-Trimeri trave; H-Gyepszegély nyíró; I-Trimmer per tappeti erbosi; NL-Trimmer; N-Plentrimmer; PL-Trymer do trawy; RO-Trimmer pentru gazon; RUS-тример для газона; SK-Strunová kosačka; SLO-Trimer za travo; S-Grästrimmer; TR-çim budama makinesi
	BG-Работна ширина; CZ-Pracovní záběr; DK-Arbejdsbredde; D-Arbeitsbreite; GR-Плάτος εργασίας; GB-Working width; FIN-Työleveys; F-Largeur opérationnelle; HR-Radna širina; H-Munkaszélesség; I-Larghezza di lavoro; NL-Werkbreedte; N-Arbeidsbredde; PL-Szerokość pracy; RO-Lätime de lucru; RUS-Ширина обработки; SK-Pracovný záber; SLO-Delovnaširina; S-Arbetsredd; TR-Çalışma genişliği
	BG-Дебелина на нишката / Дължина на нишката; CZ-Sila struny / Délka struny; DK-Snørens tykkelse / Tråd Længde; D-Fadenstärke / Fadenlänge; GR-Пáχος νήματος / Мήκος νήματος; GB-cord dia / cord length; FIN-Siima halk. / Siima Pituus; F-Fil section / Fil Longueur; HR-Debljina niti / Duljina niti; H-Szálvastagság / Szálhosszúság; I-Filo Diametro / Filo Lungo; NL-Draad Doorsnede / Draad Lengte; N-Tråd Tykkelse / Tråd langde; PL-średnica / długość; RO-Diametrul firului / Lungimea firului; RUS-Tолщина корда / Длина корда; SK-Hrúbka struny / Dížka struny; SLO-Debelina nitke / Dolžina nitke; S-Tråd Grovlek / Längd; TR-Misina kalýnlýðý / Misina uzunluðu
	BG-Terlo; CZ-Hmotnost; DK-Vægt; D-Gewicht; GR-Bápoç; GB-Weight; FIN-Paino; F-Poids; HR-Težina; H-Súly; I-Peso; NL-Gewicht; N-Vekt; PL-Cięžar; RO-Greutate; RUS-Macca; SK-Hmotnost; SLO-Teža; S-Vikt; TR-Ağırlık
	BG-Мощност/обороти електромотор; CZ-Výkon / otáčky elektromotoru; DK-Elmotorens ydelse / omdrejningstal; D-Leistung / Drehzahl Elektromotor; GR-Iσχύς / Аріθμός στροφών ηλεκτροκινητήρα; GB-Power / speed of electric motor; FIN-Teho / kierrosluku sähkömoottori; F-Puissance / Vitesse du moteur électrique; HR-Snaga / Broj okretaja elektromotora; H-Teljesítmény / Elektromotor fordulatszáma; I-Potenza / numero di giri motore elettrico; NL-Vermogen/toerental elektromotor; N-Ytelse / turtall elektromotor; PL-Moc / liczba obrotów silnika elektrycznego; RO-Putere / turație electromotor; RUS-Мощность / Число оборотов двигателя; SK-Výkon / otáčky elektromotora; SLO-Moč / Število vrtljajev elektromotorja; S-Effekt / varvtal elmotor; TR-Güç / Devir sayısı, elektronik motor
	BG-Напрежение; CZ-Napětí; DK-Spænding; D-Spannung; GR-Táση; GB-Voltage; FIN-Jännite; F-Tension; HR-Napon; H-Feszültség; I-Tensione; NL-Spanning; N-Spenning; PL-Napięcie; RO-Tensiune; RUS-Напряжение; SK-Napätie; SLO-Napetost; S-Spänning; TR-Gerilim
	BG-Предпазител; CZ-Pojistka; DK-Sikring; D-Sicherung; GR-Аσфáλιση; GB-Fuse; FIN-Sulake; F-Fusible; HR-Osigurač; H-Biztosíték; I-Fusibile; NL-Zekering; N-Sikring; PL-Bezpiecznik; RO-Siguranță; RUS-Предохранительное устройство; SK-Poistka; SLO-Varovalka; S-Säkring; TR-Sigorta
	BG-Трептене – рамо/ръка; CZ-Vibrace přenášené na ruce; DK-Hånd-arm-svingninger; D-Hand- Arm-Schwingungen; GR-Краδασμοί χεριού-βραχίονα; GB-Hand/arm vibrations; FIN-Käsiin ja käsivarsiin kohdistuva tärinä; F-Vibrations DKns les mains et les bras; HR-Vibracije šake i ruke; H-Kezet és kart érő rezgés; I-Vibrazioni su mano-braccio; NL-Hand- en armtrillingen; N-Hånd arm svingninger; PL-Drgania przenoszone na dlonie i ręce; RO-Oscilații-mână-braț; RUS-Уровень локальной вибрации; SK-Vibrácie prenášané na ruky; SLO-Tresljaji dlani in roke; S-Hand-arm-svängningar; TR-EI, kol sallamalar

	BG-Измерена/гарантирана звукова мощност ( L_WA/L_WAg ); CZ-Změřený / zaručený akustický výkon ( L_WA/L_WAg ); DK-Målt / garanteret lydeffekt-niveau ( L_WA/L_WAg ); D-gemessene / garantierte Schallleistung ( L_WA/L_WAg ); GR-Метрнімігін / єүүүнімігін ніхітікі іσχύς ( L_WA/L_WAg ); GB-Measured / guaranteed sound power ( L_WA/L_WAg ); FIN-Mitattu / taattu äänitehotaso ( L_WA/L_WAg ); F-Puissance sonore mesurée / garantie ( L_WA/L_WAg ); HR-Izmjerena / zajemčena jakost zvuka ( L_WA/L_WAg ); H-Mért / garantált hangteljesítmény ( L_WA/L_WAg ); I-Potenza acustica misurata / garantita ( L_WA/L_WAg ); NL-Gemeten/gegarandeerd geluidsniveau ( L_WA/L_WAg ); N-Mälte / garanterte lydeffekt ( L_WA/L_WAg ); PL-Zmierzony / gwarantowany poziom hałasu ( L_WA/L_WAg ); RO-Putere sonoră măsurată / garantată ( L_WA/L_WAg ); RUS-Измеренный / Гарантированный уровень звуковой мощности ( L_WA/L_WAg ); SK-Nameraný / zaručený akustický výkon ( L_WA/L_WAg ); SLO-Izmerjena / zagotovljena akustična moč ( L_WA/L_WAg ); S-Uppmätt / garan- terad bullereffekt ( L_WA/L_WAg ); TR-Ölçülmüş / Garantie edilen ses gücü ( L_WA/L_WAg )
	BG-Звуково налягане ( L_pA ); CZ-Akustický tlak ( L_pA ); DK-Lydtryk ( L_pA ); D-Schalldruck ( L_pA ); GR-Ак outікі пієсн ( L_pA ); GB-Sound pressure ( L_pA ); FIN-Äänenpainetaso ( L_pA ); F-Pression acoustique ( L_pA ); HR-Zvučni tlak ( L_pA ); H-Hangnyomás ( L_pA ); I-Pressione acustica ( L_pA ); NL-Geluidsdruk ( L_pA ); N-Lydtrykk ( L_pA ); PL-Ciśnienie akustyczne ( L_pA ); RO-Presiunea sunetului ( L_pA ); RUS-Уровень звукового давления ( L_pA ); SK-Akustický tlak ( L_pA ); SLO-Akustičnipritisk ( L_pA ); S-Ljudtryck ( L_pA ); TR-Ses basinci ( L_pA )
	BG-Техническа документация при; CZ-Technické dokumenty; DK-teknisk dokument for; D-Technische Unterlagen bei; GR-Техікін текупрішо; GB-Technical documentation at; FIN-Tekniset asiakirjat; F-Dossier technique chez; HR-Tehničke dokumentacije na; H-Technikai dokumentáció...-nál; I-Documentazione tecnica presso; NL-Technische gegevens bij; N-Tekniske dokumenter på; PL-Dokumentacja techniczna jest archiwowana i dostępna (w firmie); RO-Documente tehnice; RUS-Техническая документация в ...; SK-Technické podklady u; SLO-Tehnična Dokumenti; S-Tekniska dokument; TR-‘deki teknik belgeler

WOLF Garten

Red and yellow lawn mower on a grassy field, no visible text or symbols

Illustration of a red spray gun with a glowing orange lens, positioned beside a green hedgehog (no text or symbols)

Hand watering a red lawn mower in a green grassy field with colorful flowers (no text or symbols visible)

Person using a rope harness to lift a tree trunk, with no visible text or symbols

Red and black lawn shaver on green grass, no visible text or symbols

Red lawn mower in a grassy field with trees and blue sky (no visible text or symbols)

4.009269 0000000 TYPE: MUSTER

Person pushing a red push-wheeled cart on a grassy path, with greenery and a paved area in the background (no text or symbols visible)

Close-up of a manual pruning tool with red and white blades, placed on forest floor near tree (no text or symbols visible)
