| Product type | Electric lawn mower |
| Brand | Grizzly |
| Model | ERM 1231 G |
| Power consumption | 1200 W |
| Mains voltage | 220-240 V ~ 50/60 Hz |
| No-load speed | 3350 rpm |
| Cutting width | 310 mm |
| Adjustable cutting heights | 30 / 45 / 60 mm (3 positions) |
| Weight | 7.7 kg |
| Grass bag capacity | 27 L |
| Sound pressure level (LpA) | 84 dB(A), K = 3 dB |
| Guaranteed sound power level (LwA) | 96 dB(A) |
| Vibration (a_n) | 1.3 m/s² |
| Protection class | II |
| Protection type | IP24 |
| Safety devices | Unlocking button, starting lever, anti-shock guard |
| Max. extension cable length | 75 m |
| Extension cable cross-section | 2.5 mm² |
| Warranty | 24 months |
Frequently Asked Questions - ERM 1231 G Grizzly
User questions about ERM 1231 G Grizzly
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lawn mower in PDF format for free! Find your manual ERM 1231 G - Grizzly and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ERM 1231 G by Grizzly.
USER MANUAL ERM 1231 G Grizzly
Translation of the original instructions for use
DE Originalbetriebsanleitung 5
FR Traduction de la notice d'utilisation originale .... 16
NL Vertaling van de originele gebruiksaanwijzing 28
GB Translation of the original instructions for use 39
IT Traduzione delle istruzioni per l'uso in originale 49
PT Tradução do manual de instruções original 60
ES Traducción del manual de instrucciones original 71
PL Tłumaczenie oryginalnej instrukcji obsługi 82
BG Превод на оригиналното ръководство за употреба ..... 94
TR Orijinal kullanım talimatının tercümesi 106
LT Originali eksploatavimo instrukcija 117
Inhalt
Lieferumfang 5
Grizzly Service-Center 134
(LWA) 93 dB(A); KwA = 3 dB
Grizzly Service-Center 134
Grizzly Service-Center 134
Scope of Delivery 39
Intended Use 39
Safety Information 39
Pictorial Diagrams on the Equipment 40
General Safety Information ...... 40
General Description 43
Function Description 43
Summary 43
Assembly.... 44
Assembling the Curved Handle ..... 44
Assembling the Grass Box 44
Operation 44
Hanging On / Removing the Grass Box 44
Adjusting the Cut Height 44
Switching On and Off 45
Working with the Lawnmower ..... 45
Cleaning, Maintenance and Storage . 45
General Cleaning and Maintenance Work 45

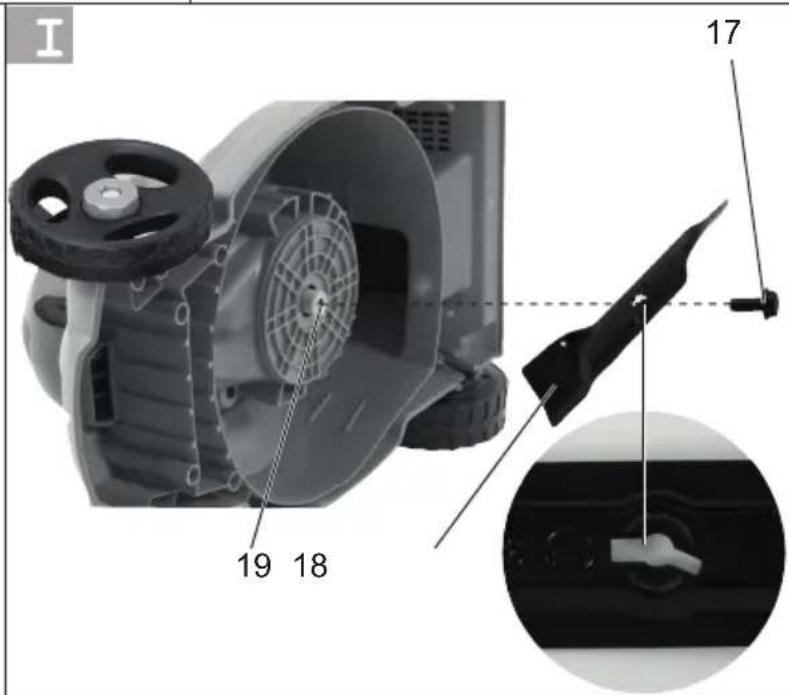

Changing the Blade 46
Storage 46
Disposal / Environmental Protection ... 46
Guarantee 47
Repair Service.... 47
Spare parts 47
Technical Specifications 47
Trouble Shooting 48
EC Declaration of Conformity ..... 129
Exploded Drawing 133
Grizzly Service-Center 134
Before initial use, please read the operating instructions carefully, in order to avoid incorrect handling. Keep the instructions in a safe place and pass them on to any subsequent user so the information is available at all times.
Scope of Delivery
Carefully remove the equipment from the packaging and check whether the following parts are complete:
- Lawnmower and curved handle with connection cable
- Lower bar
- Lawn box (in three parts)
- 2 screws to attach the bar
- 2 wing nuts and screws for attaching the curved handle
- 2 holders to attach the connection cable
- Instruction Manual
Intended Use
The equipment is designed only for mowing domestic lawns and grass areas.
The equipment is intended for use in the field of DIY. It is not designed for commercial use.
Any other use that is not expressly per- mitted in these instructions may result in damage to the equipment and represent a serious risk to the user.
The equipment is intended for use by adults. It is not to be used by children or people who are unfamiliar with these instructions. The use of the equipment is prohibited in the rain or a damp environment.
The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect operation.
Safety Information
This section covers the basic safety regulations when working with the electric lawnmower.
Pictorial Diagrams on the Equipment
ion!
Read the operating instructions carefully.
Do not expose the equipment to the damp. Do not work in the rain and do not cut wet grass.
Risk of injury from parts being thrown up.
nearby people away from the mower.
Caution – sharp cutting blade!
Keep feet and hands away. Risk of injury!
off the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged.
Danger of damaged power cable. Keep the power cable away from the cutting blade!
Caution!
wnmower blade continues to run after switching off.
Noise level specification L_wa in dB.
Protection class II
Do not dispose of electrical equipment in domestic waste.
Cutting circle
General Safety Information
This equipment may cause serious injury in the case of improper use. In order to avoid injury to people and damage to property, the following safety information must be observed and users must familiarise themselves with all operating parts.
Preparation:
- This equipment is not intended for use by people (including children) with limited physical, sensory or intellectual abilities or lack of experience and/or lack of knowledge, other than with the supervision of a person responsible for their safety or with the instruction of the same in terms of how to use the equipment.
- Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.
- Do not use the equipment when people and particularly children or pets are nearby.
• Children must be supervised in order to ensure that they do not play with the equipment.
- The operator or user is responsible for accidents, injuries to other people or damage to the property of others.
- Check the terrain on which the equipment is to be used and remove stones, sticks, wires and other foreign objects that could become caught and thrown up.
- Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals. Avoid wearing loose clothing or clothing with hanging cords or belts.
- Before each use, carry out a visual inspection of the equipment. Do not use the equipment if protective devices (e.g. collision guard or grass bag), parts of the cutting device or bolts are missing, worn or damaged. To avoid imbalance, damaged tools and bolts are to be replaced only in sets.
• Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades. - Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.
- Before usage, always check connections and extension cords for signs of damage or wear. If the cable is damaged during usage, it has to be separated from the main power immediately. Do not touch the cable before separating it from the main power. Do not use the machine if the cable is worn or damaged.
Working with the Equipment:
Do not place feet or hands near or under rotating parts when working. Risk of injury!
Observe the noise protection and local regulations. The use of the equipment may be restricted or prohibited on certain days (e.g.
Sundays and public holidays), at certain times of day (lunchtimes, nighttimes) or in certain areas (e.g. health resorts, hospitals etc.).
- Switch on the motor according to the instructions and only when your feet are at a safe distance from the cutting tools.
- Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.
- Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.
- When working, ensure a firm stance, particularly on slopes. Always work across the slope, never upwards or downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.
- Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards.
- Switch on the equipment carefully and in accordance with the directions in these instructions. Ensure sufficient distance between feet and the rotating blades.
- Do not tilt the equipment when starting other than if it is necessary to do so when starting up in long grass. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.
GB
- Do not work without the grass box or collision guard. Keep away from the ejection hole at all times.
- Do not start the motor if you are standing in front of the ejection chute.
Caution! Danger! The blade continues to run after switching off. There is a risk of injury.
- The equipment is not to be lifted or transported while the motor is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.
• Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped. - Do not leave the equipment unattended in the workplace.
- Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.
- Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.
- Do not use the equipment near inflammable liquids or gases. Non-observance will result in a risk of fire or explosion.
-
Do not lift or carry the equipment when the motor is running.
-
Switch off the equipment and disconnect the plug:
- Whenever you leave the machine,
- Before cleaning the ejection hole or removing blockages,
- When the equipment is out of use,
- Before checking, cleaning or working on the equipment,
- If the power cable is damaged or frayed,
- If the equipment has hit a foreign object or if strange vibrations occur during work. In this case, check the equipment for damage and have it repaired if applicable.
- ensure that all nuts, bolts and screws are tight.
- check the mower for possible damage.
- repair damaged parts if necessary.
- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sickle mowing.
Maintenance and Storage:
- When servicing the blades, ensure that the blades can be moved, even if the power source is switched off.
- Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
- Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres that we have authorised.
- Keep the equipment in a dry location and out of reach of children.
-
Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.
-
Wear protective gloves when changing the cutting device.
- Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.
- Check that only replacement tools authorised by the manufacturer are used.
Electrical Safety:
- Ensure that the mains voltage matches the specifications on the rating plate.
- If possible, connect the equipment only to a socked with a residual current-operated protective device (RCD) with a release current of more than 30 mA.
- Avoid bodily contact with earthed parts (e.g. metal fences, metal posts).
- Use only authorised extension cable of type H05VV-F or H05RN-F, which are no more than 75 m long and suitable for outdoor use. The extension cable wire cross section must be at least 2.5 mm ^2 . Always completely unroll cable drums before use. Check the cable for damage.
- To fix on the extension cable, use the cable suspension intended for the purpose.
- Keep the extension cable away from the cutting tool when working. The cutting blades may damage the extension cable and result in contact with live parts. Always run the extension cable behind the operator.
- Do not use the extension cable to pull the plug from the socket. Protect the extension cable from heat, oil and
sharp edges.
- Switch off the equipment and disconnect the plug from the socket if the extension cable is damaged. If the extension cable is damaged, it must be replaced by the manufacturer, the customer services of the same, or a qualified person, in order to avoid hazards.
- Do not connect a damaged extension cable to the mains. Do not touch a damaged extension cable when it is connected to the mains. A damaged extension cable may result in contact with live parts.
General Description
Function Description
The electric lawnmower has a cutting tool, which turns parallel to the cutting level. It is equipped with a high performance electric motor, robust plastic housing, safety switch, collision guard, and grass box. Additionally, the equipment is height adjustable to three levels and has smooth-running wheels.
For the function of the operating parts, please refer to the descriptions below.
The illustration how to handle the appliance can be found on the pages 2-3.
Summary
1 Curved handle
2 Wing nuts
3 Lower bar
4 Grass box
5 Wheels
6 Lawnmower housing
7 Collision guard
GB
8 Cable holder
9 Extension cable outlet
10 Release button
11 Cable strain relief
12 Start lever
Assembly
Disconnect the plug before any work on the equipment. There is a risk of injury.
Assembling the Curved Handle
-
Insert the lower bar (3) into the slot on the lawnmower housing (6).
-
Fix the bar (3) using the enclosed screws (13).
Fix the curved handle (1) using the enclosed screws (14) and the wing nuts (2) on the lower bar (3). There are two possible positions.
- Clip the cable holder (8) into the bar (3) and thus fix the cable.

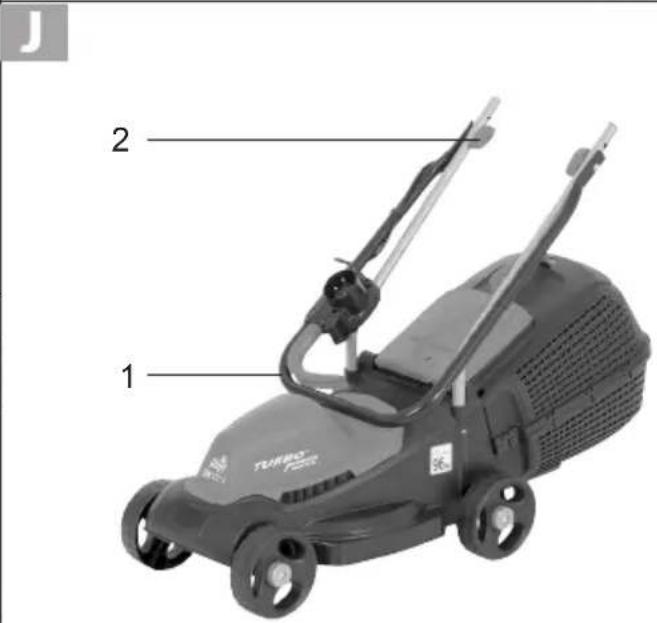

When both wing nuts are loosened, the curved handle can be folded down for storing the equipment. Ensure that the power cable is not caught.
Assembling the Grass Box
-
Connect the two pieces of the collection box (16).
-
Connect the handle (15) in one of the two pieces of the collection box (16).
Do not work with the lawnmower without the collision guard or lawn box. There is a risk of injury.
Operation
Hanging On / Removing the Grass Box
-
To hang on the grass box (4), lift the collision guard (7) and hang on the grass box. Fold the collision guard (7) onto the grass box (4). It holds the grass box in the correct position.
-
To remove the grass box (4), lift the collision guard (7) and detach the grass box. Fold the collision guard (7) back onto the mower housing (6).
Adjusting the Cut Height
Switch off the equipment, disconnect the plug and wait for the blade to stop. There is a risk of injury.
The lawn mower can be adjusted to the following cutting heights by changing the position of the wheels:
60 mm - Tall cutting height
45 mm - Medium cutting height
30 mm - Short cutting height
-
Unscrew the wheels (5).
-
Firmly re-secure the wheels (5) in the required position. All wheels must be adjusted at the same level.
The correct height is around 30 - 45 mm for a decorative lawn and around 45 - 60 mm for a used lawn.
A higher cut height should be selected for the first cut of the season.
Observe the noise protection and local regulations.
Switching On and Off
-
Insert the power cable plug into the socket (9) on the curved handle (1).
-

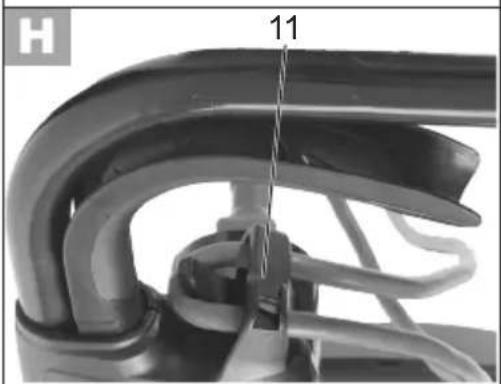

To relieve the strain, form a loop with the end of the power cable and hang this into the strain relief (11). See the diagram H.
- Connect the equipment to the power supply.
- Before switching on, ensure that the equipment is not in contact with any objects.

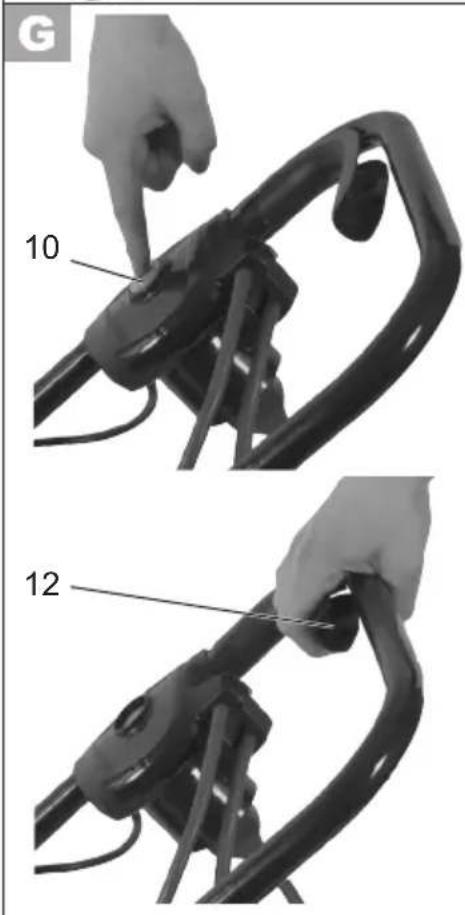

- To switch on, press the release button (10) on the handle at the same time as pressing the start lever (12). Release the release button (10).
- To switch off, release the start lever (12).
After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.
Working with the Lawnmower
Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn. The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.
- Start mowing near the socket and work away from the socket.
• Always keep the extension cable behind you and when you turn, move it to the side that has already been mowed.
- Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
- Adjust the cut height so the equipment is not overloaded. Otherwise, the motor may be damaged.
- On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
- Clean the equipment after each use, as described in the chapter on “Cleaning, Maintenance and Storage”.
Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.
Cleaning, Maintenance and Storage
Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.
Wear gloves when handling the blade.
Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops.
There is a risk of injury.
General Cleaning and Maintenance Work
Do not hose down the lawnmower with water.
GB
• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
• After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.
- Oil the wheels from time to time.
- Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
- Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary.
Changing the Blade
If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced (see chapter on "Spare Parts").
-
Turn the equipment over.
-
Use sturdy gloves and hold the blade (18) firmly. Turn the blade screw (17) anticlockwise off of the motor spindle (19) using a screwdriver.
-
Install the new blade (18) in the reverse order. Ensure that the blade (18) is positioned correctly and the screw (17) tightened firmly.
Storage
- Keep the equipment dry and out of reach of children. Loosen the wing nuts and fold down the
handle bar so the equipment takes up less space. Ensure that the cable is not caught.
- Allow the motor to cool before storing the equipment in a confined space.
- Do not cover the equipment with nylon bags as moisture could build up.
We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.
Disposal /Environmental Protection
Do not dispose of used oil in the sewage system or drains. Dispose of used oil in an environmentally correct manner - bring it to a waste disposal center.
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.
Machines do not belong with domestic waste.
The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
Defective units returned to us will be disposed of for free.
screw (17) tightened firmly.
[Non-Text]
Guarantee
- This appliance has a 24-month guarantee; This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.
- Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee. In particular, these include: blade.
• Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to. - Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair. This requires that the appliance is returned to the merchant undismantled and with proof of purchase and guarantee.
Repair Service
- Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate. We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.
- Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.
Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.
- Defective units returned to us will be disposed of for free.
Spare parts
The following spares are available from Grizzly Service-Center. Please indicate the machine type and the number of the spare part with your order.
Spare blade 13700206
Grass box 72500211
Technical Specifications
Electric Lawnmower .....ERM 1231 G
Motor input power 1200 W
Mains voltage ..... 220-240 V\~, 50/60 Hz
Idling speed ....3350 min ^1
Blade width 310 mm
Cut height 30 / 45 / 60 mm
Protection class ....☐II
Protection type.... IP 24
Weight 7,7 kg
Lawn box volume....271
Sound pressure specification
(L_pA) 84 dB(A), K = 3 dB
Noise level specification ( L_wA )
guaranteed 96 dB(A)
measured ..... 93 dB(A), K_wA = 3 dB
Vibration ( a_n ) 1,3 m/s ^2
The noise and vibration values have been determined in accordance with the standards and regulations specified in the declaration of conformity.
Technical and visual modifications may be made without notice in the course of further development. All dimensions, information and specifications in these operating instructions are therefore not guaranteed. As such, no assertion of legal claims can be enforced on the basis of the operating instructions.
Trouble Shooting
| Problem Possible Cause | Fault Fixing | |
| Equipment does not start | Power is off | Check the socket, cable, wire and plug and have any repairs carried out by an electrician |
| Defective on/off switch | Repair by customer servicesWorn carbon br. | |
| Defective motor | ||
| Grass too long | Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar. | |
| Motor stops | Blockage by foreign object | Remove the foreign object |
| Result unsatisfactory or motor labours | Cut height too low Set a higher cut height | |
| Blade blunt | Have the blade sharpened or replace it | |
| Blade area blocked Clean | the equipment | |
| Blade assembled incorrectly | Install the blade correctly | |
| Blade fails to turn | Blade blocked by grass Remove the grass | |
| Blade screw loose Tighten | the blade screw | |
| Strange noises, rattling or vibrations | Blade screw loose Tighten | the blade screw |
| Blade damaged Replace the blade | ||
Contenuto
Grizzly Service-Center 134
Grizzly Service-Center 134
Grizzly Service-Center 134
Grizzly Service-Center 134
Grizzly Service-Center 134
Biçak yedec 13700206
(LWA) 93 dB(A); KwA = 3 dB
Garso slègio lygis
(nurodytas.... 96 dB(A)
Vibracija rankenos
(an) 1,3 m/s ^4
Grizzly Service-Center
Oxford Street Industrial Park
Vulcan Road
Bilston, West Midlands WV14 7LF
Tel.: 0845 683 2678
Fax: 0845 683 2677
e-mail: grizzly@deslimited.com
LT
UAB "GOTAS" (Vilniaus filialas)
Linkmenų g. 38
08217 Vilnius
Tel.: 052 300 680 / 069 840780
Faks: 052 361 996
e-mail: info@gotas.lt
UAB "GOTAS" (Kauno filialas)
Draugystès g. 15B
51228 Kaunas
Tel.: 037 408 708 / 069 854 128
Faks: 037 352 807
e-mail: kaunas@gotas.lt
