USER MANUAL WG784E WORX

Black and white photo of a MORX lawn mower with visible branding and wheels (no text or symbols on the device itself)

Cordless lawn mower	EN	P07
Schnurloser Rasenmäher	D	P19
Tondeuse à gazon sans fil	F	P32
Falciatrice per prato senza fili	I	P44
Cortacésped sin cables	ES	P56
Corta-relva sem fios	PT	P68
Snoerloze graasmaaier	NL	P80
Ledningsfri plæneklipper	DK	P92
Johdoton ruohonleikkuri	FIN	P104
Batteridrevet gressklipper	NOR	P116
Sladdlös gräsklippare	SV	P128
Arada kablosuz çim biçme makinesi	TR	P139
Ασύρματη μηχανή γκαζόν	GR	P151
Ακκυμυляторная газонокосилка	RU	P163

Original instructions EN

Diagram showing a device connected to a cable with an arrow indicating assembly or connection (no text or symbols present)

A1

Diagram showing a power plug connected to a box with labeled parts 11 and 13, including an inset close-up of the plug.

A2

Line drawing of a lawn mower with attached blades and wheels, shown from front and side views (no text or symbols)

B1

Technical illustration of a lawn mower with mounting fixtures and downward arrows indicating motion (no text or symbols)

B2

Mechanical assembly diagram showing pipe connections and mechanical components (no text or labels)

B3

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

B4

Diagram of a lawn mower with a magnified inset showing the blade (no text or symbols present)

B5

Front Part Back Part

C1

Technical diagram of a device with numbered annotations indicating parts of the body and internal structure.

C2

Diagram of a battery pack with internal components and directional arrows indicating flow or movement (no text or symbols)

C3C4D1

Line drawing of a WORX battery casing with handle and mounting bracket (no text or symbols on body)

Diagram of a vehicle door handle with an arrow indicating rotation or adjustment (no text or symbols present)

Diagram showing a lawn mower system with labeled components and directional arrows indicating motion or movement.

Diagram showing a lawn mower with motion arrows indicating movement (no text or symbols present)

Mechanical assembly diagram showing gear and wheel components with motion arrows (no text or symbols)

D2D3E

Illustration of a lawn mower with a grassy base and attached blades, showing no text or symbols.

F1

Technical line drawing of a mechanical assembly with no visible text or symbols

F2

WORX ①

G1

WORK ① ②

G2

Technical line drawing of a mechanical device with labeled component '14' (no text or symbols beyond label)

H

Technical line drawing of a mechanical device with multiple views (top and side), no visible text or symbols

I

POWER/EST

J

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow.

K

Technical diagram showing two views (a and b) of a lawn mower with labeled parts and directional arrows indicating motion or assembly.

L

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

M

N-1 N-2 N-3

N

O-1 O-2 O-3

0

Technical diagram of a military vehicle showing front, side, and top views with numbered components

P1

Technical diagram of a mechanical component with labeled parts and directional arrows indicating motion or flow.

P2

Line drawing of a lawn mower with handle and wheels (no text or symbols)

Q

1. SWITCH LEVER
2. CABLE CLIP
   3 GRASS BAG FILLING INDICATOR
3. GRASS COLLECTION BAG
4. WORK MODE DIAL
5. SAFETY KEY
6. UPPER HANDLE
7. LOCK CAM LEVER
8. LOWER HANDLE
9. SAFETY FLAP
10. BATTERY PACK*
11. MOTOR COVER

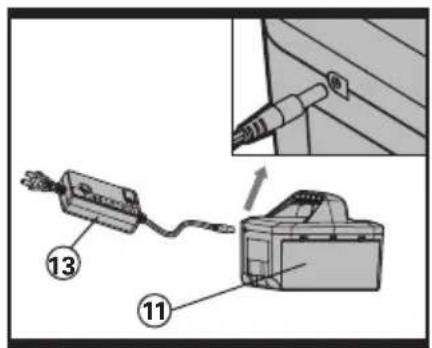

12. CHARGER*(see A2)
13. MULCH insert (see H)
14. BLADE BOLT (see P1)
15. BLADE (see P1)

* Not all the accessories illustrated or described are included in standard delivery.

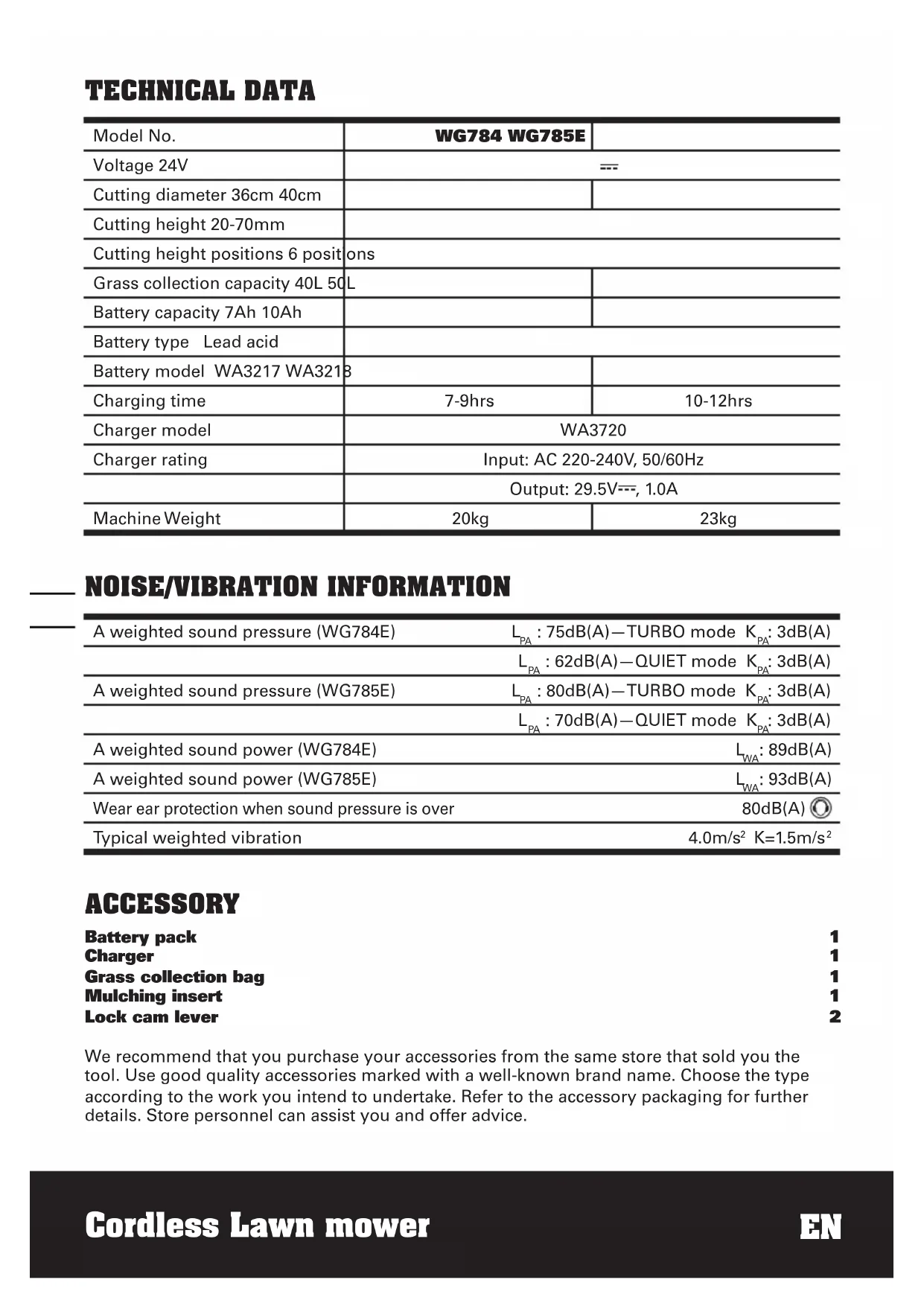

TECHNICAL DATA

Model No.	WG784 WG785E
Voltage 24V	---
Cutting diameter 36cm 40cm
Cutting height 20-70mm
Cutting height positions 6 positions
Grass collection capacity 40L 50L
Battery capacity 7Ah 10Ah
Battery type Lead acid
Battery model WA3217 WA321B
Charging time	7-9hrs	10-12hrs
Charger model	WA3720
Charger rating	Input: AC 220-240V, 50/60Hz
	Output: 29.5V---, 1.0A
Machine Weight	20kg	23kg

NOISE/VIBRATION INFORMATION

A weighted sound pressure (WG784E)	L_PA : 75dB(A)-TURBO mode K_PA : 3dB(A)
	L_PA : 62dB(A)-QUIET mode K_PA : 3dB(A)
A weighted sound pressure (WG785E)	L_PA : 80dB(A)-TURBO mode K_PA : 3dB(A)
	L_PA : 70dB(A)-QUIET mode K_PA : 3dB(A)
A weighted sound power (WG784E)	L_WA : 89dB(A)
A weighted sound power (WG785E)	L_WA : 93dB(A)
Wear ear protection when sound pressure is over	80dB(A) Ⓞ
Typical weighted vibration	4.0m/s^2 K=1.5m/s^2

ACCESSORY

Battery pack	1
Charger	1
Grass collection bag	1
Mulching insert	1
Lock cam lever	2

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow

the warnings and instructions may result in electric shock, fire and/or serious injury.

Carefully read the instructions for the safe operation of the machine.

Save all warnings and instructions for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

TRAINING

a) Read the instructions carefully. Be familiar with the controls and the proper use of the equipment;
b) Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations can restrict the age of the operator;
c) Never mow while people, especially children, or pets are nearby;
d) Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

a) While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals;
b) Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown by the machine;
c) Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged.

Replace worn or damaged blades and bolts in sets to preserve balance;

d) On multi-bladed machines, take care as rotating one blade can cause other blades to rotate.

OPERATION

a) Mow only in daylight or in good artificial light;
b) Avoid operating the equipment in wet grass, where feasible;
c) Always be sure of your footing on slopes;
d) walk, never run;
e) For wheeled rotary machines, mow across the face of slopes, never up and down;
f) Exercise extreme caution when changing direction on slopes;
g) Do not mow excessively steep slopes;
h) Use extreme caution when reversing or pulling the lawnmower towards you;
i) Stop the blade(s) if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed;
j) Never operate the lawnmower with defective guards, or without safety devices, for example deflectors and/or grass catchers, in place;
k) Switch on the motor carefully according to instructions and with feet well away from the blade(s);
I) Do not tilt the lawnmower when switching on the motor, except if the lawnmower has to be tilted for starting In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator;
m) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times;
n) Not to touch the blades before the disabling device has been removed and the blades have come to a complete stop;
o) To remove the disabling device - Whenever leaving the machine unattended, - Before clearing a blockage, - Before checking, cleaning or working

on the machine,

– After striking a foreign object,
- Whenever the machine starts vibrating abnormally.

MAINTENANCE AND STORAGE

a) Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition;
b) Check the grass catcher frequently for wear or deterioration;
c) Replace worn or damaged parts for safety.

BATTERY TOOL USE AND CARE

1) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
2) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
3) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
4) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR BATTERY CHARGER

1. Before charging, read the instructions.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. After charging, disconnect the battery

charger from the supply mains. Then remove the battery pack.

1. Do not charge a leaking battery.
2. Do not use chargers for works other than those for which they are designed.
3. Before charging, ensure your charger is matching the local AC supply.
4. The charging device must be protected from moisture.
5. Do not use the charging device in the open.
6. Do not short out the contacts of battery or charger.
7. Respect the polarity “+/-” when charging.
8. Do not open the unit and keep out of the reach of children.
9. Do not charge the batteries of other manufactures or ill-suited models.
10. Ensure that the connection between the battery charger and battery is correctly positioned and is not obstructed by foreign bodies.
11. Keep battery charger's slots are free of foreign objects and protect against dirt and humidity. Store in a dry and frost-free place.
12. When charging batteries, ensure that the battery charger is in a well-ventilated area and away from inflammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging.
13. Do not recharge non-rechargeable batteries, as they can overheat and break.
14. Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between 18^ and 24^ . Do not charge the battery pack in air temperatures below 4.5^ , or above 40.5^ . This is important as it can prevent serious damage to the battery pack.

SYMBOLS

Read instruction handbook before operation this machine.

Warning

Only use the battery charger indoors

Keep bystanders away.

Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them.

Beware of sharp blades. Blades continue to rotate after the motor is switched off.

Remove plug from mains before maintenance or if cord is damaged.

Keep the supply flexible cord away form the blades.

Do not expose to rain or water.

Do not burn.

Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point.

Contains Pb battery. Battery must be recycled or disposed of properly.

WEEE marking

INTENDED USE

This product is intended for domestic lawn mowing.

CHARGER SAFETY RULES

1. Plug charger directly into an electrical outlet. DO NOT ABUSE THE CORD. Never carry charger by cord. Do not disconnect the charger from the outlet or mower by pulling it by the cord.
2. CAUTION: To reduce the risk of fire, electrical shock, or personal injury do not attempt to use this charger with any other product. Likewise, do not attempt to charge the battery with any other charger.
3. Do not service mower with charger or safety key installed.
4. Do not operate a damaged charger. Replace damaged cords or charger immediately at an authorized WORX service center.
5. Always charge the mower in a dry area protected from the weather. Do not expose the mower or charger to rain. Do not charge in wet locations. Do not charge mower when temperature is above 104^ F ( 40^ C) or below 41^ F ( 5^ C).
6. Keep the mower and charger away from water, heat sources, (Such as radiators, heaters, stoves...etc.) flames, or chemicals. Be careful not to damage the charger cord, by keeping cord away from sharp edges.

CHARGING PROCEDURE

1. Charging can be carried out either with the battery FITTED (See A1) or REMOVED from the machine (See A2).
2. Plug the charger connector into the receptacle on the battery. (See A1, A2).
3. Insert the plug of the charger into the wall receptacle.
4. Press the button on the charger, the red light should come on indicating that you have power and the battery is being charged.
5. The red light will turn off and the green light will come on when charging is

complete (approximately 10-12 hours to charge a fully discharged battery)

1. After the battery is fully charged the green light will turn on and stay it for 15 seconds to indicate a full charge. After 15 seconds the green light and charges will turn off to save power.

NOTE: if the battery is defective, the red light will flash.

The lights will only function when the charger is connected to both the battery and wall receptacle.

1. The charger is a smart charger and can stay connects to the battery and wall receptacle for extant periods of time without fear of damaging the battery or charger. The charger will automatically turn on to ensure the battery is fully charged.

BATTERY CARE

The battery in your cordless lawnmower is a 24-volt sealed lead acid system. The mower can be stored in any position without fear of leakage.

• For optimal battery life and performance the battery should be fully charged every 2 months during storage
• For optimal battery life and performance the battery should be fully charged after each use
  • Store the battery in a cool dry location.
• The battery can be safely stored down to 14^ F ( -10^ C).
• The battery does not need to be fully discharged before recharging.
• Initially 2 to 3 charging cycles may be required after purchase to achieve maximum run time capacity.

ADDITIONAL BATTERIES can be obtained from the Customer Helpline.

ASSEMBLY

IMPORTANT! Before you assemble the lawn mower, check the accessories according above information, make sure the accessories are completed.

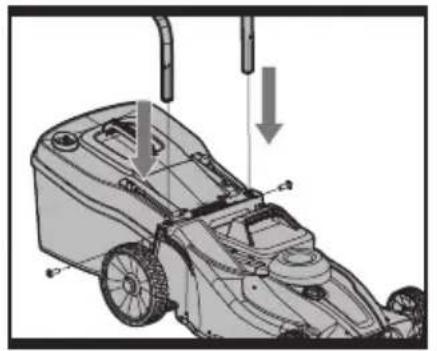

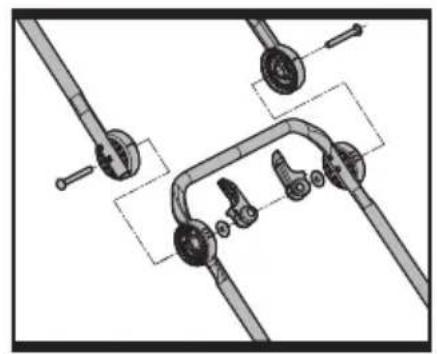

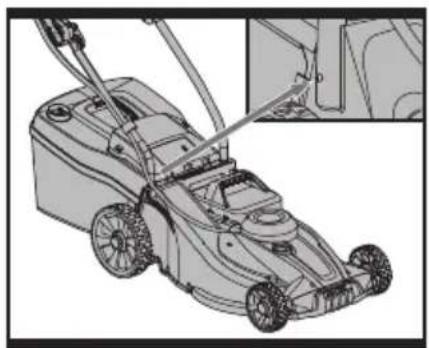

1. FITTING THE HANDLE (See B1\~B5)

1) Remove the screws (X 2) on the both side of deck. (Fig B1)
2) Insert the lower handle (9) into the holes on the deck provided.(Fig B2)
3) Secure with the screws provided.(Fig B2)

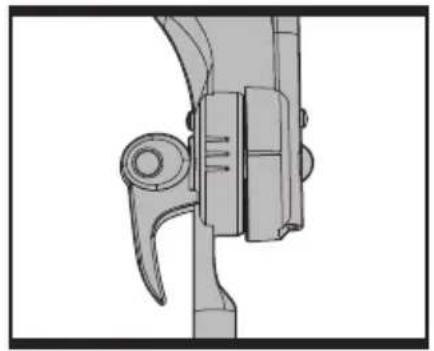

4) Attach the upper handle (7) with the bolts and lock cam lever (8) to the lower handle (9). (Fig B3)
5) Tightening the two Lock cam levers. Check that the handle is FULLY secured.

The cam lever pressure can be adjusted by adjusting the lock cam lever (8) clockwise/counter-clockwise. DO NOT OVER TIGHTEN. (Fig. B4)

NOTE: Ensure the bolts are fully inserted through the handles before fitting the handle knobs.

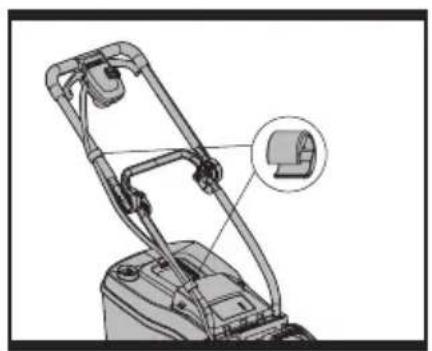

6) Attach the cable clips (2) provided, to the upper and lower handle. Insert the cable into the clips ensuring there is enough cable slack. (Fig B5)

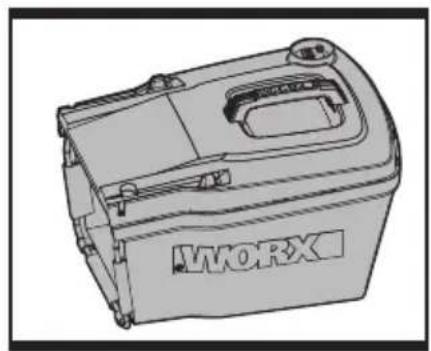

2. GRASS COLLECTION BAG ASSEMBLY

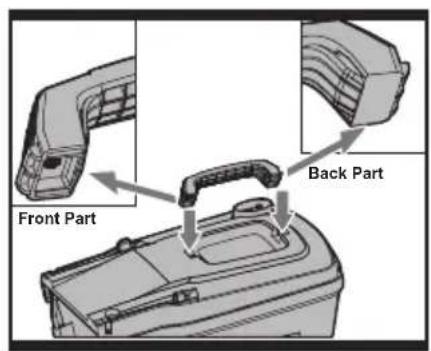

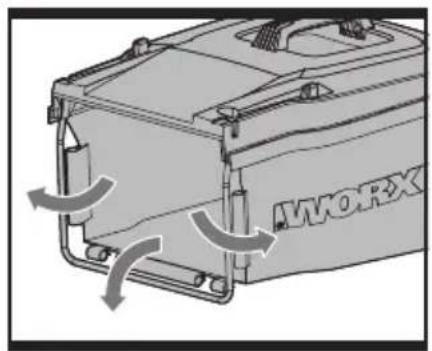

Connect the grass box handle to the box top as shown in Fig C1-C4.

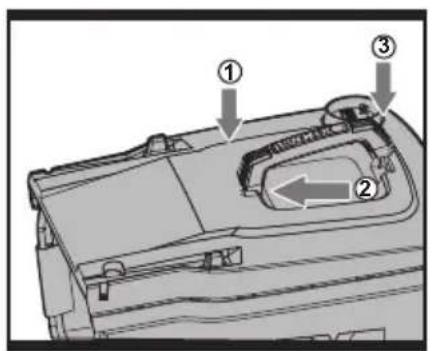

Step 1 Press the front of the handle briefly. (Fig C2)

Step 2 Then push it forward. (Fig C2)

Step 3 Push down the back of the handle. (Fig C2)

Step 4 Finally, clip the plastic clips over the metal frame. (Fig C3)

WARNING: Don't fit the handle in reversed direction. Fit the handle as shown in Fig C1.

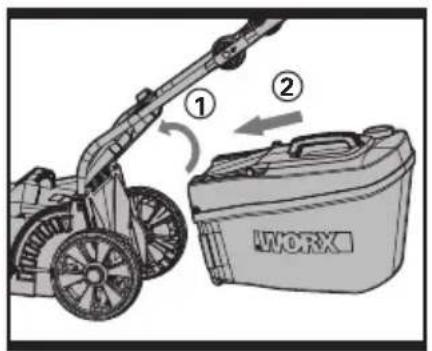

3. GRASS COLLECTION BAG FITTING (See D1, D2, D3)

1) Turn the mower off, wait until blade stops and remove safety key (6).

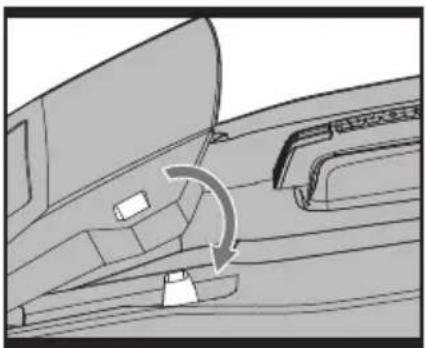

2) Raise the safety flap (10) and hold it up, ensure that the mulching insert has been removed.

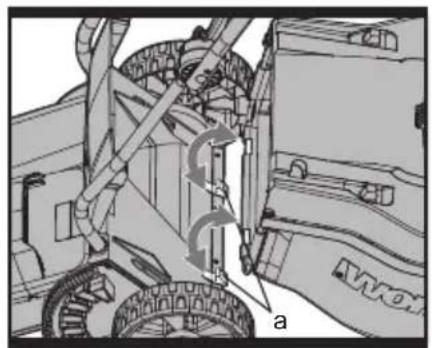

3) Pick up the grass bag by the handle, and position grass bag on the lower hooks (a) on the mower deck (Fig. D2).
4) Release the safety guard to lock the grass bag into position. Ensure the grass bag is installed securely (Fig. D3).

NOTE: Depress the grass bag slightly to ensure that it is completely installed.

4. REMOVING/EMPTYING

Hold the grass bag, lift the safety flap (10) and hold up. Remove grass bag (4).

WARNING! Always check the safety flap can close the discharge outlet tightly before using. Never lift the safety flap (10) when the lawn mower is being used without fitted grass bag.

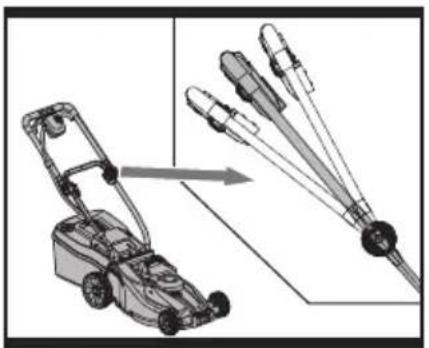

5. HANDLE ADJUSTMENT (See E)

The upper handle can be adjusted to 3 different height positions. Release the locking cam lever, set the upper handle to one of the three height positions, and make sure to insert the pin into the hole. Then reset the locking cam lever.

NOTE: Always check that the upper handle is fixed firmly.

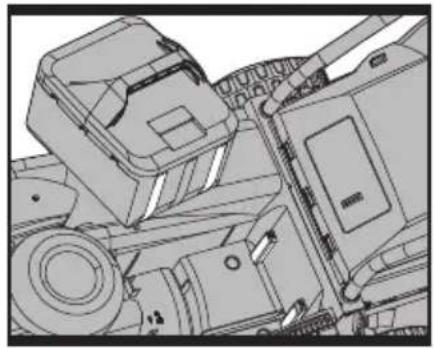

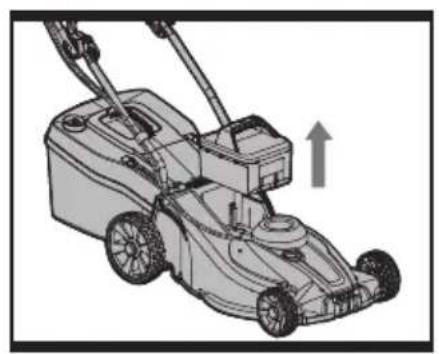

6. FITTING/REMOVING BATTERY (See F1, F2)

REMOVING BATTERY

Pull out the battery with the battery handle directly. (See F1)

NOTE: Be careful not to drop the battery onto your foot or on the ground when removing it. FITTING BATTERY

Put the battery into the battery container; make sure the battery is fitted correctly. (See F2)

OPERATION

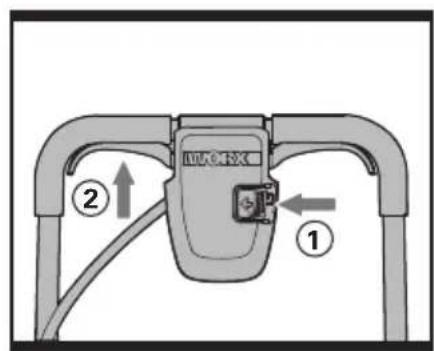

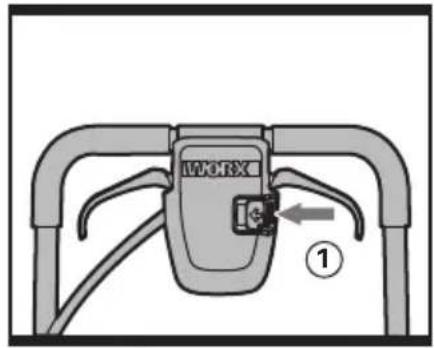

1. STARTING AND STOPPING (See G1, G2)

WARNING! The blade continues to rotate for a few seconds after the machine is switched off. Allow the motor/blade to stop rotating before switching "on" again. Do not rapidly switch off and on.

STARTING

1) Insert safety key into the housing of the switch box.
2) Slide the key to the right and hold in position.
3) Pull the lever bar towards the handle and the mower will start.
4) Release the safety key.

STOPPING

Release the switch lever.

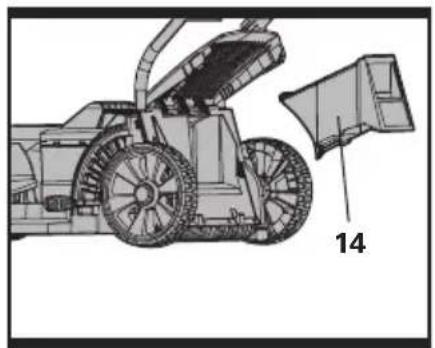

2. INSTALLING MULCH INSERT (14) (See H)

1) Turn the mower off, wait until the blade stops and remove the safety key (6).
2) Raise the safety guard and hold it up.
3) Slide the mulching insert into the discharge opening until it is firmly in contact with the deck.
4) Release safety guard and ensure it is properly closed.

3. REMOVING MULCH INSERT(14) (See H)

To remove the mulching insert so that you can collect the grass, follow the steps listed below:

1) Shut the mower off, wait until the blade stops and remove the safety key.
2) Raise the safety guard and hold it up.
3) Grasp the middle of the insert, lift and pull out the mulching insert completely.
4) The safety guard is spring loaded. When you release it, the guard will return to the closed position.

4. WORK MODE DIAL (See I)

Status1: QUIET mode

Select QUIET mode when mowing in everyday conditions, removing approximately 20mm of grass at a time.

Status2: TURBO mode

Set the dial to TURBO mode when cutting dense or overgrown grass.

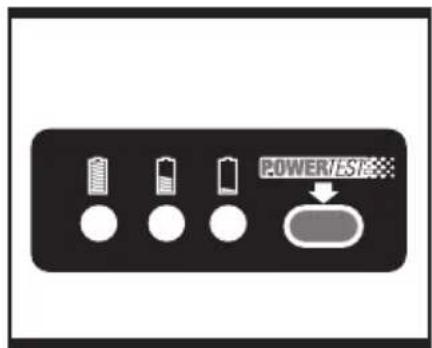

5. BATTERY STATUS LED'S (See J)

NOTE: The Status LED's will indicate the battery condition when the button on the battery is pressed.

The LED's constantly senses and displays the battery condition as follows:

Press the button "POWERTEST", the light button is illuminated.

When the three green lights are illuminated, the battery is in a highly charged condition.

When two lights (☐) are illuminated, the

battery is in a moderately charged condition. When only one green light (☐) is illuminated, the battery charge is depleted.

Before using your new mower for the first time, it is recommended that the unit be charged overnight to ensure that the battery is fully charged.

IMPORTANT

When only one light is illuminated, your battery is overly discharged, even though the mower may still be capable of cutting grass. Continuing to operate your lawnmower with the battery in this discharged condition may reduce the life and performance of your battery.

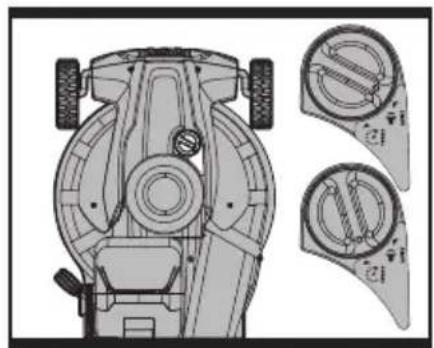

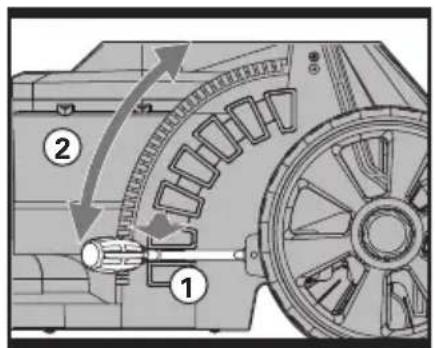

6. ADJUSTING THE CUTTING HEIGHT (See K)

WARNING! Stop, release switch lever and wait until the motor stops before adjusting height. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

CAUTION: Do not touch rotating blades.

For the first cutting of the season, a high cutting adjustment should be selected. The lawnmower can be set to 6 cutting heights between 20mm and 70mm. For this purpose, move the cutting height adjustment lever outwards then adjust to the preferred position.

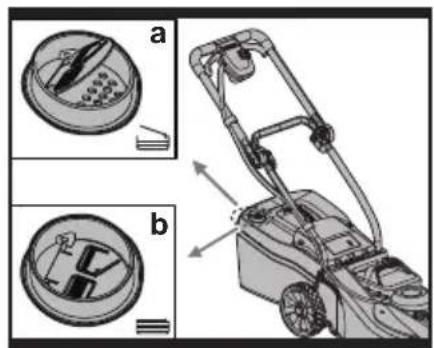

7. GRASS BAG FILLING INDICATOR (See L)

To remind you immediately to empty when the grass bag is full, the mower provides an indicator on the top of bag to show the collection status. And you can follow as below:

Empty status: flap float (a)

Fully status: flap fall down (b)

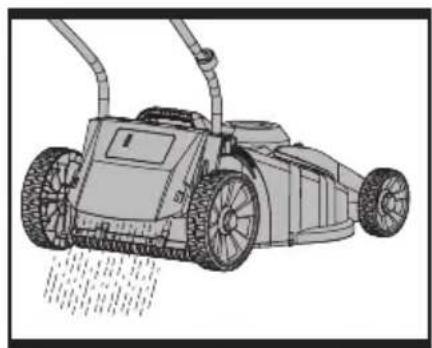

8. REAR DISCHARGE (See M)

The mower provides a rear discharge function, so that you can mower without bag collection. The debris will be discharged from the rear chute.

9. MOWING TIPS

NOTE: always inspect area where mower is to be used and remove all stones, sticks, wire, metal and other debris which might be thrown by the rotating blade.

1) Mow across the face of slopes, never up-and-down. Exercise extreme caution when changing direction on slopes. Do not mow excessively steep slopes. Always maintain good footing.
2) Release switch lever to turn mower "OFF" when crossing any graveled area (stones can be thrown by the blade).
3) Set mower at highest cutting height when mowing in rough ground or in tall weeds. Removing too much grass at one time can cause circuit breaker to trip, which stops mower.
4) If a grass bag is used during the fast growing season, the grass may tend to clog up at the discharge opening. Release switch lever to turn mower "OFF" and remove the safety key. Remove the grass bag and shake the grass down to the back end of the bag. Also clean out any grass or debris which may be packed around the discharge opening. Replace the grass bag.
5) If mower should start to vibrate abnormally, release switch lever to turn mower "OFF" and remove safety key. Check immediately for cause. Vibration is a warning of trouble. Do not operate mower until a service check has been made.
6) Always release switch lever to turn mower "off" and remove safety key when leaving it unattended even for a short period of time.

10. MULCHING MOWING TIPS

While mulching, your new mower is designed to cut the grass clippings into small pieces and distribute them back into the lawn. Under normal conditions, the mulched grass will biodegrade quickly to provide nutrients to the lawn. Please review the following recommendations for optimum mulching performance.

1) Avoid mowing when the grass is wet from rain or dew. Wet grass may form clumps

which interfere with the mulching action and reduce runtime. The best time to mow grass is in the late afternoon when the grass is dry and the newly cut area will not be exposed to direct sunlight.

2) For best mulching performance, set the cutting height to remove about one third of the grass blade length, ideally no more than 38mm at one time. If the lawn is overgrown, it may be necessary to increase the cut height to reduce the pushing effort and prevent overloading the motor. For extremely heavy mulching, it is advisable to first cut at a high cut height setting, and then re-cut to the final cut height. Otherwise, make narrower cuts and mow slowly.

3) For best performance, keep the mower housing free of built-up grass. From time to time turn off mower and wait for the blade to come to a complete stop. Then unplug the safety key and turn mower on its side. Using an object such as a stick, wipe out any accumulation of grass in the blade area. Be careful of the sharp edges of the blade. Clean often in wet, new grass, and always after every use.

4) Certain types of grass or grass conditions may require that an area be mulched a second time to fully disperse the grass throughout the lawn. If cutting a second time, it is advisable to cut perpendicular (across) the first cut pattern.

Do not change cut pattern in any way that would cause mowing down ahill.

5) Change your cutting pattern from week to week. This will help prevent matting and graining of the lawn.

MAINTENANCE

WARNING: Stop the mower and remove the safety key before

removing the grass bag.

NOTE: To ensure long and reliable service, perform the following maintenance procedures regularly. Check for obvious defects such as a loose, dislodged or a damaged blade, loose fittings, and worn or damaged components. Check that the

covers and guards are all undamaged and are correctly attached to mower. Carry out any necessary maintenance or repairs before operating mower. If the mower should happen to fail despite regular maintenance, please call our customer helpline for advice.

BLADE SHARPENING

Keep blade sharp for best mower performance. A dull blade does not cut grass cleanly or mulch properly. Wear proper eye protection while removing, sharpening, and installing blade. Ensure that safety key is removed.

Sharpening the blade twice during a mowing season is usually sufficient under normal circumstances. Sand causes the blade to dull quickly. If your lawn has sandy soil, more frequent sharpening may be required.

Replace bent or damaged blade immediately.

WHEN SHARPENING THE BLADE:

1. Make sure blade remains balanced.
2. Sharpen blade at the original cutting angle.
3. Sharpen cutting edges on both ends of blade, removing equal amounts of material from both ends.

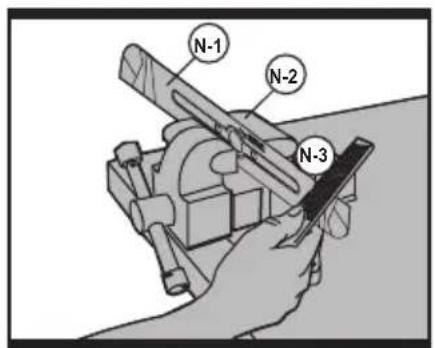

TO SHARPEN BLADE IN A VISE (See N)

1. Be sure the switch lever is released, the blade has stopped and the safety key removed before removing the blade.
2. Remove blade from mower. See instructions for removing and attaching blade.
3. Secure blade N-1 in a vise N-2.
4. Wear safety glasses and be careful not to cut yourself.
5. Carefully file the cutting edges of the blade with a fine tooth file N-3 or sharpening stone.
6. Check balance of blade. See instructions for blade balancing.
7. Replace blade on mower and tighten securely. Refer to instructions below.

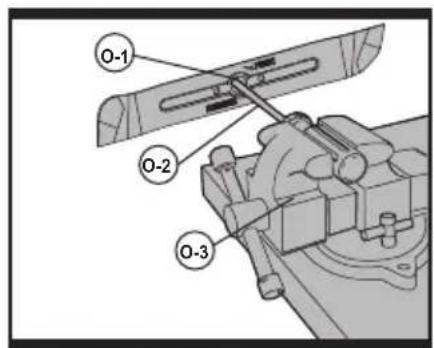

BLADE BALANCING (See 0)

Check balance of blade by placing center hole in blade O-1 over a nail or screwdriver shank O-2, clamped horizontally in a vise O-3. If either

end of the blade rotates downward, file that end. Blade is properly balanced when neither end drops.

Renew your metal blade after 50 hours mowing or 2 years, which ever is the sooner-regardless of condition.

Follow these procedures to remove and replace the blade. You will need garden gloves (not provided) and a spanner wrench (not provided) to remove the blade. Hold the blade (16) and unscrew the blade bolt (15) counterclockwise using a spanner wrench, and then remove blade.

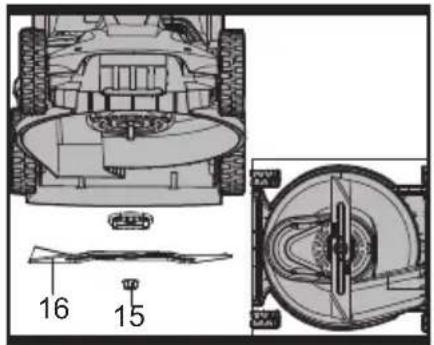

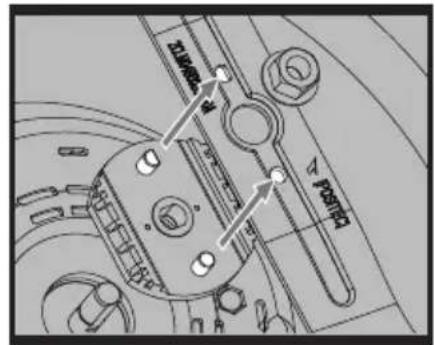

To re-assemble, position the blade (16) with the cutting edges towards the ground. Then securely tighten the blade bolt (15).

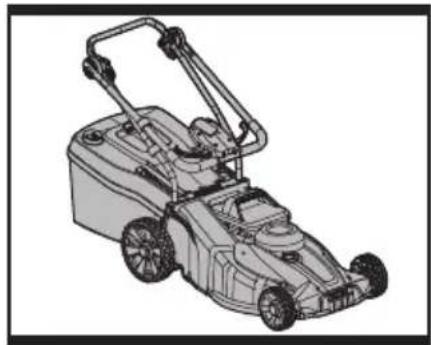

STORAGE: (See Q)

Stop the mower and always remove the safety key. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots.

Turn the machine on its side and clean the blade area. If grass cuttings are compacted in the blade area, remove with a wooden or plastic implement.

Store the machine in a dry place. Do not place other objects on top of the machine.

To aid storage, release the handle cam lever, and rotate or fold the upper handle.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

PLUG REPLACEMENT (UK & IRELAND ONLY)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

Blue = Neutral

Brown = Live

As the colors of the wires in the electrical cord of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.

WARNING! Never connect live or

neutral wires to the earth terminal of the plug. Only fit an approved 13Amp BS1363/A plug and the correct rated fuse.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

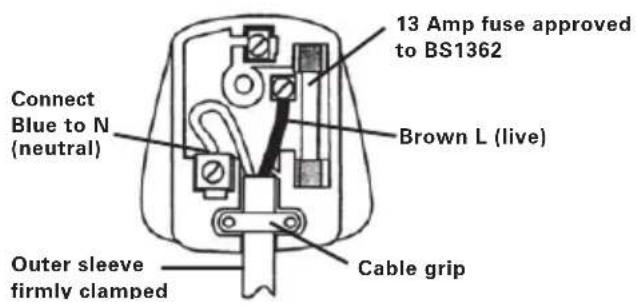

13 Amp fuse approved to BS1362 Brown L (live) Connect Blue to N (neutral) Cable grip Outer sleeve firmly clamped

EC DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Neuer Höltigbaum 6

22143 Hamburg

Declare that the product

Description

WORX Cordless Lawn Mover

Type WG784E WG785E

Function Mowing grass

Complies with the following Directives,

EC Machinery Directive

2006/42/EC

EC Low Voltage Directive

2006/95/EC

EC Electromagnetic Compatibility Directive

2004/108/EC

Noise Emission in the Environment by

Equipment for Use Outdoors Directive

2000/14/EC amended by 2005/88/EC

Conformity assessment procedure as per Annex VI.

Measured Sound Power Level

WG784E 86dB(A) TURBO mode

75dB(A) QUIET mode

WG785E 90dB(A) TURBO mode

78dB(A) QUIET mode

Declared Guaranteed Sound Power Level

WG784E 89dB(A)

WG785E 93dB(A)

The notified body involved

Name: Intertek Testing & Certification Ltd

Address: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Standards conform to,

EN 60335-1 EN 60335-2-77

EN ISO 3744 EN 55014-1

EN 55014-2 EN 61000-3-2

EN 61000-3-3 EN 62233

EN 60335-2-29

The person authorized to compile the technical file,

Name: Russell Nicholson

Address: Positec Powertools (Europe) LTD

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

POSITEC Quality Manager

Name: Intertek Testing & Certification Ltd

Anschrift: Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL

Normen:

EN 60335-1 EN 60335-2-77

EN ISO 3744 EN 55014-1

EN 55014-2 EN 61000-3-2

EN 61000-3-3 EN 62233

EN 60335-2-29

Name: Russell Nicholson

Anschrift: Positec Powertools (Europe) LTD

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jarky Zhou

2010/07/09

Jacky Zhou

The notified body involved

Nom: Intertek Testing & Certification Ltd

Adresse: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Standards conform to,

EN 60335-1 EN 60335-2-77

EN ISO 3744 EN 55014-1

EN 55014-2 EN 61000-3-2

EN 61000-3-3 EN 62233

EN 60335-2-29

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jacky Zhou

CE

2010/07/09

Jacky Zhou

Indirizzo: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Conforme a,

EN 60335-1 EN 60335-2-77

EN ISO 3744 EN 55014-1

EN 55014-2 EN 61000-3-2

EN 61000-3-3 EN 62233

EN 60335-2-29

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

Nome: Intertek Testing & Certification Ltd

Morada: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

Gestor de Qualidade POSITEC

1. SCHAKELHENDEL
2. ELEKTRICITEITSSNOERKLEMMEN
3. INDICATOR VULNIVEAU GRASZAK
4. GRASOPVANGZAK
5. WORK MODE DIAL
6. VEILIGHEIDSSLEUTEL
7. BOVENSTE HANDVAT
8. BLOKKERENDE CAMHENDEL
9. ONDERSTE HANDVAT
10. VEILIGHEIDSFLAP
11. ACCU *
12. MOTORAFDEKKING
13. ACCULADER *(Zie A2)
14. INSTEEKDEEL VOOR GRASBEMESTING (Zie H)
15. BOUT VOOR HET MES (Zie P1)
16. ZAAGBLAD (Zie P1)

TECHNICAL DATA

ALGEMENE VEILIGHEIDS WAARSCHUWINGEN VOOR VERMOGENSMACHINE

WAARSCHUWING! Lees alle

10. TIPS VOOR MAAIEN MET GRASBEMESTING

Naam: Intertek Testing & Certification Ltd

Adres: Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL

Standaards in overeenstemming met,

EN 60335-1 EN 60335-2-77

EN ISO 3744 EN 55014-1

EN 55014-2 EN 61000-3-2

EN 61000-3-3 EN 62233

EN 60335-2-29

Adres: Positec Powertools (Europe) LTD Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

AFVEJNING AF KNIVEN (Se 0)

Navn: Intertek Testing & Certification Ltd

Adresse: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Standarder i overensstemmelse med:

EN 60335-1 EN 60335-2-77

EN ISO 3744 EN 55014-1

EN 55014-2 EN 61000-3-2

EN 61000-3-3 EN 62233

EN 60335-2-29

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

Nimi: Intertek Testing & Certification Ltd

Osoite: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Osoite Positec Powertools (Europe) LTD Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

VEDLIKEHOLD OG LAGRING

KNIV-VEDLIKEHOLD (Se P1, P2)

Navn: Intertek Testing & Certification Ltd

Adresse: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL,

United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

Adress: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Pinewood, Chineham Bussiness Park,

Basingstoke, Hampshire, RG24 8AL,

United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

Adi: Intertek Testing & Certification Ltd

Adres: Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL

Ilgi Positec Powertools (Europe) LTD Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL, United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

Ovoμα: Intertek Testing & Certification Ltd

Διεύθυνση: Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL,

United Kingdom

Jaiky Zhou

2010/07/09

Jacky Zhou

Pinewood, Chineham Bussiness Park, Basingstoke, Hampshire, RG24 8AL,

United Kingdom

Jaiky Zhou

C€

2010/07/09

Jacky Zhou
