USER MANUAL Lombardia BORETTI

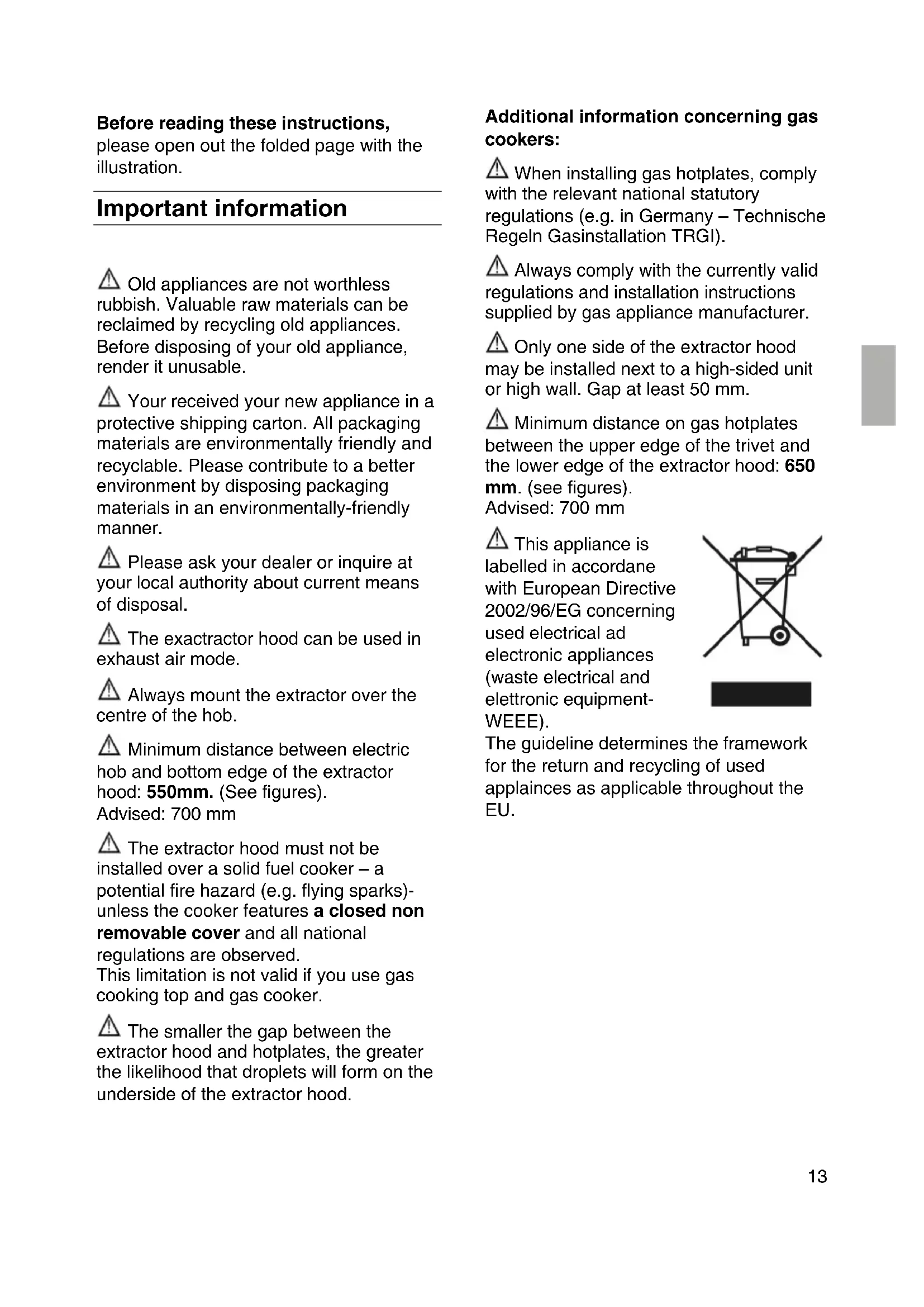

Before reading these instructions, please open out the folded page with the illustration. Important information Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable. Your received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing packaging materials in an environmentally-friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal. The exactractor hood can be used in exhaust air mode. Always mount the extractor over the centre of the hob. Minimum distance between electric hob and bottom edge of the extractor hood: 550mm. (See figures). Advised: 700 mm The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks)- unless the cooker features a closed non removable cover and all national regulations are observed. This limitation is not valid if you use gas cooking top and gas cooker. The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood. Additional information concerning gas cookers: When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany – Technische Regeln Gasinstallation TRGI). Always comply with the currently valid regulations and installation instructions supplied by gas appliance manufacturer. Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm. Minimum distance on gas hotplates between the upper edge of the trivet and the lower edge of the extractor hood: 650 mm. (see figures). Advised: 700 mm This appliance is labelled in accordane with European Directive 2002/96/EG concerning used electrical ad electronic appliances (waste electrical and elettronic equipment- WEEE). The guideline determines the framework for the return and recycling of used applainces as applicable throughout the EU.14

Prior to installation For optimum extractor hood efficiency: Short, smooth air exhaust pipe. As few bends in the pipes as possible Diameter of pipe to be as large as possible and no tight bends in pipe. If long rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise. Round pipes: we recommend internal diameter: 150 mm. Flat duct must have an internal cross section that equates to that of round pipes. There should be no sharp bends. Ø 150 mm ca. 177cm

If pipes have different diameters: insert sealing strip. For exhaust-air mode, ensure that there is an adequate supply of fresh air. Connecting a Ø 150 mm exhaust air pipe: Mount the pipe directly onto the air outlet on the hood. Duct smaller than 150 mm are not reliable. With higher distance from the cooking hob, the air delivery performances are reduced. During the design and layout of the mounting of the cooker hood, kindly consider also the funnel- shape of the vapour rising with inclination of ca 10 – 15°. Preparing the celing: The ceiling must be flat and horizontal. Ensure that the ceiling is capable of providing a firm hold for mounting screws and plugs. The enclosed plugs are suitable for concrete and stonework. If the ceiling is made of any other material, use appropriate mounting components. Attention: The cooker hood is equipped with standard fixing material. The person who is mounting the hood should make sure that fixing elements are suitable for the ceiling that is found. The manufacturer declines any responsibility for damages caused by a wrong mounting oder use of unsuitable fixing elements for the ceiling found. For the weight kindly look at the M Figures. We reserve the right to construction changes within the context of technical development.15

Electrical connection

WARNING: THIS APPLIANCE MUST BE

EARTHED. The appliance must be installed so that plug is accessible. IMPORTANT: Fitting a different plug. The wires in the mains leads are coloured in accordance with the following codes: Green and Yellow – Earth Bleu – Neutral Brown – Live If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals. This is what you have to do.

1. Connect the green and yellow (Earth)

wire to the terminal in the plug market “E “ or with the symbol ( ), or coloured green or green and yellow.

2. Connect the bleu (Neutral) wire to the

terminal in the plug marked ‘N’ or coloured black.

3. Connect the brown (Live) wire to the

terminal marked “L” or coloured red. The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations. If possible, site the earthed socket directly above the chimney panelling in the ceiling. Electrical Data: Are to be found on the name plate inside the appliance after removal of the filter frame. Before undertaking any repairs, always disconnect the extractor hood from the electricity supply. Length of the connecting cable: 1,3 m. If it is necessary to wire the extractor hood directly into the mains: The extractor hood should only be connected to the electricity supply by a properly qualified electrician. A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors. If the connection cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious inury to the user. This extractor corresponds to EC regulations concerning RF interference suppression. Installation The island extractor hood is designed to be fitted to the kitchen ceiling or a rigid suspended ceiling. Ensure that the minimum distance between hotplate and extractor hood is 550 mm for electric hotplates and 650 mm for gas hotplates. Ensure that the inox surface is not damaged. Follow the mounting steps as shown in M Figures.16

Before using for the first time Important notes The instructions for Use apply to several version of this appliance, Accordingly you may find description of individual features that do not apply to your specific appliance. This extractor hood complies with all relevant safety regulation. Repairs should be carried out by qualified technicians only. Improper repairs may put the user at considerable risk. Do not flambé food directly under the extractor hood. ! Risk of grease filter catching fire due to flames. The hotplates must always be covered with a utensil. Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal wood, etc.) (See “Installation” instructions). Do not use the appliance if damaged. The appliance must be connected to the mains by a qualified technician only. This extractor hood is designed for domestic use only. Light bulbs must always be fitted when the extractor hood is in use. Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading. Never operate the extractor without a grease filter. Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips etc. never leave the cooker unattended. Carefully clean the extractor hood before switching on for the first time. Do not place any object on the extractor hood. If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a simiòaròu qualified person in order to prevent serious injury to the user. Dispose of packaging materials properly (see installation instruction). Never allow children to play with the appliance. Do not let adults or children operate the appliance unsupervised: - If they are mentally or physically unable to use the appliance safely or correctly. - If they don’t have the knowledge and experience to use the appliance safely and correctly. Gas hobs/Gas cookers Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surface are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously. Note that one large burner of more than 5 KW (Wok) is equivalent to the power of 2 gas burners. Never operate a gas cooking area without a cooking utensil on it. Regulate the flame in such a way that it does not project over the cooking utensil.17

Before using your appliance for the first time, please read these instructions for use carefully. They contain important information concerning your personal safety as well as on use and care of your appliance Please retain the operating and installation instructions for a subsequent owner. Operating modes Exhaust air mode. See M Figures. The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filters into the atmosphere. The grease filter absorbs the solid particles in the kitchen vapours. The kitchen ist kept almost free of grease and odours. The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open. ) Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilation rooms in which stoves or fireplaces are also located. Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national builing regulations). Local authority regulations must be observed when discharging air into smoke or exhaust air flues that are not otherwise in use. ) When the extractor hood is operated in exhaust-air mode simultaneously with a different burner (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion. Safe operaration is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0,04 mbar). This can be achieved if combustion air can flow through non- lockable openings, e.g. in doors, windows and via the air- intake/exhaust air wall box, or by the other technical measures, such as reciprocal interlocking. Etc… If the air intake is inadequate there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust air wall box by itself is no guarantee that the limiting value will not be exceeded. Note: when assessing the overall requirement, the combined ventilation system for the entire household must be taken into considertion. This rule does not apply to the use of cooking appliances, such as hobs and ovens. If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.18

Operating procedure To activate the functions simply tap the buttons. If the buttons are pressed for too long, no function is activated. The most effective method of removing vapours produced during cooking is to: Switch the ventilator ON as soon as you begin cooking. Switch the ventilator OFF a few minutes after you have finished cooking.

Acoustic signal When a push button is pressed, this is verified by an acoustic signal. Switching the fan ON Press the + Push button Setting the required fan speed Press the + Push button The fan speed is increased by one step. Press the - Push button The fan speed is reduced by one step. Switching the fan OFF Press the O Push button the displayed goes out shortly afterwards.

Keep pressed the – push button until the fan switches off. The displayed goes out shortly afterwards. Intensive Setting: Maximum power is obtained at the intensive setting. It is only required for short intervals. Keep pressed the + button until a appears in the display. If the intensive setting is not cancelled by hand, the fan will automatically switch back to step after 10 minutes. Fan follow on: Press the . button The fan continues to run at step for 10 minutes and at the same time a dot flashes in the display. After this period the fan switches off automatically. Lighting: The light can be switched on at any time, even though the fan is switched on. Remote control: The remote control is set up by the manufacturer. If the remote control is not controlling motor or light nearby the cooker hood, please do the following. Set up of the remote control. Keep pressing the “+” button of the remote control and then connect the cooker hood, to confirm that the remote control has been recognized a long beep is issued. If you do not hear the acoustic signal within 30 seconds, please repeat the steps as described. Functions of the remote control. The +, -, and Light Push button have the same functions as on the controls of the hood. The : Push button has the same function as the . Light It switches motor off Timer It switches motor on and increases the

eeds Speeds Indicator It decreases the speeds19

Interval Function: A specific function of this appliance is the Interval Function which consists in activating the motor in automatic way 10 minutes each hour at the speed flashing in the display. This function can be activated on the control of the hood or by remote control. Interval Function by controls: Keep pressing at the same time the O and + push buttons, then release them: the display will show the 1; Keep pressing at the same time the + push button, the display will show the following for the speeds of the motor 2→3→1→2 …; Keep pressing at the same time the O and + push buttons to confirm the speed for the motor you wish for the interval function. Interval Function by remote control: Keep pressing the : push button. The display will show 1; Keep pressing the + push button, the display will show the following for the speeds of the motor 2→3→1→2 …; Press the push button to confirm the speed of the motor for the interval function. When you are in the setting phase, if the interval function shown is not confirmed within some seconds, then you get out of the setting mode for the interval function. By pressing any push button, light excluded, the interval function is excluded. The remote control has a battery – When the battery is exhausted you need to:

1. loosen the 2 screws on the rear part

and remove the cover.

2. take the battery out and replace it with

one with the same characteristics.

3. Close the cover again and tighten the

screws. Follow National norms for waste disposal of exhausted batteries.20

Filters and maintenance Grease filters: Metal filters are used to trap the greasy element of the vapours that develop during cooking. The filter mats are made from non- combustible metal. Caution: As the filter becomes more and more saturated with grease, not only does the risk of catching fire increase, but the efficiency of the extractor hood can also be adversely affected. Important: By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced. Saturation indicator: When the grease filters are saturated flashes. If you switch the hood off, then the acoustic signal is removed. The grease filters should be cleaned straight away. Cleaning the metal grease filters: In normal operation (1-2 hours daily) the metal grease filter must be cleaned 1x a month. The filters can be cleaned in a dish washer. It is however possible that they become slightly discoloured. The filters must be placed loosely and NOT wedged in the dishwasher Important: Metal filters that are saturared with grease should not be washed together with other dishes. When clearing the filters by hand, soak them in hot soapy water first of all. Do not use aggressive, acidic or caustic cleaners. Then brush the filters clean, rinse them thoroughly and leave the water to drain off. Removing and installing the metal grease filters: Attention: the halogen bulbs must be switched off and must have cooled down.

1. Follow the steps shown in the M

2. Depress the handles on the grease

filters and fold down the grease filters.

3. Clean the grease filters.

4. Re-install the cleaned grease filters.

display. Press 2x in succession the O push button. An acoustic signal is issued and the display goes out.21

Cleaning and care Isolate the extractor hood by pulling out the mains plug or switching off the fuse. Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine. Clean the extractor hood with a hot soap solution or a mild window cleaner. Do not scrape off dried-on dirt but wipe off with a damp cloth. When clearing the grease filters, remove grease deposits from accessibile parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency. Note: do not use alcohol (spirit) on plastic surfances, as dull marks may appear. Caution! Ensure that kitchen is adequately ventilated. Avoid naked flames. Clean the operating buttons with a mild soapy solution and soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons. Stainless Steel surfances: Use a mild non abrasive stainless steel cleaner. Clean the surface in the same direction a sit has been ground and polished. Aluminium and plastic surfaces: Do not use dry cloths. Use a mild window cleaning agent. Do not use aggressive, acid or caustic cleaners. Observe the warranty regulations in the enclosed service booklet.22

1. Switch off the extractor hood and pull

out the mains plug or switch off the electricity supply at the fuse box When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is stil a risk of burns.

2. Follows the steps shown in the L

Series for replacing the lamps.

3. Replace the damaged halogen light

bulb wth a new one with same characteristics.

4. Plug the appliance into the mains or

switch it on at the fuse box. Note: if the light does not function, check that the bulbs have been inserted correctly. If you encounter a problem If a or appears in the display: See “Filters and Maintenance“ Section. If it is not possible to operate the extractor hood: Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box. Wait for approx. 1 Minute and then switch it on again. If the lights of the lamps is weak when the hood is in stand-by, then invert the plug (invert phase with neutral). If you have any questions or if a fault occurs, please call Customer Service. (see list of Customer Service representatives). When you call please quote the following: E-Nr. FD Enter the relevant numbers into the box above. The E-Nr. (Product no.) and FD (Production date) are shown on the nameplace which can be seen inside the extractor hood after the filter frame has been detached. The manufacturer of the extractor hood accepts no liability for complaints which can be attributed to the design and layout of the pipework.23
