USER MANUAL Campina BORETTI

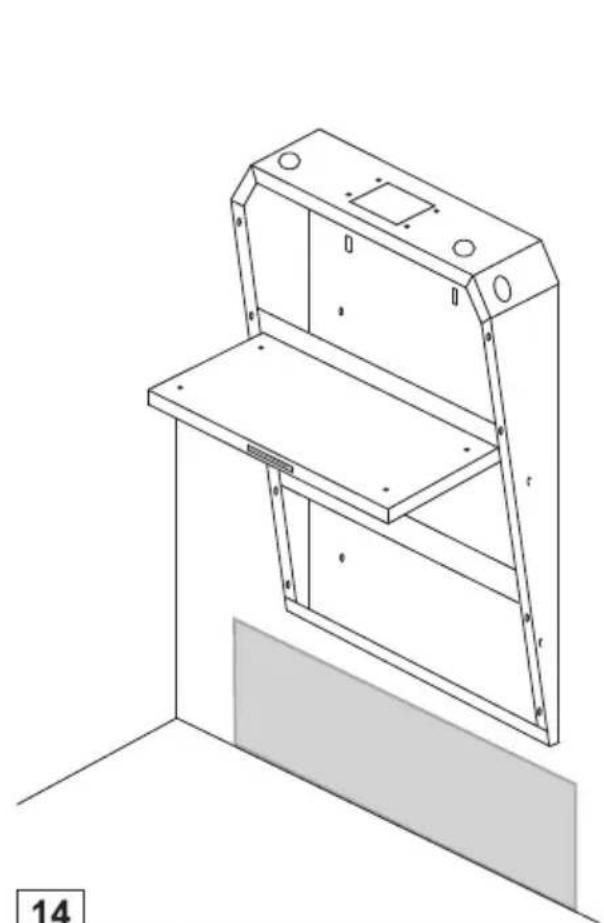

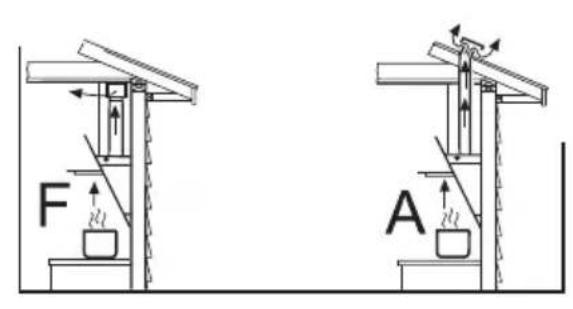

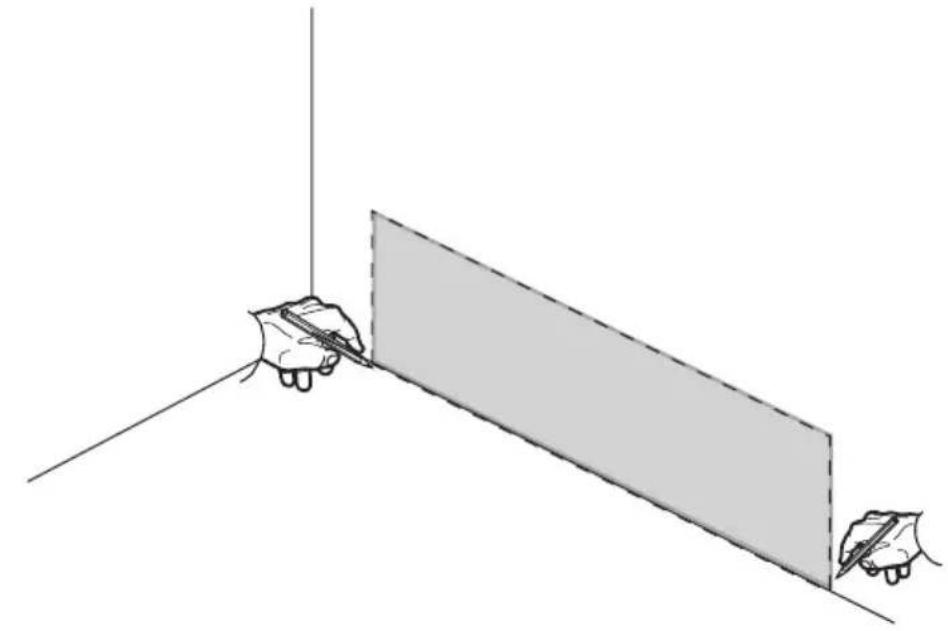

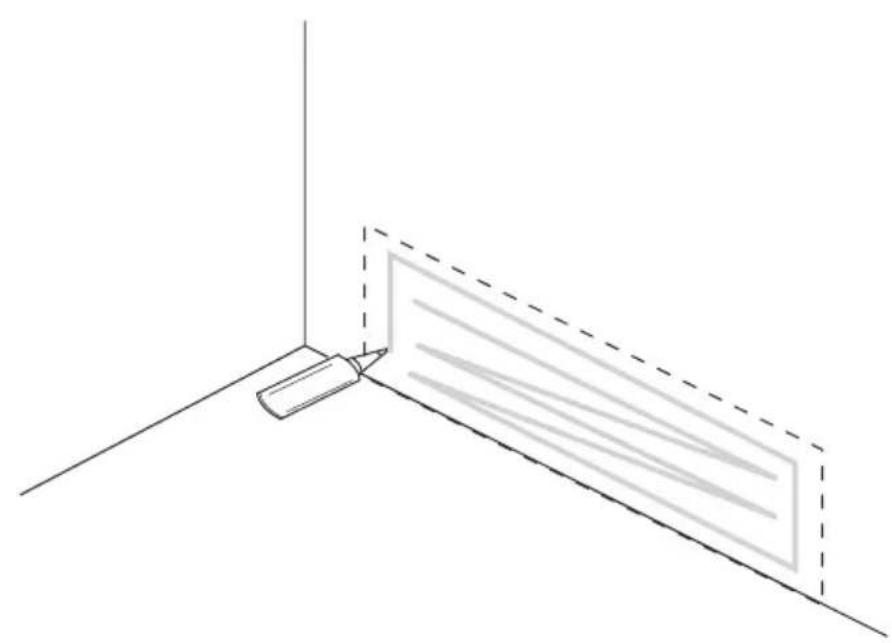

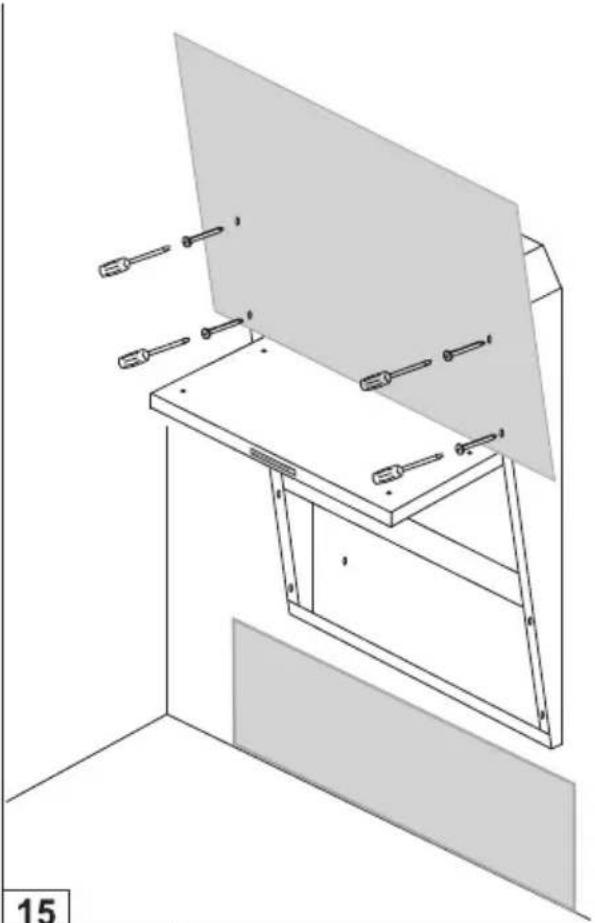

Consult the designs in the last pages referen- ced in the text by alphabet letters. Closely follow the instructions set out in this manual. All responsibility, for any eventual inconvenien- ces, damages or fires caused by not comply- ing with the instructions in this manual, is de- clined. Installation Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves un- less the chimney flue can be easily removed, in case maintenance is ever required. Use an exhaust pipe with a diameter of at least 125 mm!! Exhaust pipe The cooker hood is provided with an upper air exit (B) for discharging fumes externally (ex- haust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the circulating ver- sion F. The installation of charcoal filters allows the recirculation of fumes and vapours through the upper grid of the chimney. Electrical connection The electrical tension must correspond to the tension noted on the label placed inside the cooker hood. Should you wish to discard the machine for any reason, please comply with the following: Take the machine to the local authorized com- pany that collects discarded household appli- ances. Correct processing enable valuable ma- terials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and re- move it together with the plug. This machine has been accorded the appropriate mark in ac- cordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union. Environmental Regulations16 Operation instructions From off position the stand-by control mode can be activated by pressing any button. The symbol will then light up softly giving the user the possibility to see and choose the function. By pressing one more time any button will activate the corresponding function and the symbol will then light up completely. To ensure a low level of energy consumption, this control has a special device which lets the symbols remain lighted up half way, in a stand mode, for about 1 minute. The symbols will switch off afterwards. The cooker hood is provided with 6 keys. A B C D E F A: ON/OFF button- atmosphere light: by pressing this button 4 lights situated at the back of the hood and on the sides will switch on giving a decorative effect with a soft light B: ON/OFF button- hood’s light : by pressing this button 2 lights will switch on lighting the hob C: ON/OFF button- 4 speed motor: by pressing this button the hood will start to operate at the same speed as before being switched off. By using D and E it is possible to change the extracting speed (capacity) D: Decreasing extracting speed (capacity) button: by pressing this button the extracting speed (capacity) will decrease E: Increasing extracting speed (capacity) button: by pressing this button the extracting speed (capacity) will increase F: ON/OF TIMER: by pressing this button the selected extracting speed (capacity) will last for 5 minutes, after that the hood will automatically turn itself of. Grease filters saturation After every 40 hours of use of the hood, the speed indicator will flash slowly indicating that the metal filters need to be washed. Charcoal filters saturation After every 120 hours of use of the hood, the speed indicator will flash fast indicating that the charcoal filters need to be replaced. Note: by pressing at the same time the but- tons D and E will reset the filters saturation indicator. Attention! This function should only be used af- ter performing the maintenance of the filters.NL

Maintenance Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet. Cleaning The cooker hood should be cleaned regularly in- ternally and externally. For cleaning use a cloth moistened with denatured alcohol or neutral liquid detergents. Avoid abrasive detergents.

Warning: Failure to carry out the basic

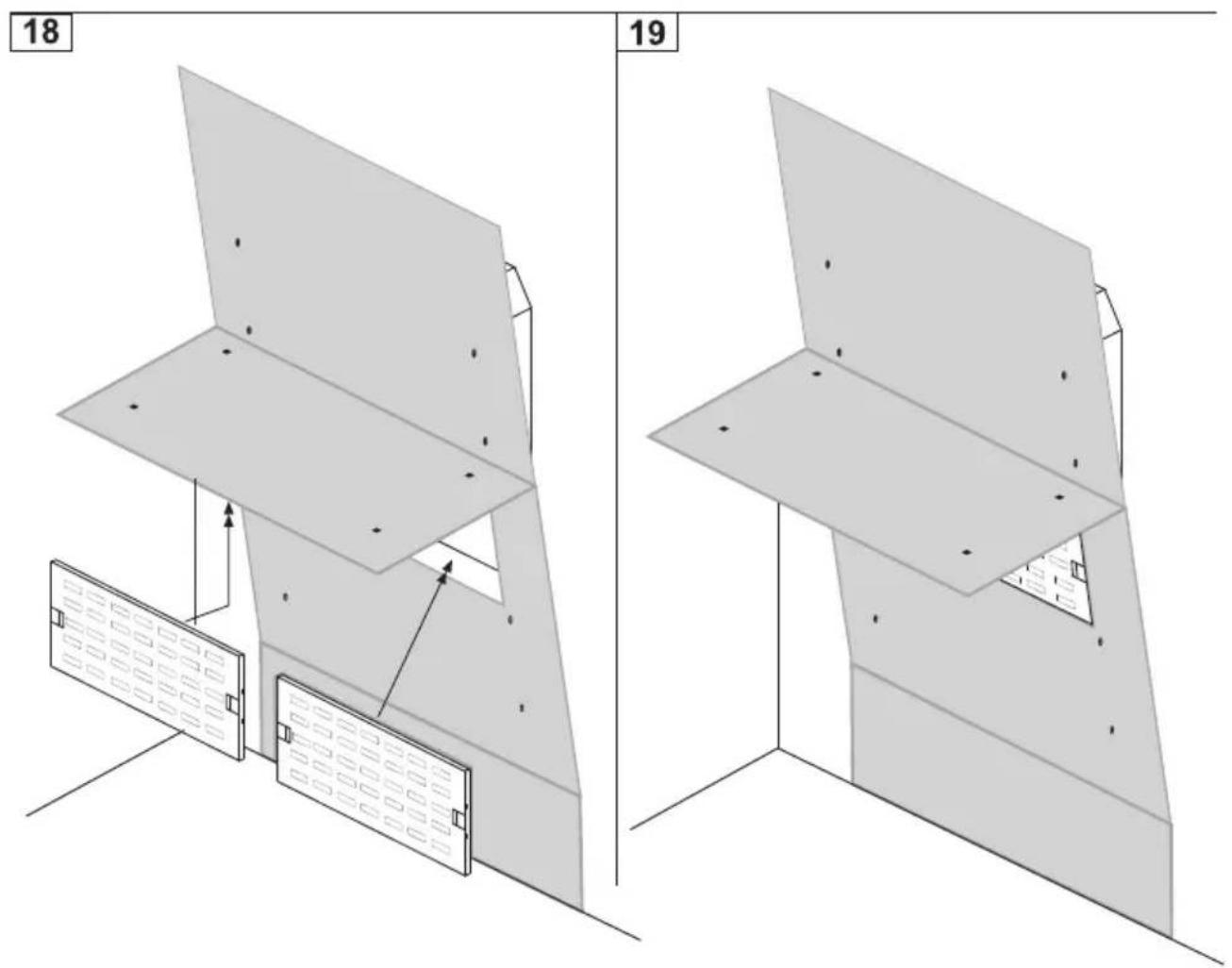

standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions. Anti-grease Filter The anti-grease filter must be cleaned with non abrasive detergents by hand, or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. Charcoal Filter - (only for filter version) The active charcoal filters are not washable nor regenerative. Replacing light bulbs Warning! Prior to touching the light bulbs en- sure they are cooled down. Extract the lamp cover by levering it off with a small screwdriver or similar tool. Replace the damaged light bulb. Only use halogen bulbs of 20W max, making sure you do not touch them with your hands. Close the lamp cover (it will snap shut). Caution This appliance is designed to be operated by adults. Children should not be allowed to tam- per with the controls or play with the appli- ance. Do not use the cooker hood where the grill is not correctly fixed! The suctioned air must not be conveyed in the same channel used for fumes discharged by appliances powered by other than electricity. The environment must always be adequately aerated when the cooker hood and other appliances powered by other than electricity are used at the same time. Flambé cooking with a cooker hood is prohibi- ted. The use of a free flame is damaging to the filters and may cause fire accidents, therefore free flame cooking must be avoided. Frying of foods must be kept under close control in or- der to avoid overheated oil catching fire. Carry out fumes discharging in accordance with the regulations in force by local laws for safety and technical restrictions.334BORET T I B.V. De Dollard 17 1454 AT Watergang T +31(0) 20-4363 439 F + 31(0) 20-4361326 S 0900-2352673 (ser v ice) E info @ boretti.com The Netherlands N.V. B O R E T T I S. A. Ruperlweg 16 2850 Boom T + 32 (0) 3-4508180 F + 32 (0) 3-4586847 E info @ boretti.com Belgium BOR E T TI S.L . Oficina en Avd. de la Barrosa 63c 11139 Chiclana de la Fr ontera (Cadiz) T +34 956 494684 F + 34 956 494150 E info @ boret ti.com Spain
