USER MANUAL HMS 3320 CLATRONIC

White CMITRONC® stand mixer with a side arm in a bowl (no visible text or symbols on the device body)

CE

HANDMIXER-SE1

HandmixerSet • Set Mixeur • Equipo batidora • Batdeira de mão • Set frullatore a mano Håndmiksersett • Hand mixer set • Mikser ręczny - komplet • Ruční mixér • Kézi mixerkészlet Rучной миксер с принадлеж-ностями

HMS 3320

DEUTSCH

Inhalt

Labeled diagram of a kitchen mixer with numbered parts for identification

3

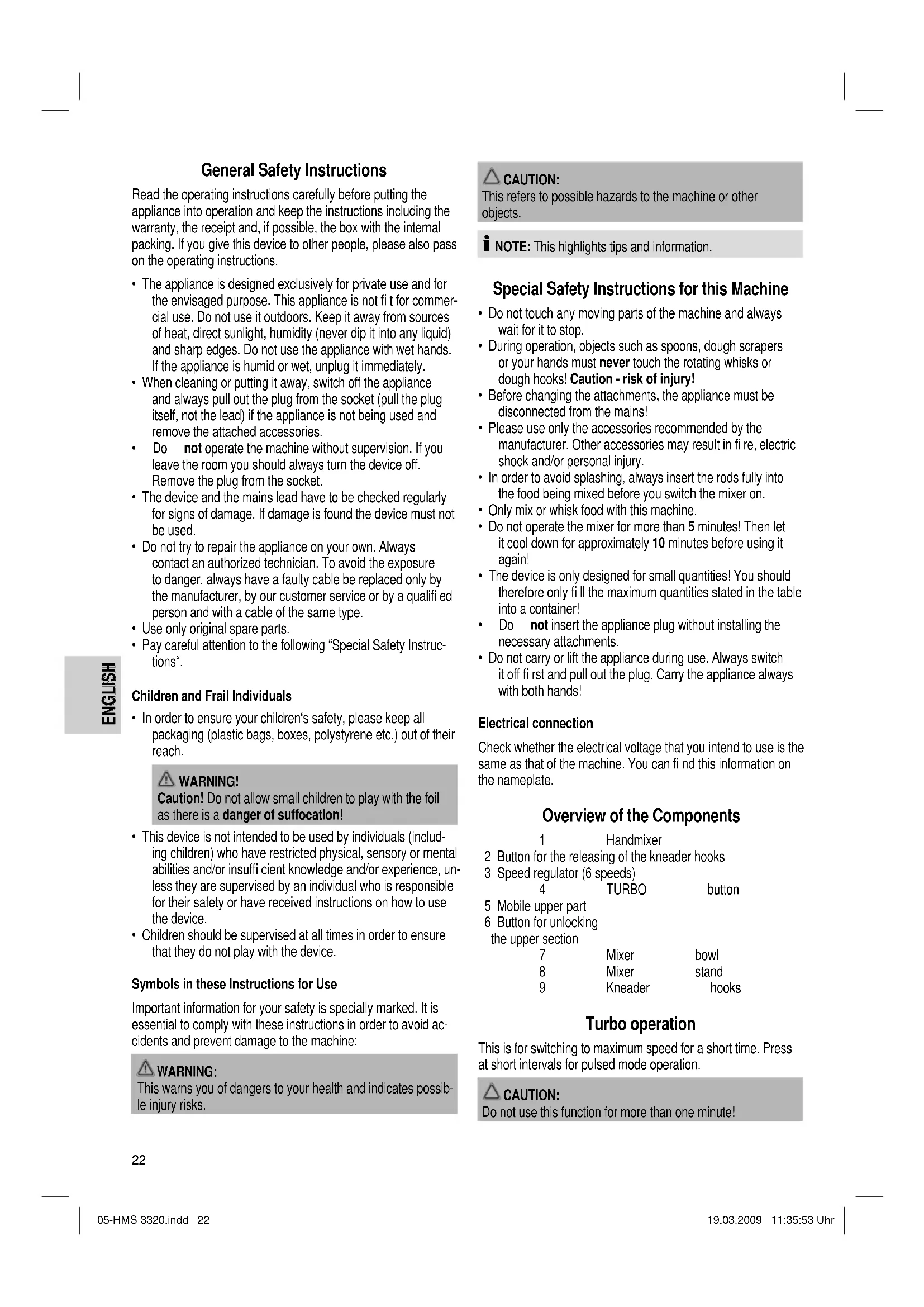

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Special Safety Instructions for this Machine

• Do not touch any moving parts of the machine and always wait for it to stop.
• During operation, objects such as spoons, dough scrapers or your hands must never touch the rotating whisks or dough hooks! Caution - risk of injury!
• Before changing the attachments, the appliance must be disconnected from the mains!
• Please use only the accessories recommended by the manufacturer. Other accessories may result in fire, electric shock and/or personal injury.
• In order to avoid splashing, always insert the rods fully into the food being mixed before you switch the mixer on.
• Only mix or whisk food with this machine.
• Do not operate the mixer for more than 5 minutes! Then let it cool down for approximately 10 minutes before using it again!
• The device is only designed for small quantities! You should therefore only fill the maximum quantities stated in the table into a container!
• Do not insert the appliance plug without installing the necessary attachments.
• Do not carry or lift the appliance during use. Always switch it off fi rst and pull out the plug. Carry the appliance always with both hands!

Electrical connection

Check whether the electrical voltage that you intend to use is the same as that of the machine. You can find this information on the nameplate.

Overview of the Components

	1	Handmixer
2	Button for the releasing of the kneader hooks
3	Speed regulator (6 speeds)
	4	TURBO	button
5	Mobile upper part
6	Button for unlocking the upper section
	7	Mixer	bowl
	8	Mixer	stand
	9	Kneider	hooks

Turbo operation

This is for switching to maximum speed for a short time. Press at short intervals for pulsed mode operation.

CAUTION:

Do not use this function for more than one minute!

How to use the Kneader hooks/beater

1. Turn the power level selector switch (3) to „0“ and ensure that the mixer (1) has been disconnected from the mains.
2. Press the end of the kneader hooks/beater into the corresponding mixer openings until the hooks click into place. While pressing, turn slightly in order to facilitate the whole operation.

i NOTE:

the kneading hook with the curved washer on the shaft can only be inserted on the left-hand side of the mixer when viewed from the bottom

1. Connect the device to a duly installed 230 V/50 Hz protective contact socket.
2. The handmixer (1) can be used at various speeds set with the speed regulator (3).
3. In order to release the kneading hook/whisk turn the power level selector switch to „0“ and ensure that the mixer has been disconnected from the mains.
4. Press the button (2) to release the kneading hook/whisk. Remove the device by turning it slightly.

How to use the Mixer stand

Please select a fl at non-slip surface for the mixer stand.

1. Place the hand mixer (1) on the upper section (5) of the mixer stand (8). Please check whether this is fixed firmly in place.
2. Mount the hooks as described above in the section "How to use the Kneader hooks/beater".
3. In order to place the mixing bowl (7) underneath, press the button (6) to unlock the upper section of the mixer stand (5) and fold the mixer upwards.
4. Place the mixer bowl filled with the desired ingredients onto the revolving plate. Now fold the mixer down again.
5. Connect the device to a duly installed 230 V/50 Hz protective contact socket.
6. The handmixer (1) can be used at various speeds set with the speed regulator (3).

i NOTE:

The mixing bowl is driven by the movement of the mixing tools through the ingredients

1. When you would like to stop mixing, turn the power level selector switch to „0“ and unplug the device from the mains.
2. When you have finished press the button (6) again to unlock the upper section of the mixer stand (5) and fold the mixer upwards.
3. Now the mixer bowl can be removed. Remove the hooks as described above in the section "How to use the Kneader hooks/beater".
4. In order to separate the mixer from the upper section (5) of the mixer stand, first lift it by the rear section (cables) and then remove it by pulling upwards.

Always choose a utensil and a speed according to the following table:

Product/Type of Preparation	Max. Quantity	Utensil Level		Max Operating Time
Heavy dough (e.g. yeast dough)	500 g	kneader hook	1 - 4 3 min.
Cake mixture 750 g beater 2 - 5 5 min.
Sponge mixture, wafer mixture, Cream	750 g beater		2 – 5 or turbo	5 min.

Cleaning

WARNING:

• Always remove the plug before cleaning!
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Only a damp cloth should be used for cleaning the outside of the machine.
• Removable parts which have come into contact with the mixture (kneading utensils and mixing bowl) can be cleaned in soapy water.

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 77 dB(A) (no limit)

Technical Data

Model: HMS 3320

Power supply: 230 V, 50 Hz

Power consumption: 220 W

Protection class:....II

Net weight: 1,60 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
