USER MANUAL PCEKA 1066 PROFICOOK

Consommation: 1800 W

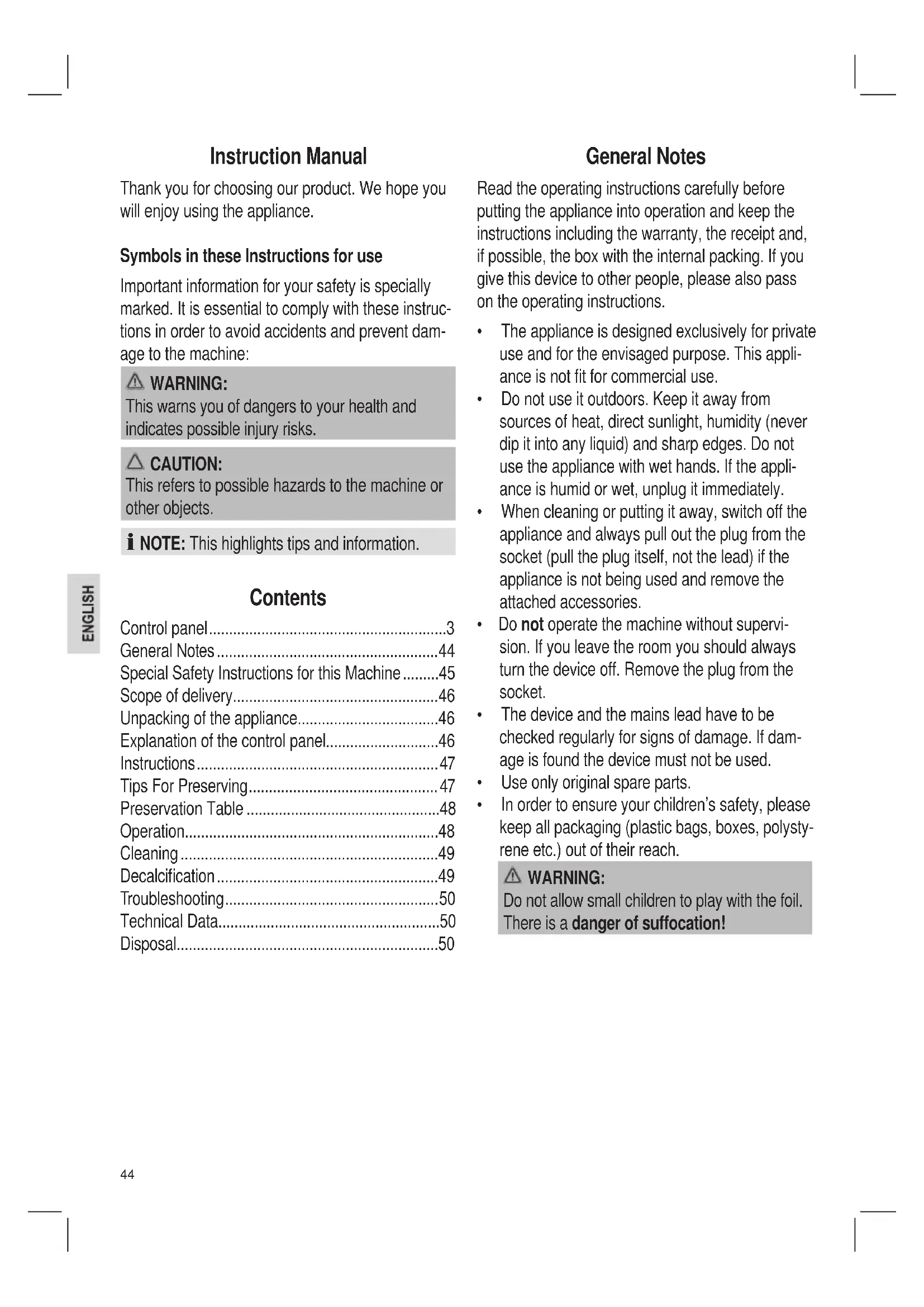

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

OTE: This highlights tips and information.

Contents

Control panel. 3

General Notes 44

Special Safety Instructions for this Machine. 45

Scope of delivery. 46

Unpacking of the appliance. 46

Explanation of the control panel. 46

Instructions 47

Tips For Preserving 47

Preservation Table 48

Operation. 48

Cleaning 49

Decalcification 49

Troubleshooting 50

Technical Data. 50

Disposal. 50

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
  Use only original spare parts.
  In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Machine

On the product you find the following icon with warnings or information:

WARNING: Hot surface!

Risk of burns!

During operation and afterwards, the temperature of the accessible surfaces will be very high.

Always hold the appliance by the handle.

WARNING:

• Do not fill the pot higher than 5cm below the rim. Boiling water may otherwise splash out and injure you!
  Always ensure that the lid is tightly closed.
• Do not open the lid when the water is boiling.

CAUTION:

Make sure the mains cable cannot touch the hotplate of the appliance.

Use the appliance only on a level work surface.
- Do not move the device and do not touch it when it is working.
- The base and exterior of the machine must not become wet.
- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.
- Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
- Keep the appliance and its cord out of reach of children less than 8 years.
Children shall not play with the appliance.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

• Only use the appliance in a dry, indoor area. It is intended for domestic use and similar areas of use such as e.g.

• In staff kitchens in shops, offices and other commercial areas;

• By guests in hotels, motels and other accommodation facilities.
• on agricultural properties
• in bed & breakfast accommodation.

CAUTION:

Do not immerse the device into water for cleaning. Please follow the instructions as stipulated in the chapter "Cleaning".

Scope of delivery

1 Electric water bath canner
1 Lid
1 Grid insert

Unpacking of the appliance

1. Remove the appliance from its packaging.
2. Remove all the packaging material such as foils, filler material, cable holders and cardboard packaging.
3. Check the scope of delivery for completeness.
4. In the event that the packaging content should be incomplete or if damages should be noticeable, do not operate the appliance. Return it to the dealer immediately.

i NOTE:

There may still be dust or production residue on the device. We recommend that you clean the appliance as described under "Cleaning".

Explanation of the control panel

1 On/off switch and temperature selector
2 Shows the temperature you have set (target temperature)
3 Shows the remaining running time in minutes
4 You can switch the TIMER on or off and set the time
5 Shows the current temperature

Instructions

Functions

This electric water bath canner is also a practical drinks dispenser for hot drinks.

Tea or punch can be poured directly from the tap.

Mains cord

Unwind the mains cord from the base.

Location

CAUTION:

Note that the electric water bath canner becomes heavy when full!
- Do not carry the electric water bath canner when full.

• A table or counter top on which the canner is placed must be able to bear 40kg .
• The storage surface should be horizontal and insensitive to moisture.
• Also: avoid cable extensions. Check beforehand whether there is a nearby plug socket.

Electrical connection

Check whether the electrical voltage that you intend to use is the same as that of the machine. These details can be found on the rating plate.

Connected Wattage

The total power consumption of this device can be up to 1800 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

If you use extension leads, these should have a cable cross-section of at least 1.5mm^2
- Do not use any multiple sockets, as this device is too powerful.

Tips For Preserving

Cleanliness during preparation is the highest priority for the shelf life.

Fruit and vegetables must be of high quality, fresh and fully ripe.

Please learn from your cookbooks how and which kinds of fruit and vegetables you can preserve.

Prepare Foodstuffs to be Preserved

Properly wash and dry fruit and vegetables uncut. Blanch green beans and peas before preserving.

Prepare Glasses and Lids

Clean glasses, lids and seals in hot dishwater, rinse and let it drip dry on a clean cloth.
- Check containers for residue and damage.
- Leave the seals until use in clear water. Do not use porous, damaged or overstretched rubber rings.
- Fill the containers up to 2cm below the rim. For mushy preserves (such as apple sauce) leave 3 - 4cm to the rim. For processed meat only fill the containers 34 .
- Tightly seal the containers with screw or clip locks or clamps.

Preserving

Ensure that water and glasses have about the same temperature when lowering them into the electric waterbath canner.

Your electric waterbath canner can take 14 glasses of original "Weck round rim glasses 100" and the matching clips.

The highest glass must be approx. 3 / 4 in the water. In double layers the bottom layer is completely submerged.

In double layers the bottom layer is completely submerged.

Only use the unit with closed lid.

Do not under-run cooking times. If in doubt exceed the cooking time.

After Preservation

You can use the same water for several consecutive processes.

CAUTION: Glass breakage!

Do not place cold glasses in hot water; warm them up.

• Remove the glasses carefully after preservation, place them on a cloth and cover them with a cloth.

WARNING: Danger of burns!

The glasses are hot.

• Leave the clips on the lids until completely cooled down.
  We recommend labeling the glasses with date and content after cooling down.
• Store preserves best cool and dark.

Preservation Table

Foodstuff	Thermostat setting °C	Cooking time in min.
Fruit
Apricots 80 30
Apple sauce 90	40
Pears (soft) 90	30
Pears (hard) 90	50
Strawberries 80	25
Blueberries 85	30
Raspberries 80	25
Currants 90	40
Mirabelles 80	30
Plums (prunes)	90	30
Peaches 80	30
Cherries (sweet or sour)	80	30
Gooseberries (unripe)	80	30
Vegetables
Cauliflower 100	90
Beans	100	120
Peas	100	120
Cucumber	80	30

Foodstuff	Thermostat setting °C	Cooking time in min.
Kohlrabi	100	100
Mushrooms	100	110
Beetroot 100	110
Spinach	100	110
Meat / processed meat
Pieces of roast (raw)	100	120
Pieces of roast (precooked)	100	90
Poultry (rare)	100	65
Goulash (rare)	100	60
Cutlets (rare)	100	60
Venison (rare)	100	65
Sausage mixture	100	120

Time setting only for reference; can vary according to the width of the glasses.

Operation

Firstly place the grid into the pot. Then add the canning jars and the water.

As soon as you plug the appliance into the mains, you will hear a signal and the default settings appear on the display. e.g. in

Display ② 85°C

Display 30 minutes

In display 5 you can read how hot the water already is.

Now set the required temperature and the time.

Temperature

• Turn the knob ① and set a temperature between 30 - 100 °C.
• Or turn it beyond the 100^ setting to the maximum temperature.

In display 2 the following appears:

Time

• Turn the knob and set a time between 1 - 120 minutes.
  or press the button ④ .In display ③ , appears. The TIMER is switched off.

i NOTE:

These settings must be made before starting the electric water bath canner.
- You cannot select TIMER together with the maximum temperature.

Start

• When you have selected a temperature and a time, press the button ①.

• The electric water bath canner starts to heat the water. In display ③, 6 bars will flash.
  If the set temperature is reached, you will hear a signal. The TIMER only starts now.
  If the set time has elapsed you will hear an intermittent beep.

End operation

• Wait until the TIMER has ended the canning process or
• press button①.
  The bars in display 3 no longer flash.
  Always disconnect the plug from the mains.

Cleaning

WARNING:

• Always turn the device off before cleaning it and remove the mains plug. Wait until the device has cooled down.
• Do not immerse the canner in water or other liquids.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.

After use as an electric water bath canner, a damp cloth is sufficient to clean the appliance and the lid.
If you have warmed drinks in the pot, clean it with water and a little detergent. Then rinse with clean water.
- Rinse the tap with clean water.
Dry off all parts well.

Winding mechanism for the power cord

Wind the power cord back into the base.

Decalcification

The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used.
- Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

i NOTE:

After descending the device boil fresh water in it several times (approximately 3-4 times) in order to remove any residues. Do not consume this water.

Troubleshooting

It is not possible to switch the machine on.

Possible Cause:

The appliance has no power supply.

Remedy:

• Check the socket with another appliance.
• Plug in the mains plug correctly.
• Check the main circuit breaker.

Possible Cause:

The appliance is faulty.

Remedy:

Contact our service center or a specialist.

Possible Cause:

After being used without or with too little water the machine has not cooled down sufficiently.

Remedy:

Allow the machine to cool down for 15min

Technical Data

Model: PC-EKA 1066

Power supply: 220 - 240 V~, 50 Hz

Power consumption: 1800 W

Protection class:

Filling quantity: max. 27 I

Net weight: approx. 3.20 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obstugi

He 3meHuyte yac npiroToyBaHHa. He 6iTecb nepeBnHTn yac npiroToyBaHHa.

NicJKAOHcepByBaHHA

OndnyIty camy Body MoXHa BnKOpNCTOByBaTn Dna KInbKOx IpoueciB KOHcepByBaHH nocnilb.

Ybara. NowkodHeHHcKHaHOro nocdy! He cTaBTe xOJIOHN cKJIHN NocyD B rapHy BOy; cnepy HarpIte Ioro.

Mexahi3M 3MOTyBaHHH Lhypy HnBJIeHH

HaMotaTe Ka6eIb KINBHeHH Ha OCHOBy.

UHHeHHaHaKnny

-ЯкачTo cIiBnДaJIaTIu BAnHO,3aJIeJHTb BiD CTyIeHI JxOpCTKoCTI BoN i TOrO,ЯкачTo Bn KOpIcTуEcTecn npIaIOM.
- PpocmoBac 3actocobybatn dny zufo He ouet, a cneiaIbHI 3aco6n dny OunuHna Hnictabi NmOHHO KNCNOTn. II cnId Do3yBatn 3a IHCTpyKciEIO.

I INPIMITKA.

Iicra BndaJIeHHa BAnHa cIId Deekilbka pa3iB (3 a6o 4) niOorpiTu NcTsy BOy dNRA BndaJIeHHa 3a- nIKIB 3acOby dNRA OOnuHHeHH. 3a6OpOHCTbcR 3actOCOBByBaTH uO BOY dNRA NNTR.

UcyHeHHa deΦeKtIB

- PpnilaH He BkIIOuaeTbcra.

Moxnbi niictabn:

Pnictpi He niD'edHaHO Do MepeXi KInBHeHHa.

Joromora:

-Перевір'te p03etky 3a дОнOMою iHwoTo npuctpoI.
HaioHo nieEhaite Kaebj KxBHeHHa.
- Ipebeipte aBtOMaTHHn BmHKaU XNBJIeHH.

MoXJIbI niCTaBn:

PnctpiHecpabHn.

Jonomora:

3BepHitbcB cepBicn uHTp a6o do cneua-nicta.

Moxnbi niCTabN:

Iicna HarpibaHn 6e3 BoHn a6o 3 HeoctaT HbOIO KInbKiCTHO BoHn npHaad ue He Docr HopMaJIbHOI Tempepatyn.

Jonomora:

3aHHTe npnaHa 15 xBnH dHa oxonoDkeHH.

Texhihi napametpn

MoeIb: PC-EKA 1066

Поданьхивленин: 220-240B\~,50T

CnoKnBaHHn noTyXHocTi: 1800 Bt

CnoKnBaHHn noTyXHocTi:

EMHichi daHi: MaKc. 27 n

Bara HETTO: 6n3bko.3,20Kr

IpaBO Ha TexHi 3MiHN Ta 3MiH y dN3aHi 36epi- raeTbca npoobK npouecy po3pObKn npoDky.

Cen npnad 6yno npebipeho 3riDHO BCix Bi-nobiHNx,akTyaIbHnx DnpeKTHB CE,HanpNKna

IeKtpomarHITHOcymiHOtTa Hn3bKOBOJIbTHOДHpeKTINB,Ta 36yIDoBaHO 3 a HOBITIMN

IIOJXeHHrMmTexhIKBe3neKn.

PykoBoDCTBO no 3KcPnyatauH

Cnacno 3a BbIbOp HaJero npOyKta. Hadeemc, OH Bam noHpaBntc.

Cnmbolbl npHmehbIe B daHHOM pyKOBoIDCTBe NJIb30BaTeJIa

Baxhble peKOMeHdaunn dna oecneueHnBaue 6e3oNacHOCTn 6o3NaueHbI NOOCO6EHNOy. O6a3aTeJIbHO cIeNyIte 3TmM peKOMeHaauHm, YTO6bl npeOTbpaNTb HeCuaCTHbI CNyau NnN NOLOMKy I3dEINr:

PENEYNPENDEHNE:

Ipeynpejdaet o6 onacnoctn dna 3doPobbny I BO3MOxHOM pncke nolyeHn TpaBMbl.

BHIMAHHE:

Yka3bBaet Ha BO3MOxHyO ONaCHOCTb DnI N3-DeJIHn Ipynx OKpyKaHOuNX PpeDMETOB.

i IPNMEUAHNA: Daet COBtBu INHΦopMaunu.

CopepkHne

O63op detaneepn6opa. 3

ObuaHΦopMaun 81

CneunalbHbIe yka3aHHn no

6e3oNaChocTn DnA 3ToRo np6opa. .82

KOMIIeKTHOCTb NOCTaBKn. 83

PacnaKOBka npibopa. 83

Pa3bAChENHnNo yCtpoNCTBy

PanaHenn ynpabJeHHa. 84

PykoBOCTBO NO 3KcNpyatau.. 84

COBeTbI NO KOHCEpBnPoBaHHIO. 84

Ta6nua KOHcepBupoBaHH 85

3Kcnnyataa.. 86

YxOa 3a yCTPOIcTBOM .87

YdaneHne H3BecTKOBOro Haeta n3 YauHHka...87

YcTpaHeHne HEnCnpaBHOCTe 87

TexHHueckne daHHbIe 88

O6uaHnΦopMaun

Ipeed hauanom 3Kcnpyaataun npnbopa BnmaTeNbHO npoHTaITE npnlaraeMyu nHCTpyKcuIO NO 3Kcnpyaataun H COxpaHIne ee B HaDeJHKOM MeCTe, BmecTe C rapaHTnHBIM TaIOHOM, KACCOBbIM YeKOM N, NO BO3MOXHOCTN, KAPTOHNKO Kopo6koC CypanokOuybIM MaTePnaIOM. EcnI daete KOMyJINo 0noJIb3OBaTbcra PnpOpOM, O8r3aTeNbHO daIte BnpndaY daHHU OHCTpyKcuIO NO 3KcPnyataun.

• Пользуйтесь прибором только уасъим обраэм и по наз nauseю. Прибор не р dedиЗанayен ДЯКOMМерчecKOrO ИСплььзOBаня.
  He noIb3yITeCb npIbOpom noI OTKpbITbIM He6OM. IpeOxpaHnIe npIbOp ot Japbl, npIaMbIX cIJIeHbIX Iyuei, BlaJXHOCTN (HN B KOem Clyuae He norgykaIte erO B BodY) u YdApOB 06 octpIe yIbl. He npIkaCaiTeCb K npIbOpy BlaJXbIMn pykam. EcII npIbOp yBlaJHnICn NNnHAMOK, TyT JeE BbIHbTe BUNKy I3 pO3ETKn.
• После Экглуataци, мотатxe пинадлж-HocTei, чстke Ип NOLOМКе пибopa BCERda Bынмай Te BnKу n3 po3eTkn (TЯнite 3a BnKу, a He 3a Ka6eNB).
  He octabnIte BkIIOueHHbIe 3JIeKTPoPnpObo pbl63 npncMoTpa.BbIXoJN3 NOMEuHnB CcERda BbIKIOuaTe np6Op.BbIHbTe uTeKepe n3 po3ETKn.
• Pn6op n Ka6eB cTeBOro nHaTHnH Heo6xOdmo peYyRPhO 06CneDObaTb Ha HAnuHcNeIOB NOpeKDeHn. Pn O6hApJxKeHn IOBpeKDeHn POJIb3OBaTbCn Pn6Opom 3aIpeUaETc.
  HcnoJb3yIe TOJIbKO OpiINHaJIbHbIe 3aNactn.
  I3coo6paKeHn 6e3oNaChOCTn dna deteHne octabJIaIte Jekatb yNakOBky (PiactNKOBbie MEuK, KapTOH, NeHONpACT nT.D.) 6e3 npncMOTpa.

PENEYNPENKDEHNE!

He no3B0JNe Te Detam nIpaTb C nonn3tneHO-BOI pENKO. Onachocb ydyu7a!

CneuNbIe yka3aHnno 6e3oNaChOCTn dIy 3TOrnpn6opa

Ha n3denn MOxHo yBnDeTb CneDyOuO nnKToPamMy c npedynpeJXdHnMn nI INHOpMaun:

Iotppe6JraMa MOUHOCTb

O6uee notpe6enneMoUHocTn npHbopa moKet doCTnraTb 1800 BaTT. TaKyIO Harpy3ky peKOMeHnyETcI NOkIIOuATb uePe3 OTdJIbHyIO 3JeKTPoPpOBOkY, OCHaUeHHyIO aBtOMaTOM OTKlIOUeHHa 3JeKTPoTOK 16 A n yCTPOINCTBOM TOKOB3aunbl.

BHIMAHNE: Npeperpy3ka!

• Пи польбовани удениншьнimi KaebЯMuN седпгte 3a Tem, утоби поpeчhoe ceeyenne Kaebя 6blno MmHmym 1,5 MM2.
  He noIb3yIteCb pa3BETBnTEbHbIMn IITenCeIbHbIMn pO3eTKaMn, TaK KaK 3OT npNoOp IMeet CImUKOM BbICOKYMOUHOCTb.

Cobetblno KOHcepbovahnIO

YnCTota BO BpemKOHCEpBnpoBaHnRABnETCpeWauIIM FakTOpOM dIe Cpoka xpaHeHH.

ΦpyKtbl N OBOUH N OJXHbI 6bITb BbICOKO KaueCTBa, CBEXHMN IN NOJIHOCTbIO CO3peBUnMn.

Ioxayncta, nocmotpnte B nobapeHHoKnHpeueent KOHcepBupOBaHna φpykTob N OBOuien.

IoproTOBka npOyKToB K KOHcePBPOBaHHIO

TtateIbHO BbIMoIte N BbICyUHTe Hepa3pe3aHNbIe OBOuN IpykTbI. IpeEi KOHcEpBnPOBaHneM npOBeIte 6bnHupOBky 3eneHoro ropoxa n 606OBbIX.

IoIOROBka 6aHOK IN KpbIWeK

• BbIMoIte 6aHKn, KpbIuKn uynIOTHTeJIH B NOcyDOMOeUHO MaUNHe rOpRuey BOoJ, CNOLOCHNTe N BbICUYHTe Ha YNCTOM NOLOTHe.
• Поберы Контейнера на заразимения и повржdenе.
  -До npimehenxpaHnte yNnOTHTeIN B uHcTOn BOte. He nCnoJIb3yIte nopNCtble, NOBpeKdEHNbIe HbI paCTaHyTbIe pe3HOBbIe yNIOTHTeJIbHbIE KONbua.
  3aONHnTe KOHTeHepbI Do ypOBHa 2 cm HnKe BepxHero KpaJ. DnJ 3aROTOBOK IIOpe (HaNPmEp, DnJ 6NoUHOcoyCa) OCTaBtE 3-4 CM OT KpaJ. DnJ npOSeDwero TeNIOByo 06paBOTky Mra Ca 3aONHnTe KOHTeHepbI TOJIbKO Ha 3 / 4
• TepMeTnH0 3aKpOte KOHTeHepbI BnHTaMn, 3aUeJIkAmN IIN 3aXHMamN.

KoHcePbHPOBaHne

Y6eINTecb, YTO npn NpOpyKeHHN B aBtOKnaB 3JIeKTPnueckoB OBOHNO BAnN BOa N CTeKJIHHaTapa IMeIOT PnpMepHO OdINHaKOByIO Tempepatypy.

B abtoknab 3neKtpnuecko BODHO bAHN MOHNO 3arpy3ntb 14 cTeKnlaHHbIX 6aHOK C KpyrIbIMN KpbIshkamn C 3auneKamn TIna Weck round rim glasses 100" n COOTBeTCTByOuNX 3auneLok.

CamaBbICOKa 6aHa DOJXHa 6bItb npImepHo Ha 3 / 4 B BOe.

BToPoi pI HxHHeO cIOn IONHOCTbIO nOrpyKeH B BOy.

HcnoB3yIe ToIbKO C 3aKpbITbIM KpbIJKAMN.

He cokpaata Te Bpem npirotoBneHn. B cnyuace comhen, nyuwe yBelenyte Bpem KOhcepBnpoBaHn.

PocJIe KOHcePBuPoBaHnA

Moxho hCnoB30BaTb Ty Xke camyO BODy HeCKoBko pa3 B nocJeDoBaTeNbHbIX Oepaunx KOHcepBnpoBaHnI.

BHIMAHNE:pa36nTbe 6aHKn！

He norpykaTe xoIOnHbIe 6aHKn B ropeuHO BODy, npeBaPHTeJIbHO HArpeTe 6aHKn.

• Iocne KOHcepBnpoBaHnOCTOpOxHO n3-BIeKnte 6aHKn,IOCTaBBTe Hx Ha NpOToHcE nHaKpOte DpyrIM NpOToHcEm.

PENEYIPEXHEHNE:onachoctbOxora!

BaHKn 6yDyT roPryIMN.

OCTaBbTe 3aueKn Ha KpbIkwKax Do NOnHOrO OCTbIBaHn.
- Pocne octbibaHnpeKomeHnyem HAnncatb Ha 6aHKax DaTy npriROTOBHeHn I COdePKMoe.
- Лучшихсань конcertы в Холдом и Tem-HOM мосте.

Ta6nua KOHcePBPOBaHna

I P E D U N P E X K D E H N E:

• Перед чinctков BCERда ВьIKLOчайт e пибор n ВьИмайт e ceteBOI StTekeрны pa3bEm. ПоJOЖДITE, рОКa пибор He OCTbIHET. HnВ Koem clyuae He norpyxK.
  He norgykaTe MaunHy dIa KOHcepBnpoBaHna B Body nn npYrne XndKoCTn.

BHIMAHNE:

He npimehnTe npoBolouhble uetkn Hnn npedMeTbC a6pa3HBblM NOKpbITnem.
He npimehnTe cnIbHbIe nn a6pa3NBbIe MOIOUne cpeIcTba.

Iocne nCnoB3OBaHnBa KaueCTBe 3NeKtpn-yeCKoMaunHbI JnKOHcEpBnPoBaHnHa BOJHO Bae DoCTaTOUHO IpOTepetb npnbop N KpbIuKy BnaXHoTpAnOuKO.
- EcnBbHarpeBaNn B yaIe HAnITKn, npomOnTe ee BOoC He6OJIbUHM KOJInueCTBOM MOIOUeRO cpeiCTBa. Iocne 3TOrO cNoIocHnte B uHcToI BOJe.
- PpomOte KpaH YnCToB YoDOn.
Xopoio npocuHte BCE etaJI.

MexaHn3M 3akpyuNbHaNn CnIOBOrO shHypa

HamotaTe shyp o6paTHo Ha ochOBaHne.

YdaneHne n3BecTKOBOro Haleta

• IepnoDnHocb ydaJIeHNHaKIN3aBNCIT OT XecTKOCTn npMHeMoB BOdbu YacTObI NOJb30BaHnE 3JIeKTPOUaHNKOM.
  He nCnoJb3yIte yKCyc; noJIb3yITeCb mEIOUIN

MnC8 B npOdaXe CpeDCTBaMn IJyUdaJIeHnHaKInn Ha OCHOBE JIMMOHHKNCLOTbl.

I03npyIte,noKanYIcTa,B COOTBETCTBnC yKa3aHnMaMnΦnPmbl-N3"OTOBNTeJI.

ITPIMMEUHRA:

Iocne ydaeneHnHaKnBCKnTnTe B n3denn HeckoIbko pa3 BDOy (npm. 3-4 pa3a),KaKdbi pa3 MeHra ee Ha CBexkyu, YTo6bl ydaIITb OCTaTK.NTy BOy B NnUy He yNOTpe6nTb.

YcTpaHHeH HeNCnPaBHOCTeI

3neKtpnp6op He BkIouaetc.

Bo3MOxHna npuHa:

Het 3neKtponnTaHna.

POMOUB:

• PpOBePbTe pO3EtKy C nOMoU bIO dpyrOTo yCTpoIcTBA.
• PpaBnIbHO BCTaBbTe WTeNCeIb B pO3eTKy.
• PpOBepeBtE BbIKJIHOaTeJIb.

Bo3MOXHa npuHHa:

YcTpoIcTBo HEnCnPaBHO.

IOMOUB:

O6paTntecb B haI cepBnchbI cHTp IIN K CneunnaHCTy.

Bo3MOxHa npuHa:

Bo3moKna npuHa: 3neKtpnpnbop eue nOHO He OCTbI ON ppebluyeepa60TbI.

TOMOLIb.

JaTe 3NeKToPnpBOpy 15 MmHT NOCToRtB.

TexHnueckne daHHbIe

MoeIb: PC-EKA 1066

3NeKtpoHtAHne: 220-240B\~,50T

Notpe6bEma MoUHocTb: 1800 BaTT

Klacc 3aunTbI:

BmectnMoCTb: MaKc. 27 n

Bec HeTTo: npM. 3,20 K

CoxpaheNo npaBo Ha texnueckne N KOHCTpyKun-OHHbIe n3MeHeHn B paMKax npoDoJkaHOUeIcR pa3pa60TKn npOdyKTA.

3To n3dJIeHHe npoJIO BCE Heo6xOaIMbIe n aKtyaJIbHbIe npo-BepKn, npeDnIcAHHbIe dIpeKTHBOI CE, K npm. Ha 3JeKtpo-MaHTHyOCOBMeCTHMocTb I COOTBETCTBHe Tpe6OBAHNrM K HN3KOBoIbTHOH TEXHKe, OHO 6bIIO TaKKe CkOH-CTpyuPObaHO INoCTpoEHO C yUeTOM NocJeDNHX Tpe6OBAHNI PO TexHKe 6e3OnaCHOCTN.

1

jol jol jol olw yol Joc o

a jss sss ssss

.

a aai j 0jdl glbl jao

f^ ( x) = - ( 2x + 1) ( ax + 5) x = 0

jglly 1

| x1| = | x2|

Liljaiial jaiwll gill

CE 1

aal gill gull blics 85

gai gill jiaiaiall gall ggi auiu bili

ailll llll lal 15,

aaiia aieeall jrrll aegll Jgagll 1. bao jI Jaoell g TIMER Iy .r.
Cagll eaiil all g bao iib cgsaa

y

TIMER 1
① jll bcj
3 aalall gagall aag
.

a

120-1 4

③ 4.④ JJIgIbIJI gJ .TIMER

i

J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0208 1 jll bc biai 1j
jilu wbi yjoll jilq l 1
aill qaii jn jao g .cll j

a

：

1

Jc 10000000000000000000000000000000000000000000000000000000000000

:

J 3-4 12

a1 + a2 = 2

laalai jai gai yibale 1le alalal jil

Jccl 121211g jcbg ggs

jia 1

gai li yia jia jia 2

.

oiiaaii i aaluaaialbnae

A

JbJia Jauw 2 aC

（）（）

a 4-3

aillllgwrallddgwrldaa

Jss

gall

ABC 为等腰 Rt 体现

iill sii

ubiquin yjall yjll jzj

Aidlaioi iie gilo

gssgallzaiiall gailglbchunj

Jai Jai Jai aiay yail jie laic

40

jio jg jn jzjj

S OBC = S BOC + S_ CBA

j 1

1

y

p jixi gill yll 11 2211 J5 La Ila lo jiazi

iill

b1 gll 2aLgall aLgll oJd

jglll lgl aalbll dglw! Jy 1800

16 1jio jia jil bla jua Juaia 2jia la

Aa A

JSSJSSJSSJSS

j51 16 1.5 a b

jieell 12 j! o0o ooi y

1^ ·

#

ylll yrrnll 1 1 1 1 1

jia jial 0j

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

4 1

:la

gagall jglal gbi ygi lij
jolai jjgs jai"jjll" jao
jglal jc liy aioc

puii jbi

1 1
1

a

1
2
3
4
5

#

1
1
.2
.
3
4
5

jglzll iie aolil adxll lai

i 1

！：

！

1

1. = ( x1,y1) , = ( x2,y2)

：

5 5 5

1

A_1 = 2

J 1

j < 0 即

.

aaii iil aaiii 2g jieai

.

1j 8 a j

aaii jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

aiaiaaii jbiiaaii

8 1 j j j j j j j j j j j j j j j j j j

8 8

JJI 1

ale ci bdo

laalgl jalell laiy jaiill caijai 1i 1g gaiy jaiy gaiialll i y laaiailly ic ayall ggeell ie ggy gaiil gssll .jai peclb! g y jy jay jayl lbc!

J 12
J 12
J 12
J 12
J 12
J 12
J 12
J 12
J 12
J 12

：

L

1 1
