USER MANUAL BS 971 CB BOMANN

Black and white photo of a vacuum cleaner with attached hose and power plug (no visible text or symbols)

Overview of the Components ...... Page 3

Instruction Manual Page 32

Technical Data.... Page 35

jEZYK POLSKI

Spis treś ci

Technical diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a vacuum cleaner with handle and vent, showing internal components and airflow direction (no text or symbols)

Technical line drawing of a portable device with ports and a handle, showing internal components and a black arrow pointing to a component (no text or symbols present)

Exploded view of a mechanical device showing internal components and assembly (no text or symbols visible)

Simple line drawing of a faucet, a bucket, and a small container under a sun (no text or symbols)

3D rendering of a mechanical component with internal structure and mounting bracket (no visible text or symbols)

Auslassfilter (13)

D-47906 Kempen/Germany

Line drawing of a hand operating a mechanical device with a handle and wheels (no text or symbols)

Stofopvangbak legen

Line drawing of a portable blender with spools and a handle, no text or symbols present

Exploded view diagram of a coffee maker with three stages: top, middle, and bottom (no text or symbols)

Simple line drawing of a faucet and a cup on a table under a sun (no text or symbols)

3D rendering of a mechanical device with internal components and a highlighted section (no visible text or symbols)

Uitlaatfilter (13)

Line drawing of a small vacuum cleaner with a hand pressing down on the top (no text or symbols)

Technical line drawing of a mechanical device with a handle and spout, no visible text or symbols

Exploded view diagram of a mechanical device showing internal components and assembly (no text or symbols)

Simple line drawing of a faucet and a cup on a surface under sunlight (no text or symbols)

3D cutaway view of a mechanical component with no visible text or symbols

Line drawing of a small vacuum cleaner with a hand pressing down on the top (no text or symbols)

Technical line drawing of a mechanical device with a handle and spout, no visible text or symbols

Exploded view diagram of a mechanical device showing internal components and assembly (no text or symbols)

Simple line drawing of a faucet and a cup on a table under a sun (no text or symbols)

3D cutaway view of a mechanical device showing internal components and housing (no text or symbols visible)

Line drawing of a hand operating a vacuum cleaner with a handle and valve (no text or symbols)

Technical line drawing of a mechanical device with a handle and spout, no visible text or symbols

Exploded view diagram of a coffee maker with three views showing internal structure (no text or symbols)

Simple line drawing of a faucet and a cup on a surface under sunlight (no text or symbols)

Cross-sectional view of a mechanical device with internal components (no visible text or symbols)

Line drawing of a hand operating a vacuum cleaner with a handle and control panel (no text or symbols)

Line drawing of a portable kitchen brush with a handle and spout (no text or symbols)

Exploded view of a mechanical component showing internal structure and assembly (no text or symbols visible)

Simple line drawing of a faucet and a cup on a table under sunlight (no text or symbols)

Close-up of a mechanical device with a mesh chamber and a black arrow pointing to a component (no visible text or symbols)

Line drawing of a hand operating a small mechanical device with a handle (no text or symbols)

Line drawing of a portable kitchen brush with a handle and spout (no text or symbols)

Exploded view diagram of a mechanical component showing internal structure and assembly (no text or symbols)

Rense filterinnsatsen

OBS:

Tøm alltid støvbeholderen før du tar ut filterinnsatsen.

Simple line drawing of a faucet and a cup on a surface, with sun symbol above (no text or labels)

3D rendering of a mechanical device with internal components and a highlighted section (no visible text or symbols)

Utslippsfilter (13)

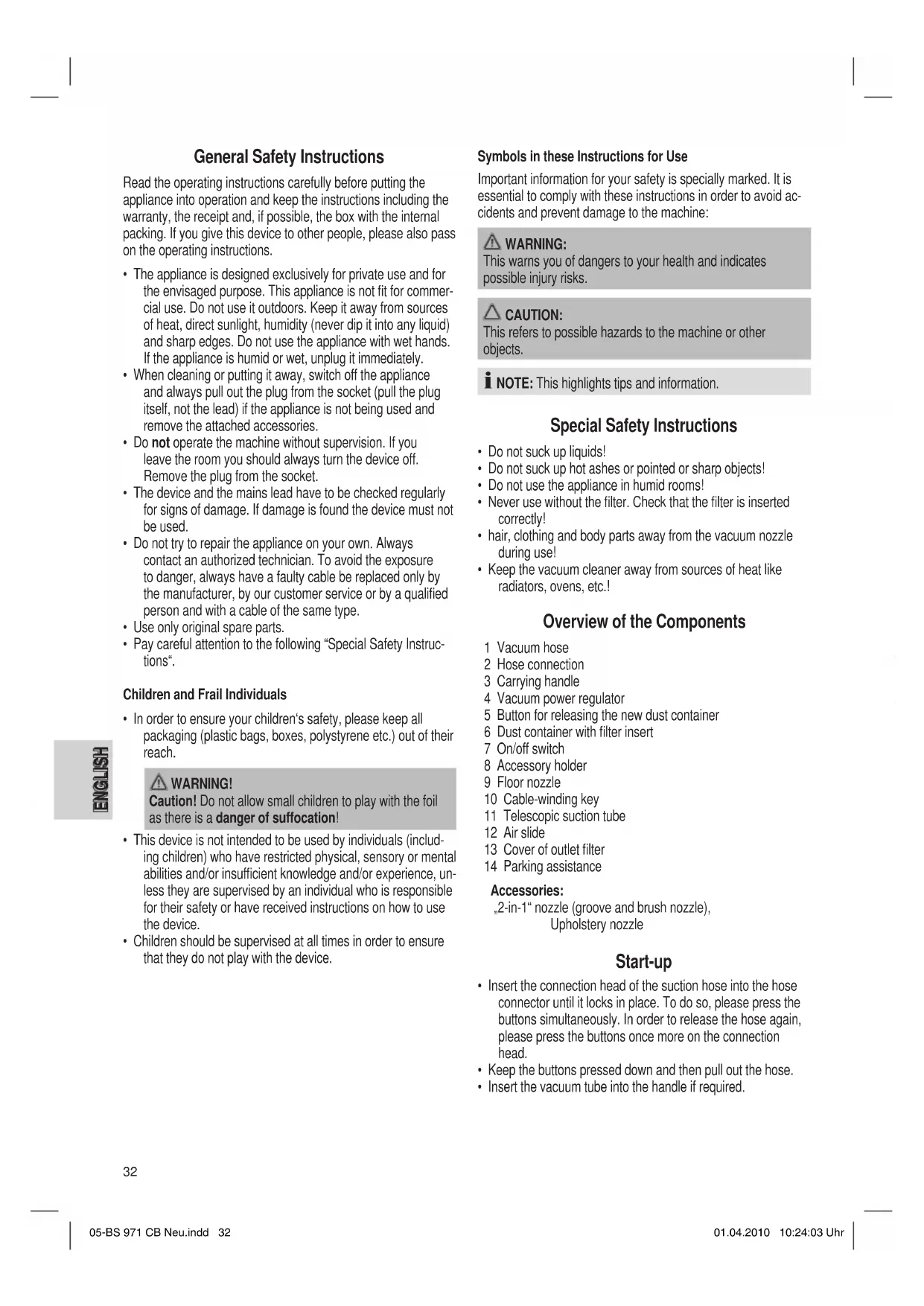

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Special Safety Instructions

• Do not suck up liquids!
• Do not suck up hot ashes or pointed or sharp objects!
• Do not use the appliance in humid rooms!
• Never use without the filter. Check that the filter is inserted correctly!
• hair, clothing and body parts away from the vacuum nozzle during use!
• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.!

Overview of the Components

1 Vacuum hose
2 Hose connection
3 Carrying handle
4 Vacuum power regulator
5 Button for releasing the new dust container
6 Dust container with filter insert
7 On/off switch
8 Accessory holder
9 Floor nozzle
10 Cable-winding key
11 Telescopic suction tube
12 Air slide
13 Cover of outlet filter
14 Parking assistance

Accessories:

„2-in-1“ nozzle (groove and brush nozzle), Upholstery nozzle

Start-up

• Insert the connection head of the suction hose into the hose connector until it locks in place. To do so, please press the buttons simultaneously. In order to release the hose again, please press the buttons once more on the connection head.
• Keep the buttons pressed down and then pull out the hose.
• Insert the vacuum tube into the handle if required.

Using the Appliance

1. Fit on the accessory.
2. Unwind the necessary length of cable and insert the plug in a duly installed 230V/50Hz protective contact socket.
3. Set the vacuum power with the vacuum power regulator.
4. Vacuum at a steady speed. There is no need to exert pressure.

i NOTE:

Pay attention to the range that can be covered with the cable length!

Vacuum power regulator

Low vacuum power: For curtains and delicate fabrics Medium vacuum power: For long-pile velour carpets and textile flooring

High vacuum power: For sturdy rugs and floors

Cable winding device

Pull out the cable up to the maximum length indicated with the yellow mark. Never pull the cable out up to the red mark as the cable winding can be damaged. Said damages are not covered by the warranty.

Winding

Press the cable winding button and guide the cable. Hold the cable to avoid wrapping.

Telescope Vacuum Pipe

The height-adjustable vacuum pipe enables individual alignment to your height.

• Unlock the coupling by pressing the key in the direction of the arrow.
• Slide the vacuum pipe to the desired length.
• To lock the device, release the key until you hear it lock in place.

Nozzle accessories

i NOTE:

The accessories are to be found in the holder on the telescopic tube.

Upholstery nozzle: For vacuuming upholstery, curtains and in corners and crevices etc.

Groove and brush nozzle: "2-in-1" nozzle: When this is folded together it can be used as a groove nozzle. If you would like to use the brush nozzle, pull the brush section in the direction of the arrow until it locks in place.

Floor nozzle: To clean carpets or smooth surfaces.

Releasing the nozzles: Pull these off while turning slightly.

In order to facilitate control, the floor nozzle (9) is fitted with rollers and can be adjusted to suit the circumstances.

Carpet: make sure that the brushes on the floor nozzle are deactivated when cleaning carpets. If this is not the case, press the lever on the floor nozzle forwards with your foot.

In order to vacuum even surfaces, for example, press the lever back with your foot. This activates the brushes (you can tell whether this is the case by checking that the brushes are visible on the floor nozzle).

Air Slide

Open the air slide on the hose handle in order to regulate the airflow or to clear any particles sticking to the nozzle.

Filter

Your machine has three filter systems. The traditional dust bag system has been replaced by a transparent dust container. In this, coarse dirt particles and tiny particles floating in the air are swirled out of the suction air by the high speed of the air current.

The quantity of dust can be easily read off at any time on the container, which is also very easy to empty.

The purchase of dust bags is no longer necessary.

Main Filter (in the Dust Container)

Once the dust level has reached the MAX mark on the dust container, or the suction power of the vacuum cleaner is reduced, please proceed as follows:

Line drawing of a vacuum cleaner with heat dissipation indicator (no text or symbols)

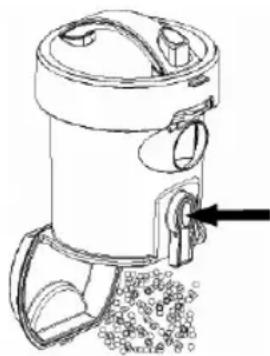

Emptying the Dust Container

Press the button to release the dust container and remove it from the vacuum cleaner.

Technical line drawing of a mechanical device with a handle and spout, no visible text or symbols

• Press the button on the side of the container to empty its contents.
• Then close the flap of the dust container again.

Exploded view diagram of a mechanical device showing internal components and assembly (no text or symbols)

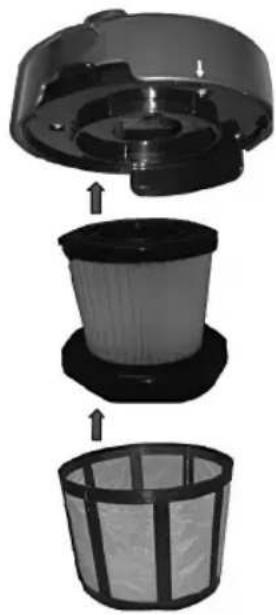

Cleaning the Filter Element

CAUTION:

Always empty the dust container first before removing the filter element.

• Press the button to release the dust container and then remove it (see illustration 1).
• Turn the lid in the direction, and then lift it off, including the filter element.
• Turn the filter element in the "OPEN" direction to remove it from the lid. Remove the filter element (two parts) and clean the main filter by tapping out the contents and gently brushing.
• Now replace the components. Please then turn the filter element in the CLOSE direction until it is tight.
• Place the lid on the dust container - the ↓ arrow is located above the 🔒 symbol - and then turn it in the 🔒 direction until it is tight.

Simple line drawing of a faucet and a cup on a table under a sun (no text or symbols)

Every third time the dust container is emptied, or in the case of severe soiling, clean the filter by allowing water to flow through the filter fabric against the direction in which the vacuum cleaner blows. The dust container should only be reinserted when it is completely dry!

Now place this back in position once it has completely dried!

CAUTION:

Never wash the filter in the washing machine, and please do not use a hairdryer to dry it.

Motor protection filter (inlet filter)

The inlet filter is located in the dust container compartment. The filter is located vertically in the rear section of the dust housing. Pull the filter out towards the front. Clean the motor protection filter approximately every 10th time you empty the dust container. If necessary, the filter can also be washed in warm water without any additives. Place it back into place only once it is completely dry!

3D rendered mechanical component with internal structure and mounting bracket (no visible text or symbols)

Outlet filter (13)

The appliance is also equipped with an outlet filter. In order to ensure that the filter works correctly, we recommend that you replace it every six months. It is located on the rear part of your appliance behind a ventilation grid. Open the ventilation grille by pressing the lever on its side. Then pull the grille out towards the front. Remove the filter and clean as described above. Fit the filter back into place and close the ventilation grid by following the steps above in the opposite order.

IMPORTANT NOTE!

• Cleaning may become necessary after a shorter time, depending on the conditions of use, e.g. when vacuuming fine dust.
• If the suction power of your vacuum cleaner diminishes please clean the filters as described.
• If the suction power suddenly diminishes during operation this may be due to the filters being locked.

Cleaning and storage

WARNING:

• Before cleaning remove the mains lead from the socket.
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Cleaning

• Clean the casing with a dry cloth.
• Clean the motor protection filter approximately every 10. time the vacuum cleaner is emptied. Clean the filter in hot water without additives. Put it back into place only once it is completely dry.

Storage

• Let the iron cool down completely.
  • Wind the cable completely.
• Insert the hook of the nozzle on the back of the device into the parking aid (14).
• If you position the device horizontally: Please insert the hook of the floor nozzle into the parking assistant on the rear of the device.
• If you position the device vertically: Please insert the hook of the suction tube into the parking assistant on the bottom of the device.

Technical Data

Model: BS 971 CB

Power supply: 230 V, 50 Hz

Power consumption:

P_nom. : 1200 W

P_max. : 2000 W

Protection class: II

Net weight: 4,70 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Line drawing of a hand operating a small vacuum cleaner with a handle and fan (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view diagram of a coffee maker with three stages: top, middle, and bottom (no text or symbols)

Simple line drawing of a faucet and a sink with sun above (no text or symbols)

3D rendered mechanical component with internal structure and mounting bracket (no visible text or symbols)

Filtr wylotowy (13)

Line drawing of a hand operating a vacuum cleaner with a handle and valve (no text or symbols)

Line drawing of a portable dishwasher with a black arrow pointing to the handle (no text or symbols)

Exploded view of a mechanical device showing internal components and assembly (no text or symbols visible)

Simple line drawing of a faucet and bucket with a sun symbol above (no text or labels)

Close-up of a mechanical component with a mesh grille and a black arrow pointing to a feature (no visible text or symbols)

Line drawing of a hand operating a vacuum cleaner with a handle and vent (no text or symbols)

A porgyűjtő ürítése

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view diagram of a coffee maker with three stages: top, middle, and bottom (no text or symbols)

Illustration of a faucet and a cup on a surface with a sun symbol (no text or labels)

3D rendering of a mechanical component with internal structure and mounting bracket (no visible text or symbols)

Line drawing of a hand pressing down on a small mechanical device (no text or symbols)

Line drawing of a portable blender with a handle and spout, no text or symbols present

Exploded view diagram of a mechanical device showing internal components and assembly (no text or symbols)

Очистка фильтра

ВНИМАНИЕ:

Close-up of a mechanical device with a perforated grille and a black plastic component (no visible text or symbols)
