Product type	Wireless indoor IP camera
Brand	Friedland
Model	HIS5A
Power supply	5 V DC / 1 A (AC adapter provided)
Wireless interface	IEEE 802.11 b/g/n (up to 150 Mb/s)
Video resolution	640 x 480 (VGA) and 320 x 240 (QVGA)
Image sensor	1/4 inch CMOS VGA
Lens	3.2 mm, F2.0, viewing angle 60.3°
Night vision	Yes, max range 10 m (Infrared LED)
Video compression	H.264
Storage	MicroSD card (4 GB included, compatible up to 32 GB)
Operating temperature	0 °C to 50 °C
Relative humidity	20 % to 80 %
Radio range	100 m in open space
Motion detection	Yes (via system security detectors)
Audio	Built-in microphone
Installation	Wall or ceiling mount (bracket provided)
Package contents	Camera, AC adapter, bracket, Ethernet cable, fasteners, microSD card, manual
Maintenance and cleaning	Clean with a soft dry cloth. Do not use chemicals.
Safety	Installation by a professional recommended. Do not open the casing.
Warranty	2 years (parts and labor)

Frequently Asked Questions - HIS5A FRIEDLAND

How to install the Friedland HIS5A camera?

Follow the steps in section 5 of the manual: assemble the camera bracket, fix it to the wall or ceiling after drilling 5 mm holes and inserting wall plugs. Attach the camera to the bracket and adjust the angle. Connect the AC adapter and power on. Then, add the camera to the GlobalGuard system via the website or application.

How to connect the camera via Wi-Fi?

If your router has a WPS button, first press the WPS button on the router, then within one minute press the WPS button on the camera (section 6.2). Otherwise, temporarily connect the camera via Ethernet cable, access the IP Cam settings on the GlobalGuard website, select the wireless network (SSID) and security type (WEP or WPA/WPA2-PSK), enter the key, then apply and disconnect the Ethernet cable.

What to do if the Internet connection indicator flashes?

This indicates an Internet connection problem. Check that your modem/router is on and the Internet connection is working properly. If necessary, restart the camera and the router.

Why is the image quality poor in Wi-Fi?

This may be due to too great a distance between the camera and the router, or too many devices connected to the same network. Move the camera closer to the router or disconnect some devices. Also check that your upstream bandwidth is at least 512 kb/s.

How to record videos on the microSD card?

Make sure a FAT32 formatted microSD card is inserted. For manual recording, click the REC button in the live view interface. Recording lasts about 30 seconds. You can also configure the camera to automatically record when a security detector is triggered (section 7.2.2).

How to play recorded videos on a PC?

Remove the microSD card from the camera and insert it into a card reader on your PC. Copy the folder of video files to the hard drive. For playback, use the GlobalGuard CamPlay software downloadable from the GlobalGuard website. You can also view the videos directly from the web interface by going to the Video Playback tab.

Is the night vision range sufficient?

The maximum night vision range is 10 meters with infrared LEDs activated automatically. In very dark environments, the image switches to black and white. To improve vision, you can add additional lighting.

Can I use the camera outdoors?

No, the Friedland HIS5A camera is designed for indoor use only. The operating temperature range is 0 °C to 50 °C and it is not waterproof. Do not install it in a humid room like a bathroom.

What to do in case of connection loss?

First check the LED indicators on the camera: the Ethernet LED should be on (network connection) and the Internet LED should be solid. If the latter is flashing, follow the advice above. Restart the camera by disconnecting and reconnecting the AC adapter. If the problem persists, reset the camera by holding the WPS button for 10 seconds.

How to reset the camera?

To reset the camera to factory settings, press and hold the WPS button for about 10 seconds until all indicators flash. Release the button. The camera will restart and will need to be reconfigured via the GlobalGuard website.

USER MANUAL HIS5A FRIEDLAND

IP Camera | FGGA0501WWE / FGGA05* Series / HIS5A

CE

ENGLISH Installaon and Operaon Manual 2

1 Intended use 3
2 Safety 3

2.1 Product 3
2.2 Power supply unit 3
2.3 Installaon 3

3 Descripon 3

3.1 Package contents.. 3
3.2 Required tools 4
3.3 System requirements 4

4 Overview 4
5 Installaon 5

5.1 Assembling the camera 5
5.2 Installing the camera 5
5.3 Electrical installaon 6
5.4 Viewing video from the camera 7

6 Wireless connecn setup 8

6.1 Wireless connecn (router without WPS buon) 8
6.2 Wireless connecn (router with WPS buon) 9

7 Operaon 9

7.1 Live-viewing the camera 9
7.2 Recording video to the Micro SD card 9

7.2.1 Manually recording video 9
7.2.2 Recording video with security detectors 9

7.3 Playing back video les from the Internet 10
7.4 Backing up video les from the Micro SD card on the PC 10
7.5 Playing back video les stored on the PC 10

8 Troubleshoong 11
9 Technical data 11
10 Disposal and recycling. 12
11 EC declaraon of conformity. 12
12 Guarantee 12
13 Customer support 12

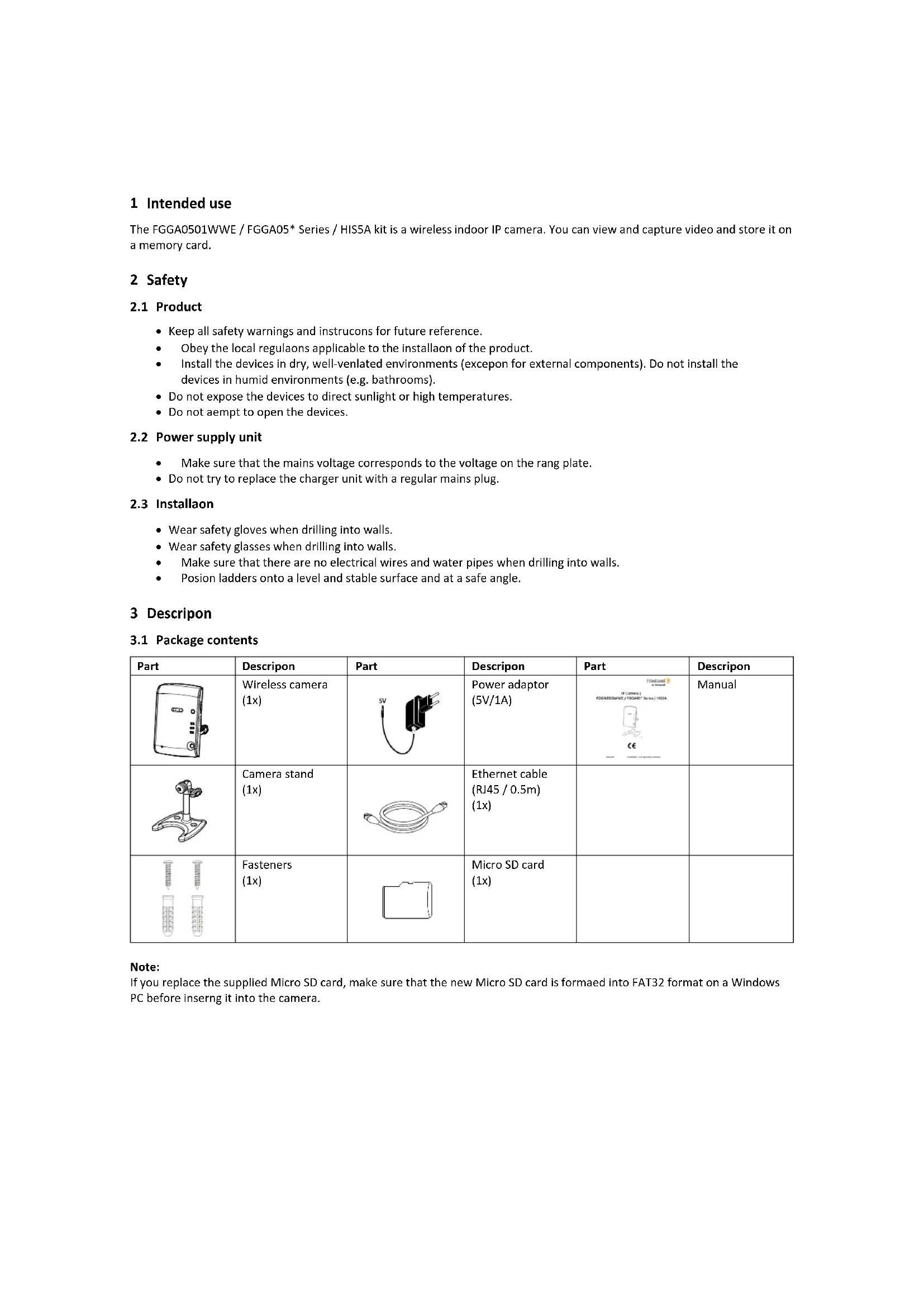

1 Intended use

The FGGA0501WWE / FGGA05* Series / HIS5A kit is a wireless indoor IP camera. You can view and capture video and store it on a memory card.

2 Safety

2.1 Product

• Keep all safety warnings and instrucons for future reference.
• Obey the local regulaons applicable to the installment of the product.
• Install the devices in dry, well-ventilated environments (excepon for external components). Do not install the devices in humid environments (e.g. bathrooms).
• Do not expose the devices to direct sunlight or high temperatures.
• Do not preempt to open the devices.

2.2 Power supply unit

Make sure that the mains voltage corresponds to the voltage on the rang plate.
- Do not try to replace the charger unit with a regular mains plug.

2.3 Installaon

• Wear safety gloves when drilling into walls.
• Wear safety glasses when drilling into walls.
  Make sure that there are no electrical wires and water pipes when drilling into walls.
• Posion ladders onto a level and stable surface and at a safe angle.

3 Descripion

3.1 Package contents

Part	Descipon	Part	Descipon	Part	Descipon
	Wireless camera (1x)	5V	Power adaptor (5V/1A)	IF Camera 1 IFGARS000C/IFGARS" Sights / H3A CC H3A = 2.4 m/s maximum	Manual
	Camera stand (1x)		Ethernet cable (RJ45 / 0.5m) (1x)
	Fasteners (1x)		Micro SD card (1x)

Note:

If you replace the supplied Micro SD card, make sure that the new Micro SD card is formed into FAT32 format on a Windows PC before inserting it into the camera.

3.2 Required tools

Tool	Descripon	Tool	Descripon
	Safety glasses		Bradawl
	Safety gloves		Phillips screwdriver (#2)
	Memory card reader for PC (if PC has no built-in memory card reader)		Masonry drill bit (20 mm)
	Electric drill		Masonry drill bit (5 mm)
	Hammer

3.3 System requirements

You must install and set up a GlobalGuard home alarm system and create an online account before you install the FGGA0501WWE / FGGA05* Series / HISSA kit.

Operang system	Windows XP / Windows Vista / Windows 7
Web browser	Internet Explorer 6.x (or higher)
Central processing unit (CPU)	Penum 4: 1 GHz (or higher)
VGA card resoluon	800x600 (or higher)
Video memory size	128 Mb (or higher)
Internet bandwidth	512 kbps (recommended upload speed for 1 camera)
Memory card	Micro SD: 4 GB (included) / 32 GB (supported)

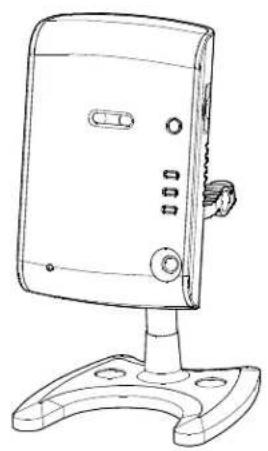

4 Overview

1. Microphone
2. Lens
3. WPS buon
4. Micro SD card indicator (yellow)
5. Ethernet connecn indicator (blue)
6. Internet connecn indicator (red)
7. Infrared LED
8. Memory card holder
9. Power jack
10. Mounng point for camera stand
11. Ethernet jack

5 Installaon

5.1 Assembling the camera

1. Assemble the camera stand.

2. Tighten the camera (1) onto the camera stand. Set the camera to the correct angle. Tighten the knob (2).3. Loosen the thumbscrew (3).4. Set the camera (1) to the correct posion.5. Tighten the thumbscrew (3).

5.2 Installing the camera

The camera has a built-in infrared LED to allow you to view at night for 24-hour surveillance. The LED will automatically acvate at night and the picture viewed will turn to black and white. The night vision range is up to 10 metres. If necessary, use a lamp to improve night vision.

Posion the camera in view of a door/ window contact detector or a PIR movement detector. The camera can record video aer a security detector has been triggered by an intruder provided the camera has been setup with same locaon seng as the security detector.

The camera has an open-eld radio-frequency operang range of up to 100 metres. The amount by which the wireless range will reduce depends on the obstrucon between the camera and the wireless router. The ect on the range of mulple walls is cumulave.

Wall type	Range redocon
Dry-lined paron wall	10-30%
Single-layer brick wall	20-40%
Double-layer brick wall	30-70%
Metal panel/radiator	90-100%

Wall	Ceiling
		1. Use the camera stand to mark the posion of the mounng holes on the wall or the ceiling.
		2. Drill mounng holes (5 mm) into the wall or the ceiling according to the mounng slots in the camera stand. 3. Insert a supplied wall plug into each mounng hole. 4. Tighten the camera stand to the wall using the supplied screws.
		5. Tighten the camera onto the camera stand. Set the camera to the correct angle. Tighten the knob.
		6. Loosen the thumbscrew. 7. Set the camera to the correct posion. 8. Tighten the thumbscrew.
		9. Connect the power adaptor to the camera. 10. Switch on the camera. 11. Check the live-view video from the website. 12. If necessary, adjust the camera angle.

5.3 Electrical installaon

1. Connect the camera as shown. The Internet connecn indicator lights connuously to indicate that the Internet connecn is successful. Note: The camera must be connected to the same local network as the IP gateway to ensure recording.

5.4 Viewing video from the camera

1. Log in to the website hps://GlobalGuard.Friedland.co.uk on your PC. a) Enter your account informaon: "Home ID", "Admin/User ID", "Password". b) Enter the 4-digit code. c) Click "Login".

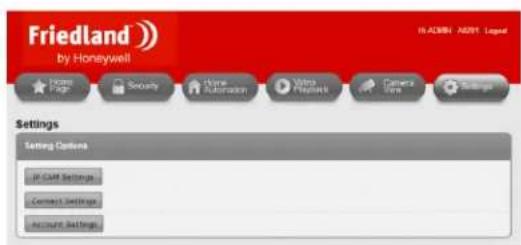

1. Add the new camera: a) Click "Sengs". b) Click "IP CAM Sengs". c) Click "Add IPCAM" to add a new camera. d) Enter the MAC address of the camera. (The MAC address is printed on the camera.)

Note: Follow the on-screen instrucons for registering the camera to operate with your system correctly.

1. Assign advanced sengs to the camera:
2. "Camera Info": camera number(automatically assigned to the camera)
3. "Assign Locaon": camera locaon
4. "Assign Camera Name": camera name
5. "Enable Wi Funcon": to switch the Wi-Fi funcon on/o.
6. "Audio": to switch the audio on/o.

The indicator on the IP gateway comes on to indicate that the new camera has been added to your system:

Note: The 4 indicators s the connecon status of up to 8 cameras: - If you connect camera 1-4, indicators 1-4 will become green. - If you add camera 5, indicator 1 will become orange (etc.). - If you disconnect camera 1 but camera 5 is sll acve, indicator 1 will become red (etc.).

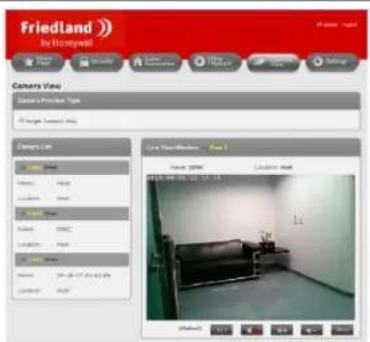

1. Click "Camera View".
2. Select the camera.
3. Click "View".

6 Wireless connecn setup

6.1 Wireless connecn (router without WPS buon)

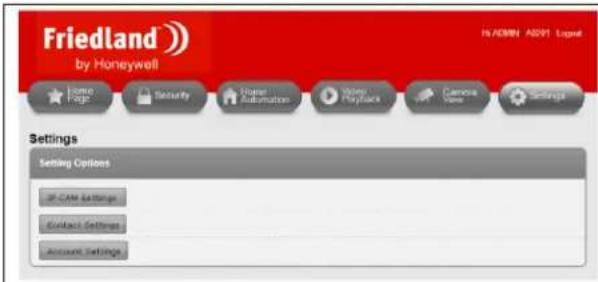

1. Log in to the website https://GlobalGuard.Friedland.co.uk on your PC.
2. Click "Sengs".
3. Click "IP CAM Sengs".

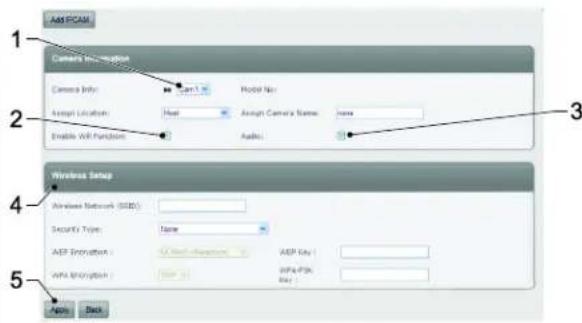

1. Select the camera (1).
2. Select the Wi-Fi funcon (2).
3. Select the audio (3).

4. Enter the wireless security sengs (4):

5. Wireless Network: Enter the name of the wireless network of the router (SSID).

6. Security Type: Select "None", "WEP" or "WPA/WPA2-PSK".

7. WEP Mode: Select "64-bit (5 char)", "64-bit (10 hex)", "128-bit (13 char)" or "128-bit (26 hex)". Enter the WEP key.

8. WPA-PSK Mode: Select "TKIP" or "AES". Enter the WPA-PSK key.

Note: "WPA2-PSK" is also supported. "WPA

Enterprise" and "WPA2 Enterprise" are not supported.

1. Click "Apply" (5) to save the changes. Wait for

approximately one minute.

Note:

The IP camera must be connected to the same local network as the IP gateway.

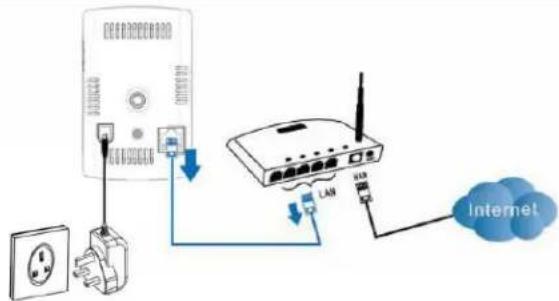

1. Disconnect the Ethernet cable from the camera to start the wireless connecn. The indicators on the camera come on and go o alternately. Within one minute, the indicators on the camera will go o and the camera will restart.

If the wireless connecon has been established, the Ethernet connecon indicator will ash and the Internet connecon indicator and the Micro SD card indicator will light connuously.

Note:

If you change the camera to another locaon, disconnect the power adaptor from the wall socket, move the camera to the required locaon and connect the power adaptor to the wall socket again. If you move the camera much further away from the wireless router, check the signal strength of the wireless connecn using the signal strength meter on your PC or smartphone as a guide.
If you use the wired Ethernet connecn, connect the Ethernet cable to camera again. If the wireless connecn between the camera and the router is poor, a wired connecn may also be required.

6.2 Wireless connecn (router with WPS buon)

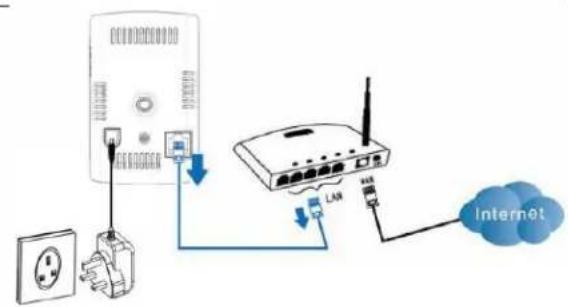

1. Disconnect the Ethernet cable from the camera to start the wireless connecn.
2. Press and release the WPS buon on the router. Within one minute, press and release the WPS buon on the camera. The indicators on the camera come on and go o alternately. Within one minute, the indicators on the camera will go o.

If the wireless connecon has been established, the Ethernet conneccon indicator will come on.

7 Operaon

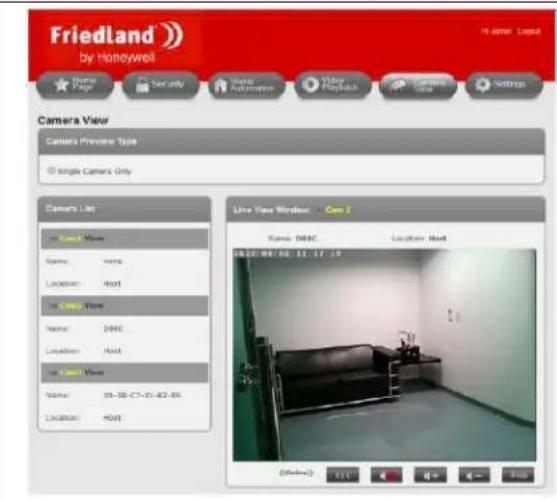

7.1 Live-viewing the camera

1. Log in to the website https://GlobalGuard.Friedland.co.uk on your PC.
2. Click "Camera View".
3. Select the camera.
4. Click "View".

Note:

The Apple/Android GlobalGuard apps can be used to view cameras connected to your system. Download and install the app from the App Store (Apple) or from Google Play (Android). Use your login details for your GlobalGuard online account to sign in.

7.2 Recording video to the Micro SD card

7.2.1 Manually recording video

1. Click "REC" to start recording for approximately 30 seconds.
2. Click "REC" again 1x to stop recording.

7.2.2 Recording video with security detectors

If a door/ window contact detector or a PIR movement detector is triggered while your alarm system is armed, the IP gateway will locate the corresponding IP camera in the same locaon and inform it to start recording for approximately 30 seconds.

Note:

If the camera locaon is set to "None", it will record whenever any detector is triggered.
All cameras will record when the control panel detects event conditions of "Panic", "Tamper", "Fire" and "Duress" regardless of the locaon the camera is set to.

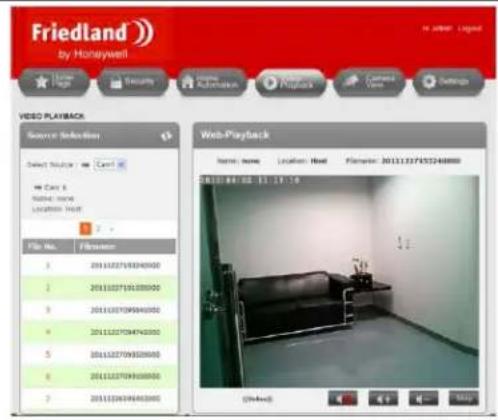

7.3 Playing back video les from the Internet

1. Log in to the website https://GlobalGuard.Friedland.co.uk on your PC.
2. Click "Video Playback".
3. Select the camera.
4. Click the icon to refresh the playback list.
5. Click the le name.

Video le name format	A	B	C	D	E	F	G
20111227153240000 A B C D F	2011	12	27	15	32	40	000
	Year	Month	Day	Hour	Minute	Second	sux to le name

7.4 Backing up video les from the Micro SD card on the PC

1. Remove the Micro SD card from the camera.

2. Insert the Micro SD card into a suitable memory card reader for your PC.

3. If your PC can read Micro SD cards directly, insert the Micro SD card into the built-in memory card reader.

4. If your PC cannot read Micro SD cards directly, use a suitable external memory card reader.

5. Aer your PC detects the storage device, copy the folder with the video les onto a locaon on your PC.

6. If the process is completed, remove the Micro SD card from the memory card reader.
7. Insert the micro SD card into the camera.
8. Switch o the camera, wait for a few seconds and switch on the camera again to make sure that the camera can reboot its functionality correctly.

7.5 Playing back video les stored on the PC

If video les are stored on your PC, you can play back the les on the PC using the GlobalGuard CamPlay soware.

1. Launch Internet Explorer on your PC.
2. Go to the website "hps://GlobalGuard.Friedland.co.uk".
3. Download the GlobalGuard CamPlay soware and the GlobalGuard soware manual.
4. Install the soware.
5. Open the soware.
6. Refer to the secon "GlobalGuard Camplay soware" in the GlobalGuard soware manual.

Note: Not all features of the GlobalGuard CamPlay sware are applicable for the GlobalGuard Camera.

8 Troubleshoong

PROBLEM	CAUSE	SOLUTION
The Internet connecon indicator on the camera ashes.	The internet connecon is not working correctly.	Make sure that the internet connecon is working correctly.
The picture quality is poor when the camera is connected to the router through wireless connecon.	The camera is installed too far from the router.	Install the camera closer to the router.
	Too many devices are connected to the router.	Disconnect some devices from the router.
The video can be viewed remotely, but the video quality is poor and the video somemes disconnects and connects again by itself.	The Internet bandwidth (connecon speed) is not large enough.	Upgrade for a beer internet connecon from your Internet service provider (ISP). The camera requires a minimum upload speed of 512 kbps.
A loud whistling sound from the camera can be heard on the PC.	The camera is installed too close to the PC.	1. Decrease the speaker volume on the PC.2. Decrease the camera volume.

9 Technical data

Operang voltage		DC: 5 V / 1 A
Operang conditions	Operang temperature	0 °C ~ 50 °C (indoor use only)
	Relave humidity	20% ~ 80%
Wireless interface	IEEE 802.11n	90-150 Mbps
	IEEE 802.11g	6-54 Mbps
	IEEE 802.11b	1-11 Mbps
	Transmier power	14.5 dBm typically at 802.11g 17.5 dBm typically at 802.11b
	Receiver sensitivity	54 Mbps: typically -73 dBm at 10% PER 11 Mbps: typically -86 dBm at 10% PER
	Antenna gain	0.01 dBi
Comunicaon range		100 m (in open space)
Image sensor		RGB VGA 1/4 inch CMOS Separate image sensors for day and night Automac exposure control Automac white balance Automac brightness control Automac antenna gain control
Light sensitivity		0.2 Lux (infrared LED o) 0.0 Lux (infrared LED on, 10 m)
Lens / viewing angle		3.2 mm F2.0 Viewing angle: 60.3° Fixed iris Separate lenses for day and night
Night vision range		10 m (max.)
Video compression		H.264 Baseline prole level 3.1
Display resolution		VGA: 640x480 QVGA: 320x420
Memory card		Micro SD: 4 GB (included) / 32 GB (supported)
Video recording capacity		Approximately 300 video clips of 33 seconds (2GB)

10 Disposal and recycling

The product is classified by the Waste Electrical or Electronic Equipment (WEEE) directive. The product and the baeries of the monitor should not be disposed of with other household or other commercial waste. At the end of its useful life, the packaging and the product should be disposed of via a suitable recycling centre. For informaon on available facilities, please contact your local authority or retailer from where the product was purchased.

11 EC declaraon of conformity

Novar ED&S hereby declares that the product is in compliance with the essenai requirements and other relevant provisions of the Radio and Telecommuncaons Terminal Equipment (R&TTE) direcve (1995/5/EC).

12 Guarantee

Novar ED&S undertakes to replace or repair at its discreet goods, should they become defective within 2 year solely as a result of faulty materials and workmanship.

Understandably, if the product has not been installed, operated or maintained in accordance with the instrucons, if the product has not been used appropriately or if any aempt has been made to recfy, dismantle or alter the product in any way, the guarantee will be invalidated.

The guarantee states Novar ED&S enre liability. The guarantee does not extend to cover consequential loss or damage or installaon costs arising from the defeve product. The guarantee does not in any way aect the statutory or other rights of a consumer and applies to products installed within the EU only. If an item develops a fault, the product must be returned to the point of sale with:

1. Proof of purchase.
2. Full descripion of the fault.
3. All relevant baeries (disconnected).

13 Customer support

For further product informaon and full installaon manuals where applicable go to www.friedlandproducts.com

Service Helpline

UK & Northern Ireland

0844 736 9149

Monday to Friday

9:00 am - 5:00 pm

The phone calls are charged at the naonal rate of the service providers.

Inhaltsverzeichnis

"64-bit (10 hex)," "128-bit (13 Zeichen)" oder
