USER MANUAL HKLO 2000 EINHELL

1. Safety Information
2. Layout
3. Items supplied
4. Intended use
5. Technical data
6. Before starting the equipment
7. Operation
8. Cleaning, maintenance and ordering of spare parts
9. Storage
10. Disposal and recycling
11. Troubleshooting

GB

GB

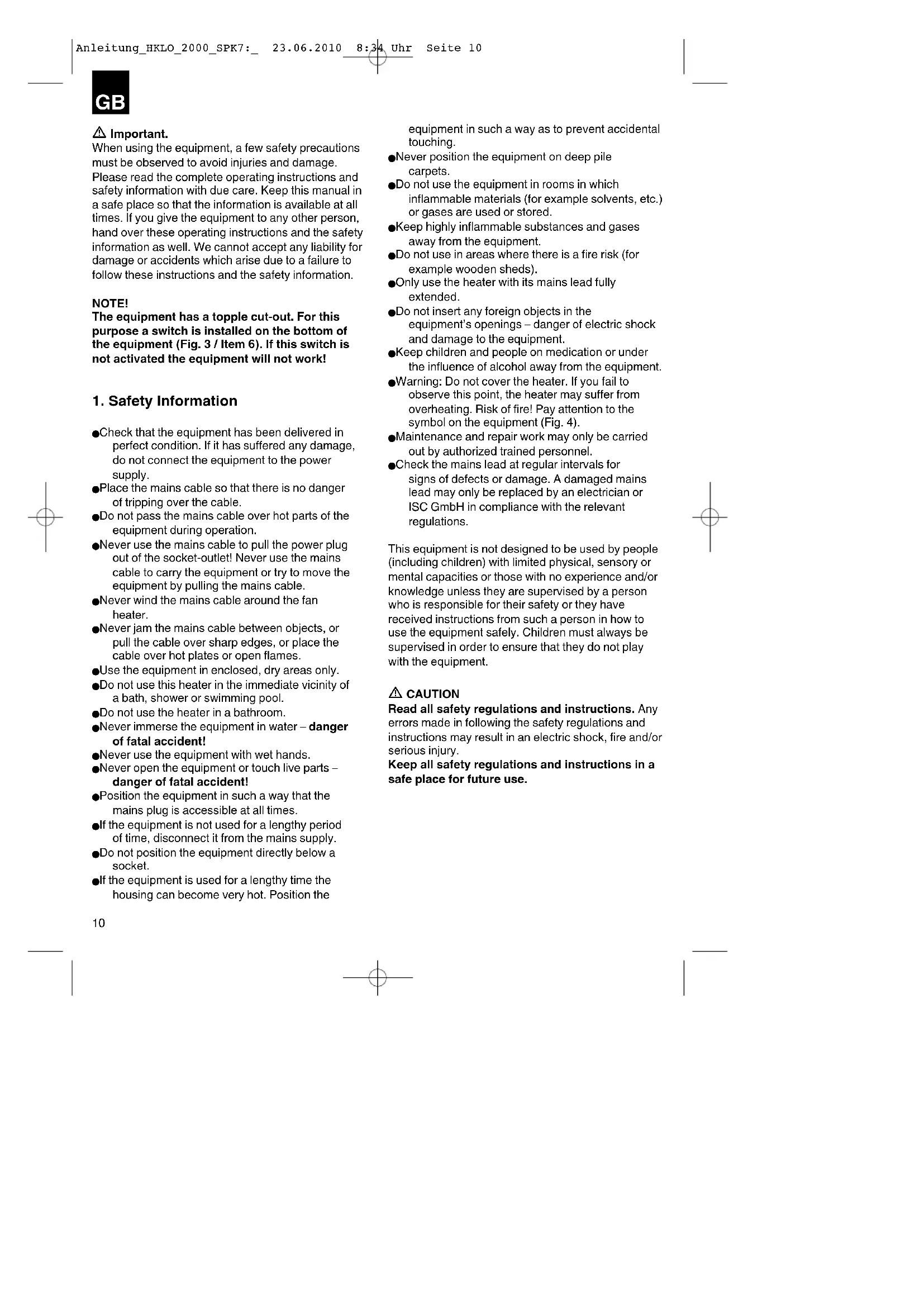

Important.

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety information with due care. Keep this manual in a safe place so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and the safety information as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety information.

NOTE!

The equipment has a topple cut-out. For this purpose a switch is installed on the bottom of the equipment (Fig. 3 / Item 6). If this switch is not activated the equipment will not work!

1. Safety Information

• Check that the equipment has been delivered in perfect condition. If it has suffered any damage, do not connect the equipment to the power supply.
• Place the mains cable so that there is no danger of tripping over the cable.
  Do not pass the mains cable over hot parts of the equipment during operation.
• Never use the mains cable to pull the power plug out of the socket-outlet! Never use the mains cable to carry the equipment or try to move the equipment by pulling the mains cable.
• Never wind the mains cable around the fan heater.
• Never jam the mains cable between objects, or pull the cable over sharp edges, or place the cable over hot plates or open flames.
  Use the equipment in enclosed, dry areas only.
  Do not use this heater in the immediate vicinity of a bath, shower or swimming pool.
  Do not use the heater in a bathroom.
  Never immerse the equipment in water - danger of fatal accident!
• Never use the equipment with wet hands.
• Never open the equipment or touch live parts - danger of fatal accident!
• Position the equipment in such a way that the mains plug is accessible at all times.
  If the equipment is not used for a lengthy period of time, disconnect it from the mains supply.
  Do not position the equipment directly below a socket.
  If the equipment is used for a lengthy time the housing can become very hot. Position the

equipment in such a way as to prevent accidental touching.
- Never position the equipment on deep pile carpets.
Do not use the equipment in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored.
- Keep highly inflammable substances and gases away from the equipment.
Do not use in areas where there is a fire risk (for example wooden sheds).
Only use the heater with its mains lead fully extended.
Do not insert any foreign objects in the equipment's openings - danger of electric shock and damage to the equipment.
- Keep children and people on medication or under the influence of alcohol away from the equipment.
- Warning: Do not cover the heater. If you fail to observe this point, the heater may suffer from overheating. Risk of fire! Pay attention to the symbol on the equipment (Fig. 4).
- Maintenance and repair work may only be carried out by authorized trained personnel.
- Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an electrician or ISC GmbH in compliance with the relevant regulations.

This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

CAUTION

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout (Fig. 1)

1 Air outlet grille
2 Thermostat control
3 Indicator light
4 Heat output switch
5 Oscillation function switch

3. Items supplied

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  Check to see if all items are supplied.
  Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

IMPORTANT

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

Fan Heater
Original Operating Instructions

4. Intended use

The equipment is designed exclusively for use as an additional heater in dry, closed rooms. It is designed to be operated only when placed on the floor.

The equipment may only be used for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications.

Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Technical data

Rated voltage: 230V 50Hz

Heat output: 2000 W (1000 W/2000 W)

Thermostat control: Infinitely adjustable

Protection class: II/

Equipment dimensions: approx.: 23 × 32 × 20 cm

6. Before starting the equipment

The equipment can be used indoors in a free standing position. Keep a minimum distance of 1m between the housing and walls, combustible materials (furniture, curtains, etc.). The equipment may only be used completely mounted and standing vertically on a stable surface. It is prohibited to operate the equipment on an instable surface (e.g. on a bed).

Important. Before using the equipment for the first time, check that the voltage supply is the same as the voltage details set out on the rating plate.

Read the safety regulations in section 1.

When the equipment is used for the first time or after a long period of rest it may emit an odor for a short time. This is not a fault.

7. Operation

7.1 Topple cut-out

If the equipment topples during operation, it is automatically turned off by the switch (Fig. 3/Item 6). When the heater is placed upright again (the switch (Fig.3/Item 6) must be activated), the equipment restarts immediately.

7.2 Heat output switches (Fig. 2):

-Off setting (Item A)
Fan setting (Item B)
Low heating output (pos. C)
Maximum heating output (Item D)

7.3 Thermostat control (Fig. 1 / Item 3):

Switch on the required heating output. Turn the control to "MAX" until the required room temperature has been reached. Then turn down the control until you hear a clear click. The thermostat control will switch the radiator on and off automatically to maintain the room temperature at an almost constant

GB

level. However, this presupposes that the radiator has sufficient output to cover the heating requirements for the room.

7.4 Overheating guard

In case of excessive heating, the heating function shuts down automatically. The fan and the indicator light (Fig. 1/Item2) remain on.

If this occurs, turn off the equipment, disconnect the mains plug and wait a few minutes for the equipment to cool. After eliminating the cause (e.g. a covered air grille), the equipment can be switched on again. If the overheating guard triggers repeatedly, please contact your customer service center (in Germany ISC GmbH).

7.5 Oscillation function (Fig. 1 / Item 5)

Set the fan mode or heat mode as describe above, turn the switch (Fig. 1 / Item 5) to "1". The device swivels 45^ to the left and 45^ to the right (oscillation). To switch off the oscillation function and have the device blow in one specific direction set the switch to "0".

8. Cleaning, maintenance and ordering of spare parts

8.1 Cleaning

Before carrying out any cleaning and maintenance work the equipment must be turned off, disconnected from the power supply and cooled down.
Use a damp cloth to clean the casing.
- Remove dust pollution with a vacuum cleaner.

8.2 Servicing

• Maintenance and repair work may only be carried out by an electrical servicing contractor or ISC GmbH.
• Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an electrician or ISC GmbH in compliance with the relevant regulations.
  There are no parts inside the equipment which require additional maintenance.

8.3. Ordering spare parts

Please provide the following information on all orders for spare parts:

Model/type of the equipment
Article number of the equipment
ID number of the equipment
Part number of the required spare part
For our latest prices and information please go to www.isc-gmbh.info

9. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

10. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

11. Troubleshooting

If the equipment is operated properly you should experience no problems with malfunctions or faults. In the event of any malfunctions or faults, please check the following before you contact your customer services.

Fault Possible cause	Remedy
Equipment does not work Power plug	is not connected	Connect the power plug
	Topple cut-out switch not pressed	Place the machine on a level surface.
The equipment does not heat The thermal	ermostat control is set too low	Turn the thermostat control to the right, to a higher temperature
	Overheating guard has been triggered	Please note section 7.4
	The switch is set to blowing without heating function.	Set the heating function
