Espresseria Automatic EA6990 - Coffee machine KRUPS - Free user manual and instructions

Product Type	Automatic espresso coffee machine
Brand	Krups
Model	Espresseria Automatic EA6990
Pump	15 bars
Heating System	Compact Thermoblock System
Bean Container	250 g max
Coffee Functions	Espresso (20-70 ml), Coffee (80-160 ml), Long Coffee (120-240 ml), Strong Espresso, 2-cup function
Additional Functions	Hot water, Steam, Milk froth, Auto-cappuccino (via XS6000 accessory)
Settings	Grind fineness (mechanical), Coffee volume, Temperature (3 levels), Water hardness (0-4)
Maintenance Programs	Automatic rinse, Automatic cleaning (XS3000 tablets), Automatic descaling (F054 powder)
Water Filter	Claris Aqua Filter System F088 (sold separately)
Included Accessories	2 XS3000 cleaning tablets, 1 F054 descaling sachet, hardness test stick, cleaning needle
Optional Accessories	Auto-Cappuccino Set XS6000, Liquid cleaner XS4000, Claris F088 filter cartridge
Safety	Programmable auto shut-off (30 min to 4 h), Burn prevention, Reservoir warning
Display	Graphic with backlight, adjustable contrast
Power	Not specified (estimated 1450 W)
Power Supply	220-240 V, 50 Hz (European standard)
Warranty	Domestic, max 3000 cycles/year, subject to conditions (maintenance, proper use, approved accessories)

Frequently Asked Questions - Espresseria Automatic EA6990 KRUPS

How to descale the machine?

Use only Krups F054 descaling powder. Remove the Claris cartridge if installed. Place a 0.6 L container under the steam nozzle, follow on-screen instructions via Prog > Maintenance > Descaling. The cycle takes about 22 minutes and includes two rinses. Do not interrupt.

How to clean the machine?

Automatic cleaning is necessary every 360 preparations. Use a Krups XS3000 tablet. Place a 0.6 L container, start via Prog > Maintenance > Cleaning. The cycle lasts 20 minutes and stops automatically.

What coffee beans to use?

Use only whole coffee beans (not ground). Avoid oily, caramelized or flavored beans which can damage the grinder. The container holds 250 g max.

How to adjust the grind fineness?

Turn the adjustment knob located in the bean container. Left = finer, right = coarser. Only turn during grinding and do not force.

How to make a cappuccino?

Fill a milk jug halfway with cold milk. Immerse the steam nozzle in the milk, press the steam button. When the foam is sufficient, stop. Prepare an espresso in a cup, then add the foam. Ideal proportions: 1/3 milk, 1/3 coffee, 1/3 foam.

The coffee is not hot enough, what to do?

Increase the temperature via Prog > Settings > Coffee temperature (3 levels). Preheat the cups by rinsing them with hot water.

How to change the Claris filter cartridge?

Buy an F088 cartridge (sold separately). Remove the old one, screw the new one into the bottom of the water tank. Go to Prog > Maintenance > Filter > Install and follow the on-screen instructions for priming.

How to set the auto shut-off?

Press Prog > Settings > Auto-off. Choose between 30 min and 4 h in 30 min increments. The machine will turn off automatically after this period of inactivity.

How to prepare two cups at once?

Place two cups under the coffee outlets. Select the drink (espresso, strong espresso or coffee) then confirm with a quick double press on the OK button. The machine automatically runs two cycles.

An error message 'error codes XX' appears, what to do?

Unplug the device for 20 seconds, remove the Claris cartridge if present, then plug it back in. If the fault persists, note the code and contact Krups consumer service.

USER MANUAL Espresseria Automatic EA6990 KRUPS

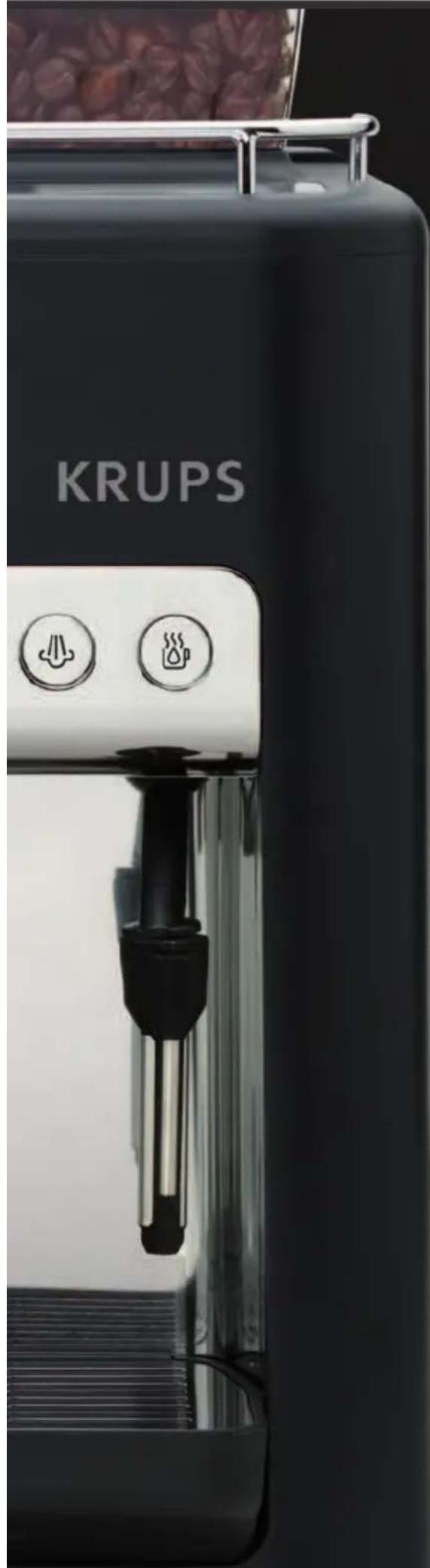

Close-up of a KRUPS coffee maker with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

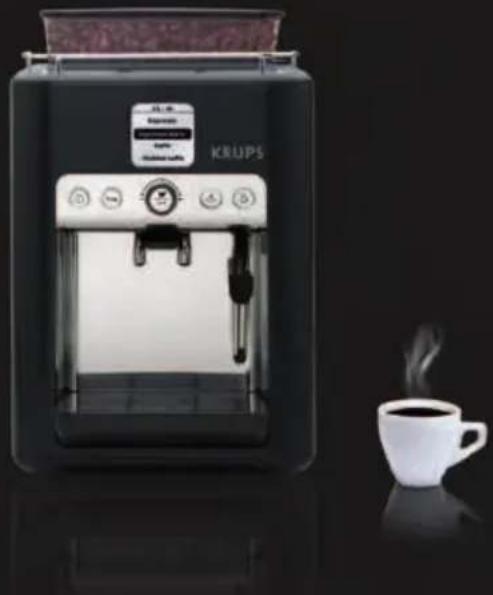

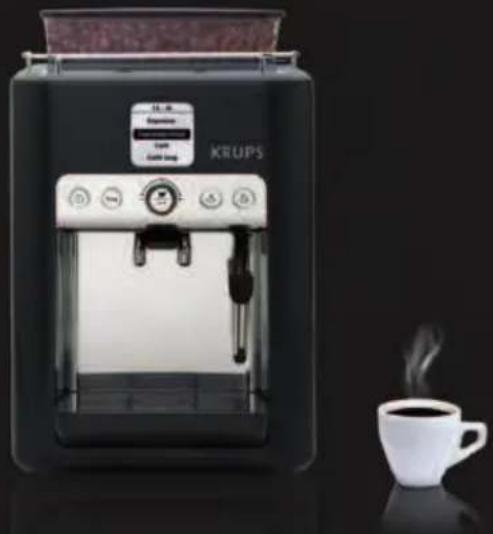

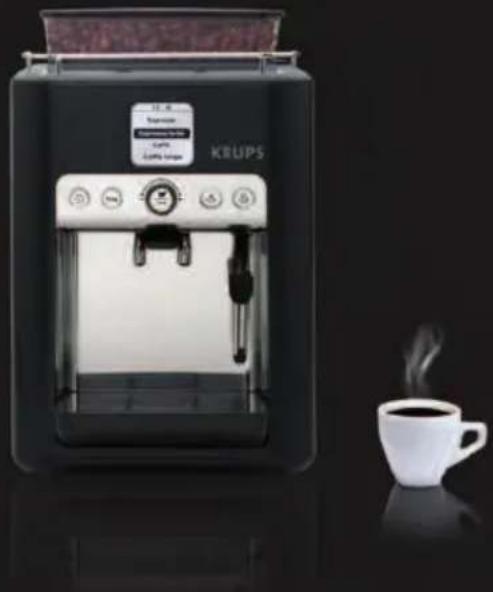

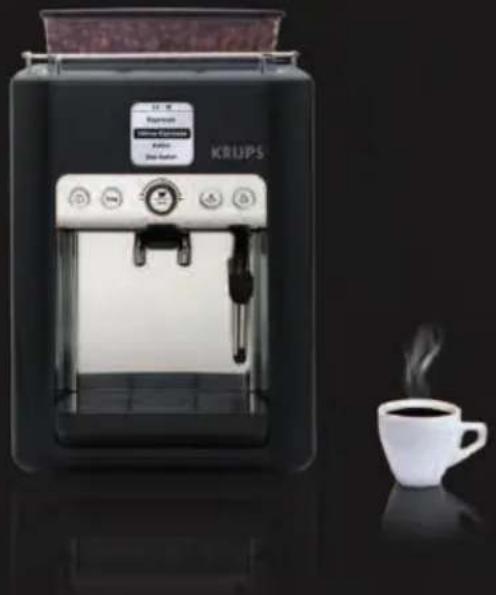

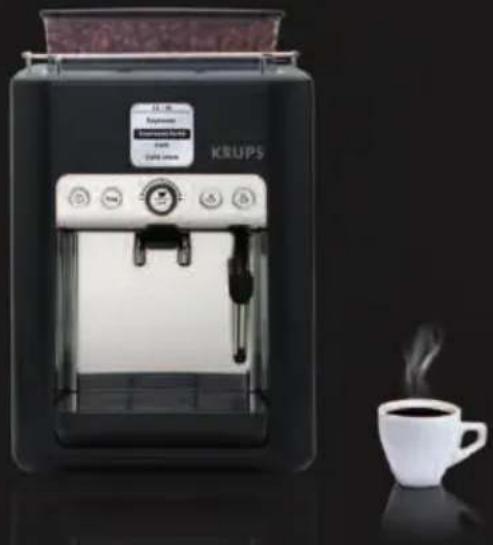

Exterior view of a KRUPS coffee maker with a steaming cup beside it (no visible text or symbols on the device itself)

For domestic use only

The length of the guarantee depends on the legislation in your country with a maximum of 3000 cycles a year. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. The guarantee does not apply to damage and faults resulting from careless use, repair by unauthorised persons as well as non-observance of the instructions for use. The guarantee will be invalidated if any operation and maintenance instructions of Krups have not been observed or if cleaning or de-scaling agents are used which do not comply with the specifications mentioned in this instruction for use leaflet or failure to use the Claris water filter in accordance with Krups instructions. Abnormal wear and tear of parts (grinding disks, valves, seals) is exempted from the guarantee, as well as damages caused by foreign objects in the grinding mill (e.g. wood, stones, plastic parts etc.).

HOTLINE : UK 0845 330 6460 - ROI [phone]

www.krups.co.uk

CONTENTS

1 DESCRIPTION 1

1.1 Information on espresso coffee 2
1.2 Automatic espresso machines energy saver mode 2
1.3 Safety instructions 2
1.4 Limits to use 3

2 BEFORE FIRST USE 4

2.1 Measuring water hardness 4
2.2 Claris - Aqua Filter System cartridge 4
2.3 Putting the filter in place 5

3 PREPARING THE MACHINE 6

3.1 First use / Machine settings 6
3.2 Rinsing the circuits 6
3.3 Preparing the grinder 7

4 PREPARING ESPRESSO AND ORDINARY COFFEE 7

4.1 Preparing an Espresso (from 20 to 70 ml) 7
4.2 Preparing ordinary coffee (from 80 to 160 ml) 8
4.3 Preparing a long coffee (from 120 to 240 ml) 8
4.4 2-cup function 8

5 MAKING DRINKS WITH HOT WATER 8

6 PREPARING STEAM 9

6.1 Frothy milk 9
6.2 Auto-cappuccino set XS6000 10

7 MAINTAINING YOUR APPLIANCE 10

7.1 Emptying the coffee grounds collector, the cleaning tray and the drip tray 10
7.2 Rinsing the coffee-making system 11
7.3 Cleaning program 11
7.4 Scale removal program 11
7.5 General maintenance 12

8 OTHER FUNCTIONS 13

8.1 Maintenance 13
8.2 Settings 13
8.3 Product information 14
8.4 Demonstration mode 14

9 MOVING THE APPLIANCE 15

10 ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE 15

11 PROBLEMS AND CORRECTIVE ACTIONS 15

12 RECIPES 18

Caution! This machine must only be used with approved accessories for the guarantee to be valid.

Accessories (sold separately)

This product may differ from the photos

F 088 Claris – Aqua Filter System Cartridge (not supplied)

XS 4000 KRUPS Cleaning fluid for Cappuccino system (not supplied)

XS6000 Auto-Cappuccino Set (not supplied)

F 054 Descaling powder (one sachet supplied)

XS 3000 Packet of 10 cleaning tablets (two tablets supplied)

DESCRIPTION

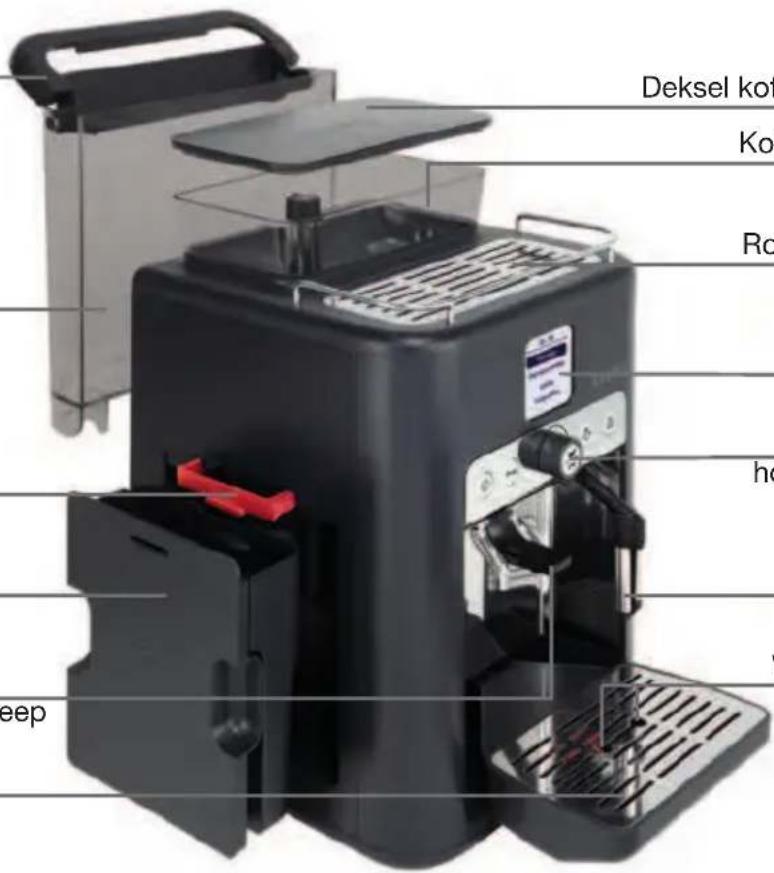

Water tank handle/lid Coffee bean container lid Coffee bean container Water tank Servicing flap with cup rest Display screen Rotating button Cleaning tray Coffee grounds collector Steam nozzle Coffee outlets with height adjusting handles Water level floats Removable drip grid and tray

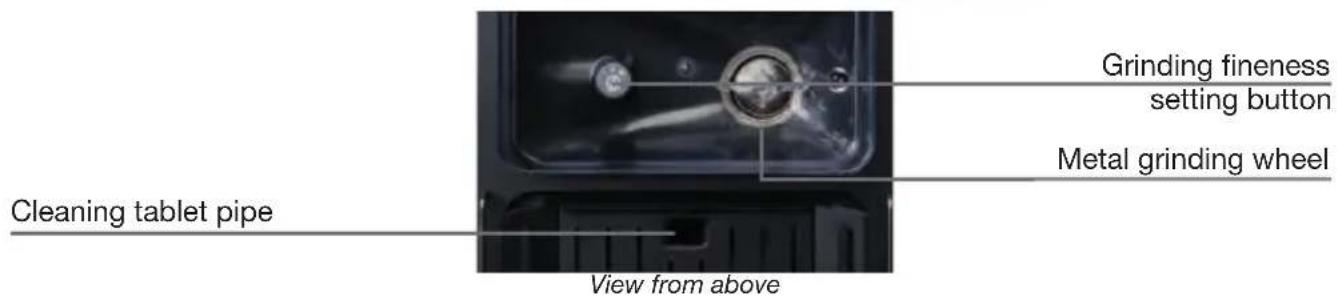

Grinding fineness setting button Metal grinding wheel Cleaning tablet pipe View from above

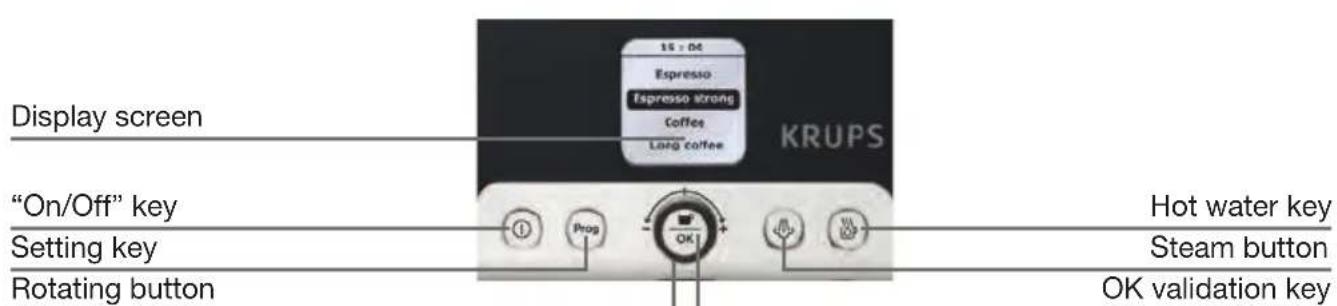

Display screen "On/Off" key Setting key Rotating button 15:04 Espresso Espresso wrong Coffee Long coffee KRUPS Hot water key Steam button OK validation key

Espresso strong Coffee Long coffee Prog ON - + Select Espresso strong Coffee Long coffee Prog Confirm

1.1 Information on espresso coffee

Dear Customer,

Thank you for having purchased this Krups Automatic. We are sure you will enjoy both the quality of the coffee it makes and how easy it is to use.

Whether you want a short, strong shot of a ristretto, a good espresso, a larger and milder lungo, or a creamy cappuccino, your automatic coffee / espresso machine has been designed so you can enjoy the same quality at home as at the bistro, whatever the time of day and right through the week.

Thanks to its Thermoblock System, its 15 bar pump and because it uses real coffee beans that are ground just before the coffee is made, your Krups Automatic will give you a drink containing maximum aroma, with a fine creamy golden brown top produced by the natural oils contained in coffee beans.

Drink your espresso from small porcelain cups rather than the usual coffee cup or mug. To obtain an espresso at just the right temperature and a nice compact creamy top, we advise you to pre-heat your cup.

After a few trial runs you will find the type of mix and roast of the coffee beans that suits your taste. The quality of the water used is obviously another essential factor in the coffee you get. Make sure the water is fresh from the tap (contact with the air tends to make it stale), that it is free from chlorine odours and relatively cold.

Espresso coffee is richer in aroma than a conventional filter coffee. Despite its stronger, longer lasting taste, espresso in fact contains less caffeine than filter coffee (about 60 to 80 mg a cup as compared with 80 to 100 mg a cup). This is due to the shorter percolation time.

Due to the visibility of the containers and its automatic cleaning and scale removal programs, your Es-presseria Automatic is extremely easy to use.

1.2 Automatic espresso machines energy saver mode

Your automatic espresso machine has an energy saver mode.

The display panel dims when your appliance has not been used for a few minutes. The machine leaves the energy-saving mode when you use the machine again. The display fully lights up again and your automatic machine is ready for use after pre-heating, if necessary.

1.3 Important: Safety instructions

• Read the instructions for use carefully before first using your appliance and keep them for reference: Incorrect use of the appliance will release KRUPS from any responsibility.

• This appliance is intended to be used in the household only. The appliance is NOT intended to be used in the following applications:

• staff kitchen areas in shops, offices and other working environments;

• farm houses
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

If used in the above types of environments the product will not be covered by the manufacturer's guarantee.

• Place on a flat, stable, heat-resistant surface away from sources of heat and water splashes.
• Plug the appliance only into an earthed mains socket. Check that the power supply voltage shown on the appliance's rating plate corresponds to that of your electrical installation.
• Make certain not to place the appliance on a hot surface such as a hot-plate or use it close to a bare flame.

• Immediately take the plug out of the socket if you notice any problem while coffee is being made.

• Do not pull the power supply cord to remove the plug.

• Do not let the power supply cord hang down from a table or work surface.
• Do not put your hand or the power supply cord on the hot parts of the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• For safety reasons, do not use the appliance if the power supply cord or plug are damaged. Only have the power supply cord replaced by an authorised KRUPS service centre.
  • Always refer to the instructions when removing scale from the appliance.
• Protect the appliance against humidity and freezing.
• Do not use the appliance if it does not run correctly or if it has been damaged. In this case, have the appliance examined by a KRUPS authorized service centre (see list in KRUPS Service handbook).
• Apart from cleaning and scale removal in accordance with the appliance's user instructions, any intervention on the appliance must be performed by an authorised KRUPS service centre.
• In the interests of safety, only use accessories and consumables certified by KRUPS for your appliance.
• Any error in connection negates the guarantee.
• Unplug the appliance as soon as you stop using it over a prolonged period and when you clean it.
• All appliances are subject to stringent quality control. Practical tests using appliances taken at random are conducted and this may explain any marks showing prior use.
• You are advised against using multiple plugs and/or extension leads.
• Do not put water into the coffee bean container and/or under the servicing flap.
• Be careful of the direction of the steam nozzle as steam can cause scalding.
• Failure to ensure scale removal, cleaning and regular maintenance or the presence of foreign bodies in the grinder will mean that the guarantee will not be valid.

1.4 Limits to use

This Espresso machine must only be used to prepare espressos or coffee, to froth up milk and heat liquids. This product has been designed for domestic use only. Any commercial use inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

BEFORE FIRST USE

2.1 Measuring water hardness

Before using the appliance for the first time or if you have noted a change in water hardness, it is advisable to adapt the appliance to the observed water hardness. To determine the water hardness, use the measuring stick delivered with the appliance or get in contact with your water board. The appliance will ask you for the hardness of your water on first use (see First use / Setting machine parameters section).

Degree of hardness	0 very soft	1 soft	2 moderately hard	3 hard	4 extremely hard
^ <5,4^>7,2^>12,6^>25,2^>37,8^
^ <3^>4^>7^>14^>21^
^	<3,75^>5^>8,75^>17,5^		>26,25^

Hand placing a liquid into a glass with a 1-second time label (no other text or symbols)

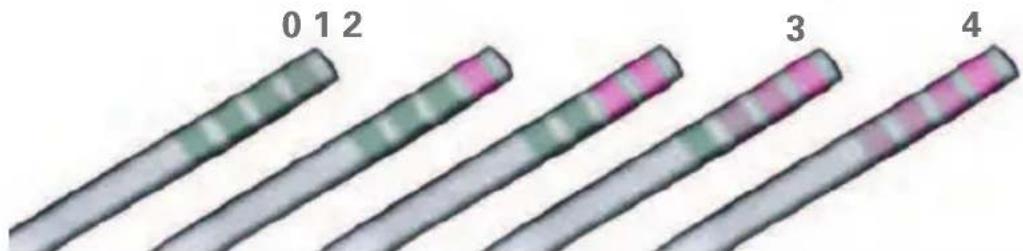

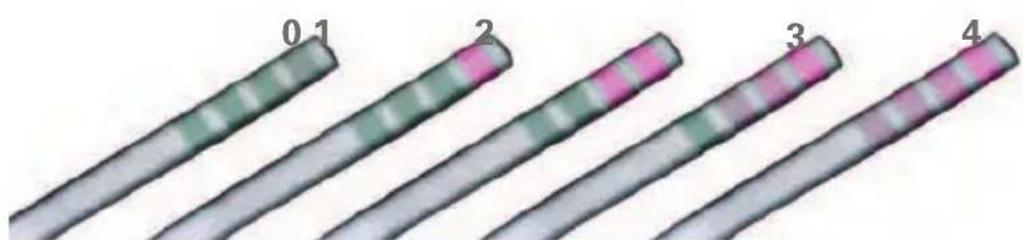

water testing: Fill a glass with water and immerse a water testing stick into it.

0 1 2 3 4

After 1 minute the hardness measurement will appear (moderately hard water)

2.2 Claris - Aqua Filter System F 088 cartridge (sold separately)

To get the best taste from your coffee and extend your appliance's service life, we advise you to use only the Claris - Aqua Filter System cartridge sold as an accessory.
The cartridge comprises a scale-removing substance and activated carbon that reduces chlorine, impurities, lead, copper, pesticides, etc. that are present in the water. Minerals and trace elements will then be preserved.

Close-up of a cylindrical mechanical part with no visible text or symbols

Filter the water using the Claris - Aqua Filter System cartridge to reduce carbonate hardness by as much as 75 %* Chlorine – up to 85 %* Lead – up to 90 %* Copper – up to 95 %* Aluminium – up to 67 %*

Gray trash bin with a blue upward arrow on the side (no text or symbols visible)

Mechanism to memorise the month the cartridge was fitted and when to replace it (after 2 months at most).

Note: Your appliance will give you a message telling you when to replace your Claris - Aqua Filter System cartridge. The Claris cartridge needs to be replaced after approximately 50 litres of water used or every two months at least.

2.3 Putting the filter in place

Caution! To prime the cartridge correctly, follow this procedure every time you fit a cartridge.

When using later or replacing the cartridge: Select the "FILTER" function using the Prog button : Prog Maintenance -OK - Filter - OK - Place or change -OK - and follow the instructions on the screen.

Close-up of hands installing or adjusting a cylindrical component inside a device casing (no visible text or symbols)

Installing the cartridge in the machine.

On first use, screw the filter cartridge into the bottom of the water tank.

Experimental setup with a glass bowl containing liquid and a submerged object inside, mounted on a stand (no visible text or symbols)

Place a 0.5 L container underneath the steam nozzle.

PREPARING THE APPLIANCE

Close-up of hands using a black tool to handle a dark cylindrical object (no visible text or symbols)

Pull out and fill the water tank.

Close-up of a hand inserting a black plastic clip into a black box (no text or symbols visible)

Put it back in place by pressing firmly and close the lid again.

Hand pouring dark red beans into a black tray (no text or symbols visible)

Open the coffee bean container lid. Add the coffee beans (250g maximum).

Hand reaching toward a container filled with red beans, placed on a dark tray (no text or symbols visible)

Close the coffee bean container lid again.

Note: Do not fill the water tank with hot water, milk or any other liquid. If you turn on the appliance when the water tank is not in place or not correctly filled (under the “min.” level,), the “fill water tank” light will come on and making an espresso or a cup of coffee will be made impossible.

Caution! Never put ground coffee in the coffee container.

Caution! It is recommended that you do not use oily, caramelised or flavoured coffee beans for this machine. These kinds of beans may damage the machine.

Caution! Check that the coffee beans do not contain any foreign particles such as grit, as any damage caused by the presence of foreign particles will negate the guarantee.

Do not put water into the coffee bean container.

Remember to fit the drip tray to avoid waste water flowing onto the work surface and staining it or scalding you.

Check that your water tank is clean.

3.1 First use / setting machine parameters

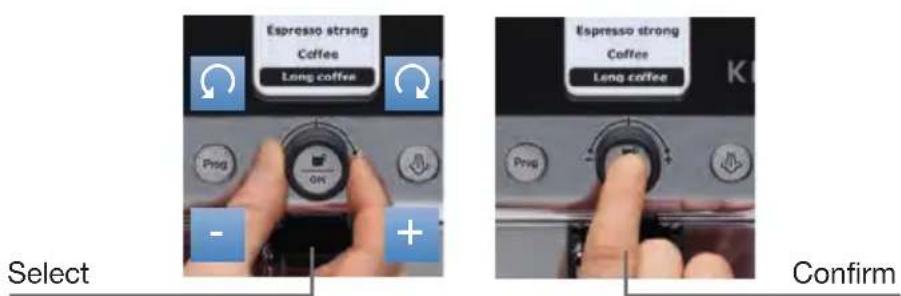

■ Use the rotating button to select a function, increase or reduce values.
■ Confirm your choice using the OK key.

KRUPS Miolo KRUPS

Press ① to turn your appliance on. Follow the instructions that appear on the “choice of language” screen.

Use the rotating button to choose a language (high-lighted). Press the OK key to validate.

Espresso strong Coffee Long coffee Pred OK - +

Select Confirm

Espresso strong Coffee Long coffee Ping

When you first use your appliance, it will ask you to set several parameters. If you unplug your appliance, you will again be asked for some of these parameters.

The appliance will ask you to set:

Language	You can select your chosen language from those offered.
Volume Unit	Choose either ml or oz as your measurement unit.
Date	You must set the date.
Clock	You can choose between 12 hour or 24 hour time display.
Auto-off	You can choose the period after which your appliance will stop automatically, from 30 minutes to 4 hours by 30 minute increments.
Auto-on	You can automatically start pre-heating of your appliance at your chosen time.
Water Hardness	You must set your water hardness between 0 and 4. See “Water hardness measurement” section.

Caution! When being used for the first time, it is possible that the machine will ask to be filled up. Just follow the instructions on the screen.

3.2 Rinsing the circuits

Rinsing out the coffee circuit :

Once you have turned the machine on and the preheating stage has completed, you can rinse out the coffee circuit.

Place a container under the coffee outlets then select "YES" from the menu proposed. The rinsing cycle will stop automatically after about 40 ml.

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

300 mm 1.62 mm KRUPS

Rinsing out the steam circuit :

Place a container under the steam nozzle. Press the ⚙ key to rinse the steam circuit. The rinsing cycle will stop automatically after the volume of water displayed has flowed through.

■ Press Prog at any time to display menus to perform rinsing and then select MAINTENANCE => OK => RINSING.

Note: It is best to perform rinsing after the appliance has remained unused for several days.

Caution! When rinsing process is in progress, hot water comes out through the nozzles. Take care not to be scalded.

3.3 Preparing the grinder

■ Adjust the fineness of your coffee grinding to set the strength of your coffee. The finer the grind setting, the stronger and creamier the coffee will be.
■ Turn the "Grinding fineness setting" button to set the degree of grinding fineness.

Turn anticlockwise for a finer grind.

Close-up of a circular button with 'id' and 'o' symbols, no readable text or labels

Turn clockwise for a coarser grind.

Caution! Change the setting during grinding. Never force the grinding fineness setting button.

PREPARING ESPRESSO AND ORDINARY COFFEE

Caution! Your appliance is designed to make coffee from coffee beans only. When you first make coffee with the machine or after a long period of absence or a cleaning or scale removal procedure, a little steam and hot water will come out of the steam nozzle (priming). Splashing or scalding may occur if the coffee outlets are set too high in relation to the size of the cups.

4.1 Preparing an espresso

The quantity of water for an espresso must be between 20 and 70 ml.

Each time you plug your machine in, it will carry out an initialisation cycle.

Press the Ⓐ button, wait for the end of pre-heating and perform a rinsing operation if you wish.

15 : 00 Espresso Espresso strong Coffee Long coffee

The drink selection menu will be displayed.

3D printer in operation with a white mug and blue arrow indicating a motion (no text or symbols visible)

Put a cup under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your cups.

Espresso strong Coffee Long coffee Ping

Use the rotating button to select your drink and confirm by pressing the OK key.

Express Strong 40 mi - + - - - +

You can change the volume of water at any time using the rotating button.

Note: To stop coffee flowing into the cup, you can either again press a key or turn the rotating button to reduce volume.

4.2 Making a coffee

The amount of water required for a coffee is between 80 and 160 ml.

4.3 Making a long coffee

The amount of water required for a long coffee is between 120 and 240 ml. The machine automatically carries out a double cycle, do not remove your cup before the process has ended.

There is a temperature setting function to control how hot your coffee is (see § Settings).

Note: The ground coffee is first moistened using a little hot water after the grinding stage. A few moments later, percolation as such begins.

Caution! Do not remove the water compartment before the end of the cycle (that is around 15 seconds after the coffee has finished dripping through).

4.4 2-cup function

- Your appliance enables you to prepare 2 cups of coffee or espresso for the following 3 kinds of drink: espresso / strong espresso / coffee. For "Large coffee" drinks, the 2-cup function is not available. Remember not to remove the cups after the first cycle. You have now prepared your appliance. The drink select menu will be displayed.

3D printer with white cups and a digital display showing bidirectional arrow (no text or symbols)

Put two cups under the coffee outlets.
You can lower or raise the coffee outlets to suit the size of your cups.

Cable 2x100 ml KRUPS X 2

Select your drink and confirm by clicking twice on the OK key. A message will appear to tell you that you have chosen two cups.

Note: The appliance will automatically sequence 2 complete coffee making cycles.

PREPARING HOT WATER

Best needed 2:00 AM KRUPS

While the screen displays the drink selection menu, press the "hot water" key 🔊. A message will invite you to place a container under the steam nozzle. Again press the "hot water" key 🔊 to produce hot water.

Caution! To interrupt the steam function, just press any key. If the nozzle is blocked, clean it out with a fine needle. The maximum amount of hot water per cycle is limited to 300 ml.

PREPARING STEAM

Steam froths up the milk to make a cappuccino or a caffe latte, for example, and also heats up liquids. As you need a higher temperature to produce steam than to make an espresso, the appliance runs an additional pre-heating phase for steam.

JUL - 04 Expresso Expresso strong Coffee Lung coffee KRU Prog OK

While the screen displays the drink selection menu, press the "steam" key 🔊. A screen will inform you that the appliance is being pre-heated. Once the pre-heating phase has been completed, a message will ask you to place a container under the steam nozzle. Press the "steam" key 🔊 again to start generating steam. A little water will be produced first and then steam will start. Use the same key to stop steam generation.

Caution! Be careful, because the cycle does not stop immediately.

6.1 Frothing milk

Note: We recommend that you use very cold, fresh pasteurised or UHT milk that has been recently opened. Do not use untreated milk. After the steam function has been used, the nozzle will be hot, and we recommend that you wait for a few moments before handling it.

Close-up of a hand pressing a metallic tool with an arrow pointing upward (no text or symbols visible)

Check that the steam nozzle is correctly fitted.

Close-up of a metallic kettle being stirred with a black spatula (no text or symbols visible)

Pour the milk into your milk jug. Only half fill it. Immerse the nozzle in the milk.

KRU AC 4

Press the "steam" key and follow the instructions on the screen.

Close-up of a kitchen mixer with a white lid and black handle (no visible text or symbols)

Once your milk is frothy enough...,

Clean cycle finished clean clean clean removed

Again press the "steam" key 🔊 to stop the cycle. Be careful, because the cycle does not stop immediately.

Close-up of a transparent glass bowl with a mechanical device inside, no visible text or symbols

To remove any remaining milk from the steam nozzle, place a container under the nozzle and press the "hot water" key 🎨.

Close-up of a glass beaker containing a clear liquid, with a transparent container above (no visible text or symbols)

Let the steam escape for at least 10 seconds and then again press the "hot water" key 🔊 to stop the process.

Hand pouring liquid from a kitchen faucet into a sink (no text or symbols visible)

You can remove the steam nozzle for thorough cleaning. Wash it using a brush with water and a little non-abrasive washing up liquid. Rinse and dry it. Before re-fitting, make certain that the air inlet holes are not clogged by milk residues. Clean out the holes with a needle if necessary.

Close-up of a black cylindrical object with metallic pins, resting on a white cloth surface (no text or symbols visible)

Close-up of a black cylindrical object with a metallic tool and a small pen, placed on a white surface (no text or symbols visible)

Close-up of a hand holding a small black tool with a pointed tip, against a plain white background (no text or symbols visible)

Close-up of a hand holding a small black tool with a pointed tip, against a plain white background (no text or symbols visible)

Note: To interrupt the steam function, just press any key. If the nozzle is blocked, clean it out with a fine needle. The maximum duration for production of steam per cycle is limited to 2 minutes.

6.2 SETTING UP THE Auto-cappuccino XS 6000 (sold separately)

This auto-cappuccino accessory makes it easier to make a cappuccino or a caffe latte.

XS 6000

Attach the various parts together.

Two identical mechanical components with black and gray parts, connected by rods (no visible text or symbols)

Select the cappuccino or caffe latte position on the special nozzle.

Close-up of a hand pouring white liquid from a metallic cylindrical container onto a dark, open lid (no text or symbols visible)

Fill up the milk pot and place a cup or a glass underneath the autocappuccino nozzle.

Close-up of a glass mug and a metal bottle on a dark surface, no visible text or symbols.

Press the ⚠ button to start and then to stop the cycle

Glass pitcher with a clear liquid, being tested in a 3D printer (no visible text or symbols)

Place your cup under the coffee outlets and start a coffee / espresso cycle.

Note: The tube must not be twisted to ensure that the button is held in the correct position.

Caution! To prevent milk from drying on the auto-cappuccino accessory, it must be cleaned thoroughly after use.. It is recommend that you wash it immediately by carrying out a cycle with steam and the accessory pot filled with water in order to clean the inside of the nozzle. To do so, you can also use liquid cleaner XS4000, available as an accessory.

MAINTAINING YOUR APPLIANCE

7.1 Emptying the coffee grounds collector, the coffee cleaning tray and the drip tray

■ The drip tray receives waste water and the coffee grounds collector receives used coffee grounds.
■ The coffee cleaning tray allows you to eliminate any deposits of coffee grounds above the percolation chamber.

Empty the 2 containers

If the above message appears, remove, empty and clean the drip tray.

1- Remove, empty and clean the coffee grounds collector.

2- Remove the cleaning tray.

Hand holding a red cleaning tool in a kitchen sink (no text or symbols visible)

Remove the coffee cleaning tray.

First put the cleaning tray back then the coffee grounds collector.

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

The drip tray is equipped with floats to tell you when to empty it.

Caution! As soon as you remove the coffee grounds collector, you will have to empty it completely to avoid any overflow.

Note: The warning message will remain displayed if the coffee grounds collector is not slotted in fully or not fitted correctly. If the coffee grounds collector is fitted within less than 8 seconds, the appliance will ask you to confirm that you have correctly emptied it. You cannot make espresso or coffee while the warning message is displayed. The coffee grounds collector has a capacity of 9 coffees.

7.2 Rinsing out the circuits: see page 6

7.3 Machine cleaning program – total duration: about 20 minutes

■ You should perform the cleaning program about every 350 preparations of espresso or coffee.
The appliance will let you know when you need to proceed with cleaning through the ‘clean’ light coming on.

Caution! To benefit from the guarantee conditions, it is essential to perform the appliance cleaning cycle when informed to do so. Be sure to follow the order of operations. You can continue to use the appliance, but you are advised to perform the program as soon as possible.

■ To perform the cleaning program, you will need a container with minimum capacity of 0.6 litres and a KRUPS (XS 3000) cleaning tablet.

WARNING Cleaning necessary after 5 uses

Press the Prog key to start the automatic cleaning program when the "Cleaning needed" message is displayed.

Cleaning Expected duration ± 20 min ok start delay

Just follow the instructions shown on the screen.

Note: The automatic cleaning program is in three parts – the cleaning cycle itself, then 2 rinsing cycles. This program lasts about 20 minutes. PressProg to perform cleaning at any time and then choose MAINTENANCE => OK => CLEANING from the menus displayed.

Note: If your machine is unplugged when cleaning or if there is a power cut, the cleaning programme will restart at the step in progress when the incident occurred. You will not be able to postpone this operation. This is essential due to water system rinsing reasons. In this case, a new cleaning tablet may be required. Be sure to complete the entire cleaning cycle to avoid any risk of irritation (seek medical advice if cleaning solutions are accidentally swallowed). The cleaning cycle is a continuous cycle and the pump can be heard intermittently. Do not put your hands under the coffee outlets during the cycle.

Caution! Only use KRUPS (XS3000) cleaning tablets. We cannot be held responsible for any damage that may result from the use of tablets from other brands. You can obtain cleaning tablets from KRUPS Service Centres.

Caution! Make certain to protect your work surface during cleaning cycles, especially if they are made of marble, stone or wood.

7.4 Automatic scale removal program – total duration: about 22 minutes

Caution! If your product is equipped with our Claris - Aqua Filter System cartridge F088 - Please remove this cartridge during the descaling operation.

The quantity of scale deposited depends on the hardness of the water used. The appliance will automatically warn you with a message when you need to proceed with scale removal.

Caution! To benefit from the guarantee conditions, it is essential to perform the appliance scale removal cycle when the appliance tells you to do so. Be sure to follow the order of operations. You can continue to use the appliance but you are advised to perform the operation as soon as possible. You must remove your claris-aqua filter cartridge before starting this program.

To perform the scale removal program, you will need a container with minimum capacity of 0.6 litres and a KRUPS F 054 (40 g) descaling sachet.

WARNING Descalling necessary after 24 hot water / steam cycles

Press the Prog key MAINTENANCE => OK => DESCALING to start the automatic cleaning program when the "Scale removal needed" message is displayed.

Descaling Expected duration ± 22 min ok start delay

Just follow the instructions shown on the screen, making sure the sachet dissolves fully.

The scale removal program is in three parts – the scale removal cycle itself, then 2 rinsing cycles.

Caution! Only use KRUPS scale removal products. You can obtain scale removal products from KRUPS Service Centres. The manufacturer may not be held responsible for damage to the appliance through use of other products.

Note: If a power cut occurs during the cycle or if you unplug your machine, the cycle will re-start at the step in progress when the incident occurred, without the option of postponing this operation.

Caution! Be sure to complete the entire scale removal cycle to avoid any risk of intoxication. The scale removal cycle is a continuous cycle and the pump can be heard intermittently. Do not put your hands under the coffee outlets during the cycle.

Caution! Make certain to protect your work surface during scale removal cycles, especially if they are made of marble, stone or wood.

7.5 General maintenance

■ Always remove the power supply cord from the socket and let your appliance cool down before cleaning it.
- Do not use utensils or cleaning products likely to scratch or corrode the appliance.
■ Wipe the body of the appliance on the outside using a moist cloth.

Person pouring liquid into a stainless steel kitchen sink with a red tool nearby (no visible text or symbols)

Hand pouring liquid into a black plastic bag on a stainless steel kitchen sink (no text or symbols visible)

Clean the cleaning tray, the drip tray and its grid, the coffee grounds collector and its front part using warm water and washing up liquid detergent.

Close-up of hands holding a black appliance next to a blue square tag, with no visible text or symbols.

Person holding a black plastic bag over a stainless steel sink, with a blue arrow pointing to it (no text or symbols visible)

To make the cleaning of the coffee grounds collector easier, dismantle it as shown above.

Close-up of hands pouring liquid from a metal pipe into a black container (no text or symbols visible)

Rinse the water tank with tap water

Caution! Cleaning tray, Drip tray and its grid, Coffee grounds collector and its front part and the water tank are not designed to go into the dishwasher.

OTHER FUNCTIONS: Prog KEY

• Press the Prog key from the drinks choice screen to access the appliance's other functions menu.
  ■ Use the rotating button to browse through menus and options for all settings and validate your choice using the OK button. Press the Progbutton to cancel a choice and go back to the drink selection menu

PROG

Services	To access maintenance
Settings	To access settings
Machine info	To access product information
Demo mode	To access demonstration mode
Exit	Return to the previous menu.

8.1 Maintenance

■ You can use all the following options to start selected programs. Then follow the instructions on screen

SERVICES

Rinsing	To access rinsing
Cleaning	To access cleaning
Water filter	To access filter mode
Exit	Return to the previous menu.

8.2 Settings

SETTINGS

Language	You can select your chosen language from those offered.
Display contrast	You can set screen contrast for comfort.
Date	You need to set the date, especially if you use an anti-scale cartridge.
Time	You can choose between 12 hour or 24 hour time display.
Auto-off	You can choose the period after which your appliance will stop automatically, from 30 minutes to 4 hours by 30 minute increments
Auto-on	You can automatically start pre-heating of your appliance at your chosen time.
Volume unit	Choose either ml or oz as your measurement unit.
Water hardness	You must set your water hardness between 0 and 4. See “Water hardness measurement” section.
Coffee temperature	You can set the temperature of your espresso or coffee to one of three levels.
Exit	Return to the previous menu.

8.3 Product information

MACHINE INFO

▶ Coffee cycles	Displays the total number of coffees the machine has made.
▶ Water cycles	Displays the total number of hot water cycles the machine has performed.
▶ Steam cycles	Displays the total number of steam cycles the machine has performed.
▶ Rinsing	Displays the total number of rinsing cycles the machine has performed.
▶ Cleaning	▶ Last	Displays the total number of coffees made since last cleaning.
	▶ Next	Displays the number of coffees that can be made before next cleaning.
	▶ Clean	Starts the cleaning program.
	▶ Exit	Return to the previous menu.
▶ Descaling	▶ Last	Displays the total number of hot water or steam cycles made since last scale removal.
	▶ Next	Displays the number of hot water or steam cycles that can be made before next scale removal.
	▶ Exit	Return to the previous menu.
▶ Filter	▶ Last	Displays the date of the last filter change* and the quantity of water that has run through.
	▶ Next	Displays the date for the next filter change* and the quantity of water to run through.
	▶ Install	Starts the filter change procedure.
	▶ Exit	Return to the previous menu.
▶ Exit	Return to the previous menu.

* : You must first have correctly installed a filter through the program accessible via SERVICES => WATER FILTER => INSTALL before being able to access the first two options of the filter information sub-menu.

8.4 Demonstration mode

- When this mode is activated and the screen displays the drink selection menu, the appliance will scroll the various functions available at regular intervals, so you can access them.

Use this sub-menu to disable or activate this function.

MOVING THE APPLIANCE

- Keep the packing and use it again to move the appliance.

Caution! If the unpacked appliance is dropped, it is advisable to take it back to an authorized service centre to avoid any risk of fire or electrical problems.

ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE

Let's all help protect the environment!

Your appliance contains many recyclable materials that can be recovered or recycled. Leave it at a local civic waste collection point.

HELPLINE

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 330 6460 - UK

[phone] - ROI

or consult our website - www.krups.co.uk

PROBLEMS AND CORRECTIVE ACTIONS

The appliance does not switch on when the “On/Off” is pressed.	Check that the plug of the power cord is pushed correctly into the mains socket.
Water or steam comes incorrectly out of the steam nozzle.	In case of repeated operation, several drops may drip from the steam nozzle.
The espresso or coffee is not hot enough.	Change the coffee temperature setting.Heat the cups by rinsing them with hot water.
The coffee is too light or not strong enough.	Check that the coffee bean tank has coffee in it and that it is flowing correctly.Avoid using oily, caramelised or flavoured coffee.Reduce the volume of coffee using the central knob.Turn the grinding fineness knob towards the left for a finer grind.Prepare in two cycles using the 2 cup function.
The coffee flows too slowly. Turn the	grinding fineness knob towards the right for a coarser grind (may depend on the type of coffee used).Carry out one or two rinsing cycles.
The coffee is not creamy enough. Turn	the grinding fineness knob towards the left for a finer grind (may depend on the type of coffee used).Change the Claris Aqua Filter System cartridge (follow the installation procedure on page 3).Carry out one or two rinsing cycles.
The appliance does not serve any coffee.	An incident has been detected during the preparation.The appliance resets itself automatically and is then ready for a new cycle.
You have used ground coffee instead of coffee beans.	Use your vacuum cleaner to suck out the pre-ground coffee in the coffee bean tank.
The grinder makes a strange noise. There are foreign particles in the grinder.Contact KRUPS Customer Service.
The grinding fineness knob is hard to turn.	Only change the grinder setting when it is operating.
The steam does not come out of the nozzle.	After switching off your appliance and leaving it to cool:Make sure the tip of the steam nozzle is properly affixed. Make sure the air inlet on the steam nozzle is not clogged at the aerator (if necessary clean the air inlet with the needle supplied).Empty the tank and remove the Claris filter. Fill the tank with mineral water high in calcium (>100 mg/litre or .015oz/gallon), it may take as many as 5 to 10 cycles of steam at 60 seconds each cycle to achieve a continuous jet of steam. Once you have a continuous jet of steam you should not have to use this particular type of water again.
There is not enough milk froth. Using	the needle supplied unblock the small air inlet at the top of the nozzle if required.Use a cold container and very fresh, very cold milk that has been opened recently.Try changing the type of milk if this does not work (UHT or pasteurised).
The milk froth is too bubbly. Check that	at the two ends of the small stainless steel tube are fitted correctly into the flexible part of the steam nozzle.
The Auto-Cappuccino accessory does not suck the milk (accessory sold separately).	Ensure that the tube immersed in the milk is not blocked.Check that the flexible tube is not twisted and that it is correctly fitted into the accessory to avoid any air being sucked in.After switching of your appliance and leaving it to cool, unblock the outlet of the Auto-Cappuccino accessory.
After filling the water tank, the warning message is still displayed.	Check that the tank is fitted correctly onto the coffee machine.Check that the float at the bottom of the tank moves freely.Rinse the tank and descale if necessary.
The cleaning or descaling programme will not start.	Unplug the appliance for 20 seconds then switch it back on.
After emptying the used coffee collector, the warning message is still displayed.	Remove the collector, ensure that it is empty, wait for 6 seconds and fit it back in place.Check that the collector is pushed in correctly.
After washing the cleaning drawer, the warning message is still displayed.	Remove the drawer, wait for 6 seconds and fit it back in place.Check that the cleaning drawer is pushed in correctly.
The power has been cut off during a cycle.	The appliance resets itself automatically when the power is switched back on and is ready for a new cycle.
There is water or coffee underneath the appliance.	The drip tray has overflowed: empty it and clean the cleaning drawer.Check that the drip tray is fitted correctly.Do not remove the water tank before the end of the cycle.
A message “Error code XX” appears.	Unplug the appliance for 20 seconds, remove the Claris cartridge and if required, put it back into service.If the fault persists, note the fault number and contact KRUPS Customer Service.

RECIPES

Six different types of coffee and beverage items arranged in a row: cup, teacup, mug, glass, chocolate, and mugs (no text or labels visible)

Here are some recipes you can make using your KRUPS Automatic :

• Cappuccino

For a cappuccino, the ideal proportions are as follows: 1/3 hot milk, 1/3 coffee, 1/3 milk froth.

- Caffe Latte

To make coffee with milk, also often called Latte Macchiato, the proportions are as follows: 3/5 hot milk, 1/5 coffee, 1/5 milk froth

- For these milk-based preparations, it is best to use cold skimmed milk straight from the refrigerator (ideally between 6 and 8^ ).

• To finish off, you can sprinkle with cocoa.

- Café Crème

• Prepare a conventional espresso in a large cup.

- Add a little cream to get a café crème.

- Café corretto\*

• Prepare a cup of espresso as usual.

- Then add 1/4 or 1/2 of a liqueur glass of Cognac to taste. You can also use anisette, brandy, Sambuca, Kirsch or Cointreau. There are many other ways to give some punch to your espresso. Just use your imagination.

- Coffee liqueur\*

- Mix 3 cups of espresso, 250 g of brown sugar candy and 1/2 litre of Cognac or Kirsch in an empty 0.75 litre bottle.

- Leave the mixture to marinate for at least 2 weeks. You will obtain a delicious liqueur. A real treat for coffee lovers.

• Italian style iced coffee

4 scoops of vanilla ice-cream, 2 cups of espresso with sugar to taste, 1/8 l milk, fresh cream, grated chocolate.

- Mix the cold espresso with the milk.

- Serve the scoops of ice-cream into the glasses, pour the coffee onto them and decorate with fresh cream and grated chocolate.

- Add a small glass of rum to a cup of sweetened espresso.

• Decorate with a good layer of fresh cream and serve.

- Flambéed espresso\*

2 cups of espresso, 2 small glasses of Cognac, 2 teaspoons of brown sugar, fresh cream.

- Pour the Cognac into heat-resistant glasses, heat and light.

- Add the sugar, mix, pour in the coffee and decorate with fresh cream.

- Espresso parfait\*

2 cups of espresso, 6 egg yolks, 200g sugar, 1/8 litre of sweetened fresh cream, 1 small glass of orange liqueur.

• Beat the egg yolks with the sugar until it forms a thick, frothy mass.
• Add the cold espresso and the orange liqueur.
• Then mix in the whipped fresh cream.
• Pour the mix into saucer champagne glasses or ordinary.
• Put the champagne glasses in the freezer.

(*: Remember, over-indulgence in alcohol is bad for the health.)

Close-up of a KRUPS coffee maker with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a steaming cup beside it (no visible text or symbols on the device itself)

Hand placing a small object into a glass with liquid, labeled '1 sec.' (no other text or symbols)

Metallic cylindrical component labeled F 088, no other text or symbols visible

Exterior view of a modern office building (no signage)

Close-up of hands installing or adjusting a cylindrical component into a device casing (no visible text or symbols)

Close-up of a transparent glass beaker with a mechanical device attached, no visible text or symbols

Close-up of hands using a tool to handle a black plastic container (no visible text or symbols)

Close-up of a hand inserting a black plastic clip into a black box (no text or symbols visible)

Hand pouring dark red beans from a metal container into a black tray (no text or symbols visible)

Hand reaching toward a container filled with red beans, placed on a black tray (no text or symbols visible)

Close-up of a transparent glass bowl with a black handle, mounted on a stand (no visible text or symbols)

3.00 mm KRUPS

Close-up of a circular app icon with 'id' and 'O' symbols, no readable text or labels

3D printer in operation with a white mug and blue arrow indicating a measurement or operation (no text or symbols visible)

3D printer image showing two white cups with a blue screen and directional arrow (no text or symbols)

KRUPS + 100%

Close-up of a hand pressing a mechanical component with an arrow pointing upward (no text or symbols visible)

Close-up of a metal mixing bowl with a spatula, no visible text or symbols

Charge At 6 KRUI

Close-up of a milkshake in a container with a black tool inserted (no visible text or symbols)

KRU Dispersive Airline Breakdown

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

Close-up of a glass beaker containing a white liquid, with a small container partially visible above (no text or symbols)

Hand pouring liquid from a water bottle into a stainless steel kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, possibly a flashlight or pen, against a white background (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, resting on a white surface (no text or symbols visible)

Close-up of a hand holding a black key inserted into a cylindrical component (no text or symbols visible)

Close-up of a hand holding a black key inserted into a cylindrical component (no text or symbols visible)

Two identical mechanical components with black and metallic parts, no visible text or symbols

Close-up of a metallic cylindrical container with a hand pouring white liquid from it, next to a small open lid (no text or symbols visible)

Close-up of a milk dispenser with a glass cup and a metal bottle beside it (no visible text or symbols)

Close-up of a 3D printer printing a glass pitcher filled with light brown liquid (no text or symbols visible)

Hand holding a red cleaning tool against a stainless steel kitchen sink (no text or symbols visible)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person pouring liquid into a stainless steel kitchen sink with a grater nearby (no visible text or symbols)

Hand pouring liquid into a black plastic bag in a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic appliance in a kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Close-up of hands holding a black plastic device in a stainless steel kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Close-up of hands using a tool to lift a black container (no visible text or symbols)

Six different types of coffee cups and teacups arranged horizontally, no text or symbols visible

Close-up of a black KRUPS blender with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a steaming coffee cup nearby (no visible text or symbols on the device itself)

Close-up of a mechanical component with circular features and a central hub (no visible text or symbols)

Hand placing a white object into a clear glass with a 1 second time label (no other text or symbols)

Exterior view of a trash bin with a blue arrow pointing upward (no text or symbols)

Close-up of hands installing or adjusting a cylindrical component into a device casing (no visible text or symbols)

Close-up of a transparent glass beaker with a mechanical device attached, no visible text or symbols

Close-up of hands using a black tool to lift water from a dark container (no text or symbols visible)

Close-up of a hand holding a black plastic bag with handle (no visible text or symbols)

Hand pouring dark red beans from a metal container into a black tray (no text or symbols visible)

Hand pressing down on a tray of brown beans (no text or symbols visible)

Close-up of a transparent glass bowl with a mechanical device inside, no visible text or symbols

30 140 mm KRUPS

Close-up of a circular icon with 'id' and 'O' symbols, no readable text or numbers present.

3D printer in operation with a white mug and blue arrow indicating a precision application (no text or symbols visible)

3D printer with white cups and a blue directional arrow indicator (no text or symbols on the devices)

2x130 ml KRUPS X 2

Close-up of a finger pressing a blue arrow on a mechanical component (no text or symbols visible)

Close-up of a metal mixing bowl with a spatula, no visible text or symbols

Wheat KRU

Close-up of a milkshake mixer in a container (no visible text or symbols)

Cycle-exempt Tormine Product & Control As Rated KRU

Close-up of a transparent glass beaker with internal components, no visible text or symbols

Close-up of a glass beaker containing a clear liquid, with ice cubes above (no text or symbols visible)

Hand pouring liquid from a water tap into a stainless steel kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with two metallic pins, placed on a white surface (no text or symbols visible)

Close-up of a black cylindrical object with two metallic pins, placed on a white surface (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with black and gray parts, no visible text or symbols

Close-up of a hand pouring white liquid from a metallic cylindrical container onto a dark, open lid (no text or symbols visible)

Close-up of a milk dispenser with a glass cup and a metal bag beside it (no visible text or symbols)

Glass mug filled with light brown liquid, being tested by a 3D printer (no visible text or symbols)

Hand holding a red plastic tool inside a stainless steel kitchen sink (no text or symbols visible)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person pouring liquid from a black container into a stainless steel kitchen sink (no visible text or symbols)

Hand pouring liquid into a black plastic bag on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a small black device in a kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Close-up of hands holding a black plastic device in a kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Close-up of hands using a tool to lift or lift liquid from a black container (no text or symbols visible)

8.4 Mode demonstration

Six different types of coffee cups and teacups, arranged horizontally with no text or symbols.

Close-up of a KRUPS blender with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a Krups coffee maker with a glass stand and coffee cup, no visible text or symbols on the device itself.

BEREIDING MET HEET WATER 8

BEREIDING MET STOOM 9

6.1 Opschuimen van melk 9
6.2 Auto-cappuccino-Set XS6000 10

7

ONDERHOUD VAN UW APPARAAT 10

Waterreservoir handgreep/deksel

Deksel kof Ko Ro ho Y Y Deep

Deksel koffieboonreservoir

Koffieboonreservoir

Close-up of a black industrial vent with circular components and ventilation grilles (no visible text or symbols)

Regelknop maalgraad

Metalen maalwieltje

"Aan/Uit" Knop Programmeerknop

Draaiknop

OK-knop

Espresso stark Koffie Grote koffie Psd ON - +

Espresso sterk Koffie Grote koffie Prop

Selecteren

Bevestigen

Hand placing a white object into a clear glass with a time label indicating 1 second (no other text or symbols)

0 1 2 3 4

Close-up of a cylindrical mechanical part with no visible text or symbols

Exterior view of a trash bin with a blue upward arrow sign (no text or symbols on the bin)

Close-up of hands installing or adjusting a cylindrical component inside a transparent container (no visible text or symbols)

Close-up of a transparent glass beaker with a mechanical device attached, no visible text or symbols

Close-up of hands using a black handle to lift water from a metal pipe (no text or symbols visible)

Close-up of a hand holding a black plastic clip attached to a black briefcase (no text or symbols visible)

Hand pouring dark red beans into a metal container over a tray (no text or symbols visible)

Hand pressing down on a tray of red beans (no text or symbols visible)

KRUPS Hyline KRUPS

Close-up of a transparent glass bowl with a mechanical device inside, mounted on a stand (no visible text or symbols)

3.02 mm KRUPS

Close-up of a circular button with 'QD' and circular indicators, no readable text or symbols beyond the icon design.

3D printer in operation with a white mug and blue arrow indicator (no text or symbols on the object)

Express clock 60 ms - M + + - + -

3D printer with white cups and a digital display showing bidirectional arrow (no text or symbols)

Head wamp 100 ml - ok + KRUPS

Close-up of a hand pressing a metallic tool with a blue arrow pointing upward (no text or symbols visible)

Close-up of a metal mixing bowl with a spatula, no visible text or symbols

Shower KRU

Close-up of a white ceramic bowl being poured into a black container (no text or symbols visible)

Close-up of a transparent glass bowl with internal mechanical components (no visible text or symbols)

Close-up of a glass beaker containing a clear liquid, with a small leaf-like object above it (no text or symbols visible)

Hand pouring liquid into a kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, resting on a white fabric background (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, resting on a white fabric background (no text or symbols visible)

Close-up of a hand holding a black key inserted into a cylindrical component (no text or symbols visible)

Close-up of a hand holding a black key inserted into a cylindrical component (no text or symbols visible)

Two identical mechanical components with black and gray parts, no visible text or symbols

Close-up of a hand pouring white liquid into a metallic cylindrical container with a lid (no text or symbols visible)

Close-up of a milk being poured into a glass pitcher (no visible text or symbols)

Close-up of a 3D printer press applying a light-colored beverage to a glass mug (no visible text or symbols)

Hand holding a red plastic tool in a kitchen sink (no text or symbols visible)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person pouring liquid into a stainless steel kitchen sink with a red tool nearby (no visible text or symbols)

Hand pouring liquid into a black plastic bag on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic appliance in a kitchen sink, with a blue arrow pointing to the component (no visible text or symbols)

Close-up of hands cleaning a kitchen appliance with a blue arrow pointing to the product (no text or symbols visible)

Close-up of hands pouring liquid from a pipe into a black container (no text or symbols visible)

Six different types of coffee cups and teacups, arranged in a row (no text or labels visible)

Close-up of a KRUPS blender with two circular buttons and a white handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a white cup and digital display (no visible text or symbols on the device itself)

Close-up of a mechanical component with no visible text or symbols

Hand placing a white object into a clear glass with a 1 second time label (no other text or symbols)

Close-up of a cylindrical mechanical part with no visible text or symbols

Exterior view of a gray trash bin with a blue arrow pointing upward (no text or symbols)

Close-up of hands holding a cylindrical device with a black handle, no visible text or symbols

Close-up of a transparent glass beaker with a mechanical device attached, no visible text or symbols

Close-up of hands using a black handle to lift water from a metal pipe (no text or symbols visible)

Close-up of a hand holding a black plastic clip attached to a black briefcase (no text or symbols visible)

Hand pouring dark red beans into a metal container over a tray (no text or symbols visible)

Hand reaching toward a tray of red beans on a black tray (no text or symbols visible)

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

Agua-aviente 300 ml KRUPS

Close-up of a circular button with 'id' and 'o' symbols, no readable text or labels

3D printer in operation with a white mug and blue arrow indicator (no text or symbols on the object)

3D printer with white cups and a digital display showing bidirectional arrow (no text or symbols)

GDS 2x100 ml KRUPS X 2

15 - 30 Espresso Espresso Hoteste Café Café Large K R Print Ctrl

Close-up of a finger pressing a blue arrow on a mechanical component (no text or symbols visible)

Close-up of a metal mixing bowl with a spatula, no visible text or symbols

Close-up of a milkshake mixer in a kitchen setting (no visible text or symbols)

Click engine Hairs Take up from inside Take up from

Close-up of a transparent glass bowl with a mechanical device inside, no visible text or symbols

Close-up of a glass beaker containing a clear liquid, with a small container partially visible above (no text or symbols)

Hand pouring liquid into a kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with two metallic pins, placed on a white surface (no text or symbols visible)

Close-up of a black cylindrical object with two metallic pins on a white surface (no text or symbols visible)

Close-up of a hand holding a black key inserted into a cylindrical component (no text or symbols visible)

Close-up of a hand holding a black key inserted into a cylindrical component (no text or symbols visible)

Two identical mechanical components with black cylindrical bodies and a central hub, shown side by side (no text or symbols visible)

Close-up of a metallic cylindrical container with a hand pouring white liquid from it, next to a lid (no text or symbols visible)

Close-up of a milk being poured into a glass cup, with a metal pump nearby (no visible text or symbols)

Glass pitcher with a clear liquid being dispensed into a machine (no visible text or symbols)

Hand holding a red-handled cleaning tool in a kitchen sink (no text or symbols visible)

Close-up of three red objects on a white metal grate (no text or symbols visible)

Person pouring liquid from a black container into a stainless steel kitchen sink (no visible text or symbols)

Hand pouring liquid into a black plastic bag in a stainless steel kitchen (no text or symbols visible)

Close-up of hands holding a black plastic component with a blue arrow pointing to it, in a kitchen setting (no visible text or symbols)

Close-up of hands holding a black plastic bag in a kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Close-up of hands using a tool to lift a black plastic container (no visible text or symbols)

Six different types of coffee cups and teacups, arranged in a row (no text or labels visible)

Close-up of a black KRUPS blender with two circular buttons and a brush tip, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a steaming cup beside it (no visible text or symbols on the device itself)

PROBLEMAS E SOLUÇÕES 15

RECEITAS 18

Close-up of a black industrial machine interior with visible components and mounting holes (no text or symbols)

Hand placing a small object into a clear glass with a 1 second time label (no other text or symbols)

Close-up of a metallic cylindrical mechanical part, labeled F 088 (no other text or symbols visible)

Exterior view of a modern office building (no signage)

Close-up of hands installing or adjusting a cylindrical component into a device casing (no visible text or symbols)

Experimental setup with a glass bowl containing liquid and a submerged object, no visible text or symbols

Close-up of hands using a black tool to handle a transparent container (no visible text or symbols)

Close-up of a hand pressing down on a black plastic case with handles (no visible text or symbols)

Hand pouring dark red beans into a black tray (no text or symbols visible)

Hand reaching toward a container filled with red beans, no visible text or symbols

KRUPS Roh-tyinga KRUPS

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

Aguava caramente 100 ml KRUPS

Close-up of a circular button with white dots and a small 'iD' icon, no readable text or symbols.

3D printer in operation with a white mug and blue arrow indicator (no text or symbols on the object)

Expresso forte Café Café choie Pvg

3D printer image showing two white cups with a blue screen and directional arrow (no text or symbols)

2x130 ml KRUPS X 2

Input command 100 nm KRUPS

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Close-up of a metal mixing bowl with a black tool inserted, no visible text or symbols

Close-up of a white ceramic vessel with a black tool inserted, no visible text or symbols

o leite se tornar suficientemente cre- moso, ...

Cluda de vapor nominado Simyer a halde do vapor KRU

Close-up of a glass beaker with a pipette inserted into it, no visible text or symbols

Close-up of a glass beaker containing a white liquid, with no visible text or symbols.

Hand pouring liquid into a stainless steel kitchen faucet (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins and a white cloth background (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with black and gray parts, no visible text or symbols

Close-up of a hand pouring white liquid from a metallic cylindrical container onto a small dish (no text or symbols visible)

Close-up of a milkshake with a glass pitcher and a metal pump dispenser (no visible text or symbols)

Close-up of a 3D printer printing a glass mug filled with light brown liquid (no text or symbols visible)

Hand holding a red cleaning tool in a kitchen sink, pouring liquid from a pipe (no text or symbols visible)

Two-panel image showing a hand interacting with a red arrow on a black object, with blue arrows pointing to the edges (no text or symbols)

Close-up of a metal grate with three red indicator lights on the side (no text or symbols visible)

Person pouring liquid from a black container into a stainless steel kitchen sink (no visible text or symbols)

Hand pouring liquid into a black container on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic appliance in a kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Close-up of hands cleaning a kitchen appliance with a blue arrow pointing to the product (no text or symbols visible)

Close-up of hands using a tool to lift a black cylindrical object (no visible text or symbols)

PROBLEMAS E ACÇÕES CORRECTIVAS

Six different types of coffee cups and teacups arranged horizontally, no text or symbols visible

Close-up of a KRUPS coffee maker with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with digital display and coffee cup (no visible text or symbols)

Close-up of a mechanical component with circular features and mounting holes (no visible text or symbols)

Hand placing a small object into a glass with liquid, labeled '1 sec.' (no other text or symbols)

Close-up of a cylindrical mechanical part with no visible text or symbols

Close-up of a gray trash bin with a blue arrow pointing upward on the top (no text or symbols visible)

Close-up of hands installing or adjusting a cylindrical device into a transparent container (no visible text or symbols)

Close-up of a transparent glass beaker with a mechanical device attached, no visible text or symbols

Close-up of hands using a black handle to lift water from a dark container (no text or symbols visible)

Close-up of a hand holding a black plastic clip attached to a black briefcase (no text or symbols visible)

Hand pouring red beans from a metal container into a black appliance (no text or symbols visible)

Hand reaching toward a container filled with red beans, placed on a kitchen appliance (no text or symbols visible)

KRUPS Coo KRUPS

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

Krupa Canada 160 ml KRUPS

Close-up of a circular button with white dots and a small smile, next to two blue square buttons labeled 'Ω' (no text or symbols on the button itself)

3D printer in operation with a white mug and blue arrow indicator (no text or symbols on the object)

3D printer with white cups and a digital display showing bidirectional arrow (no text or symbols)

2x130 ml X 2

KRGPS 100 ml KRUPS

Close-up of a finger pressing a mechanical component with an arrow pointing upward (no text or symbols visible)

Close-up of a metal mixing bowl with a black spatula, no visible text or symbols

Close-up of a kitchen mixer with white cream being stirred (no visible text or symbols)

Close-up of a transparent glass bowl with internal mechanical components (no visible text or symbols)

Close-up of a glass beaker containing a clear liquid, with no visible text or symbols.

Hand pouring liquid from a metal pipe into a stainless steel kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, placed on a white surface (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with black cylindrical bases and a central housing, shown against a plain background (no text or symbols visible)

Close-up of a hand pouring white liquid into a metallic cylindrical container with a lid (no text or symbols visible)

Close-up of a milk dispenser with a glass cup and a metal bottle nearby (no visible text or symbols)

Glass mug filled with orange liquid being dispensed into a 3D printer (no visible text or symbols)

Hand holding a red plastic tool inside a stainless steel kitchen sink, pouring liquid from a pipe (no text or symbols visible)

Two-panel image showing a hand holding a red arrow on a black surface, with blue arrows pointing to the edges (no text or symbols)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person washing a stainless steel sink with a hand pouring liquid from a black container (no visible text or symbols)

Hand pouring liquid into a black plastic bag on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a small black device with a blue arrow pointing to it, against a stainless steel kitchen background (no visible text or symbols)

Close-up of hands holding a black plastic bag next to a blue label with a white arrow (no text or symbols visible)

Close-up of hands using a tool to lift a black cylindrical object (no visible text or symbols)

Six different types of coffee cups and teacups arranged horizontally, no text or symbols visible

Close-up of a KRUPS coffee maker with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUP5 coffee machine with a white cup and coffee cup beside it (no visible text or symbols on the device itself)

Close-up of a black industrial chimney with visible mechanical components and ventilation grilles (no text or symbols)

Hand placing a small object into a glass with liquid, labeled '1 sec.' (no other text or symbols)

Exterior view of a modern office building (no signage)

Close-up of hands installing or adjusting a cylindrical component into a device casing (no visible text or symbols)

Close-up of a transparent glass beaker with a submerged object inside, mounted on a stand (no visible text or symbols)

Close-up of hands washing a black plastic water bottle with a handle (no text or symbols visible)

Close-up of a hand adjusting a black plastic device handle (no visible text or symbols)

Hand pouring red beans from a metal container into a black tray (no text or symbols visible)

Hand pressing down on a container filled with red beans (no text or symbols visible)

Close-up of a transparent glass bowl with a mechanical device inside, mounted on a black frame (no visible text or symbols)

OK OK OK KRUPS

Close-up of a circular button with a white 'oD' icon, flanked by two blue square buttons labeled 'Ω' (no text or symbols on the button itself)

3D printer in operation with a white mug and blue square tag (no visible text or symbols)

Close-up of a 3D printer with white cups and a blue screen showing a directional arrow (no text or symbols visible)

KRUPS 2x100 ml X 2

15:00 Expresso Expresso Awards Krupf Krupf currency PRD OK

Close-up of a hand pressing a blue square component with an arrow, no visible text or symbols

Close-up of a kitchen mixer with a black tool inserted, showing white liquid (no text or symbols visible)

Close-up of a kitchen mixer with a white cloth and black tool (no visible text or symbols)

KRU Pre-Operative in Mio. 2014

Close-up of a glass beaker with a submerged object inside, mounted on a stand (no visible text or symbols)

Close-up of a glass beaker containing a white liquid, with a small object above it (no visible text or symbols)

Hand pouring liquid into a kitchen faucet (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, resting on a white fabric surface (no text or symbols visible)

Close-up of a hand holding a small black screwdriver tip (no text or symbols visible)

Close-up of a hand holding a black screwdriver tip, no visible text or symbols

Two identical mechanical components with black and metallic parts, connected by rods (no visible text or symbols)

Close-up of a hand pouring white liquid from a metallic cylindrical container onto a small stand (no text or symbols visible)

Close-up of a milk carton being processed with a machine, next to a metallic bottle (no visible text or symbols)

Glass mug filled with light brown liquid, being processed by a 3D printer (no visible text or symbols)

Hand holding a red cleaning tool against a stainless steel kitchen sink (no text or symbols visible)

Close-up of a white plastic tray with three red pins, no visible text or symbols

Person cleaning a stainless steel kitchen sink with a hand holding a container (no visible text or symbols)

Hand pouring liquid into a black container on a stainless steel sink (no text or symbols visible)

Close-up of hands holding a black appliance in a stainless steel kitchen sink, with a blue arrow pointing to the product (no visible text or symbols)

Person holding a black plastic bag over a stainless steel sink, with a blue arrow pointing to the product (no text or symbols visible)

Close-up of hands pouring liquid from a metal pipe into a black container (no text or symbols visible)

Six different types of coffee cups and teacups arranged horizontally, no text or symbols visible

Close-up of a KRUPS coffee maker with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a white cup and coffee cup emitting steam (no visible text or symbols)

TRANSPORT AF APPARATET

UDTJENTE ELEKTRONISKE OG ELEKTRISKE APPARATER

PROBLEMER OG L∅SNINGER

OPSKRIFTER

Hand placing a small object into a clear glass with a dotted line, labeled '1 sec.' (no other text or symbols)

Close-up of a cylindrical mechanical part with no visible text or symbols

Exterior view of a modern office building (no signage)

Close-up of hands installing or adjusting a mechanical component with a cylindrical part (no visible text or symbols)

Close-up of a transparent glass beaker with a mechanical device inside, mounted on a stand (no visible text or symbols)

Stil en beholder, der kan rumme 0,5 l under dampdysen.

KLARG∅RING AF MASKINEN

Close-up of hands using a black tool to handle a water bottle (no text or symbols visible)

Close-up of a hand holding a black plastic briefcase handle (no visible text or symbols)

Hand pouring red beans into a container on a tray (no text or symbols visible)

Åben låget på kaffebønne- beholderen. Fyld hele kaf- febønner i (max 250g).

Hand reaching toward a container filled with red beans, no visible text or symbols

KRUPS Goldbag KRUPS

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

Vermet cond. 150 ml KRUPS

Close-up of a circular button with 'ab' and circular icon, no readable text or symbols

3D printer in operation with a white mug and blue arrow indicating a motion (no text or symbols visible)

3D printer with white earbuds and a blue screen showing a directional arrow (no text or symbols visible)

400 2x100 ml X 2

300 mm KRUPS

Close-up of a hand pressing a blue square component with an arrow, no visible text or symbols

Sørg for at dampdysen sidder korrekt.

Close-up of a metal mixing bowl with a pipette inserted, no visible text or symbols

Shung 40 x KRU

Close-up of a milkshake mixer with white liquid being poured into it (no visible text or symbols)

Close-up of a glass bowl containing liquid with a submerged object inside, no visible text or symbols

Close-up of a glass bowl containing a white liquid, with a floating object above it (no visible text or symbols)

Hand pouring liquid into a kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, resting on a white fabric background (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with black and gray parts, no visible text or symbols

Close-up of a metallic cylindrical container with liquid being poured into it, next to a small container (no text or symbols visible)

Close-up of a milk dispenser with a glass cup and a metal bottle beside it (no visible text or symbols)

Glass mug filled with light brown liquid, being dispensed into a 3D printer (no visible text or symbols)

1 2 1 2 ← ←

Hand holding a red cleaning tool in a kitchen sink (no text or symbols visible)

Two-panel image showing a hand holding a red object on a black surface, with blue arrows pointing to the edges (no text or symbols)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person washing a stainless steel sink with a hand pouring liquid from a container (no visible text or symbols)

Hand pouring liquid into a black plastic bag on a stainless steel sink (no text or symbols visible)

Close-up of hands holding a black appliance in a kitchen sink, with a blue arrow pointing to the product (no visible text or symbols)

Close-up of hands holding a black plastic bag over a stainless steel sink, with a blue arrow pointing to the product (no text or symbols visible)

Close-up of hands using a tool to lift a black plastic bag (no text or symbols visible)

Skyl vandbeholderen med frisk vand.

TRANSPORT AF APPARATET

Six different types of coffee cups and teacups, arranged in a row (no text or labels visible)

Et par opskrifter til Deres KRUPS Automatic :

• Cappuccino

Close-up of a black KRUPS blender with two circular buttons and a handle, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a white smoke cup beside it (no visible text or symbols on the device itself)

7 VEDLIKEHOLD AV APPARATET

Close-up of a black industrial machine component with visible internal components and mounting holes (no text or symbols)

Hand placing a small object into a clear glass with liquid, labeled '1 sec.' (no other text or symbols)

Metallic cylindrical object with flange, labeled F 088 (no other text or symbols visible)

Exterior view of a modern office building (no signage)

Close-up of hands installing or adjusting a cylindrical component inside a device casing (no visible text or symbols)

Experimental setup with a glass bowl containing liquid and a submerged object, no visible text or symbols

Close-up of hands using a black tool to handle a cylindrical object, no visible text or symbols

Close-up of a hand adjusting a black plastic briefcase handle (no text or symbols visible)

Hand pouring dark granular substance from a metal container into a black tray (no text or symbols visible)

Hand reaching toward a container filled with red beans, placed on a kitchen appliance (no text or symbols visible)

KRUPS Radio KRUPS

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

VARATE 30mm 10 LBS mm KRUPS

Close-up of a black circular button with 'id' and 'o' symbols, no readable text or numbers present.

3D printer in operation with a white mug and blue arrow indicating a precision application (no text or symbols visible)

3D printer with white cups and a blue upward arrow indicator (no text or symbols)

Auto 2x130 ml X 2

Close-up of a finger pressing a vertical tool with an arrow pointing upward (no text or symbols visible)

Kontroller at dampdysen er korrekt plassert.

Close-up of a metal mixing bowl with a spatula, no visible text or symbols

Hell melken i melkemuggen. Dypp dampdysen ned i melken.

Change OK KRU

Close-up of a milkshake mixer with white liquid being poured into it (no visible text or symbols)

Blending Heigh RANGER KRU

Close-up of a transparent glass bowl with mechanical components, no visible text or symbols

Close-up of a glass beaker containing a liquid, with no visible text or symbols

Hand pouring liquid from a pipe into a sink (no text or symbols visible)

Close-up of a black handheld device and two metallic pens on a white fabric background (no text or symbols visible)

Close-up of a black handheld device with metallic pins, placed on a white fabric background (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with black and metallic parts, no visible text or symbols.

Close-up of a hand pouring white liquid from a metallic cylindrical container onto a dark, open lid (no text or symbols visible)

Close-up of a milk dispenser with a glass cup and a metal bottle beside it (no visible text or symbols)

Close-up of a 3D printer printing a glass mug filled with light-colored beverage (no visible text or symbols)

Sett koppen under kaffeutgangene og start opp en kaffe-/espressosyklus.

VEDLIKEHOLD AV APPARATET

Hand holding a red cleaning tool in a stainless steel kitchen sink (no text or symbols visible)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person washing a stainless steel sink with a hand pouring liquid from a container (no visible text or symbols)

Hand pouring liquid into a black plastic bag on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black plastic appliance with a blue arrow pointing to it, in a kitchen setting (no visible text or symbols)

Close-up of hands holding a black plastic bag on a kitchen sink, with a blue arrow pointing to it (no text or symbols visible)

Close-up of hands using a tool to lift a black cylindrical object (no visible text or symbols)

Skyll vannbeholderen med rent vann.

TRANSPORT AV APPARATET

Six different types of coffee cups and teacups arranged horizontally, no text or symbols visible

Close-up of a KRUPS coffee maker with two black buttons and a white handle (no visible text or symbols on the device itself)

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with a white coffee cup beside it (no visible text or symbols on the device itself)

Close-up of a mechanical component with circular features and internal components (no visible text or symbols)

Hand placing a small object into a clear glass with a 1 second time label (no other text or symbols)

Close-up of a cylindrical mechanical part with no visible text or symbols

Exterior view of a modern office building (no signage)

Close-up of hands installing or adjusting a cylindrical device component (no visible text or symbols)

Close-up of a transparent glass container with a black handle, placed inside a transparent enclosure (no visible text or symbols)

Close-up of hands using a black tool to handle a dark liquid container (no visible text or symbols)

Close-up of a hand holding a black plastic clip attached to a black briefcase (no text or symbols visible)

Hand pouring red beans from a metal container into a black tray (no text or symbols visible)

Hand reaching toward a tray of red beans on a black tray (no text or symbols visible)

KRUPS Pcs KRUPS

Close-up of a glass beaker with liquid inside, mounted on a stand (no visible text or symbols)

Varmit cotton 100 A40 KRUPS

Close-up of a circular icon with 'id' and 'o' symbols, no readable text or numbers present.

3D printer in operation with a white mug and blue arrow indicating a measurement or insertion (no text or symbols visible)

Espresso Bank 40 ml - ON - + +

3D printer with white cups and a digital display showing an upward arrow (no text or symbols visible)

KuTn 2x100 ml X 2

Close-up of a finger pressing a mechanical component with an arrow pointing upward (no text or symbols visible)

Close-up of a metal mixing bowl with a black tool inserted, no visible text or symbols

Close-up of a milkshake mixer in a kitchen setting (no visible text or symbols)

Energy Saving Available Weighted Ring Start KRU

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

Close-up of a glass beaker containing a clear liquid, with no visible text or symbols.

Hand pouring liquid from a water dispenser into a stainless steel kitchen faucet (no text or symbols visible)

Close-up of a black cylindrical object with two metallic tools on a white surface (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with black cylindrical bases and connected rods, no visible text or symbols.

Close-up of a hand pouring white liquid from a metallic cylindrical container onto a dark container (no text or symbols visible)

Close-up of a milk dispenser with a glass cup and a metal pump bottle beside it (no visible text or symbols)

Glass mug filled with light brown liquid, being placed into a 3D printer (no visible text or symbols)

Hand holding a red cleaning tool in a kitchen sink (no text or symbols visible)

Close-up of a white ventilation grille with three red indicator lights (no text or symbols visible)

Person pouring liquid from a container into a stainless steel kitchen sink (no visible text or symbols)

Hand pouring liquid into a black container on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black appliance in a kitchen sink, with a blue arrow pointing to the product (no visible text or symbols)

Close-up of hands cleaning a black plastic bag on a stainless steel sink (no text or symbols visible)

Close-up of hands pouring liquid from a cylindrical pipe into a black container (no text or symbols visible)

Six different types of coffee cups and teacups, arranged in a row (no text or labels visible)

Close-up of a black KRUPS blender with two circular buttons and a brush tip, no visible text or symbols on the device itself.

KRUPS

ESPRESSERIA AUTOMATIC PREMIUM SERIE EA69xx

Exterior view of a KRUPS coffee maker with digital display and coffee cup on side (no visible text or symbols)

Vain kotikäyttöön

Hand placing a small object into a clear glass with a dotted line, labeled '1 sec.' (no other text or symbols)

Close-up of a metallic cylindrical object with rounded ends, labeled F 088 (no other text or symbols visible)

Veden suodattaminen

Gray trash bin with a blue upward arrow overlay (no text or symbols)

Close-up of hands holding a cylindrical device with a black handle, no visible text or symbols

Close-up of a transparent glass beaker with a submerged object inside, mounted on a dark base (no visible text or symbols)

Close-up of hands using a black lever to handle a dark liquid container (no text or symbols visible)

Close-up of a hand holding a black plastic bag with handle (no visible text or symbols)

Hand pouring dark red beans into a black tray (no text or symbols visible)

Hand pressing down on a tray of red beans (no text or symbols visible)

KRUPS Imp1 KRUPS

Close-up of a transparent glass bowl with a mechanical device attached, no visible text or symbols

Kuouna beer 100 m2 KRUPS

Close-up of a circular button with 'ab' and circular icon, no readable text or symbols

3D printer in operation with a white mug and blue arrow indicating a measurement (no text or symbols visible)

Close-up of a 3D printer with white cups and a blue directional arrow on top (no text or symbols visible)

2x130 ml X 2

Soudetek 3mm 100 m OK KRUPS

Close-up of a hand pressing a metallic component with a blue arrow pointing upward (no text or symbols visible)

Close-up of a metal mixing bowl with a spatula, no visible text or symbols

Migray R1 x KRU

Close-up of a milkshake mixer in a kitchen setting (no visible text or symbols)

Close-up of a transparent glass bowl with internal mechanical components, no visible text or symbols

Close-up of a glass bowl containing a clear liquid, with a small container partially submerged in liquid (no visible text or symbols)

Hand pouring liquid from a water bottle into a kitchen sink (no text or symbols visible)

Close-up of a black cylindrical object with metallic pins, placed on a white fabric background (no text or symbols visible)

Close-up of a hand holding a small black tool tip, no visible text or symbols

Two identical mechanical components with black and gray parts, no visible text or symbols

Close-up of a hand pouring white liquid into a metallic cylindrical container with a small lid (no text or symbols visible)

Close-up of a milk carton being used with a lathe machine, next to a metallic cylindrical container (no visible text or symbols)

Glass mug filled with light brown liquid, being placed on a black tray (no visible text or symbols)

Hand holding a red plastic tool in a stainless steel kitchen sink (no text or symbols visible)

Two-panel image showing a hand holding a red arrow-shaped object on a dark surface, with blue arrows pointing to the edges (no text or symbols)

Close-up of a white ventilation grille with four red indicator lights (no text or symbols visible)

Person pouring liquid from a black bottle into a stainless steel kitchen sink with a red toy car nearby (no visible text or symbols)

Hand pouring liquid into a black plastic bag on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands holding a black appliance in a kitchen sink, with a blue arrow pointing to it (no visible text or symbols)

Close-up of hands installing a black plastic component on a stainless steel kitchen sink (no text or symbols visible)

Close-up of hands pouring liquid from a black container into a cylindrical pipe (no text or symbols visible)

MUUT TOIMINNOT: NÄPPÄIN Prog

Six different types of coffee and beverage items arranged in a row: teacup, saucer, mug, glass, and mugs (no text or labels visible)
