USER MANUAL SW C704IP.2 PT SMARTWARES

S ^

smartwares®

EASY TO INSTALL

MOTION RECORDING

INDOOR USE ONLY

8 METER NIGHTVIEW

White remote control camera with attached antenna against a blue grid background (no text or symbols visible)

indoor pan & tilt IP camera

GB WIFI NETWORK CAMERA

DE WIFI NETZWERK-KAMERA

PL BEZPRZEWODOWA KAMERA IP

NL WIFI NETWERKCAMERA

FR CAMÉRA EN RÉSEAU WIFI

ES CÁMARA IP WIFI

TR IP AĞI KAMERASI

GR ΔIKTYAKH KAMEPA

CZ IP SÍTOVÁ KAMERA

Illustration of a mechanical device with a rod inserted into a housing (no text or symbols)

Illustration of a smart device with a mounted antenna and cable, no text or symbols present

Diagram of a wireless router with antenna and cable, no text or symbols present

6

Mechanical assembly diagram showing a wheel and shaft with blue directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a circular component mounted on a metal bracket with two screws inserted, indicated by blue arrows (no text or symbols present)

Technical illustration of a mechanical device with a bell and base mount, showing no text or symbols.

Diagram of a mechanical device with rotating components and wiring, no text or symbols present

Anonymous Http://192.168.2.104

Language: English ActiveX Mode (For IE Browser) Sign in Download ActiveX Server Push Mode (For Safari, FireFox, Google Browser) Sign in VLC mode (for IE, Safari, FireFox, Google, Opera browser) Sign in Sign in mobile phone attention case sensitive propose using 1024 * T68 screen resolution

C ELPRO http://102.368.2164/research/ Device(Anonymreal) File Edit View Favorites Tools Help NETWORK CAMERA Live Video Multi-Device Network Audio video System Other Play Stop Snapshot Record Audio Talk 1 2 3 4 Full Speech Resolution 325°240 Mode 50 Hz Bright Contrast 5 D

Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+J Manage add-ons F12 Developer Tools Go to pinned sites Compatibility View settings Report website problems Internet options About Internet Explorer

E

Internet Options General Security Privacy Content Connections Programs Advanced Select a zone to view or change security settings. Internet Local intranet Trusted sites Internet This zone is for Internet websites, except those listed in trusted and restricted zones. Security level for this zone Allowed levels for this zone: Medium to High Medium-high - Appropriate for most websites - Prompts before downloading potentially unsafe constant - Unsigned ActiveX controls will not be downloaded Enable Protected Mode (requires restarting Internet Explorer) Custom level... Default level Reset all zones to default level OK Annularen Toepassen

F

Security Settings - Internet Zone Settings Download unsigned ActiveX controls Disable (recommended) Enable (not secure) Prompt Initialize and script ActiveX controls not marked as safe for si Disable (recommended) Enable (not secure) Prompt Only allow approved domains to use ActiveX without prompt Disable Enable Run ActiveX controls and plug-ins Administrator approved Disable Enable Prompt *Takes effect after you restart your computer Reset custom settings Reset to: Medium-high (default) Reset... OK Cancel

Security Settings - Internet Zone Settings ActiveX controls and plugins Allow ActiveX Filtering Disable Enable Allow previously unused ActiveX controls to run without pron Disable Enable Allow Scriptlets Disable Enable Prompt Automatic prompting for ActiveX controls Disable Enable Binary and script behaviors Administrative response *Takes effect after you restart your computer Reset custom settings Reset to: Medium-high (default) Reset... OK Cancel

http://20118.2004/mon/mn ELOO NETWORK CAMERA Live Video Play Stop Snapshot Record Audio Talk Multi-Device Basic Network Settings Wireless Lan Settings ACOL Settings UPMP Settings DDNS Service Settings Wireless Lan Settings Windows Network List Scan Using Wireless Lan SSID Network Type Intra Ecryption Share Key Submit Refresh

NETWORK CAMERA Live Video Play Stop Snapshot Record Audio Talk Multi-Device Network Audio video Mail Service Settings Flip Service Settings Alarm Service Settings Path Settings Rate Full-Speed Resolution 320*240 Mode 50 Hz Bright Contrast K 1 K Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+1 Manage add-ons F12 Developer Tools Go to pinned sites Compatibility View settings Report website problems Internet options About Internet Explorer Change Compatibility View Settings Add this website: xxx.xxxx.x.xx (IP ADDRESS) Web sites you've added to Compatibility View Remove Display intravet sites in Compatibility View Use Microsoft compatibility lists Learn more by reading the Internet Explorer privacy statement Close

L M 1 Add Camera Device Setting UD: 2 3 Security Code: Name Camera 4 OK Cancel N O 1 ELRO INSTALL Camera 0:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:05 ELRO INSTALL Live View Camera Online LAN 226x249 LAN 10 / 185Kbps Online Rate 1 Frame Ratio 0 / 191 1 MUTE 2

EL RO INSTALL Camera Click here to add camera Reconnect Edit Camera View Event View Snapshot Remove Camera

Edit Camera Device Setting UID: FTST9TF65823HGPMK Security Code: ****** Name: Camera Advanced Setting Advanced OK Cancel

Advanced Setting Security Code Setting Modify Security Code Video Setting Video Quality Medium Video Flip Normal Environment Indoor(50hz) Mode Wi-Fi Setting SSID None Disconnect OK Cancel

S T 1 Add Camera Add QRCode Camera Found (U) Place a barcode inside the viewfinder rectangle to scan it. Cancel Add Camera Save U V 1 Cancel Add Camera Save Name Camera UID Camera UID Password Camera Password 1 Camera Online FTS-101/FRS23HGPMK72 2 Camera Add Camera Info

■000 KPN NL	10.21	68%
	Camera
Back	Live View
Online
640x480
Online Nrc 1		Quality:Good

Interior view of a modern office or meeting room with two white chairs and a glass partition (no visible text or symbols)

Back	Advanced Setting
Security Code

Video Quality	Medium >
Video Flip	Normal >
Environment Mode	Outdoor >
WiFi	HKFeel >
Motion Detection	Off >
About Device	>

Back	Video Quality
Max
High
Medium	√
Low
Min

...xxx XPN NL 10:25 67%
Cancel	Security Code	OK
Old Old Password
New New Password
Confirm Confirm Password

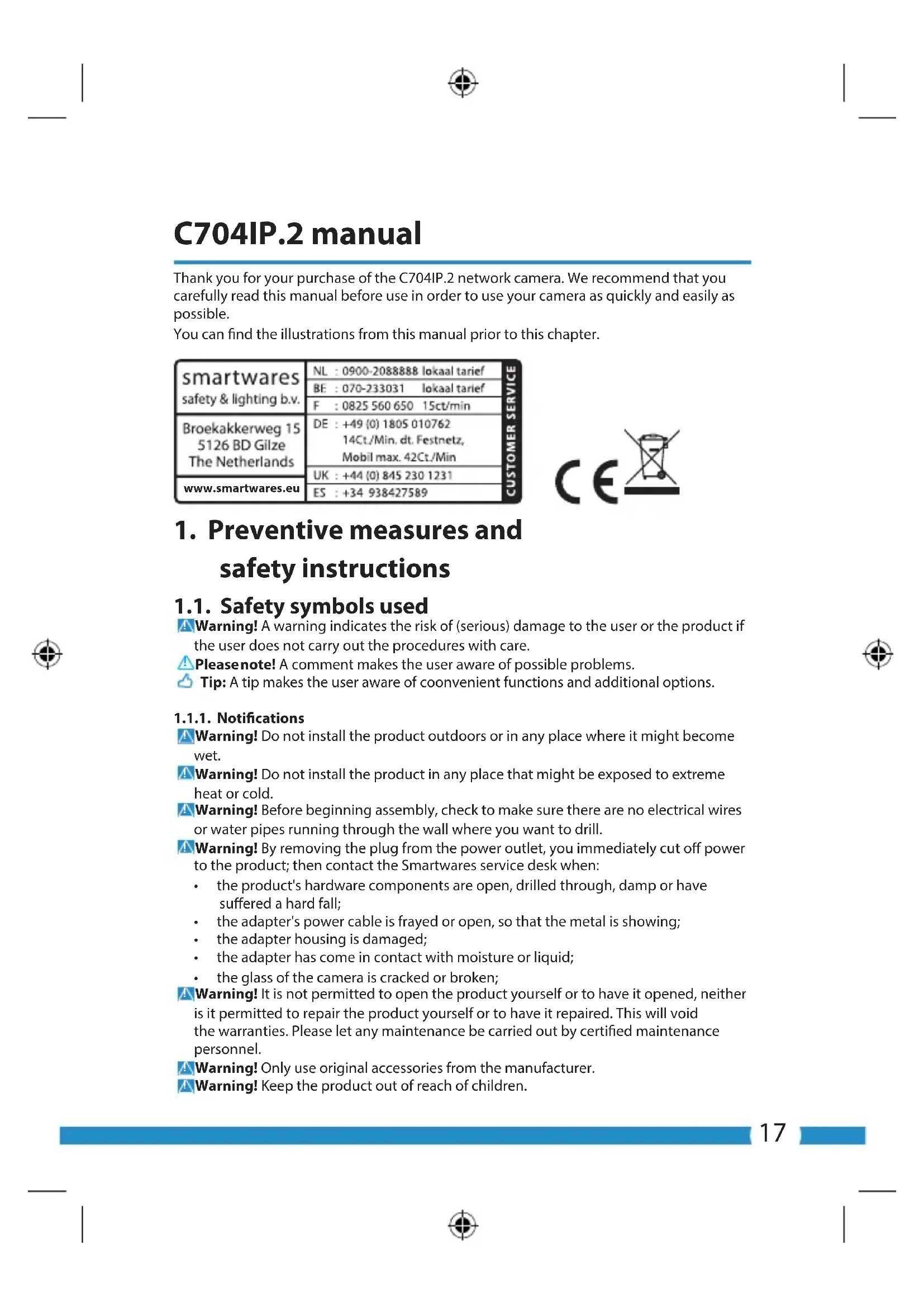

C704IP.2 manual

Thank you for your purchase of the C704IP.2 network camera. We recommend that you carefully read this manual before use in order to use your camera as quickly and easily as possible.

You can find the illustrations from this manual prior to this chapter.

smartwares safety & lighting b.v.	NL : 0900-2088888 lokaal tarief
	BE : 070-233031 lokaal tarief
	F : 0825 560 650 15ct/min
Broekakkerweg 15 5126 BD Gilze The Netherlands	DE : [phone]Ct./Min. dt. Festnetz, Mobil max. 42Ct./Min
	UK : [phone]
www.smartwares.eu	ES : [phone]

1. Preventive measures and safety instructions

1.1. Safety symbols used

Warning! A warning indicates the risk of (serious) damage to the user or the product if the user does not carry out the procedures with care.
⚠️Please note! A comment makes the user aware of possible problems.
Tip: A tip makes the user aware of coconvenient functions and additional options.

1.1.1. Notifications

Warning! Do not install the product outdoors or in any place where it might become wet.
Warning! Do not install the product in any place that might be exposed to extreme heat or cold.
Warning! Before beginning assembly, check to make sure there are no electrical wires or water pipes running through the wall where you want to drill.
Warning! By removing the plug from the power outlet, you immediately cut off power to the product; then contact the Smartwares service desk when:

• the product's hardware components are open, drilled through, damp or have suffered a hard fall;
  • the adapter's power cable is frayed or open, so that the metal is showing;
  • the adapter housing is damaged;
  • the adapter has come in contact with moisture or liquid;
  • the glass of the camera is cracked or broken;

Warning! It is not permitted to open the product yourself or to have it opened, neither is it permitted to repair the product yourself or to have it repaired. This will void the warranties. Please let any maintenance be carried out by certified maintenance personnel.

Warning! Only use original accessories from the manufacturer.
Warning! Keep the product out of reach of children.

Warning! Disconnect the device from all power sources before cleaning it.
Warning! Use a clean, dry cloth to clean the product.
Warning! Do not use any abrasive agents, corrosive cleaning products or any substances that contain bleach or solvents to clean the product.
Warning! Remove the adapter from the power outlet during storms, lightning and whenever the product will not be used for a longer period of time.
Pleasnote! Install the product as indicated in this manual. If in doubt, consult a recognised technician and always take account of local installation codes and regulations.
⚠️ Plesenote! The camera should be kept out of direct sunlight.
⚠️ Please note! Do not point the camera at bushes, tree branches or other moving objects.
⚠️ Plesasnote! The product must not be discarded as unsorted municipal waste, it must be disposed of separately.
Pleasenote! Find out about the options in your region for disposing of the product after use. Do not throw away electrical appliances or components, but see whether the product (components) can be turned in, recycled or reused.
⚠️ Please note! Wireless systems can be affected by interference from wireless telephones, microwave ovens and other wireless devices that operate in the 2.4 GHz range. Keep the product at least 3 metres away from any possible sources of interference during installation and operation.
⚠️ Plesasnote! The camera is not able to view through glass at night. Keep this in mind when positioning it.

2. Intended use

The C704IP.2 is a security camera that makes it possible to view surveillance images via a local network, an Internet connection or the Elro App "ELRO INSTALL" on your smartphone.

The C704IP.2 can be connected either through an Ethernet cable or a Wi-Fi connection.

Two electrical rotary shafts let you rotate the camera 360 degrees remotely. You can also choose for this to be done fully automatically.

The camera is equipped with infrared LEDS and is able to make video and audio recordings both during the day and at night. The camera is also outfitted with motion detection and can switch on and off via an I/O port.

3. Technical specifications

3.1. General product specifications

Sensor: 1/4" Colour CMOS Sensor

Resolution: 640 x 480 pixels (300k pixels)

IR Lens: f: 6mm, F 2.0

Viewing angle: 60 degrees

Minimal brightness: 0.5Lux @ F2.0

Video compression: MJPEG

Images per second: 15fps(VGA), 30fps(QVGA)

Power source: 230VAC/5VDC/2A Adapter

Energy consumption: 5W (Max.)

Temperature: 0°C \~ 55°C (32°F\~131°F)

Minimal system requirements:

CPU: 2.0 GHZ or higher

Memory: 256 MB or higher

Video card: 64 MB or higher

Supported OS: Windows 98/ME/2000/XP/Vista/7/8

Supported browsers: IE6.0-10.0, Firefox, Safari, Google Chrome

Supported mobile OS: iOS 4.3 and higher / Android 2.1 and higher

Certification: CE, FCC, RoHS, R&TTE

Warranty: Limited 3-year warranty

3.2. Main component parts

1. C704IP.2 camera
2. Camera base
3. Detachable antenna
4. 4 assembly screws and plugs
5. DC supply
6. Ethernet cable
7. Software CD-ROM
8. User's manual

3.3. Connections

1. Antenna port
2. Ethernet port
3. I/O port
4. DC connection
5. Audio connection
6. Reset opening

4. Camera installation

4.1. Connecting the camera

• Screw the antenna into the antenna port 3
• Connect the adapter cable to the DC connection of the camera ④. Then insert the adapter plug into the power outlet.
• Connect the included ethernet cable to the network port of the camera ⑤ Connect the other end of the ethernet cable to your router. The green LED on the ethernet port will light up when the camera is connected to the network. The LED on the front of the camera will also begin flashing.

You can now operate your IP Camera using your smartphone or PC. Go to section 4.2 for use with smartphone and go to section 4.3 for installation on your PC.

4.2. Settings for smartphone use

Attention! To use the "ELRO INSTALL" App, you need a smartphone with internet access.

Attention! To scan a QR code, you need an APP that can scan barcodes.

To set up your camera using Android, go to section 4.2.1. To set up your camera using iOS, go to section 4.2.2.

4.2.1. Android

• Download the App: "Elro Install" via Google Play and install it.
  • Start the App. The start screen of the app appears.
• Press the "Click here to add camera" option. The "Add camera" menu appears.
• Press the "Scan" button. M1 Next, scan the QR code on the bottom of your camera. You can also choose to manually enter the code behind "UID". M2 You can find this code under the QR code on your IP camera.
  • Next, enter the code: 000000 after "Security code".M3
  • After "Name" enter the name you want to assign to the camera.
• Then press the "OK" button. M4

Your camera has been added to your phone and will appear on the start screen of your App. On this you can see if the camera is connected (ONLINE) or if it is not connected (OFFLINE).

4.2.2. iOS

• Download the App "Elro Install" from the App Store and install it.
  • Start the App. The start screen of the app appears.
• Press "Add camera". ^S3 The "Add camera" menu appears. ^S
• Press the "QR code" button. ^52 Next, scan the QR code at the bottom of your camera.
• You can also choose to manually enter the code of your camera. To do this, press the "Add" button. ^51 Next, enter the code of your camera behind "UID". ^52 You can find this code under the QR code on your IP camera.
• Next, enter the code behind "Password": 000000. U3
  • After "Name" enter the name you want to assign to the camera.
• Then press the "Save" button. ^01

Your camera has now been added to your App and will appear on the home screen of your App. √ Here you can see if the camera is connected (Online) √ or not connected (Offline).

4.2.3. General

• For instructions on placing your camera go to section 4.6.
• For instructions on using your camera with the App go to chapter 5.

4.3. Install your camera on your PC

• Insert the included CD-ROM into your computer.
• Launch "IPCamSetup.exe" from the CD-ROM.
• Go through the installation by double clicking on "Next".
• Complete the installation by clicking on "Restart computer".

The IP camera tool is now installed on your computer. You will find the shortcut on your desktop.

Pleasenote! Do not remove this shortcut! You will have to re-install the IP camera tool if you do.

4.4. Linking to your camera

Please note! To be able to use the IP camera's full functionality, you have to use Internet Explorer 6 or higher (32 bit) and select ActiveX Mode. It is not possible to create audio or video recordings in other web browsers.
⚠️ Please note! If you opt for the ActiveX mode there is a possibility that you will not have any picture yet. If this is the case, perform the following steps:

• In Internet Explorer, go to: Tools-> Internet options-> Security settings ->Custom level
• Change the deactivated options to "Questions" under the ActiveX control elements and insertion applications. If the "Questions" option is not available, tick "Activate". See also: E F G

Tip: if you wish to use a different web browser than the standard browser, copy the link from the open browser to a browser of your choice.

- Start the IP Camera Tool via the "IP camera tool" shortcut on your desktop. The IP camera tool automatically searches for the IP camera(s) connected to your network.

A window opens Ⓐ. This window displays all your IP cameras. If no cameras are connected, the window will remain empty.

• Double click on the camera you want to use. In your standard web browser, an identification window will open up asking for your user name.
• For the user name, enter "admin" and click on "sign in". You do not need to enter a password.

A menu will open Ⓑ. You can choose from the following options:

ActiveX Mode: Internet Explorer

Server Push Mode: Safari, Firefox and Google Chrome

VLC Mode: Internet Explorer, Safari, Firefox, Google Chrome and

Opera

⚠️Please note! You have to download the VLC player for VLC Mode.

Sign in mobile phone: Access with a mobile browser

- Click on "Sign In" under the option that applies to your web browser.

You are now logged in to the Network Camera browser screen Ⓒ. You can manage your camera and camera settings via this screen. (see chapter 6)

4.5. Linking to your camera wirelessly

⚠️ Please note! In order to set up a wireless connection, your camera must be linked to your network via the included ethernet cable during set-up.
! Please note! You need a wireless router in order to establish a wireless connection with your camera.
⚠️ Plesasnote! If your router is password protected, you will need to know the password.

- In the Network Camera browser screen Ⓒ click on the "Network" tab. A list of settings will appear Ⓗ

- Select the Wireless Lan Settings: the Wireless Lan Settings screen will appear.

• Double-click on "scan" in the Wireless Lan Settings screen. A list of available wireless networks will appear.
• Click on your wireless network.
• If you do not require a password for your wireless network, just click on 'submit' after this.
• If your wireless network does require a password, you will need to enter your password after "Share Key" or "key1", depending on the encryption.
• Click on 'submit' after this.

The camera restarts automatically when you click 'submit'. This takes approximately 30 seconds.

• Close your browser and camera tool after the computer has restarted.
• Remove the network cable from the camera.
• Open the IP camera tool and click on your camera's address. You can now operate your camera wirelessly.
• If your camera is not in the camera tool window, right click on the tool window, then press the "refresh camera list" option.

4.6. Camera installation

⚠️ Plesasnote! Make sure that the camera functions properly in the chosen location before starting installation.

You can choose to place the camera on a flat surface, or to attach the camera to the location of your choice with screws.

You can install the camera either with or without the base.

4.6.1. Installing the camera without the base ⑥

• Screw two of the included screws into the surface where you want to mount the camera, 68 mm apart.
  ⚠️ Plesenote! If the surface is too hard for the screws (stone/concrete), you will need to drill holes and use the screw plugs which are included.
  • Use the two slots on the bottom of the camera to mount the camera on the screws.

4.6.2. Installing the camera with the base

• Unscrew the hinge on the base until loose. ⑦
- Adjust the angle of the base as desired. Then tighten the hinge again.
- Screw the base of the camera into the surface of your choice, using two of the included screws. ^8
⚠️ Plesenote! If the surface is too hard for the screws (stone/concrete), you will need to drill holes and use the screw plugs which are included.
- Then screw the camera onto the base, using the knob underneath the base. ⑨

5. Managing your camera using your smartphone

Make sure your camera(s) is/are connected to your smartphone via the ELRO INSTALL App (see section 4.1 and 4.2).

5.1. View your camera image on your Android smartphone

• On the initial screen of the App press the camera you want to manage. Ⓗ The camera picture appears on your smartphone. Ⓞ
• Swipe your finger across the screen to zoom in and out and to move the camera image. ⚠ Attention! If you do not have a picture it is possible that your wireless connection is not fast enough. In that case change the resolution of your camera image (see section 5.1.1)

The camera screen provides a number of options:

• Press the "Snapshot" button ^01 to make a snapshot of your camera image.
• Press the "mute/listen/speak" button ^02 to adjust your sound settings.

5.1.1. Changing the settings of your camera on your Android smartphone

• On the start screen of your App press the arrow button next to the camera you want to manage. N2 A menu with options opens. P
• Press the "Edit camera" button and then the "Advanced settings" button. The "Advanced settings" window opens. In the "Advanced settings" window you can change a number of properties of the camera.

The main functions are described below:

Modify security code R1: Adjust the code of your camera. The default code is: 000000.

Video Quality ^82 : Adjust the resolution of your camera. If you have a slow wireless connection, change this setting to a lower setting.

5.2. Viewing your camera image on your iPhone

• On the initial screen of the App press the camera you want to manage. V The camera picture appears on your smartphone. W
• Swipe your finger across the screen to zoom in and out and to move the camera image.

Attention! If you do not have a picture it is possible that your wireless connection is not fast enough. In that case change the resolution of your camera image (see section 5.2.1)

The camera screen provides a number of options:

• Press the "Snapshot" button ^W1 to make a snapshot of your camera image.
• Press the "mute/listen/speak" button ^W2 to adjust your sound settings.

5.2.1. Changing the settings of your camera on your iPhone

- On the start screen of your App press the arrow button next to the camera you want to manage. ^72 A menu with options opens. ✗

In the "Advanced settings" window you can change a number of properties of the camera.

The main functions are described below:

Security code X1: Adjust the code of your camera here. The default code is: 000000.

Video Quality X2: Adjust the resolution of your camera. If you have a slow wireless connection, change this setting to a lower setting.

6. Managing your camera using your PC

To be able to manage your camera from your PC, you need to be logged in to the "Network Camera" browser screen with the aid of your web browser (see section 4.4). This screen contains the camera's control panel C1, a number of tabs C2 a channel overview C3, a settings menu for the camera C4 and the control panel that you use to determine the rotation of the camera. C5

6.1. Camera control panel ©1

You can use the control panel when you have selected the "live video" tab. This control panel provides the following options:

Play: Press "Play" to view your camera images live.

Stop: Press "Stop" to stop the live streaming of your camera images.

Record: Press "Record" to make a recording. Press record again to stop recording.

⚠️ Plesasnote! To be able to make recordings, you have to indicate where to save the recordings in the "Other" tab. This is explained in section 6.2.3.

Audio: Click on "Audio" to activate the sound. Click on audio again to turn the sound off.

6.2. Tabs C2

The tabs offer many different options for managing your camera(s). This manual covers the most important functions. If you would like to know more about specific settings, we advise you to consult the manual on the CD-ROM.

6.2.1. Live video

Click on the live video tab to view images from the set camera.

6.2.2. Network

Wireless Lan settings: This lets you set the wireless access to your camera. You can find more information in section 4.5

DDNS Service settings: This lets you make your camera accessible via the Internet. Consult the manual on the CD-ROM for more information about this.

6.2.3. Other

⚠️Please note! Before you can save recordings in Windows 7, 8 or Vista, you need to make the following security setting changes in Internet Explorer. While changing these settings, make sure that the Network Camera screen is open in Internet Explorer.
- Go to: Tools -> Internet Options -> Security-> Trusted Sites Ⓙ -> Sites Ⓗ
- On the screen, turn off the Server Verification option (https:). Then click "Add".
- Restart Internet Explorer.

Path settings: Under the "Path settings" option, select where you want to save the recordings that your camera makes

6.3. The camera's channel overview C3

With the channel overview you have the option to view images from multiple connected cameras simultaneously.

6.4. Camera menu settings ©4

You can adjust the camera's image settings using this menu: resolution, image speed, clarity and contrast.

6.5. Camera rotation control panel C5 10

The camera's control panel lets you adjust the camera angle both manually and automatically.

6.5.1. Manually adjusting the camera angle

• Use the arrow buttons to rotate the camera in any direction of your choice.

6.5.2. Automatically adjusting the camera angle

- Push the horizontal or vertical patrol button to make the camera automatically rotate horizontally or vertically.

7. Cleaning and maintenance

Warning! Disconnect the device from all power sources before cleaning it.

The devices are maintenance-free, so do not open them. Opening the device will void the warranty. Only clean the outside of the devices with a soft, dry cloth or brush

8. Environment and disposal

The symbol on the material, accessories or packaging indicates that this product may not be discarded as household waste. Dispose of the equipment through a recycling centre that handles electronics and electrical appliances within the EU and in other European countries which use separate collection systems for used electronics and electrical appliances. By disposing of the equipment in the proper way, you will be helping to prevent possible risks to the environment and public health, which might otherwise be caused by improper handling of the discarded equipment. Recycling of materials contributes to the conservation of natural resources. Therefore, please do not dispose of your old electronics and electrical appliances via household waste.

9. Warranty

A limited 3 year warranty applies to this device. To view the warranty terms please go to: www.smartwares.eu.

Modify security code R1: Zmiana kodu kamery. Domyślny kod to: 000000.

IR Lens: f: 6mm, F 2.0

Kijkhoek: 60 Graden

Minimale lichtsterkte: 0.5Lux @ F2.0

Video compressie: MJPEG

Beelden per seconde: 15fps(VGA), 30fps(QVGA)

Spanningsbron: 230VAC/5VDC/2A Adaptor

ActiveX Mode: Internet Explorer

Server Push Mode: Safari, Firefox en Google Chrome

VLC Mode: Internet Explorer, Safari, Firefox, Google Chrome en Opera

Letop! Voor de VLC Mode dient u de VLC player te downloaden.

Mémoire: minimum 256 MB

Certifications: CE, FCC, RoHS, R&TTE

ActiveX Mode: Internet Explorer

Server Push Mode: Safari, Firefox a Google Chrome

VLC Mode: Internet Explorer, Safari, Firefox, Google Chrome a Opera

ActiveX Mode: Internet Explorer

Server Push Mode: Safari, Firefox és Google Chrome

VLC Mode: Internet Explorer, Safari, Firefox, Google Chrome és Opera

CE, FCC, RoHS, R&TTE

Garantie: garantie

limitată la3ani

3.2. Componentele principale ①

ActiveX Mode: Internet Explorer

ActiveX Mode: Internet Explorer

Server Push Mode: Safari, Firefox i Google Chrome

VLC Mode: Internet Explorer, Safari, Firefox, Google Chrome i Opera

⚠ Napomena! Preuzmite VLC player za VLC Mode.

CE, FCC, RoHS, R&TTE

EC DECLARATION OF CONFORMITY

GB Smartwares hereby declares that the device complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. Go to www.elro.eu for the declaration of conformity or scan the QR code.

Authorized representative: Mr. Ad Netten

Quality Manager

Date: 01.02.2013

QR code

CE

R&TTE APPROVED

C704IP.2 - 2,4 GHz.

3 YEAR

smartwares safety & lighting b.v.	NL : 0900-2088888 lokaal tarief
	BE : 070-233031 lokaal tarief
	F : 0825 560 650
Broekakkerweg 15 5126 BD Gilze The Netherlands	DE : [phone]Ct./Min. dt. Festnetz, Mobil max. 42Ct./Min
	UK : [phone]
www.smartwares.eu	ES : [phone]

QR code image containing encoded data, no visible human-readable text

Scan this code with your

smartphone

for more

information
