YSTFSW100 - Subwoofer YAMAHA - Free user manual and instructions

Type	Advanced Yamaha Active Servo Technology II
Speaker	16 cm cone woofer with magnetic shielding
Dynamic power	130 W
Input impedance	12 kΩ
Frequency response	30 Hz - 200 Hz
Input sensitivity	70 mV (50 Hz, 75 W/5 Ω)
Power consumption	70 W
Power supply	AC 110-120/220-240 V, 50/60 Hz (depending on model)
Input	INPUT jack (line level)
Controls	Volume, POWER switch, Voltage selector
Indicator	Green power indicator
Supplied accessories	Subwoofer cable (5 m)
Maintenance	Clean with a clean dry cloth, do not use chemical solvents
Safety	Do not open the enclosure, avoid moisture, disconnect during thunderstorms
Recommended placement	Away from walls, at least 10 cm space at rear, 20 cm above and on sides
Compatibility	Usable with amplifiers and televisions having a subwoofer output

Frequently Asked Questions - YSTFSW100 YAMAHA

How to connect the YAMAHA YSTFSW100 subwoofer?

Connect the supplied subwoofer cable (5 m) to the INPUT jack of the subwoofer and to the subwoofer output of your amplifier or TV. Then, plug the power cord into a suitable wall outlet.

What to do if the subwoofer does not turn on?

Check that the power cord is properly plugged in and that the POWER switch is in the ON position. If the green indicator does not light up, check the wall outlet.

Why is there no sound from the subwoofer?

Make sure the VOLUME control is not set to 0 and that the cables are properly connected. Also check that your amplifier is sending a signal to the subwoofer output.

The subwoofer sound level is too low, how to increase it?

Turn the VOLUME control to the right. If the problem persists, check that the audio source contains low frequencies. You can also reposition the subwoofer to avoid standing waves.

Can I use this subwoofer with any amplifier?

Yes, as long as your amplifier or TV has a dedicated subwoofer output. The input impedance is 12 kΩ, compatible with most devices.

How to maintain the YAMAHA YSTFSW100 subwoofer?

Clean the unit with a clean dry cloth. Never use chemical solvents. Make sure the ventilation openings are not obstructed.

Where to place the subwoofer for the best bass?

Place the subwoofer next to the front speaker, preferably at an angle to the wall to avoid wave cancellation. Leave at least 10 cm space at the rear and 20 cm on the sides for good heat dissipation.

What to do in case of distortion or abnormal noise?

Immediately reduce the volume. Distortion may be due to too high a level. If the problem persists, check the connections and move the subwoofer away from other electronic devices.

Can I repair the subwoofer myself in case of failure?

No, never open the enclosure as it contains high voltages. Contact an authorized dealer or YAMAHA service center for any service.

What is the required power supply voltage for this subwoofer?

The voltage is AC 110-120/220-240 V, 50/60 Hz depending on the model. Before connecting, check the position of the voltage selector on the rear panel and set it to the voltage of your region.

USER MANUAL YSTFSW100 YAMAHA

Precautions: Read this before operating this unit

• To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
• Install this unit in a cool, dry, clean place - away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electrical shock, do not expose this unit to rain or water.
• Never open the cabinet. If any foreign objects drop into the set, contact your dealer.
• The voltage to be used must be the same as that specified on the rear panel. Using this unit with a higher voltage than specified is dangerous and may cause a fire and/or electric shock.
• To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.
• Do not use force on switches, controls, or connection wires. When moving the unit, first disconnect the power plug and the wires connected to other equipments. Never pull the wires themselves.
• When not planning to use this unit for a long period (ie., vacation, etc.), disconnect the AC power plug from the wall outlet.
• To prevent lightning damage, disconnect the AC power plug when there is an electric storm.
• Since this unit has a built-in power amplifier, heat will radiate from the rear panel. Place the unit apart from the walls, allowing spaces of at least 10cm behind and 20 cm above and on both sides of the unit to prevent fire or damage. Furthermore, do not position with the rear panel facing down on the floor or other surfaces.
• Do not cover the rear panel of this unit with a newspaper, a tablecloth, a curtain, etc. in order not to obstruct heat radiation. If the temperature inside the unit rises, it may cause fire, damage to the unit and/or personal injury.
• Do not place the following objects on this unit: Glass, china, small metallic etc.

If glass etc. falls by vibrations and breaks, it may cause bodily injury.

A burning candle etc.

If the candle falls by vibrations, it may cause fire and bodily injury.

A vessel with water in it

If the vessel falls by vibrations and water spills, it may cause damage to the speaker, and/or you may get an electric shock.

• Do not place this unit where foreign objects such as water drips might fall. It might cause a fire, damage to this unit, and/or personal injury.

This unit features a magnetically shielded design, but there is still a chance that placing it too close to a TV set might impair picture color. Should this happen, move this unit away from the TV set.

• Never put a hand or a foreign object into the YST port located on the right side of this unit. When moving this unit, do not hold the port as it might cause personal injury and/or damage to this unit.
• Never place a fragile object near the YST port of this unit. If the object falls or drops by the air pressure, it may cause damage to the unit and/or personal injury.
• Never open the cabinet. It might cause an electric shock since this unit uses a high voltage. It might also cause personal injury and/or damage to this unit.
• When using a humidifier, be sure to avoid condensation inside this unit by allowing enough spaces around this unit or avoiding excess humidification. Condensation might cause a fire, damage to this unit, and/or electric shock.
• Super-bass frequencies reproduced by this unit may cause a turntable to generate a howling sound. In such a case, move this unit away from the turntable.
• This unit may be damaged if certain sounds are continuously outputted at high volume level. For example, if 20Hz - 50Hz sine waves from a test disc, bass sounds from electronic instruments, etc. are continuously outputted, or when the stylus of a turntable touches the surface of a disc, reduce the volume level to prevent this unit from being damaged.
• If you hear distorted noise (i.e., unnatural, intermittent "rapping" or "hammering" sounds) coming from this unit, reduce the volume level. Extremely loud playing of a movie soundtrack's low frequency, bass-heavy sounds or similarly loud popular music passages can damage this subwoofer system.
• Vibration generated by super-bass frequencies may distort images on a TV. In such a case, move this unit away from the TV set.
• Do not attempt to clean this unit with chemical solvents as this might damage the finish. Use a clean, dry cloth.
• Be sure to read the "TROUBLESHOOTING" section regarding common operating errors before concluding that the unit is faulty.
• Install this unit near the wall outlet and where the AC power plug can be reached easily.
• Secure placement or installation is the owner's responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of the subwoofer.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. In this state, this unit is designed to consume a very small quantity of power.

SPECIAL INSTRUCTIONS FOR U.K. MODEL

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the following instructions.

Note: The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

IMPORTANT:

THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL

Brown: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug.

For Canadian Customers

To prevent electric shock, match wide blade of plug to wide slot and fully insert. This Class B digital apparatus complies with Canadian ICES-003.

VOLTAGE SELECTOR

(For Asia and General models)

The voltage selector switch on the rear panel of this unit must be set for your local main voltage BEFORE plugging this unit into the AC main supply. Voltages are 110-120/220-240 V AC, 50/60 Hz.

Table of contents

Precautions: Read this before operating this unit

Introduction 2

Positioning the subwoofer 2

Connections 3

Using the subwoofer 4

Advanced Yamaha Active Servo Technology II 5

Troubleshooting 6

Specifications 7

Features

• This subwoofer system employs Advanced Yamaha Active Servo Technology II which Yamaha has developed for reproducing higher quality super-bass sound. (Refer to page 5 for details on Advanced Yamaha Active Servo Technology II.) This super-bass sound adds a more realistic, theater-in-the-home effect to your stereo system.

The slim design matches the interior of your home.

Supplied accessories

Please confirm that the following item is included in the package.

Subwoofer cable (5 m)

Positioning the subwoofer

（subwoofer，front speaker)

It is recommended to place the subwoofer on the outside of either the right or the left front speaker. (See fig. A) The placement shown in fig. is also possible, however, if the subwoofer system is placed directly facing the wall, the bass effect may die because the sound from it and the sound reflected by the wall may cancel out each other. To prevent this from happening, face the subwoofer system at an angle as shown in fig. A

Note: There may be a case that you cannot obtain enough super-bass sounds from the subwoofer when listening in the center of the room. This is because "standing waves" have been developed between two parallel walls and they cancel the bass sounds.

In such a case, face the subwoofer obliquely to the wall. It also may be necessary to break up the parallel surfaces by placing bookshelves etc. along the walls.

Caution: Plug the power cables for the subwoofer and other audio/video components into an AC outlet only after you complete all other connections.

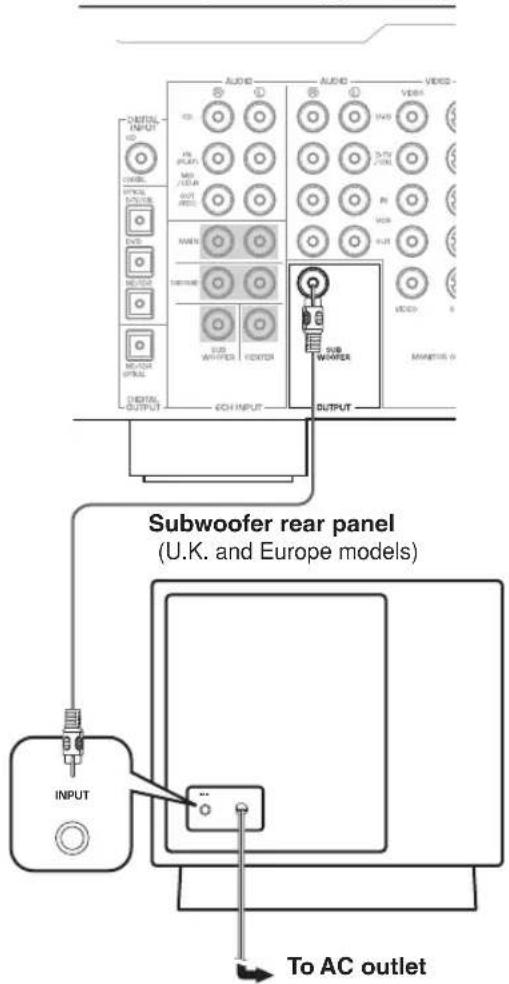

Basic connection example

Connect the subwoofer cable to the output jack of your AV amplifier, receiver or TV and to the INPUT jack of the subwoofer.

Amplifier (The rear panel of various amplifiers may differ in appearance.)

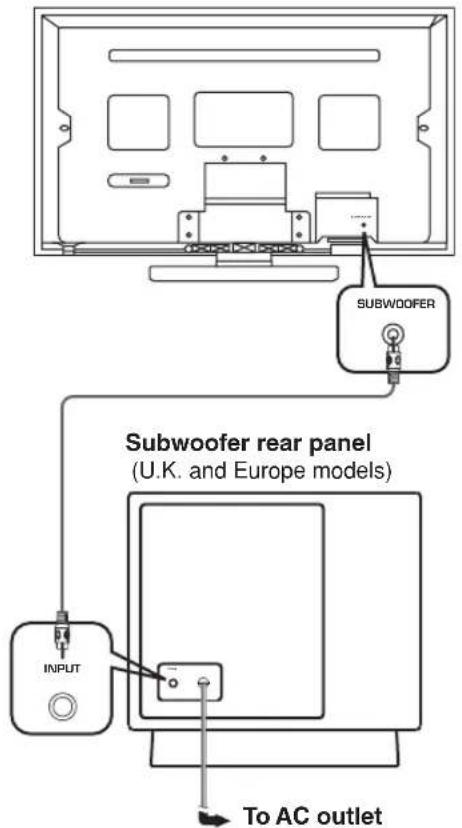

Flat TV (The rear panel of various Flat TV may differ in appearance.)

Connecting components and the subwoofer to AC power

After you complete a subwoofer connection, plug the amplifier, TV or other audio/video component, and the subwoofer into an AC outlet of appropriate voltage.

VOLTAGE SELECTOR

(For Asia and General models) The voltage selector switch on the rear panel of this unit must be set for your local main voltage BEFORE plugging this unit into the AC main supply. Voltages are 110 - 120 / 220 - 240V AC, 50 / 60Hz .

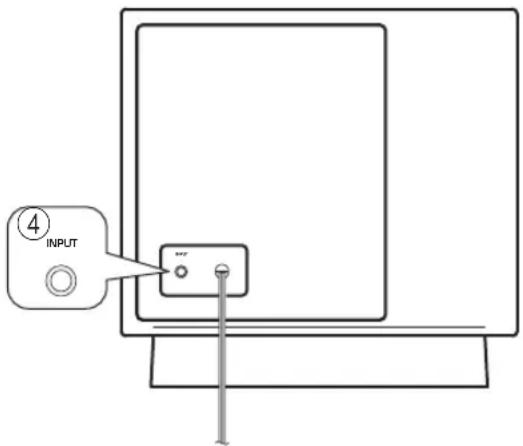

Subwoofer rear panel

(U.K. and Europe models)

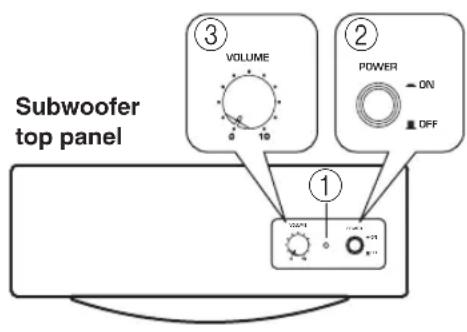

① Power indicator

Lights up GREEN when the POWER switch (2) is turned ON; turns off when the POWER switch is turned OFF.

② POWER switch

Press this switch to the ON position to turn on the power to the subwoofer. When the power of the subwoofer is on, the power indicator (1) on the rear panel lights up green. Press this switch again to set it to the OFF position to turn off the power of the subwoofer.

③ VOLUME control

Adjusts the volume level. Turn the control clockwise to increase the volume, and counterclockwise to decrease the volume.

④ INPUT terminal

Input terminal for line level signals from the amplifier.

For Asia and General models

VOLTAGE SELECTOR. See page 3 for more details.

Pre-adjusting the subwoofer volume

Before you use the subwoofer, first adjust the volume balance between the subwoofer and the front speakers by following the procedure below.

1. Set the VOLUME control to minimum (0).
2. Turn on the power to all other components.
3. Press the POWER switch to the ON position. The power indicator on the rear panel lights up green.
4. Play a source that contains low-frequency sounds. Adjust the amplifier's volume control to the desired listening level.
5. Increase the volume gradually to adjust the volume balance between the subwoofer and the front speakers. To enjoy natural bass sound, keep the subwoofer volume at a level where it is barely distinguishable from other speakers.
6. Adjust the volume of the entire sound system using the amplifier's volume control.

Note: It is recommended to set the VOLUME control about in the middle position when using in a multi channel home theater system.

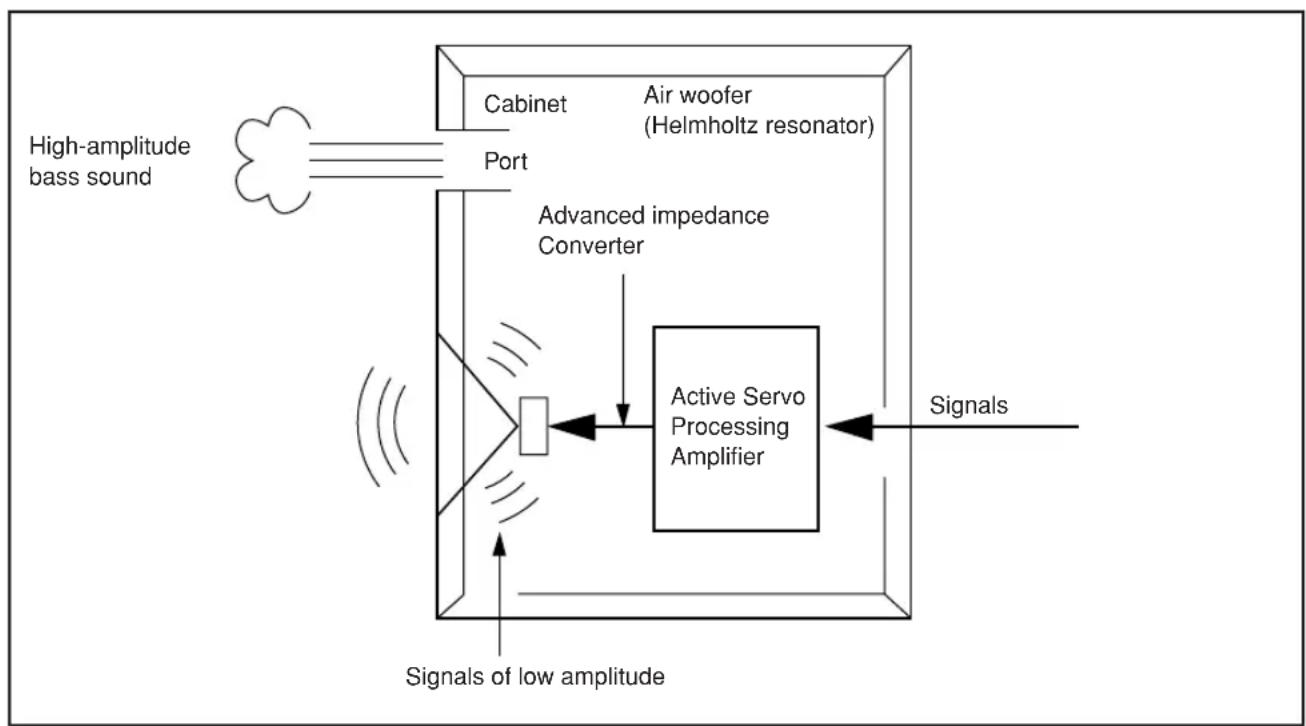

Advanced Yamaha Active Servo Technology II

In 1998, Yamaha brought to the marketplace speaker systems utilizing YST (Yamaha Active Servo Technology) to give powerful, high quality bass reproduction. This technique uses a direct connection between the amplifier and speaker, allowing accurate signal transmission and precise speaker control.

As this technology uses speaker units controlled by the negative impedance drive of the amplifier and resonance generated between the speaker cabinet volume and port, it creates more resonant energy (the "air woofer" concept) than the standard bass reflex method. This allows for bass reproduction

from much smaller cabinets than was previously possible.

Yamaha's newly developed Advanced YST II adds many refinements to Yamaha Active Servo

Technology, allowing better control of the forces driving the amplifier and speaker. From the amplifier's point of view, the speaker impedance changes depending on the sound frequency.

Yamaha

developed a new circuit design combining negative-impedance and constant-current drives, which provides a more stable performance and clear bass reproduction without any murkiness.

Troubleshooting

Refer to the chart below if the unit does not function properly. If the problem you are experiencing is not listed, or if the instructions fail to help you resolve the problem, disconnect the power cord and contact your authorized Yamaha dealer or service center.

Problem Cause Remedy
Power is not supplied even though the POWER switch is set to the ON position.	The power plug is not securely connected.	Turn the power switch OFF, then connect the power plug securely.
No sound.	The VOLUME control is set to 0. Turn	the VOLUME control to the right (clockwise).
	A subwoofer cable is not connected securely.	Connect a subwoofer cable securely.
Sound level is too low.	You are playing a sound source that includes inadequate bass frequencies.	Play a sound source that includes more bass frequencies.
	The sound level has been diminished by standing waves.	Reposition the subwoofer, or break up the parallel wall surface by placing bookshelves or other large objects along the wall.
	The input signal is too small. Turn up the volume.
	No signal from the subwoofer output terminal of the component.	Check the speaker mode setting on the component.

Type...Advanced Yamaha Active Servo TechnologyII

Driver 16 cm (6.5") cone woofer Magnetically shield type

Output Power. 75W (5 Ω, 10%)

Dynamic Power. 130W, 5Ω

Input Impedance 12 kΩ

Frequency Response 30 Hz - 200 Hz

Input Sensitivity. 70 mV (50 Hz, 75 W/5 Ω)

Power Supply

[U.S.A. and Canada models] AC 120 V, 60 Hz

[Australia model]. AC 240 V, 50 Hz

[China model] AC 220 V, 50 Hz

[Korea model] AC 220 V, 60 Hz

[U.K. and Europe models]AC 230 V,50 Hz

[Asia and General model]

AC 110-120/220-240 V, 50/60 Hz

Power Consumption. 70W

Dimensions (W× H× D)

400 mm x 375 mm x 157 mm

Weight. 9 kg

Specifications are subject to change without notice.

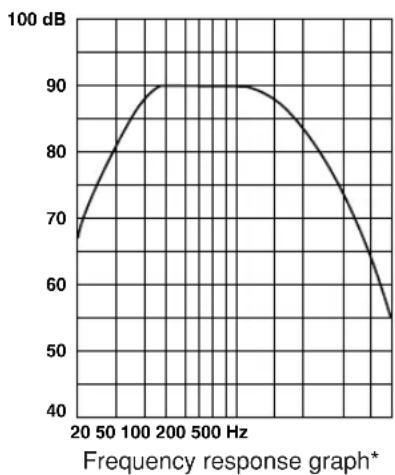

Frequency characteristics

*This diagram does not depict actual frequency response characteristics accurately.

Advanced Yamaha Active Servo Technology II 5
