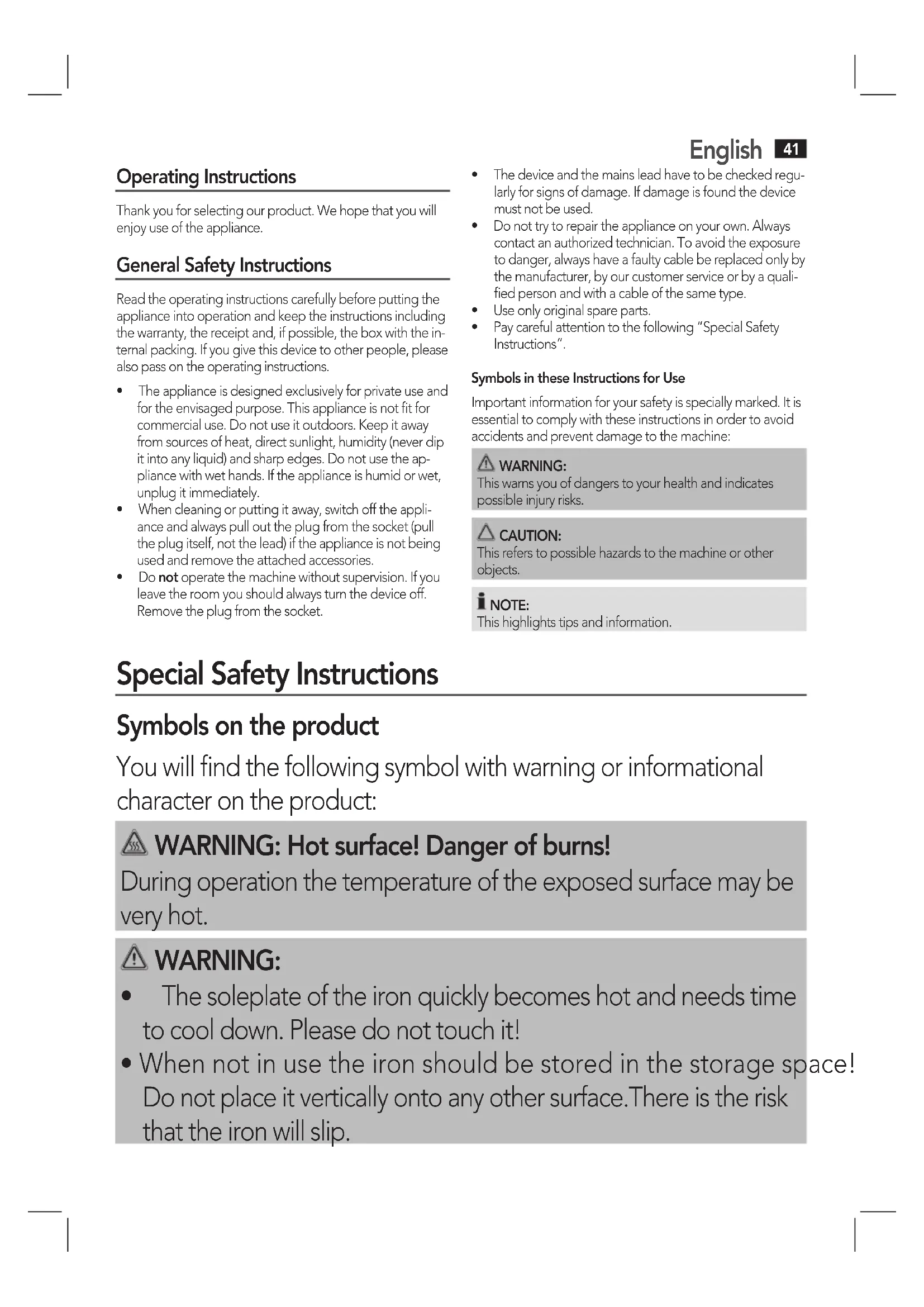

Operating Instructions

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

English

• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
  • Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

Special Safety Instructions

Symbols on the product

You will find the following symbol with warning or informational character on the product:

WARNING: Hot surface! Danger of burns!

During operation the temperature of the exposed surface may be very hot.

WARNING:

• The soleplate of the iron quickly becomes hot and needs time to cool down. Please do not touch it!
• When not in use the iron should be stored in the storage space! Do not place it vertically onto any other surface. There is the risk that the iron will slip.

42 English

WARNING:

• Choose a secure surface for the stand! The surface must be level and stable. Check the surface again for stability.
• The iron must be used and rested on a stable, heat-resistant surface.
  • Before filling the water tank remove the mains lead.
• The iron must not be left unsupervised while it is connected to the mains.
• Do not use the iron if it was dropped, has visible damages or leaks.
• While the iron is switched on and while it cools down, the iron and its connection cable must be outside the reach of children younger than 8 years.

- The tank should only be filled up to the maximum mark. Do not overfill! Maximum water filling quantity: 1.0 litres.

• Do not bend the connecting hose (3)!

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.

Intended Use

This appliance is intended for ironing of clothing and textiles. It is intended for use in households.

Any other use shall be considered as not intended use and can lead to material damage or even personal injury.

Overview of the Components

1 Steam jet button
2 Temperature control
3 Connecting tube
4 Mains lead
5 Base
6 Iron rest
7 Releasing device for handle "UNLOCK"
8 Water tank with lime filter
9 Handle
10 "Temperature" control lamp
11 Steam jet button
12 Lock for continuous steam
13 Lime filter cartridge

not shown

RELEASE button below the water tank. Releasing device of the water tank

Instructions

Unpacking

• Remove any protective foils and stickers from the sole-plate.
  • Please unwind the lead completely.

Electrical connection

• Make sure that the iron voltage (see name plate) and the line voltage match.
- The mains plug should only be inserted into a correctly installed 230 V \~ 50 Hz socket with earthing contact.

Power Requirements

The station has a total maximum wattage of 2200 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: OVERLOAD!

• If you use extension leads, these should have a cable cross-section of at least 1.5 mm ^2
• Do not use any multiple sockets, as this device is too powerful.

Function of the Handle (9)

The handle attached to the base serves for carrying the appliance when the mains plug has been pulled from the outlet.

• To carry the appliance, raise the handle until it engages (Fig. A). A "click" confirms that the handle has been locked. You can use the handle for transport of the appliance.
• To unlock the handle lock, press both buttons "UNLOCK" (7) at the same time and lower the handle (Fig. B).

Line drawing of a steam iron with a label 'A' indicating part (no text or symbols on the diagram itself)

Line drawing of a car interior with arrows indicating movement or force (no text or symbols)

Temperature Control on the Iron (2)

The symbols on the control correspond to the following settings:

MIN Off

(Synthetics) low temperature

(Wool, Silk) medium temperature

(III) (Cotton) high temperature

(Linen)

highest temperature

Water Tank (8)

• The water tank has a recessed grip on the bottom so that it can be removed.
• The lock of the water tank is also the lime filter cartridge. Take out the lime filter cartridge to fill with water. With this, proceed as described under "How can I replenish the water during operation?".
  • The tank volume is 1.0 litres.
• The tank illumination lights once the mains plug has been inserted into the outlet. It indicates readiness for steam ironing when the lime filter cartridge and the water tank have been set correctly.

Water

Use only tap water or distilled water.

Do not fill battery water, water from the clothes dryer and water containing additives (such as starch, perfume, softener or other chemicals) into the water reservoir.

This could damage the iron due to residues forming in the steam chamber. These residues may cause impurities to the fabric when dropping out of the holes in the soleplate.

44 English

Operation

Before Initial Use

• Clean the ironing base with a slightly damp cloth.
• In order to remove all residues before initial use, please pass the iron a few times over an old clean cloth.

Ironing without steam

i NOTE:

• Sort out the garments according to their ironing temperatures.
• Always set the temperature control to "MIN" before connecting the appliance to a power point, or before disconnecting it.
• If the handle should still be in the carrying position, unlock the lock as described above under "Function of the Handle".
• Place the iron on the rest (6).
• Only connect the machine to a properly installed safety socket, 230 V\~, 50 Hz.
• Set the temperature on the temperature control (2). If you have sensitive items to iron, please begin with the lowest temperature.

i NOTE:

The control lamp (10) on the iron shows that it is heating up. As soon as the control lamp goes off the operating temperature has been reached. Now you can start ironing.

- Always turn the temperature control to "MIN" after use and remove the mains plug (the control lamp in the handle goes off).

Steam Ironing

WARNING:

The iron expels a large quantity of hot steam. Danger of burns.

△ CAUTION:

• When using the steam iron please ensure that the water tank is always filled to the required level.
• The lime filter cartridge always has to be positioned in the water tank, even if you use distilled water.

△ CAUTION: INITIAL USE:

Please proceed as follows:

• The tank should only be filled up to the maximum mark. Do not overfill!
• Close the water tank and place it back in the base.
• Connect the base station to a 230 V / 50 Hz socket with earthing contact The tank illumination indicates readiness for steam ironing.
• Set the desired temperature within the range "……" to "……".
  The control lamp on the iron lights up.
• Wait until the soleplate has heated up. Once the temperature has been reached the control lamp goes off.

CAUTION: INITIAL USE:

- Press the steam jet button (1) for at least 1 minute. As an alternative, you can pull back the lock (12) to lock the steam jet button (11). This time is needed for the steam to reach the iron. A slightly louder noise of the pump is normal with this.

NOTE ON STEAM IRONING:

If the temperature control is set to less than “” the production of steam is prevented.

Vertical Steam function (Vertical Steam)

This can be used to produce a jet of steam in a vertical direction. This function can be used to remove creases from hanging clothes or from curtains.

WARNING:

Never point the steam jet at other people. Danger of burns.

Hang your laundry on a clothes hanger and move the iron to approximately 5-15 cm away.

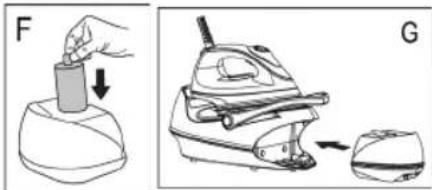

How can I replenish the water during operation?

Refill with water before the tank is completely empty. A loud noise of the pump during operation indicates that the water level is too low.

Line drawing of a steam iron with handle and side arm, no text or symbols present

• Place the iron on the rest (6).
• Set the temperature control to "MIN".
• Remove the mains plug from the socket.
• In order to remove the tank, press the RELEASE button below the water tank. (Fig. C).
• Remove the lime filter cartridge (Fig. D).
• Fill the tank up to the maximum mark (Fig. E). Do not overfill!
• Reinsert the lime filter cartridge and push the tank back into the base (Fig. F + G). A "click" confirms that the water tank has been set correctly.
  • You can now continue ironing.

Two-step diagram showing a hand pressing down on a cylindrical object into a machine, and a close-up of the device being placed with a handle (no text or symbols)

i NOTE:

The tank illumination lights once the mains plug has been inserted into the outlet. If it does not light, the lime filter cartridge or the water tank has not been set correctly. Check both positions.

When you have finished

• Now you can start ironing. Always turn the temperature control to "MIN" after use and remove the mains plug (the control lamp in the handle goes off).
• Remove the mains plug from the socket. The tank illumination goes out.
  • Empty the water tank.
• Allow the device to cool down before you put it away.

Anti-scale filter

Your steam iron station is fitted with an anti-scale filter. The anti-scale filter cartridge becomes spent after filtering approximately 18 litres of water, depending on the hardness of your water. It then loses its effectiveness and must be replaced.

• Turn off the appliance.
  • Disconnect the mains plug from the mains.
• Remove the water tank.
• Remove the anti-scale filter cartridge.
  • Fill the tank up to the maximum mark. Do not overfill!
• Insert a new anti-scale filter cartridge.
• Before turning on the appliance, wait a few minutes until the new filter cartridge is saturated with water.

i NOTE:

If you do not have a new anti-scale filter cartridge, you can still iron with the used cartridge and distilled water.

Cleaning

WARNING:

• Always remove the mains lead before cleaning!
- Wait until the machine has cooled down completely.
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

△ CAUTION:

• Do not use a wire brush or any abrasive items.
  • Do not use any acidic or abrasive detergents.

• Children shall not perform cleaning without supervision.
• Clean the casing with a slightly damp cloth.
- Clean the sole plate and the rest with a slightly damp cloth.
- Any residual water can remain in the water tank, but should be poured out if it has been in the tank for a prolonged period.

Troubleshooting

Fault Possible Cause Remedy
Device does not work	Faulty mains socket	Try another socket
	The thermostat is set to the position "MIN"	Set it to the desired position.
Loud noises during steam operation	The tank is empty	Check the tank
The device suddenly stops working during operation	Is the electric circuit overloaded?	Check the house fuse
The tank illumination does not light after heating and no steam is generated	The lime filter cartridge is mission or has not been set correctly.	Check the position of the lime filter cartridge.
	The water tank has not been installed correctly.	A "click" confirms that the water tank has been set correctly.

Technical Data

Model: DBS 5573

Power supply: 230 V\~, 50/60 Hz

Power consumption: 2200 W

Protection class: .... I

Maximum filling quantity of the water tank: ....1.0 Litre

Net weight: ....approx. 3.25 kg

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal- Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcje obsługi

Line drawing of a steam iron with a handle and spout, labeled 'A' (no text or symbols on the device itself)

Line drawing of a shoe's front view with arrows indicating movement or force (no text or symbols)

Line drawing of a steam iron with a handle and side arm, labeled 'C' and with an arrow indicating motion (no text or symbols on the device itself)

Line drawing of a steam iron with a small container nearby (no text or symbols)

i WSKAZÓWKA:

Line drawing of a steam iron with a handle and spool, labeled 'A' (no text or symbols on the device itself)

Line drawing of a shoe's front view with arrows indicating measurement points (no text or symbols)

Line drawing of a steam iron with a handle and spout, showing no text or symbols

Line drawing of a steam iron with a separate clamped device (no text or symbols)

MEGJEGYZÉS:

Line drawing of a steam iron with a label 'A' and directional arrow (no text or symbols on the device itself)

Line drawing of a shoe's back panel with straps and buttons, labeled B (no text or symbols on the object itself)

Line drawing of a steam iron with a labeled component (no text or symbols)

i ПРИМІТКА.

Line drawing of a steam iron with a handle and spool, labeled 'A' (no text or symbols on the device itself)

Line drawing of a shoe's front view with arrows indicating measurement points (no text or symbols)

Line drawing of a steam iron with handle and side arm, showing motion direction (no text or symbols)

Line drawing of a steam iron with a small component, labeled 'G' (no text or symbols on the diagram itself)

i ПРИМЕЧАНИЯ:
