Product type	Clock
Brand	TECHNOLINE
Model	WS 8007
Dimensions	W 368 x H 229 x D 29 mm
Weight	Approximately 400 g (with batteries)
Power supply	4 AA batteries (not included)
Clock type	Radio-controlled (DCF 77, 12/24 h)
Main functions	Radio-controlled time, daily alarm, calendar until 2069, indoor thermometer (0 to 50 °C), 12/24 h display, day language selection (8 languages)
Indoor thermometer	Range: 0 °C to 50 °C, display in °C or °F
Alarm	Daily alarm with snooze function (5 min, 7 repetitions)
12/24 h display	Selectable via dedicated button
Languages for weekdays	German, English, Danish, Dutch, Italian, Spanish, French, Russian
Manual setting	Possible if signal not received
Reception quality	Sensitive to interference (buildings, metal, electrical devices)
Usage precautions	Indoor use only, avoid shocks, heat, humidity
Cleaning and maintenance	Clean with a dry, soft cloth
Battery safety	Use alkaline batteries, observe polarity, do not recharge, remove if not used for a long time
Recycling	Batteries and electrical device must not be disposed of with household waste
General information	Compliant with directives 2014/53/EU and ROHS 2011/65/EC

Frequently Asked Questions - WS 8007 TECHNOLINE

How to install the batteries in the TECHNOLINE WS 8007 clock?

Slide open the battery compartment cover on the back, insert 4 AA batteries respecting polarity (+, -), then close the cover. Press the RESET button with a pin to initialize the device.

Why is the radio-controlled icon blinking and how to synchronize the time?

The blinking indicates the clock is searching for the DCF signal. Make sure the clock is placed near a window, away from electrical devices. Reception is automatic or by holding the °C/°F button for 3 seconds. The signal is successfully received when the icon remains lit.

How to manually set the time and date?

In time display mode, press and hold the MODE button for 3 seconds. Use + or - to adjust each parameter (hour, minute, second, year, month/day format, month, date, day language, time zone). Press MODE to confirm each setting. If no action for 15 seconds, the clock exits setting mode.

How to activate or deactivate the alarm?

Press the ALARM button to activate or deactivate the alarm. If the alarm is active, the corresponding icon is displayed. To set the alarm time, press MODE to display AL, then hold MODE for 3 seconds, use + or - to adjust, and confirm with MODE.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button. The alarm stops for 5 minutes then sounds again. The Z icon blinks during this period. You can repeat this up to 7 times. To stop the alarm permanently, press any button except SNOOZE, or press ALARM.

How to switch between 12-hour and 24-hour display?

Simply press the 12/24 button (B4) to switch between 12-hour and 24-hour display.

How to change the temperature unit (°C/°F)?

Press the °C/°F button (B5) to toggle between Celsius and Fahrenheit.

Which languages are available for weekdays?

The clock offers 8 languages: German, English, Danish, Dutch, Italian, Spanish, French, and Russian. You can select them during manual time/calendar setting.

What to do if the clock does not receive the radio signal?

Check that the clock is installed in a suitable location (near a window, away from metals and electrical devices). Reception can be disturbed by mountains, concrete buildings, high-voltage lines, etc. You can also set the time manually. Automatic synchronization attempts at 3:00, 4:00, 5:00, and 6:00 each night.

What type of batteries to use and how to replace them?

Use exclusively AA alkaline batteries. Do not use rechargeable batteries. Replace all batteries at the same time respecting polarity. Remove used batteries promptly and do not dispose of them in household waste. Follow recycling guidelines.

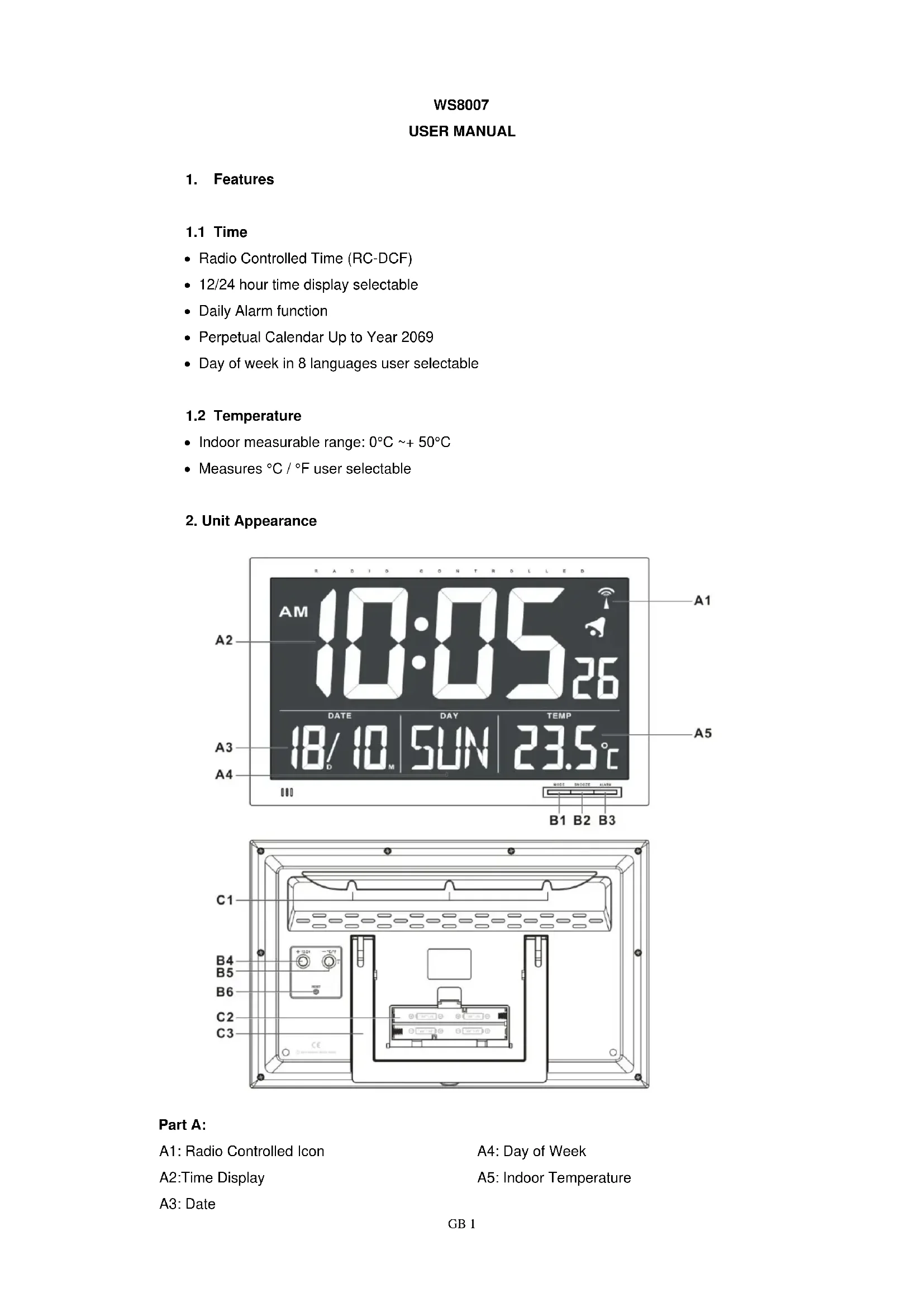

USER MANUAL WS 8007 TECHNOLINE

• Radio Controlled Time (RC-DCF)
  12/24 hour time display selectable
• Daily Alarm function
  Perpetual Calendar Up to Year 2069
  Day of week in 8 languages user selectable

1.2 Temperature

• Indoor measurable range: 0°C +50°C
• Measures °C / °F user selectable

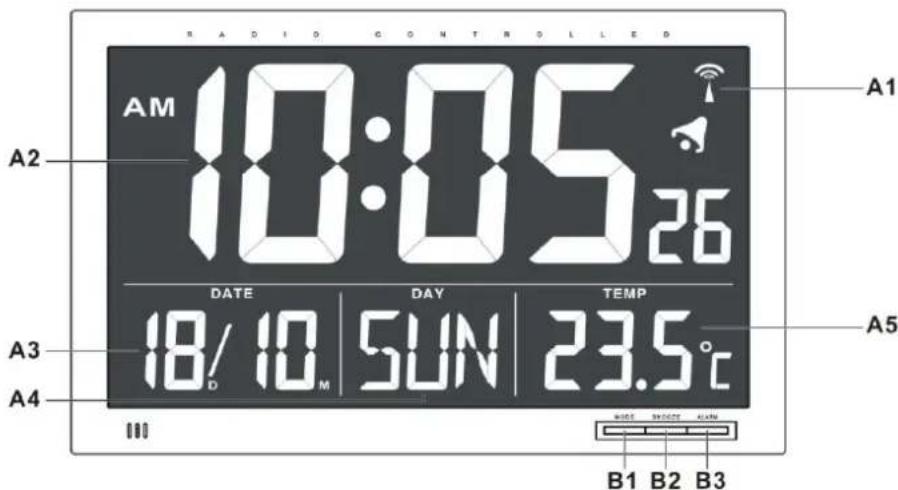

2. Unit Appearance

Part A:

A1: Radio Controlled Icon

A2:Time Display

A3: Date

A4: Day of Week

A5: Indoor Temperature

Part B:

B1:"MODE" button

B4:“+/12/24”button

B2: "SNOOZE" button

B5:"-/C/F/ button

B3: "ALARM" button

B6:“RESET” button

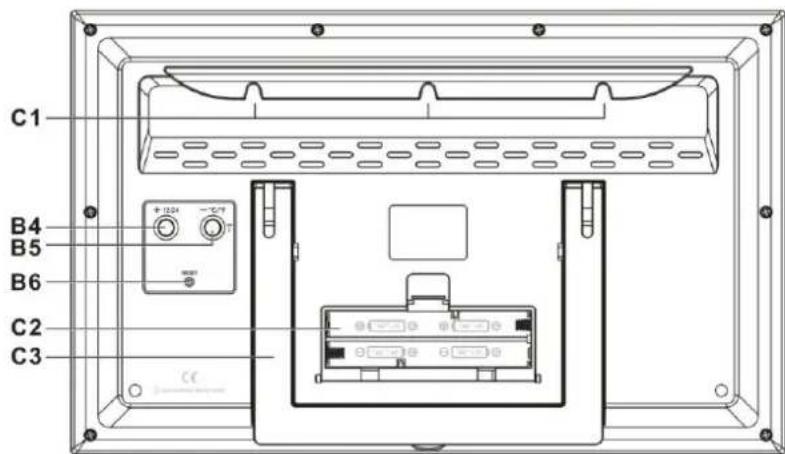

Part C:

C1: Wall Mount Hole

C3: Stand

C2: Battery Compartment

3. Getting Started:

3.1 Main Unit:

• Slide open battery compartment cover [C2]
• Insert 4 x AA size batteries observing polarity [^{u + n} and " - " marks].
• Replace battery compartment cover [C2]
• Use a pin to press the RESET [B6] button on the rear of unit, the unit is now ready for use.

4. Time and Alarm Setting

4.1 Radio Controlled Clock:

After batteries inserted, the clock automatically starts to scan the DCF time signal. Radio

Control Icon" flashes on the LCD.

flashes, Indicating now is receiving DCF signal

turns on, Indicating signal received successfully

disappear, Indicating signal reception failed

• The clock automatically scans the time signal at 3.00 a.m. every day to maintain accurate timing. If reception fails, scanning stops ("") on LCD disappears) and repeats again at 4.00 a.m. 5.00a.m. and6.00a.m.
• The clock can be set to scan the time signal manually by holding " " button (B5) for 3 seconds. Each reception takes about 5 minutes. If receptions fail, scanning stops. (" " on LCD disappear) and repeats again on next full hour. E.g. scanning failed at 8:20a.m. It will scan again at 9:00a.m.
• Stop scanning by holding "↑" button (B5) for 3 seconds.
• "DST" shown on the LCD if it is in Daylight Saving Time Mode Note: Buttons will not function while scanning for DCF time signal unless they are well received or stopped manually.

4.2 Manual Time Setting:

• In time display mode, hold "MODE" button (B1) for 3 seconds to enter Clock/Calendar setting Mode.
• Press "+" (B4) or "-" (B5) button to adjust the setting and press "MODE" button (B1) to confirm each setting.

(By keeping the "+" (B4) or "-" (B5) button pressed, could accelerate the process and reach the desired value more quickly)

• The setting sequence is shown as follow: Hour, Minute, Second, Year, Month/Day sequence, Month, Date, Weekday Language, Time Zone
• There are 8 languages for day of week: German, English, French, Italian, Dutch, Spanish, Denmark and Russian. The languages and their selected abbreviations for each day of the week are shown in the following table.

Language	Sunday	Monday	Tuesday	Wednesday	Thursday	Friday	Saturday
German, GER	SON	MON	DIE	MIT	DON	FRE	SAM
English, ENG	SUN	MON	TUE	WED	THU	FRI	SAT
Denmark, DAN	SON	MAN	TIR	ONS	TOR	FRE	LOR
Dutch, NET	ZON	MAA	DIN	WOE	DON	VRI	ZAT
Italian, ITA	DOM	LUN	MAR	MER	GIO	VEN	SAB
Spanish, ESP	DOM	LUN	MAR	MIE	JUE	VIE	SAB
French, FRA	DIM	LUN	MAR	MER	JEU	VEN	SAM
Russian, RU	BC	NH	BT	CP	HT	NT	CY

Note:

All Setting mode will automatically exit in 15 seconds without any adjustment
- For Time Zone: If you receive no RC-DCF frequency signal, the time zone should be set to 0. Time Zone is used in countries which can receive the DCF frequency signal but the time zone is different from German Time (i.e. GMT+1).

4.3 Daily Alarm Function:

• Press "MODE" button (B1) to select to view alarm Time, "AL" shown on the display
• When viewing the Alarm Time, hold "MODE" button (B1) for 3 seconds to enter Alarm Time setting. Press "+" (B4) or "-" (B5) button to adjust the alarm time. Press "MODE" button (B1) to confirm the setting.

4.4 Snooze Alarm Function:

• Press "ALARM" Button (B3) to activate or deactivate the alarm. If the alarm is on, alarm icon " appears on the display.
• Press "SNOOZE" (B2) button when alarm alerts. The alarm snoozes for 5 minutes, then it alerts again. "Z" flashes on the LCD during the snooze time. This process can be

repeated 7 times.

• Except "SNOOZE" button, press any button to stop the alarm, or press "ALARM" (B3) to stop snooze alarm.

4.5 12/24 Hour Display mode:

Press "12/24" (B4) button to select 12 or 24 hours mode.

5. Thermometer

• Press “ ° C/° F ” (B5) button to select Temperature in Celsius mode/ Fahrenheit mode.
• If the temperature is out of the measurable range, LL.L (beyond the minimum temperature) or HH.H (beyond the maximum temperature) will be shown on the LCD.

Hereby, Technotrade declares that this product WS 8007 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665080079

6. Specifications

Unit Dimensions:	W368x h229 x d29mm
Battery Requirements:	4x AA size batteries
Temperature Range:	0°C to 50°C

7. Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  among tall buildings
• inside concrete buildings
• near electrical appliances (computers, TV's, etc) and metallic structures
• inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

8. Precautions

• This main unit is intended to be used only indoors.

• Do not subject the unit to excessive force or shock.

• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.

• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

9. Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  Install batteries correctly by matching the polarities (+ / - )
  Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection

system.
