USER MANUAL DMR102 MAKITA

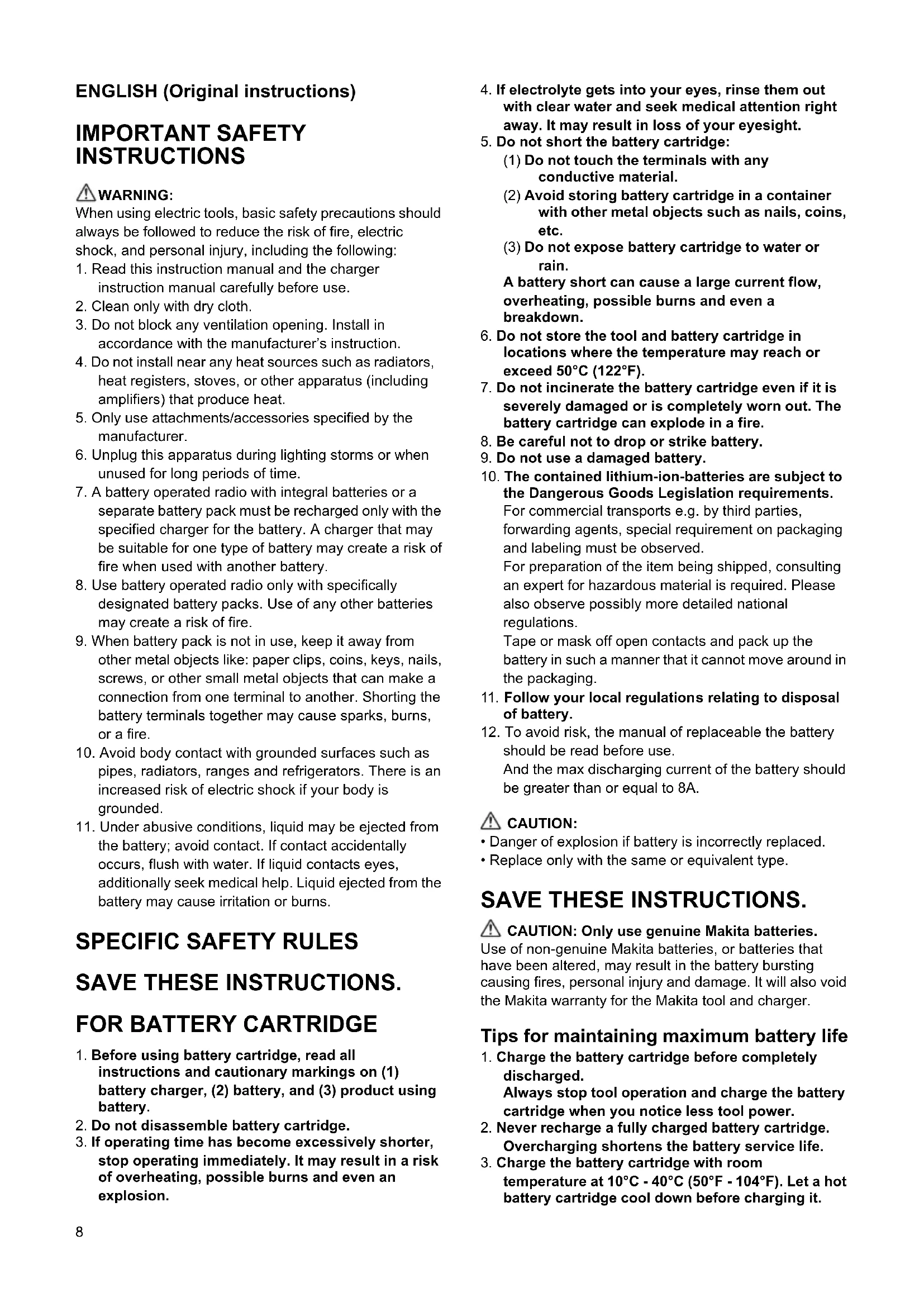

When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

1. Read this instruction manual and the charger

instruction manual carefully before use.

2. Clean only with dry cloth.

3. Do not block any ventilation opening. Install in

accordance with the manufacturer’s instruction.

4. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

5. Only use attachments/accessories specified by the

6. Unplug this apparatus during lighting storms or when

unused for long periods of time.

7. A battery operated radio with integral batteries or a

separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery.

8. Use battery operated radio only with specifically

designated battery packs. Use of any other batteries may create a risk of fire.

9. When battery pack is not in use, keep it away from

other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.

10. Avoid body contact with grounded surfaces such as

pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.

11. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

SPECIFIC SAFETY RULES

SAVE THESE INSTRUCTIONS.

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all

instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively shorter,

stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them out

with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6. Do not store the tool and battery cartridge in

locations where the temperature may reach or exceed 50°C (122°F).

7. Do not incinerate the battery cartridge even if it is

severely damaged or is completely worn out. The battery cartridge can explode in a fire.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

10. The contained lithium-ion-batteries are subject to

the Dangerous Goods Legislation requirements. For commercial transports e.g. by third parties, forwarding agents, special requirement on packaging and labeling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. Follow your local regulations relating to disposal

12. To avoid risk, the manual of replaceable the battery

should be read before use. And the max discharging current of the battery should be greater than or equal to 8A. CAUTION:

• Danger of explosion if battery is incorrectly replaced.

• Replace only with the same or equivalent type. SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

3. Charge the battery cartridge with room

temperature at 10°C - 40°C (50°F - 104°F). Let a hot battery cartridge cool down before charging it.9

4. Charge the battery cartridge if you do not use it for

a long period (more than six months). Features:

• AM/FM-stereo PLL Synthesized

• Large LCD display with illumination

• Manual/Preset/Scan tuning

• Rotary tuning and volume control

• 5 preset stations each band

• Time and 2 alarm timers (radio and HWS buzzer) with Snooze

• Adjustable sleep (auto shut off) timer

• Stereo speaker for rich sound performance

• Water resistant to IPX 4

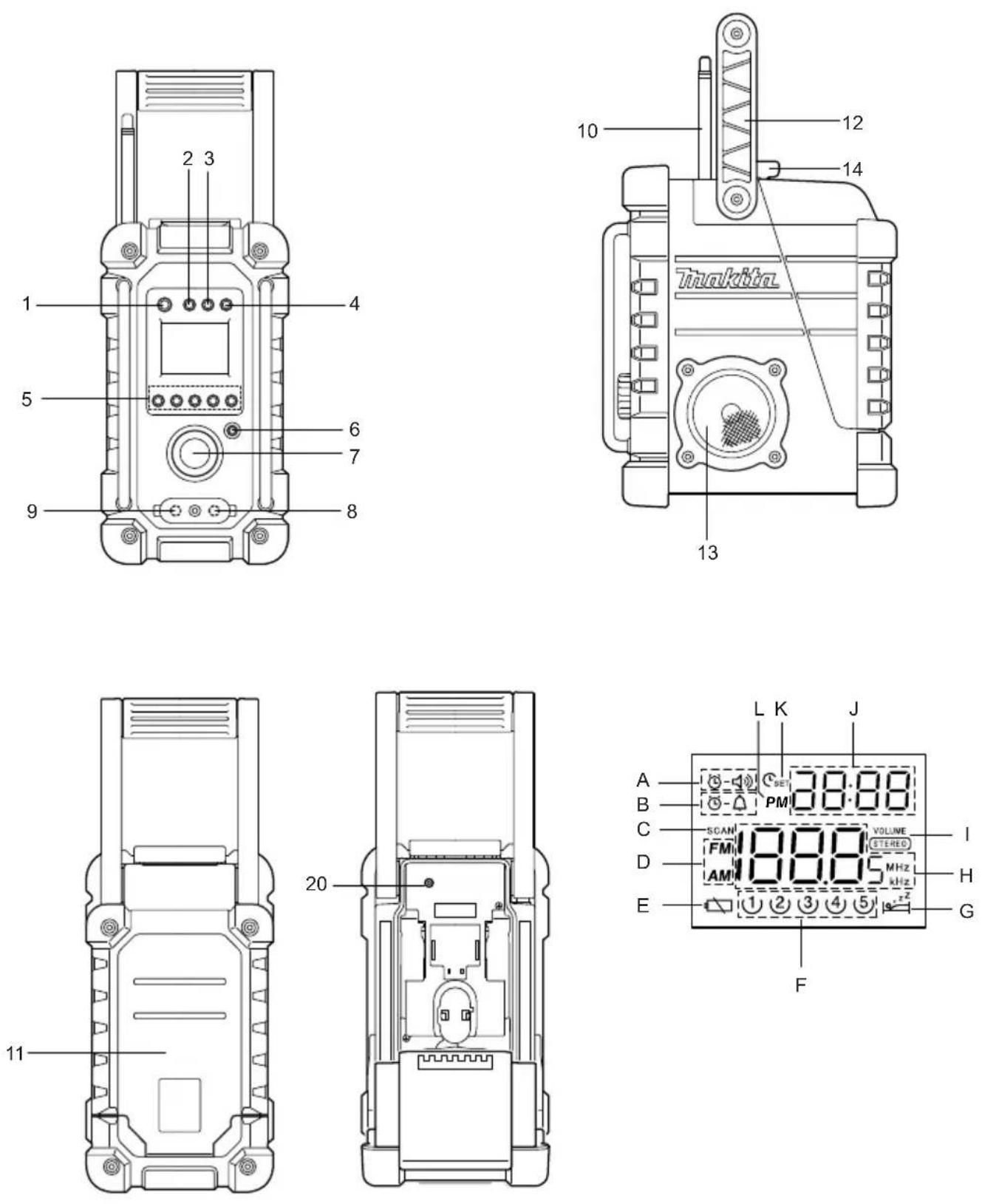

• Powered by both Makita battery pack and supplied power adaptor Explanation of general view (Fig. 1) Controls:

6. Scan tuning and Time set

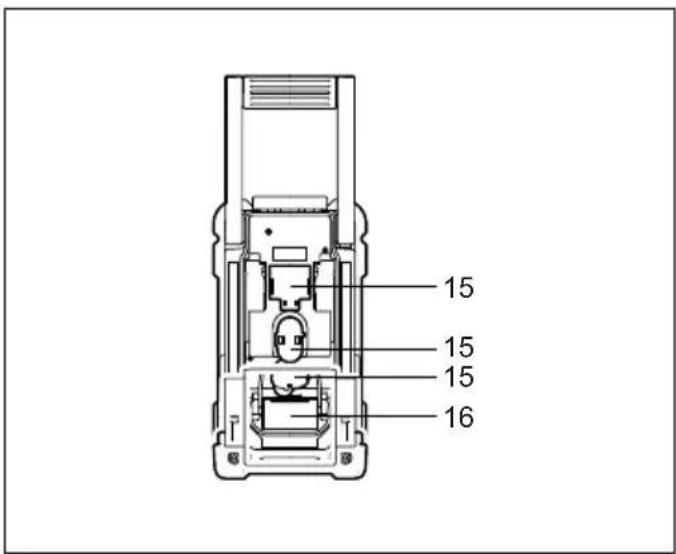

11. Battery compartment (covering main battery pack and

14. Battery compartment locker

15. Main battery compartment

16. Back up battery compartment

LCD Display: A. Radio alarm B. HWS buzzer alarm C. Scan tuning D. Band Indicator E. Low battery indicator F. Preset stations G. Sleep and Snooze status H. Frequency

I. Stereo symbol and Volume

J. Clock K. Time set L. PM for clock Battery Installation Note: Keeping back up batteries inside the compartment prevent stored data in preset memories from being lost.

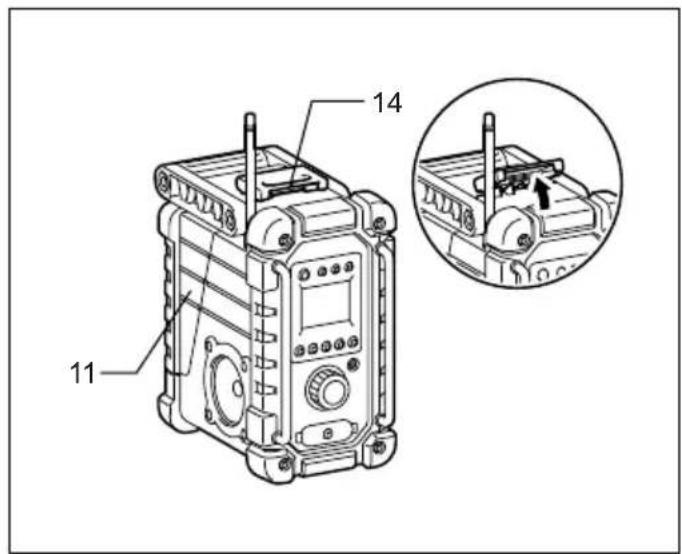

1. Pull out the battery compartment locker to release

battery compartment. There are main battery pack compartment and back up battery compartment. (Fig. 2 & 3)

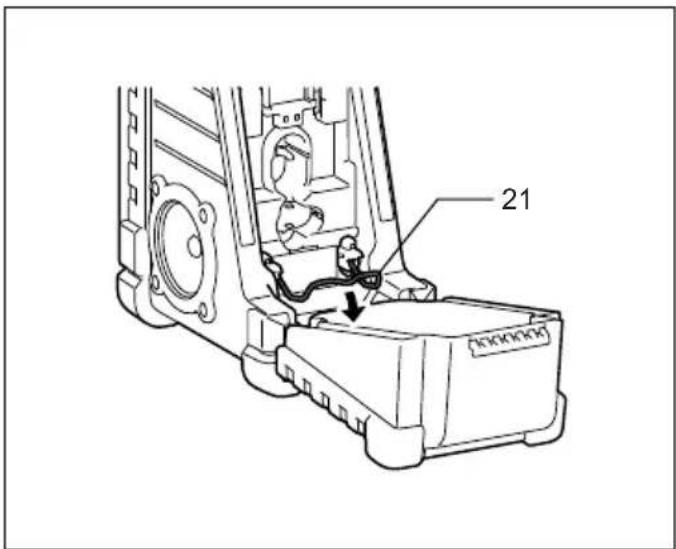

2. Remove back up battery compartment cover and

insert 2 fresh UM-3 (AA sizes). Make sure the batteries are with correct polarity as shown inside the compartment. Replace the battery cover.

3. After back up batteries are inserted, insert the main

battery pack to power radio. The suitable battery packs for this radio listed as the following table.10 The following tables indicate the operating time on a single charge. : Cluster Battery : Slide Battery Note: Table regarding to the battery operating time above is for reference. The actual operating time may differ with the type of the battery, charging condition, or usage environment. 3-1. Installing or removing Slide battery cartridge (Fig. 4)

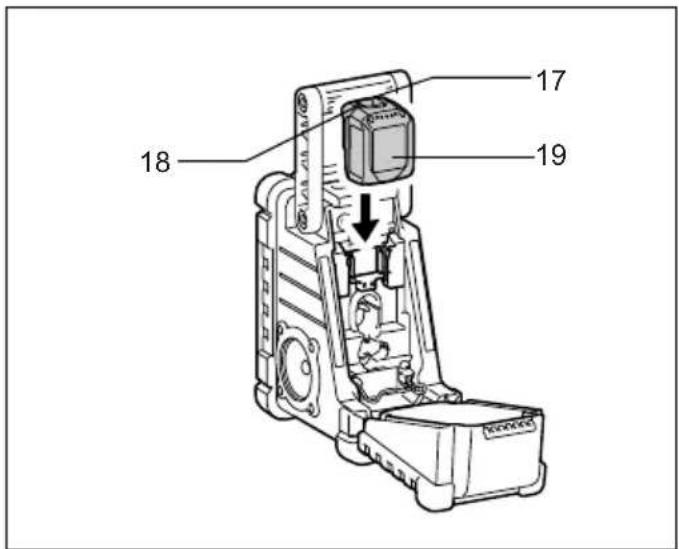

• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click.

• If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge or pressing the buttons on both sides of the cartridge. 3-2. Installing or removing Cluster battery cartridge (Fig. 5 - 9)

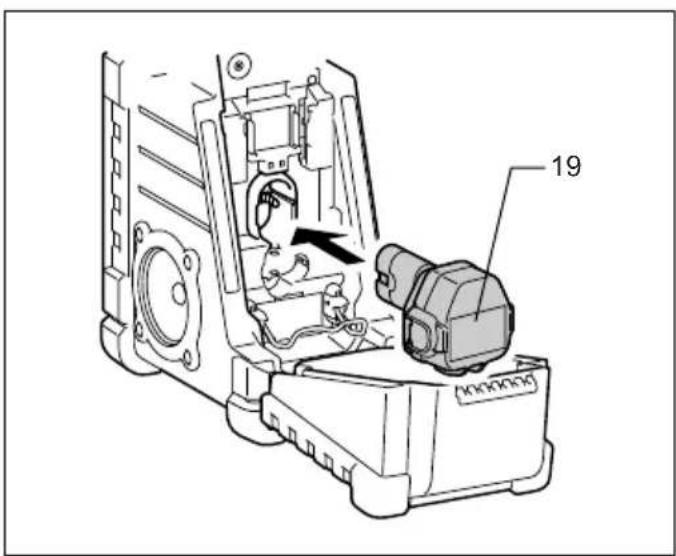

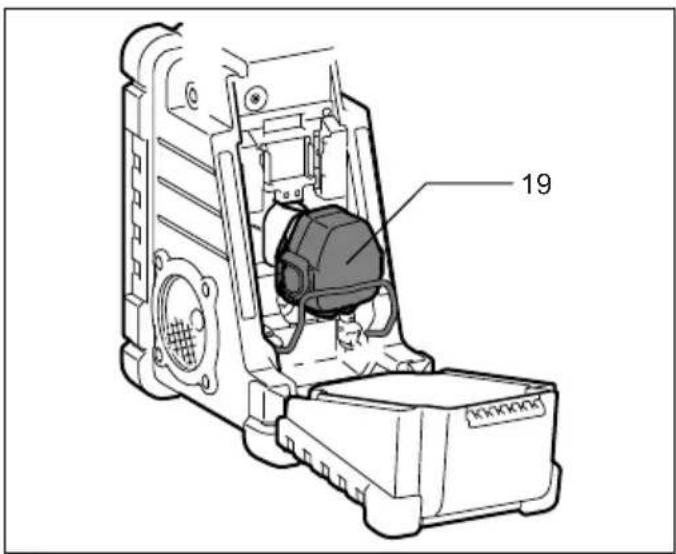

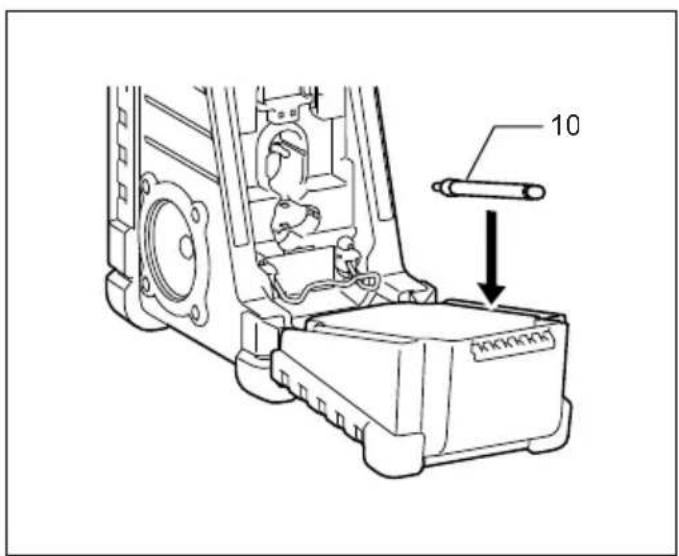

• Pull the supporting bar to allow the battery to insert to the terminal.

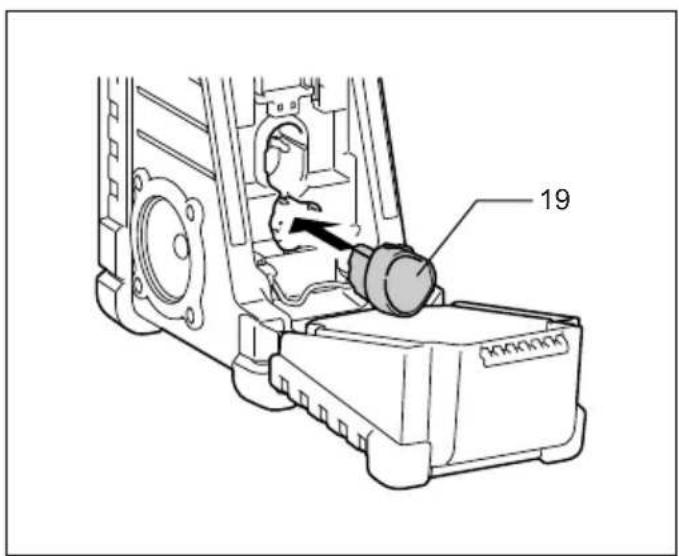

• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place.

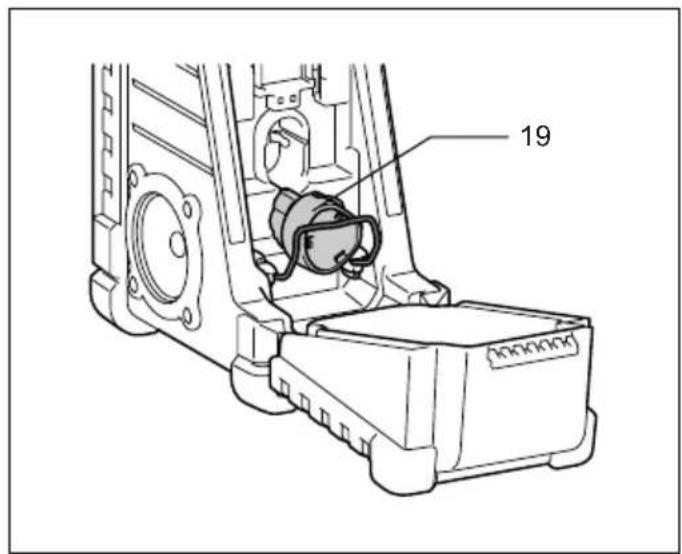

• Release the supporting bar.

• To remove the battery cartridge, pull the supporting bar and take the battery out of the terminal. Battery Cartridge Voltage

Do not use two main batteries at the same time.

Do not use two main batteries at the same time.11

4. Return the battery compartment locker to the original

5. Reduced power, distortion and a “stuttering sound” or

low battery sign that appears on the display are all the signs that the main battery pack needs to replace. Note: The battery pack can’t be charged via the supplied AC power adaptor.

6. When low battery sign appears and an “E” keeps

on flashing is the time to replace the back up batteries. Indicating the remaining battery capacity (Only for battery cartridges with “B” at the end of the model number.) (Fig. 10) Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for few seconds.

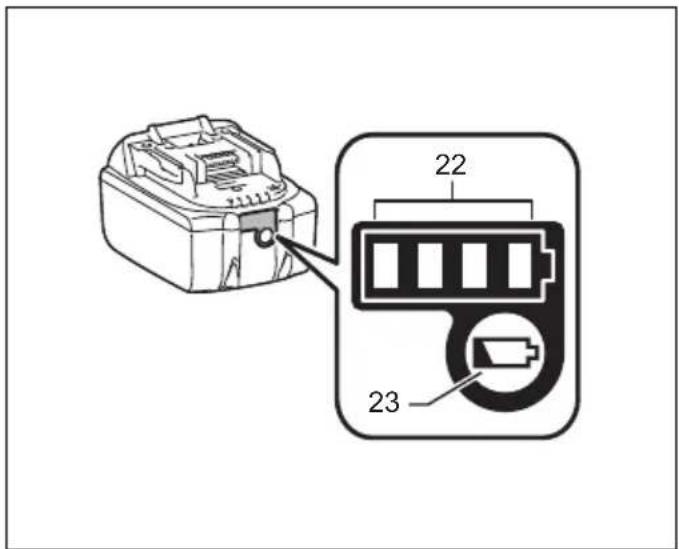

• Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity. Installing the Soft bended rod antenna (Fig. 11 & 12) Install the Soft bended rod antenna as shown in the figure. Note: There is a click in the battery compartment designed to store the removed antenna. Using Supplied AC power adaptor (Fig. 13) Remove the rubber protector and insert the adaptor plug into the DC socket on the front side of the radio. Plug the adaptor into a standard mains socket outlet. Whenever the adaptor is used, the battery pack is automatically disconnected. The AC adaptor should be disconnected from the main supply when not in use. Note: When your radio has any interference in AM band by its adaptor, please move your radio away from its AC adaptor over 30 cm. Setting the clock

1. Clock can be set either when the radio is power on or

3. Long press the time set button for more than

2 seconds, display will flash time set symbol and also the hour digit, followed by a beep.

4. Rotate Tuning/Volume control knob to set the required

5. Press button to confirm hour setting, the minute

6. Rotate Tuning/Volume control knob to set the required

7. Press the button again to complete clock setting.

Operating the radio This radio equips with three tuning methods - Scan tuning, Manual tuning and Memory presets recall. Scan Tuning

1. Press the Power button to turn on the radio.

2. Select the required waveband by pressing the Band

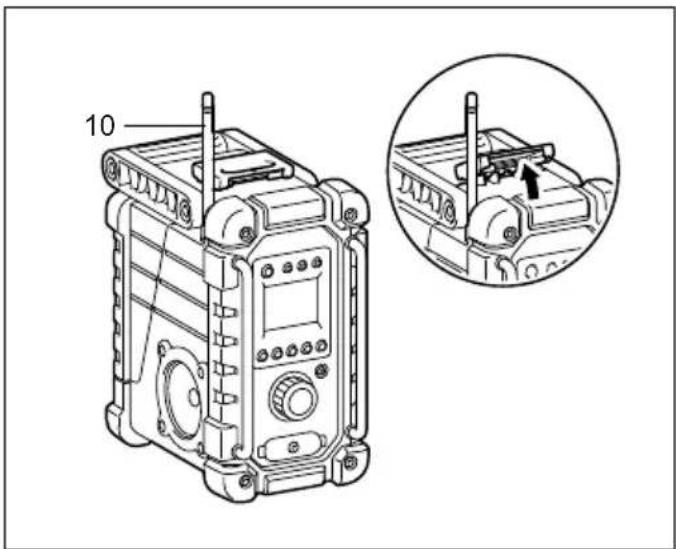

button. Make sure the rubber bended rod antenna has been well placed for best FM reception. For AM (MW) band, rotate the radio to get best signal. Try to avoid to operate the radio next to computer screen and other equipment which will cause interference to the radio.

3. Press and release Scan button (long press Scan

button more than 2 seconds will activate time setting), LCD display will flash Scan symbol and the radio will search and stop automatically when it finds a radio station. Press the Scan button again to pick up the found station. Note: A stereo symbol will appear on the display, if the station found is a stereo station. Note: The radio will continue to search next available stations if you do not press Scan button again when it finds a radio station.

4. Rotate the Tuning/Volume control knob to get required

sound level. LCD display will show sound level changes. Indicator lamps Remaining capacity Lighted Off Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned.12 Note: During operating volume control, you can press in Tuning/Volume control knob to change volume control to tuning control status.

5. To turn off the radio, press the Power button. Display

will show OFF. Manual Tuning

1. Press the Power button to turn on the radio.

2. Select the required waveband by pressing the Band

button. Adjust the antenna as described above.

3. A single rotary to the Tuning/Volume control knob will

change the frequency in the following increment: FM: 50 or 100 kHz AM (MW): 9 or 10 kHz Note: If the radio is in volume control status, press in the tuning/volume control to become Tuning status.

4. Keep on rotating the Tuning/Volume control knob until

the required frequency shown on the display.

5. Rotate the Tuning/Volume control knob to get required

will show OFF. Storing stations in preset memories There are 5 memory presets for each waveband.

1. Press the Power button to turn on the radio.

2. Tune to required station using one of the methods

previously described.

3. Press and hold down the required preset until radio

beeps. The preset number will appear in the display and the station will be stored under chosen preset button.

4. Repeat this procedure for the remaining presets.

5. Stations stored in preset memories can be overwritten

by following above procedures. Recall stations from preset memories

1. Press the Power button to turn on the radio.

2. Select the required waveband.

3. Momentarily press the required Preset button, the

preset number and station frequency will appear in the display. Setting the radio alarm When the radio alarm is selected, the radio will turn on and play the chosen radio station at the chosen alarm time. The radio alarm will continue for one hour unless turned off by pressing the Power button. Pressing the Power button whilst the alarm is activated will cancel the alarm for 24 hours. Note: When the radio is in low battery status, the radio alarm can’t be activated. a. Setting radio alarm time:

1. The radio alarm can be set either when radio is on or

2. Press and release radio alarm button , the

radio alarm symbol will flash.

3. During radio alarm symbol flashing, press button

for more than 2 seconds followed by a beep.

4. Display Hour will flash, rotate Tuning/Volume control

knob to select the hour then press button again to confirm hour setting.

5. Follow same procedures of setting hour to set

required minute. Press button to complete alarm time setting. b. Setting radio alarmed station

1. During setting radio alarm time and radio alarm

symbol is flashing, press Band button to activate the radio to select required wake-up band and station by manual tuning and recall the preset stations. Press button to complete radio alarm setting. Display will show .

2. When above radio alarm time and station are set,

press and hold down radio alarm button for 2 seconds followed by a beep to switch alarm on or off. Display will show when radio alarm is set. Note: If new radio alarm station is not selected, it will select the last alarm station. Setting the HWS (Humane Wake System) buzzer alarm A beep tone will activate when selecting the HWS buzzer alarm. The alarm beep will become shorter every 15 seconds for one minute followed by one minute silence before repeating the cycle. The HWS alarm will sound for one hour until turning off by pressing the Power button. Press the Power button whilst the alarm is activated will cancel the alarm for 24 hours.

1. The HWS buzzer alarm can be set either radio is on or

2. Press and release the HWS buzzer alarm button

, the symbol will flash.

3. During the symbol flashes, long pressing the

button for more than 2 seconds followed by a beep and display Hour digit will flash.

4. Rotate Tuning/Volume control knob to select required

alarm hour, then press time set button again. The minute digit will then flash.

5. Rotate Tuning/Volume control knob to select required

alarm minute, the press time set button again to complete HWS buzzer alarm setting.

6. Press and hold down buzzer alarm button for

more than 2 seconds followed by a beep to switch on or off the HWS buzzer alarm.13 Display will appear when buzzer alarm has been set. Snooze function

1. Whilst the alarm is activated, pressing any buttons

except the Power button will activate the snooze function. The radio or HWS buzzer alarm will be silenced with interval of 5 minutes.

2. The display will flash both the snooze symbol and

the alarm symbol. The snooze function can be repeatedly during one hour that the alarms are active. Sleep function The sleep timer will automatically switched off the radio after a preset time has elapsed.

1. Press and continue to hold down the Power button for

more than 2 seconds, followed by a beep tone, the display will cycle through the available sleep times in the order 60-45-30-15-120-90-60. Release the Power button when the required sleep time appears in the display. The symbol will appear in the display and the radio will play the last station selected.

2. To cancel the sleep function, press the Power button.

The Symbol will disappear and radio is off. Display illumination Press any buttons or rotate Tuning/Volume control knob will illuminate the LCD display for approx. 15 seconds. During scanning stations and alarm activated, will also automatically illuminate the display. Change Stereo to Mono When the stereo FM station reception is weak, you can improve it by pressing Mono button for 2 seconds. The sound is no longer in stereo and stereo indicator disappears. How to play other audios CAUTION: Unplug this apparatus before connecting other audios.

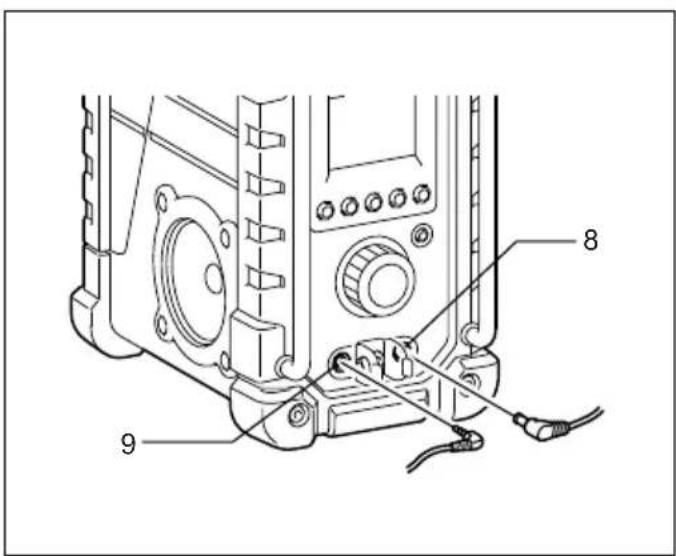

• There are 2 AUX in sockets. AUX 1 is located on the front panel, and AUX 2 is located in the battery compartment.

• Connect a stereo or mono source (i.e. iPod, MP3, or CD player) to either AUX 1 or AUX 2 by audio cord.

• Repeatedly press and release the Band button until “AU1” or “AU2” is displayed, then AUX function is activated.

• AUX can’t be activated as alarm source. MAINTENANCE CAUTION:

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Specifications: Power Requirements AC power adaptor DC12 V 700 mA, center pin positive Battery UM-3 (AA size) x 2 for back up Cluster battery: 7.2 V - 18 V Slide battery: 9.6 V - 18 V Frequency coverage FM 87.50 - 108 MHz (0.05 MHz/step) AM (MW) 522 - 1,629 kHz (9 kHz/step) Circuit feature Loudspeaker 3 inches 8 ohm Output Power 7.2 V: 0.5 W x 2, 9.6 V: 1 W x 2

10.8 V: 1.2 W x 2, 12 V: 1.5 W x 2

14.4 V: 2.2 W x 2, 18 V: 3.5 W x 2

Input terminal 3.5 mm dia. (AUX IN1/AUX IN2) Antenna system FM: soft bended rod antenna AM: bar antenna Dimension (W x H x D) in mm 280 x 302 x 163 Weight (without battery)

EC DECLARATION OF CONFORMITY

For European countries only The EC declaration of conformity is included as Annex A to this instruction manual.14 FRANÇAIS (Instructions d’origine)

MED HÖGTALAREFFEEKT=

NA WYJŚCIU GŁOŚNIKA =
