USER MANUAL CoolMatic CR140 WAECO

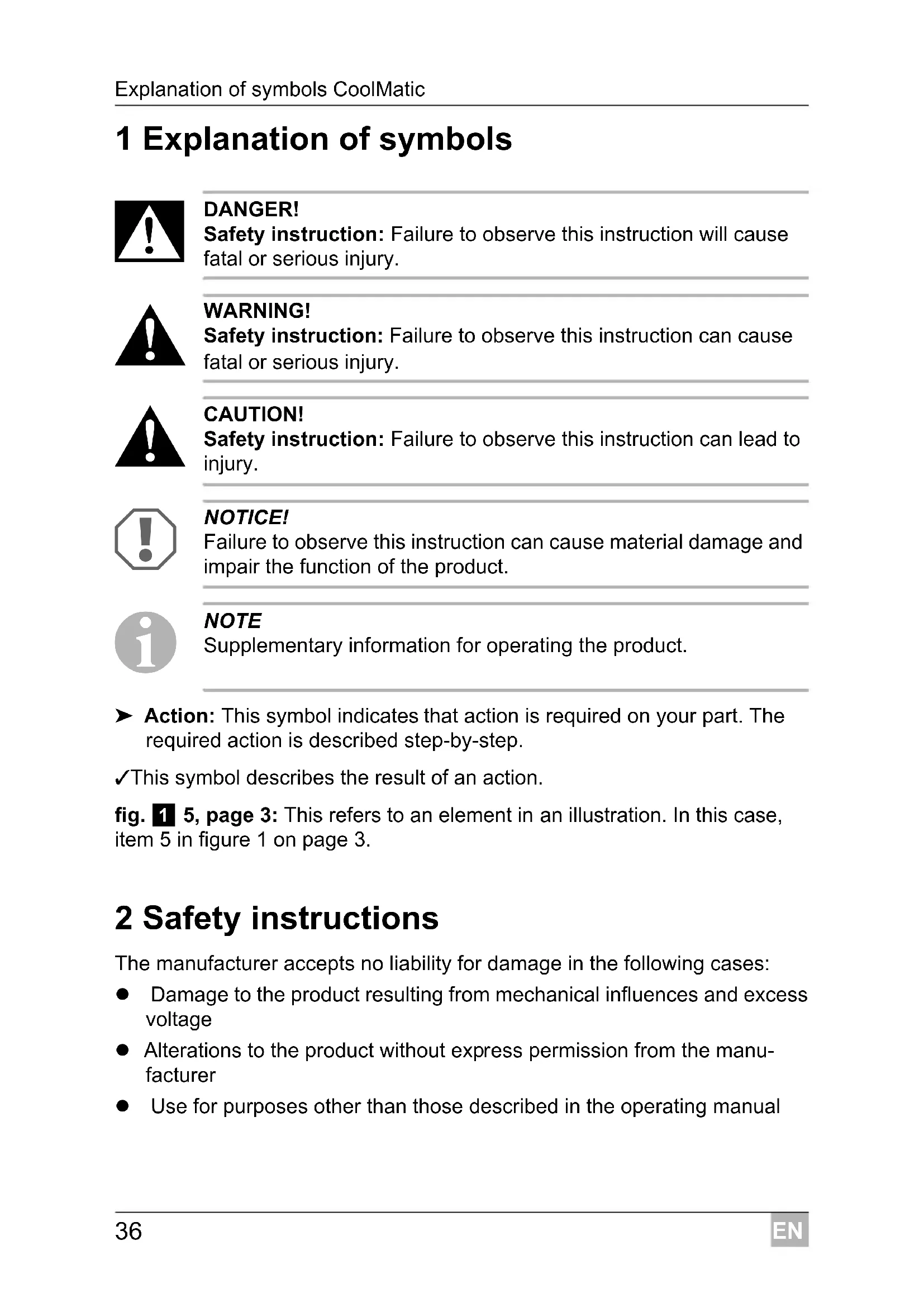

1 Explanation of symbols

DANGER! Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION! Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE Supplementary information for operating the product. ➤ Action: This symbol indicates that action is required on your part. The required action is described step-by-step. ✓ This symbol describes the result of an action. fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3. 2 Safety instructions The manufacturer accepts no liability for damage in the following cases: Damage to the product resulting from mechanical influences and excess voltage Alterations to the product without express permission from the manu- facturer Use for purposes other than those described in the operating manualEN CoolMatic Safety instructions

DANGER! Danger of fatal injuries! When using the appliance on boats: if the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker!

WARNING! Before you start up the appliance for the first time, check that the operating voltage matches the battery voltage (see type plate). If the connection line of this device is damaged, it must be re- placed with a special connection line which is available from the manufacturer or customer service. Have a trained technician do the installation in wet rooms. Do not operate the appliance if it is visibly damaged. This appliance may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.

Warning: do not open or damage the refrigerant circuit under

any circumstances. Set up the appliance in a dry location where it is protected against splashing water. Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.) Ensure that the ventilation slots are not covered. Do not store any explosive substances, such as spray cans with propellants in the device.EN Scope of delivery CoolMatic

2.2 Operating the appliance safely

DANGER! Danger of fatal injury! Do not touch exposed cables with your bare hands. This espe- cially applies when operating the appliance from an AC mains.

WARNING! Disconnect the refrigerator and other electric loads from the bat- tery, before you connect the battery to a quick charging device. Overvoltage can damage the electronics. People (including children) whose physical, sensory or mental capacities or whose lack of experience or knowledge prevent them from using this product safely should not use it without the supervision or instruction of a responsible person. Electrical appliances are not toys! Keep electrical appliances out of reach of children or infirm persons. Do not let them use the appliances without super- vision.

CAUTION! If you connect the appliance to a battery, make sure that no food comes into contact with the battery acid. Protect the appliance from rain and moisture.

NOTE Defrost the appliance in good time to save energy. Disconnect the appliance from the power supply, if you are not going to use it for a prolonged period. 3 Scope of delivery Quantity Description1 Refrigerator1 Cable set (only for AC version)1 Operating manualEN CoolMatic Accessories

4 Accessories Available as accessory (not included in scope of delivery): 5 Intended use The refrigerator is suitable for cooling and freezing foodstuffs. The device can be connected to several power sources (12 V and 24 V and/or 110–240 V)

CAUTION! Health hazard! Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool. 6 Technical description WAECO CR series cooling appliances can cool goods and keep them cool. Products can be deep-frozen in the freezer compartment. All materials used in the refrigerator are compatible for use with foodstuffs. The refrigerant circuit is maintenance-free. The refrigerators are suitable for use with a DC voltage of 12 V or 24 V (e.g. in camper vans, caravans or on boats).

NOTE The CR140 and all US versions are available in DC/AC version only. These refrigerators can be operated using a 12 or 24 V direct current source as well as a 110-240 V~ current source. The con- nection voltage of your device can be found on the type plate on the back of the device With a rectifier (accessory), the 12 and 24 V refrigerators can be operated on an AC network: MPS-35 rectifier: for use with a 110 – 240 V supply Item num- ber Description ExplanationMPS-35 Rectifierfor 110 - 240 VConverts the input voltage when connecting a 12 or 24-V-refrigerator to the 110 to 240 V AC mains.EN Technical description CoolMatic

When used on boats the refrigerator can be subjected to a constant inclina- tion of 30°. You can use the continuously variable thermostat to set the desired temper- ature.

6.1 Control elements inside the fridge

The various types of refrigerators are shown in the following illustrations: CR50: fig. 1, page 3 CR65: fig. 2, page 3 CR80: fig. 3, page 4 CR110: fig. 4, page 4 CR140: fig. 5, page 5

6.2 Control elements

No. in illustration Explanation 1 Freezer compartment 2 Wire shelf (folding, so that bottles can be put in the fridge) 3 Fruit compartment 4 Shelf 5 Bottle restraint (to hold bottles in the door) 6 Compartment with lid (hinged) No. in fig. 6, page 5 Explanation 1 Temperature controller 2 Green LED: operation 3 Red LED: fault 4 Interior lightingEN CoolMatic Installing and connecting the refrigerator

7 Installing and connecting the refrigerator

7.1 Safety instructions for installation on boats

Please note the following instructions for installation on boats:

DANGER! If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.

NOTICE! The device can be tilted sideways up to 30°. When setting up the refrigerator, note that it must be fastened to take account of this. If you have any questions regarding installation, consult your specialist dealer. Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides, fig. 8, page 6). The appliance is designed for ambient temperatures between +18°C and +43°C. Observe all the other installation instructions in this section.

NOTICE! Fasten the device as described in the operating manual to prevent hazards. Keep objects clear of openings in the housing or mounting structure (such as ventilation slots). The refrigerator is only suitable for installation in a fitted niche. Once it is installed, only the front of the appliance may be accessible.EN Installing and connecting the refrigerator CoolMatic

NOTE In the case of integrated refrigerators, please remove the locking mechanism at the top and bottom. You can contact the Dometic WAECO branch in your country for more information (addresses on the back of the operating manual). The appliance is designed for ambient temperatures between +18 °C and +43 °C. In continuous operation, the air humidity may not exceed 90 %. Set up the fridge in a dry, sheltered place. Avoid placing it near heat sources such as radiators, gas ovens, hot water pipes etc. Do not let it stand in direct, strong sunlight. Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides). Therefore make sure there is adequate ventilation (fig. 8, page 6). The condensation which forms during normal operation of the refrigerator can be drained off via two outlets on the appliance. For delivery purposes, these outlets are sealed. The two outlets are located on the rear and on the underside of the appliance (fig. m, page 12). ➤ Choose the condensation outlet most suitable for the place of installation and remove its cap. ➤ Insert a sharp object (e.g. a screwdriver) approx. 25 to 30 mm into the outlet to pierce open the inside of the appliance. No. in fig. 8, page 6 Explanation 1 Cold intake air 2 Hot waste air 3 Condenser 4 Spacing above the fridge if insufficient air can circulate above or at the side.EN CoolMatic Installing and connecting the refrigerator

If you put the refrigerator in a recess, you can fix it inside with suitable screws: ➤ Remove the blanking plugs (fig. 7 2, page 6). ➤ Push the refrigerator into the recess. ➤ Use suitable screws (fig. 7 1, page 6) to fix the refrigerator in place. ➤ Press the blanking plugs (fig. 7 2, page 6) into the openings.

The refrigerator has a locking mechanism (fig. 9 1, page 6) which is also used, to protect it during transport. The following settings are possible:

NOTICE! Only adjust the locking mechanism when the door is open. If you use it with the door closed, you will damage the device. Lock (turn wheel clockwise to the end stop): The door is locked and secured. To open the door, lift the handle up and open it. Vent (turn wheel anti-clockwise to the end stop): The door is slightly open, but fixed in position. Use this position, if you are not going to use the appliance for a long time.

7.4 Changing the door hinge

You can also change the hinge of the door, so that it opens to the left rather than the right. ➤ Proceed as shown in fig. b, page 8 to fig. d, page 8, to change the hinges.EN Installing and connecting the refrigerator CoolMatic

7.5 Connecting the refrigerator

Connect the refrigerator to DC power The refrigerators can be operated with 12 Vg or with 24 Vg.

NOTICE! To avoid voltage drops and loss of performance, keep the cable as short as possible and avoid joins. For this reason avoid additional switches, plugs or multi-way adapters. ➤ Determine the required cross section of the cable in relation to the cable length according to fig. e, page 9. Key for fig. e, page 9

NOTICE! Make sure that the polarity is correct. ➤ Before starting up the appliance for the first time, check whether the operating voltage and the battery voltage match (see type plate). ➤ Connect the refrigerator – as directly as possible to the poles of the battery or – to a 12 or 24 Vg socket. Fit a fuse in the positive wire of 15 A (for 12 V) or 7.5 A (for 24 V) (fig. f 1, page 9). ➤ Connect the red cable (fig. f rt, page 9) to the positive terminal of the battery. ➤ Connect the black cable (fig. f sw, page 9) to the negative terminal of the battery. Co-ordinate axis Explanation Unit l Cable length m ∅ Cable cross section mm²EN CoolMatic Installing and connecting the refrigerator

NOTICE! Disconnect the refrigerator and other electric loads from the battery before connecting the battery to a quick charging device. Overvoltage can damage the appliance electronics. For safety reasons the refrigerator is equipped with an electronic system to prevent the polarity being reversed. This protects the refrigerator against re- versed polarity when connecting to a battery and against short circuiting. To protect the battery, the refrigerator switches off automatically if the voltage is insufficient (see table below). Connecting the refrigerator to AC power (accessory)

NOTE The CR140 and all US versions are available in DC/AC version only. Without using a rectifier, these refrigerators can be operated using a 110-240 V~ current source, in addition to a 12 or 24 Vg current source. You can connect the refrigerator to AC power if you use a rectifier (accessory):

DANGER! Danger of electrocution Never handle plugs and switches with wet hands or if you are standing on a wet surface. If you are operating your refrigerator on board a boat with a mains connection of 230-V from the land, you must install a re- sidual current circuit breaker between the 230V mains supply and the refrigerator. Seek advice from a trained technician. 12 V 24 V Cut-off voltage

Using the refrigerator CoolMatic

NOTE Always connect the refrigerator to the rectifier. Otherwise the prior- ity circuit for the refrigerator will be disabled. The priority circuit reduces the load on a connected battery by the rectifier always switching to mains operation if AC power is con- nected. Proceed as follows when you connect the refrigerator to the AC supply: ➤ Fix the rectifier as shown in the location foreseen, behind the refrigerator (fig. g, page 10). ➤ Protect the AC circuit using a slow-blow fuse (250 V/4 A). ➤ Connect the power cable to the AC power supply. ➤ Plug in the connecting cable to the AC socket (fig. g 1,page 10). Proceed as follows when you connect the refrigerator to a DC supply when a rectifier is fitted: ➤ Connect the loose DC cable (fig. g 2, page 10) to the battery: – Red cable: positive battery terminal – Black cable: negative battery terminal 8 Using the refrigerator

NOTE Before starting your new refrigerator for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the “Cleaning and care” on page 50).

8.1 Energy saving tips

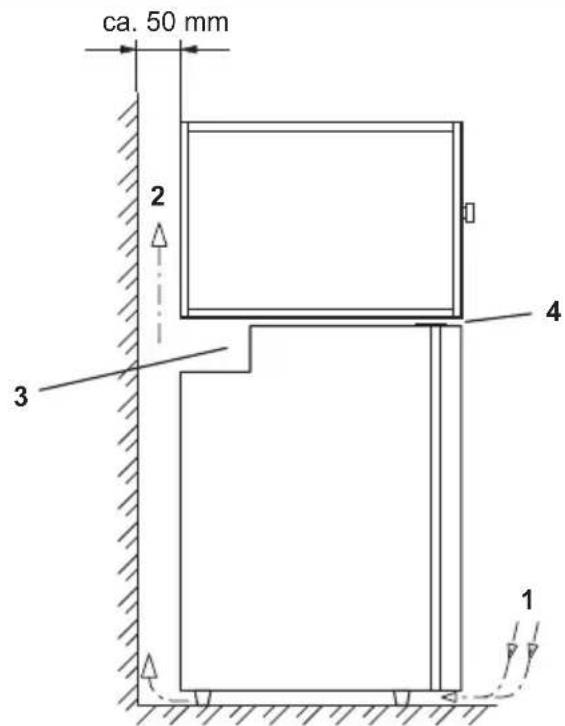

Choose a well ventilated installation location which is protected from direct sunlight. Allow hot food to cool down first before you put it in the refrigerator. Do not open the refrigerator more often than necessary. Do not leave the door open for longer than necessary. Defrost your refrigerator as soon as a layer of ice forms.EN CoolMatic Using the refrigerator

Avoid unnecessarily low temperature settings. Clean dust and dirt from the condenser at regular intervals.

8.2 Using the refrigerator

The fridge conserves fresh foodstuffs. The freezer compartment conserves frozen foodstuffs and freezes fresh foodstuffs.

NOTICE! Do not place any electrical devices inside the cooler. The only exceptions are devices approved for the purpose by the manufacturer. Ensure that food or liquids in glass containers are not exces- sively cooled. Liquids expand when they freeze and can thus destroy the glass containers. Food may only be stored in its original packaging or in suitable containers. Ensure that the objects placed in the refrigerator are suitable for cooling to the selected temperature. ➤ Switch the refrigerator on by turning the temperature control (fig. 6 1 page 5) clockwise.

NOTE After switching on, the refrigerator requires approx. 60 s until the compressor starts up. Setting the temperature You can set the temperature to any level using the control knob. The built-in thermostat regulates the temperature as follows: 1 = least cooling 7 = most cooling

NOTE The cooling capacity can be influenced by: – the ambient temperature – the amount of food to be conserved – the frequency with which the door is opened.EN Using the refrigerator CoolMatic

Conserving foodstuffs You can conserve foodstuffs in the refrigerator. The time for which the food can be conserved in this way is usually stated on the package.

NOTICE! Do not conserve warm food in the refrigerator. Do not place glass containers containing liquid in the freezer com- partment.

NOTE Food which can easily absorb tastes and odours and liquids and products with a high alcohol content should be conserved in air- tight containers. The refrigerator is divided in different zones with different temperatures: The colder zones are immediately above the drawers for fruit and vegetables, near the back wall. Observe the temperature information and best before date on the food packaging. ➤ Observe the following when using the refrigerator: – Never re-freeze products which have started defrosting or have been defrosted, but consume them as soon as possible. – Wrap food in aluminium foil or cling film and shut in in a suitable box with a lid. This ensures that aromas, the shape and the freshness will be better conserved. Defrosting the refrigerator The appliance has two options to remove the condensation resulting from operation: pass it directly outside: Remove the drip-tray (fig. a 1, page 7). Connect a hose (fig. 0 2, page 7) to the outlet connections (fig. 0 1, page 7). collect in the drip-tray: Empty the drip-tray (fig. a 1, page 7) as required.EN CoolMatic Using the refrigerator

Defrosting the freezer

NOTICE! Never use mechanical tools to remove ice or to loosen objects stuck to the device. The only exceptions are devices approved for the purpose by the manufacturer. To defrost the refrigerator, proceed as follows: ➤ Take the contents out. ➤ If necessary, place the contents in another cooling appliance, to keep them cool. ➤ Set the temperature control knob to “0”. ➤ Leave the door open. Switching off and storing the refrigerator If you do not intend to use the refrigerator for a long time, proceed as follows: ➤ Set the temperature control knob to level “0”. ➤ Disconnect the power cable from the battery or pull the AC cable plug out of the rectifier. ➤ Clean the refrigerator (see “Cleaning and care” on page 50). ➤ Turn the locking wheel (fig. 9 1, page 6) anti-clockwise to the end stop (“Vent”). ➤ Close the door until it latches in. ✓ The door stays open thus preventing smells from arising. Replacing the interior light If the interior light in the refrigerator is faulty, you can change the LED lamp (DC 12 – 24 V, 0.3 W). When changing the lamp, only use LEDs which can be run with 12 V and 24 V. ➤ Remove the cover. ➤ Pull the lamp (fig. 6 4, page 5) out of the sheet metal straps. ➤ Slide in the new lamp between the sheet metal straps, until it snaps into place.EN Cleaning and care CoolMatic

Change the fuse (only DC/AC refrigerators). If the fuse in the rectifier is faulty too, you can replace this too. ➤ Lever the fuse compartment (fig. g 3, page 10) open with a screwdriver. ➤ Replace the fuse (250 V/4 A). ➤ Close the fuse compartment again. 9 Cleaning and care

NOTICE! Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the refrigerator. Never use hard or pointed tools to remove ice or to loosen ob- jects which have frozen in place. ➤ As soon as the refrigerator becomes dirty, clean it with a damp cloth. ➤ Make sure that no water drips into the seals. This can damage the elec- tronics. ➤ Wipe the refrigerator dry with a cloth after cleaning. 10 Guarantee The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer. For repair and guarantee processing, please include the following docu- ments when you send in the device: A copy of the receipt with purchasing date A reason for the claim or description of the faultEN CoolMatic Disposal

WARNING! Risk of child entrapment! Before you throw away your old refrigerator: – Take off doors – Leave the shelves in place so that the children may not easily climb inside ➤ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. 12 Troubleshooting The significance of the red LED (fig. 6 2, page 5) For operational faults it illuminates several times. The number of pulses de- pends on the type of fault. Each flash lasts for one quarter of a second. After the series of impulses a pause follows. The sequence for the fault is repeated every four seconds. Number of flashesFault Possible cause1 Supply voltage The supply voltage is outside of the set range.2 Excessive fan current The fan loads the electronics unit with more than 1 A.3 The motor doesn't start The rotor is jammed.The pressure difference in the cooling system is too high (> 5 bar).4 Speed too low If the cooling system is overloaded, the minimum speed of the motor of 1850 RPM cannot be maintained.5 Overheating of the electron-ics unitIf the cooling system is loaded too heav-ily or the temperature is set too high, the electronics can overheat.EN Troubleshooting CoolMatic

Interior temperature too low in control level “1” Compressor does not run (battery connection) Fault Possible cause Remedy Compressor runs con- stantly Faulty thermostat Change the thermostat Compressor runs for a long time Large quantities have been frozen in the freezer compartment

= 0 V There is an interruption in the connec- tion between the battery and the – electronics Establish a connection Main switch faulty (if installed) Replace the main switch Additional supply line fuse has blown (if installed) Replace the supply line fuse

≤ U EIN Battery voltage is too low Charge the battery Start attempt with

≤ U OFF Loose cables Poor contact (corrosion) Establish a connection Battery capacity too low Replace the battery Cable cross section too small Replace the cable (fig. e, page 9) Start attempt with

Ambient temperature too high – Insufficient ventilation and/or air sup- ply Move the refrigerator to another location Condenser is dirty Clean the condenser Electric circuit between the pins in the compres- sor interrupted Defective compressor Replace the compressor

Voltage between the positive and negative terminals of the electronics

Cut-in voltage of the electronics

OFF Cut-off voltage of the electronicsEN CoolMatic Troubleshooting

Compressor is not running (connected to AC supply) Poor cooling, interior temperature increases Unusual noises Fault Possible cause Remedy No voltage Interruption in the supply cable Establish a connection Main switch faulty (if installed) Replace the main switch Additional supply line fuse has blown (if installed) Replace the supply line fuse Voltage is present but the compressor doesn't run Ambient temperature too high – Insufficient ventilation and/or air sup- ply Move the refrigerator to another location Condenser is dirty Clean the condenser Electric circuit between the pins in the compres- sor interrupted Defective compressor Replace the compressor Fault Possible cause Remedy Compressor runs for a long time/continuously Ambient temperature too high – Insufficient ventilation and/or air sup- ply Move the refrigerator to another location Condenser is dirty Clean the condenser Faulty fan Replace the fan Compressor runs intermittently Battery capacity exhausted Charge the battery Fault Possible cause Remedy Loud humming A component of the refrigerant circuit cannot move freely (touching the wall) Bend the component carefully away from the obstruction Foreign body jammed between the cooling unit and the wall Remove the foreign body Fan noise –EN Technical data CoolMatic

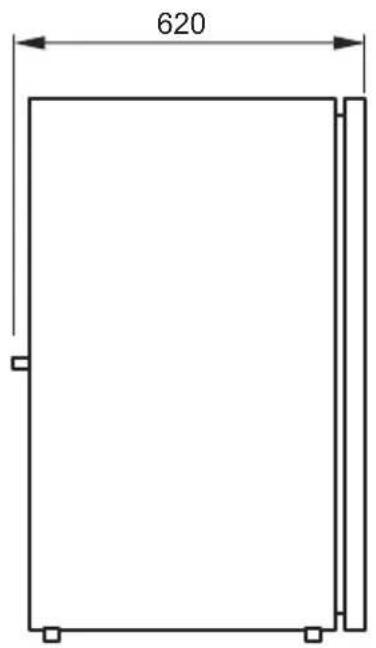

13 Technical data All CR series refrigerators have the following characteristics: Dimensions: fig. h, page 10 to fig. l, page 12 Supply voltage 12 Vg/24 Vg (see type plate on refrigerator) Connection to AC supply via rectifier (accessories for CR140 and US models are integrated in the device): – 110 – 240 V~: MPS-35 rectifier Refrigerator main compartment temperature range: +10 °C to 0 °C Freezer compartment temperature range: 0 °C to –18 °C Relative humidity: maximum 90 % Constant inclination: max. 30° Max. pressure: ND 11 bar/HP 25 bar Propellant: C

Climatic class: T Test/certificates: CR50 CR65 Capacity: 48 l 64 l Freezer compartment: 5 l 7.2 l Rated current: 5.7 A at 12 Vg

Average power consumption: 40 W 45 W Weight: 19 kg 20 kg Refrigerant R-134a: 53 g 55 gEN CoolMatic Technical data

The coolant circuit contains R-134a. CR80 CR110 Capacity: 80 l 108 l Freezer compartment: 7.9 l 10.2 l Rated current: 5.9 A at 12 Vg

Average power consumption: 48 W 50 W Weight: 23 kg 28 kg Refrigerant R-134a: 66 g 68 g CR140 Capacity: 136 l Freezer compartment: 11,5 l Rated current: 5.9 A at 12 Vg

Average power consumption: 70 W Category: 6 Energy efficiency class: A+ Energy consumption: 158 kWh/annum Climate class: N, ST, T Ambient temperature: +16 °C – +43 °C Noise emission: 46 dB Weight: 32 kg Refrigerant R-134a: 75 gFR CoolMatic
