USER MANUAL 2750G ELTA

Turntable with CD player, radio and loudspeakers

Turntable with CD player, radio and loudspeakers

SAFETY INFORMATION

A triangle with a lightning symboldraws the user's attention to "dangerous voltage" withoutinsulation in the cabinet which maybe high enough to entail a risk ofelectronic shock.

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCETHE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PART INSIDE. REFER SERVICING TO QUALIFIEDSERVICE PERSONNEL.

A triangle with an exclamation mark draws the user's attention to important instructions for use and maintenance in the accompanying manual, which should be studied.

FURTHER INFORMATION

Beware of small pieces and batteries, do not swallow them. It may be hazardous to your health and lead into suffocation. Please, Make sure to keep small devices and batteries out of the reach of children.

Important advice regarding hearing protection

Caution:

You care for your hearing, and so do we.

Therefore, use caution while using this appliance.

Our recommendation: Avoid high volumes.

Children should be supervised while using headphones; make sure that the appliance is not set to high volume.

Caution!

High volumes may cause irreparable damage to children's ears.

NEVER let allow anyone, especially children, to put objects into the holes, slots or openings on this devise. This may lead into death due to electric shock. The device must only be opened by a qualified assistant.

Only use the appliance for its intended purpose.

This device may only be used in housings and business premises.

Please keep this instruction manual for further reference.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal. The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of reutilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

Do not obstruct the ventilation of the device. Make sure, that no curtains, newspapers, furniture or any other type of object are blocking the ventilation system of the apparatus. The ventilation system must be clear of objects at all times! Overhealing may lead into serious damage of the device and reduce its performance and lifespan.

Heat and warmth

Do not expose the appliance to direct sunlight. Make sure that the appliance is not subject to direct heat sources such as heaters or open fire. Make sure that the ventilation slots of the appliance are not covered.

Moisture and cleaning

This appliance is not waterproof! Do not immerse player in water. Do not allow player to come in contact with water. If water gets inside the player it may cause serious damage. Do not use cleaning agents that contain alcohol, ammoniac, benzene or abrasives as these could damage the player. For cleaning, use a soft, moistened cloth.

Professional recycling

Batteries and packaging should not be disposed of in the trash. Batteries must be handed over to a collection centre for used batteries. Separating disposable packaging materials is ecologically friendly.

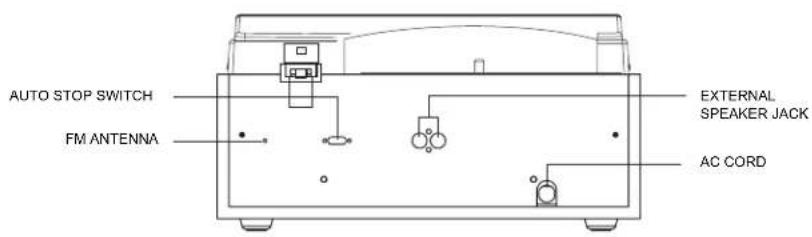

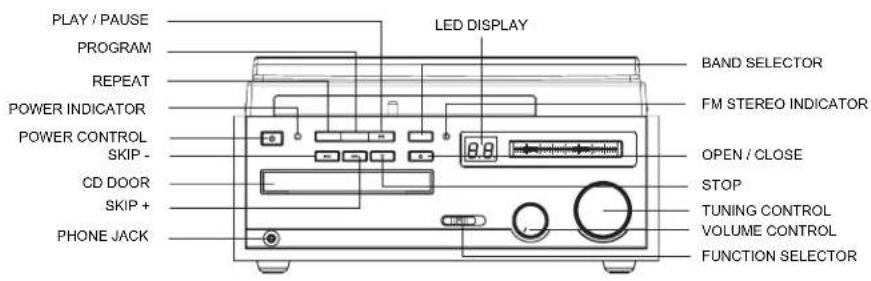

LOCATION OF CONTROL

LOCATION OF CONTROL

PHONO COVER ASSEMBLY

1. Push the metal bracket to rear side.
2. Connect the metal bracket to the phono cover.
3. Connect the hinge of the phono cover to the appliance.

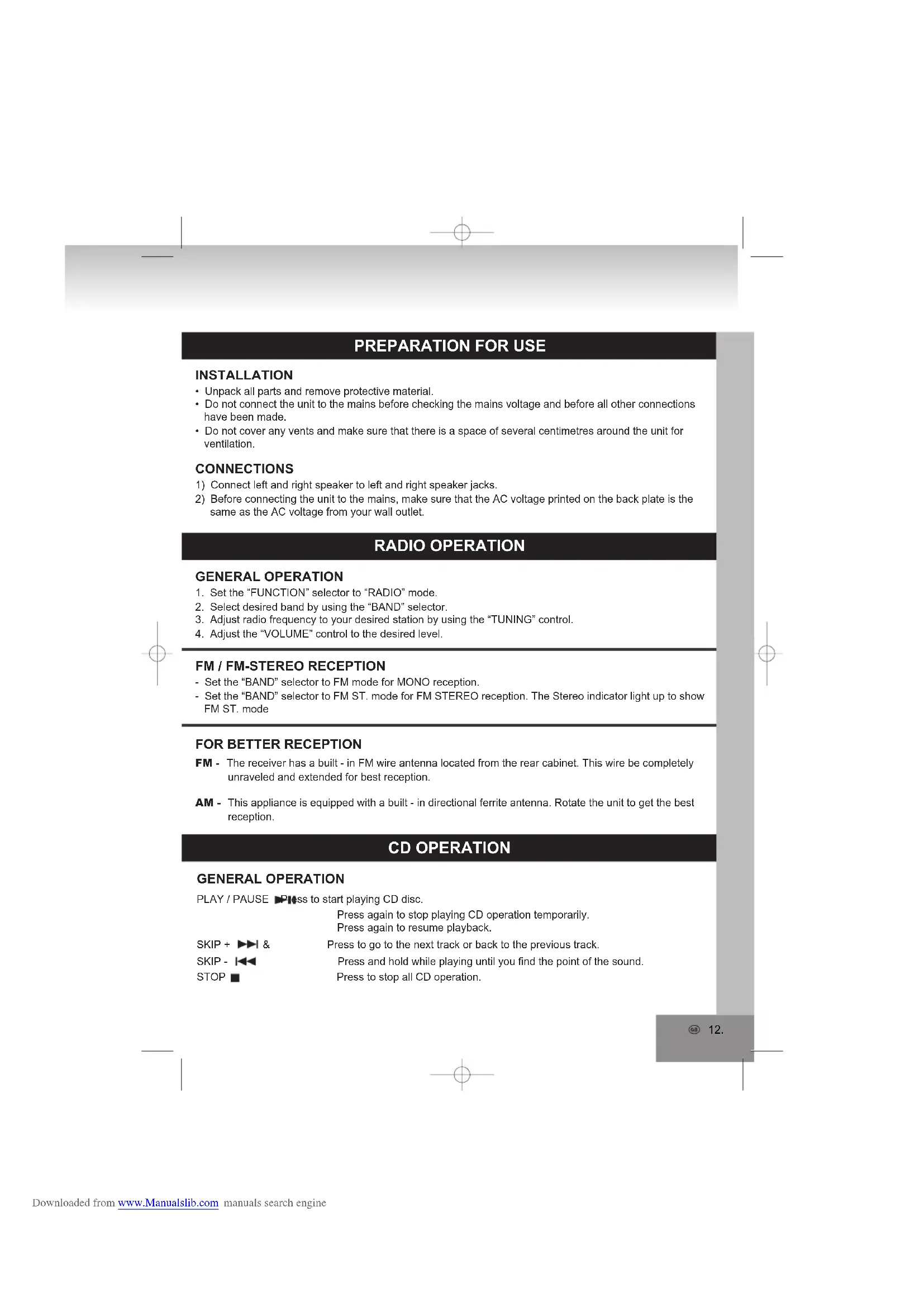

PREPARATION FOR USE

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.
• Do not cover any vents and make sure that there is a space of several centimetres around the unit for ventilation.

CONNECTIONS

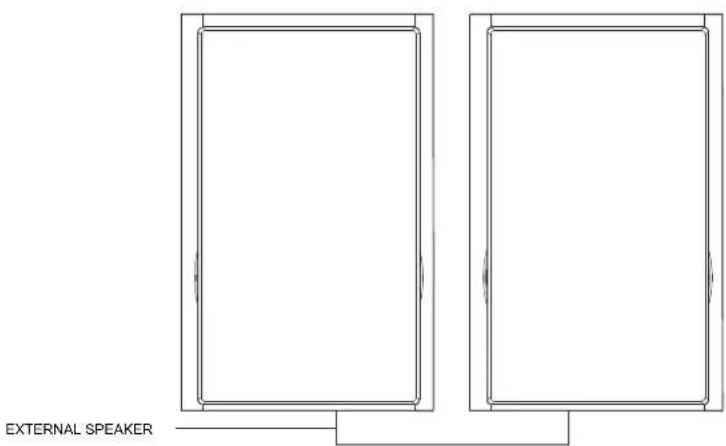

1) Connect left and right speaker to left and right speaker jacks.
2) Before connecting the unit to the mains, make sure that the AC voltage printed on the back plate is the same as the AC voltage from your wall outlet.

RADIO OPERATION

GENERAL OPERATION

1. Set the "FUNCTION" selector to "RADIO" mode.
2. Select desired band by using the "BAND" selector.
3. Adjust radio frequency to your desired station by using the "TUNING" control.
4. Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

• Set the "BAND" selector to FM mode for MONO reception.
• Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode

FOR BETTER RECEPTION

FM - The receiver has a built-in FM wire antenna located from the rear cabinet. This wire is completely unraveled and extended for best reception.

AM - This appliance is equipped with a built-in directional ferrite antenna. Rotate the unit to get the best reception.

CD OPERATION

GENERAL OPERATION

PLAY/PAUSE Piss to start playing CD disc.

Press again to stop playing CD operation temporarily.

Press again to resume playback.

SKIP+&

Press to go to the next track or back to the previous track.

SKIP-

Press and hold while playing until you find the point of the sound.

STOP

Press to stop all CD operation.

CD OPERATION

PLAYBACK

1. Set the "FUNCTION" selector to "CD" mode.
2. Open the CD door and place a CD disc with the label up in the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.
5. Press the "PLAY / PAUSE" button to start playing CD disc.
6. Adjust the "VOLUME" control to the desired level.
7. Press the "PLAY / PAUSE" button again when you want to stop playback temporarily.
8. Press the "STOP" button when finished.

PROGRAM

Up to 20 tracks can be programmed for disc play in any order.

Be sure to press the "STOP" button before use.

1. Press the "PROGRAM" button, the display will show "01" and flash.
2. Select desired track by using the "SKIP +" or "SKIP -" button.
3. Press the "PROGRAM" button again to confirm desired track into the program memory.
4. Repeat step 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed. Press the "PLAY / PAUSE" button to play the disc in the order you have programmed and the program indicator flashes.

1. Press the "STOP" button twice to terminate programmed play and the program indicator will turn off.

REPEAT

Press the "REPEAT" button before or during playing CD, a single track or all the tracks can be repeated. Each press switches the repeat mode as follows:

1- REPEAT 1 (The repeat indicator is flashing.)
2 - REPEAT ALL ( The repeat indicator is steadily on. )
3-NORMAL PLAYBACK

REPEAT1 REPEAT ALL

NORMAL
PLAYBACK

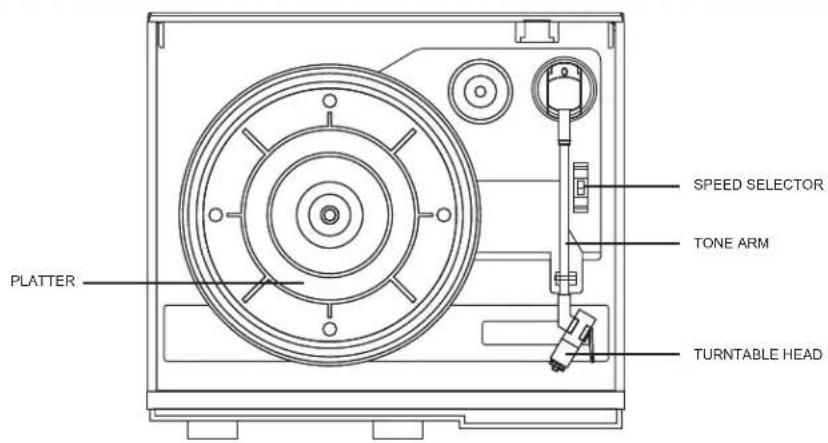

PHONO OPERATION

GENERAL OPERATION

Notes:

Remove the stylus protector. Be sure that the tone arm is detached from the tone arm rest before operation and resecured again afterward.

1. Set the "FUNCTION" selector to "PHONO" mode.
2. Set the "SPEED" selector to the proper speed depending on the record to be played.
3. Place the record on the platter.
4. Lift the tone arm from the rest and slowly move it to the record side. The platter will begin to rotate.
5. Place the tone arm on the desired position.
6. Adjust the "VOLUME" control to the desired level.
7. At the end of the record, the platter will automatically stop rotation. Lift the tone arm from the record and return it to the rest.
8. To stop manually, lift the tone arm from the record, and return it to the rest.

Notes:

As some kind of record the auto - stop area was out of the unit setting, so it will stop before the last track finish. In the case, set the "AUTO - STOP" selector to "OFF" mode, then it will run to the end of the record but will not stop automatically. ( Set the "FUNCTION" selector to "OFF" mode or set the "AUTO - STOP" selector to "ON" mode to stop the playback.) Put back the tone arm to the rest.

STYLUS REPLACEMENT

Replacement of a worn stylus can be easily accomplished as follows:

1. To remove the old stylus, pull out the stylus assembly in direction shown, holding the head shell with your other hand.
2. Then install the new stylus by pushing it gently into the cartridge (hold by the edge to prevent damage to stylus.) until it clicks into place.

SPECIFICATIONS

GENERAL

Power supply: AC 230V ~ 50Hz

Frequency range: AM 525 - 1615kHz

FM 87.5 - 108MHz

(Specification subjects to be changed without notice.)
