| Brand | AEG |
| Model | MC 4412 CDMP3 |
| Product type | Hi-fi system |
| Power supply | 230 V, 50 Hz |
| Net weight | 4.2 kg |
| Output power | 100 W (PMPO) |
| Protection class | II |
| Radio frequency ranges | FM: 87.5 - 108.0 MHz; AM: 522 - 1620 kHz |
| Supported audio formats | Audio CD, MP3 |
| Playback media | CD, CD-R, CD-RW, USB, SD/MMC card, AUX input |
| Playback functions | Play, pause, skip, search, repeat, random play, programming, intro |
| Equalizer | Flat, Rock, Classic, Pop, Jazz |
| Timer | On/Off timer, Sleep (10-90 min) |
| Remote control | Infrared, range up to 5 m, AAA batteries (not included) |
| Display | LCD screen |
| Headphone jack | 3.5 mm stereo jack |
| Antennas | Flexible FM antenna, terminals for AM antenna |
| Cleaning | Slightly damp cloth without additives |
| Safety | Class 1 laser, do not expose to water, unplug before cleaning |
| Warranty | 24 months from date of purchase |
Frequently Asked Questions - MC 4412 CDMP3 AEG
User questions about MC 4412 CDMP3 AEG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-fi system in PDF format for free! Find your manual MC 4412 CDMP3 - AEG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MC 4412 CDMP3 by AEG.
USER MANUAL MC 4412 CDMP3 AEG
Instruction Manual...... Page 49
Technical Data Page 54
Guarantee Page
FRANÇAIS
JEZYK POLSKI
Sommaire
D-47906 Kempen/Germany
SKIP+ ▶▶▶I/SKIP- I ◀◀◀ (8/3)
SKIP+ ▶▶▶I/SKIP- I◀◀ (8/3)
SKIP+ ▶▶▶I/SKIP- I◀◀ (8/3)
SKIP+ ▶▶▶I/SKIP- I ◀◀◀ (8/3)
SKIP+ ▶▶▶I/SKIP- I ◀◀◀ (8/3)
Mens en lyd-CD eller en CD i MP3-format går:

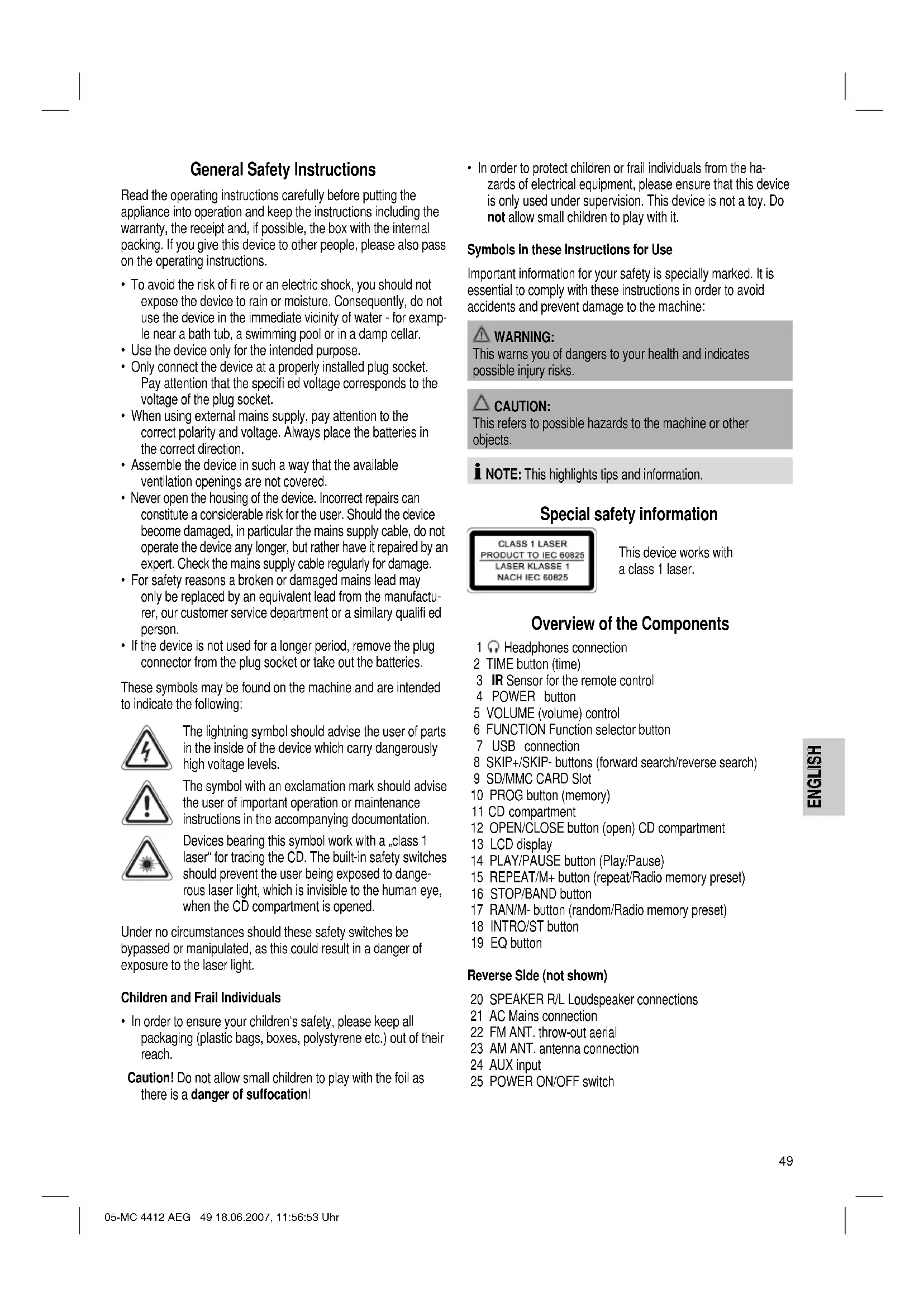

General Safety Instructions
Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.
- To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.
- Use the device only for the intended purpose.
- Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.
- When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.
- Assemble the device in such a way that the available ventilation openings are not covered.
- Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.
- For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
- If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.
These symbols may be found on the machine and are intended to indicate the following:
The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.
The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.
Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.
Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.
Children and Frail Individuals
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
Caution! Do not allow small children to play with the foil as there is a danger of suffocation!
- In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.
Symbols in these Instructions for Use
Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:
WARNING:
This warns you of dangers to your health and indicates possible injury risks.
CAUTION:
This refers to possible hazards to the machine or other objects.
i NOTE: This highlights tips and information.
Special safety information
This device works with a class 1 laser.
Overview of the Components
1 📊 Headphones connection
2 TIME button (time)
3 IR Sensor for the remote control
4 POWER button
5 VOLUME (volume) control
6 FUNCTION Function selector button
7 USB connection
8 SKIP+/SKIP- buttons (forward search/reverse search)
9 SD/MMC CARD Slot
10 PROG button (memory)
11 CD compartment
12 OPEN/CLOSE button (open) CD compartment
13 LCD display
14 PLAY/PAUSE button (Play/Pause)
15 REPEAT/M+ button (repeat/Radio memory preset)
16 STOP/BAND button
17 RAN/M- button (random/Radio memory preset)
18 INTRO/ST button
19 EQ button
Reverse Side (not shown)
20 SPEAKER R/L Loudspeaker connections
21 AC Mains connection
22 FM ANT. throw-out aerial
23 AM ANT. antenna connection
24 AUX input
25 POWER ON/OFF switch
Remote Control
1 PLAY/PAUSE button (Play/Pause)
2 STOP button
3 ▶▶▶I NEXT/I ◀◀ PREV buttons
(Radio memory preset/ Track forwards/reverse)
4 ▶▶ FWD/◀◀ REV buttons
(FM/AM scan / Track scan forwards/reverse)
5 REPEAT button (repeat)
6 PROG button
7 RAN/BAND button (random/frequency band selection)
8 FUNCTION Function selector button
9 MUTE (sound off) button
10 VOL-/VOL+ (volume) buttons
11 FM/ST button
12 „○“ button (Standby/Operation)
13 ID3 button
14 SLEEP button
15 INTRO button
16 Equalizer buttons (FLAT/ROCK/CLASSIC/POP/JAZZ)
17 „-/- -“ button
18 Number buttons
19 BASS button
Start-up of the device/Introduction
- Read the operating instructions thoroughly before the start-up!
- Select an appropriate location for the device, e.g. a dry, flat, non-slip surface on which the device can be easily operated.
- Make sure that the device is adequately ventilated!
- Connect the loudspeakers to the back of the music centre to the sockets market „Speaker R and L“ (20).
- Insert the plug into a properly installed 230 V, 50 Hz power socket. Please ensure that the mains voltage corresponds to the information on the type plate.
- The stored time is lost as soon as the power is disconnected.
- Before initial use remove any protective foil on the mirror lens.
Setting the Time
- Press the TIME button (2). The words „24 HOUR“ appear in the display.
- Use the SKIP+ ▶▶/SKIP- ◀◀◀ buttons (8/4) to choose between the 24 hour and 12 hour display. Press the TIME button (2) to confi rm.
i NOTE:
The following appears in the case of the 12 hour display AM = in the morning, PM = in the afternoon/evening.
- Press the SKIP+ ▶▶/SKIP- ◀◀◀ buttons (8/4) to set the hours. Keep the button pressed down until the desired hour is reached. Press the TIME button (2) to confirm.
- Press the SKIP+ ▶▶/SKIP- ◀◀ buttons (8/4) in order to set the minutes. Keep the button pressed down until the desired minutes are reached.
- Press the TIME button (2) again to store the time. TIME ON appears for a few seconds in the display (see the TIMER section).
Remote Control Batteries (not supplied)
- Open the lid of the battery compartment on the back of the remote control.
- Insert 2 batteries of type R03 „AAA“ 1,5 V. Ensure that the polarity is correct (see the floor of the battery compartment)!
- If the remote control is not used for a prolonged period, remove the batteries in order to prevent battery acid leaking.
- Different battery types or new and used batteries must not be used together.
CAUTION:
Batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.
WARNING:
Do not expose the batteries to high temperatures or direct sunlight. Never throw batteries into the fire. There is a danger of explosion!
CD deck transport protection
Please open the CD compartment (11) by pressing the OPEN/CLOSE (open) button (12). Remove the transport protection from the CD player if present before use.
General Operation
i NOTE: Some keys are to be found both on the device itself and on the remote control. Keys with the same designation have the same function.
Switching on (ON)
Turn the device on with the POWER ON/OFF switch on the back of the device.
Switching off (OFF)
In order to turn the device completely off, turn the POWER ON/OFF switch on the back of the device to „OFF“.
POWER / „○“ (4/12)
Switch the device to the standby mode with the POWER /, button (the time is displayed). If this button is pressed once more, the device switches on again.
Volume (5/10)
This is used to set the individual volume. The letters „VOL“ and a figure appear in the display (13). This corresponds to the volume that has been set as far as „VOL MAX“ or „VOL 00“.
Headphone Socket (1)
Please use headphones with a 3.5 mm stereo jack plug; these should be inserted into the headphone socket. The loudspeakers are then switched off.
BASS (19 on the remote control)
To increase or decrease the bass output.
$$ \text { BASS ON } = \text { on, BASS OFF } = \text { off. } $$
Infrared remote control
For operating the music centre from a distance of up to 5 metres without a lead. If the range of the remote control is reduced, the batteries have to be replaced. During operation ensure that there is nothing blocking the direct line between the remote control and the sensor (3) on the machine.
USB Connexion (7)
This device has been developed in accordance with the latest technical developments in the USB fi eld. Unfortunately the large number of different types of USB storage media on offer today makes it impossible to guarantee full compatibility with all USB storage media. For this reason there may be problems in rare cases with playing back from USB storage media. This is not a malfunction of the device.
- In order to switch on the device please press the POWER /„○“ switch (4/12).
- Now press the FUNCTION button (6/8) to select the CARD-USB mode.
- Connect a USB storage medium. After a few seconds „USB“, „STOP“, „MP3“ appears in the display and the total number of tracks.
- Press PLAY/PAUSE (14/1) to play back the music data.
For operating instructions please see the section "Playing CDs/MP3s".
i NOTE:
- If an SD/MMC card is inserted it is preferentially selected, depending on the USB storage medium. CARD appears in the display. In this case remove the memory card.
- If you have problems with operation using the USB connexion, please use an appropriate adapter cable and proceed as described under AUX.
CAUTION:
Before removing the USB storage medium, switch the device to TUNER operation using the FUNCTION button (6/8).
SD/MMC-CARD Slot (9)
- If you would like to play back data on an SD/MMC card please insert it into the opening provided.
- Now press the FUNCTION button (6/8) to select the CARD-USB mode. After a few seconds „CARD“, „STOP“, „MP3“ appears in the display and the total number of tracks.
- Press PLAY/PAUSE (14/1) to play back the music data.
For operating instructions please see the section "Playing CDs/MP3s".
i NOTE:
If a USB storage medium is also inserted in the USB connection, or if CARD mode is not automatically selected, press the STOP button (16/2).
AUX socket (24)
To connect analogue replay devices. Using this socket it is possible to hear the sound of other playback devices such as MP3 players, CD players etc. through the loudspeaker.
- Please connect the external device with a 3.5 mm stereo jack plug to the AUX socket (24).
- Press the FUNCTION button (6/8) repeatedly until „AUX“ appears in the display.
- Through the loudspeakers you will now hear the sound from the external device. You can adjust the volume with the VOLUME control (5).
- For the remaining procedure please see the operating instructions of the external sound source.
i NOTE:
Adjust the volume of the external device to a comfortable level.
Listening to the Radio
- Press the FUNCTION button (6/8) to select radio mode. Press the BAND button (2/7) to select between FM and AM.
$$ \mathrm{VHF} = \mathrm{FM}, \text { Medium wave } = \mathrm{MW(mono)} $$
-
Tune in to the desired station with the help of the SKIP+ ▶▶/SKIP- ◀◀◀ buttons (8/4).
-
The FM.ST control lamp ((ST)) (in the display) only lights up if the selected station is being received in stereo quality. If reception is too weak and there is noise on the station being received, this lamp will flicker. Try to improve reception by turning and bending or twisting and altering the length of the antenna (22). In the case of FM stations you can use the INTRO/ST button (18) (FM/ST (11) on the remote control) to switch between mono and stereo reception. If reception is poor we recommend switching to mono.
-
For the reception of AM stations connect an AM antenna to the AM ANT connections (23). If reception is too weak and the station being received hisses, try to improve reception by turning the AM antenna. In this frequency band programs are transmitted in „mono“ only.
-
If you have found the desired station, press the PROG button (10/6). The word MEMORY lights up and the station memory number fl ashes.
-
In order to select the program location, press the RAN/M-/REPEAT/M+/▶▶I/I◀◀ buttons (17/15/3).
-
To store this position, press the PROG button (10/6). Please note that the programme storage location must be entered within five seconds as the procedure is then cancelled.
To select a stored station press the RAN/M- / REPEAT/M+ / ▶▶▶I/I◀◀ buttons (17/15/3).
i NOTE:
Station presets 0-9 can also be selected with the number buttons (17) on the remote control.
Playing CDs/MP3
This is how you play a CD
- Press the FUNCTION button (6/8) repeatedly until „CD“ appears in the display.
- In order to open the CD compartment (11), press the OPEN/CLOSE (open) button (12).
- Insert an audio CD with the printed side facing upwards on to the central cone so that the CD clicks into place and then close the lid of the CD compartment.
4. AUDIO CDs:
In the display the symbols "CD" appear together with the number of tracks and the total playing time. Press the PLAY/PAUSE button (14/1) to play back the CD. The CD is played from the first track onwards. The track currently being played and the time that has elapsed are shown in the display.
CDs in MP3 Format:
„STOP“, „MP3“ appears in the display with the total number of tracks. „STOP“, „MP3“ appears in the display with the total number of tracks. Press the PLAY/PAUSE key (14/1) to play the CD. The CD is played back from the fi rst track onwards and from the fi rst folder. The song currently being played and the time that has elapsed are shown in the display.
- To remove a CD, press the STOP key (16) (2 on the remote control), open the CD deck with the OPEN/CLOSE (open) key (12) and take out the CD carefully.
Always keep the CD deck closed.
i NOTE:
- If a disc is inserted incorrectly or no disc is inserted, the letters „CD READ“, and „NO DISC“ appear in the display.
- Playback of CDs produced by the user cannot be guaranteed due to the large variety of software and CD media available.
Description of the CD buttons
PLAY/PAUSE (14/1)
You can briefly interrupt and resume playback using this button. The playing time that has elapsed fl ashes in the display. Pressing again continues playback.
SKIP+ ▶▶ I/SKIP- I◀◀ (8/3)
With an audio CD or a CD in MP3 format playing:
With SKIP+ ▶▶▶I (8/3) you can jump to the next or previous track etc. If the button is kept pressed down, the machine starts to search through the tracks (▶▶ (4) on the remote control).
The SKIP- I◀◀ button (8/3) can be used as follows:
Press once = This jumps back to the previous track.
Press twice = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks (◀◀ (4) on the remote control).
In radio mode:
SKIP+/SKIP-: To tune the desired radio station.
▶▶▶▶▶▶: For selecting the stored radio stations.
STOP (16/2)
- The CD stops.
- USB-CARD Switching: Press the button in CARD USB mode to switch between the USB connection and the card slot.
MUTE (9 on the remote control)
Used for switching off the sound immediately. The word „MUTE“ appears in the display. To cancel this function, press the MUTE key again.
EQ/FLAT/ROCK/CLASSIC/POP/JAZZ (19) (16 on the remote control)
(Preset equalizer function). Various sound modes are available (CLASSIC, ROCK, POP, JAZZ, FLAT).
INTRO/ST/FM/ST (18) (15/11 on the remote control)
In FM radio mode:
To change between STEREO and MONO.
With an audio CD or a CD in MP3 format playing:
Press the INTRO/ST button (INTRO appears in the display). Each track on the CD is played for 10 seconds. Press this button again to stop searching. The currently selected track is played.
REPEAT/M+ (15/5)
In radio mode:
For selecting the stored radio stations.
With an audio CD running
Press once: (the ⊆ emits a fixed light). The current track is repeated continuously.
Press twice: (the ALLemits a fixed light). The whole CD is played continuously.
Press three times: all functions are cancelled. The normal play mode is resumed.
Only for CDs in MP3 format
Press once: the current track is repeated continuously (⊂ appears in the display).
Press twice: the whole CD is played continuously (ALL appears in the display).
Press three times: the selected folder of the MP3 CD is repeated continuously ( FOLDER appears in the display).
Press four times: the function is deactivated and the CD is played in the normal mode.
RAN/M- / RAN/BAND (17) (7 on the remote control)
In radio mode:
For selecting the stored radio stations.
For switching between FM and AM.
With an audio CD or a CD in MP3 format playing:
Press once: The word RANDOM appears in the display (13) and the current track number. All tracks are played back in random order.
Press twice: the function is deactivated and the CD is played in the normal mode.
-/- button (17 on the remote control)
Press this button to select the songs above 9. Each subsequent press increases the number by 10 (provided that there are more than 10 tracks on the CD).
i NOTE:
If the ID3 Tag function is activated the „-/--” button (17 on the remote control) has no function.
SLEEP (14 on the remote control)
With the device switched on this sets the period in 10-minute steps from 90 to 10 minutes after which the device switches to standby. Press the button repeatedly until the required duration is shown in the display. With this function activated the word SLEEP appears in the display. The device switches off automatically after the set time.
In order to call up the remaining time press the SLEEP button. This time can also be subsequently shortened or switched off again (00 Min).
TIMER (2)
You can set the device so that it switches on and off again at a certain time.
- Press the TIME button (2) fi ve times. The words „TIME ON“ appear in the display. Press the TIME button again. The hours fi gure begins to fl ash.
- Use the SKIP+ ▶▶/SKIP- ◀◀ buttons (8/4) to select the switch-on time (hours).
- Press the TIME button and use the SKIP+ ▶▶/SKIP-◀◀ buttons (8/4) to select the switch-on time (minutes).
- When the TIME button is pressed the word „TIME OFF“ appears in the display. Press the TIME button again. The hours fi gure begins to fl ash.
- When setting the switch-off time, please proceed in the same way as described above.
- Press the TIME button again; the words „TIME OFF“ appear in the display. Now activate the timer (TIME ON) by pressing the SKIP+ ▶▶/SKIP- ◀◀◀ buttons (8/4).
- Press the TIME button again. „♡“ appears in the display and the timer is activated.
In order to deactivate the timer, press the TIME button 11 times (TIME ON appears in the display) and then use the SKIP+▶▶/SKIP-◀◀ buttons (8/4) to select "TIME OFF". The word "disappears from the display.
i NOTE:
Only possible in radio mode. Turn the device to TUNER mode before you activate the timer.
ID3 button (13 on the remote control)
If it has been burned on the MP3 CD, the ID3-Tag information is shown in the display as a moving image.
i NOTE:
If the ID3 Tag function is activated the „-/--” button (17 on the remote control) has no function.
Programmed Play
This can be used to program any desired sequence of tracks.
- Press the STOP key (16/2).
- Press the PROG key (10/6). „P00 001“ (memory location) appears in the display (13) together with the word PROG. Use the SKIP+ ▶▶▶I/SKIP- I◀◀ buttons (8/3) to select the desired track and then press the PROG button (10/6) again. The display changes to memory slot P01.
- Select the next track with the SKIP+▶▶I/SKIP- I◀◀ key and press the PROG key again. Repeat the procedure until all the desired tracks are selected.
i NOTE:
Once the storage capacity of the tracks to be programmed has been reached, "FUL" fl ashes in the display.
- Press the PLAY/PAUSE key (14/1). The playback starts. The first track number selected appears in the display. The words „CD“ and „PROG“ appear in the display. Press this button to pause briefly the playback.
- Press once the STOP key (16/2) to stop the playback while retaining the program.
- To resume the playback of the program press first the PROG key once and then the PLAY/PAUSE key.
- To delete the program (in stop mode) first press the PROG button and then the STOP button. The PROG control lamp goes out.
The device stops automatically once the entire sequence of programmed tracks is completed. The abbreviation PROG goes off and the programmed order of tracks is deleted from the memory.
It is also possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the REPEAT/M+ button (15/5) up to three times and then you can use the functions as described under „REPEAT/M+“.
Playing back Music in MP3 Format
With this device it is possible to play back pieces of music in MP3 format. The device also supports all standard CD types: CD, CD-RW, CD-R.
This machine of is able to play MP3 CDs. Up to 200 tracks can be compressed and stored on these CDs. Your machine detects an MP3 CD automatically (the total number of tracks and MP3s appears in the display). If you would like to play one of these CDs, proceed as described under „Playing CDs/MP3“. Tracks can be programmed as described under „Playing Back Programmed Tracks“.
Please note:
There are a number of different recording and compression methods, as well as quality differences between CDs and self-recorded CDs.
Furthermore, the music industry does not adhere to fixed standards (copy protection).
For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device.
Cleaning and Maintenance
• Always remove the mains plug before cleaning the machine.
- Any marks on the surface can be wiped off with a slightly damp cloth without any additives.
Technical Data
Model: MC 4412 CD/MP3
Power supply: 230 V, 50 Hz
Output rating:....100 W (PMPO)
Protection class: II
Net weight: 4.2 kg
Radio section:
Frequency ranges:....UKW/FM 87,5 \~ 108,0 MHz .....MW/AM 522 \~ 1620 KHz
This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.
Subject to technical changes without prior notice!
Guarantee
The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).
During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
The guarantee lapses in case of unauthorized tampering.
After the expiry of the guarantee
After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
Meaning of the "Dustbin" Symbol
Protect our environment: do not dispose of electrical equipment in the domestic waste.
Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.
This helps avoid the potential effects of incorrect disposal on the environment and human health.
This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.
Information concerning where the equipment can be disposed of can be obtained from your local authority.
