USER MANUAL SBC700E TECHNICS

Music is borderless and timeless,

touching people's hearts across cultures and generations.

Each day the discovery of a truly emotive experience

from an unencountered sound awaits.

Let us take you on your journey to rediscover music.

Rediscover Music

Technics

Thank you for purchasing this product.

Please read these instructions carefully before using this product, and save this manual for future use.

The cabinets of this product were hand-carved by woodworkers. As a result, the left and right speakers may slightly differ from each other in shape.

For the U.S.A. and Canada

If you have any questions, visit:

U.S.A.: www.panasonic.com/support

Canada: www.panasonic.ca/english/support

Register online at www.panasonic.com/register(U.S. customers only)

For the United Kingdom and Ireland customers

Sales and Support Information

Customer Communications Centre

For customers within the UK: 0333 222 8777
For customers within Ireland: 01 447 5229
- Monday-Friday 9:00 am - 5:00 pm, (Excluding public holidays).
For further support on your product, please visit our website: www.technics.com/uk/

Safety precautions

WARNING

• Put the speakers on a flat safe surface.
• Do not hang the speakers from the ceiling or on the wall. Doing so may cause the speaker to fall off, causing personal injury.
• Do not place any objects in the bass reflex ports on the rear of the speakers. Doing so may cause fire or personal injury. Pay close attention to children.
• Do not repair the speakers by yourself. Refer servicing to qualified service personnel.

CAUTION

• Do not stand on the speakers.
• Do not place heavy items on the speakers.
• Do not hold the speaker in one hand to avoid injury by dropping the speaker when carrying.

• Do not expose the speakers to direct sunlight, high temperatures, high humidity, and excessive vibration.

• Do not expose the speakers to rain, moisture, dripping or splashing.

• The speakers and speaker nets use powerful magnets. Do not put them near TVs, PCs or other equipment easily influenced by magnetism.
• You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.
• Do not touch the diaphragms. Doing so might cause distortion.
• Be cautious when children are near.
• Do not insert a finger into the bass reflex ports on the rear of the speakers. Pay close attention to children as doing so may cause personal injury.
• Keep your speakers at least 10mm^1/32 away from the system for proper ventilation.
• Do not connect the speakers to an amplifier with an output greater than their allowable input. Doing so may overheat the speakers and cause a fire.

Product Identification Marking is located on the bottom of the unit.

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Table of contents

Safety precautions. 4

Accessories 5

About this unit. 5

Installation 6

Connections 7

Attaching the speaker nets. 9

Notes on use. 10

Unit care. 10

Specifications 11

Limited Warranty (ONLY FOR U.S.A.) 66

Limited Warranty (ONLY FOR CANADA) 67

About descriptions in this Owner's Manual

The illustrations shown may differ from your unit.
- Illustrations of this unit in these instructions show SB-C700-W.

Accessories

2 Speaker nets

SB-C700-W

(RYB0400)

SB-C700-K

(RYB0400A)

2 Speaker cables

(For operation checks, 1.2m

(RFA3620)

• Product numbers provided in this Owner's Manual are correct as of June 2015. These may be subject to change.

About this unit

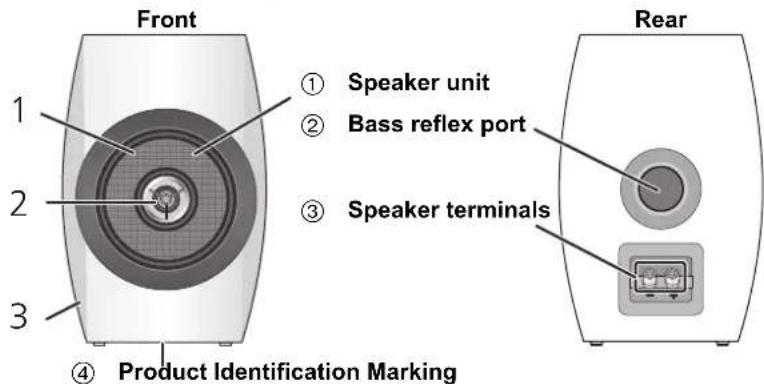

Names of parts and features of the speakers

The model number is located on the Product Identification Marking on the bottom of this unit.

1 Flat coaxial 2-way speaker unit*1

The newly developed flat coaxial two-way speaker units (woofer and tweeter) realise a point sound source. Technics's original flat woofer diaphragm provides smooth directional characteristics over the entire frequency range without peaks and dips, achieving superb sound localisation and a large soundstage.

*1 Since the flat diaphragm is woven with carbon fibre, its flat panel component has a fine waffle texture.

Please note that this does not affect the performance and other characteristics of the speakers.

Dome tweeter that can reproduce frequencies of up to 100kHz

The lightweight aluminium diaphragm allows the reproduction of sound over an ultra-wide frequency range that extends up to 100kHz . The result is a faithful reproduction of audio signals with all nuances intact.

High rigidity entasis form cabinet

Designed to eliminate unwanted vibration, diffraction reflection, and standing waves, the cabinet allows the reproduction of faithful and rich sound ambience.

Recommended devices

We recommend using Technics devices (optional) for superior audio quality.

Product name Model number
Network Audio Player ST-C700
Compact Disc Player SL-C700
Stereo Integrated Amplifier SU-C700

Installation

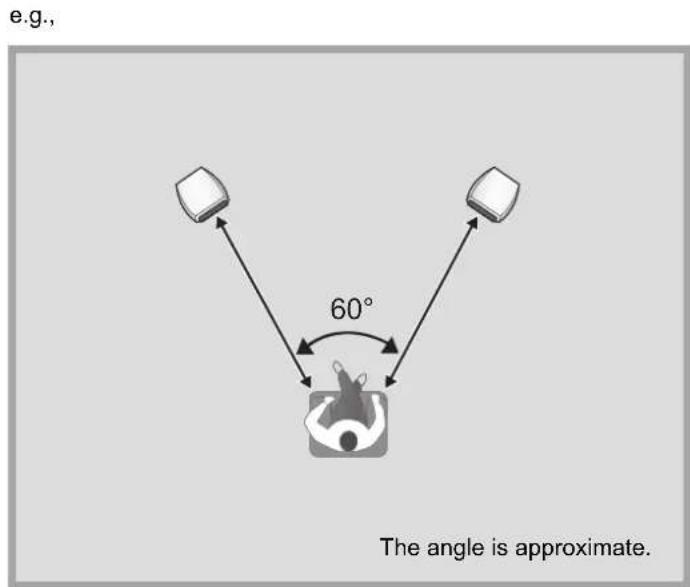

• Place the speakers at approximately the same distance from the listening position.
• The speakers produce bass sound from the bass reflex ports on the rear as well as from the front. Install the speakers at least 5cm ( 2'' ) away from the walls so that they do not cover the bass reflex ports on the rear.
• When placing the speakers on stands, be sure to consult an installation specialist to protect the speakers from earthquakes.
• Keep the amplifier or any other device and the speakers at least 1cm(^13/_32^ ) away from each other.

For optimum position

The quality and volume of the bass sound, sound localisation performance, sound ambience, and other factors that determine the audio quality vary depending on the installation location of this unit, listening position, room conditions, and other factors. Refer to the information below when installing the speakers.

Determining an installation location.

• Put the speakers on a flat safe surface.
  To minimise the gap in audio quality between the left and right speakers, install them so that acoustic conditions (reflection and absorption of sound) around them are the same.
  Depending on the way the speakers are placed, the speaker cables may not be long enough. In such a case, use desired cables that are sufficiently long and deliver high quality audio.

Adjusting the distances between the rear of the speakers and the walls

If you install the speakers close to a wall or in a corner, the bass sound will be more powerful; however, when the speakers are too close to it, sound localisation performance and sound ambience may deteriorate. If this occurs, adjust the distance between the speakers and the front wall, which should be between 30 cm (12") to 60 cm (24"). (Please note that the distance between the speakers and the side walls should be greater than 60 cm (24".))

Connections

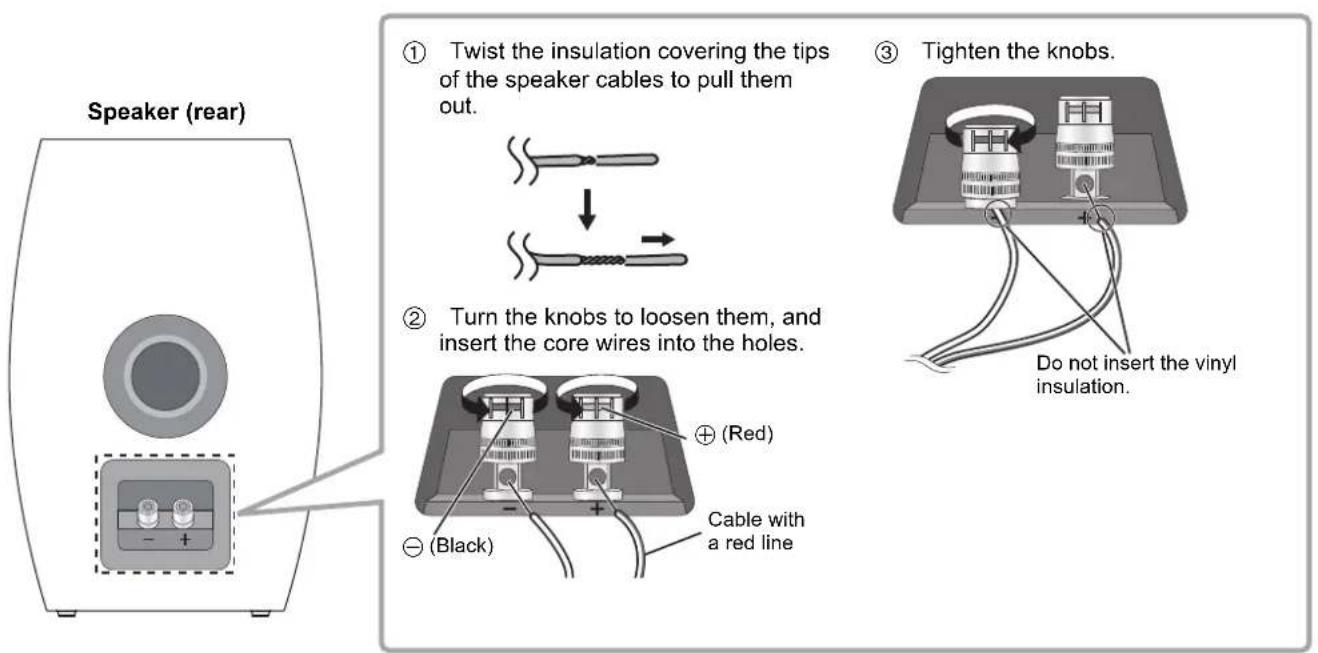

Connecting the speaker cables

• Keep the terminal knobs and the terminal caps out of reach of children to prevent swallowing.

• Do not place the speakers with the front side down. Doing so may damage the speakers.
• Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the amplifier.

• Check the colors of the speaker cables (supplied) to connect the left and right speakers correctly. Incorrect connection can damage the speakers.

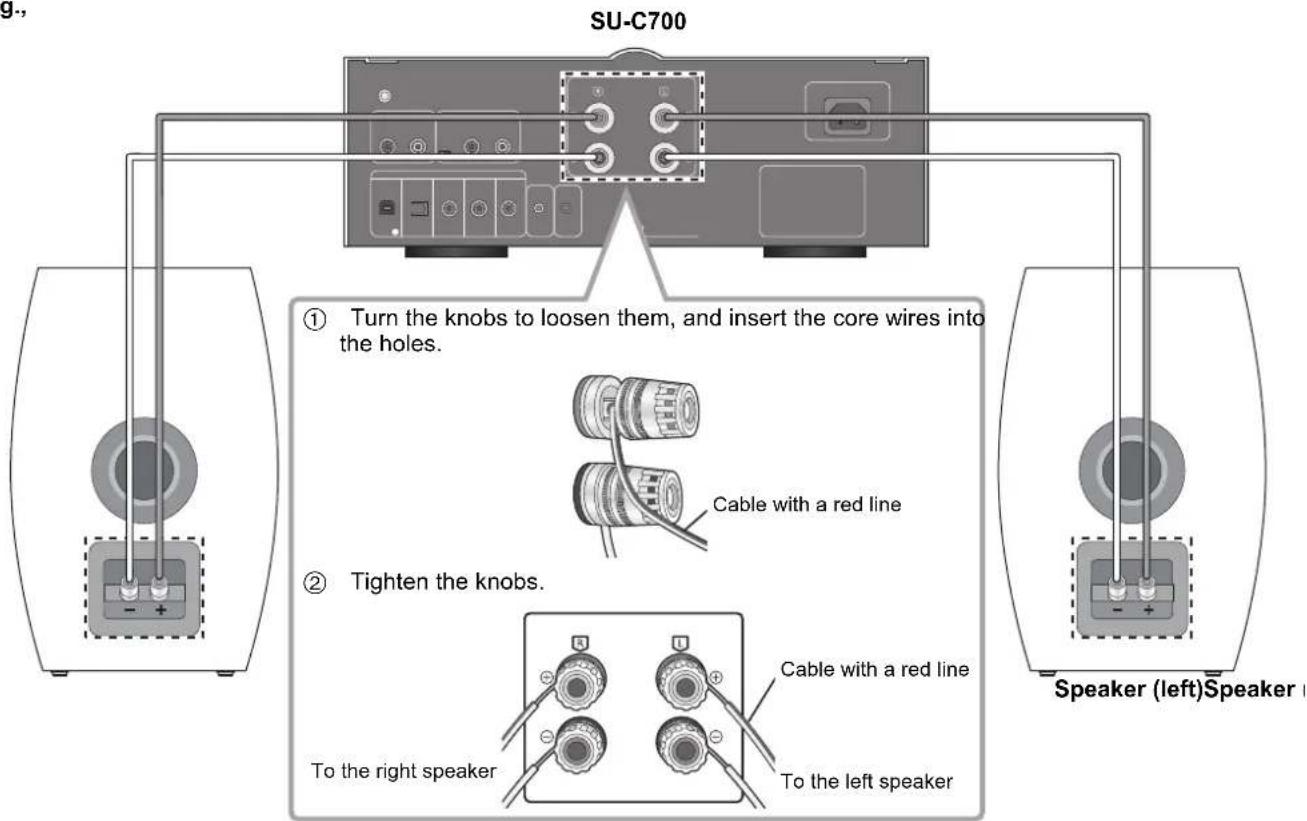

Connecting with an amplifier

• Before connection, turn off the amplifier and disconnect its power cord.
• For details, refer to the operating instructions of the amplifier.

e.g.,

• Do not move the speaker while the speaker cables are connected. This may cause a short circuit.
• When the connections are completed, pull the speaker cables lightly to check that they are connected firmly.
• Wire the polarity (+/-) of the terminals correctly. Not doing so may adversely affect stereo effects or cause malfunction.

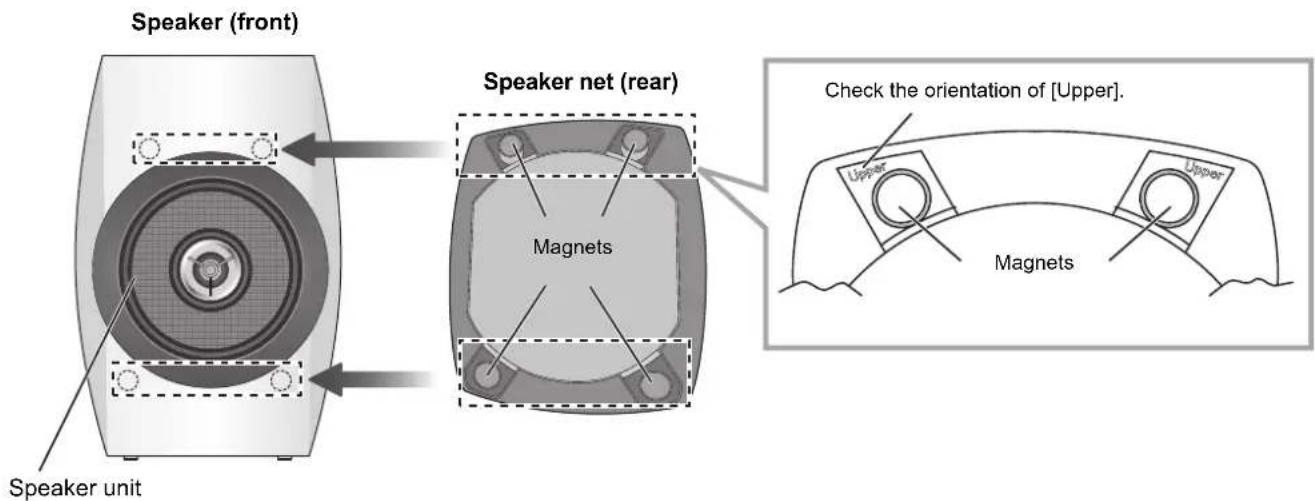

Attaching the speaker nets

The speakers are supplied with speaker nets, which protect the speaker units from dust. Use the magnets to fix the speaker nets to the speakers.
- Attach each speaker net so that the upper part of its back indicated as [Upper] is attached to the upper part of each speaker.
- Instruction labels are attached to the upper part of each speaker net. Remove them before use.

DO ●Attach the speaker nets so that they fully cover the speaker units.

DO NOT ●Attaching the speaker nets upside down may cause the sound quality to deteriorate.

• You can enjoy superior quality audio by removing the speaker nets before playback.

Notes on use

To protect the speakers from damage caused by excessive input, observe the following precautions:

• Reduce the volume in the following cases to avoid damage:

• When playing distorted sound.

• When the speakers are receiving howling from a microphone or record player, noise from FM broadcasts, or continuous signals from an oscillator, test disc, or electronic instrument.

• When adjusting the sound quality.

• When turning the amplifier on or off.

• Avoid raising the volume level too much when enhancing the treble sound with a graphic equalizer or any other controls.

• Avoid outputting excessively loud sound with a small power amplifier. Doing so will increase the amplifier's harmonic distortion and may damage the speakers.
• You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.

Unit care

Clean the speakers with a soft, dry cloth.

• When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a dry cloth.
• Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.

Specifications

Type Coaxial 2 way 2 Speaker Bass reflex

Speaker unit

Woofer 16 cm (6

Tweeter 1.9 cm (

Impedance 4 Ω

Input power (IEC) 100 W (MAX)

Sound pressure level 85 dB (2.83 V/m)

Frequency range 40 Hz to 100 kHz (-16 dB)

Crossover frequency 2.5 kHz

Dimensions (W× H× D)

Mass (Weight)

Operating temperature range

Operating humidity range

1 / 2^ ) Flat Type x1

3 / 4^ )Dome Type x1

50 W (RATED)

82 dB (W/m)

45 Hz to 80 kHz (-10 dB)

220 mm×336 mm×286 mm (8 1/16" × 13 7/32" × 11 1/4")

(include net 8 mm (^6 / 16^ ) and back terminal knob 5 mm (^3 / 16^ ) )

Approx. 8.5kg (18.7 lbs)

0^ to +40^(+32^ to +104^)

20% to 80% RH (no condensation)

• Specifications are subject to change without notice.
  Mass and dimensions are approximate.

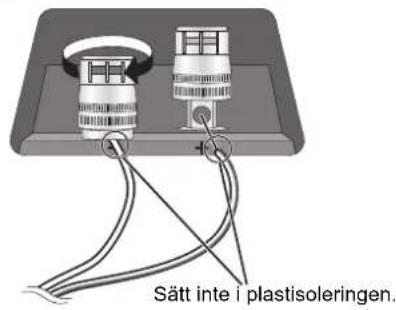

③ Dra at rattarna.

Limited Warranty (ONLY FOR U.S.A.)

Technics Products - Limited Warranty

Limited Warranty Coverage (For USA Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or Part Name Parts	Labor
Technics Stereo Integrated Amp	3 (three) years 3 (three) years	Technic
Technics Speaker System
Technics Compact Disc Player 2 (two) years 2 (two) years

During the "Labor" warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold "as is".

Mail-In Service-Online Repair Request

Online Repair Request

To submit a new repair request and for quick repair status visit our Web Site at www.panasonic.com/support.

When shipping the unit, carefully pack, include all supplied accessories listed in the Owner's Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at www.panasonic.com/BatteryHandling as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits and Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation.

set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTY EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".

THE WARRANTYOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ASRISING OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTY, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so eWorkCustody may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Consumer Affairs Department

Panasonic Corporation of North America

661 Independence Pkwy

Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Shop

Accessories!

for all your Technics gear

Go to

www.panasonic.com/accessories

Get everything you need to get the most out of your Technics products

Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal

Care, Home Appliances, Headphones, Batteries, Backup Chargers & more...

Customer Services Directory

For Product Information, Operating Assistance, Parts, Owner's Manuals, Dealer and Service info go to www.panasonic.com/support

For the hearing or speech impaired TTY: 1-877-833-8855

As of October 2014

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER

SB-C700

SERIAL NUMBER

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

TECHNICS PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Technics Stereo Integrated Amp 3 (three) years parts and labour

Technics Network Audio Player 3 (three) years parts and labour

Technics Speaker System 3 (three) years parts and labour

Technics Compact Disc Player 2 (two) years parts and labour

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Technics brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.

Dry cell batteries are also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation, repairs and information assistance, please visit our Support page on: www.panasonic.ca/english/support

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase.

Certificat de garantie limitee

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PRODUIT TECHNICS - GARANTIE LIMITEE

Headquarter Address/Adresse du siege social: Panasonic Corporation

Kadoma, Osaka, Japan

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

For the U.S.A.

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://www.panasonic.com

For Canada

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario,

L4W 2T3

www.panasonic.com

For the United Kingdom and Ireland

For Continental Europe

For Australia and New Zealand

Panasonic Corporation

Web Site: http://www.panasonic.com

EnCfGeFrItSpDaDuSwfi

© Panasonic Corporation 2014

Printed in China

Imprimé en Chine

SQT0648-3

F1014BM3065
