USER MANUAL Concept Pro II BLAUPUNKT

Car Radio | CD | USB

Concept Pro II

Birmingham 2012 1 011 200 340

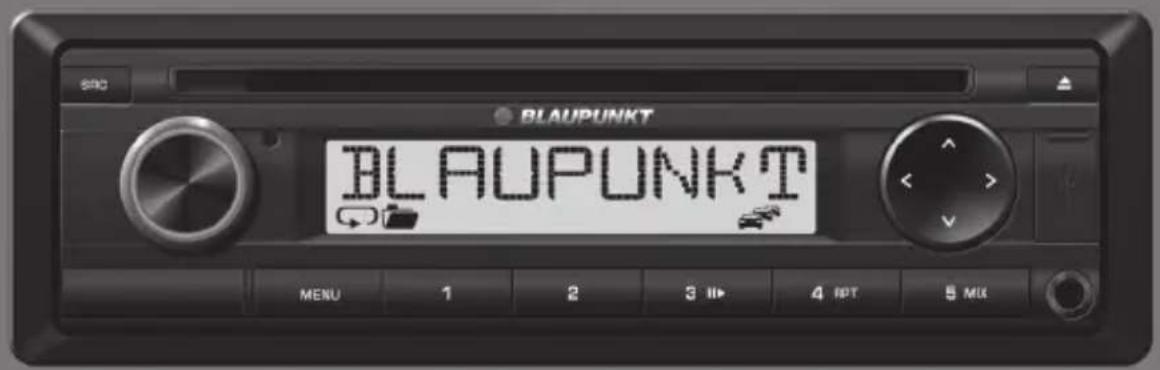

BLAUPUNKT BLAUPUNKT MENU 1 2 3 III 4 IPT 5 MIX

www.blaupunkt.com

Operating and installation instructions

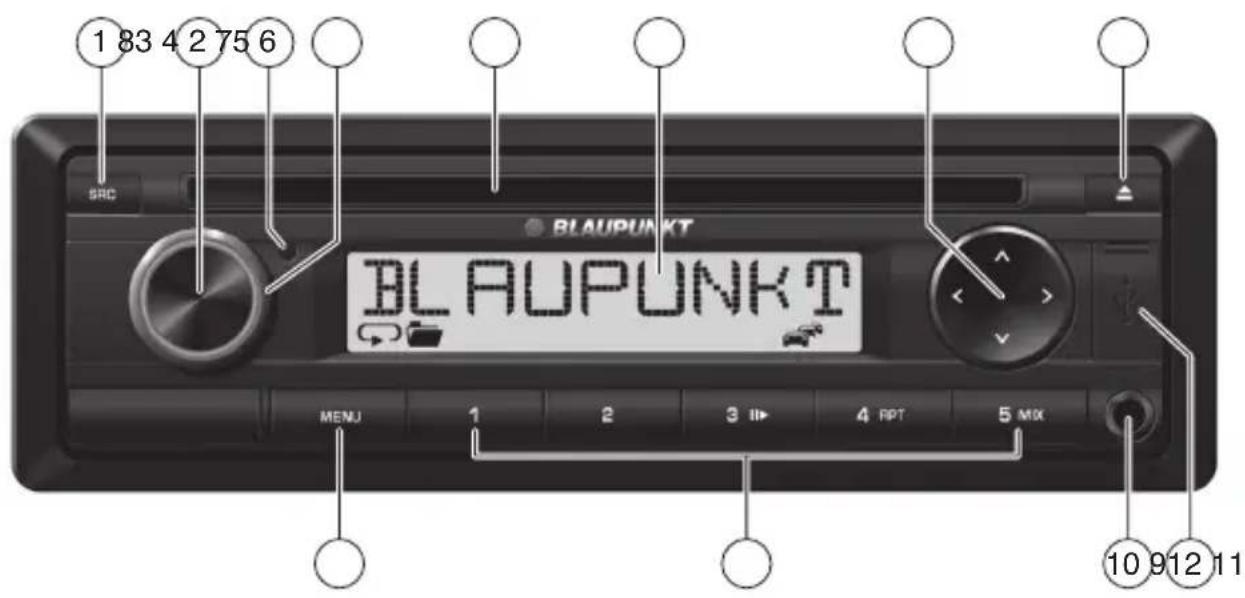

① SRC button Select memory bank or audio source
② On/Off button Short press: Switch on car sound system In operation: Mute car sound system Long press: Switch off car sound system
③ Infrared receiver
④ Volume control In the menu: Change settings
⑤ CD tray
⑥ Display
⑦ A button In the menu: Select menu item Radio mode: Start seek tuning MP3/WMA mode: Change to next/previous folder

< / >button

In the menu: Change menu level Radio mode: Adjust the stations Other operating modes: Track selection

⑧ Button (Eject) Eject a CD
⑨ USB socket
⑩ Front AUX-IN socket
⑪ Keys 1 - 5
⑫ MENU button Short press: Call up/close menu Long press: Start scan function

Safety notes 21

Symbols used 21

Road safety 21

General safety notes 21

Declaration of conformity ......22

Cleaning notes 22

Disposal notes.... 22

Scope of delivery 22

Optional equipment

(not part of the scope of delivery) ......22

Placing the device in operation 22

Code protection 22

Setting the reception area 23

Switching on/off 23

Volume 23

Switching demo mode on/off 23

Traffi c information 24

Radio mode 24

RDS....24

Changing to radio mode or selecting a memory bank 24

Tuning into a station 24

Storing stations or calling stored stations .....25

Scanning stations 25

Storing stations automatically (Travelstore)....25

PTY 26

CD/MP3/WMA mode 26

Basic information 26

Changing to CD/MP3/WMA mode .....27

Inserting/ejecting a CD 27

Connecting/removing a USB data carrier .....28

Selecting tracks 28

Selecting a folder

(only in MP3/WMA mode) 28

Fast searching 28

Interrupting playback 28

Scanning all tracks 28

Playing tracks in random order 28

Repeatedly playing individual tracks or directories 29

External audio sources 29

Front AUX-IN socket 29

Sound settings 29

Calling and exiting the "AUDIO" menu ......29

Making settings in the "AUDIO" menu .....29

User settings 30

Calling the user menu and selecting a menu 30

Making settings in the "TUNER" menu ......30

Making settings in the "DISPLAY" menu ......32

Making settings in the "VOLUME" menu .....32

Making settings in the "VARIOUS" menu .....33

Factory settings 33

Useful information 34

Warranty 34

Service 34

Technical data 34

Installation instructions 251

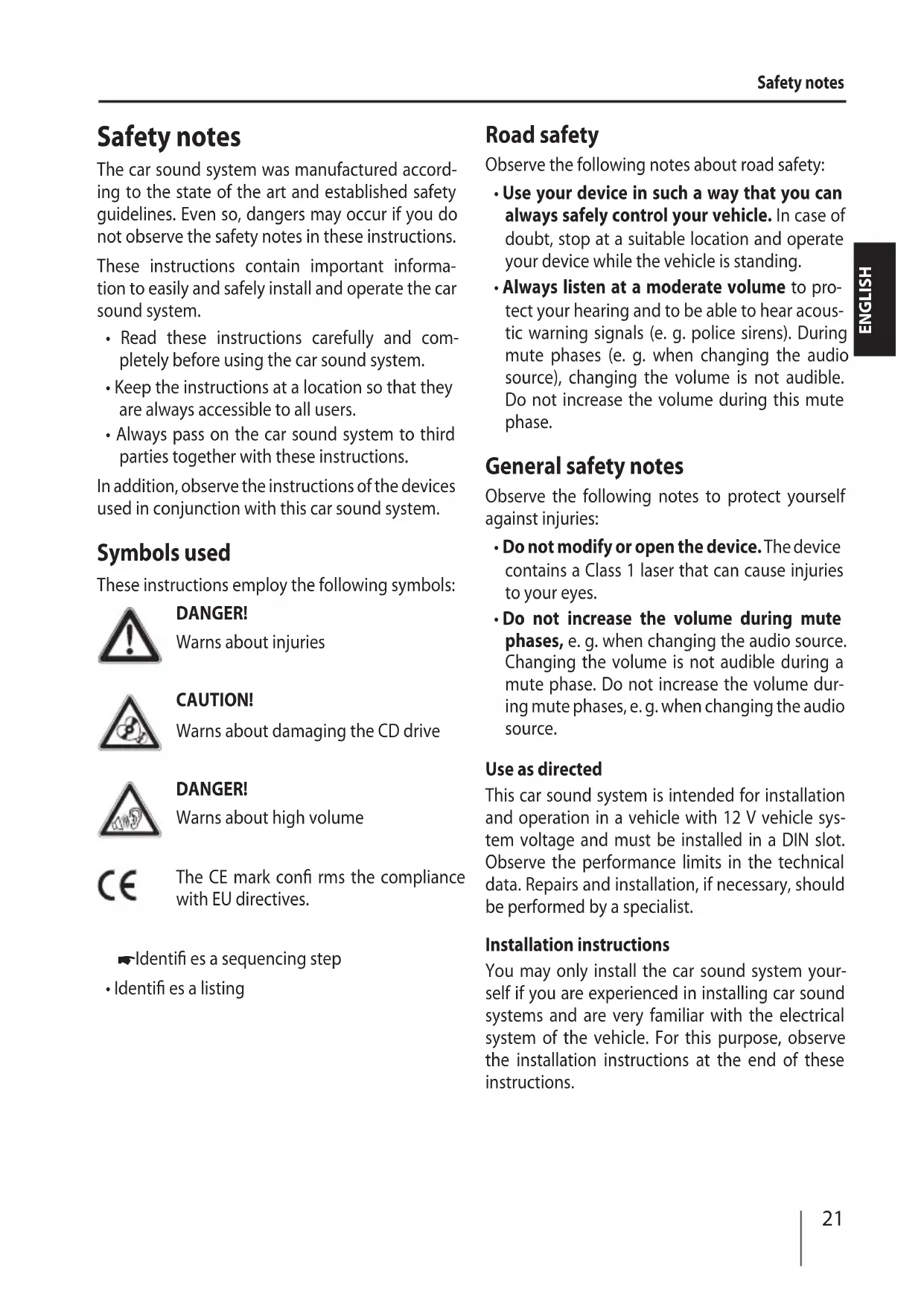

Safety notes

The car sound system was manufactured according to the state of the art and established safety guidelines. Even so, dangers may occur if you do not observe the safety notes in these instructions.

These instructions contain important information to easily and safely install and operate the car sound system.

• Read these instructions carefully and completely before using the car sound system.
• Keep the instructions at a location so that they are always accessible to all users.
• Always pass on the car sound system to third parties together with these instructions.

In addition, observe the instructions of the devices used in conjunction with this car sound system.

Symbols used

These instructions employ the following symbols:

DANGER!

Warns about injuries

CAUTION!

Warns about damaging the CD drive

DANGER!

Warns about high volume

The CE mark confirms the compliance with EU directives.

Identifi es a sequencing step

- Identifi es a listing

Road safety

Observe the following notes about road safety:

- Use your device in such a way that you can always safely control your vehicle. In case of doubt, stop at a suitable location and operate your device while the vehicle is standing.

- Always listen at a moderate volume to protect your hearing and to be able to hear acoustic warning signals (e. g. police sirens). During mute phases (e. g. when changing the audio source), changing the volume is not audible. Do not increase the volume during this mute phase.

General safety notes

Observe the following notes to protect yourself against injuries:

- Do not modify or open the device. The device contains a Class 1 laser that can cause injuries to your eyes.

- Do not increase the volume during mute phases, e. g. when changing the audio source. Changing the volume is not audible during a mute phase. Do not increase the volume during mute phases, e. g. when changing the audio source.

Use as directed

This car sound system is intended for installation and operation in a vehicle with 12 V vehicle system voltage and must be installed in a DIN slot. Observe the performance limits in the technical data. Repairs and installation, if necessary, should be performed by a specialist.

Installation instructions

You may only install the car sound system yourself if you are experienced in installing car sound systems and are very familiar with the electrical system of the vehicle. For this purpose, observe the installation instructions at the end of these instructions.

Declaration of conformity

The Blaupunkt Embedded Systems GmbH declares that the car sound system Birmingham 2012 complies with the basic requirements and the other relevant regulations of the directive 2004/108/EC.

The declaration of conformity can be found on the Internet under www.blaupunkt.com.

Cleaning notes

Solvents, cleaning and scouring agents as well as dashboard spray and plastics care product may contain ingredients that will damage the surface of the car sound system.

Use only a dry or slightly moistened cloth for cleaning the car sound system.

Disposal notes

Do not dispose of your old unit in the household trash!

Use the return and collection systems available to dispose of the old device.

Scope of delivery

The scope of delivery includes:

1 Car sound system
1 Operating/installation instructions
1 Support frame
2 Disassembly tools

Optional equipment (not part of the scope of delivery)

Use only accessories approved by Blaupunkt. Information is available from your Blaupunkt specialised dealer or on the Internet under www.blaupunkt.com.

Placing the device in operation

Code protection

This car sound system is protected against theft with a four-digit code number. You can specify that the code number must be entered after every interruption of the power supply from the vehicle battery. With activated code query and without this code number, the car sound system is useless to a thief.

Notes:

• The code query is set to inactive at the factory, but it can be activated (see the chapter "User settings", section "Making settings in the "VARIOUS" menu", menu item "SEC CODE").
• The default setting of the code number is "0000". The code number can be changed (see the chapter "User settings", section "Making settings in the "VARIOUS" menu", menu item "CODE SET").

Entering the code number after a voltage interruption

If the code query is activated, the four-digit code number must be re-entered every time the device is disconnected from the vehicle system voltage (e.g. removal of the battery for repairs).

For each digit of the code number:

Press the V/ button ⑦ to set the current digit.
Press the > button ⑦ to confirm.

Note:

When entering the code, you may return to a previous digit by pressing the <button ⑦.

After setting and confi rming the fourth digit, the car sound system is switched on.

Note:

If you enter an incorrect code number, "CODE ERR" is briefly displayed and the device is blocked for 99 seconds. Afterwards you can retry the entry.

Setting the reception area

This car sound system is designed for operation in different regions with different frequency ranges and station technologies. The factory default of the reception area is "EUROPE". In addition, the reception areas "USA", "S-AMERICA" and "THAILAND" are available.

Note:

If you operate the car sound system outside of Europe, you may first have to set a suitable reception area in the user menu (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu item "AREA").

Switching on/off

Switching on/off with the On/Off button

For switch-on, press the On/Off button2.

The car sound system switches on.

To switch off the device, press and hold down the On/Off button ^2 for longer than 2 seconds.

The car sound system switches off.

Note:

If you switch on the car sound system while the vehicle ignition is switched off, it automatically switches off after 1 hour to preserve the vehicle battery.

Switching on/off via vehicle ignition

The car sound system will switch off /on simultaneously with the ignition if the device is correctly connected to the vehicle's ignition as shown in the installation instructions and you did not switch the device off by pressing the On/Off button ^2 .

Volume

Adjusting the volume

You can adjust the volume in steps from 0 (off) to 50 (maximum).

Turn the volume control ^4 to change the volume.

Note:

If a telephone is connected with the car sound system as described in the installation instructions, the car sound system is muted in case of a phone call. During muting, the display shows "TELEPHONE".

Muting the car sound system (Mute)

Briefly press the On/Off button ② to mute the car sound system or to reactivate the previous volume.

During muting, the display shows "MUTE".

Switching demo mode on/off

The demo mode shows the functions of the car sound system as scrolling text on the display. You can turn the demo mode on or off :

Switch off the car sound system if it is not already turned off.
Press and hold the buttons<⑦ and MENU⑫ at the same time and press the On/Off button②.

The car sound system switches on. The display briefy shows "DEMO MODE" if you switched on the demo mode. By pressing any button, the demo mode is interrupted and you can operate the device.

Traffi c information

In the reception area "EUROPE", an FM station can identify traffic reports by means of an RDS signal. If priority for traffic reports is switched on, a traffic report is automatically switched through, even if the car sound system is currently not in radio mode.

If priority is switched on, the display shows the traffic jam symbol. "TRAFFIC" is displayed during a switched-through traffic announcement.

The priority is activated and deactivated in the user menu (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu item "TRAFFIC").

Notes:

- The volume is increased for the duration of the switched-through traffic c announcement. You can adjust the minimum volume for traffic c announcements (see the chapter "User settings", section "Making settings in the "VOLUME" menu", menu item "TA VOLUME").

- To cancel a switched-through traffic announcement, press the SRC button ①.

Radio mode

RDS

Many FM stations broadcast an RDS (Radio Data System) signal in addition to their programme in the reception area "EUROPE" that allows the following additional functions:

• The station name is shown on the display.
• The car sound system recognises traffic announcements and news broadcasts and can automatically switch them through in other operating modes (e.g. in CD mode).
• Alternate frequency: If RDS is activated, the car sound system automatically selects the best receivable frequency for the station that is currently set.
• Regional: At certain times, some radio stations divide their programme into regional programmes providing different content. If

the REGIONAL function is activated, the car sound system changes only to those alternate frequencies on which the same regional programme is being broadcast.

The functions RDS and REGIONAL are activated and deactivated in the user menu (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu items "RDS" and "REGIONAL").

Changing to radio mode or selecting a memory bank

The following memory banks are available in the different reception areas:

Region	Memory banks
EUROPE	FM1, FM2, FMT, MW
USA	FM1, FM2, FMT, AM, AMT
S-AMERICA	FM1, FM2, FMT, AM, AMT
THAILAND	FM1, FM2, FMT, AM, AMT

Press the SRC button ① repeatedly until the desired memory bank is displayed.

Notes:

• Up to 5 stations can be stored in each memorybank.
• Memory banks can be activated or deactivated via the user menu (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu item "TUN BAND" (band selection)). Deactivated memory banks are skipped during the source selection with the SRC button ①.

Tuning into a station

There are various ways of tuning into a station:

Tuning into stations manually

Briefly press the </>button ⑦ once or several times to change the frequency in increments, or long to quickly change the frequency.

Note:

For the reception areas "EUROPE" and "USA": In the FM waveband, the current selected programme type is displayed and can be changed if the PTY function is activated (see the chapter "PTY").

Starting station seek tuning

Press the V/ button ⑦ to start station seek tuning.

The radio tunes into the next receivable station.

Notes:

• For the reception area "EUROPE": In the FM waveband, only traffic information stations are tuned into if the priority for traffic information ( ) is switched on.
• For the reception areas "EUROPE" and "USA": In the FM waveband, the next station with the currently selected programme type is tuned into if the PTY function is activated (see the chapter "PTY").
• The sensitivity of seek tuning can be adjusted (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu item "SEEK SENS").

Storing stations or calling stored stations

Select the desired memory bank.
If necessary, set the desired station.
Press a station button ^11 for approx. 2 seconds to store the current station under the button.

- or -

Briefly press a station button ⑪ to call up the stored station.

Scanning stations

The scan function is used to scan every receivable station of the current waveband.

Note:

You can adjust the scan time for each station (see the chapter "User settings", section "Making settings in the "VARIOUS" menu" menu item "SCAN TIME").

Press the MENU button ⑫ for approx. 2 seconds to start scanning.

During the scan, the display alternately displays "SCAN" and the current frequency as well as memory bank or station name.

Briefly press the MENU button ⑫ to continue listening to the station that is currently being received.

Storing stations automatically (Travelstore)

With Travelstore, you can automatically search for and store the 5 FM stations off ering the strongest reception in the region in one memory bank. Any previously stored stations in this memory bank are deleted in the process.

With Travelstore, you can store 5 FM stations in the FMT memory bank in all reception areas. In the reception areas "USA", "S-AMERICA" and "THAILAND", you can also store 5 AM stations in the AMT memory bank.

Select a memory bank of the desired waveband, e.g. FM1 or AM.

Press the SRC button ① for approx. 2 seconds.

The tuner starts the automatic station seek tuning; the display shows "FM TSTORE" or "AM TSTORE". After the storing is completed, the radio plays the station at memory location 1 of the FMT or AMT level.

Notes:

- For the reception area "EUROPE": If the priority for traffic c information is switched on ( ), only traffic c information stations are stored.

- If the FMT or AMT memory bank is deactivated (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu item "TUN BAND"), it is automatically reactivated if you initiate the Travelstore function.

PTY

In the reception areas "EUROPE" and "USA", an FM station can transmit its current programme type, e. g. CULTURE, POP, JAZZ, ROCK, SPORT or SCIENCE. Hence, the PTY function allows a targeted search for broadcasts of a certain programme type, e. g. for rock or sports broadcasts. Note that PTY is not supported by all stations.

Note:

The PTY function is only available if it has been activated (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu item "PTY").

Selecting a programme type

Briefly press the< / >button ⑦.

The currently selected programme type is brief y displayed, and you can select a different programme type.

If necessary, press the </>button ⑦ repeatedly until the desired programme type is selected.

Note:

In the reception area "EUROPE", you can adjust the language in which the programme types are displayed (see the chapter "User settings", section "Making settings in the "TUNER" menu", menu item "PTY LANG").

Searching for stations

Press the V / Button ⑦.

During the seek tuning, the currently selected programme type is shown on the display.

As soon as a station with the desired programme type is found, it remains being tuned into.

Notes:

- If no station with the selected programme type is found, "PTY NONE" is briefly displayed and 1 beep can be heard. The radio will then retune to the station that it played last.

- If the tuned radio station or another station on the broadcasting network broadcasts your selected programme type at a later point in time, the car sound system will automatically switch from the currently tuned station to the station whose programme type matches the one you selected. Note that this function is not supported by all stations.

CD/MP3/WMA mode

Basic information

This car sound system can be used to play audio CDs (CDDA) and CD-R/RWs with audio, MP3 or WMA fi les as well as MP3 or WMA fi les on USB data carriers.

Notes:

- To ensure proper functioning, use only CDs with the Compact-Disc logo.

- Blaupunkt cannot guarantee the flawless function of copy-protected CDs and all CD blanks and USB data carriers available on the market.

Note the following information when preparing an MP3/WMA data carrier:

- Naming of tracks and directories:

- Max. 24 characters without the file extension ".mp3" or ".wma" (the use of more characters reduces the number of tracks and folders that the car sound system can recognise)

– No umlauts or special characters

• CD formats:CD-R/RW, ∅: 12 cm

• CD data formats: ISO 9669 Level 1 and 2, Joliet

• CD burn speed: Max. 16x (recommended)

• USB format/fi le system: Mass storage device / FAT16/32
• File extension of audio fi les:

-.MP3 for MP3 fi les
- .WMA for WMA fi les

- W M A fi les only without Digital Rights ment (DRM) and created with Windows Media Player version 8 or later

• MP3 ID3 tags: Version 1 and 2
- Bitrate for creating audio fi les:

• MP3: 32 to 320 kbps
  – WMA: 32 to 192 kbps

- Depending on the data structure on the USB medium, up to 20,000 entries can be managed.

Changing to CD/MP3/WMA mode

Press the SRC button ① repeatedly until the desired audio source is displayed:

• "CD": Inserted CD
• "USB": Connected USB data carrier
• "AUX": Connected external audio source

Notes:

• The respective audio source can be selected only if a corresponding data carrier is inserted or a corresponding device is connected.
• If the car sound system first has to read the data of a connected device or data carrier before the playback, the display shows "READING". The duration of the reading depends on the data volume and design of the device or data carrier. If the device or data carrier is defective or the transferred data cannot be played back, a corresponding message appears on the display (e.g. "USB ERROR").

Inserting/ejecting a CD

Inserting a CD

Risk of severe damage to the CD drive!

Noncircular contoured CDs (shape CDs)

and CDs with a diameter of 8 cm (mini CDs) must not be used.

We accept no responsibility for any damage to the CD drive that may occur as a result of the use of unsuitable CDs.

Note:

You must not hinder or assist the drive as it automatically draws in the CD.

Insert the CD with its printed side up into the CD tray ⑤ until you feel a slight resistance.

The drive automatically draws in the CD and checks its data. Afterwards, the playback starts in CD or MP3 mode.

Note:

If the inserted CD cannot be played back, "CD ERROR" is briefly displayed and the CD is automatically ejected after approx. 2 seconds.

Ejecting a CD

Note:

You must not hinder or assist the drive as it ejects the CD.

Press the ▲ button ⑧ to eject an inserted CD.

Notes:

• If a CD is ejected and not removed, the drive will automatically draw it back in again after approx. 10 seconds.
• You can also eject CDs while the car sound system is switched off or whilst another audio source is activated.

Connecting/removing a USB data carrier

Connecting a USB data carrier

Switch off the car sound system so that the data carrier will be correctly registered.

Pull the protective cap of the USB socket ^9 to the front until it moves out of the socket and fold it down.
Connect the USB data carrier.
Turn on the car sound system.

If the USB data carrier is initially selected as audio source, the data are read first.

Notes:

• If the connected USB data carrier cannot be seen, "USB ERROR" is briefly displayed.
• The time required for reading in the data depends on the design and size of the USB data carrier.

Removing a USB data carrier

Switch off the car sound system so that the data carrier will be correctly unregistered.

■ Disconnect the USB data carrier.
Close the protective cap of the USB socket ⑨.

Selecting tracks

Press the</>button ⑦ briefy to change to the previous/next track.

Note:

If the current track plays longer than 3 seconds, pressing ≤slant⑦ once restarts the track.

Selecting a folder (only in MP3/WMA mode)

Press the V/ button ⑦ briefly to change to the previous/next folder.

Fast searching

Press and hold down the button</>⑦ until the desired position has been reached.

Interrupting playback

Press the 3 ▶⑪ button to interrupt the playback ("PAUSE") or to continue it.

Scanning all tracks

The scan function scans all available tracks.

Press the MENU button ⑫ for approx. 2 seconds to start the scan, or briefly to continue playing the currently scanned track.

During the scan, the display alternately displays "PLAY SCAN" and the playing time of the current track.

Note:

The scan time can be adjusted (see the chapter "User settings", section "Making settings in the "VARIOUS" menu", menu item "SCAN TIME").

Playing tracks in random order

Press the 5 MIX button ^11 to change among the playback modes:

Operation Display Meaning
CD MIX ALL Mixing tracks
MP3/WMA	MIX DIR	Mixing tracks of the current folder
	MIX ALL	Mixing tracks of the data carrier
Gen.	MIX OFF	Regular playback

If the MIX function is switched on, the icon MIX (mix all tracks) or MIX (mix tracks of current folder) is shown on the display.

Repeatedly playing individual tracks or directories

Press the 4 RPT button ^11 to change among the playback modes:

Operation Display Meaning
CD RPT TRACK Repeating tracks
MP3/WMA	RPT TRACK	Repeating tracks
	RPT DIR	Repeating folders
Gen. RPT OFF Regular playback

If the RPT function is switched on, the icon

(repeat tracks) or (repeat

folders) is shown on the display.

External audio sources

Front AUX-IN socket

Danger!

Increased risk of injury from connector.

In case of an accident, the protruding connector in the front AUX-IN socket may cause injuries. The use of straight plugs or adapters leads to an increased risk of injury.

For this reason, we recommend using angled jack plugs.

As soon as an external audio source, such as a portable MP3 player is connected to the front AUX-IN socket ⑩, it can be selected with the SRC button ①. "AUX" then appears on the display.

Sound settings

The following sound settings can be changed in the "AUDIO" menu:

• Adjusting bass and treble
• Setting the left/right volume distribution (Balance) or front/rear (Fader)
• Adjusting the increase of bass at low volume (X-Bass)
• Selecting a sound profi le (Presets)

Calling and exiting the "AUDIO" menu

Briefly press the MENU button ⑫ to open the user menu.
Press the V/ hutton ⑦ repeatedly until the "AUDIO" menu item is selected.
Press the>button ⑦ to open the "AUDIO" menu.
Press the √/ button ⑦ repeatedly until the desired menu item is selected.
- Perform the setting (see the next section).

Briefly press the MENU button ⑫ to exit the menu.

Notes:

• The menu is automatically exited approx. 30 seconds after the last button activation and you are returned to the display of the current audio source.
• In the menu, you can press the button < ⑦ in each case to return to the higher menu level.

Making settings in the "AUDIO" menu

BASS

Bass level. Settings: -7 to +7.

Press the> button⑦ to open the submenu.
Turn the volume control④ to perform the setting.

TREBLE

Treble. Settings: -7 to +7.

Press the button ⑦ to open the submenu.
Turn the volume control④ to perform the setting.

BALANCE

Left/right volume distribution. Settings: L9 (left) to R9 (right).

Press the button ⑦ to open the submenu.
Turn the volume control④ to perform the setting.

FADER

Front/rear volume distribution. Settings: R9 (rear) to F9 (front).

Press the > button ⑦ to open the submenu.
Turn the volume control④ to perform the setting.

X-BASS

Increase of bass at low volume. Settings: OFF, 1, 2, 3 (highest increase).

Press the > button ⑦ to open the submenu.
Turn the volume control④ to perform the setting.

PRESETS

Selecting equalizer presettings. Settings: POP, ROCK, CLASSIC, EQ OFF (no presetting).

Press the > button ⑦ to open the submenu.
Turn the volume control④ to perform the setting.

User settings

Calling the user menu and selecting a menu

Briefly press the MENU button ⑫ to open the user menu.

In the user menu, the user settings can be found in the following menus:

• TUNER
• AUDIO (see chapter "Sound settings")
• DISPLAY
• VOLUME
• VARIOUS

Press the V/ Button ⑦ repeatedly until the desired menu is selected.

Press the>button ⑦ to open the selected menu.
Press the √/ button ⑦ repeatedly until the desired menu item is selected.
- Perform the setting (see the following sections).

Briefly press the MENU button ⑫ to exit the menu.

Notes:

• The menu is automatically exited approx. 30 seconds after the last button activation and you are returned to the display of the current audio source.
• In the menu, you can press the <button ⑦ in each case to return to the higher menu level.

Making settings in the "TUNER" menu

RDS

Switching the RDS function on or off. Settings: ON, OFF.

Press the> button ⑦ to open the submenu.
Turn the volume control ^4 to change between the settings.

TRAFFIC (traffi c information) (only for reception area EUROPE)

Only possible in FM radio mode: Switching priority for traffic announcements on or off. Settings: ON, OFF.

Press the > button ⑦ to open the submenu.
Turn the volume control ^4 to change among the settings.

If priority is switched on for traffic information, the display shows the icon 📄.

TUN BAND (band selection)

Activating or deactivating memory banks.

Memory banks that can be deactivated:

Region Memory banks

EUROPE FM2, FMT, MW

USA FM2, FMT, AM, AMT

S-AMERICA FM2, FMT, AM, AMT

THAILAND FM2, FMT, AM, AMT

Settings in each case: ON, OFF.

Press the> button ⑦ to open the submenu.
Press the √ / button ⑦ repeatedly until the desired memory bank is displayed.
Press the > button ⑦ to change the setting.
Turn the volume control④ to toggle between the settings ON (activate memory bank) and OFF (deactivate memory bank).

Deactivated memory banks are skipped during the source selection with the SRC button ①.

Notes:

• In the factory default, all AM memory banks are deactivated.
• If a memory bank is deactivated, the stations stored in this memory bank are retained.

REGIONAL (only for reception area EUROPE)

Only possible in FM radio mode: Switching REGIONAL function on or off. Settings: ON, OFF.

Press the>button⑦ to open the submenu.
Turn the volume control④ to change between the settings.

SEEK SENS

Setting the sensitivity of station seek tuning. Settings: LO1 (lowest) – HI6 (highest).

Press the button ⑦ to open the submenu.
Turn the volume control④ to change between the settings.

PTY

Switching the PTY function on or off. Settings: ON, OFF.

Press the> button ⑦ to open the submenu.
Turn the volume control④ to change between the settings.

PTY LANG (only for reception area EUROPE)

Select the language for the display of the programme types. Settings: ENGLISH, DEUTSCH (German), FRANCAIS (French).

Press the>button⑦ to open the submenu.
Turn the volume control④ to select a language.

AREA (reception area)

Select the reception area for the radio reception. Settings: EUROPE, USA, S-AMERICA, THAILAND.

Press the> button ⑦ to open the submenu.
Press the V / button ⑦ to select a reception area.
Press the>button ⑦ to set the reception area.
Press the button⑦ to confirm the selected reception area.

Making settings in the "DISPLAY" menu

DIM DAY/DIM NIGHT

Setting the display brightness for the day (DIM DAY) or the night (DIM NIGHT). Settings: 1 – 16.

Press the > button ⑦ to open the submenu.
Turn the volume control④ to perform the setting.

If your car sound system is installed as described in the installation instructions and your vehicle features the corresponding connection, the display brightness for day and night is switched by switching the vehicle lighting on or off.

SCROLL

Select the display of scrolling text (e. g. when displaying MP3 file names) either as single display or continued display. Settings: X1 (single display), ON (continued display).

Press the > button ⑦ to open the submenu.
Turn the volume control④ to change between the settings.

Making settings in the "VOLUME" menu

ON VOLUME

Setting the power-on volume. Settings: 1 - 50.

Press the > button ⑦ to open the submenu.
Turn the volume control ^4 to set the desired power-on volume.

LAST VOL

If you select the setting LAST VOL, every time you switch on the radio, the volume level that was set the last time you switched the radio off is activated again. Settings: ON, OFF.

Danger!

High volume

The power-on volume can be unexpectedly high if the LAST VOL setting is selected and a high volume was set the last time the radio was switched off.

Always set the device to a moderate volume.

Press the > button ⑦ to open the submenu.
Turn the volume control④ to change between the settings.

TA VOLUME

(only for reception area EUROPE)

Setting the minimum volume for traffic announcements. Settings: 1 – 50.

Press the> button ⑦ to open the submenu.
Turn the volume control④ to perform the setting.

BEEP

Switching the confirmation beep on or off. Settings: ON, OFF.

Press the > button ⑦ to open the submenu.
Turn the volume control ^4 to perform the setting.

Making settings in the "VARIOUS" menu

SCAN TIME

Setting the scan time in 5-second increments. Settings: 5 – 30.

Press the > button ⑦ to open the submenu.
Turn the volume control ^4 to perform the setting.

SEC CODE

Switching the code query on or off. Settings: ON, OFF.

Press the > button ⑦ to open the submenu.
Turn the volume control ^4 to perform the setting.

CODE SET

The default setting of the code number is "0000". This code number can be changed.

Press the > button ⑦ to open the entry menu.

The display shows the currently stored code number:

Turn the volume control ^4 to select a digit for the respective position.
Press the > or <button ⑦ to reach the next or previous position.

Note:

While entering the code number, you cannot change the volume of the car sound system.

NORMSET

Restoring the original factory settings of the car sound system.

Press the>button ⑦ to open the submenu.
Press the> button ⑦ to confirm restoring the factory settings.

The car sound system switches off and is reset to the factory settings.

Factory settings

Important factory settings in the user menu:

Menu item Factory setting
AREA EUROPE
FM1 / FM2 / FMT ON
MW* OFF
AM** / AMT** OFF
RDS ON
REGIONAL* OFF
TRAFFIC*	OFF
SEEK SENS	HI6
PTY	OFF
ON VOLUME	20
LAST VOL	OFF
TA VOLUME*	20
BEEP ON
SCAN	10
SCROLL	X1
SEC CODE	OFF

* Only in reception area "EUROPE"
** Only in reception areas "USA", "S-AMERICA" and "THAILAND"

In the user menu, you can restore the original factory settings of the car sound system (see the chapter "User settings", section "Making settings in the "VARIOUS" menu", menu item "NORMSET").

Useful information

Warranty

We provide a manufacturer's warranty for products bought within the European Union. For devices purchased outside the European Union, the warranty terms issued by our respective responsible domestic agency are valid. The warranty terms can be called up from www.blaupunkt.com.

Service

In some countries, Blaupunkt offers a repair and pick-up service.

Information about the availability of this service in your country can be found at www.blaupunkt.com.

If you want to take advantage of this service, you may request a pick-up service for your car sound system via the Internet.

Technical data

Voltage supply

Operating voltage: 10.8 – 15.6 V

Current consumption

In operation: < 10 A

10 sec. after switch-off: < 2 mA)

Amplifi er

Output power: 4 x 20 watts sine

at 14.4 V at 4 ohms

at 10 % THD.

4 x 45 watts max. power

Tuner

Wavebands in Europe/Thailand:

FM: 87.5 – 108 MHz

AM (MW): 531 - 1,602 kHz

Wavebands in the US:

FM: 87.7 - 107.9 MHz

AM (MW): 530 - 1,710 kHz

Wavebands in South America:

FM: 87.5 - 107.9 MHz

AM (MW): 530 - 1,710 kHz

FM frequency response: 30 – 15,000 Hz ± 3 dB

CD

Frequency range: 20 - 20,000 Hz ± 1 dB

Pre-amp out

2 channels: 2 V at THD < 1 %

Input sensitivity

Front AUX-IN: 300 mV / 10 kΩ

Dimensions and weight

W x H x D: 178 x 51 x 165 mm

Weight: approx. 1.30 kg

Subject to changes

1 83 4 2 75 6 SRC BLAUPUNKT BLAUPUNKT MENU 1 2 3 >> 4 RPT 5 MIX 10 912 11

AM (MW (OM)): 531 - 1 602 kHz

Gamme d'ondes USA :

FM (OUC) : 87,7 - 107,9 MHz

AM (MW (OM)): 530 - 1710 kHz

AM (MW (OM)): 530 - 1710 kHz

FM - Bande passante : 30 - 15 000 Hz ± 3 dB

CD

Bande passante: 20 - 20 000 Hz ± 1 dB

Niet ronde contour-CD's (shape CD's)

AM (MW): 531 - 1602 kHz

Golfgebieden USA:

FM (UKW): 87,7 - 107,9 MHz

AM (MW): 530 - 1710 kHz

AM (MW): 530 - 1710 kHz

Frequentiebereik FM: 30 – 15 000 Hz ± 3 dB

CD

Overdrachtsbereik: 20 – 20 000 Hz ± 1 dB

Pre-amp out

AM (MW (MV)): 531 - 1602 kHz

AM (MW (MV)): 530 - 1710 kHz

AM (MW (MV)): 530 - 1710 kHz

NORMSET (restablecer)

ON VOLUME (Volume inicial)

Ajustar o volume inicial. Ajustes: 1 – 50.

Prima a tecla>⑦ para abrir o submenu.
Rode o Regulador do volume ^4 para ajustar o volume inicial pretendido.

LAST VOL (Último volume)

AM (MW): 530 - 1710 kHz

Bandas América do Sul:

FM (UKW): 87,5 - 107,9 MHz

AM (MW): 530 - 1710 kHz

Indstil station manuelt

Gem station og hent gemt station

AM (MW): 531 - 1602 kHz

Aaltoalueet USA:

FM (ULA): 87,7 - 107,9 MHz

AM (MW): 530 - 1710 kHz

AM (MW): 530 - 1710 kHz

FM-toistoalue: 30 – 15 000 Hz ± 3 dB

CD

Toistoalue: 20 - 20 000 Hz ± 1 dB

AM (MW): 530 - 1710 kHz

AM (MW): 530 - 1710 kHz

AM (MW): 530 - 1710 kHz

AM (MW): 530 - 1710 kHz

AM (MW): 531 - 1602 kHz

AM (MW): 530 - 1710 kHz

Lungimi de undă America de Sud:

FM (UKW): 87,5 - 107,9 MHz

AM (MW): 530 - 1710 kHz

Zona de transmitere FM: 30 – 15 000 Hz ± 3 dB

CD

Zona de transmisie: 20 – 20 000 Hz ± 1 dB

Pre-amp Out

2 canale: 2 V la THD < 1 %

Sensibilitatea de intrare

Frontal AUX-IN: 300 mV / 10 kΩ

EN Installation instructions

Safety instructions

When carrying out installation work and making connections please observe the following safety instructions:

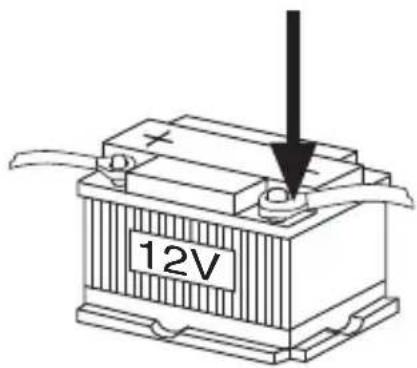

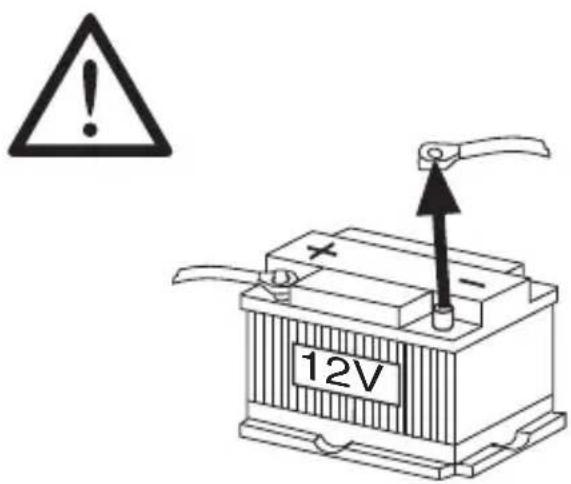

• Disconnect the negative terminal of the battery! When doing so, please observe the vehicle manufacturer's safety instructions.
• Make sure you do not damage vehicle components when drilling any holes.
• The cross sections of the positive and negative cables must not be less than 1.5 mm^2 .

- Do not connect the vehicle's plug connectors to the radio!

You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer.

- Depending on the model, your vehicle may differ from the description provided here. We accept no responsibility for any damages due to incorrect installation or connection or for any consequential damages.

If the information provided here is not suitable for your specific installation requirements, please contact your Blaupunkt dealer, your vehicle manufacturer or our telephone hotline.

When installing an amplifier, you must first connect the device earth connections before connecting the plugs for the line-out jacks.

Earth connection of external devices may not be connected to earth of car sound system (housing).

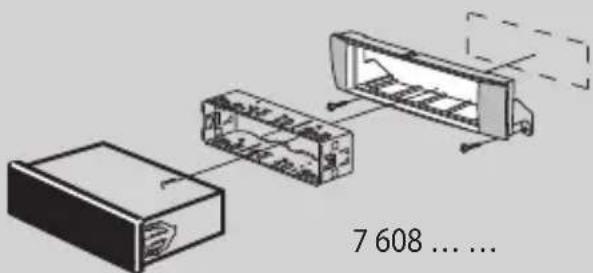

Isometric line drawing of a rectangular electronic component with no visible text or symbols

Two identical cylindrical metal tools with loop handles, shown in side profile (no text or symbols)

Als Sonderzubehör erhältlich Available as an optional accessory Disponible en option Reperibili come accessori extra Als speciale accessoire verkrijgbaar Tillval De venta como accesorios especiales Disponíveis como acessórios opcionais Fås som specialtilbehør Saatavana lisätarvikkeena Διατίθεται ως προαιρετικό άξεσουάρ Dostępne jako wyposażenie dodatkowe Kiegészítő tartozékként beszerezhető Disponibil ca accesoriu opțional Допълнителни аксесоари по избор

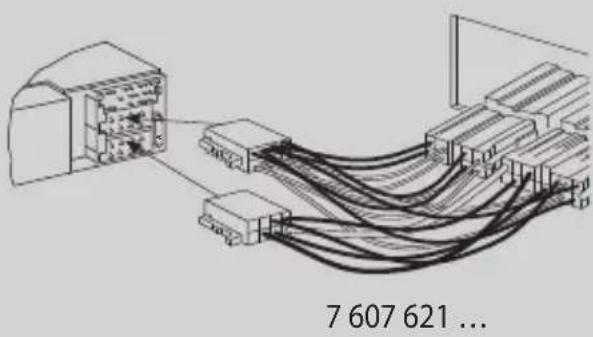

Diagram of network topology showing connections between a device and multiple connectors (no text or labels visible)

Einbausätze • Installation kits • Kits de montage • Set di montaggio • Inbouwsets • Monteringssatser • Juegos de montaje • Kits de montagem • Indbygningssæt • Asennussarjat • Kit εγκατάστασης • Zestawy montażowe • Beépítő-készlet • Kituri de instalare • Komплект инструменти за инсталиране

Diagram of a device showing three components: a box, internal housing, and a rectangular enclosure with internal compartments (no text or symbols)

1.

12V

1.

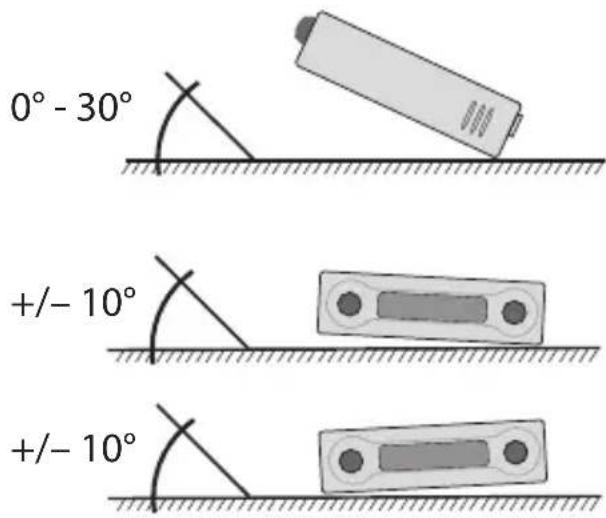

0° - 30° +/- 10° +/- 10°

1.

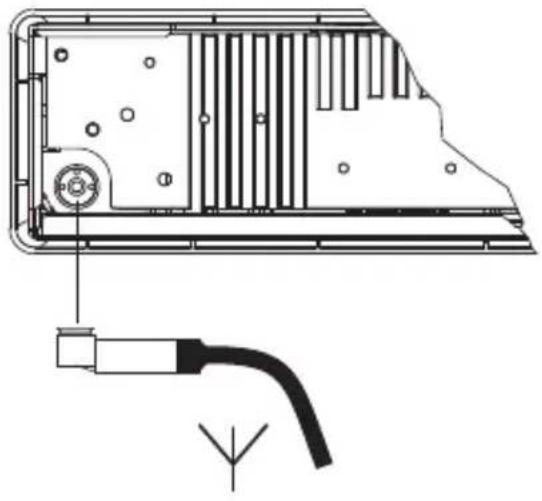

Technical line drawing of a mechanical component with internal structure and external pipe connection (no text or symbols)

1.

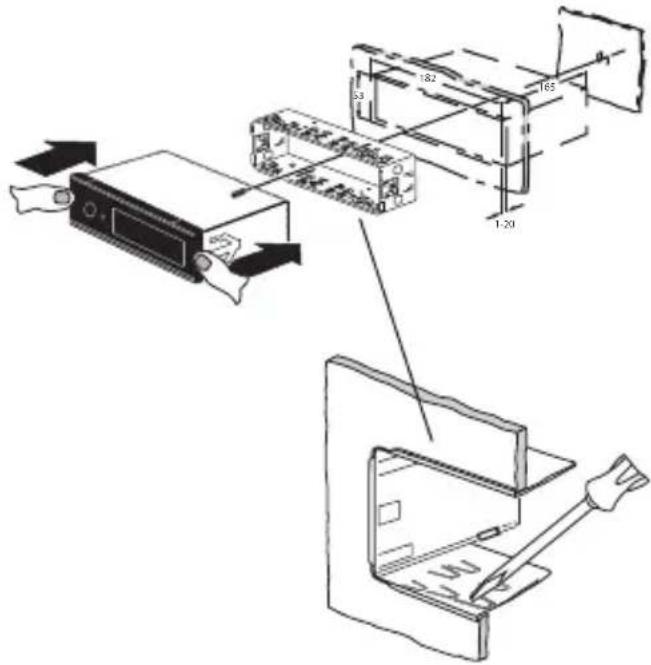

Technical diagram showing assembly of a device into a device with labeled parts and directional arrows indicating movement.

5.

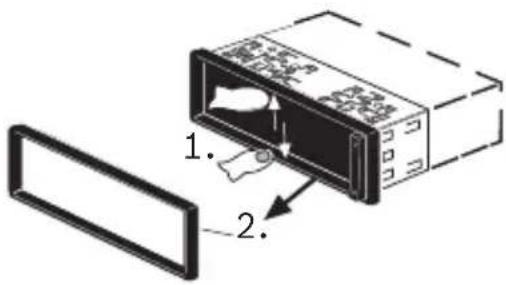

Ausbau • Removal • Démontage • Smontaggio • Demontage • Urmontering • Desmontaje • Desmontagem • Udbygning • Irrotus • Aφαίρεση • Demontaż • Eltávolítás • Scoaterea • Отстраняване

1.

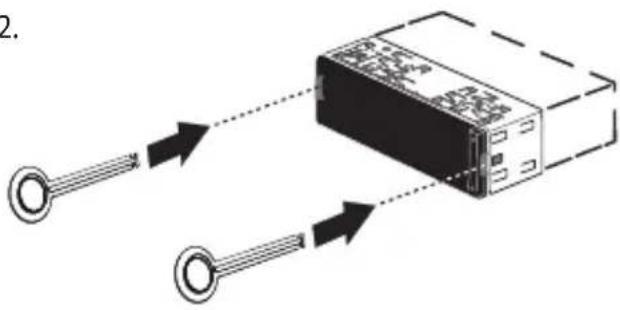

Diagram showing a device component with labeled parts, including a rectangular panel and a box with internal components.

1.

Diagram showing two circular components connected to a rectangular device with dashed lines indicating signal or connection (no text or symbols)

1.

Diagram of a device with two circular components connected by arrows, indicating signal or control flow (no text or symbols present)

1.

12V

C-1C-2C-3

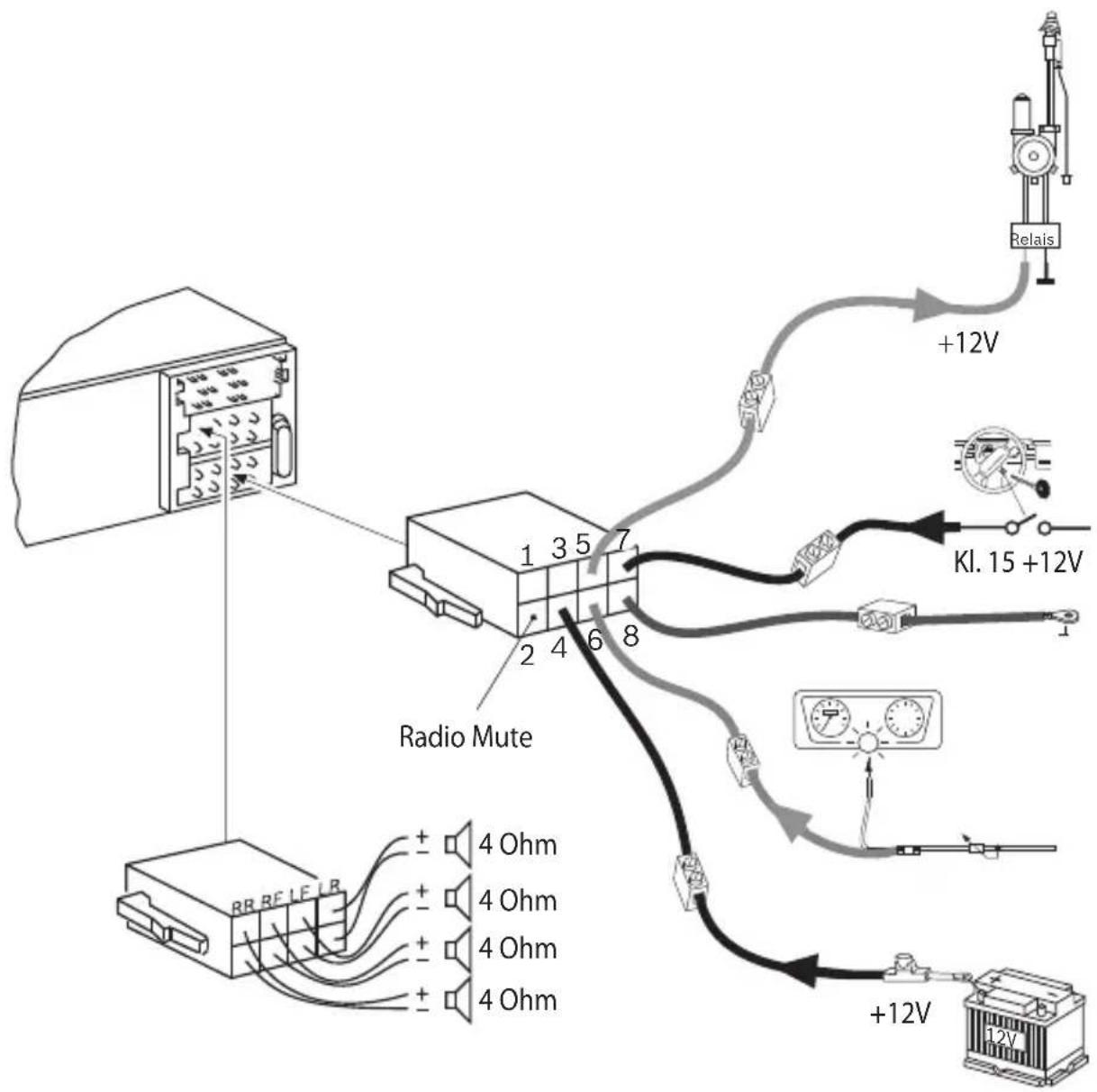

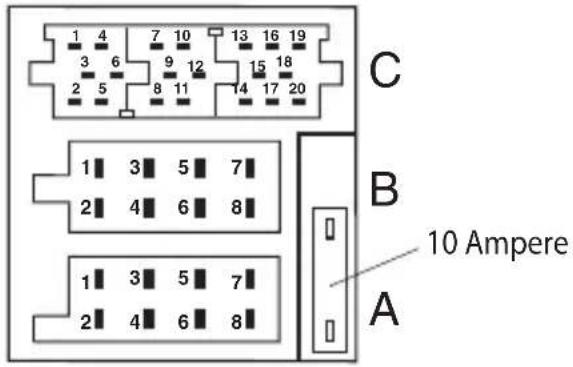

1 4 7 10 13 16 19 3 6 9 12 15 18 2 5 8 11 14 17 20 C B 10 Ampere A 1 3 5 7 2 4 6 8 1 3 5 7 2 4 6 8

Aut. antenna +12V

Amplfi er +12V

Switched Ext. Supply +12V

Total max. 150 mA

A		B
1 NC 1 Speaker Out RR+
2 Radio Mute 2 Speaker Out RR-
3 NC 3 Speaker Out RF+
4 Permanent +12V 4 Speaker Out RF-
5 Aut. antenna +12V * 5 Speaker Out LF+
6 Illumination 6 Speaker Out LF-
7	Kl.15/Ignition	7 Speaker Out LR+
8	Ground	8 Speaker Out LR-

C1			C2		C3
1 NC 7 NC	13	Uart C	Communication RX
2 NC 8 NC	14	Uart C	Communication TX
3	Line Out GND		9	Radio Mute	15	Battery Connection Fused **
4	Line Out Left		10	NC	16	Switched Ext. Supply +12V *
5	Line Out Right		11	NC	17	Battery GND
6	Amplifier +12V *		12	NC	18	NC
					19	NC
					20	NC

** Battery voltage 12V

Radio Mute +12V Kl. 15 +12V +12V +4 Ohm +4 Ohm +4 Ohm +4 Ohm +4 Ohm Relais

Änderungen vorbehalten! • Subject to changes! • Sous réserve de modifications! • Modifiche riservate! • Wijzigingen voorbehouden! • Ändringar förbehålles! • Modificaciones reservadas! • Sob reserva de alterações! • Ret til ændringer forbeholdes! • Oikeus muutoksiin pidätetään! • Мпореí va αλλάξει! • Zmiany techniczne zastrzeżone! • Változtatás joga fenntartva! • Sub rezerva modificărilor ulterioare! • Въzmожни са промени!

Please keep the filled-in radio pass in a safe place!

© 2012 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed for personal use only.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Passport

Birmingham 2012 Name:

Type: 1 011 200 340

Serial no.: BP

BLAUPUNKT
