USER MANUAL SteamJet Handy SSNH 1000 HOOVER

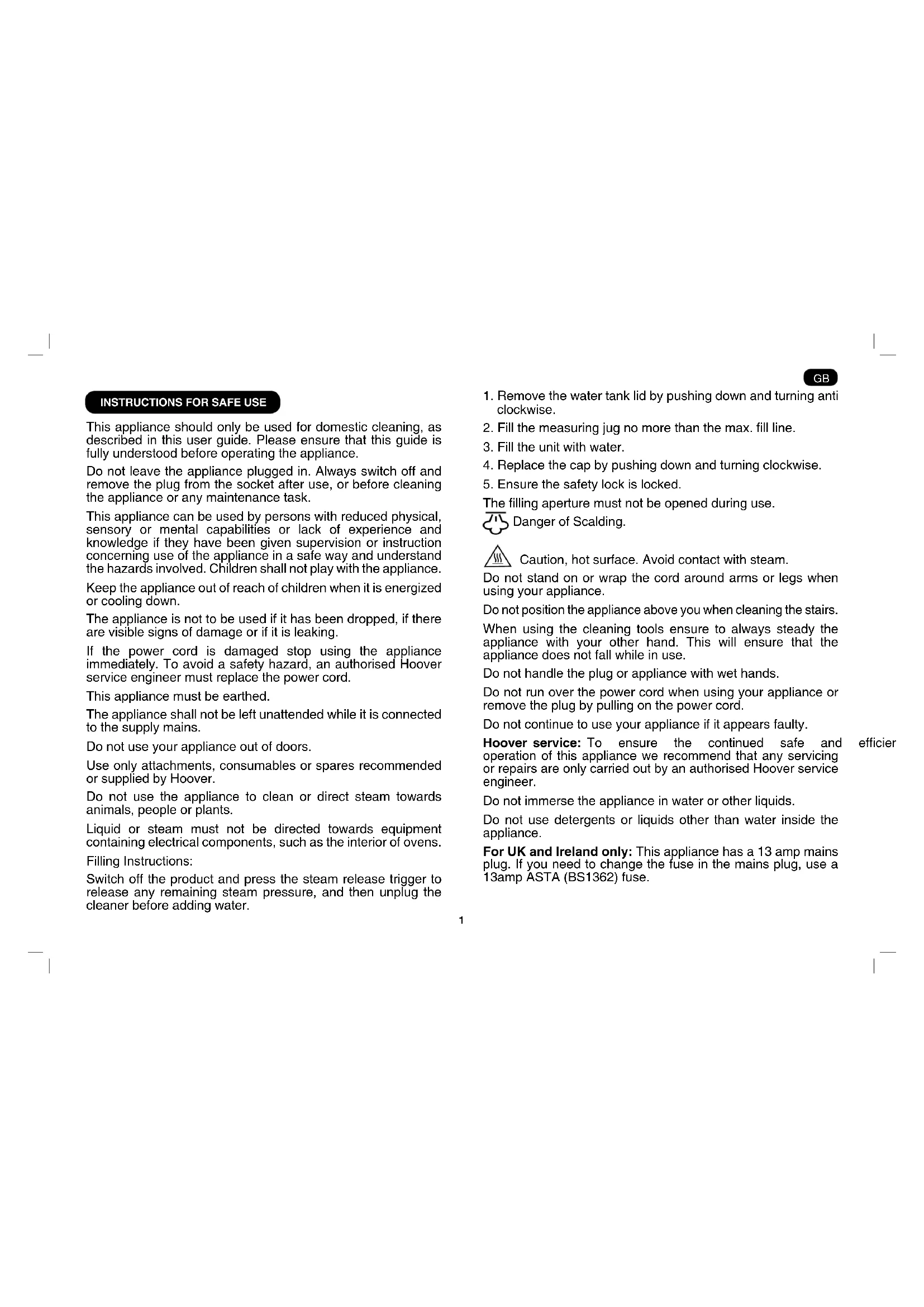

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance out of reach of children when it is energized or cooling down. The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking. If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Hoover service engineer must replace the power cord. This appliance must be earthed. The appliance shall not be left unattended while it is connected to the supply mains. Do not use your appliance out of doors. Use only attachments, consumables or spares recommended or supplied by Hoover. Do not use the appliance to clean or direct steam towards animals, people or plants. Liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens. Filling Instructions: Switch off the product and press the steam release trigger to release any remaining steam pressure, and then unplug the cleaner before adding water.

1. Remove the water tank lid by pushing down and turning anti

clockwise. 2.Fillthemeasuringjugnomorethanthemax.llline.

3. Fill the unit with water.

4. Replace the cap by pushing down and turning clockwise.

5. Ensure the safety lock is locked.

Thellingaperturemustnotbeopenedduringuse. Danger of Scalding. Caution, hot surface. Avoid contact with steam. Do not stand on or wrap the cord around arms or legs when using your appliance. Do not position the appliance above you when cleaning the stairs. When using the cleaning tools ensure to always steady the appliance with your other hand. This will ensure that the appliance does not fall while in use. Do not handle the plug or appliance with wet hands. Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord. Do not continue to use your appliance if it appears faulty. Hoover service: To ensure the continued safe and efcient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer. Do not immerse the appliance in water or other liquids. Do not use detergents or liquids other than water inside the appliance. For UK and Ireland only: This appliance has a 13 amp mains plug. If you need to change the fuse in the mains plug, use a 13amp ASTA (BS1362) fuse.2 A. Power light (Metallic Red) / Steam Ready Indicator Light (Green) B. Cleaner main body C. Handle D. Steam Release Trigger E. Water Tank Lid F. Clamp Ring G. Nozzle Connector H. Release Button

J. Measuring Jug K. Conic Tool L. Scraper Tool M. Comb Brush N. Angled Nozzle O. Metal Brush P. Round Brush Q. Window squeegee / Upholstery Tool (with Textile Pad) R. Hose S. Safety Lock

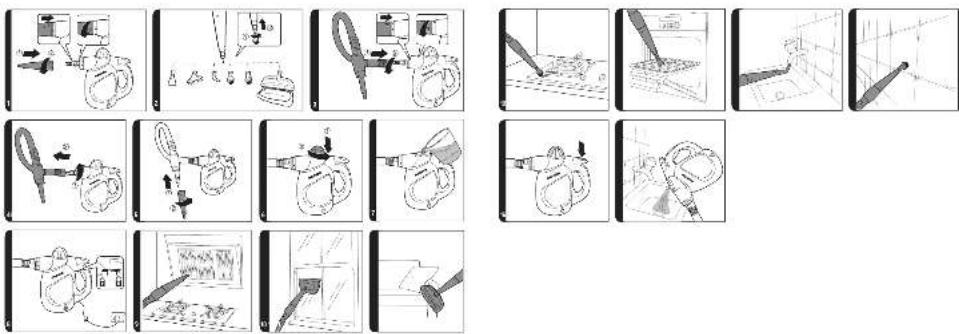

Attach the conic tool [K] to the cleaner aligning the moulded Graphic marks (-). Rotate the conic tool clockwise until it is locked securely in position (=). [1]

2. Once the conic is attached it can be used for direct steam applications or you can

attach the required accessory. [2] WITH HOSE

1. Fit the Hose over the nozzle on the product. Align the orientation marks (-) and rotate

clockwise until hose is in locked position (=) and secure. [3]

2. To remove hose, slide release button at the base of Hose away from cleaner and

rotate counter-clockwise and gently pull away from cleaner. [4]

3. To attach the conic tool to the Hose, insert the tool into the the hose and rotate

clockwise until the Conic tool is locked securely. [5]

1. Remove the clean water cap by pushing down and turning anti-clockwise. [6]

2. FillthemeasuringjugnomorethantheMaxllline.

3. Fill the unit with water. [7]

4. Replace the cap by pushing down and turning clockwise.

5. Unlock the safety lock and push steam release trigger, ensure it is locked when not

in use. [8] IMPORTANT: Always unplug the cleaner and press the steam release trigger to release any remaining steam pressure before adding water. IMPORTANT: Always unplug the cleaner and press the steam release trigger to release any remaining steam pressure before adding water. Once the boiler has cooled down you can then remove the clean water tank cap by pressing down and rotating the cap in an anticlockwise direction. PLEASE ENSURE NO STEAM IS EMITTED WITH THIS ACTION !!! IF SO STOP AS THE BOILER IS NOT FULLY COOLED. ACCESSORIES

1. Push the desired small tool onto the conic tool aligning the arrows. [2]

2. Twist clockwise to secure in place. [2]

3. Plug the steam cleaner into the main power. The red ON light will illuminate. [8]

4. After a few minutes the green Steam Ready light will illuminate indicating the cleaner

is ready for use. [8]

5. To produce steam press the Steam Trigger.

Note: All small tools can only be attached to conic tool. Conic Tool Use on heavily soiled areas such as showers, kitchens. [9] Window Squeegee Use on windows and mirrors for a smear free clean. [10] Upholstery Tool Use the textile pad over the window tool for use on sofas and chair fabrics. [11] Round Brush Use on stubborn grease and grime. [12] Metal Brush For oven grills and racks. [13] Angled nozzle For hard to reach areas such as taps etc. [14] Comb brush Ideal for cleaning all grout lines, sanded or nosanded. [15] IMPORTANT: Always unplug the cleaner when adding water, changing accessory tool.3

1. Unplug the cleaner from the main power and ensure the unit has cooled.

2. Hold the steam release trigger down to release any remaining steam pressure. [16]

3. Remove the clean water lid by pushing down and turning anti-clockwise. [7]

4. Lift the cleaner and empty any remaining water. [17]

Removing and cleaning the textile pad

1. Unplug the cleaner from the main power and ensure the unit has cooled.

2. Remove the textile pad from window squeegee.

3. Wash the textile pad by hand or machine with a mild detergent at max temperature

30°C. IMPORTANT: Do not use bleach or fabric softener when washing the textile pad. TROUBLESHOOTING Should you have a problem with the product, complete this simple user checklist before calling your local HOOVER service. The steam cleaner will not powered.

• Check the unit is plugged in.

• Check the power cord. The product is not producing steam.

• Check the unit is plug in.

• There may be no water in the water tank.

• The water is not at the correct temperature. The green light will illuminate when ready. The cleaner is taking a long time to heat up.

• If you live in a hard water area the water tank may have become blocked. The unit will have to be descaled. IMPORTANT INFORMATION Hoover Service Shouldyourequireserviceatanytime,pleasecontactyourlocalHooverServiceofce. Hoover have a computerised nationwide service network of over 500 engineers who will quickly respond to your call and guarantee your repair for 12 months. Quality Hoover’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001. The Environment The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city ofce, your household and waste disposal service or the shop where you purchased the appliance. This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU. CANDY HOOVER GROUP Srl Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy Your Guarantee Theguaranteeconditionsforthisapplianceareasdenedbyourrepresentativeinthe country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice.4
