USER MANUAL BC 14.12 STS ALTI SIGMA

BC 14.12 ALTI/BC 14.12

ALTI

FUNCTIONS

DE DEUTSCH

Inhaltsverzeichnis

1. Kennenlernen des BC 14.12 ALTI / BC 14.12 STS ALTI 02

1. Introduction to the BC 14.12 ALTI / BC 14.12 STS ALTI 14

1.1 Initial use 14
1.2 Navigation principle 15
1.3 Set-up 16

1. Functions/Properties 16

2.1 General 16
2.2 Special functions 18
2.3 Altitude measurement 18
2.4 STS features 19

1. Settings/Deletion 21

3.1 Settings 21
3.2 Determining the wheel size 21
3.3 Deleting the functions 21

1. Important Notes/Troubleshooting 22
   4.1 Technical data 22

5.Warranty Conditions 24

You can find the CE declaration under: www.sigmasport.com

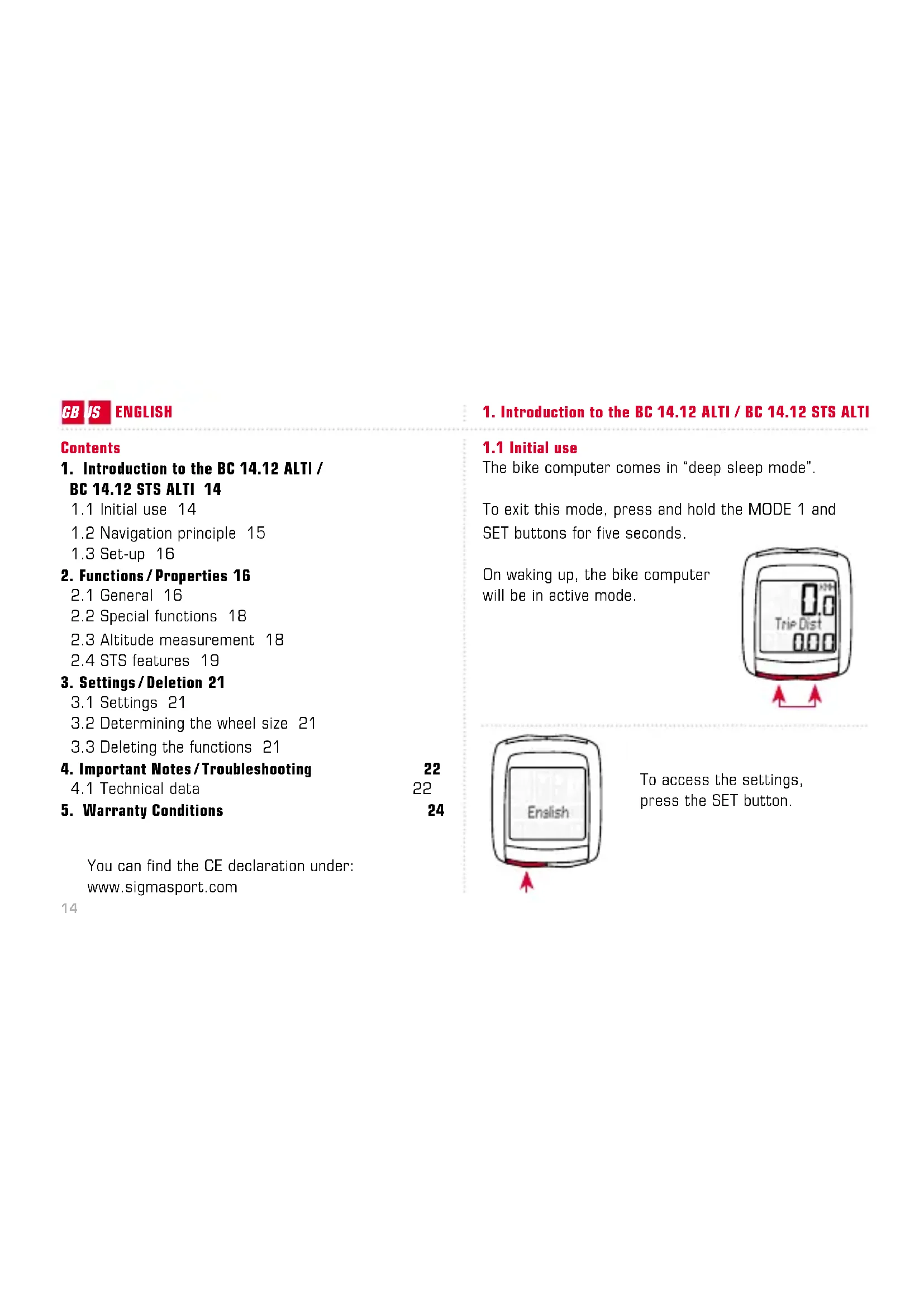

1. Introduction to the BC 14.12 ALTI / BC 14.12 STS ALTI

1.1 Initial use

The bike computer comes in "deep sleep mode".

To exit this mode, press and hold the MODE 1 and SET buttons for five seconds.

On waking up, the bike computer will be in active mode.

To access the settings, press the SET button.

1.2 Navigation principle

1.2.1 Button functions 1.2.2 Assigning the functions

RESET button for
- Deleting the current values
- Scrolling backward

SET button for

• Switching to/from the setting mode
  -Scrolling backward

MODE 2 button for

• Switching between several functions
  -Scrollingforward

MODE 1 button for

• Switching between the bike functions
  -Scrollingforward

You can access the following functions by pressing the

MODE 2 button:

current altitude/trip altitude/time/temperature/

total distance/total time/ total altitude

You can access the following functions by pressing the

MODE 1 button:

trip distance/triptime/

speed/max.speed

1.2 Navigation principle

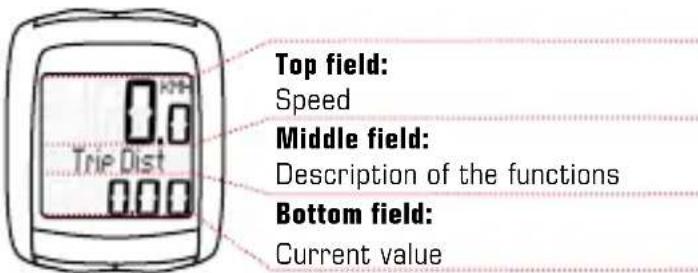

1.2.3 Display layout

1.3 Set-up

Please see the leaflet provided for the set-up diagrams!

2. Functions/Properties

2.1 General

• Current/average speed comparison

If you are traveling at approximately your average speed, nothing is displayed. If you are traveling quicker than your average speed, [ ] is displayed; if you are traveling slower [ ] is displayed. This information is displayed in almost all functions, except the basic settings.

Light manager Simultaneously press the SET and RESET buttons to switch the light function on / off. The display lights up by pressing any button; the bike computer changes to the respective function when the button is pressed again. Avoid using the backlight unnecessarily to save the battery!

2. Functions/Properties

Service interval The service interval informs you when you have cycled a specified number of kilometers and a bike inspection is due. This service interval can only be enabled/disabled and preconfigured by your specialist retailer. The device comes with the service interval disabled.
- Battery status The battery status of the computer head unit is displayed shortly before the battery runs out. "low/computer" appears on the display. After changing the battery, only the time needs to be re-set.
- Memory chip Thanks to an inbuilt memory chip, all total values and settings are permanently stored in the bike computer. This means that you do not need to reconfigure any settings (except for the time) after changing the battery.

• PC compatibility The bike computer is PC-compatible. After purchasing the SIGMA DATA CENTER software and docking station, you can simply and effortlessly log your total and current values on your PC. You can also configure your bike computer's settings on the PC.

www.sigma-data-center.com

2. Functions/Properties

2.2 Special functions

Hiding total values during the trip

If the BC 14.12 ALTI / BC 14.12 STS ALTI receives speed signals, all the total functions (distance, time, and cumulated altitude) are hidden on the display. If no speed values are received, the functions are once again displayed.

2.3 Altitude measurement

The altitude measurement on the BC 14.12 ALTI / BC 14.12 STS ALTI is determined on the basis of the barometric air pressure. Any change to the weather means a change to the air pressure, which can lead to a change to your current altitude. To compensate these changes in air pressure, you must enter a reference altitude into the BC 14.12 ALTI / BC 14.12 STS ALTI (process known as calibration).

• Calibration using the start altitude The start altitude is the altitude of your usual start location (generally your home). You can find this information on road or country maps. It is set in the BC 14.12 ALTI / BC 14.12 STS ALTI once and calibrated within a matter of seconds.

2. Functions/Properties

• Calibration using the current altitude The current altitude is the altitude of the place at which you are currently located irrespective of your start altitude (your trip start location, a mountain hut, or other locations). The current altitude is used if you are out on your bike and altitude information is provided.

2.4 STS features

• Synchronization Attach the BC 14.12 STS ALTI to the bracket - zeros flash for the speed. There are two ways of synchronizing the speed:
• 1. → Start cycling - the receiver usually synchronizes with the transmitter after 3-4 wheel rotations.
• 2. Spin the front wheel until the speed values stop flashing. Removing the BC 14.12 STS ALTI from the bracket severs the connection.

2. Functions / Properties

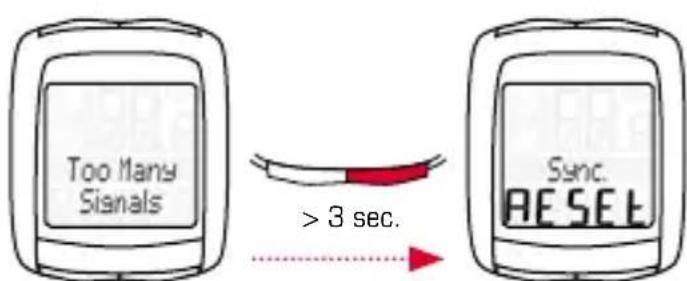

• Message "Too Many Signals" Increase your distance from other cyclists (transmitters) and press any button. Synchronization re-starts. (If the transmission connection is lost during your trip and no longer functions, press and hold the MODE 1 button for more than three seconds to start manual synchronization. "Sync. RESET" flashes on the display)

• Transport mode When transported on a bike rack or in the car (if clicked into the bracket), the BC 14.12 STS ALTI switches to "transport mode" via an integrated movement sensor.

"Transport" appears on the display.

Press any button to exit this mode.

3. Settings/Deletion

3.1 Settings

The following settings can be configured: language / unit/current altitude/start altitude/wheel size/time/ total distance/total time/total altitude/contrast. Clear diagrams of how to set each of these functions can be found in the enclosed leaflet.

3.2 Determining the wheel size

To measure your speed precisely, the wheel size must be set on the basis of your tire size. To do this, you can:

A - Calculate the wheel size using the formula provided in the wheel size chart.
B - Determine the value from the drawings in the wheel size chart.
C - Take the value that corresponds to your tire size from the wheel size chart.

3.3 Deleting the functions

Please see the diagrams for how to delete the functions.

4. Important Notes / Troubleshooting

4.1 Technical data

4.1.1 Battery indicator / replacement

Please see the enclosed diagrams for how to insert or remove the battery. After changing the battery in the computer head unit, only the time needs to be re-set.

BC14.12ALTI TypeCR2032/

computer head unit: 1.5-year service life*

BC 14.12 STS ALTI Type CR 2032 /

computer head unit: 1-year service life*

Speed transmitter: Type CR 2032 /

1-year service life*

• when used for one hour per day

4.1.2 Troubleshooting

No speed:

• Is the computer correctly fastened into the bracket?
• Check the distance between the magnet and the sensor (max. 12 mm).
• Is the magnet correctly positioned?

Incorrect speed:

• Are two magnets attached to the bike?
• Is the wheel size correctly set?

Further troubleshooting solutions can be found in our FAQs at www.sigmasport.com

4. Important Notes / Troubleshooting

4.1.3 Min./max./factory settings

Standard	Min.	Max.	Unit
Current speed 0.0 0 199.8 kmh / mph
Trip Dist 0.00 0.00 9,999.9 km / mi
Ride Time 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Avg Speed 0.00 0.00 199.8 kmh / mph
Max. Speed 0.00 0.00 199.8 kmh / mph
Act Altitude	0	-999	4,999 / 16,999	m / ft
Altitude Up	0	0 99,999	m / ft
Max Altitude	0	-999	4,999 / 16,999	m / ft
Clock	00:00	00:00 23:59	hh:mm
Temperature	0.0	-10 / 14	70 / 158	°C / °F
Tot Distance	0	0 99,999	km / mi
Total Time 0:00 0:00 19,999	h:mm	hh.hhh
Tot. Alti. 0 0 99,999		m / ft
Wheelsize	2,155	500	3,999	mm

5. Warranty Conditions

We are liable to our contracting partners for defects in line with legal provisions. In the event of a warranty claim, please contact the retailer from whom you purchased your bike computer. You can also send your bike computer, together with your receipt and all accessories, to the address below. Please ensure you pay sufficient postage.

Warranty claims can be made in the event of material and workmanship errors. The warranty does not cover batteries, wear and tear parts, or wear caused by commercial use or accidents. Warranty claims shall only be valid if the SIGMA product has not been opened without authorization and the purchase receipt is provided.

SIGMA-ELEKTRO GmbH hereby declares that the wireless bike computers comply with the fundamental requirements and other relevant regulations of Directive 1999/5/EC.

SIGMA-ELEKTRG GmbH

Dr.-Julius-Leber-Strasse 15
D-67433 Neustadt an der Weinstrasse
Tel.: [phone]
Fax.: [phone]
E-mail: [e-mail]

In the event of justified warranty claims, you will receive a replacement device. You will only be entitled to the model available at the time of replacement. The manufacturer retains the right to make technical modifications.

Batteries must not be disposed of in household waste [European Battery Law]! Please take the batteries to an official collection point for disposal.

Electronic devices must not be disposed of in household waste. Please take the device to an official waste collection point.

Notes

FRANÇAIS

Table des matieres

1. Découverte du BC 14.12 ALTI / BC 14.12 STS ALTI 26

1.1 Mise en service 26
1.2 Principe de navigation 27
1.3 Montage 28

BC 14.12 STS ALTI 86

2.4 Characteristic STS

www.sigma-data-center.com

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

[1] This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

You can find the CE Declaration under: www.sigmasport.com

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class digital apparatus complies with Canadian ICES-003.

1. CAUTION:

RISK EXPLOSIVE IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

2. CAUTION:

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION.

BC 14.12 ALTI / BC 14.12 STS ALTI

SIGMA-ELEKTRO GmbH

4F, No.192, Zhonggong 2^nd Rd.,

Xitun Dist., Taichung City 407, Taiwan

You can find the CE Declaration under: www.sigmasport.com

084150/6
