USER MANUAL GPS receiver TOMTOM

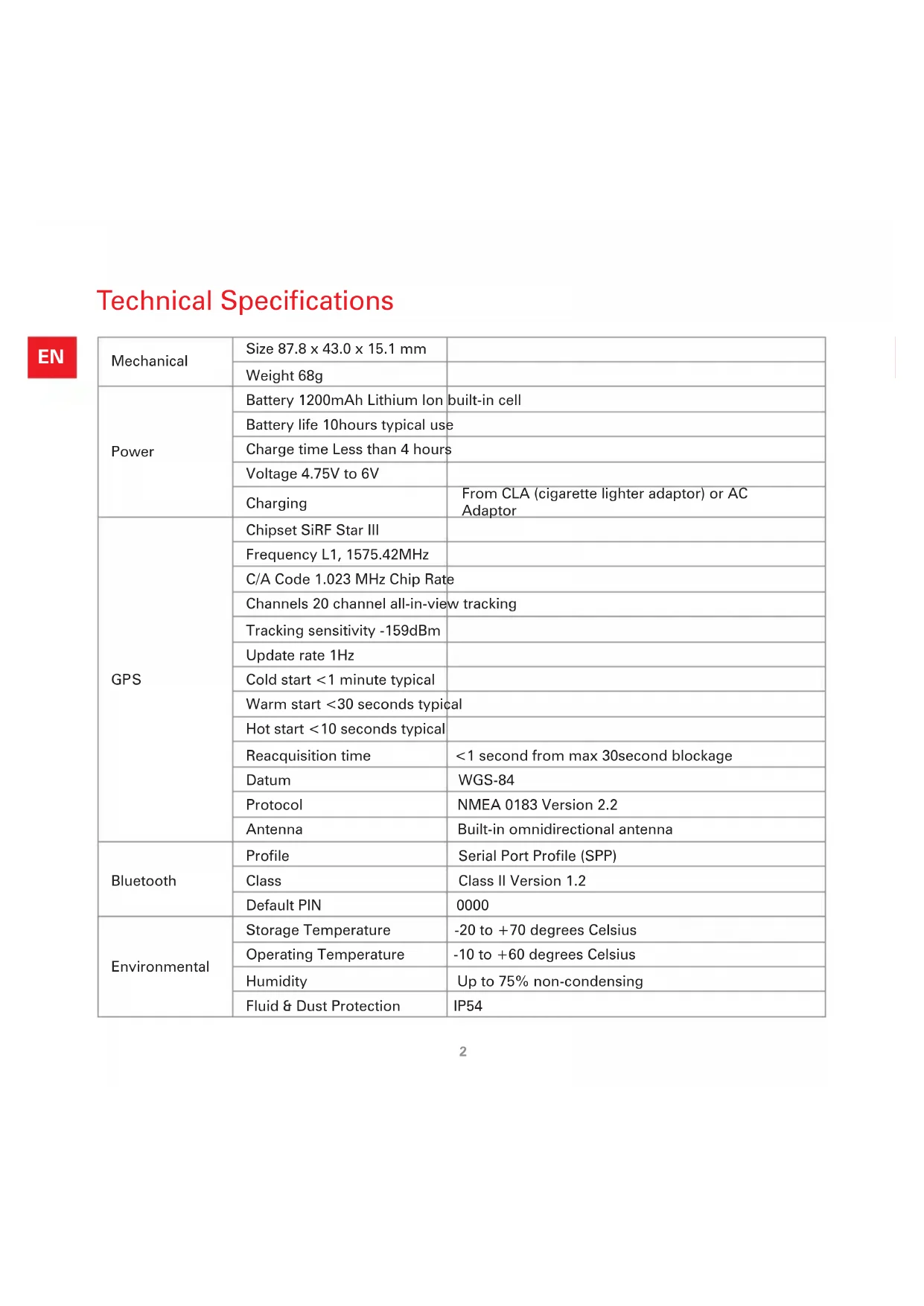

Mechanical Size 87.8 x 43.0 x 15.1 mm Weight 68g Power Battery 1200mAh Lithium Ion built-in cell Battery life 10hours typical use Charge time Less than 4 hours Voltage 4.75V to 6V Charging From CLA (cigarette lighter adaptor) or AC Adaptor GPS Chipset SiRF Star III Frequency L1, 1575.42MHz C/A Code 1.023 MHz Chip Rate Channels 20 channel all-in-view tracking Tracking sensitivity -159dBm Update rate 1Hz Cold start <1 minute typical Warm start <30 seconds typical Hot start <10 seconds typical Reacquisition time <1 second from max 30second blockage Datum WGS-84 Protocol NMEA 0183 Version 2.2 Antenna Built-in omnidirectional antenna Bluetooth Prole Serial Port Prole (SPP) Class Class II Version 1.2 Default PIN 0000 Environmental Storage Temperature -20 to +70 degrees Celsius Operating Temperature -10 to +60 degrees Celsius Humidity Up to 75% non-condensing Fluid & Dust Protection IP54 Technical Specications2

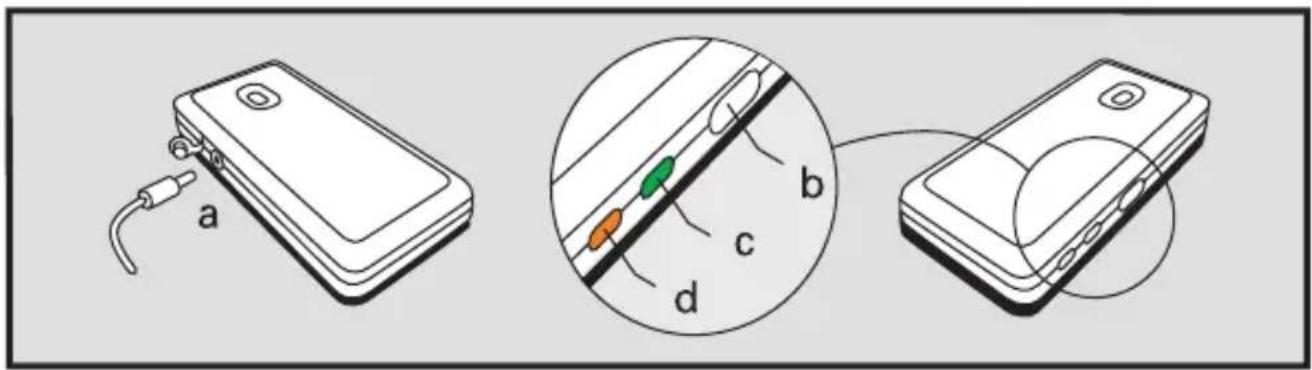

TomTom GPS receiver Switching on and off To switch the GPS receiver on or off, press and hold the power button for about 1 second. GPS Indicator When switched on, the GPS indicator will be lit green. Once the GPS receiver has determined your position (“has a x”), the indicator will ash continuously. Charge Indicator If the GPS receiver needs charging, the Charge indicator will be lit red. When the internal battery is charging the indicator will be lit orange. a Power supply b On/Off button c GPS indicator d Charge indicator4

Setting up Setting up a connection with your PDA or Smartphone Ensure that the TomTom Wireless GPS receiver is switched on. When you open the TomTom NAVIGATOR 5 or TomTom MOBILE 5 applications, a connection to the TomTom Wireless GPS receiver will be made automatically. If you leave your GPS switched on and do not connect it to your device, it will automatically switch off after 5 minutes in order to conserve battery life. Please refer to the Bluetooth connection setup instructions in the documentation that comes with your PDA, Smartphone or laptop. You will need to set up a Serial Port connection between the GPS receiver and your device. The GPS receiver will appear to your device as the “TomTom Wireless GPS” and its GPS signal will be output on its “GPS serial output”. To ensure ease of use, create a Bluetooth bond between your device and the GPS receiver. The pairing code is 0000. Please check specic device setup information on our support pages at www.tomtom.com. After setting up the Bluetooth connection, you will need to modify the properties of the software on your PDA, Smartphone or laptop to use the GPS signal from the GPS receiver. Please refer to the documentation of your device, and of your software. Choose the NMEA protocol. Press and hold the power button for 3 seconds to perform reset. Mounting Your TomTom Wireless GPS receiver can be used when in your pocket or bag. When using it in a vehicle, make sure it is placed correctly for optimal GPS signal reception and stays in place. You can ensure that the GPS receiver gets a proper GPS signal by testing it in a stationary situation with your PDA or Smartphone. Note that many modern vehicles have a heat reective shield embedded in the windshield preventing good reception when the GPS receiver is placed on the dashboard. If you have problems getting a GPS signal, try placing the TomTom Wireless GPS receiver behind a rear window of your car.4

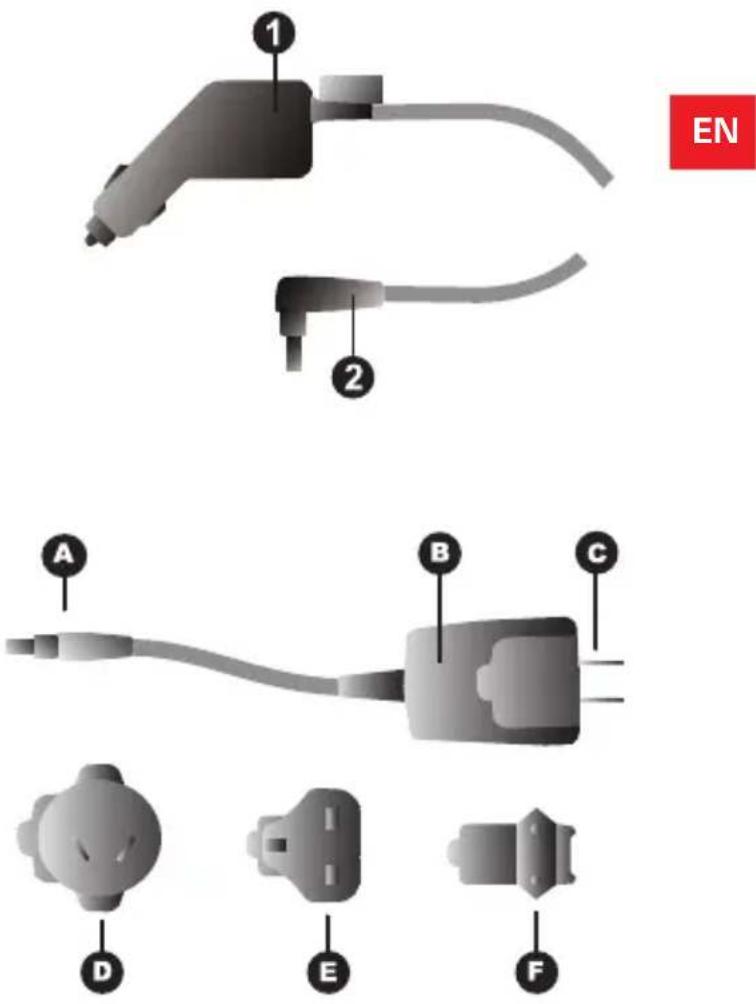

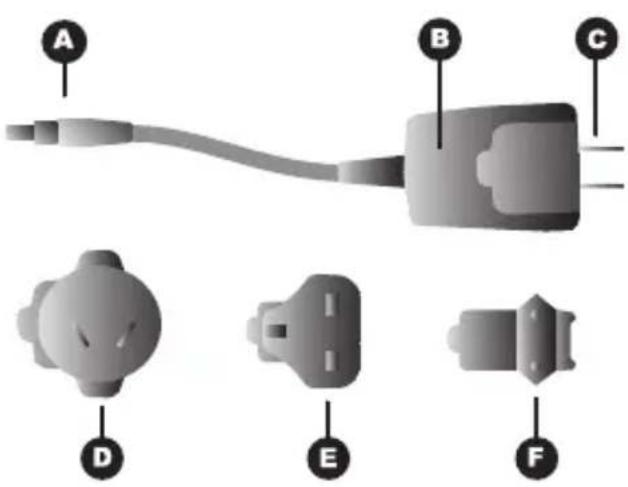

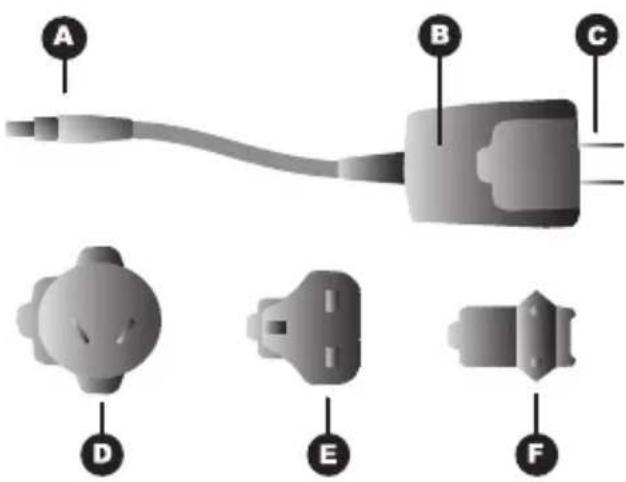

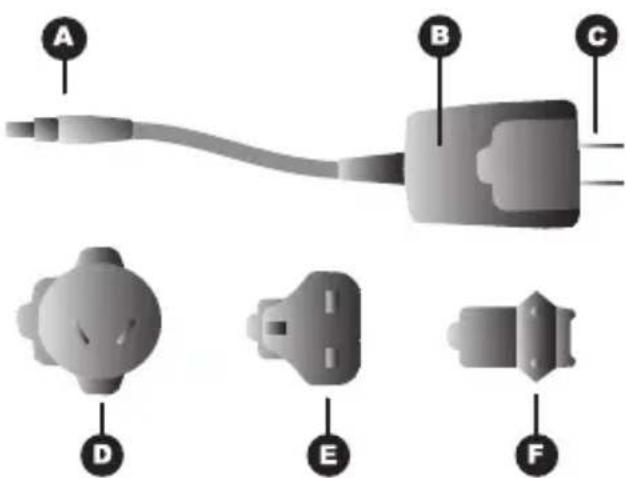

Charging For in-vehicle charging, insert the 5V plug of the cigarette lighter adaptor into the 5V jack on the rear side of the receiver. AC Charger Use the AC charger to charge the GPS receiver at home. You can change the adaptor of the AC plug to t your local power outlet. Charging While charging, the Charge indicator on the side of the receiver will be lit orange. When charging is completed, the orange indicator switches off. 1 CLA plug 2 GPS receiver plug A GPS receiver plug B AC plug C Adaptor for the USA D Adaptor for Australia E Adaptor for the UK F Adaptor for the rest of Europe6

Important Safety Notices and Warnings

1. Global Positioning System

The Global Positioning System (GPS) is a satellite-based system that provides location and timing information around the globe. GPS is operated and controlled under the sole responsibility of the Government of the United States of America, which is responsible for its availability and accuracy. Any changes in GPS availability and accuracy, or in environmental conditions, may impact the operation of your TomTom GPS receiver. TomTom International B.V. cannot accept any liability for the availability and accuracy of GPS.

Use of the TomTom GPS receiver for navigation still means that you need to drive with due care and attention.

3. Aircraft and Hospitals

Use of devices with an antenna is prohibited on most aircraft, in many hospitals and in many other locations. The TomTom GPS receiver must not be used in these environments.

This product uses a Lithium-Ion battery. Do not use it in a humid, wet and/or corrosive environment. Do not put, store or leave your product in or near a heat source, in a high temperature location, in strong direct sunlight, in a microwave oven or in a pressurized container, and do not expose it to temperatures over 60 C (140 F). Failure to follow these guidelines may cause the Lithium-Ion battery to leak acid, become hot, explode or ignite and cause injury and/or damage. Do not pierce, open or disassemble the battery. If the battery leaks and you come into contact with the leaked uids, rinse thoroughly with water and seek medical attention immediately. For safety reasons, and to prolong the lifetime of the battery, charging will not occur at low (below 0 C/32 F) or high (over 45 C/113 F) temperatures. Temperatures: Standard operation: - 10 C (14 F) to + 55 C (131 F); short period storage: - 20 C (- 4 F) to + 60 C (140 F); long period storage: - 20 C (- 4 F) to + 25 C (77 F). THE LITHIUM-ION BATTERY CONTAINED IN THE PRODUCT MUST BE RECYCLED OR DISPOSED OF PROPERLY. USE TOMTOM GPS RECEIVER ONLY WITH THE SUPPLIED DC POWER LEAD AND AC ADAPTER FOR BATTERY CHARGING. To recycle your TomTom GPS receiver, please see your local approved TomTom service centre. FCC Information for the User The device used for this transmitter must not be co-located simultaneously operating in conjunction with any other transmitter. Exposure to Radio Frequency Radiation To comply with RF exposure requirements please maintain a separation distance of at least 20 cm/ 7 inches from any part of the product.58

Radio and Television Interference This equipment radiates radio frequency energy and if not used properly - that is, in strict accordance with the instructions in this manual - may cause interference to radio communications and television reception. It has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These are designed to provide reasonable protection against harmful interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation distance between the equipment and the receiver.

• If you are using the equipment with a mains adapter, plug it into an outlet which is on a different circuit from that to which the receiver is connected.

• Consult an experienced radio/TV technician for help. Important This equipment was tested for FCC compliance under conditions that included the use of shielded cables and connectors between it and the peripherals. It is important that you use shielded cable and connectors to reduce the possibility of causing radio and television interference. Shielded cables, suitable for the product range, can be obtained from an authorised dealer. If the user modies the equipment or its peripherals in any way, and these modications are not approved by TomTom, the FCC may withdraw the user’s right to operate the equipment. For customers in the USA, the following booklet prepared by the Federal Communications Commission may be of help: “How to Identify and Resolve Radio-TV Interference Problems”. This booklet is available from the US Government Printing Ofce, Washington, DC 20402. Stock No 004-000-00345-4. FCC Declaration of Conformity Tested to Comply with FCC Standards for Home or Ofce Use The TomTom GPS receiver has been tested to – and complies with – part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.
