Brand	TriStar
Model	AC5522
Product type	Mobile air conditioner
Power supply	220-240V ~ 50Hz
Operating modes	Cool, Dehumidifier, Fan
Fan speed	High, Medium, Low
Remote control	Yes
Timer (programmer)	Yes, adjustable from 0h30 to 24h
Swing function	Yes
Sleep function	Yes
Internal drying	Yes (accessible in fan mode)
Temperature range (Cool mode)	18°C to 30°C (64°F to 86°F)
Recommended ambient temperature	17°C to 35°C
Recommended relative humidity	20-85% RH
Exhaust hose length	60 to 170 cm (including adapter)
Minimum distance from walls/objects	50 cm
Filter	Washable (cleaning every 15 days)
Warranty	24 months
Maintenance and cleaning	Clean with a soft damp cloth; do not use chemical products
Safety	Do not use in a bathroom; do not let children play; do not obstruct air inlets/outlets

Frequently Asked Questions - AC5522 TRISTAR

How to install the exhaust hose?

Connect the round connector to the hose assembly, then attach the rounded end to the air outlet of the air conditioner. Next, attach the flat connector to the window sealing plate. Make sure there are no obstacles within 50 cm of the window for optimal exhaust. Use the minimum hose length (60 cm) to save energy.

What to do when the water full indicator lights up?

The indicator shows that the tank is full. The air conditioner stops. Place the unit in a location where water can be drained (toilet, sewer). Unscrew the screw and remove the drain plug to empty. Replace the drain plug and screw before using the unit again.

How to clean the filters?

Turn off and unplug the unit. Remove the filters in the direction indicated. Wash them in warm water (about 40°C) with a mild detergent. Let them dry in the shade, then put them back in place. Cleaning every 15 days is recommended.

How to use the timer (programmer)?

Press the Timer button. The LED indicator lights up and the display flashes. Use the UP and DOWN buttons to set the time from 0h30 to 24h00. In stop mode, the air conditioner will turn off after the delay; in sleep mode, it will turn on. During adjustment, you can select the desired mode and temperature.

What are the different operating modes?

The unit offers three modes: Cool (cooling, adjustable from 18°C to 30°C), Dehumidifier (no temperature or speed adjustment), and Fan (multiple speeds, no temperature adjustment). The fan mode also allows an internal drying function.

How to use the remote control?

The remote control allows you to turn on/off, adjust temperature, speed (high, medium, low), mode, timer, swing, and sleep. The °C/°F buttons convert the display. Make sure the batteries are in good condition.

Why does the air conditioner not restart immediately after stopping?

In Cool mode, a 3-minute delay is required before restarting to protect the compressor. This delay is normal and requires no action.

What do the error codes E2, E3, FL, DF mean?

E2 : Abnormal room temperature sensor; E3 : Abnormal coil tube sensor; FL : Water full alarm; DF : Anti-freeze or defrost mode. In case of FL code, drain the water. For others, contact after-sales service.

How to store the unit off-season?

Drain the water, wrap the power cord at the back of the unit, remove the exhaust hose, cover the air conditioner with a plastic bag and store it in a dry place. Remove the batteries from the remote control.

What safety precautions to observe?

Do not use in a bathroom or humid environment. Do not insert objects into air inlets/outlets. Keep the unit at least 50 cm away from walls. Do not use flammable products nearby. Avoid children playing with the unit. Always unplug before cleaning.

USER MANUAL AC5522 TRISTAR

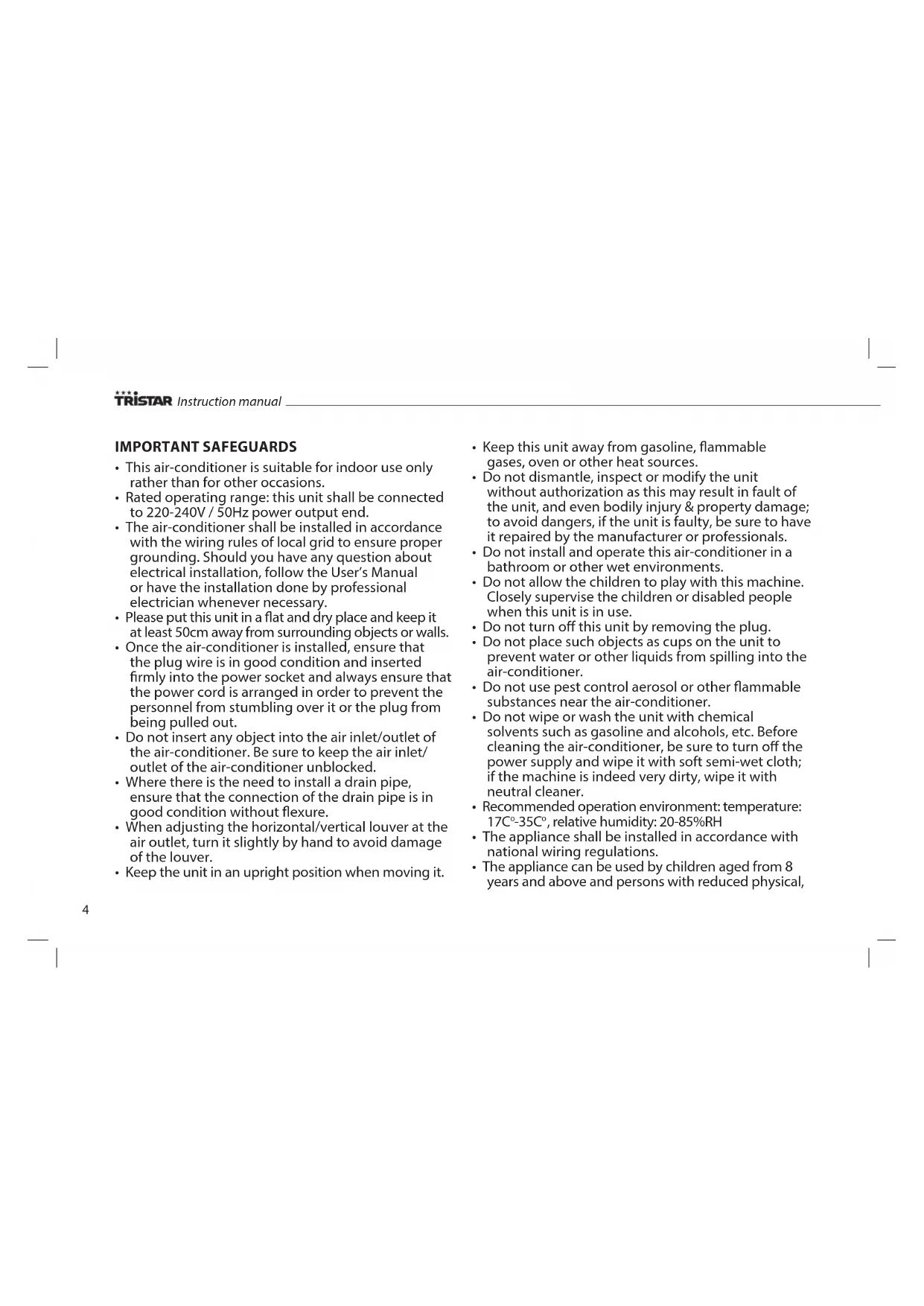

• This air-conditioner is suitable for indoor use only rather than for other occasions.
• Rated operating range: this unit shall be connected to 220-240V/50Hz power output end.
• The air-conditioner shall be installed in accordance with the wiring rules of local grid to ensure proper grounding. Should you have any question about electrical installation, follow the User's Manual or have the installation done by professional electrician whenever necessary.
• Please put this unit in a flat and dry place and keep it at least 50cm away from surrounding objects or walls.
• Once the air-conditioner is installed, ensure that the plug wire is in good condition and inserted firmly into the power socket and always ensure that the power cord is arranged in order to prevent the personnel from stumbling over it or the plug from being pulled out.
• Do not insert any object into the air inlet/outlet of the air-conditioner. Be sure to keep the air inlet/outlet of the air-conditioner unblocked.
• Where there is the need to install a drain pipe, ensure that the connection of the drain pipe is in good condition without flexure.
• When adjusting the horizontal/vertical louver at the air outlet, turn it slightly by hand to avoid damage of the louver.

• Keep the unit in an upright position when moving it.

• Keep this unit away from gasoline, flammable gases, oven or other heat sources.

• Do not dismantle, inspect or modify the unit without authorization as this may result in fault of the unit, and even bodily injury & property damage; to avoid dangers, if the unit is faulty, be sure to have it repaired by the manufacturer or professionals.
• Do not install and operate this air-conditioner in a bathroom or other wet environments.
• Do not allow the children to play with this machine. Closely supervise the children or disabled people when this unit is in use.
• Do not turn off this unit by removing the plug.
• Do not place such objects as cups on the unit to prevent water or other liquids from spilling into the air-conditioner.
• Do not use pest control aerosol or other flammable substances near the air-conditioner.
• Do not wipe or wash the unit with chemical solvents such as gasoline and alcohols, etc. Before cleaning the air-conditioner, be sure to turn off the power supply and wipe it with soft semi-wet cloth; if the machine is indeed very dirty, wipe it with neutral cleaner.
  Recommended operation environment: temperature: 17C^ - 35C^ relative humidity: 20 - 85% RH
• The appliance shall be installed in accordance with national wiring regulations.
• The appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

PARTS

1. Guide strip
2. Control panel
3. Inlet grid
4. Exhaust pipe
5. Corner wheel
6. Handle
7. Strainer
8. For installation of power line plug
9. Buckle of power line
10. Drainage outlet
11. Power line with plug
12. Exhaust outlet

CONTROL PANEL

(Power): press this button to turn on or off the air conditioner.

Mode): press this button to select cool, dehumidify or fan mode.

and in the timer on or timer off is set, pressing up or down can adjust on/off time; in running state of cool or heat mode or timer state, pressing up or down can adjust the set temperature; and pressing up and down simultaneously can realize conversion between ^ C and ^ F , and ^ C is displayed in default.

= a (Speed): press this button to select the speed level in fan and cool mode: high, mid and low. In fan mode press this button for 5s to run the internal dry function, press this button for another 5s to cancel.

(Timer): press this button to enter timer setting state.

Display: displays the set temperature in the cool mode, and displays the room temperature in fan and dehumidify modes.

REMOTE CONTROL

①	power press this button to turn on/off the air conditioner.
②	timer press this button to set timer.
③	swing press this button, and the horizontal guide vane rotates automatically.
④	temperature conversion button temperature is converted from °C to °F.
⑤	cool press this button to select cool mode.
⑥	dehumidify press this button to select dehumidify mode.
⑦	fan press this button to select fan mode.
⑧	up press up to set temperature or adjust timer.
⑨	down press down to set temperature or adjust timer.
⑩	high press this button to select high speed.
⑪	mid press this button to select mid speed.
⑫	low press this button to select low speed.
⑬	sleep press this button to set sleep mode. at the moment the speed of upper and lower fans is fixed at low speed, in sleep mode temperature and speed cannot be changed. press this button again to cancel.

INSTALLATION

Install in a flat and dry place, and 50cm must be left around the air conditioner to enable smooth circulation of air. (Figure 1.)

Assembly method of exhaust pipe

• Connect exhaust pipe assembly with round joint. (Figure 2.)

Fix the round end of the connected exhaust pipe assembly at air outlet of the air conditioner. (Figure 3.)
- Connect the oblate joint of the connected exhaust pipe assembly with seal plate of window. Install the seal plate on the nearest window. Make sure there are no obstacles at a distance of 50cm around the window to guarantee unimpeded air exhaust.
- The exhaust pipe is 60cm 170cm long (including adapter). We recommend using the minimum length so as to save energy f
- The length of exhaust pipe is especially designed in accordance with the specification of the air conditioner. Please do not use other exhaust pipes of different lengths or materials, in such way failure may be caused.

Installation of window seal plate (Figure 4.)

Design of window sealplate complies with most standard horizontal or vertical windows.

• Wall mounted (Figure 5.)
  Bow alignment (Figure 6.)
  Incorrect bending (Figure 7.)

OPERATION

Timer setting

• Timer off: When the air conditioner is running, press the timer button, the timer LED lamp is on, and the display will blink. Use the UP and DOWN buttons to adjust time from 0.5h to 24h. When the set time expires, the air conditioner turns off automatically.
• Timer on: When the air conditioner is in standby mode, press the timer button, the timer LED lamp is on, and the display will blink. Use the UP and DOWN buttons to adjust time from 0.5h to 24h.
• During this setting procedure, the operating modes after start can be selected, if the cool mode is selected, the set temperature can be adjusted simultaneously. After the set time expires, the air conditioner starts automatically and runs in the selected operating mode.

Change of the set time

You can press TIMER once in the running process of the timer, the remaining time will be displayed. Press the UP and DOWN buttons to increase/decrease the time. If you press the TIMER button again during blinking, the set time will be cancelled, namely timer quits.

COOL mode

!!Attention: if the air conditioner is restarted immediately after shutdown in the COOL mode, it will take 3 minutes before the cooling process will start.!!!

• Press the MODE button to select the COOL mode.
• Press the UP or DOWN button to set the desired temperature in a range of 18 30^ (64-86°F).
• Press the SPEED button to select the desired fan speed.
  After selecting COOL mode, press the SLEEP button on the remote control to enter the SLEEP mode. The speed level will turn automatically in the lowest mode and the air conditioner will turn off automatically in approximate 7h.
• Press the SWING button to activate the swing function.

DEHUMIDIFY mode

• Make sure the exhaust pipe is not installed.

• Press the MODE button to select the DEHUMIDIFY mode.

• Temperature and speed are not adjustable.
• Press the SWING button to activate the swing function.

FAN mode

• Press the MODE button to select the FAN mode.
• Press the SPEED button to select the desired fan speed. In this mode press SPEED for "5 seconds" to run the internal dry function, i.e. both upper and lower fans work simultaneously. Press SPEED for another "5s" to cancel the internal dry function. Make sure the exhaust pipe is not installed during this mode.
• During the fan mode the temperature is not adjustable.
• Press the SWING button to activate the swing function.

Cautions:

• When water full indication light comes on, the air conditioner will stop work, you should drain the water like described further in the manual. After drainage the air conditioner will start automatically.
• If your room faces the sun directly, please close the curtains.

DRAINAGE OPERATION (FIGURE 8.)

• When water full indication light comes on, the air conditioner will stop work, you should drain the water.
• Place the air conditioner on a place where you can drain the water directly (such as toilet or sewer).
• Unscrew the nut and pull out the plug. Install the plug and nut before use.

STAR Instruction manual

MAINTENANCE (FIGURE 9.)

Before cleaning please turn off the air conditioner and pull out the plug.
- Clean surface of the air conditioner with duster or semi-wet soft cloth.
Do not use chemical reagents, such as benzene, alcohol and gasoline
- If strainers are blocked by dust, air circulation will be impeded this will have influence on the efficiency of the air conditioner.
- If the air conditioner is used regularly the strainers needs to be cleaned once per two weeks.
- Pull out trainers in the direction as shown.
- Put strainers into warm water with neutral detergent (about 40^ ) and clean up.
- Let the trainers dry in shade place.
Install strainers back in the original position

POSTSEASON STORAGE

When the air conditioner is out of season or not used for long time, corresponding maintenance measures should be taken.

• Drain the water as described in the drainage section
• Wind up, and fasten power line at the back of the unit.
• Remove exhaust pipe.
• Set the air conditioner into a plastic bag and put it in a dry place.
  Take out of cells of remote control and keep properly.

DETECTION CODES

Intelligent detection functions

Detection codes Meaning

E2 Abnormal sense of room temperature sensor
E3 Abnormal sense of coil pipe sensor
FL The air conditioner is in water full alarm state
DF The air conditioner is in anti-freezing or defrosting state

GUARANTEE

• This product is guaranteed for 24 months granted. Your warranty is valid if the product is used in accordance to the instructions and for the purpose for which it was created. In addition, the original purchase (invoice, sales slip or receipt) is to be submitted with the date of purchase, the name of the retailer and the item number of the product.
• For the detailed warranty conditions, please refer to our service

website: www.service.tristar.eu

Air conditioner

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

SUPPORT

You can find all available information and spare parts at service.tristar.eu!
