Product Type	Portable Evaporative Air Cooler
Brand	TriStar
Model	AT-5443BS
Voltage	220-240V ~ 50Hz
Fan Power Input	55.47 W
Maximum Fan Flow Rate	5.44 m³/min
Fan Sound Power Level	55.9 dB(A)
Maximum Air Velocity	3.08 m/s
Service Value	0.10 (m³/min)/W
Cooling Method	Evaporative cooling with water and ice boxes
Fan Speeds	Low, Middle, High
Oscillation	Yes, swing mode
Humidification Function	Yes, cool button activates evaporative cooling
Water Tank Capacity	Approximately 5 liters (based on typical size)
Ice Boxes Included	Yes, 2 pieces
Filter Type	Removable air filter and evaporation pad
Controls	Buttons for On/Off, Speed, Swing, Cool
Dimensions (Approx.)	30 x 30 x 70 cm (width x depth x height)
Weight (Approx.)	5 kg
Caster Wheels	Yes, for easy mobility
Safety Features	Auto shut-off on low water? (not specified, but recommended)
Cleaning	Disconnect power, clean exterior with damp cloth, wash filter and pad with mild detergent
Storage	Drain water, clean and dry thoroughly before storing in a dry place
Standby Power Consumption	Not specified (N/A in table)

Frequently Asked Questions - AT-5443BS TRISTAR

How do I use the ice boxes?

Fill the ice boxes with water and place them in a freezer until completely frozen. Then insert the frozen ice boxes into the water tank to enhance cooling. Make sure to handle them carefully.

How often should I clean the water tank and filter?

Empty and clean the water tank every three days. Regularly clean the filter and evaporation pad with warm water and mild detergent. This prevents bacteria and limescale buildup.

What should I do if the air cooler is not cooling effectively?

Ensure the water tank is filled to at least the minimum level. Use frozen ice boxes for extra cooling. Clean the filter and evaporation pad if clogged. Also check that the swing function is on for better air distribution.

Is it safe to leave the appliance unattended while plugged in?

No, the user must not leave the device unattended while it is connected to the supply. Always unplug during cleaning and when not in use.

Can I use the cooler without water?

Yes, you can use the fan function without water. However, the cooling effect will be minimal. Do not use the Cool function when the water tank is empty to avoid damaging the pump.

How do I clean the exterior of the air cooler?

Disconnect the power cord. Use a damp cloth to wipe the exterior. Never use harsh abrasives, steel wool, or immerse the unit in water.

What is the noise level of this air cooler?

The fan sound power level is 55.9 dB(A), which is similar to a quiet conversation. It is suitable for use in bedrooms or offices.

Can children use this appliance?

Children aged 8 years and above can use it with supervision. Children under 8 should not use it. Keep the appliance and cord out of reach of children under 8.

How do I store the air cooler during winter?

Empty and clean the water tank, filter, and evaporation pad. Dry all parts thoroughly. Store the unit in a dry, cool place to prevent mold growth.

Where can I find spare parts or support?

Visit www.tristar.eu for all available information and spare parts. You can also contact TriStar Europe B.V. or Smartwares S&L Ltd. Ensure repairs are done by qualified personnel using original parts.

USER MANUAL AT-5443BS TRISTAR

EN | Instruction manual

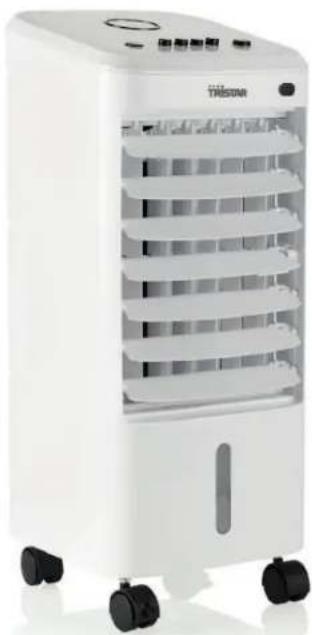

White Théosar air conditioner unit with multiple cooling fans and wheels (no visible text or symbols)

AT-5443BS

\*\*\* TRISTAR

PARTS DESCRIPTION

Two gray cylindrical objects with small protrusions, one labeled with number 7 (no text or symbols on objects)

SAFETY

- By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Never move the appliance by pulling the cord and make sure the cord cannot become entangled.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

- The appliance must be placed on a stable, level surface.

- The user must not leave the device unattended while it is connected to the supply.

- This appliance is only to be used for household purposes and only for the purpose it is made for.

- This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

- Empty the tank and refill every third day. Before refilling, clean it with fresh tap water or cleaning agents if required by the manufacturer. Remove any scale, deposits, or film that has formed on the sides of the tank or on interior surfaces, and wipe all surfaces dry.

- Clean the filter regularly.

- Be aware that high humidity levels may encourage the growth of biological organisms in the environment.

- Unplug the appliance during filling and cleaning.

- Never leave water in the reservoir when the appliance is not in use.

\*\*\* TRISTAR

Instruction manual

• Empty and clean the air cooler before storage. Clean the air cooler before next use.
• WARNING: Microorganisms can grow in the water reservoir and be blown in the air causing serious health risks when the water is not renewed and the tank is not cleaned regularly and properly.

This product complies with conformity requirements of the applicable European Regulations or Directives.

This product complies with conformity requirements of the applicable UK Regulations.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Lokal Authority or local store for recycling advise.

Cleaning and maintenance

• Always disconnect the power cord from the socket before any cleaning.

• Clean the outside with a damp cloth. Never use harsh and abrasive cleaners, steel wool or a scouring pad as this will damage the device. Do not immerse in water or other liquid.
• Removable air filter and evaporation pad. Remove them from the back of the unit, then wash them in warm water with a mild detergent and a soft brush. Take care not to pierce the pad and filter.
• Please ensure that the unit and all of its parts are cleaned regularly to reduce the risk of limescale and bacteria forming. The evaporation pad must be installed flatly, in order to avoid leaking.
• If the fan will not be used for a long period of time, drain the condensate water and store it in a dry place.
• This electrical appliance was manufactured in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

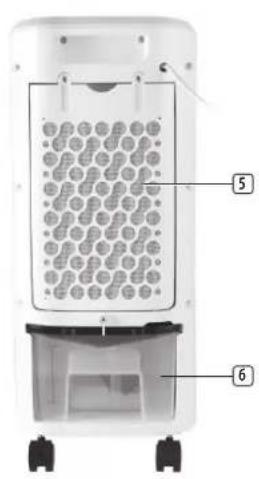

PARTS DESCRIPTION

1. Control buttons
2. Air outlet
3. Water level indicator
4. Caster wheel
5. Filter
6. Water tank
7. Ice boxes
8. Swing button
9. Off button
10. Low / Middle / High buttons
11. Cool button

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
- Place the device on a flat stable surface and ensure a minimum of 10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.
- Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50Hz)
- Fill the water tank.

1. Rotate the small knob to release the water tank.
2. Pull out the water tank.
3. Add water into the tank to at least the minimum level but don't exceed the maximum level indicator.
4. Pour water into the ice box and put in the freezer until it is completely frozen.
5. Put the frozen ice boxes into the water tank.
6. The frozen ice boxes can be put in the water tank to increase the cooling effect.

Do not use the cooling / evaporator function if the water tank is empty or if the water level is below the minimum mark, it can severely damage the pump.

USE

- Swing: Use the swing button to turn on the oscillation mode. The airflow will now move from side to side.

STAR

Instruction manual

• Off : Press the off button to turn the device off.
• Low/Middle/High : Press the speed buttons to select the desired airflow speed. There are three levels to choose from (low, middle and high speed).
• Cool : Press the cool button to turn on the humidification cooling function. The unit will act as a evaporator now. If combined with the ice boxes, this unit can lower its surrounding temperature even more.
• If you want to use the ice boxes, remember to put it in the freezer beforehand. Use them when they are completely frozen.

TABLE

Information requirements for comfort fans P
Information to identify the model(s) to which the information relates to:
Description Symbol Value Unit
Maximum fan flow rate F 5.44	m3/min
Fan power input P 55.47 W
Service value Sv 0.10 (m3/min)/W
Standby power consumption Psb N/A W
Off power consumption	Poff N/A W
Fan sound power level	Lwa	55.9	dB(A)
Maximum air velocity	C	3.08 meters/sec
Season electricity consumption	Q	N/A	kWh/a

Measurement standard for service value

IEC 60879:1986 + cor1:1992

ENVIRONMENT

This appliance should not be put into the domestic garbage at

the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.tristar.eu!

Tristar Europe B.V. Jules Verneweg 87

5015 BH Tilburg | The Netherlands | www.tristar.eu

Smartwares S&L Ltd. Meriden House | 6 Great CornbowHalesowen

West Midlands | B63 3AB | United Kingdom | www.tristar.eu

CE UK CA
